Gates DriveAlign Automatic Belt Tensioner 38285 for Dodge Cummins 2003–2020 5.9L/6.7L — Direct-Fit, Vibration-Damping

The Gates 38285 DriveAlign automatic belt drive tensioner maintains correct serpentine belt tension for '03–'20 Dodge Cummins 5.9L and 6.7L turbo diesel engines.

When a belt tensioner wears, you risk belt slip, noise, and accelerated wear on accessories. The Gates 38285 is a direct-fit replacement tensioner assembly engineered to match or exceed OEM durability for Dodge Cummins trucks from 2003 through 2020. It combines proven materials, vibration control, and a patented seal design to keep the belt running true under highway loads and heavy-duty duty cycles.

How does this tensioner fit my Dodge Cummins engine?

The Gates 38285 is designed as a factory-match replacement for '03–'20 Dodge Ram Cummins trucks equipped with 5.9L or 6.7L turbo diesel engines. Installation follows OE mounting points and belt routing so it aligns with existing accessories and pulleys without modification. Use the engine year and displacement to confirm compatibility before ordering.

• Direct-fit for Dodge Cummins 5.9L and 6.7L engines (2003–2020)
• Same mounting pattern and belt alignment as OEM tensioner

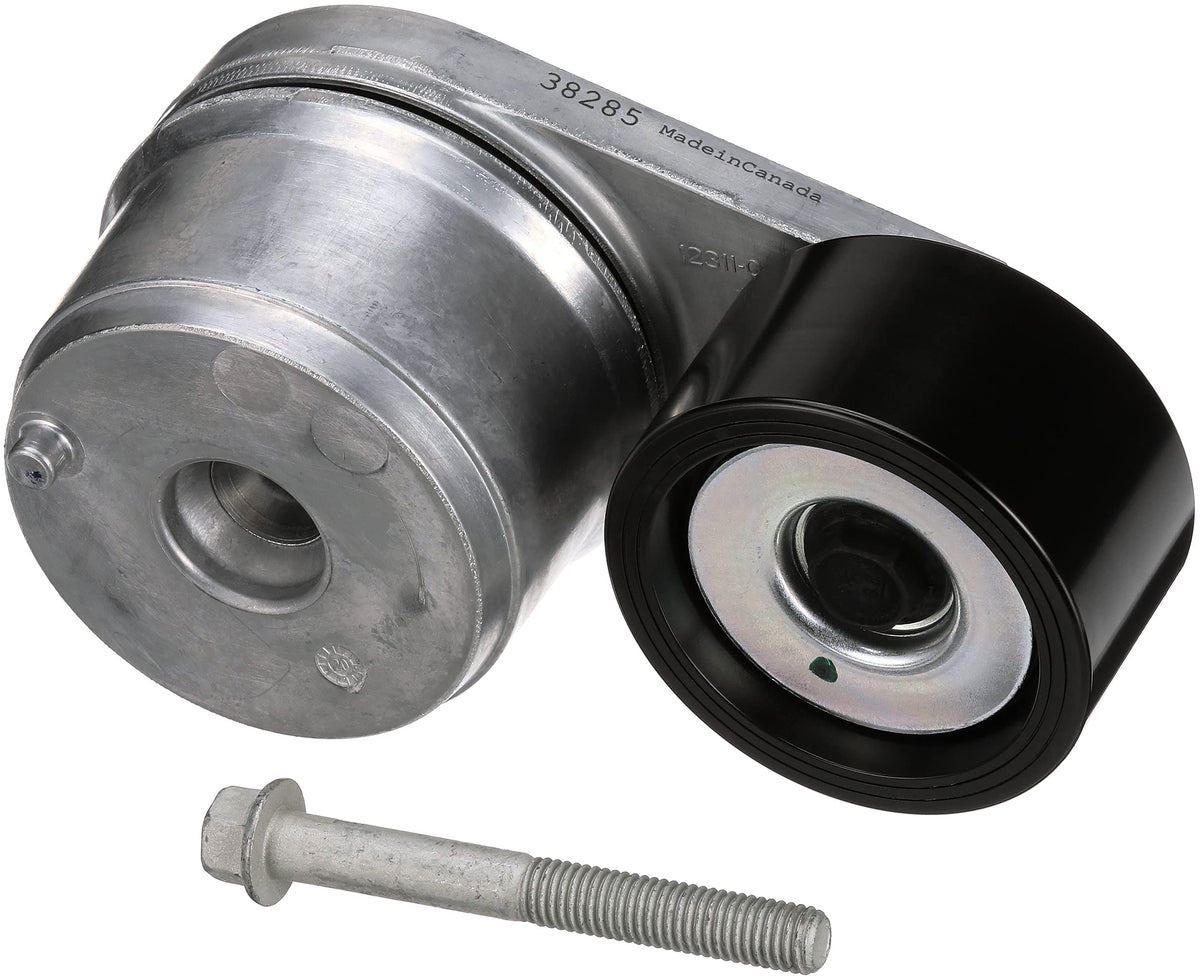

• Ships as a complete assembly, ready to install

What features keep the belt system quieter and longer-lasting?

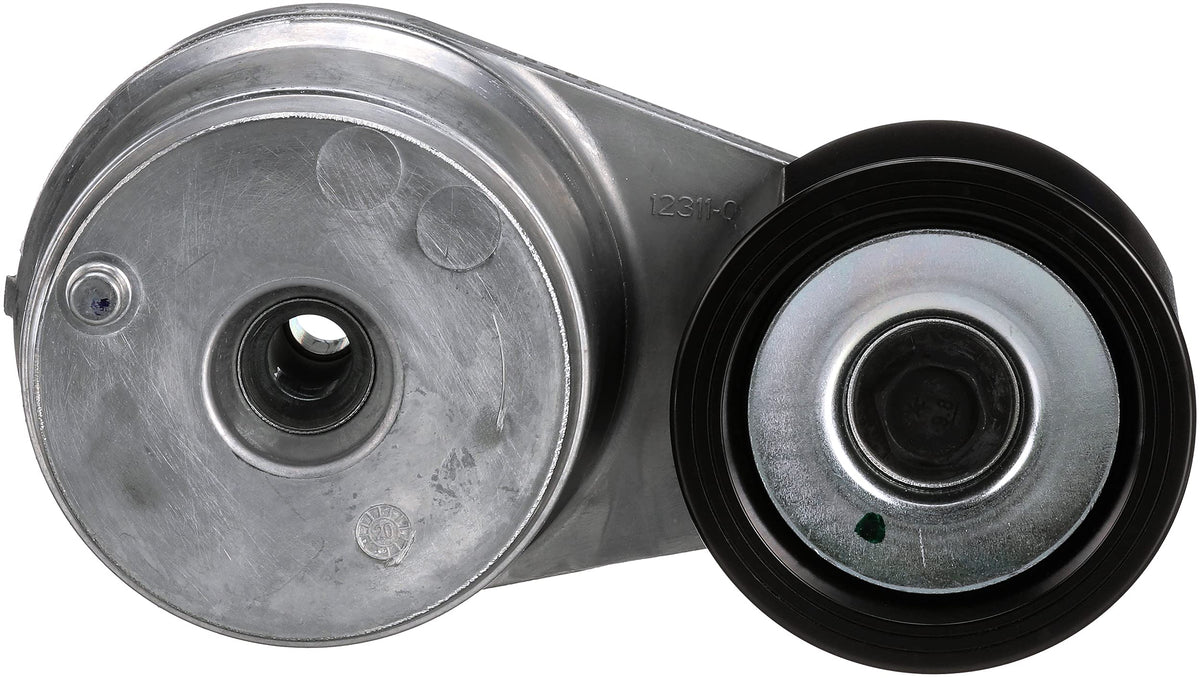

Gates engineered the 38285 with a vibration-damping system and a torsional round spring that control oscillation and deliver consistent tension across engine speeds. A patented labyrinth seal shields internal components from dirt and contaminants, helping meet or exceed OE service life expectations. Those details reduce belt squeal and protect alternator, water pump, and other accessory bearings.

• Patented vibration damping absorbs extreme engine vibration
• Torsional round spring provides steady tension under load
• Labyrinth seal keeps contaminants out to extend component life

Will this part match original equipment quality?

Yes — Gates manufactures the 38285 using materials and processes comparable to or improved from the original parts used by vehicle manufacturers. That means consistent performance, fatigue resistance, and reliability under typical highway and towing conditions. Gates also tests its tensioners to ensure they meet dimensional and functional OE tolerances.

• Constructed with OE-equivalent or improved materials
• Engineered and tested against factory specifications
• Intended to restore factory belt tension and routing

How easy is installation and what should I inspect during replacement?

Installation is straightforward for anyone comfortable with basic engine service: relieve belt tension, remove the old assembly, and bolt the Gates 38285 into place following torque specifications. While replacing the tensioner, inspect the serpentine belt, idler pulleys, and accessory bearings for wear to avoid repeating the job. Replace any worn components to ensure the new tensioner performs as intended.

• Replace belt if cracks, glazing, or excessive wear present
• Check idlers and accessory pulleys for smooth rotation and play
• Tighten mounting hardware to OEM torque values during install

Who is this for? The Gates 38285 is aimed at Dodge Ram Cummins owners, fleet managers, and diesel technicians seeking a reliable, OE-grade tensioner replacement for 2003–2020 5.9L and 6.7L turbo diesel engines. It’s a practical upgrade when restoring proper belt tension, eliminating noise, or refreshing a worn accessory drive during routine maintenance or repair.
