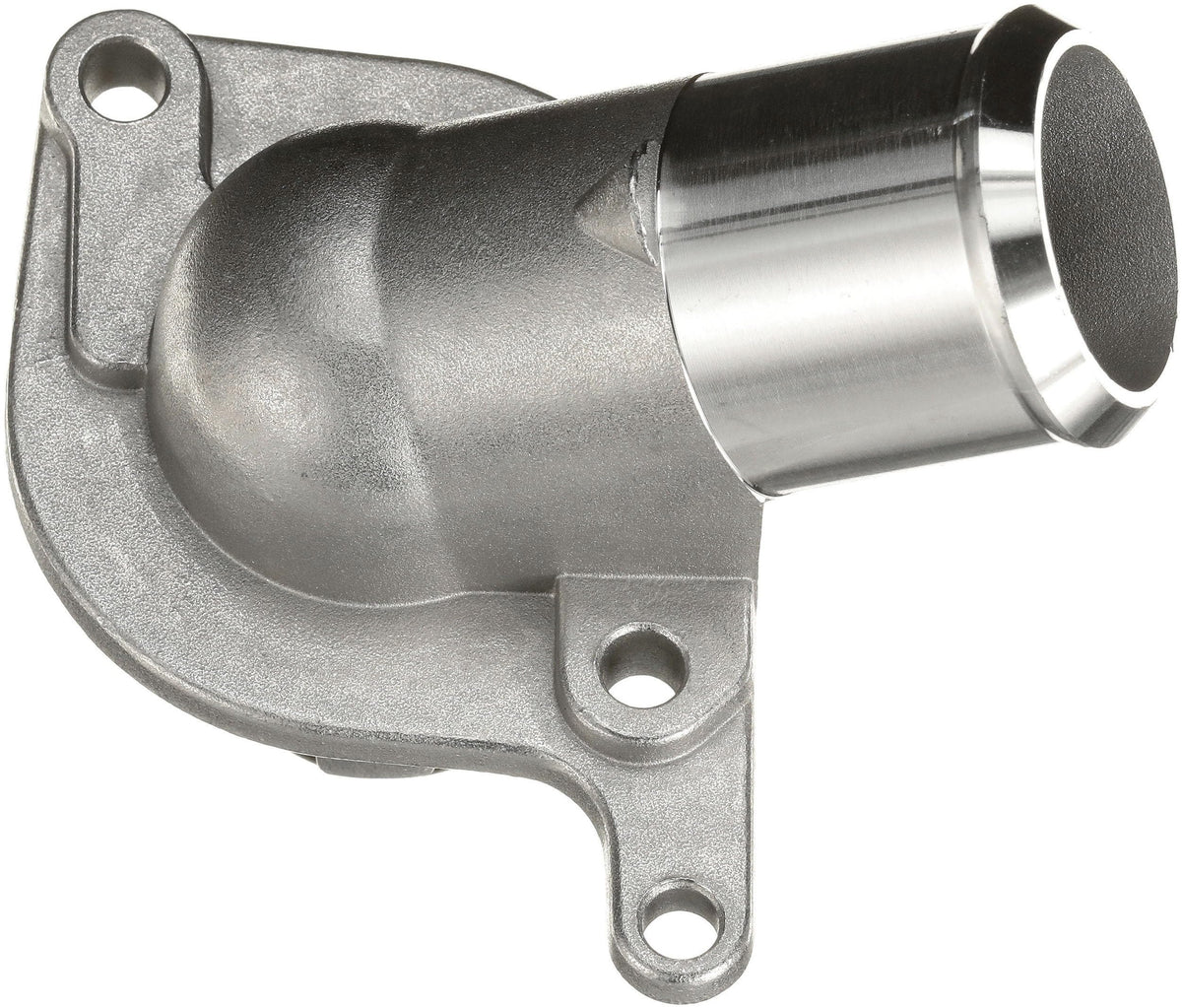

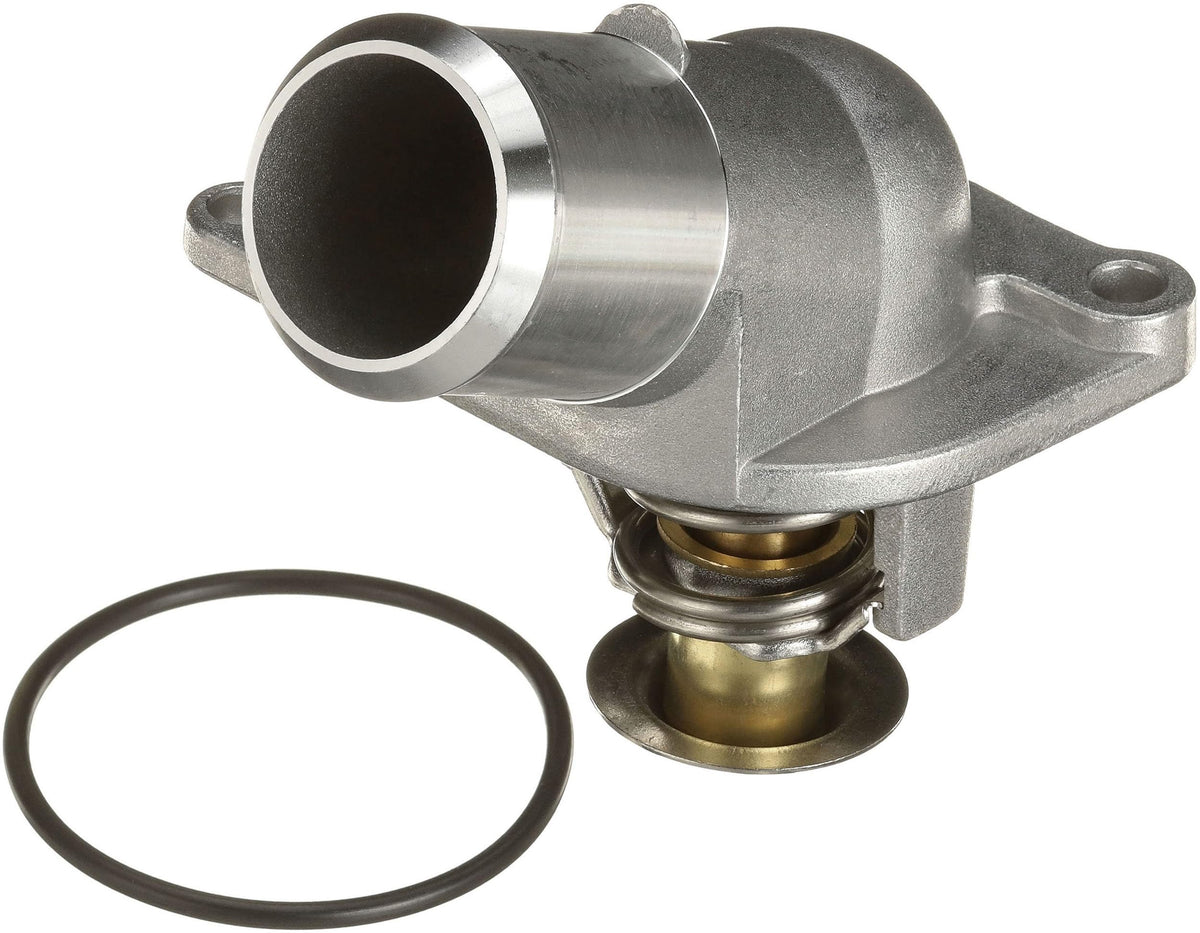

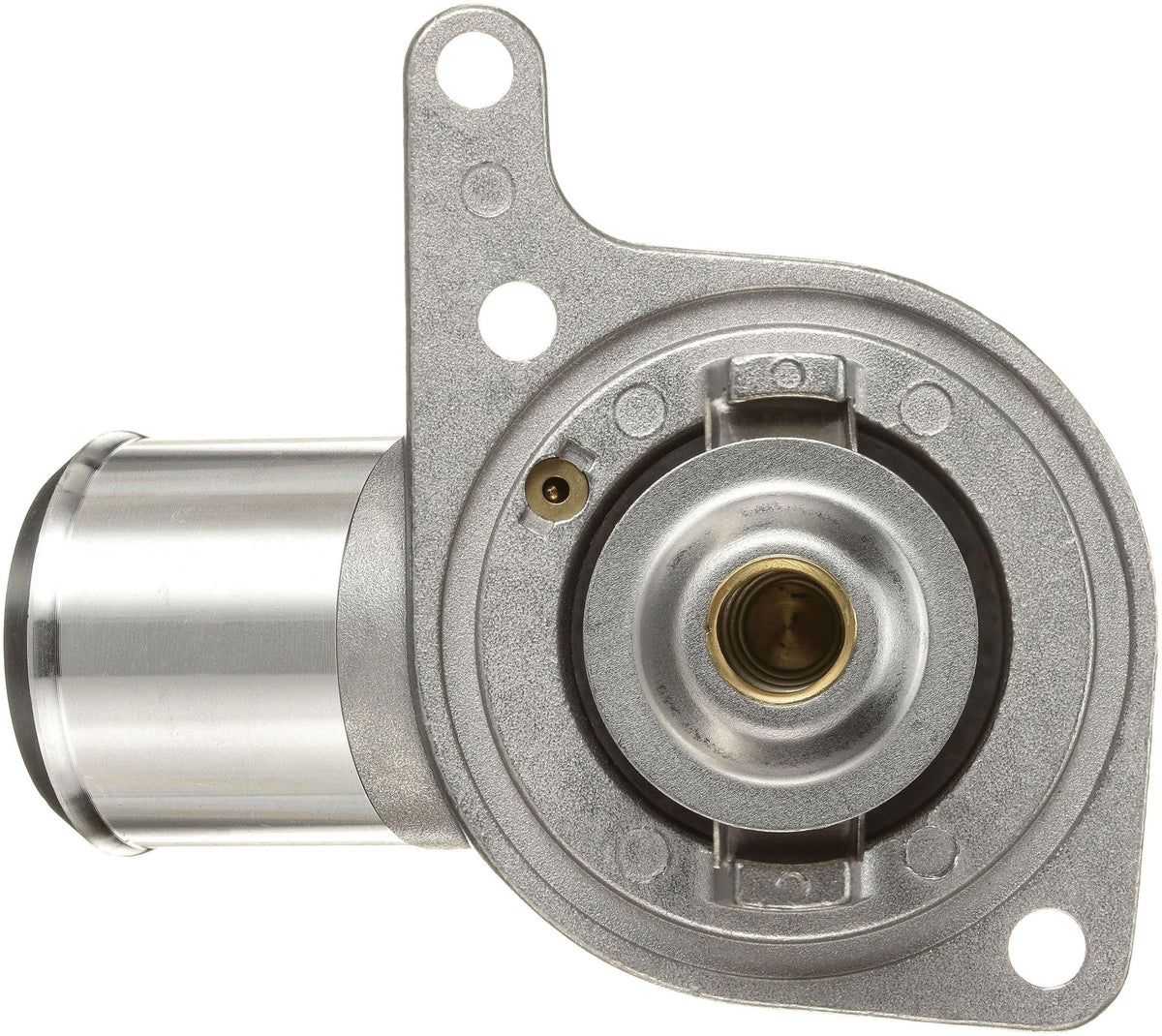

Gates Engine Coolant Thermostat Integrated Housing 187°F Opening Reverse-Poppet with Flange Seal

The Gates 33910 is an integrated housing engine coolant thermostat assembly rated to open at 187°F, designed to control coolant flow while minimizing leakage and simplifying replacement.

This integrated housing thermostat combines the thermostat and outlet flange into a single assembly built for vehicle-specific fitment. Its reverse-poppet, offset design uses water pump pressure to help keep the valve closed when the engine is cold, reducing unwanted coolant bypass. The unit includes jiggle-pin valves and a flange-mounted seal for reliable seating and straightforward installation when a direct OEM replacement is required.

How does this thermostat control engine temperature reliably?

The Gates 33910 uses a reverse poppet mechanism that opens at a calibrated 187°F (about 86°C) to regulate coolant flow through the engine and radiator. When the engine is cold, pump pressure helps hold the poppet closed, lowering early leakage and aiding quicker warm-up. Once the thermostat reaches its operating temperature, the valve opens to allow coolant circulation and maintain stable temperatures under load.

• 187°F opening point provides consistent thermal control for compatible engines
• Reverse poppet design reduces bypass leakage during warm-up
• Pump-pressure-assisted closure improves cold-start performance
• Integrated housing lowers part count and simplifies replacement

What installation and fit details should I know before buying?

This thermostat is a vehicle-specific part designed to replace OE-style integrated housings. The flange dimensions are 1-5/16" x 1-21/32" with two bolt holes plus an included seal and jiggle pin. Always confirm compatibility with your vehicle’s year, make, model, and engine before ordering to ensure a correct fit and straightforward swap.

• Includes flange seal and jiggle pin for proper seating
• Exact flange size: 1-5/16" x 1-21/32" with two mounting holes
• Fit type: vehicle specific — verify OEM part number cross-reference
• Sold as a complete outlet housing assembly for easier replacement

What are the performance and durability features of this assembly?

Gates designed the 33910 to combine reliable thermal performance with durable construction suitable for modern cooling systems. The offset thermostat layout and jiggle-pin valves help air bleed and ensure consistent operation, while the integrated housing reduces potential leak points. Materials and seal design are chosen for resistance to typical coolant environments and temperature cycling.

• Offset thermostat and jiggle-pin valves promote air removal from the system
• Integrated housing reduces gasket interfaces and leak risk
• Seal supplied with the unit for dependable sealing on installation
• Engineered for continuous exposure to coolant and thermal cycling

Who is this for: The Gates 33910 is intended for owners and technicians seeking a direct-fit replacement for a vehicle that requires an integrated housing thermostat opening at 187°F. It suits drivers who want OEM-style thermal control, reduced bypass leakage during warm-up, and a streamlined replacement part that includes the housing, seal, and jiggle pin. Confirm vehicle compatibility before purchase; this part is best for models specified by the OEM cross-reference and for anyone performing routine cooling-system maintenance or thermostat housing replacement.
