Gates Molded Coolant Hose 21615 — OE-Fit Pre-Shaped EPDM Direct-Fit Replacement

The Gates 21615 Premium Molded Coolant Hose is an OE-spec replacement hose pre-shaped for a direct fit in upper, lower, bypass or heater coolant applications.

This molded coolant hose from Gates replaces factory hoses with engineered materials and a pre-shaped design that saves installation time and reduces the need to visit an OEM dealer. Built to the same fit, form and performance expectations as original equipment, the 21615 is part of Gates’ comprehensive molded coolant hose line that covers a wide range of vehicle applications.

How does this hose match original equipment fit and function?

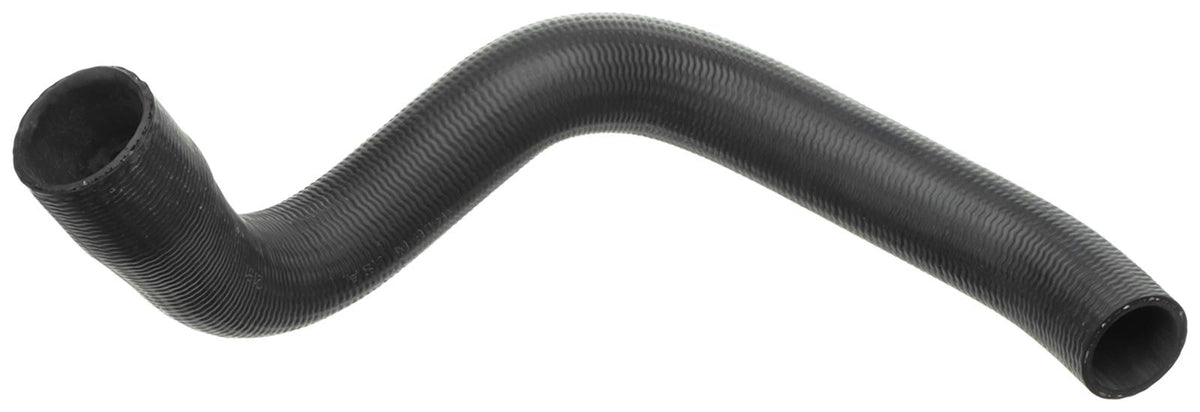

The 21615 is molded to the exacting shapes required for direct replacement in specific coolant circuits, so it installs without guesswork or trimming. Its pre-formed profile ensures correct routing away from hot or moving parts and seals reliably at factory connection points.

• Pre-shaped design for precise routing and a secure seal
• Dimensions: 1 15/32" x 1 25/32" x 20 13/16" to match OE geometry
• Eliminates need for on-vehicle shaping or modifications

What materials and standards help prevent hose failure?

Gates uses an EPDM tube and EPDM cover with synthetic fiber knit reinforcement to resist collapse, heat, ozone and chemical exposure common in engine compartments. The hose is engineered to resist electrochemical degradation, a frequent cause of premature hose wear.

• EPDM tube and cover for coolant and ozone resistance
• Synthetic fiber knit reinforcement for pressure and vacuum stability
• Resists electrochemical degradation to extend service life

What operating conditions can it handle?

The 21615 is rated for extreme ambient and coolant temperatures, giving confidence in both cold starts and high-load conditions. It conforms to relevant SAE and DIN performance requirements for molded coolant hoses, ensuring documented reliability across temperature ranges.

• Temperature range: -40°F to +257°F (-40°C to +125°C)
• Meets SAE 20R4, class D2 and DIN 73411, class A performance requirements (except tolerances)
• Designed to resist collapse under vacuum and handle typical cooling system pressures

How should installers approach replacement and maintenance?

Installers benefit from the hose’s direct-fit shape, which reduces installation time and the risk of misrouting. Gates recommends fitting new hose clamps whenever a coolant hose is replaced to ensure a reliable seal and to avoid clamp-related leaks.

• Replace hose clamps when installing a new coolant hose for optimal sealing
• Inspect mating surfaces and replace any corroded adapters or fittings
• Follow vehicle manufacturer torque and clamp placement guidance

Who is this for: The Gates 21615 Premium Molded Coolant Hose is aimed at vehicle owners, independent repair shops and DIY mechanics who need an OE-grade replacement for upper/lower, bypass or heater hose applications. It’s particularly valuable when a pre-shaped, ready-to-install hose saves time and ensures correct routing in tight engine compartments. If you want a proven, standards-tested molded hose that resists collapse, electrochemical degradation and extreme temperatures, this Gates part is engineered to meet those demands.
