GDUKOP 16.5" 16-Pass Aluminum Transmission Oil Cooler — T-6061 Alloy, -8AN Fittings

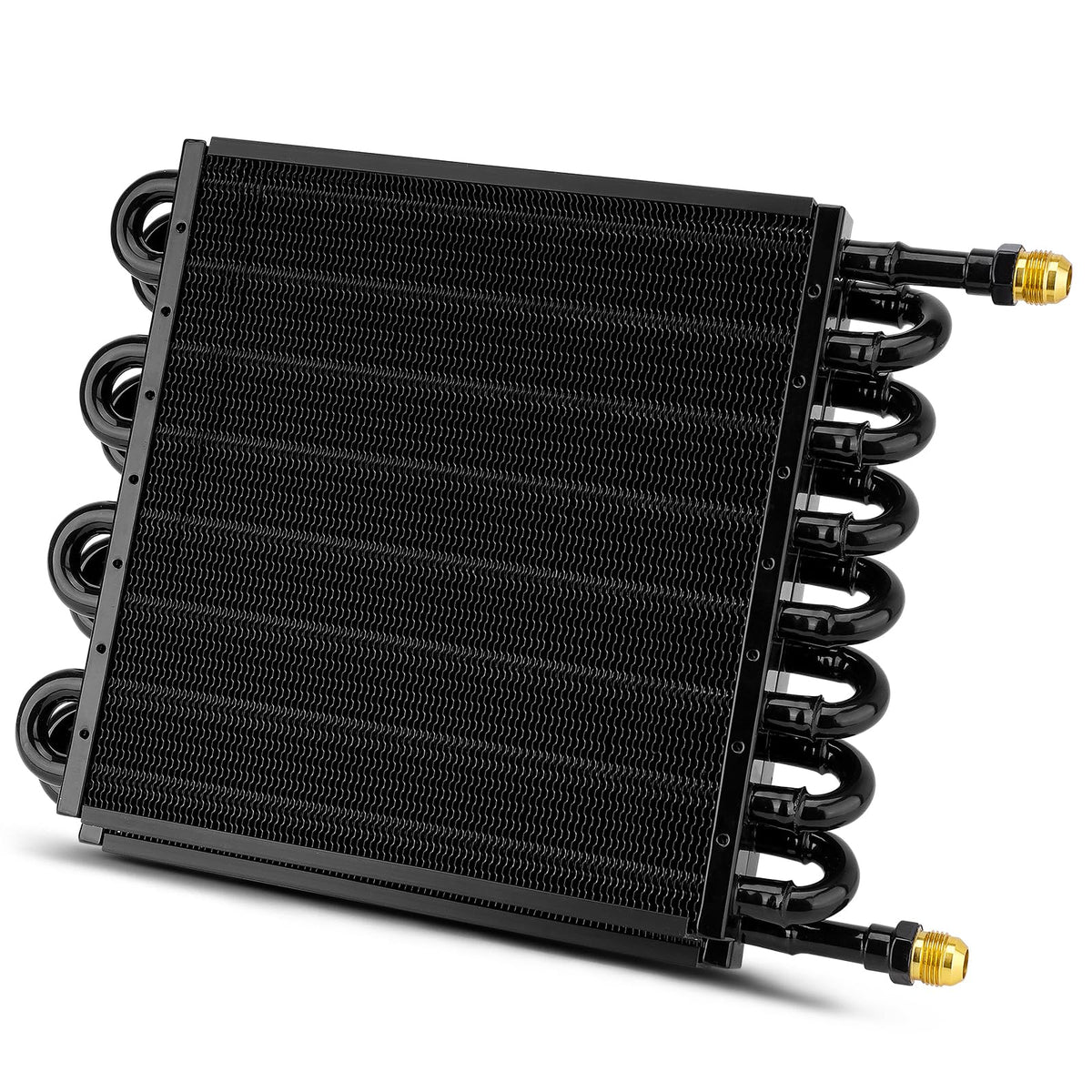

GDUKOP's upgraded 16 1/2" 16-pass aluminum transmission oil cooler is a high-capacity heat exchanger designed to lower transmission fluid temperatures and protect drivetrain components under heavy use.

This 16-row, 16-pass cooler is built from T-6061 aluminum alloy, engineered to accept -8AN (1/2") transmission cooler lines and deliver sustained cooling for towing, performance driving, or prolonged duty cycles. It combines a multi-pass internal flow pattern with tube-and-fin construction to increase surface area and air exposure while keeping weight low and corrosion resistance high. Rated for broad operating temperatures and tested pressures, the unit is intended as an aftermarket upgrade for vehicles and air compressors that need more efficient oil temperature control.

How does this cooler improve transmission performance?

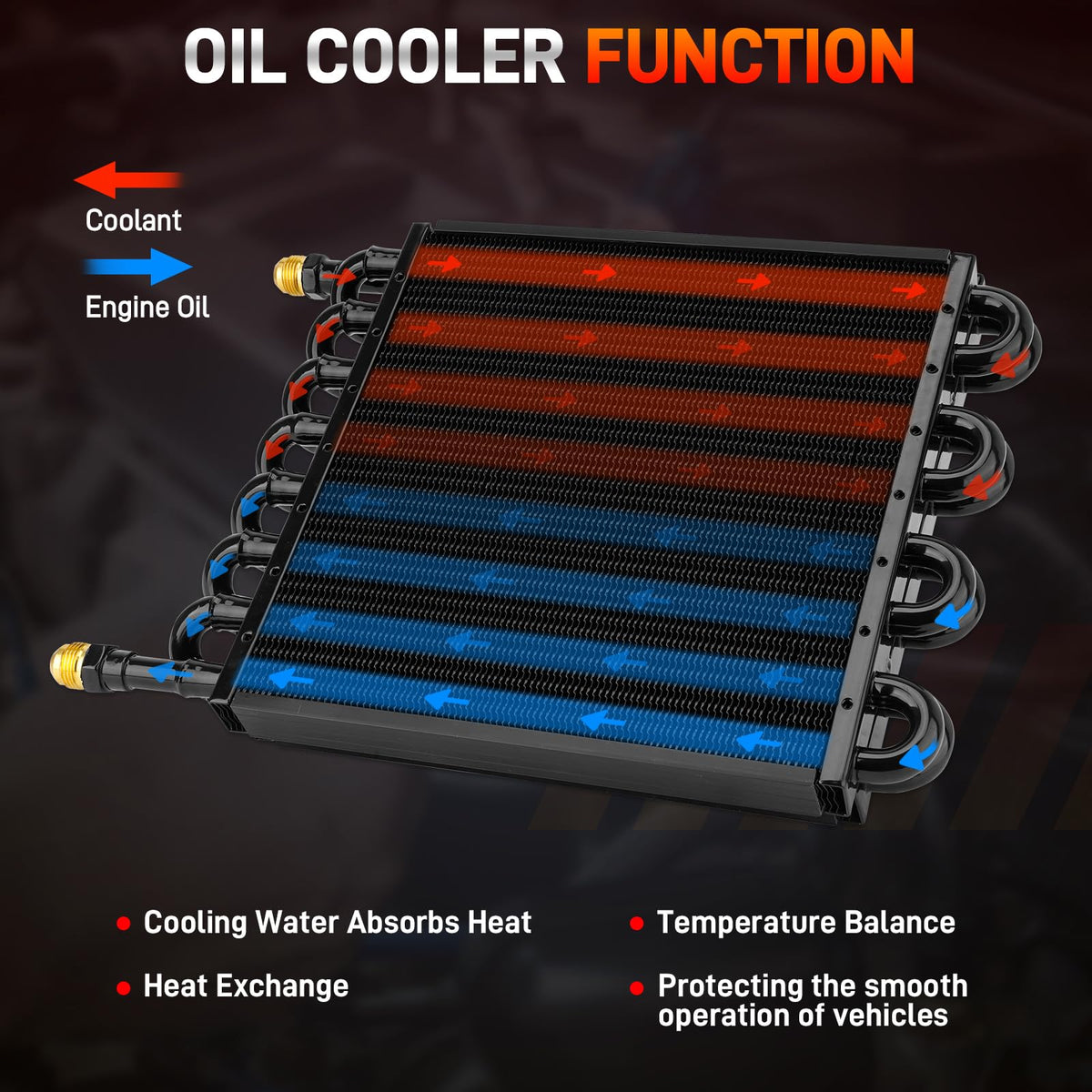

Lowering transmission fluid temperature helps reduce thermal breakdown of additives and minimizes accelerated wear of internal components. The 16-pass configuration forces fluid through multiple channels to increase heat transfer while the aluminum body dissipates heat quickly to surrounding air.

• Multi-pass flow raises heat-exchange effectiveness compared with single-pass cores.
• Tube-and-fin design increases air contact area for faster cooling.
• T-6061 aluminum offers a favorable strength-to-weight ratio and corrosion resistance.

Is it easy to install and which fittings does it use?

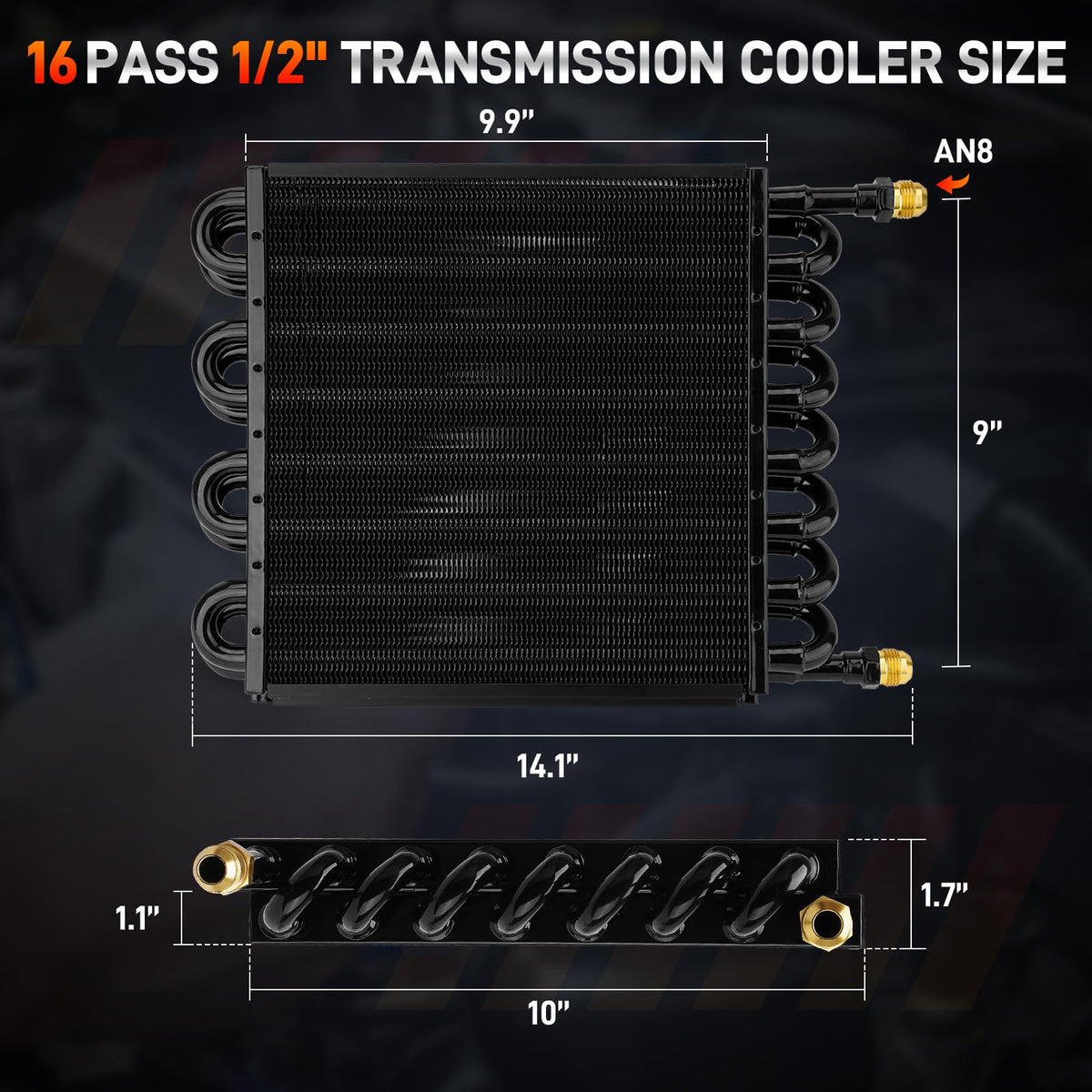

The cooler is made to work with -8AN (1/2") transmission cooler lines common in many aftermarket plumbing systems. Its compact 16.5" length fits behind bumpers or in front-mounted locations with basic brackets and hose adapters.

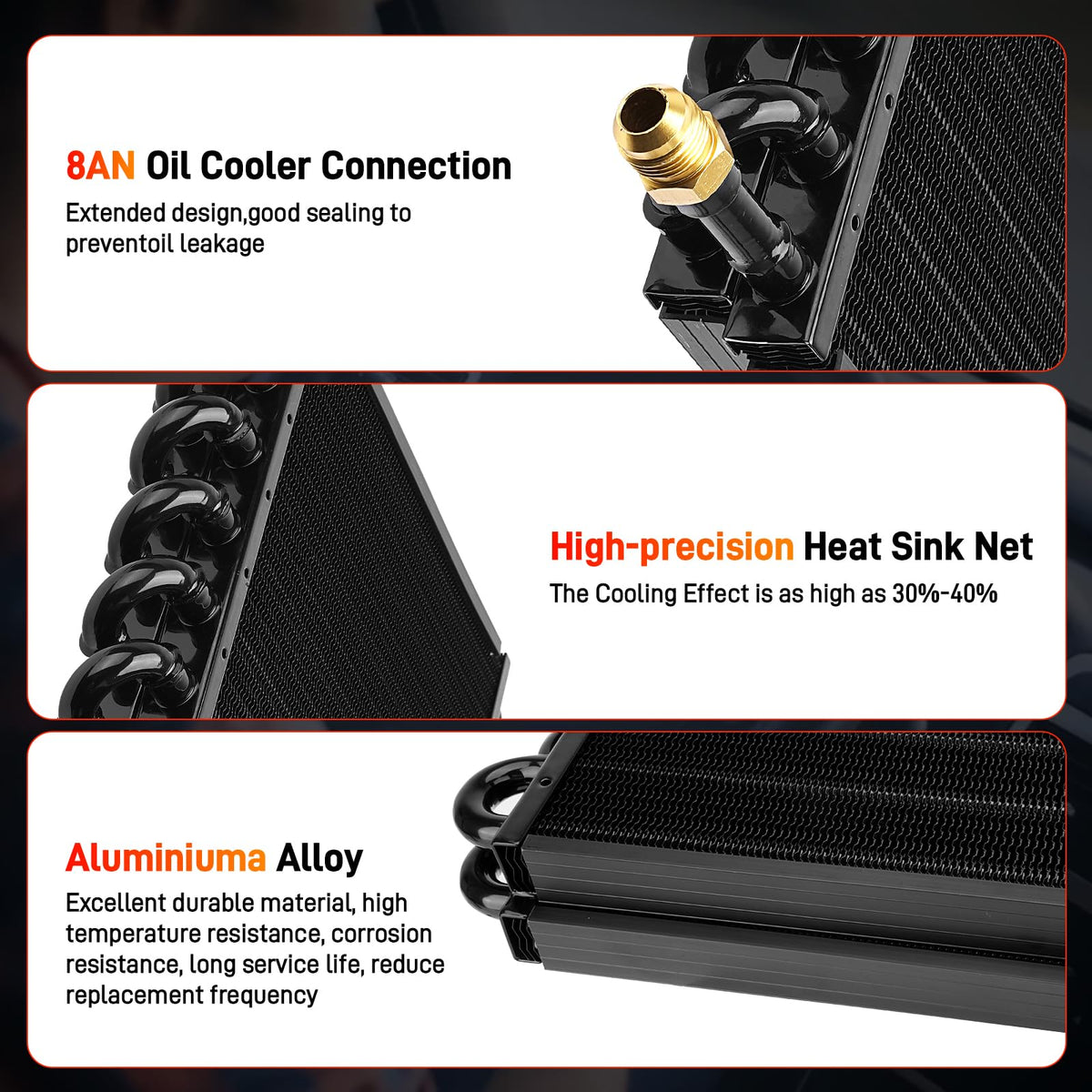

• Compatible with -8AN (1/2") lines for straightforward plumbing integration.
• Compact footprint suits a variety of mounting positions in engine bays or ahead of radiators.
• Standard inlet/outlet spacing supports common aftermarket bracket kits and hose routing.

What are the core durability and operating specifications?

Built from aircraft-grade T-6061 aluminum, the cooler is coated to resist environmental corrosion and provide long service life. It runs across a wide temperature range and is pressure-tested for everyday road and work demands.

• Working temperature range: -40°F to 257°F to handle cold starts and high-heat conditions.
• Working pressure: 145 psi and bursting pressure: 900 psi for reliable sealed operation.
• Coated aluminum construction for corrosion resistance and extended durability.

When should I choose a 16-pass cooler over smaller units?

If you tow heavy loads, do repeated high-load shifts, or run modified powertrains that generate extra heat, a higher-capacity, multi-pass cooler helps maintain stable fluid temperatures under sustained stress. It’s also a solid choice when replacing an undersized or aging cooler that allows frequent overheating.

• Recommended for towing, hauling, performance driving, and commercial use.
• Ideal when original equipment coolers show signs of overheating or age-related loss of capacity.
• Good for vehicles or compressors needing a robust, serviceable aftermarket solution.

Who is this for: This GDUKOP 16 1/2" 16-pass aluminum transmission oil cooler is aimed at drivers and technicians who want a durable, higher-capacity cooling upgrade for manual or automatic transmissions and hydraulic systems. It suits vehicle owners who tow, run heavy loads, or seek improved transmission longevity through better heat control, plus installers who need a compact, -8AN-compatible cooler that stands up to regular use. The product comes with one year of product quality support from GDUKOP for peace of mind during installation and initial operation.
