Gearhead Zone Chain & Sprocket Alignment Tool — Laser Gauge, CNC Aluminum, 1mm Accuracy

The Gearhead Zone Chain & Sprocket Alignment Tool is a CNC-machined aluminum laser alignment gauge that delivers sub-millimeter accuracy for motorcycle, ATV and kart drive train setup.

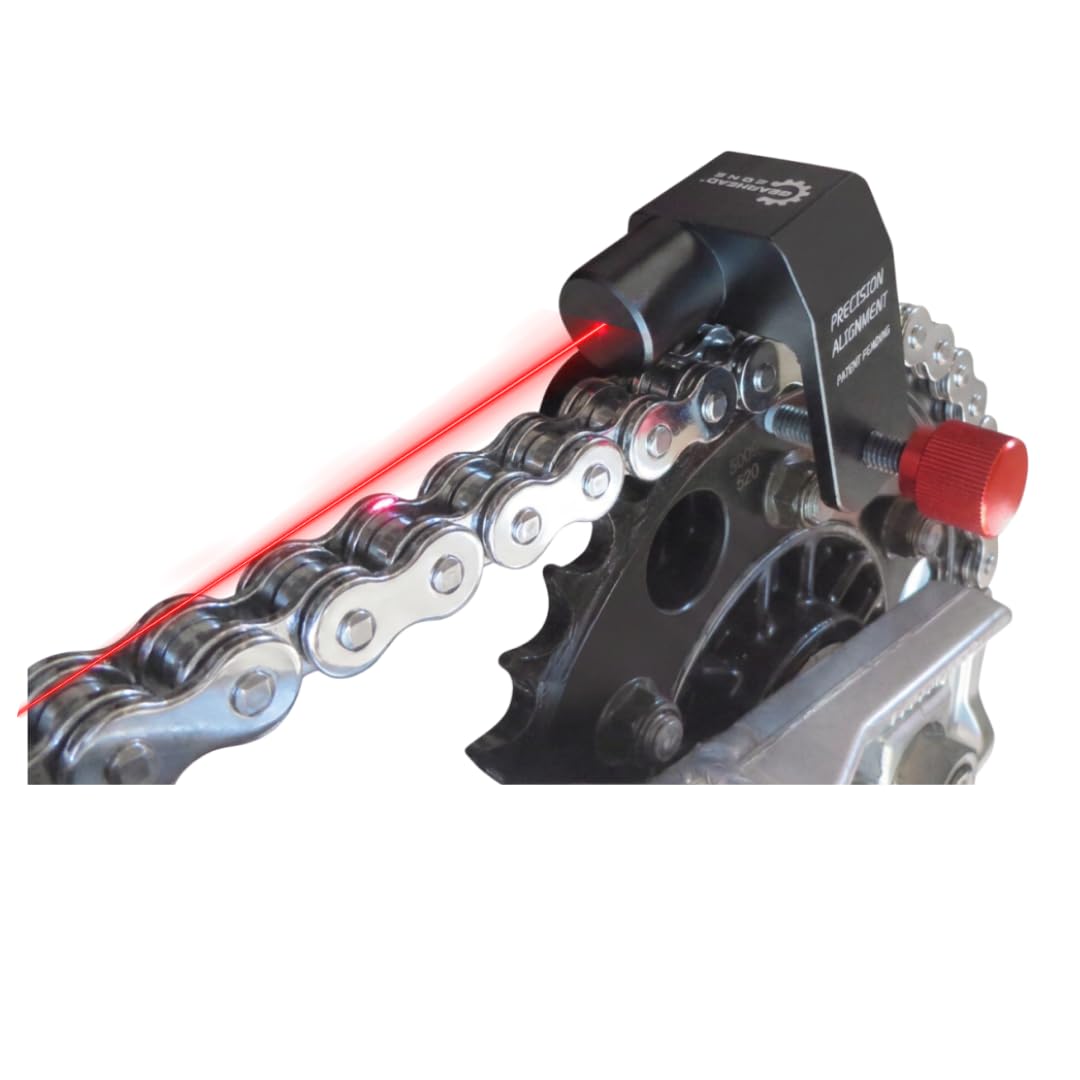

Getting a precise chain-to-sprocket alignment prevents unnecessary drivetrain wear and helps your machine transfer power efficiently. This tool was engineered by a rider to replace guesswork with measurable laser-guided alignment. Built from 5-axis CNC-machined aluminum with a hard-anodized finish, the device clamps to a wheel hub and projects a centerline laser for long-range inspection and fast, repeatable setups.

How does the laser alignment improve drivetrain performance?

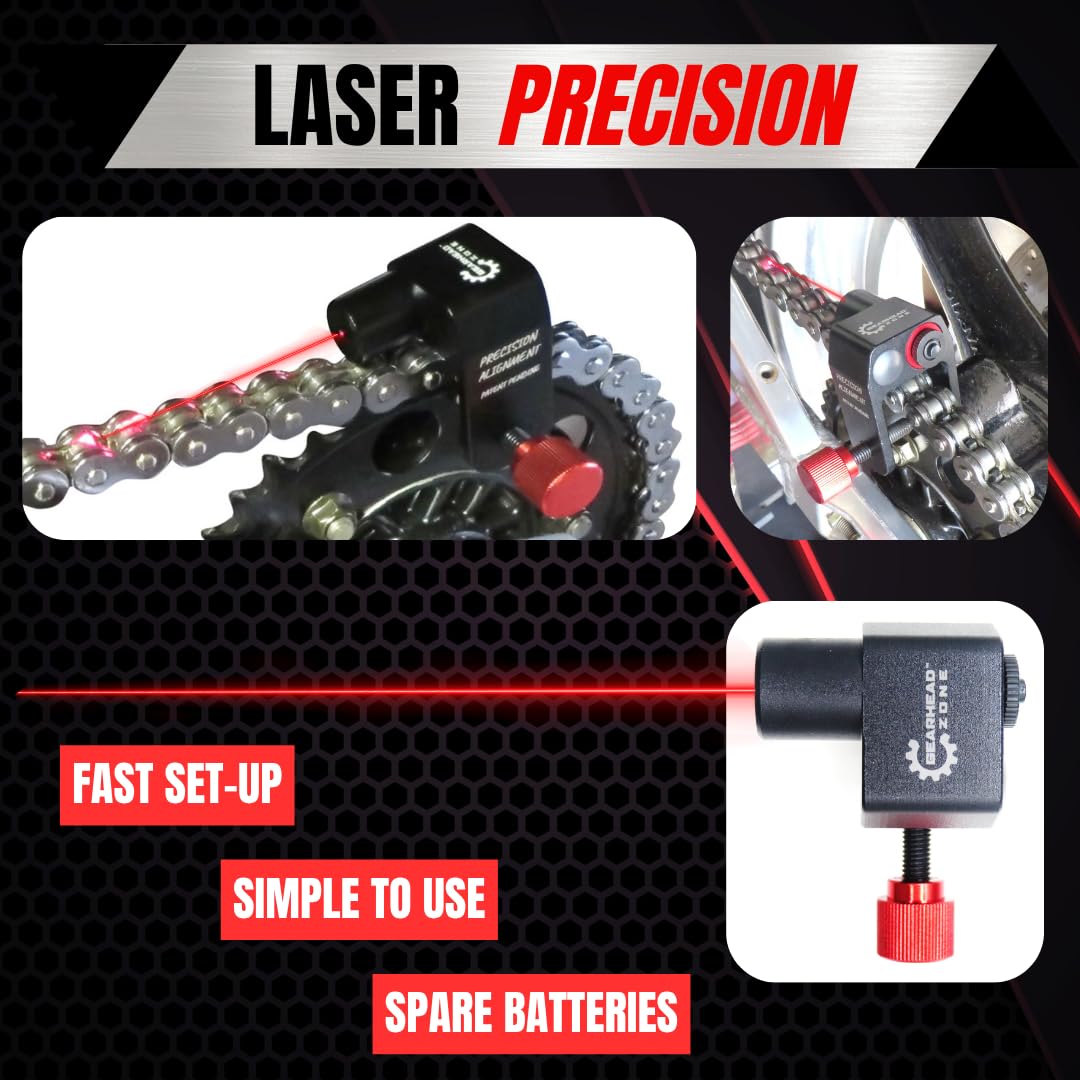

The laser projects a true centerline coplanar with the clamp face, so you can directly compare rear sprocket plane to the front sprocket or chain line without estimating by eye. Reduced lateral misalignment lowers friction and helps the chain and sprockets wear evenly. Over time this preserves power transfer and reduces maintenance frequency.

• Laser centerline and clamp face are coplanar for reliable readings
• Accurate to within 1 mm over 1 meter for measurable results
• Long-range laser visibility for quick cross-vehicle checks

What makes the tool durable and workshop-ready?

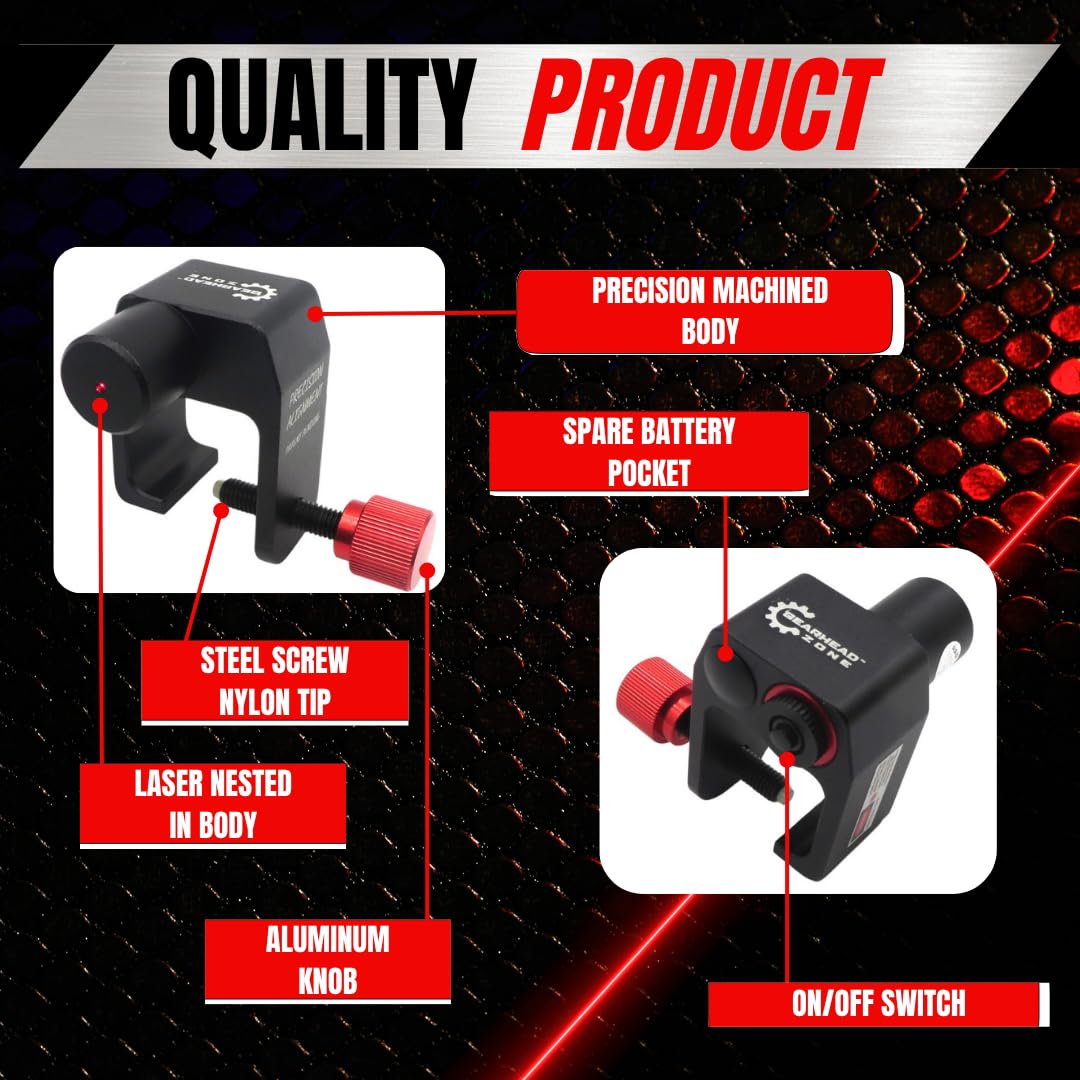

Every major component is 5-axis CNC machined from aluminum and finished with hard black anodizing to resist knocks, corrosion and everyday shop abuse. The design avoids fragile plastic or thin stamped metal parts so it stays true through repeated use. Compact and robust, it fits into most tool kits and will not dent or scratch your bike.

• 5-axis CNC machined aluminum construction for stiffness and longevity
• Black anodized finish resists scratching and oxidation
• Solid clamp fitment minimizes slippage during measurement

How is the tool used across motorcycles, ATVs and karts?

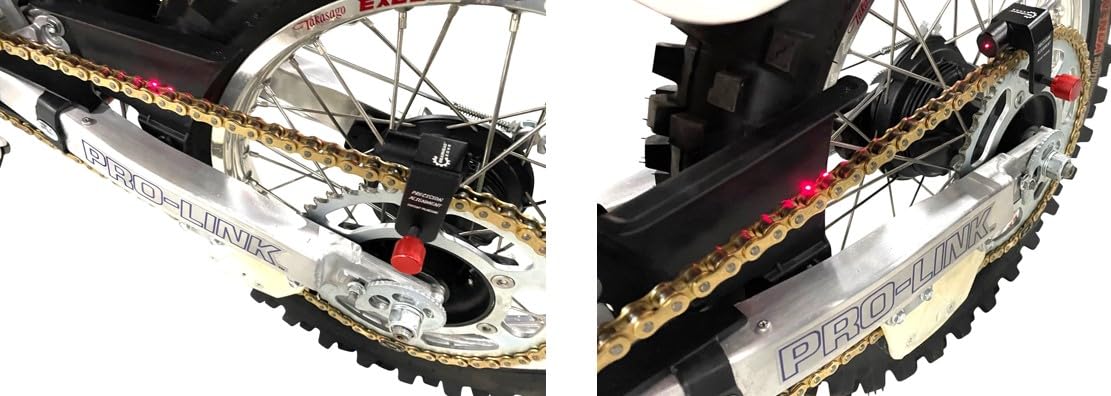

Setup is straightforward: clamp onto the wheel hub or swingarm surface, activate the laser, and compare the projected centerline to your sprocket face or chain line. Its geometry lets you perform both short-range checks and long-distance inspections so you can align without removing parts. It’s versatile enough for street bikes, off-road machines and race karts.

• Clamp-based mounting adapts to wheels, hubs and sprocket carriers
• Compact footprint for use in tight paddock or garage spaces
• Works on motorcycle, ATV and kart drivetrains

What precision can I expect and how does that translate to real-world gains?

Factory-calibrated to better than 1 mm (.04") over a meter, the tool gives you repeatable, verifiable alignments beyond what visual methods can achieve. In practical terms this means less lateral chain pull, more consistent sprocket engagement and reduced drivetrain drag—factors that help you maintain performance and extend component life without expensive trial-and-error.

• Accuracy: within 1 mm over 1 meter for dependable setups
• Repeatability: precise clamp face to laser coplanarity
• Efficiency: faster alignments than traditional rods and sights

Who is this for? The Gearhead Zone Chain & Sprocket Alignment Tool is aimed at riders, mechanics and race teams who demand precise drivetrain geometry. If you perform regular chain maintenance, tune race setups, or simply want to protect your sprockets and chain investment, this tool turns subjective eyesight into objective measurement. Ideal for home garages, professional shops and trackside pit crews who need a rugged, repeatable alignment solution.
