GEARLASSO Electric Trailer Jack 8500 lb A‑Frame, 8.86–32.3" Lift, IP67 Waterproof with LED

GEARLASSO's 8500LBS Electric Trailer Jack is a 12V A-frame tongue jack with a ball-screw drive, waterproof controls, built-in LED lighting, and a wide 8.86"–32.3" lift range for safe, fast trailer hitching.

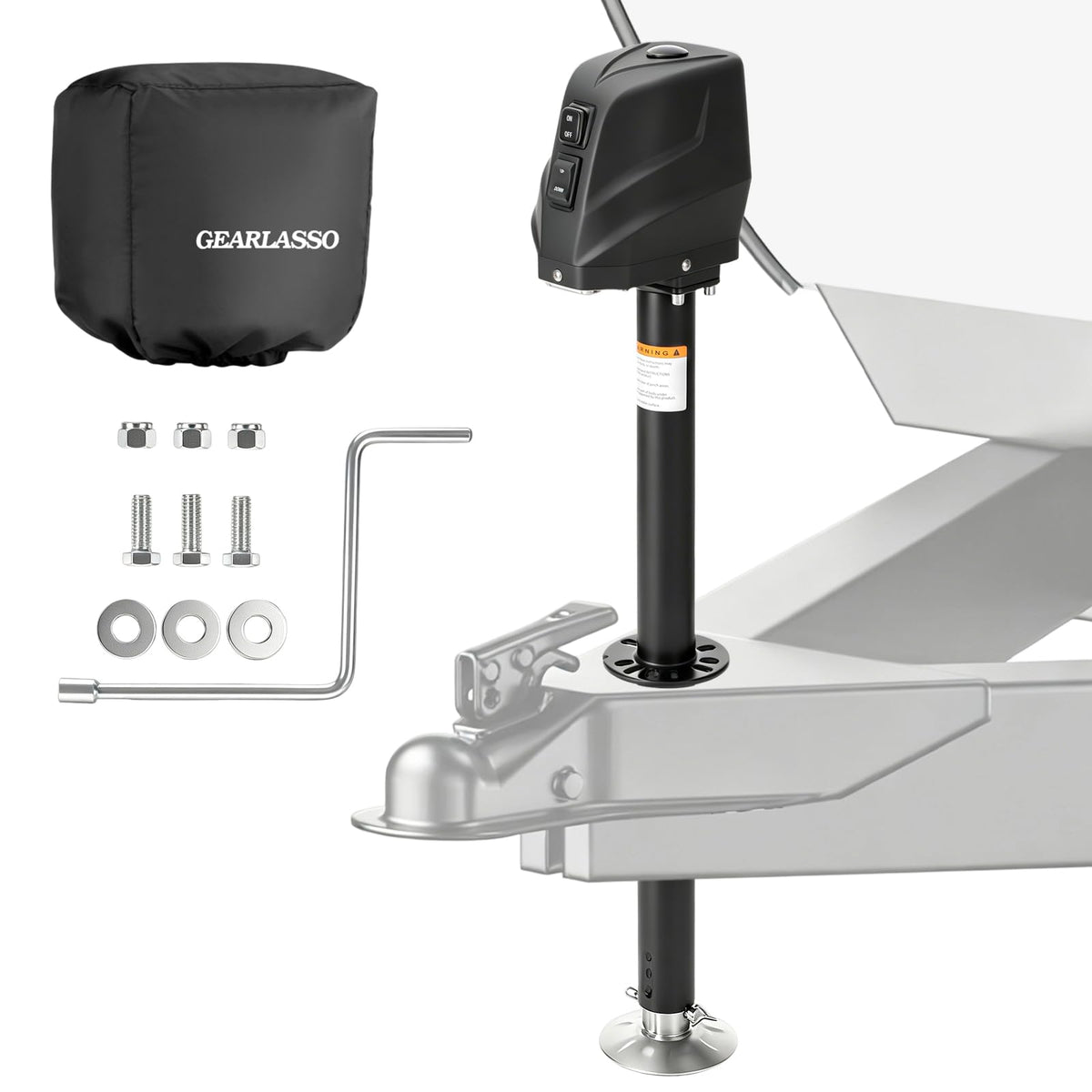

This heavy-duty electric tongue jack is designed to simplify connecting and leveling travel trailers, campers, and boats. With an 8,500 lb lift rating, robust steel construction, and a ball-screw mechanism, the unit replaces manual cranks for quieter, quicker operation. Weather-resistant features — including IP67-rated buttons and a dedicated rain cover — mean the jack stays functional through rain, snow, and coastal conditions.

How much weight can this jack handle and what is the lifting range?

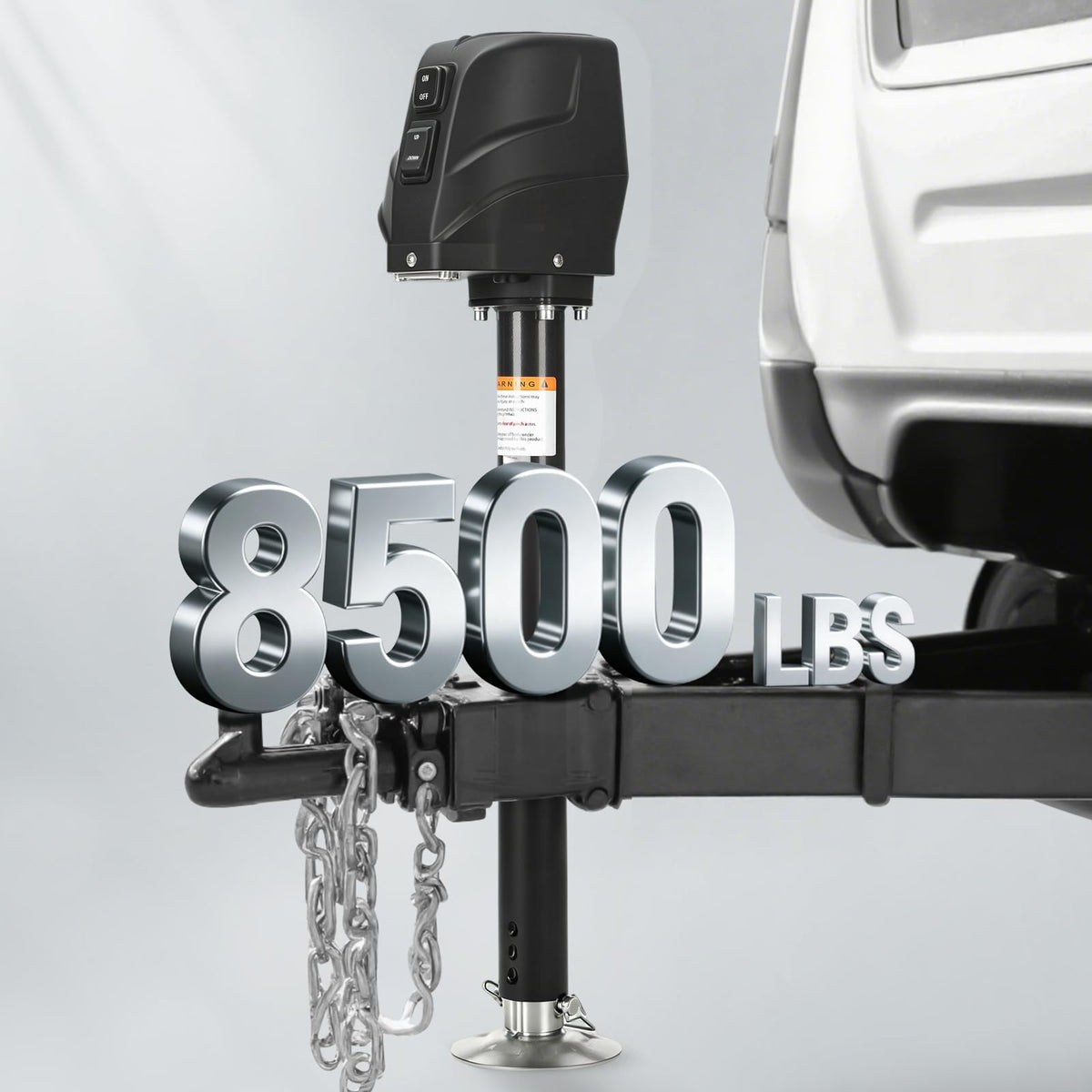

The GEARLASSO jack supports up to 8,500 pounds, making it suitable for most A-frame travel trailers and many boat trailers. Its telescoping lift travels from 8.86 inches to 32.3 inches, and four adjustable height positions let you fine-tune clearance for hitches and couplers.

• Maximum capacity: 8,500 lbs (12V DC motor)

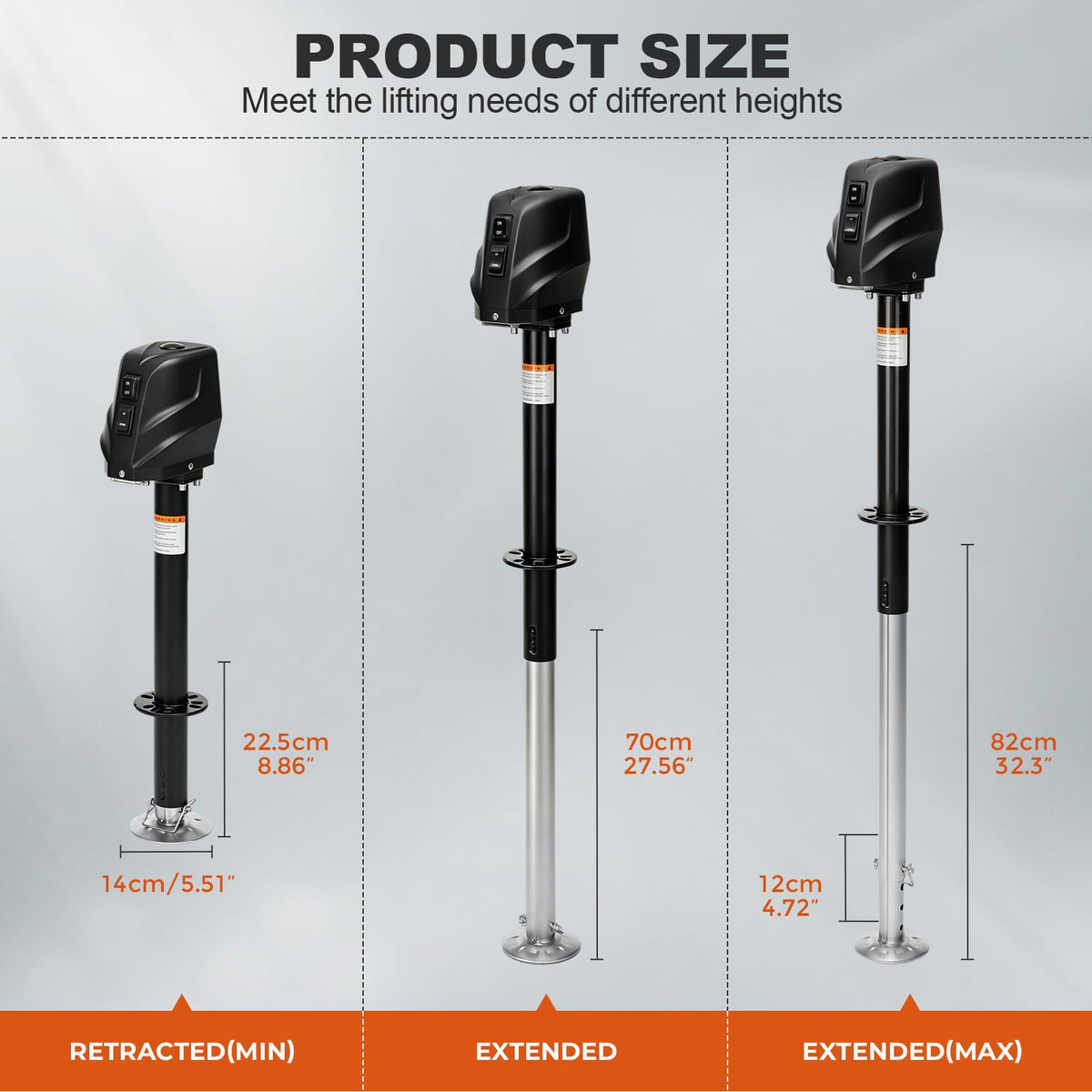

• Lift stroke: 8.86" to 32.3" for broad trailer compatibility
• Four-step adjustable height settings for precise alignment
• 5.5" (approx. 14 cm) large footplate for added stability

What features make it durable and corrosion-resistant?

Built from heavy-gauge steel and a zinc-plated inner tube, this jack is engineered to resist wear and harsh environments. It surpasses standard corrosion tests with a 1,000-hour salt spray rating, far exceeding industry norms, and includes six pre-drilled mounting holes for solid attachment to A-frame tongues.

• Zinc-plated inner tube for long-term smooth action
• 1000-hour salt spray corrosion resistance (industry standard is 72 hrs)
• Six pre-drilled mounting holes for secure installation
• Weatherproof materials and exclusive rain cover for extended life

How does the jack perform electrically and in low light?

The jack runs on a simple 12V DC connection and includes a built-in circuit breaker to protect against reverse polarity and overcurrent. For nighttime hitching, six bright LED lights illuminate the coupler and surrounding area, making hookups safer and faster after dark.

• 12V DC wiring: red to positive, black to negative
• Integrated circuit breaker for automatic power-off protection

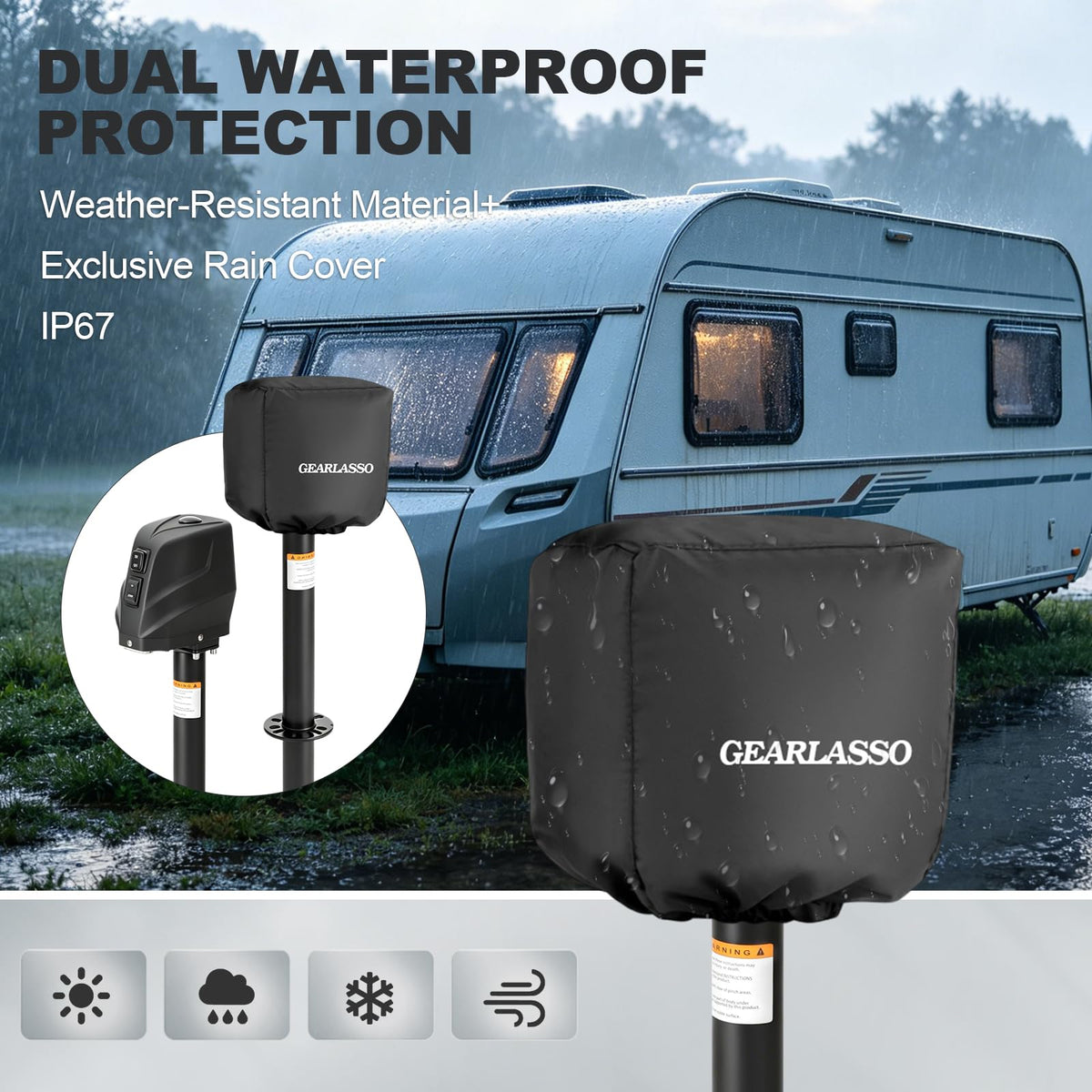

• IP67-rated control buttons plus a waterproof rain cover

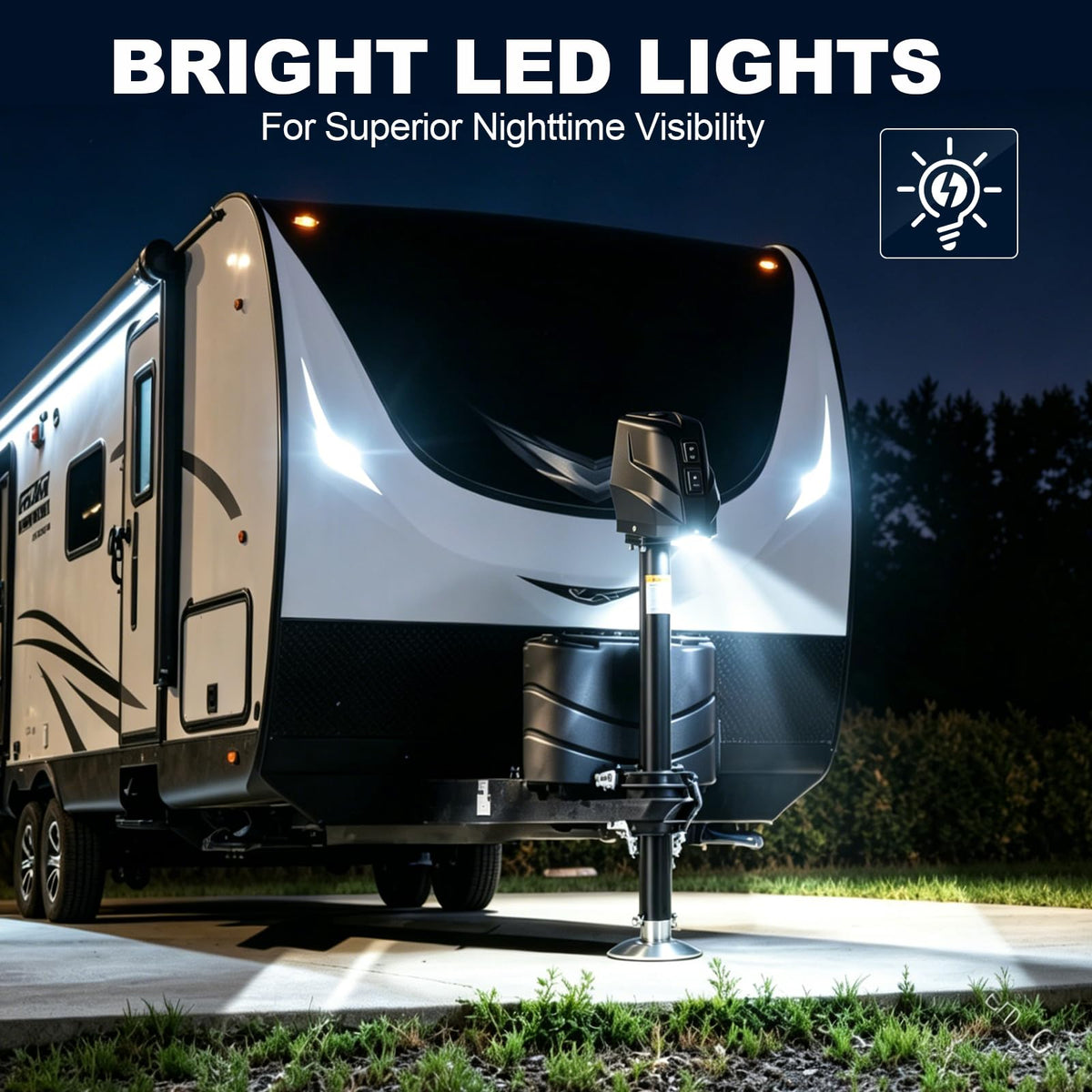

• Six LEDs aimed at the hitch area for clear nighttime visibility

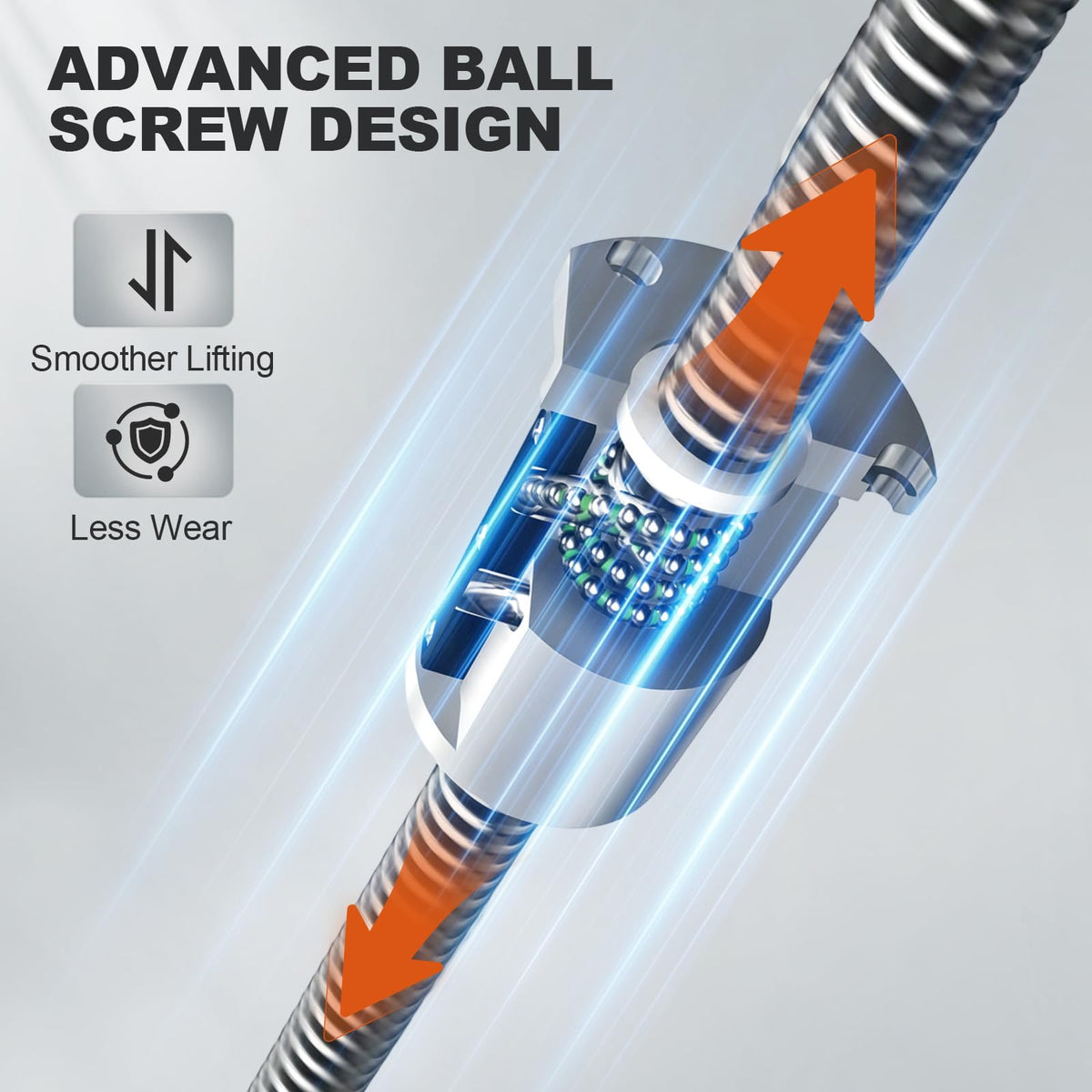

Why choose a ball-screw drive over a standard slide-screw?

The ball-screw system reduces friction inside the drive assembly, producing smoother, quieter lifts and faster operation with less long-term wear. That mechanical advantage translates to better reliability and a more refined user experience compared with conventional slide-screw jacks.

• Ball-screw drive for reduced friction and quieter cycling
• Faster lift and lower wear rates versus slide-screw designs
• Consistent performance under frequent use and load
• Designed for longer service life and smoother operation

Who is this for? The GEARLASSO 8500LBS Electric Trailer Jack is aimed at RV owners, travel trailer renters, boat trailer operators, and anyone who needs easier, safer hitching and leveling. It's particularly useful for frequent travelers, those who regularly hitch after dark, and owners in coastal or wet climates who require extra corrosion protection and waterproof controls. A one-year warranty and accessible customer support round out the package for buyers seeking dependable, low-maintenance trailer gear.
