GEAROLL Wheel Alignment Pin Kit 10PC — Aluminum Alloy M14/M12/M15 Guide Pins with Storage Pouch, Precision Threads

GEAROLL 10PC Wheel Alignment Pin kit is a set of threaded alloy guide pins that hold and align a wheel while you remove or fit lug bolts, making wheel swaps faster and safer.

When changing tires, performing brake work, or rotating wheels, keeping the wheel steady and properly positioned against the hub prevents scratches, dropped wheels, and misaligned bolt holes. The GEAROLL kit offers multiple metric thread sizes so you can match common European and Asian vehicles. Each pin screws into a lug hole and acts as a temporary locator to support the wheel while you switch fasteners.

How do these alignment pins speed up wheel changes?

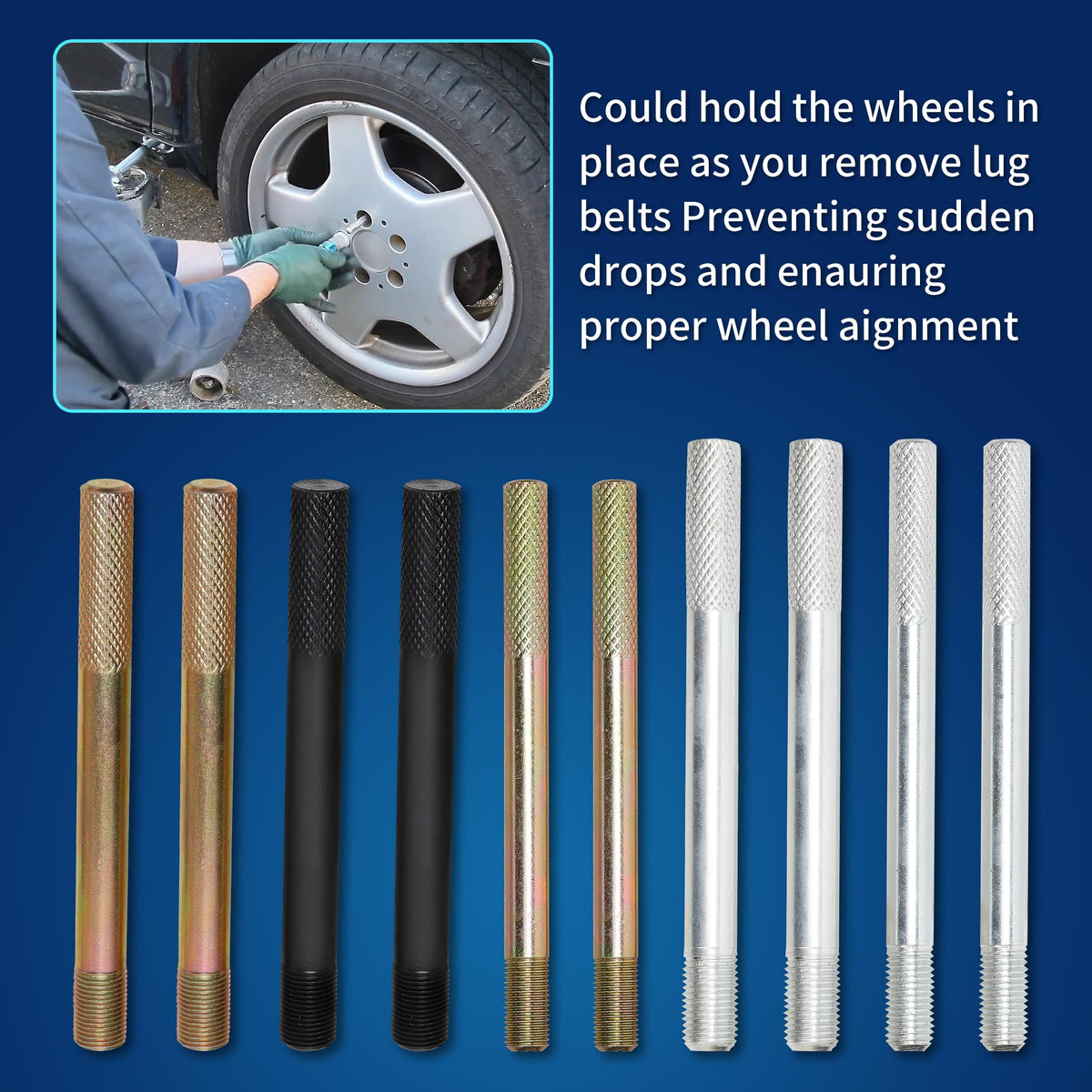

Instead of holding the wheel in place with your hands or improvising with uneven tools, these pins keep the wheel supported and centered on the hub so you can quickly thread lug bolts. That reduces time and the risk of cross-threading.

• Install a pin into a bolt hole to support the wheel weight.
• Slide the wheel onto the pins to align bolt holes precisely.
• Insert lug bolts without wrestling the wheel or needing an extra pair of hands.

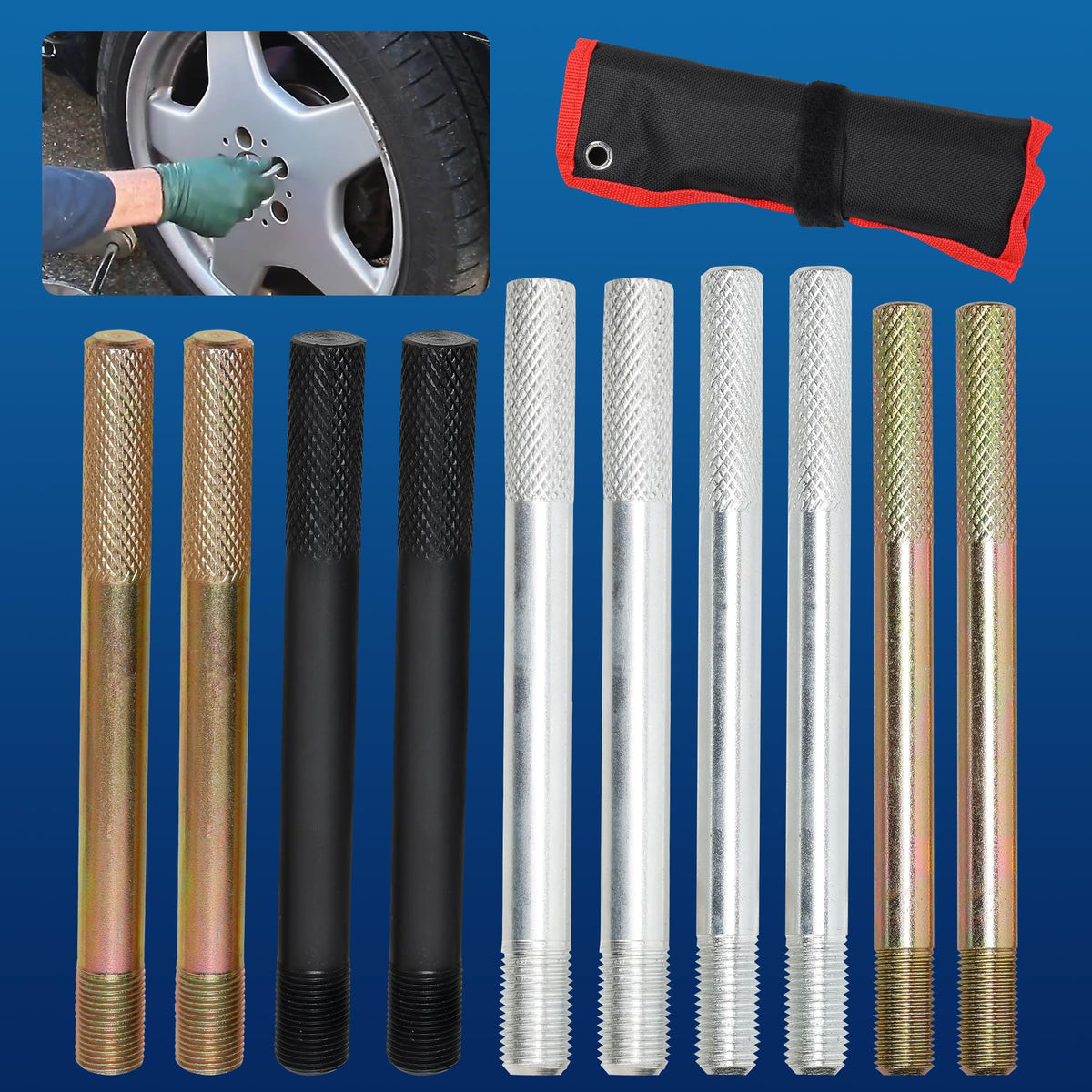

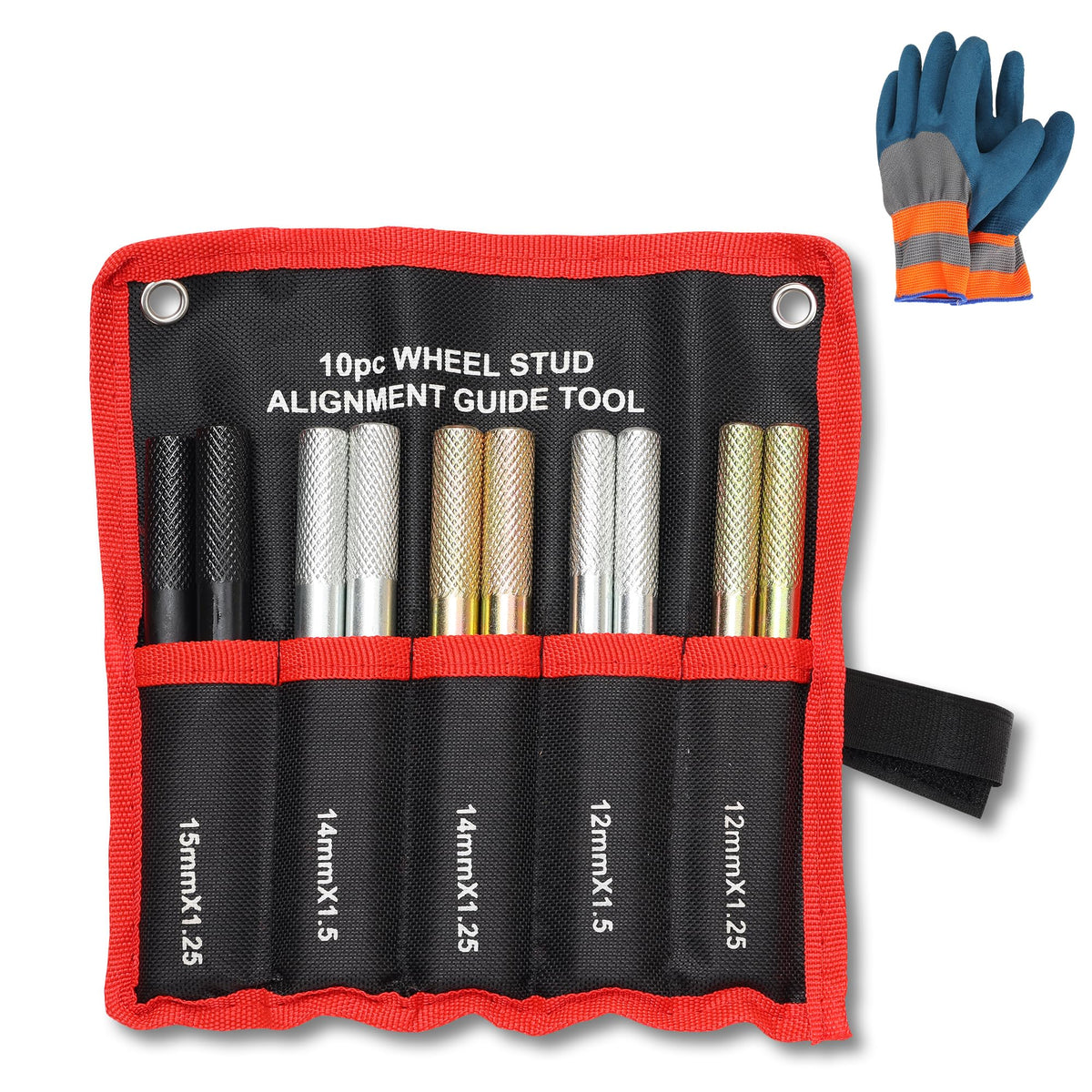

Which thread sizes are included and how universal is the fit?

The set includes ten pins across common metric sizes to cover a wide range of vehicles. Machined threads ensure a snug fit into hub bolt holes so the pins act as reliable guides on compatible cars and light trucks.

• 2 × M14 × 1.25 and 2 × M14 × 1.5 for common M14 applications.
• 2 × M12 × 1.25 and 2 × M12 × 1.5 for many M12 hubs.
• 2 × M15 × 1.25 for less common M15 applications.

What material and build quality can I expect?

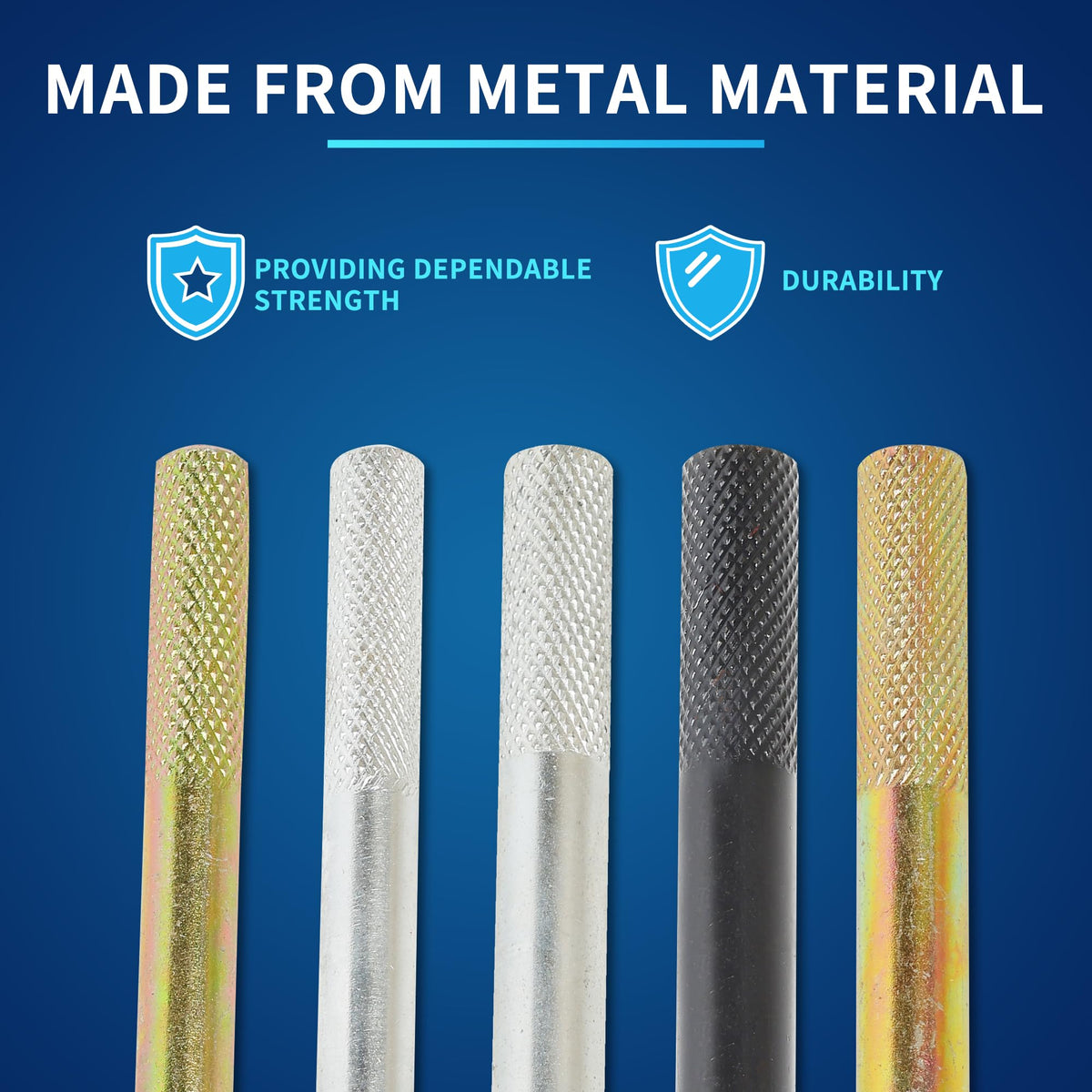

Each pin is made from aluminum alloy for a balance of strength and light weight, resisting corrosion and bending during normal shop use. The machined threads and smooth bodies give consistent performance under repeated installs.

• Aluminum alloy construction for durability and low weight.
• Precision-cut threads to reduce galling and ensure fitment.

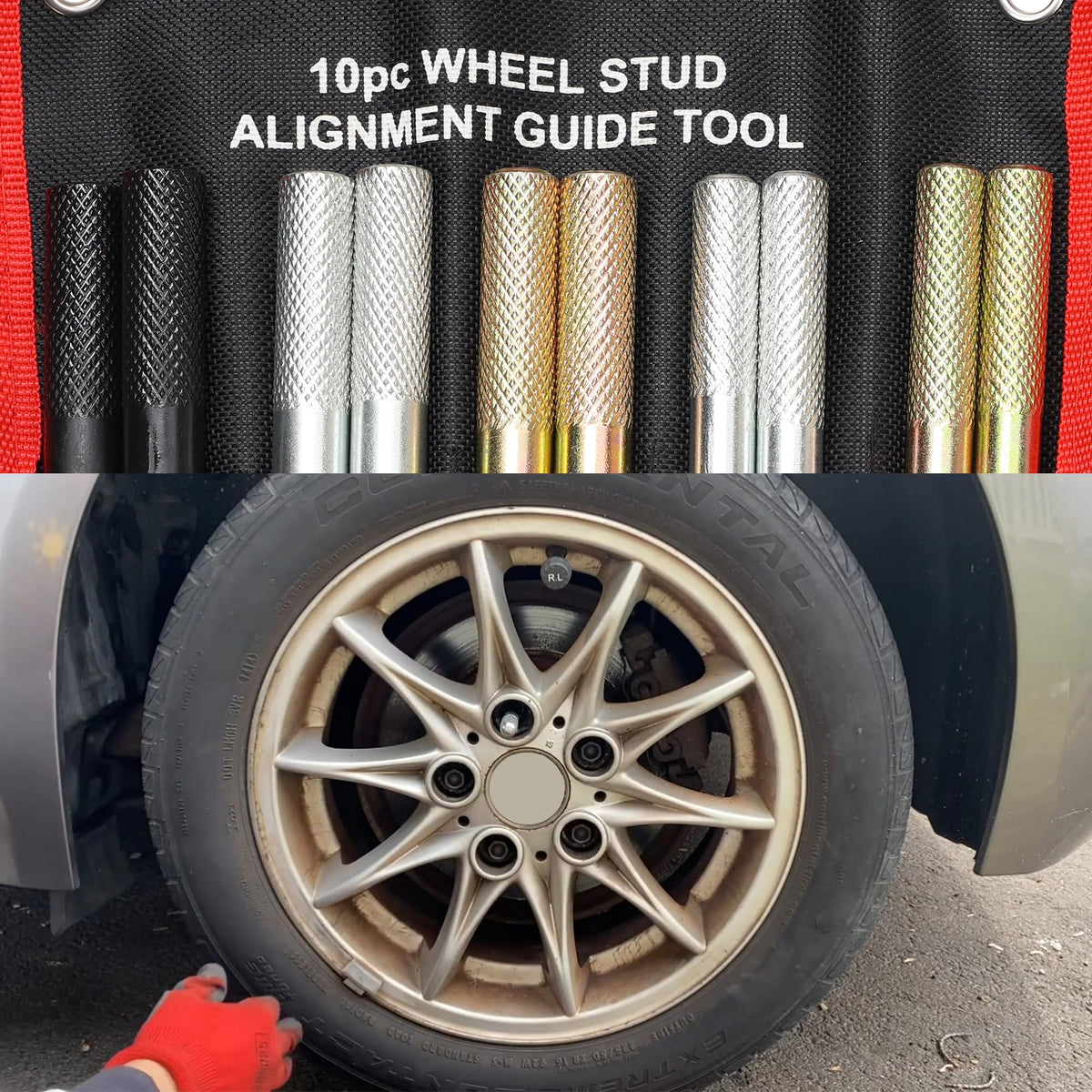

• Supplied storage pouch to keep pins organized and portable.

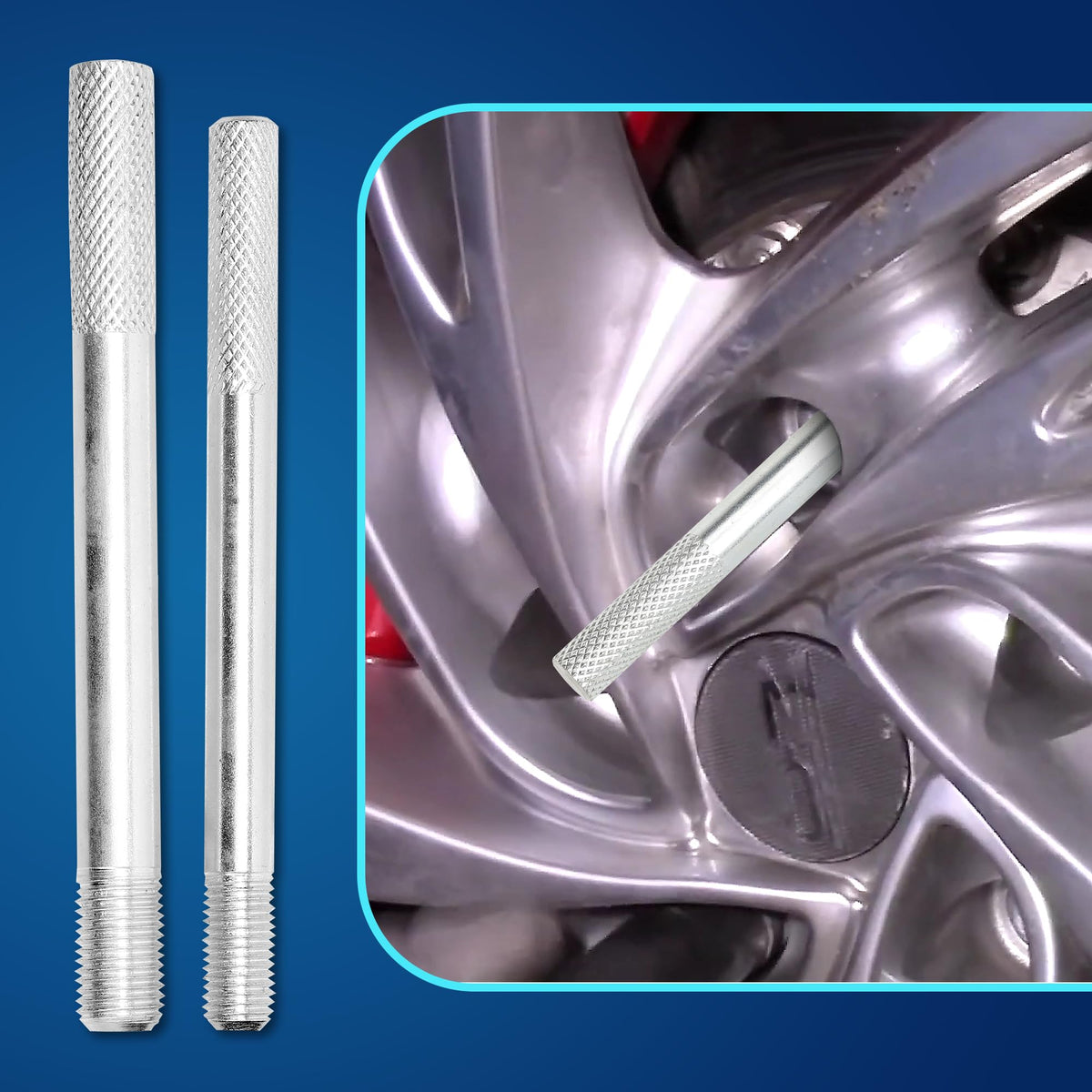

How do I use the alignment pin set safely and correctly?

Using the pins is straightforward: screw a suitable-size pin into a hub bolt hole, lift and slide the wheel onto the pins, then install lug bolts. Remove pins after at least two lug bolts are threaded to keep the wheel secure while completing torqueing sequence.

• Select the correct thread size for your vehicle’s hub bolt pattern.
• Screw the pin in until it seats firmly—but avoid overtightening into the hub.
• Place the wheel over pins, add a couple of lug bolts, then remove pins as you finish tightening to spec.

Who is this for? The GEAROLL 10PC Wheel Alignment Pin kit is designed for mechanics, DIYers, and fleet technicians who change wheels regularly or prefer a safer, faster method for aligning wheels during brake, hub, or tire work. It’s useful in home garages and professional shops where multiple thread sizes are encountered. Keep the compact storage bag in your toolbox or trunk to solve alignment hassles on the go.
