Gedlex Carburetor Fuel Pressure Regulator 1–5 PSI Adjustable Kit — Zinc Alloy, 1/4–3/8 Fittings

Gedlex 1-5 PSI Carb Fuel Pressure Regulator Kit is an adjustable fuel pressure regulator designed to control carburetor fuel feed precisely for small engines and facet-style fuel pumps.

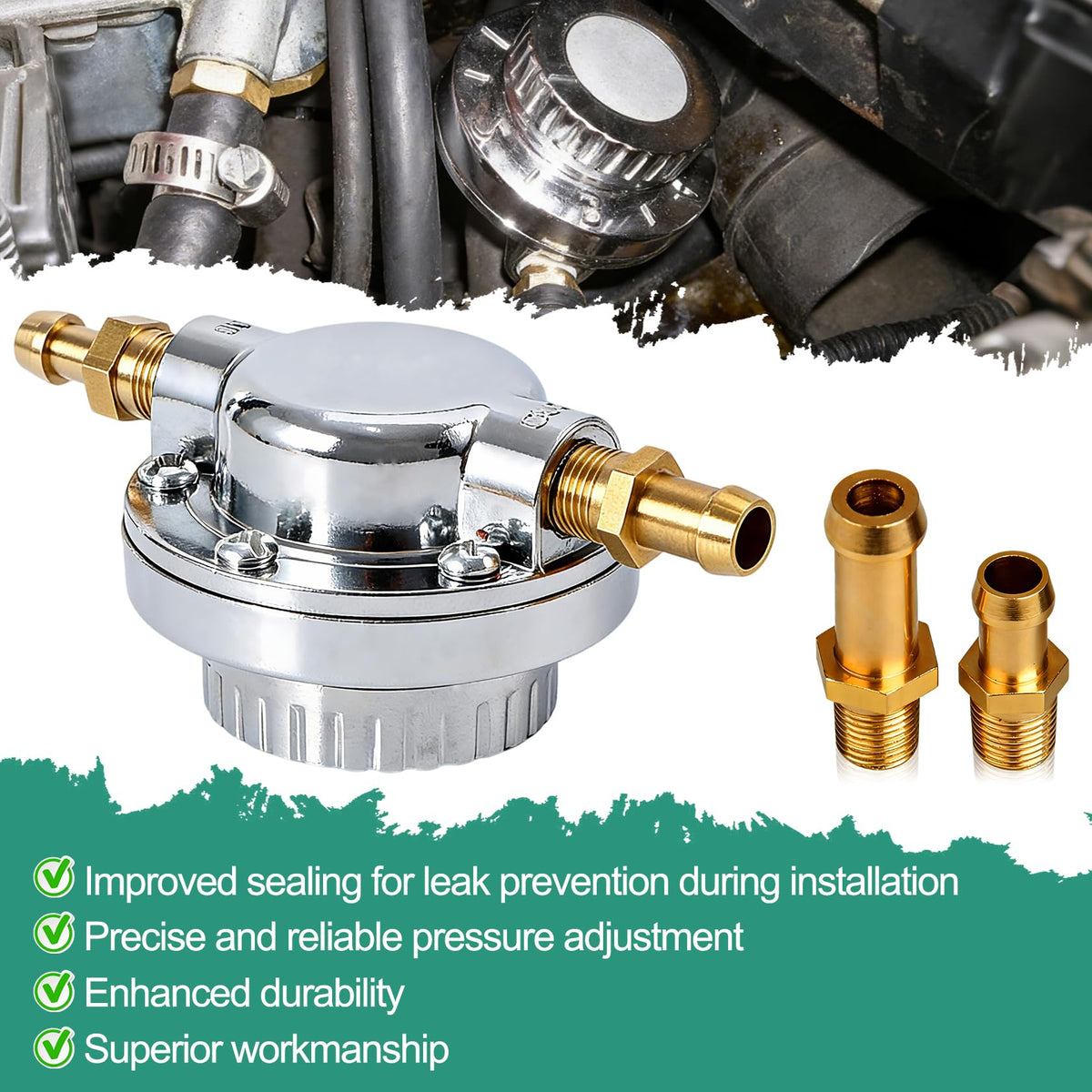

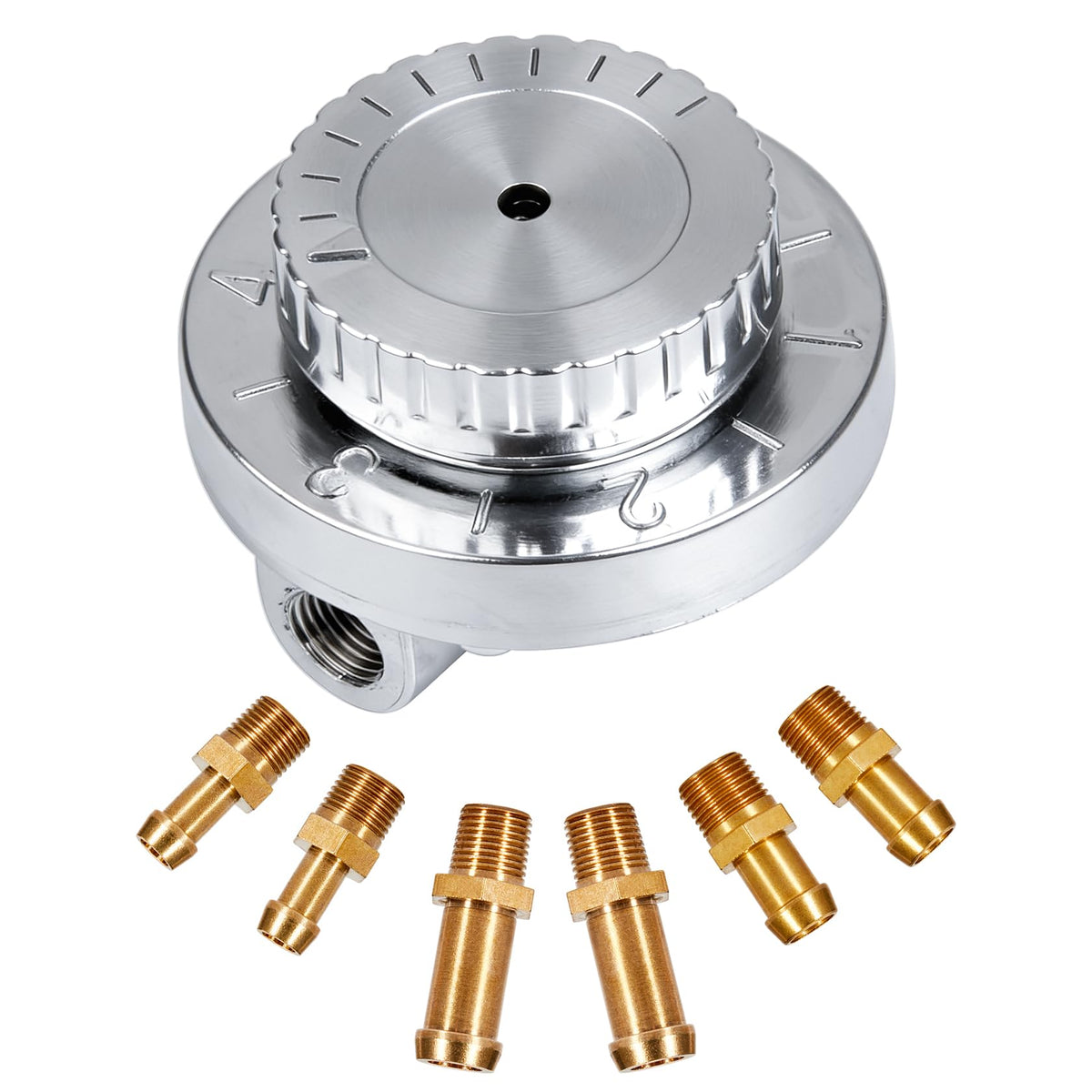

This compact, universal-grade regulator delivers a low 1–5 PSI adjustable range with a clear top-mounted graduated knob and three common inlet/outlet adapter sizes so you can tune carburetor fuel pressure without replacing pumps or fuel lines. Finished in anodized zinc alloy for corrosion resistance, the unit accepts maximum input pressures up to 8 PSI and includes options for 1/4", 5/16" and 3/8" fittings. It’s built for simple installation and dependable service on lawn & garden equipment, small tractors, generators and other carbureted engines that require precise low fuel pressure.

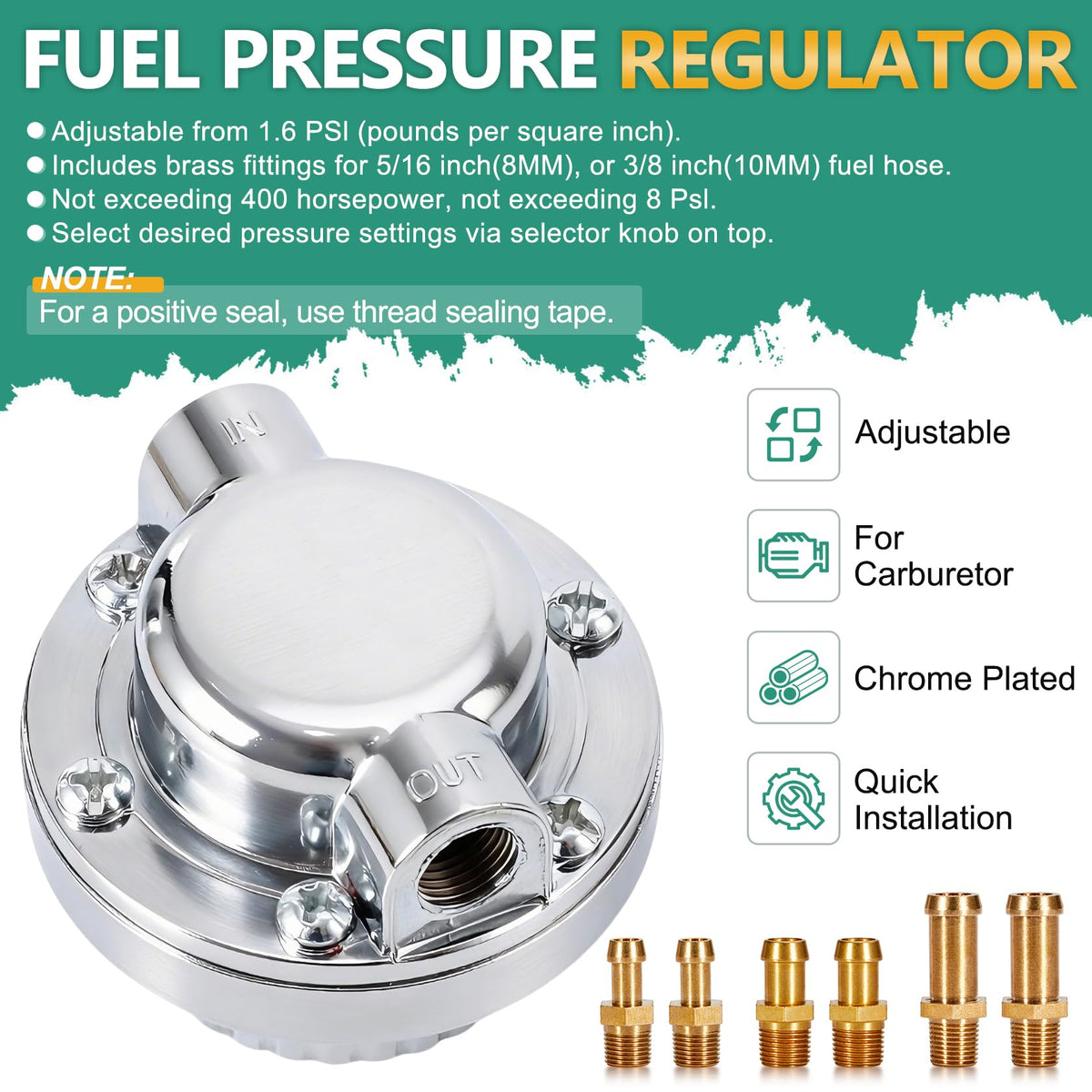

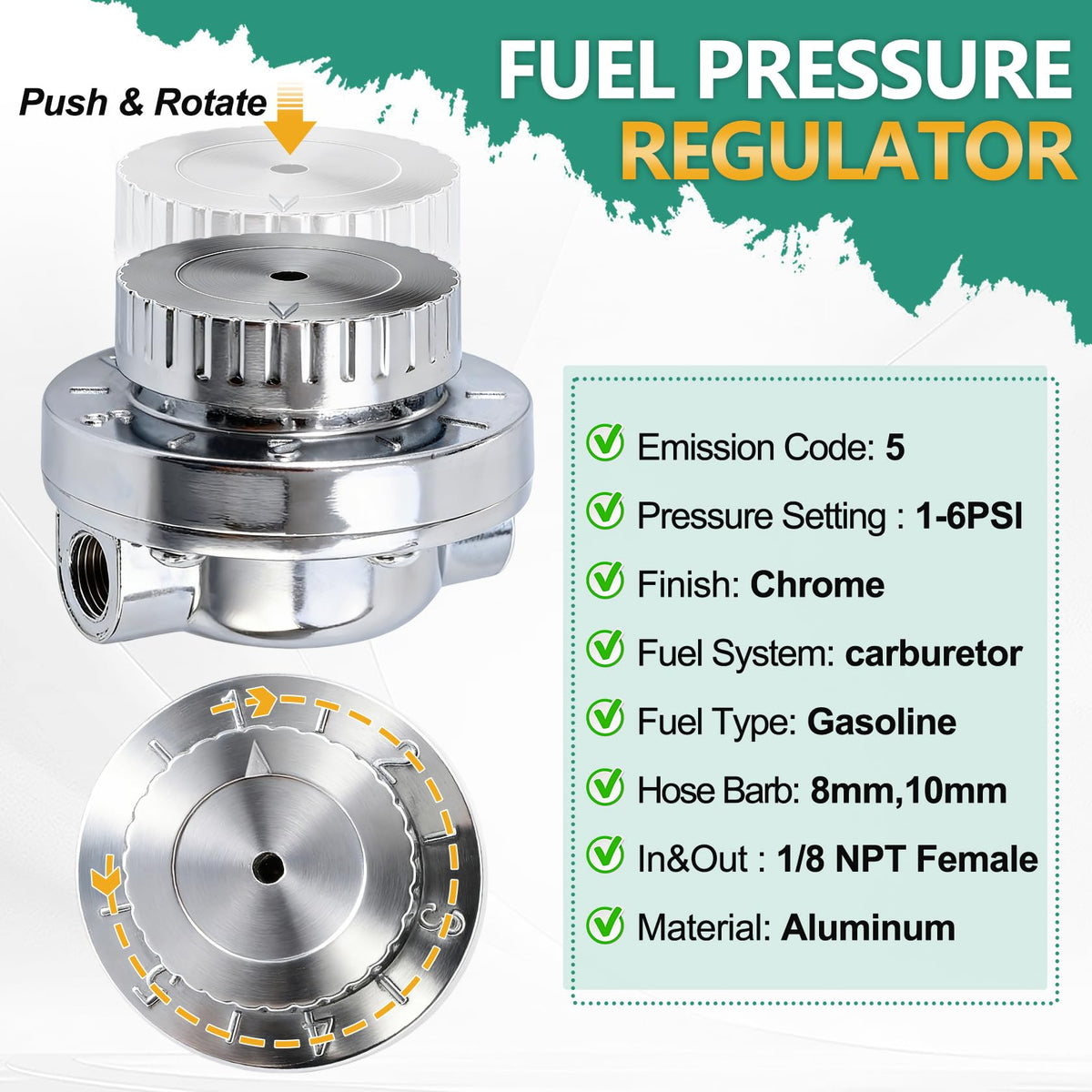

How do I adjust fuel pressure with the Gedlex regulator?

Adjustment is performed using the top-mounted graduated knob that clicks through five distinct positions. Turn the knob to increase or decrease outlet pressure while the engine is idling, then verify with a fuel pressure gauge for best results.

• Five-stage calibrated knob for repeatable settings
• Set while engine is running at idle for accurate reading
• Verify with a fuel pressure gauge after each change

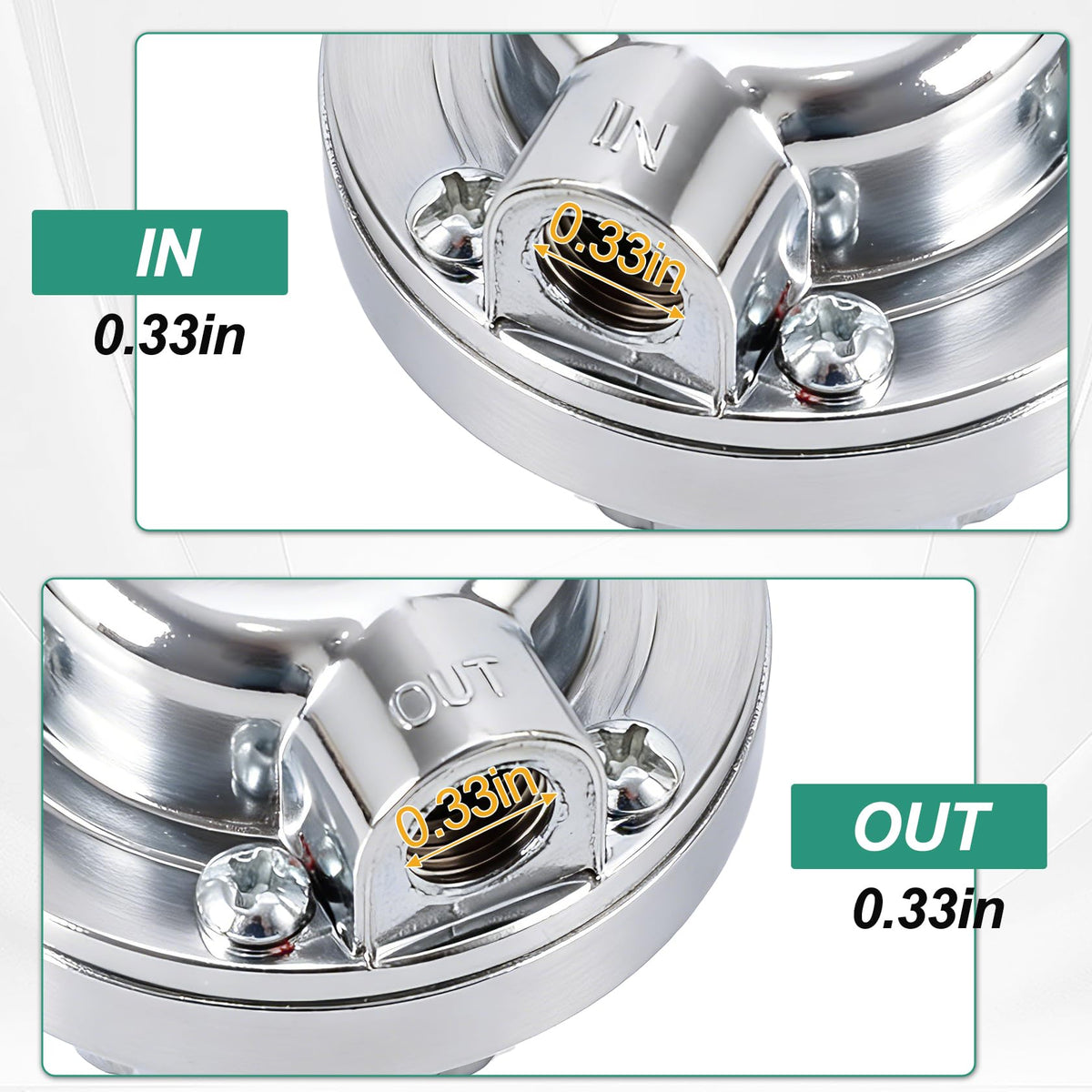

Which hose sizes and fittings are compatible with this FPR?

The kit ships with fittings that cover the most common carburetor hose sizes so you can connect to existing lines without modification. Choose the supplied 1/4", 5/16" or 3/8" adapter to match your fuel hose ID, ensuring a snug, leak-free connection.

• Includes 1/4", 5/16", and 3/8" push-on fittings
• Works with standard fuel hose used on garden and small engines
• Thread seal tape recommended when attaching fittings to avoid leaks

Is the Gedlex regulator durable enough for outdoor equipment?

Yes — the regulator body is made from zinc alloy with an anodized finish to resist corrosion, making it suitable for damp or dirty equipment bays. The compact design minimizes exposure to impacts while offering reliable service life when installed properly.

• Zinc alloy construction for strength and wear resistance
• Anodized surface reduces corrosion in humid environments
• Compact profile protects internals from debris and knocks

What are the operational limits and installation tips?

Operate the regulator within the stated input limit — do not exceed 8 PSI into the regulator or damage may occur. Use thread seal tape on fittings, route hoses clear of heat and moving parts, and double-check for leaks before full operation.

• Maximum input pressure: 8 PSI — do not exceed
• Use thread seal tape on all threaded hose fittings
• Mount away from hot exhaust and high-vibration contact points

Who is this for? The Gedlex 1-5 PSI Carb Fuel Pressure Regulator Kit is aimed at DIY mechanics, small-engine technicians, and owners of lawn tractors, generators, go-karts and other carburetor-equipped machines who need precise low-range fuel pressure control. It’s especially useful when adapting facet-style fuel pumps, correcting float bowl overfeeding, or tuning engines after modifications where fuel pressure must be reduced. If you need a compact, adjustable regulator with common fittings, corrosion-resistant construction, and straightforward installation, this kit provides an affordable, easy-to-adjust solution.
