Generic 12V 10A Panel-Mount Battery Charger — Onboard Trickle Charger, Weather-Resistant with LED Status

Reliable panel-mount 12V 10A onboard charger that mounts through a toolbox or dash to maintain and gently recharge 12‑volt batteries for dump trailers, cars, boats, and RVs.

Keep a dependable charging point on board without hauling a separate unit. This 10 amp panel-mounted charger accepts 120V AC input and delivers a regulated 12V DC output to recharge or maintain lead-acid batteries. Its weather-resistant flip cover hides the cord inlet, while 24‑inch battery leads and simple LED status indicators make it easy to connect and monitor the battery and vehicle charging system.

How quickly will this charger bring a drained 12V battery back to usable levels?

The 10 amp output provides a moderate charging rate suited for everyday battery recovery and regular maintenance. It restores charge faster than small trickle chargers but avoids harsh high-current spikes that can stress the battery.

• 10A continuous DC output for steady recharge.
• Best for partial to moderately discharged 12V lead-acid batteries.
• Not intended as a high-speed jump starter for completely dead batteries.
• Safer long-term maintenance compared with high-rate chargers.

What installation and mounting options does the panel-mount design support?

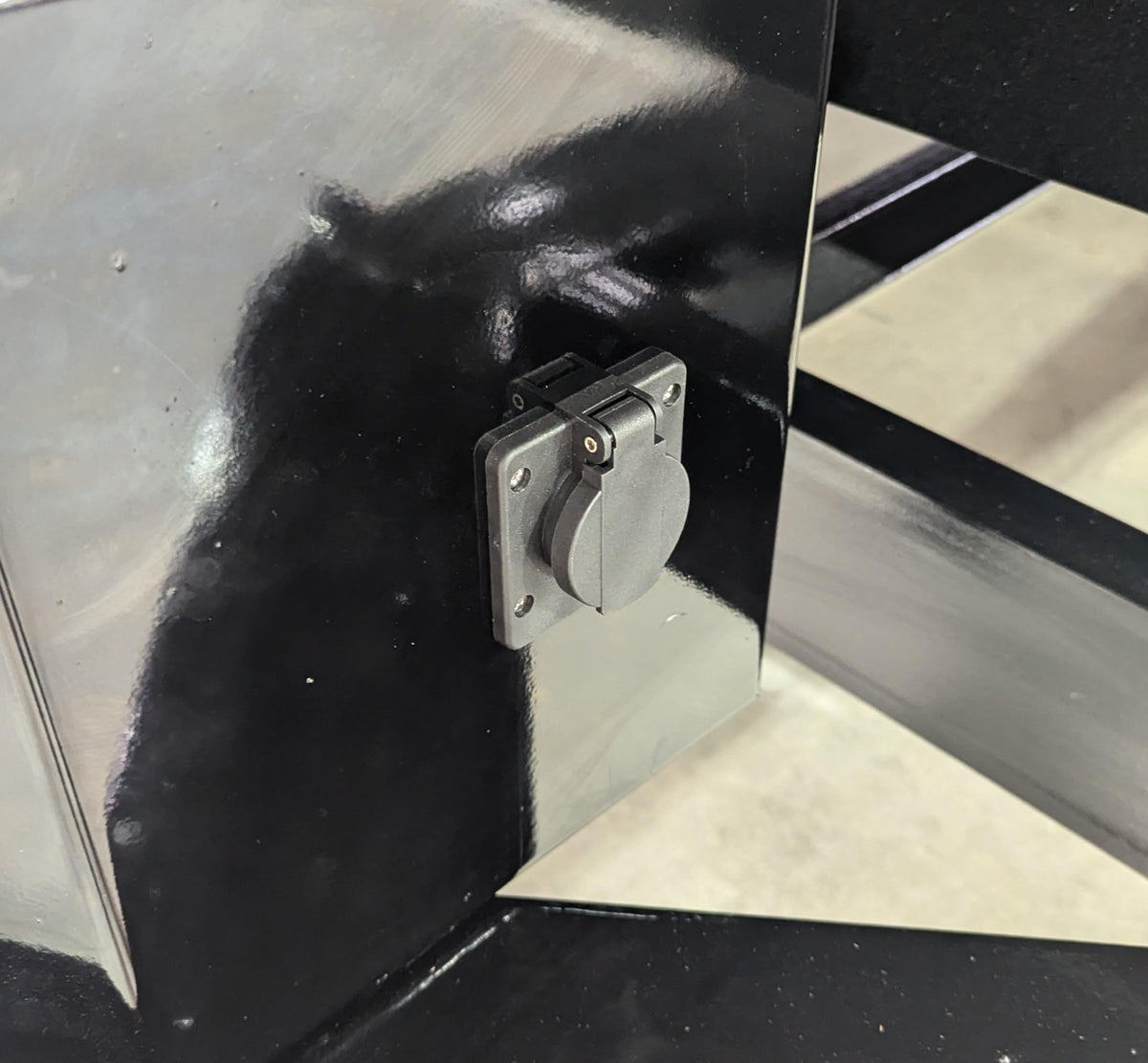

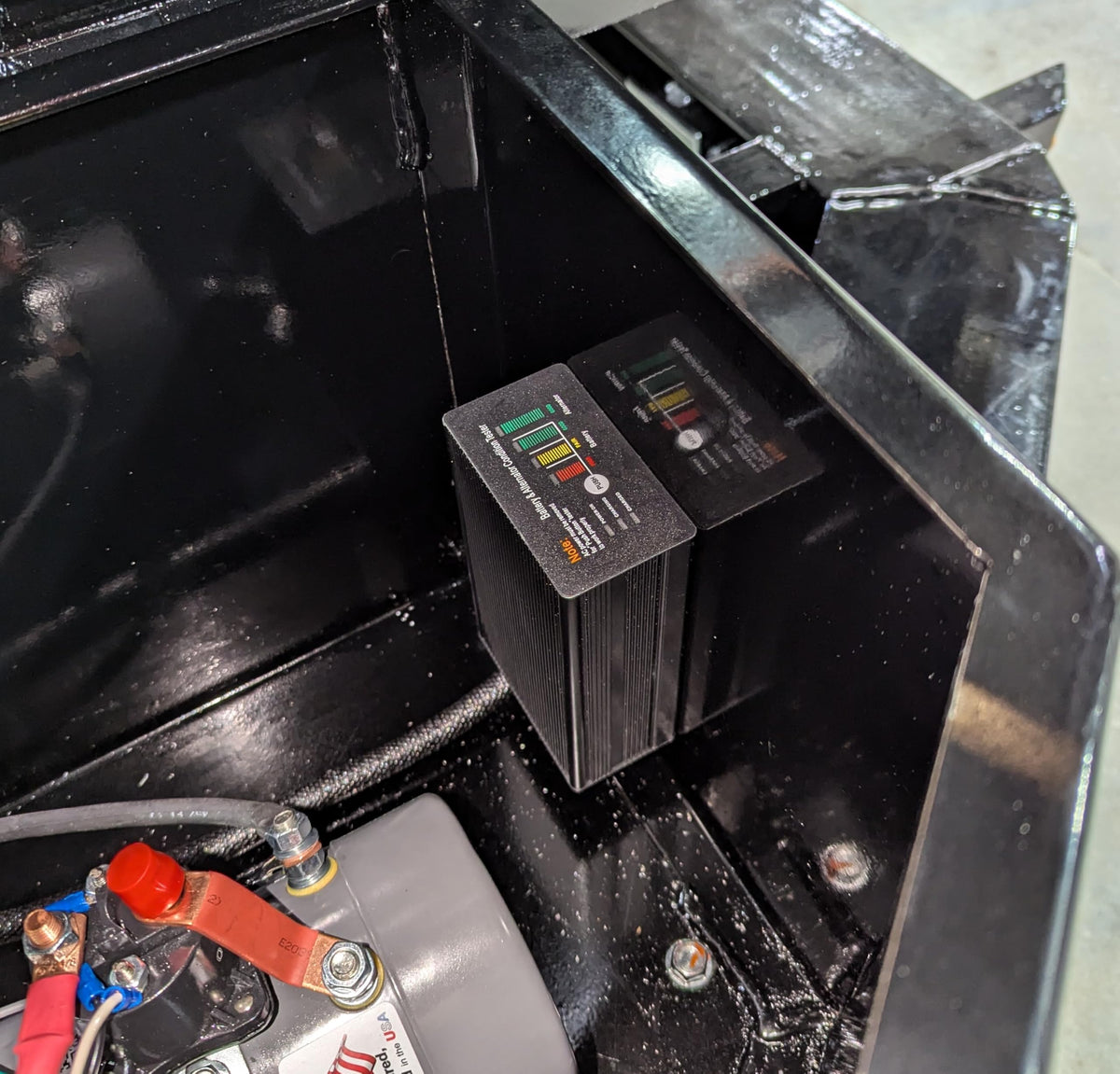

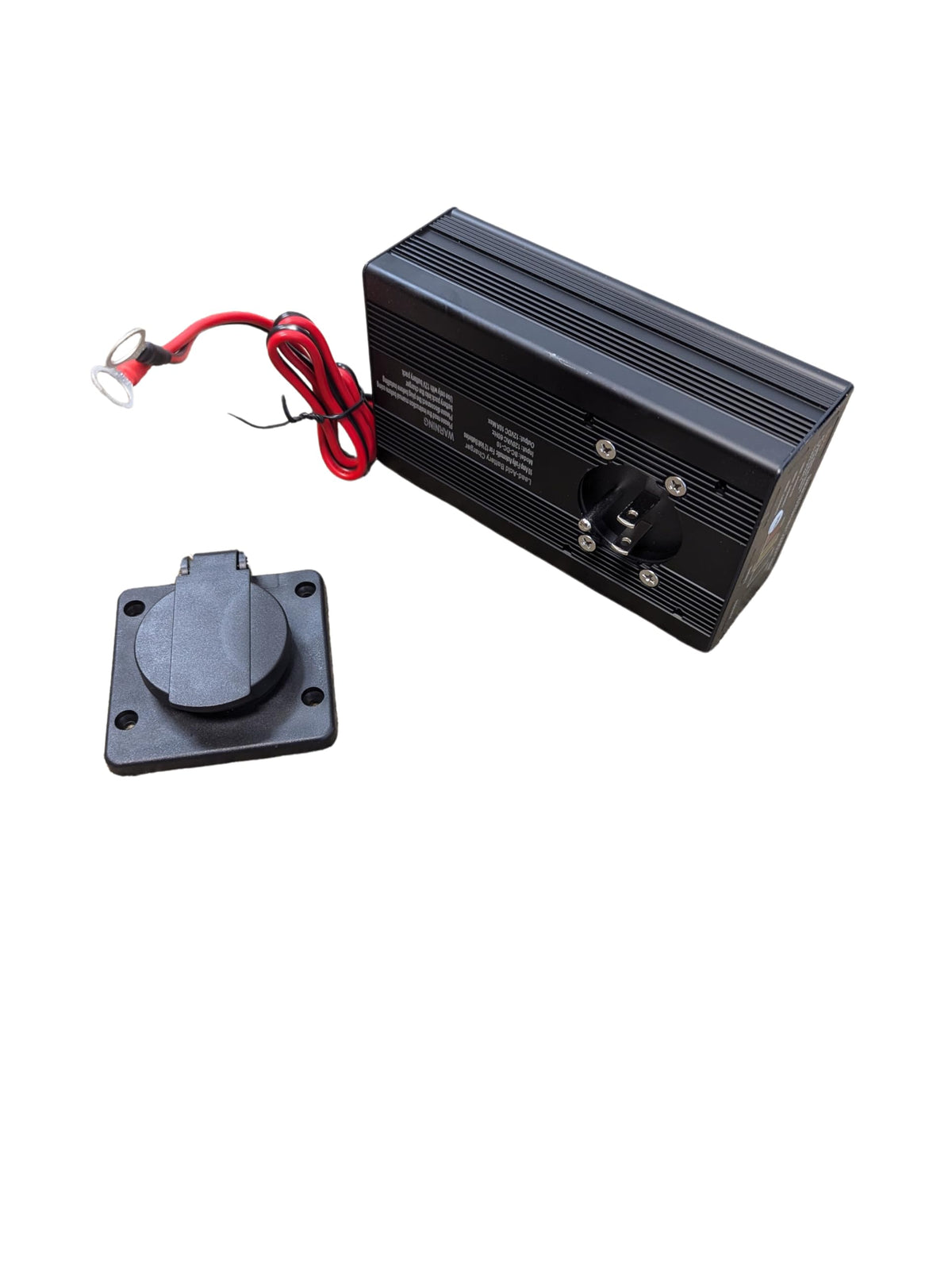

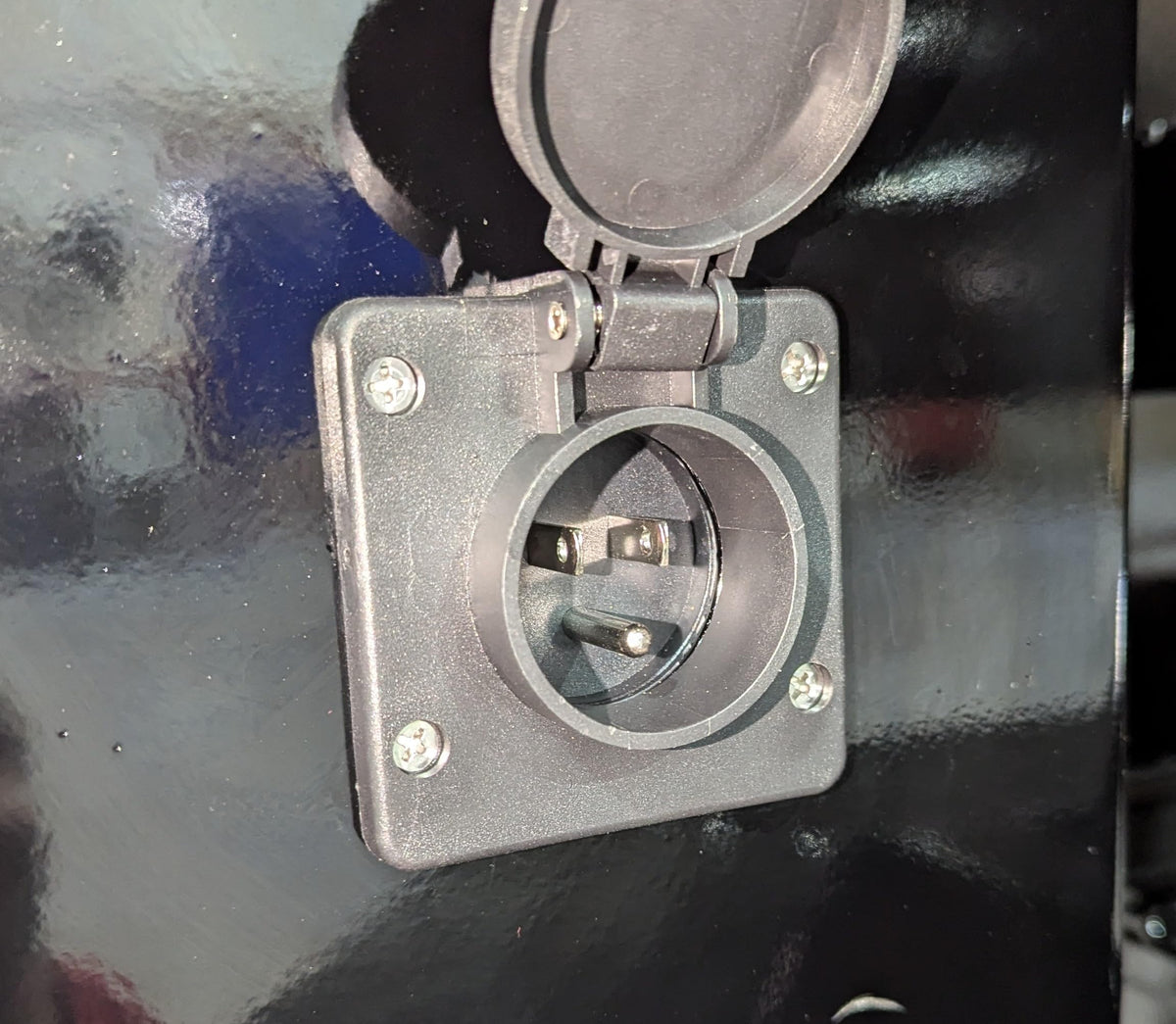

Designed to be mounted through a toolbox, trailer panel, or dash, the unit fits a standard cutout and secures from behind. The flip-up weather cover protects the AC inlet and allows quick access when you need to plug in an extension cord.

• Panel-mount installation — mounts through thin metal or plastic panels.
• Weather-resistant outer cover protects the inlet from dust and rain.
• Wiring exits inside the cabinet or compartment for a neater install.
• Simple mechanical fastening; common tools are sufficient.

How do I monitor battery condition and charging status?

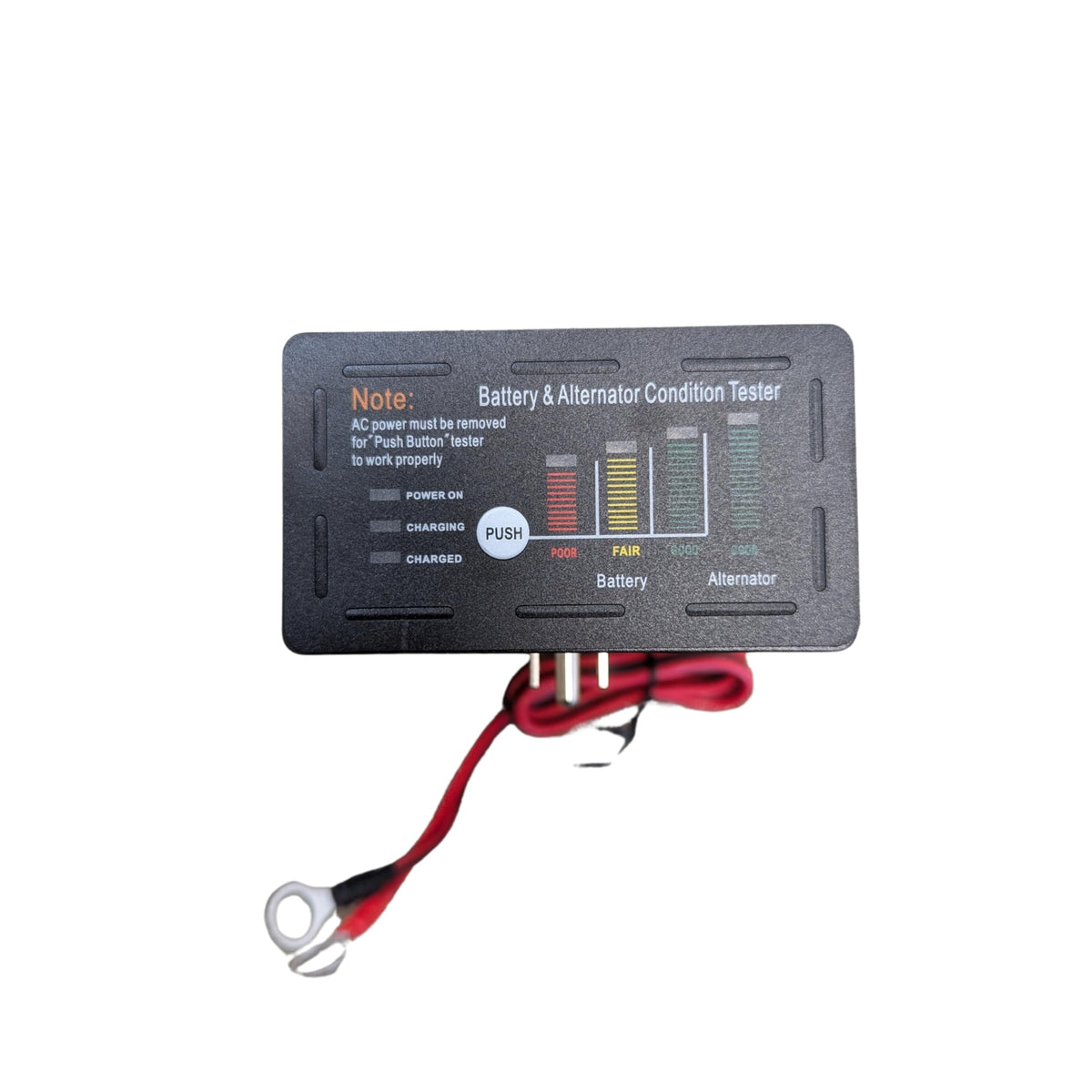

An LED status indicator panel gives instant feedback on the battery and alternator/charging system. Press the built-in button to check battery voltage and whether the vehicle’s charging system is active.

• Push-button LED check for quick battery or alternator readout.
• Visible status lights reduce guesswork during routine checks.
• Helps confirm proper connection and charging before leaving the vehicle.
• Ideal for pre-trip inspections on trailers and boats.

What are the key electrical and cable specifications I should know?

This charger runs on standard AC household power (120V, 60Hz) and outputs a regulated 12V DC at up to 10 amps. Integrated 24" battery leads use 16 AWG wire appropriate for the charger’s power level and mounting location.

• Input: AC 120V, 60Hz — plugs into standard outlets via extension cord.
• Output: DC 12V at 10A maximum for steady charging/maintenance.
• Battery cables: 24-inch length, 16 AWG wire for convenient reach.
• Panel mount with flip-up weather cover for outdoor use.

Who this is for: Install this charger if you own dump trailers, service trailers, marine craft, RVs, or vehicles where an onboard, weather-protected charging point saves time and reduces battery downtime. It suits fleet operators, contractors, and recreational owners who want an accessible, maintenance-friendly 12V charger bolted into a toolbox, dash, or compartment. If you need fast-start capabilities for completely dead batteries, a higher-output starter or portable jump starter is more appropriate; for routine maintenance and moderate recharging, this 10A panel-mount unit provides a durable, easy-to-monitor solution.
