Glixal GY6 150cc Cylinder Kit 57.4mm Bore with Piston, Full Gasket & Hardware

This factory-new cylinder kit from Glixal includes the cylinder, piston, rings, wrist pin, clips, gaskets and mounting hardware, offering a straightforward swap for 76mm bolt-pattern GY6 engines. It’s built to match the 57.4mm bore specification used by common 150cc 152QMI and 157QMJ engines and is compatible with a wide range of Chinese-brand scooters and ATVs like JONWAY, TAOTAO, ROKETA and others. The kit replaces worn or damaged top-end components to help regain engine performance and reliability when installed correctly.

Will this cylinder kit fit my scooter or ATV?

Check the engine model and bolt pattern before purchasing. This Glixal kit is designed for GY6 150cc 152QMI and 157QMJ engines that use a 76mm bolt pattern; it will not fit 80mm bolt-pattern engines.

• Inner cylinder bore: 57.4mm — matches 150cc GY6 top-ends.
• Compatible engine codes: 152QMI, 157QMJ.
• Bolt pattern: 76mm — confirm your engine’s pattern first.
• Common vehicle fitments: JONWAY, JMSTAR, ROKETA, SUNL, TANK, PEACE, TAOTAO.

What parts are included in the Glixal cylinder kit?

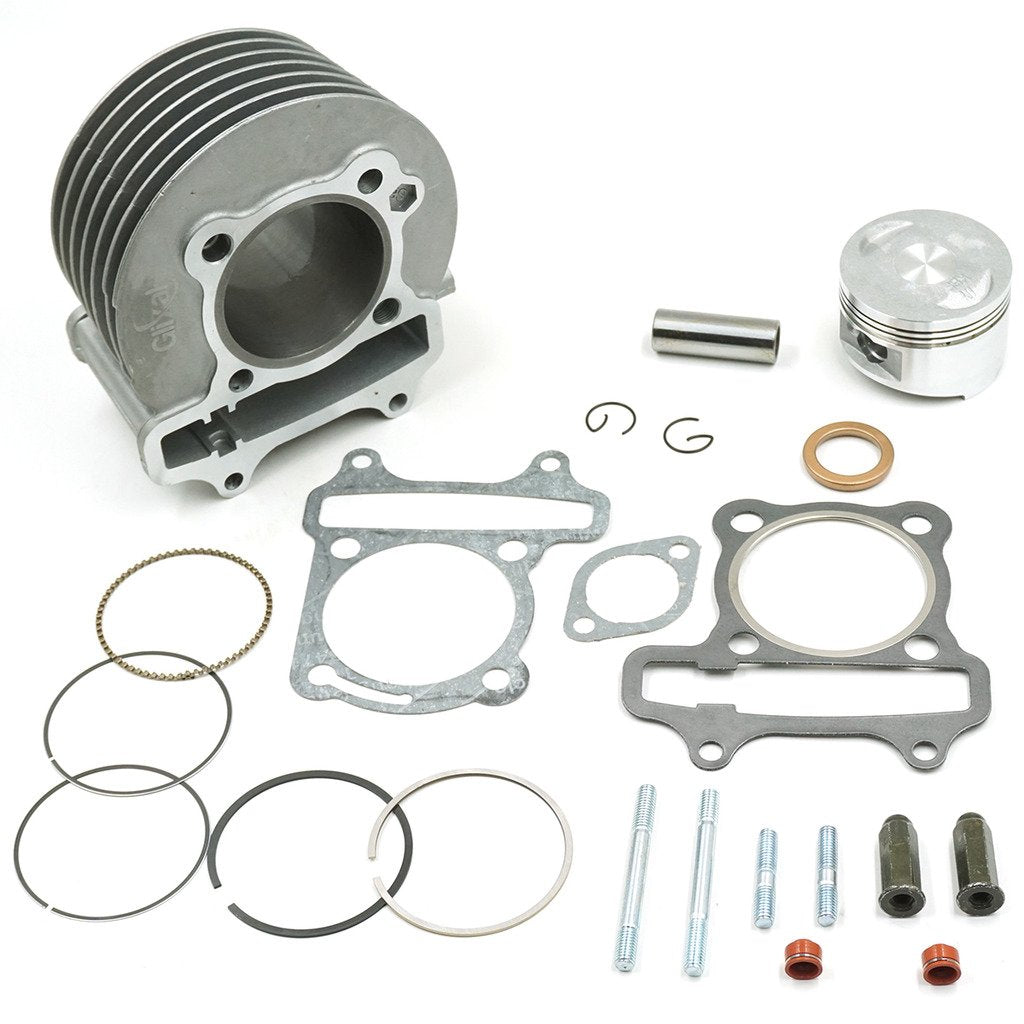

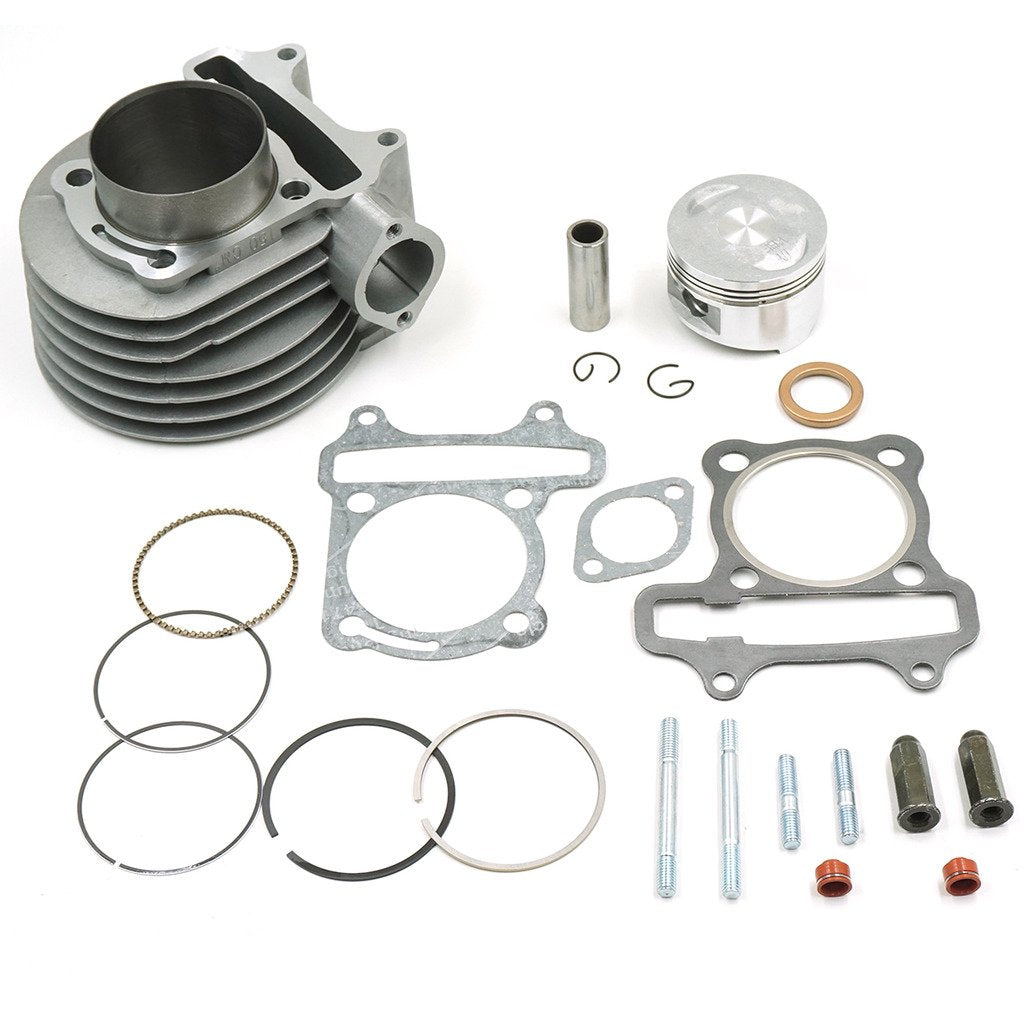

The package contains everything needed for a typical top-end rebuild so you won’t have to source separate gaskets or small parts. Components are supplied to replace the cylinder, piston assembly and the essential seals and studs for a complete installation.

• Cylinder and matched piston with 57.4mm inner diameter.

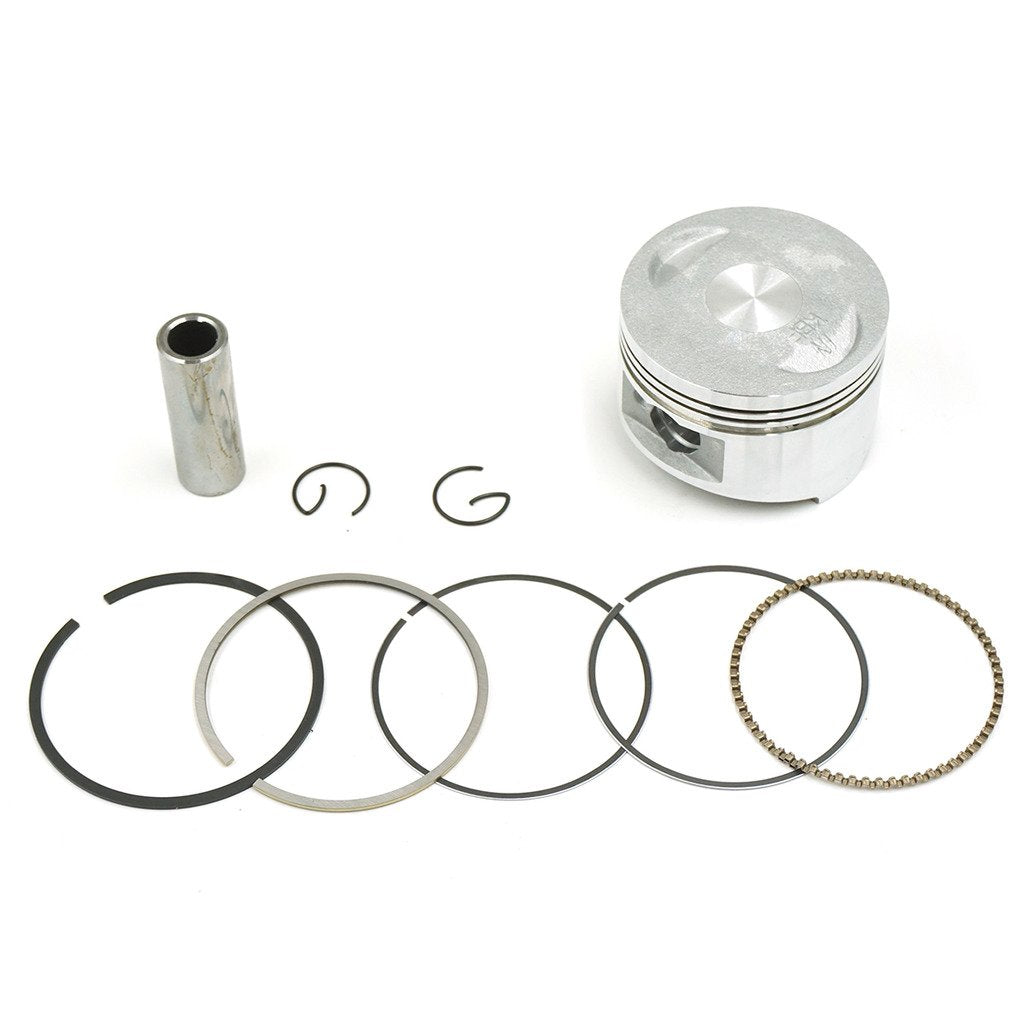

• Piston rings, piston pin (15mm outer diameter) and retaining clips.

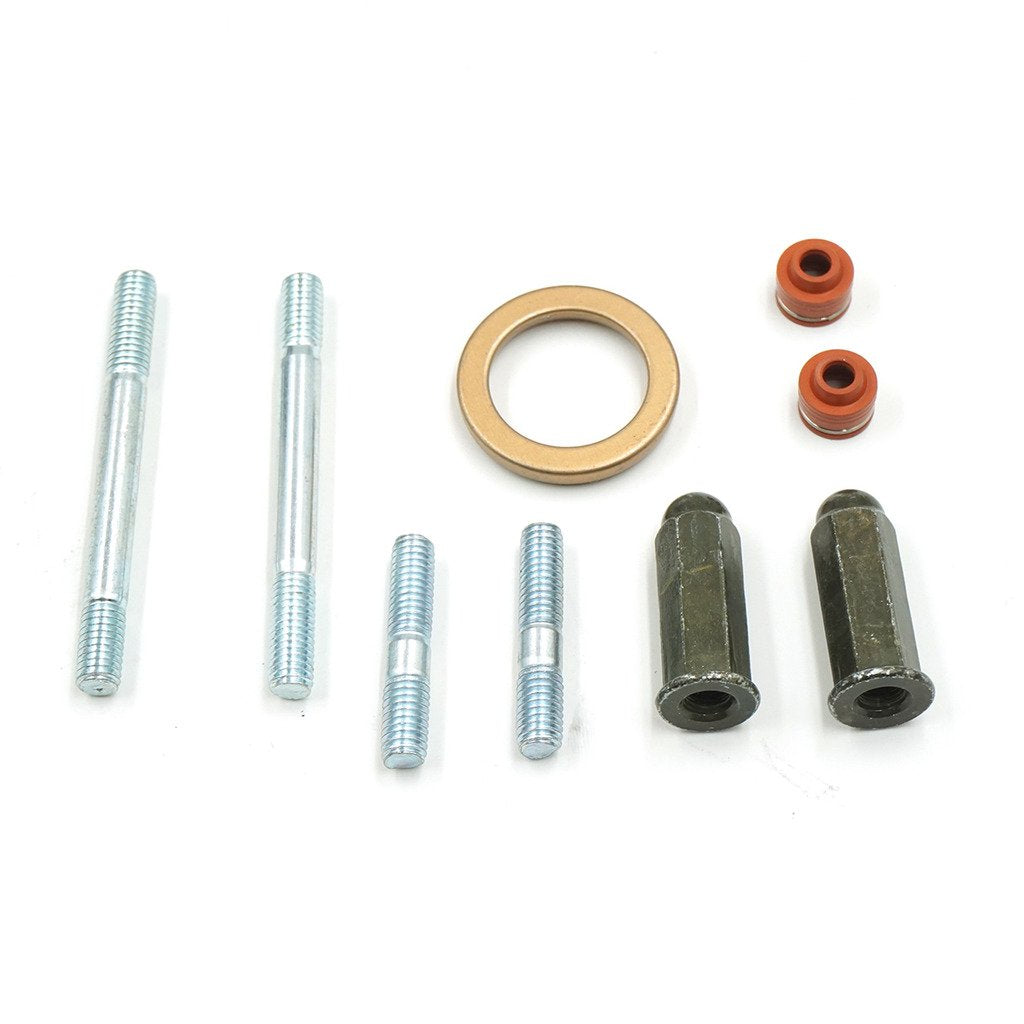

• Valve oil seal, intake and exhaust studs, exhaust nut, and tensioner gasket.

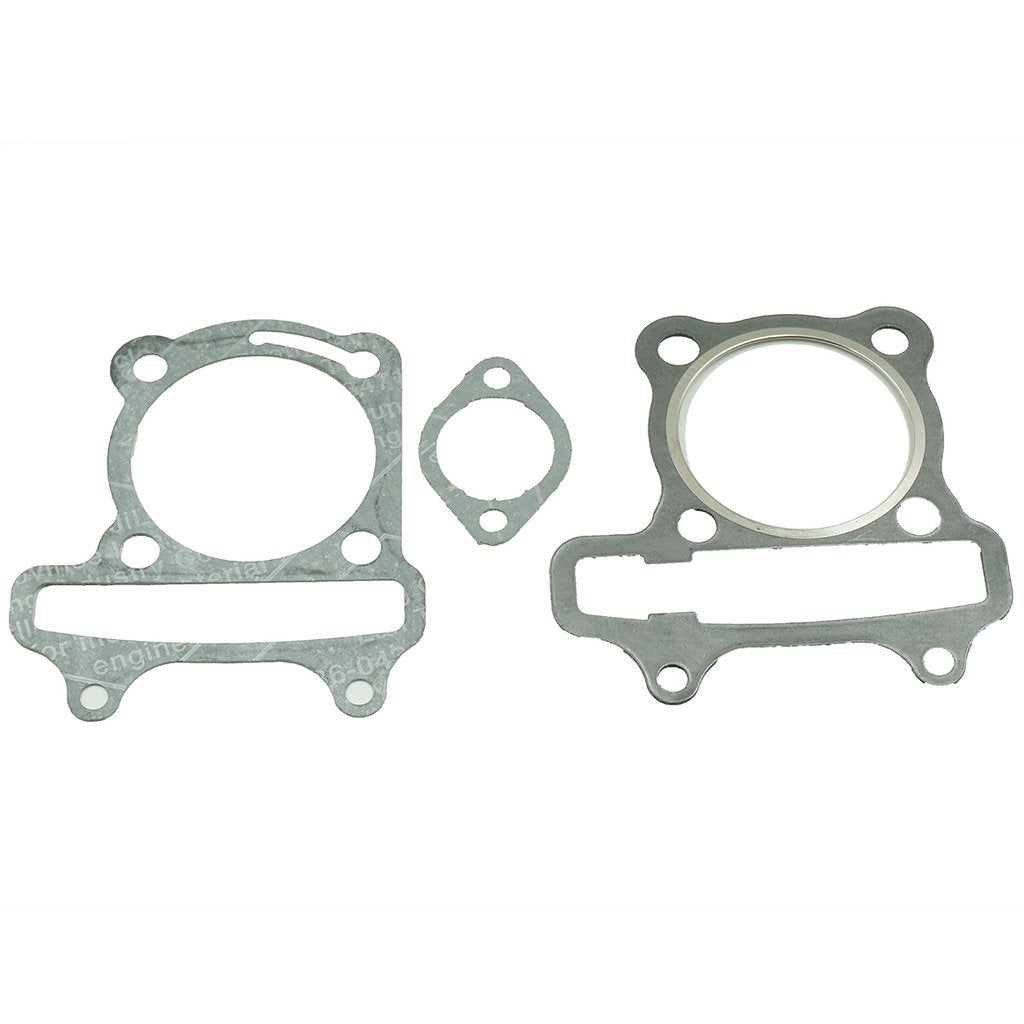

• Full gasket set including exhaust gasket for resealing the head and base.

How does this kit affect engine durability and serviceability?

Replacing worn top-end parts restores cylinder compression and reduces blow-by when installed and torqued to spec. Glixal supplies durable piston rings and seals intended for routine road or trail use, improving sealing and easing future maintenance.

• Durable piston rings designed for consistent sealing under normal operating conditions.
• Precision piston pin (15mm) and clips for secure wrist-pin retention.
• Full gaskets and seals included to prevent leaks after installation.
• Hardware and studs included to simplify reinstalling exhaust and intake components.

What should I prepare before installing this top-end kit?

Gather basic hand tools, a torque wrench, and a clean workspace; refer to a service manual for torque specs and timing procedures. Inspect the crankcase and head for damage and measure bore and piston clearances if possible to ensure a proper match.

• Service manual or torque specifications for 152QMI/157QMJ engines.
• Torque wrench, feeler gauges and assembly lube for initial startup.
• Clean workspace and thread sealant for exhaust studs if recommended.
• Verify bolt pattern (76mm) and crankcase mating surfaces are undamaged.

Who this is for: Riders or mechanics who need a full top-end replacement for GY6 150cc 152QMI/157QMJ engines with a 76mm bolt pattern. Ideal for owners of Chinese scooters and ATVs seeking a single-package solution that includes the cylinder, piston assembly, rings, pins, gaskets and mounting hardware—perfect for restoring compression and getting the vehicle back on the road or trail when installed correctly.
