GlowShift Tinted 7-Color Adjustable Fuel Level Gauge 2-1/16" (52mm) Black Dial, Multi-Sender Calibration

GlowShift Tinted 7 Color Adjustable Fuel Level Gauge is a 2-1/16" (52mm) instrument that displays fuel level in clear increments while offering seven selectable illumination colors and compatibility with multiple sending unit resistances.

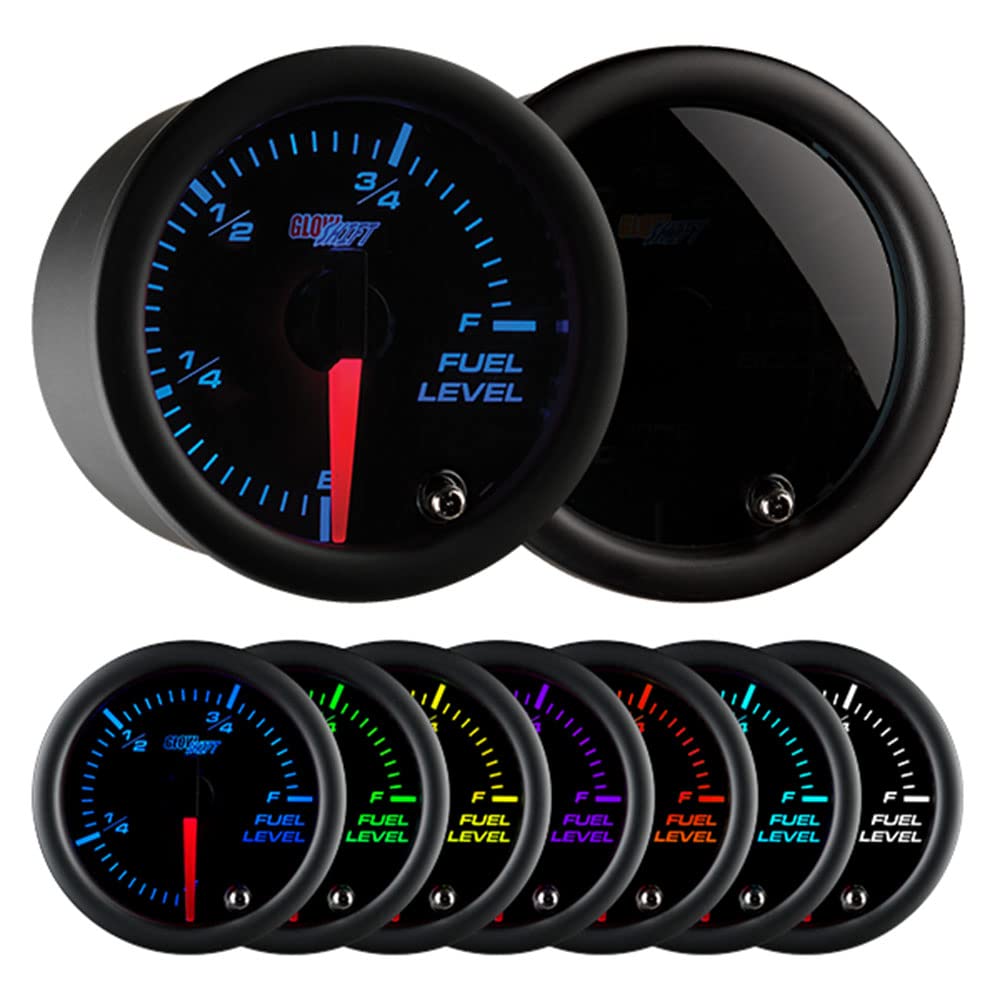

This compact, customizable fuel level gauge replaces or upgrades your factory meter with a black dial, illuminated red needle, tinted lens and matte black trim. It supports a wide range of sender resistances to suit many vehicles and includes a dimmer wire for reduced brightness when headlights are on. The unit ships with a power/sensor harness, mounting hardware, a visor and straightforward installation instructions so you can install it in dash pods or custom panels.

What sender resistances does this GlowShift fuel gauge support?

The gauge is engineered to work with multiple common fuel sender resistance ranges so it can adapt to different makes and models. It accepts configurations such as 0Ω–90Ω, 0Ω–30Ω, 73Ω–10Ω, 240Ω–33Ω and 16Ω–158Ω among others, letting you match the gauge to your vehicle's sender. You select the correct resistance range during setup for accurate readings.

• Supports at least 10 resistance configurations for gasoline and diesel senders
• Fields standard ranges used by many domestic and import vehicles
• Selectable calibration ensures correct Empty/Full needle positions

How do the lighting and color options improve visibility and style?

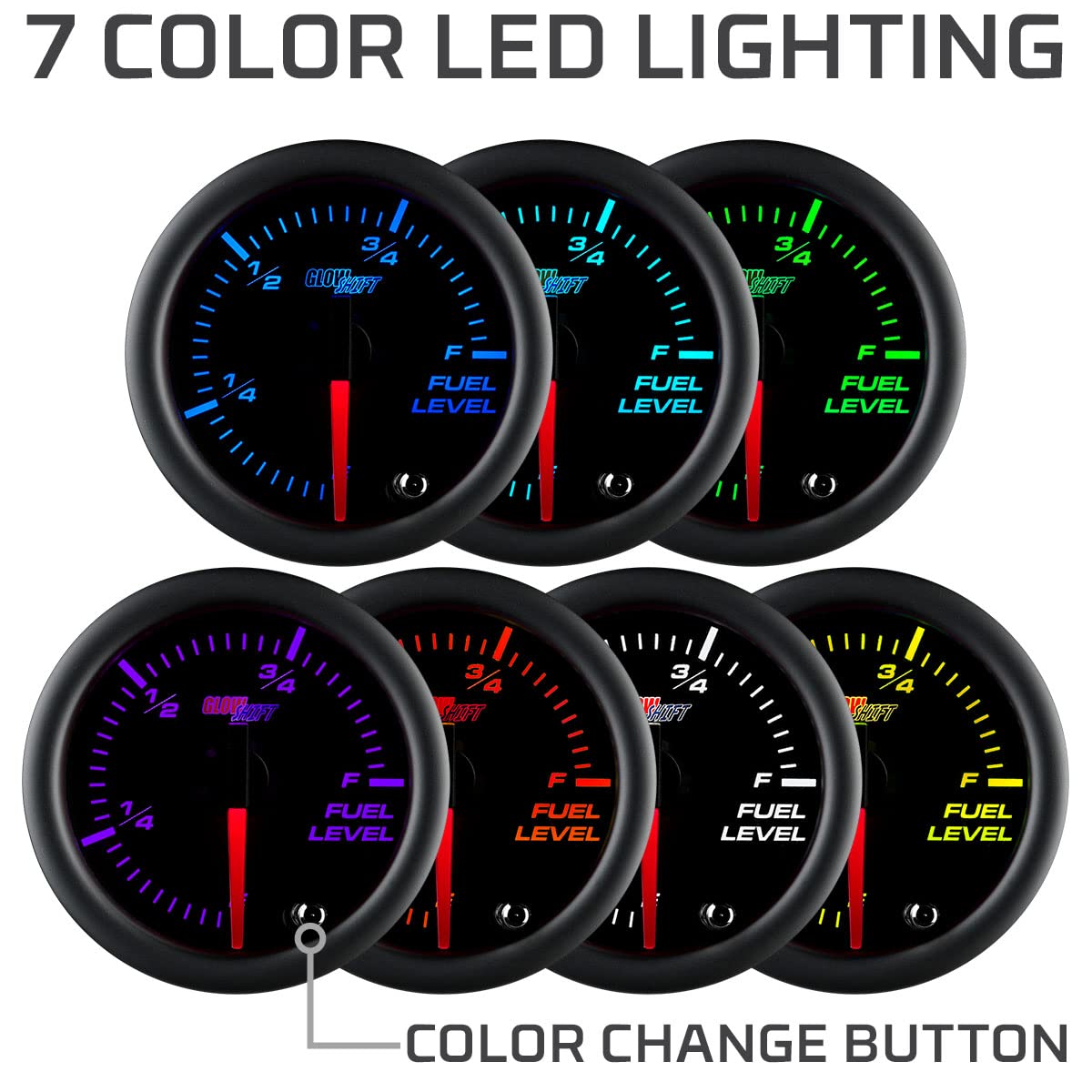

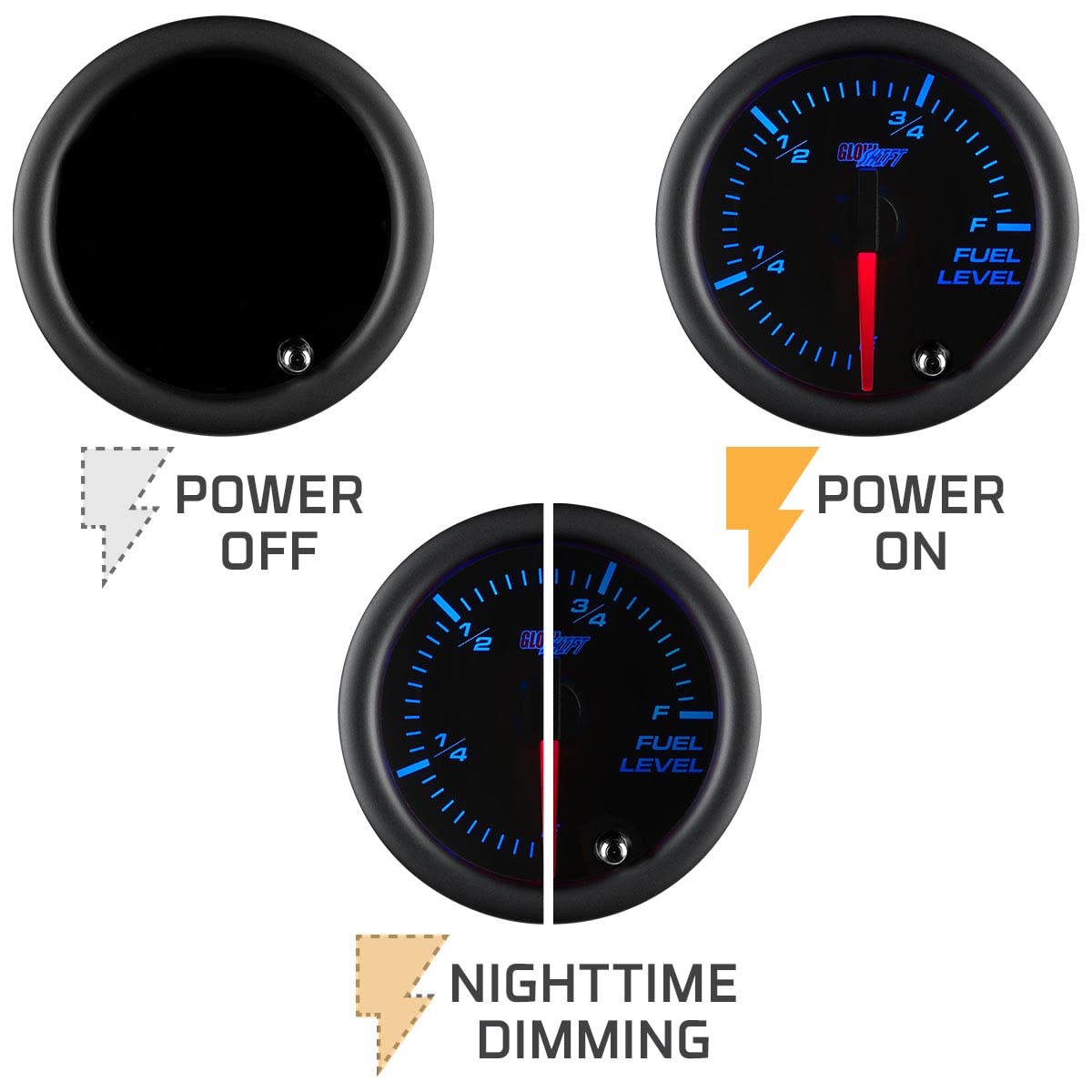

The gauge offers seven solid colors — blue, red, green, teal, purple, white and yellow — plus two color-cycle modes so you can match factory illumination or create a custom look. A dimmer wire reduces brightness about 30% when connected to your headlight switch, helping prevent glare during night driving. The tinted lens and illuminated red needle combine functional visibility with a polished appearance.

• Seven solid colors + two cycling modes for personalized lighting
• Dimmer wire connection lowers brightness with headlights on
• Tinted lens softens light for reduced eye strain at night

What measurements and installation accessories are included?

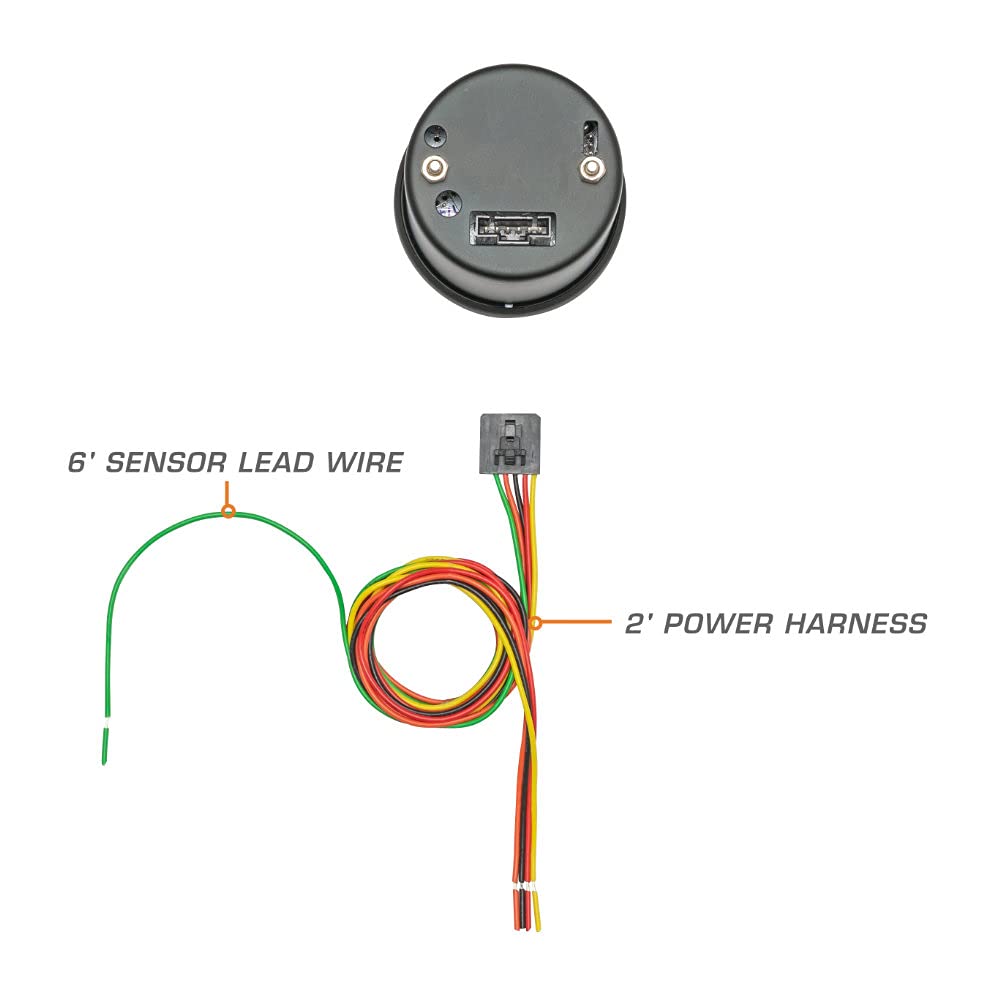

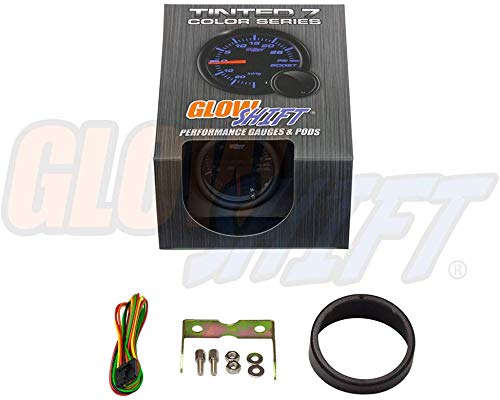

The gauge measures 2-1/16" (52mm) in diameter and displays fuel at Empty, 1/4, 1/2, 3/4 and Full increments. GlowShift supplies a two-foot power/sensor harness, mounting bracket and hardware plus a visor to reduce glare. Step-by-step instructions simplify wiring and calibration so you can complete most installs without professional tools.

• 2-1/16" (52mm) diameter with aluminum housing and matte black trim
• Included 2' harness, bracket, hardware and installation guide
• Visor and red illuminated needle for improved readability

What support and warranty come with the gauge?

GlowShift backs this product with a one-year limited warranty plus free lifetime technical support to help during setup and operation. The company also offers a 30-day return policy for no-hassle returns if the gauge doesn’t meet expectations. Resources and support make it easier to troubleshoot sender compatibility and wiring questions.

• One-year limited warranty for parts and workmanship
• Free lifetime technical support from GlowShift
• 30-day return policy for returns and exchanges

Who is this for: This gauge is intended for car, truck and custom-vehicle owners who want a compact, visually adjustable fuel gauge that fits 52mm dash openings and supports multiple sender resistances. It's a good choice for restorations, custom dashboards, and anyone replacing a failing factory fuel meter who wants color-matching or a modern illuminated look without extensive wiring complexity.
