gohantee R134a Charging Hose Kit with 2.75" Gauge — BPV31 Piercing Valve, 19.7" Reinforced Hose & Multi‑adapter

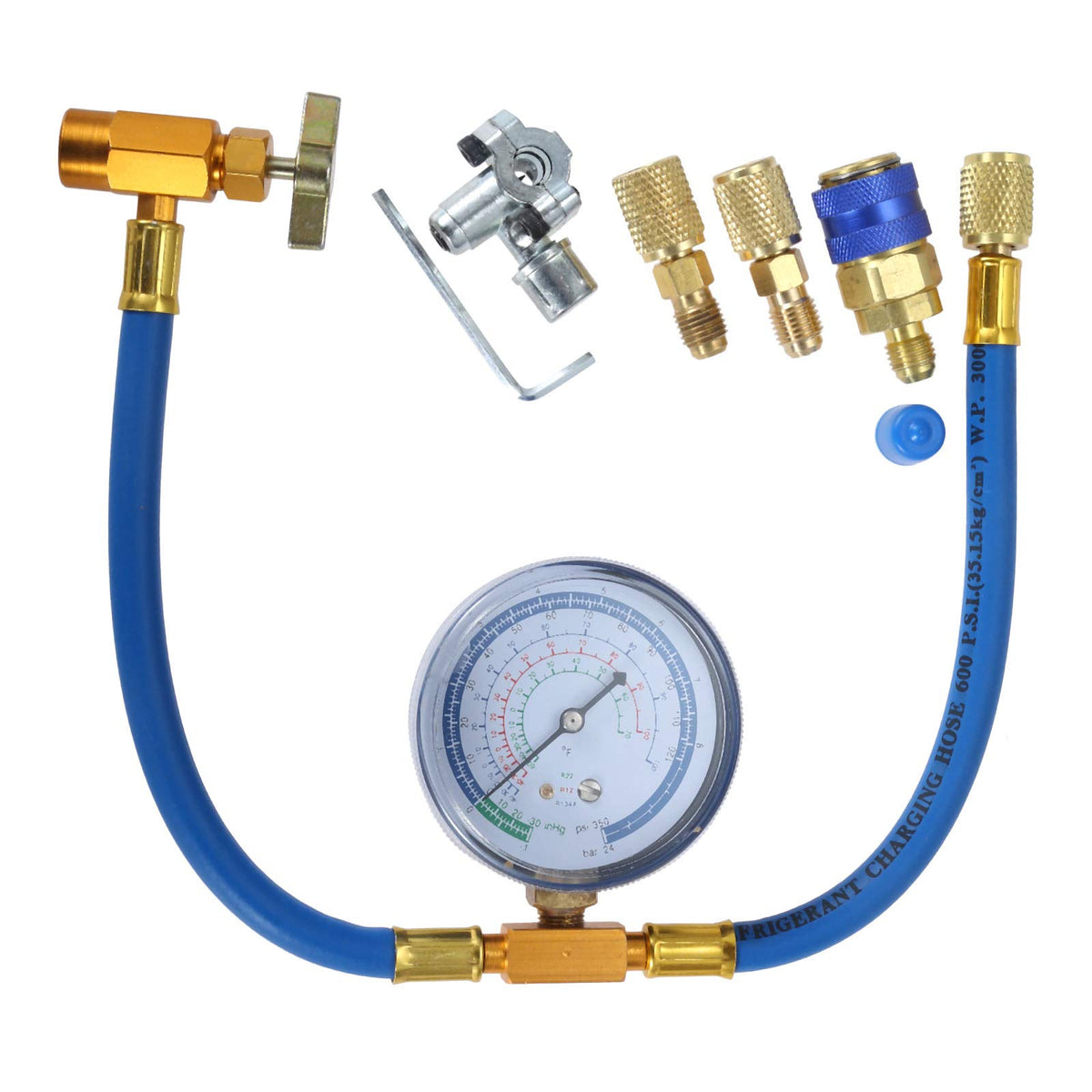

gohantee R134a Charging Hose Kit is a ready-to-use refrigerant recharge set featuring a 2.75" gauge, BPV31 piercing valve, and multiple adapters for R134a, R12 and R22 service connections. This compact kit combines a reinforced 19.68" charging hose, a clear analog gauge, a 3-in-1 piercing valve and essential adapters so you can access low-side service ports on automotive, mini-split and refrigeration systems. The gauge displays scales for R134a, R12 and R22 refrigerants and the included fittings suit common 1/4" and 5/16" lines, making the set useful for technicians and DIYers who need a lightweight, portable charging solution.

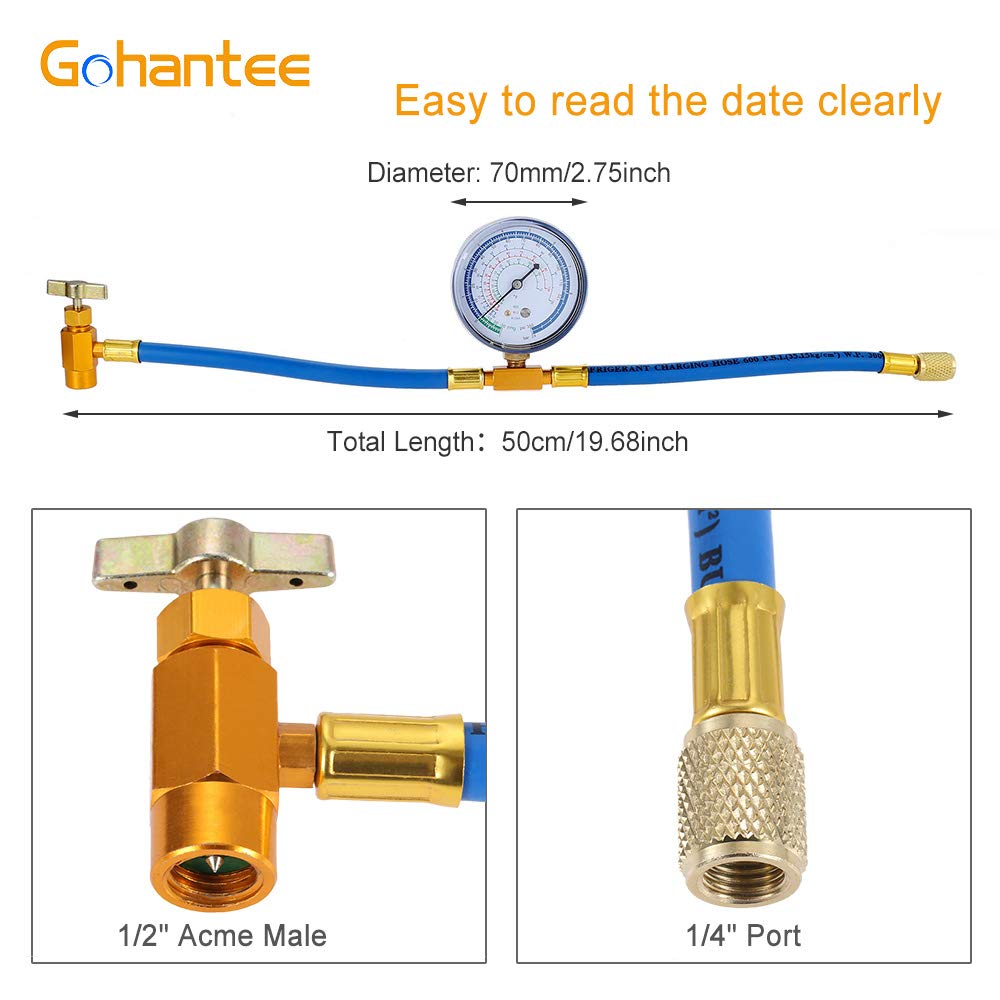

How does the gauge help me read different refrigerants?

The integrated 2.75" gauge is printed with multiple scales so you can reference pressures for R134a, R12 and R22 without swapping tools. This reduces setup time and keeps measurements consistent during charging or pressure checks.

• 2.75" analog dial with separate R134a/R12/R22 scales
• Clear markings for quick pressure interpretation
• Built into the hose assembly for one-handed operation

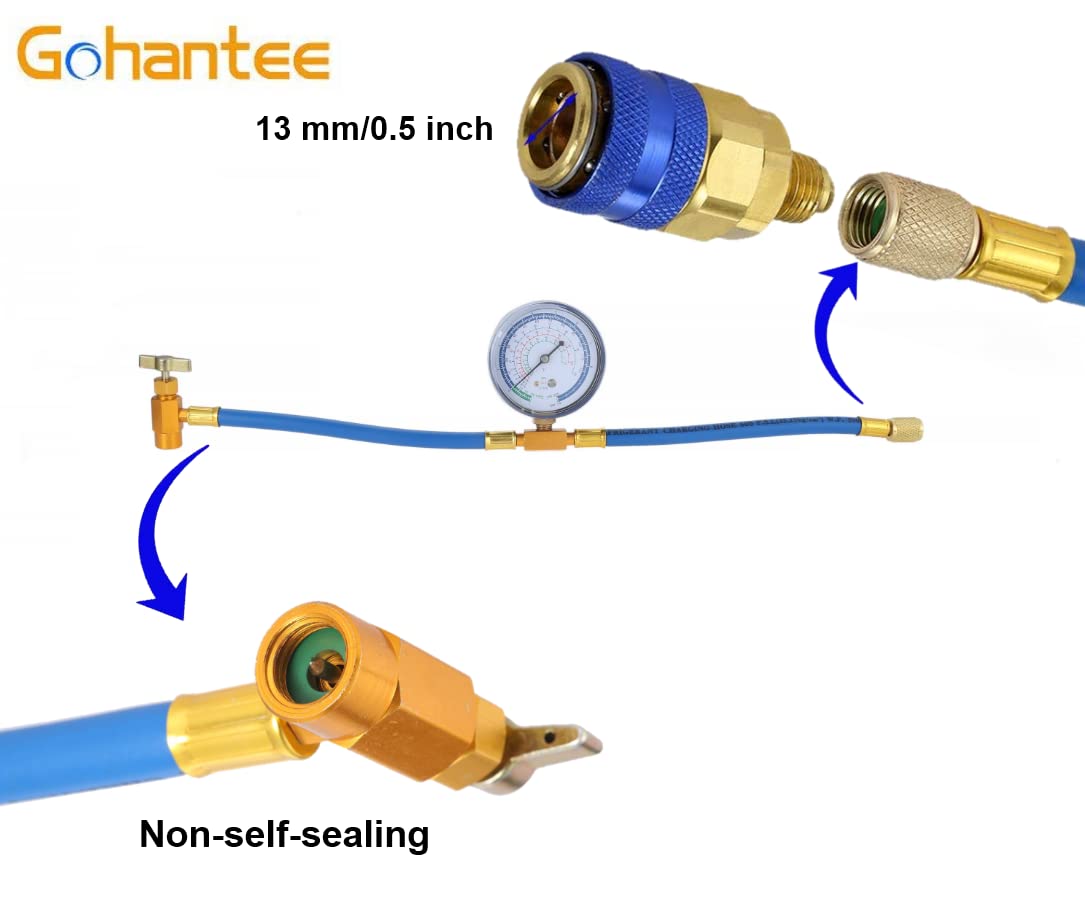

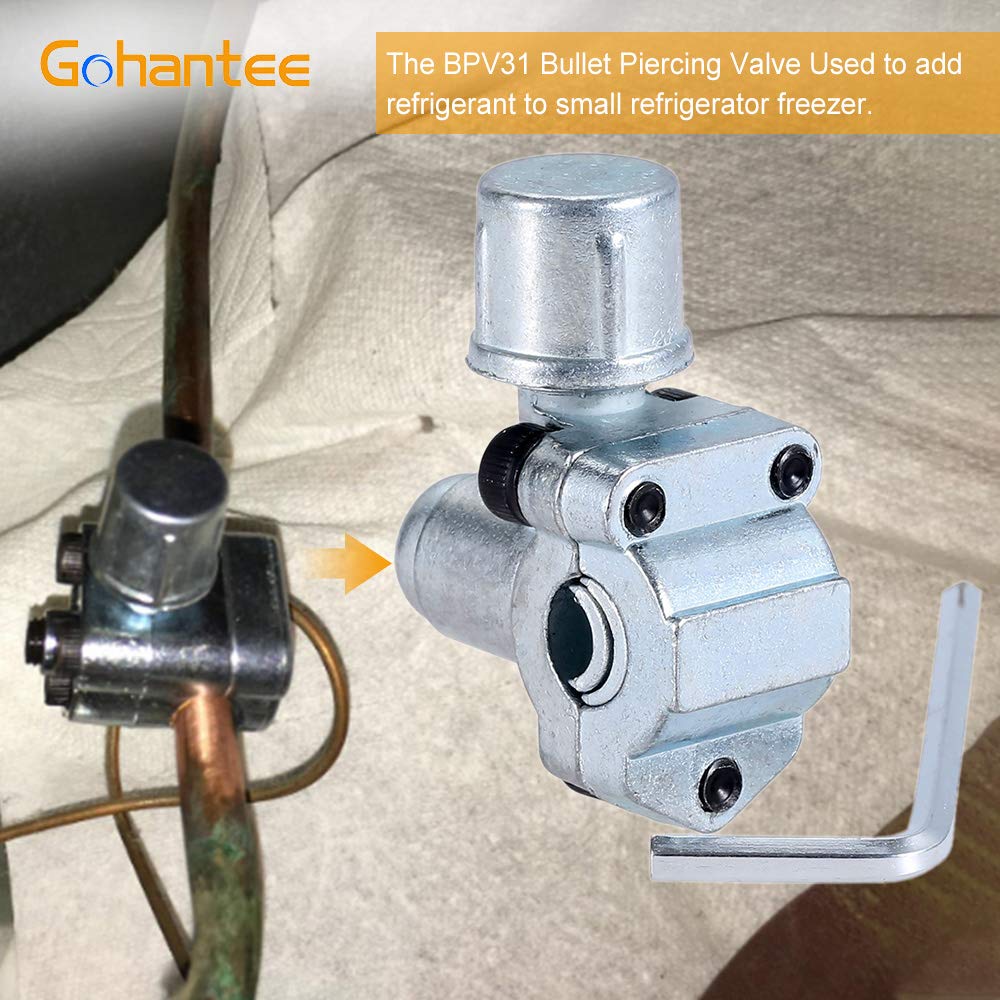

Can this kit pierce and connect to different tubing sizes?

Yes—the BPV31 3-in-1 piercing valve included in the kit is designed to tap into three common tubing diameters safely. It comes with adapters and a hex key so you can fit bullet-style lines and avoid cutting or soldering during temporary service tasks.

• BPV31 fits 1/4", 5/16" and 3/8" tubing
• Includes 1 valve, hex key and 2 adapters for secure tap setup
• Piercing design for quick temporary access without major system alteration

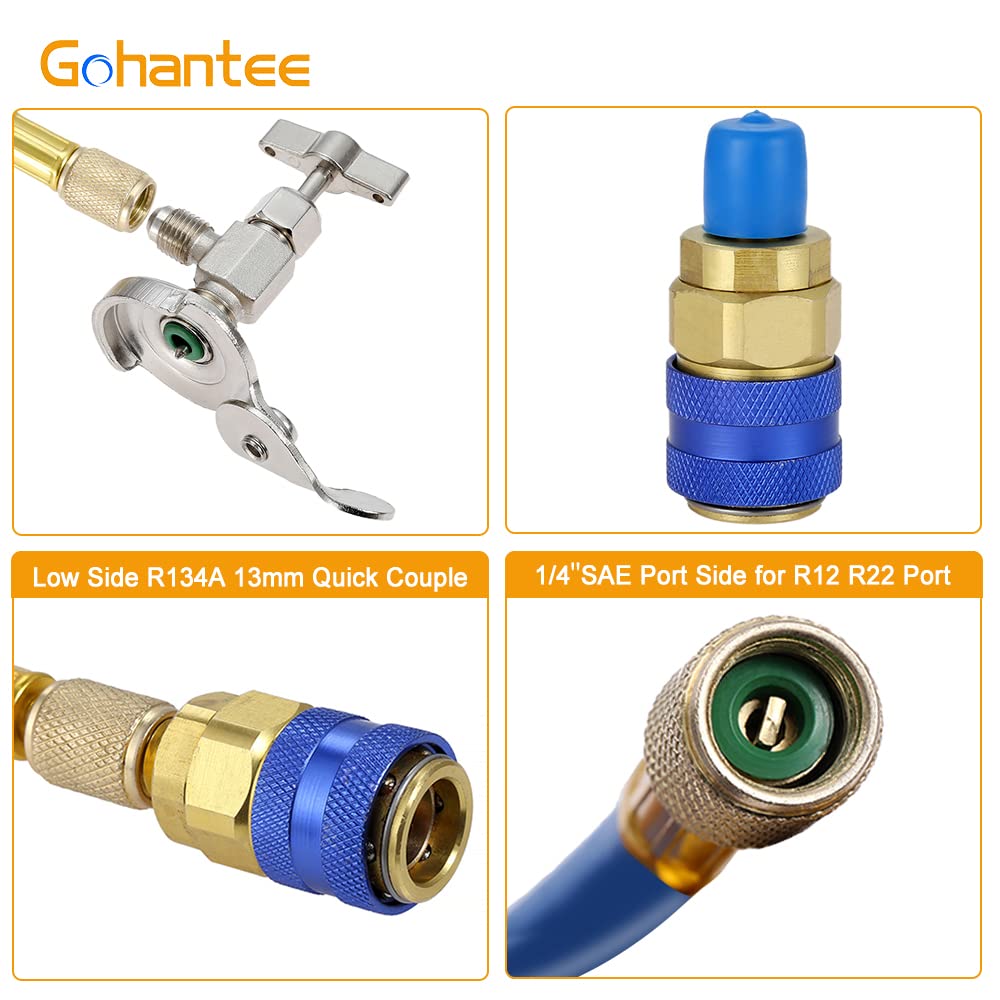

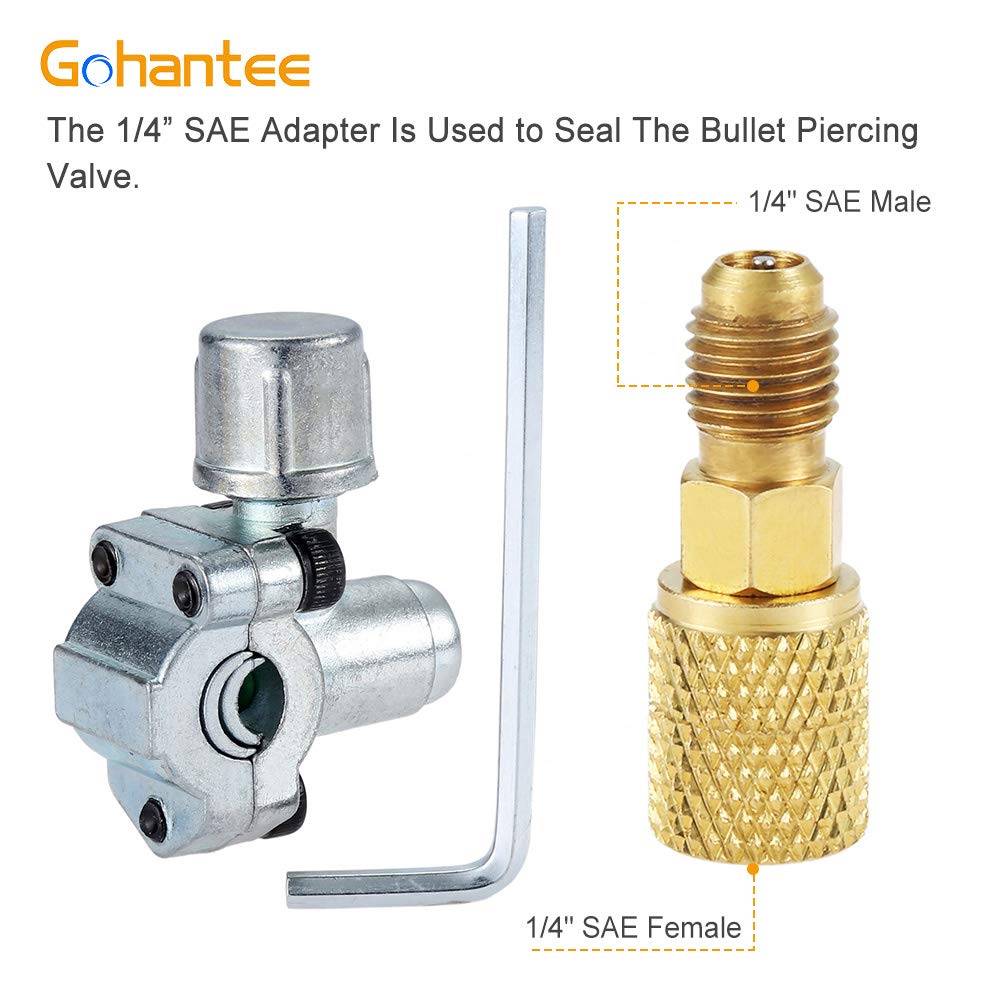

What adapters are included and what systems do they support?

The kit ships with a 1/4" low-side quick coupler, a 1/4" to 1/4" adapter with valve core, and a 1/4" male to 5/16" female adapter. These pieces expand compatibility so you can work on mini-split units, automotive A/C low-side ports, and many refrigeration lines using standard fittings.

• 1/4" low-side quick coupler for common service ports
• 1/4" to 1/4" adapter with valve core for inline control
• 1/4" male to 5/16" female adapter for mini-split and HVAC connections

How durable and serviceable is the kit for field use?

gohantee builds this replacement kit from sturdy materials and performs manufacturer tests to ensure reliability. The hose length and fittings are chosen for convenience on service calls, and the package includes a service guarantee and customer support if components fail.

• 19.68" reinforced charging hose for flexible reach
• Metal adapters and quick coupler rated for refrigerant service
• Manufacturer support and replacement policy included in the package

Who is this for? This gohantee R134a Charging Hose Kit is aimed at HVAC technicians, automotive mechanics and knowledgeable DIYers who need a compact, multi-purpose set for low-side refrigerant charging and pressure checks. It’s especially useful when you require a quick-access piercing valve, combined refrigerant scales on a single gauge, and a selection of adapters to bridge common service fittings without carrying multiple separate tools.

FAQ

Q: Will this kit work with R134a systems?

A: Yes. The hose and gauge include R134a scale markings and fittings compatible with common R134a low-side ports.

Q: Does the BPV31 valve fit different tube sizes?

A: Yes. The BPV31 fits 1/4", 5/16" and 3/8" tubing and includes adapters plus a hex key for installation.
