Goldenrod Fuel Filter Replacement Cartridge 496-5 Water-Block — 17-Micron Water-Absorbing

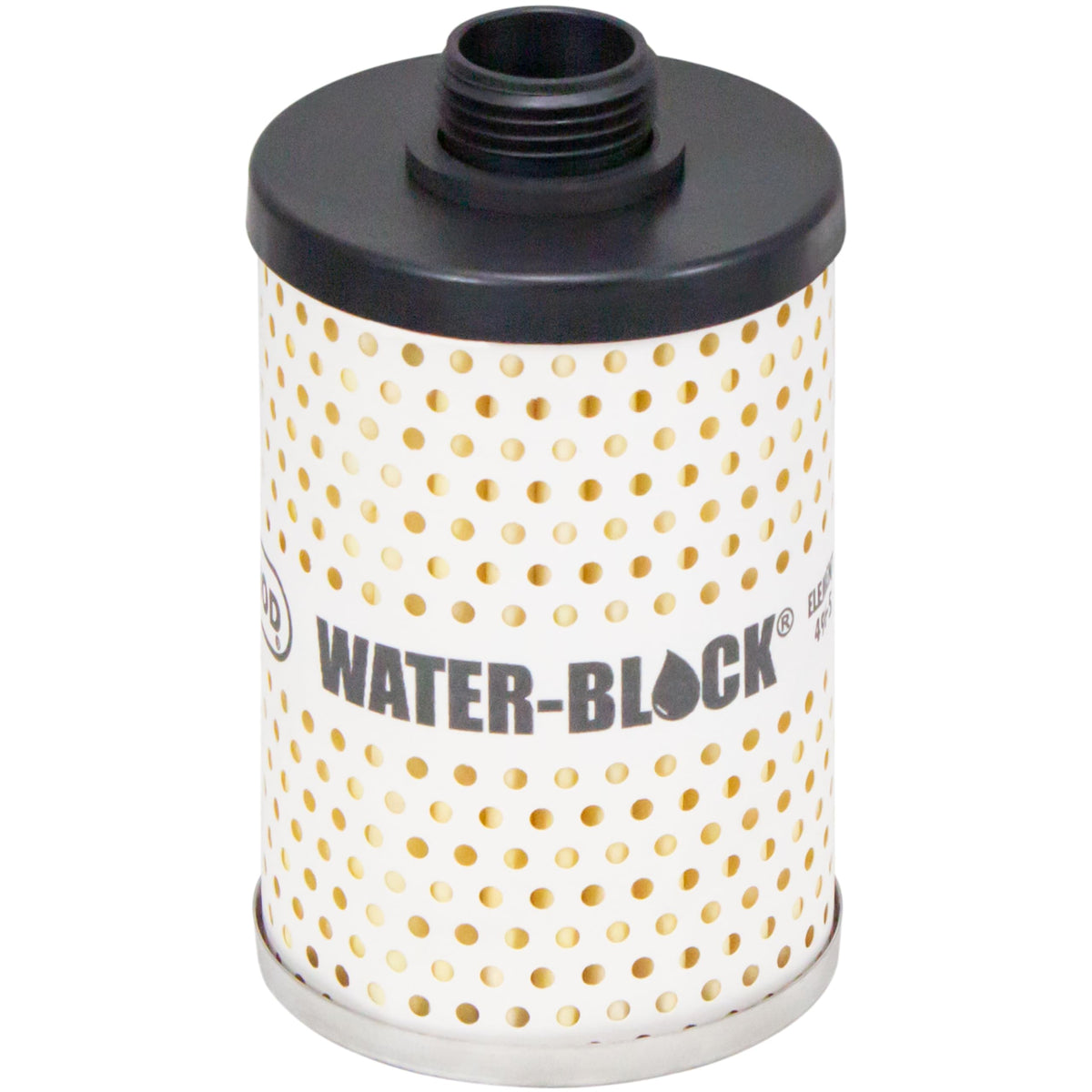

GOLDENROD (496-5) is a water-absorbing replacement element for Water-Block see-through fuel bowl filters that separates water from gasoline and diesel and signals when service is needed.

This replacement cartridge fits Goldenrod Water-Block see-through bowl filters and restores reliable contamination control for small engines, generators, lawn equipment, and light-duty diesel applications. The element uses a 17-micron filter media combined with a water-absorbing polymer that traps free water and progressively restricts fuel flow as the element becomes saturated, providing a clear sign to replace the cartridge before runability problems occur. Constructed in the U.S.A., it’s built specifically for Goldenrod Water-Block models 496 and 496-3/4.

What makes the 496-5 different from a standard fuel filter?

The 496-5 not only filters particulates down to 17 microns but also actively captures and retains free water with a specialized polymer layer. That polymer expands as it absorbs water, which constricts fuel flow to alert you that the element needs changing—an automatic, passive indicator that helps avoid engine damage from contaminated fuel.

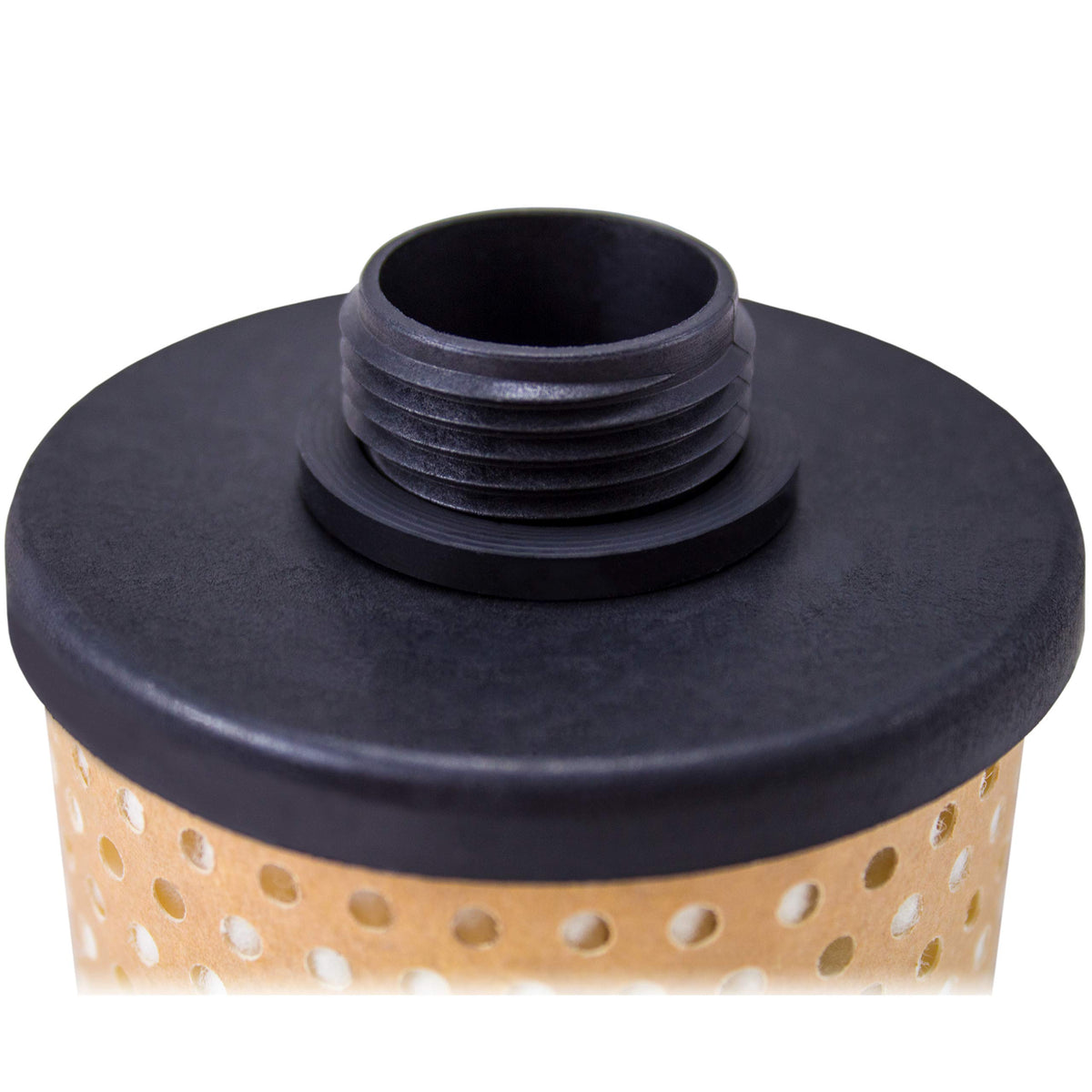

• 17-micron particulate filtration for fine debris removal
• Water-absorbing polymer layer captures and sequesters free water
• Progressive flow restriction serves as a service indicator
• Specifically sized for Goldenrod Water-Block see-through bowls

How do I install and replace the Goldenrod 496-5 element?

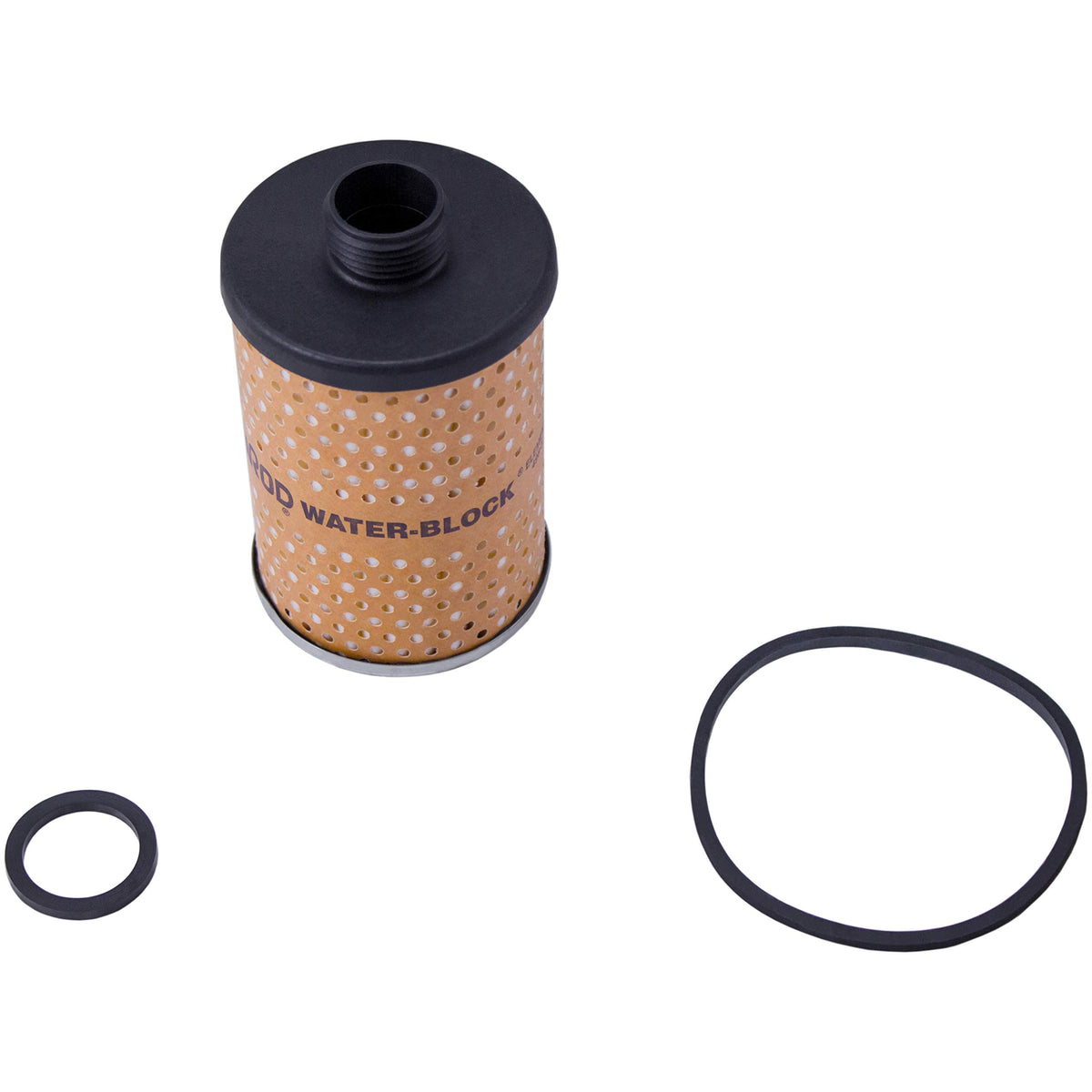

Replacement is straightforward: drain the bowl, remove the old element, and insert the new 496-5 cartridge into the Goldenrod Water-Block see-through bowl assembly. Follow your filter housing instructions and confirm seals and clamp fittings are secure to prevent air ingress and leaks.

• Compatible only with Goldenrod Water-Block models 496 and 496-3/4
• Drain and clean bowl before inserting new element for best performance
• Hand-tighten fittings and inspect O-rings or gaskets during service
• Replace element when fuel flow noticeably slows or per maintenance schedule

Will this element work with diesel and gasoline systems?

Yes—the 496-5 is designed for both gasoline and diesel fuel systems where the Goldenrod Water-Block see-through bowl is used. Its media and absorbent layer are compatible with standard fuels and will trap free water present in either fuel type.

• Approved for gasoline and diesel applications in small engine and light-duty systems
• Helps protect carburetors, injectors, and fuel pumps from water and particulate damage
• Made in the U.S.A. to consistent manufacturing standards

How long will a 496-5 element last in service?

Service life varies with fuel cleanliness, water content, and operating hours, but the element gives a clear flow-restriction signal as it approaches saturation. Replace the element when fuel flow slows noticeably or at regular maintenance intervals for your equipment to maintain reliable engine operation.

• Life depends on fuel condition and operating environment
• Flow restriction increases as polymer absorbs water—use as a visual/service cue
• Regular inspection during routine service helps prevent unexpected fuel problems

Who is this for: The Goldenrod 496-5 Water-Block replacement element is intended for owners and service technicians who use Goldenrod see-through bowl Water-Block filters (models 496 and 496-3/4) on small engines, portable generators, lawn and garden equipment, and light-duty diesel systems. If you need reliable water removal, a passive service indicator, and U.S.-made construction for routine fuel maintenance, this element is engineered to restore and maintain proper filtration performance.
