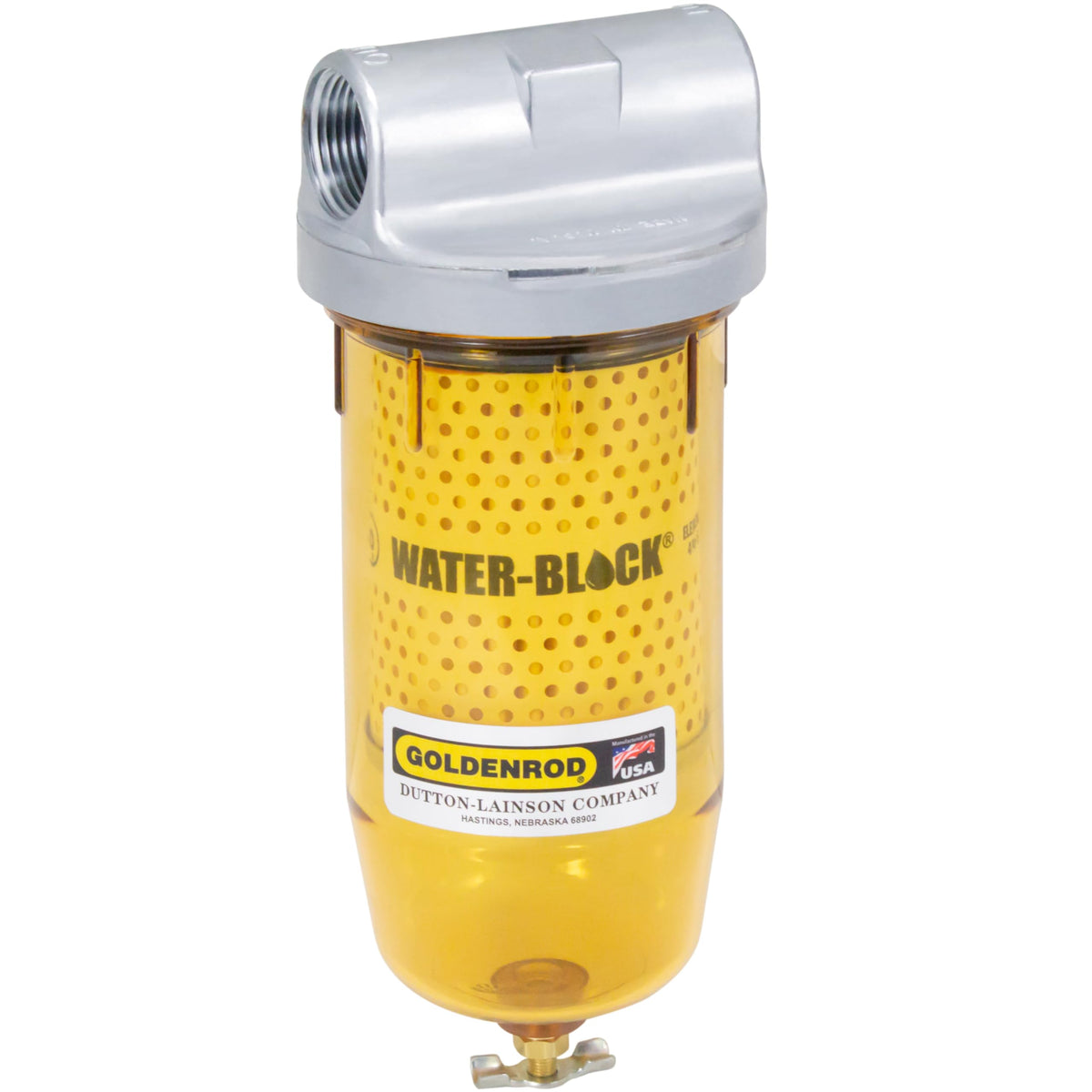

Goldenrod Fuel Water Separator — See-Through Polymer Bowl, 1 in. NPT, Zinc Die-Cast Cap, 25 GPM

The GOLDENROD 496 is a professional-grade fuel water separator that traps water and microscopic contaminants while letting you visually monitor fuel condition through a clear, alcohol-resistant polymer bowl.

Built for heavy-duty and commercial fuel systems, this filter combines patented water-absorbing polymer technology with fine particulate filtration and a rugged zinc die-cast top cap. The unit attaches with standard 1" NPT fittings (compatible with select GOLDENROD see-thru bowl models) and is rated for high flow and pressure, giving technicians and fleet operators a dependable point-of-use safeguard against water-related fuel damage.

How does the GOLDENROD 496 remove water from fuel?

This model uses an advanced, water-absorbing polymer element that captures free water in gasoline and diesel fuel. As the polymer soaks up moisture it reduces passage of contaminated fuel; when fully saturated the element restricts flow, signaling it's time to replace the cartridge and preventing contaminated fuel from reaching the engine.

• Water-absorbing polymer media specifically engineered to trap free water
• Automatic flow restriction when the element is saturated to indicate replacement
• Compatible with gasoline and diesel (not for biodiesel blends over 20%)

What level of particle filtration and protection can I expect?

The GOLDENROD 496 captures microscopic particles such as rust, sand, dirt, scale, and lint that can harm injectors and pumps. Its micro-filtration consistently delivers cleaner fuel downstream, helping preserve component life and system efficiency in demanding operating conditions.

• Precision micro-filtration targets fine particulates that accelerate wear
• Designed to reduce contaminants that foul fuel injection systems
• Professional-grade performance for both light and heavy-duty equipment

How durable and serviceable is the unit for field use?

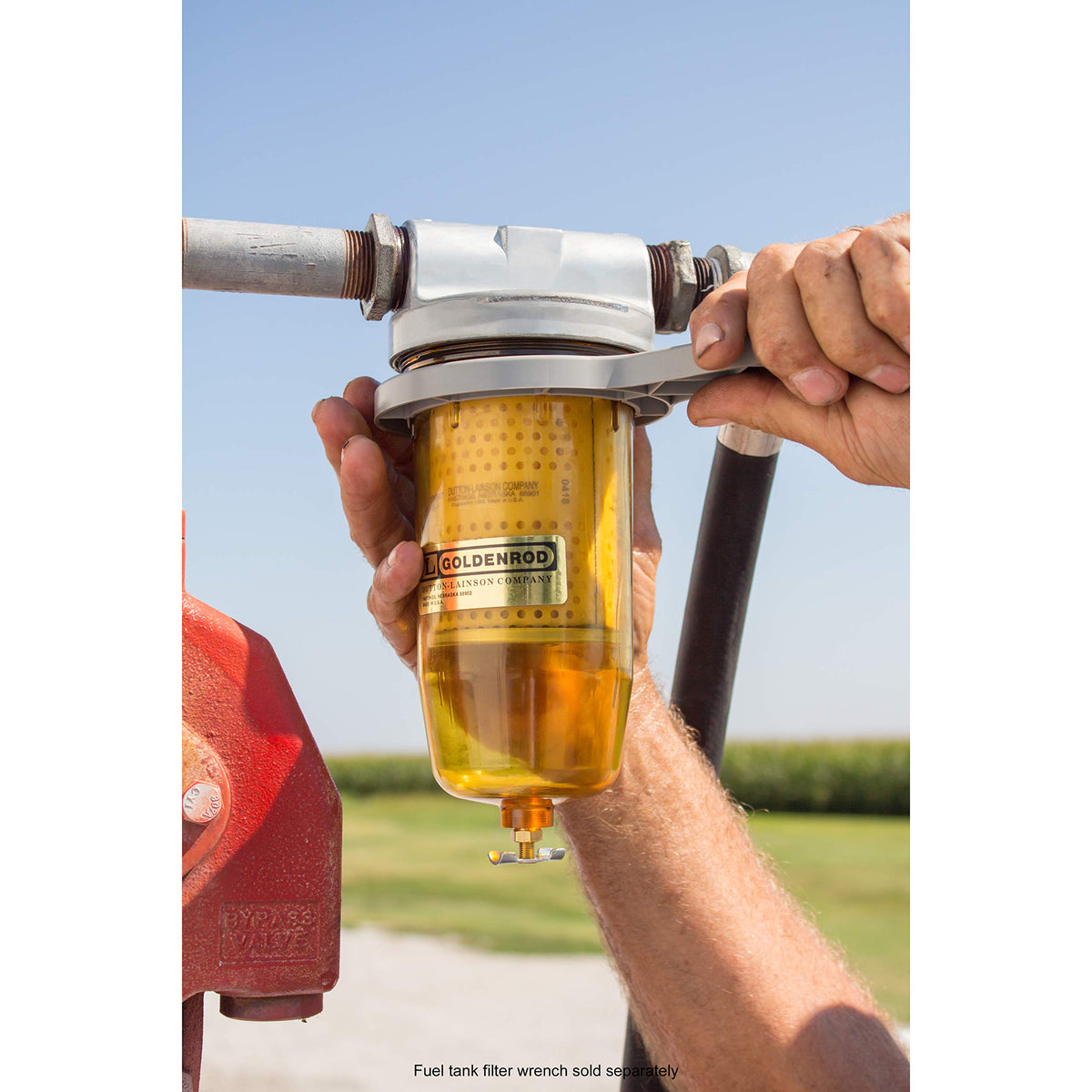

Constructed with a zinc die-cast top cap and standard 1" NPT fittings, the 496 is made for secure, long-lasting installations. The crystal-clear, alcohol-resistant polymer bowl provides instant visual checks of fuel clarity and contamination levels, making maintenance faster and more precise.

• Zinc die-cast top cap resists corrosion and holds up to rugged use

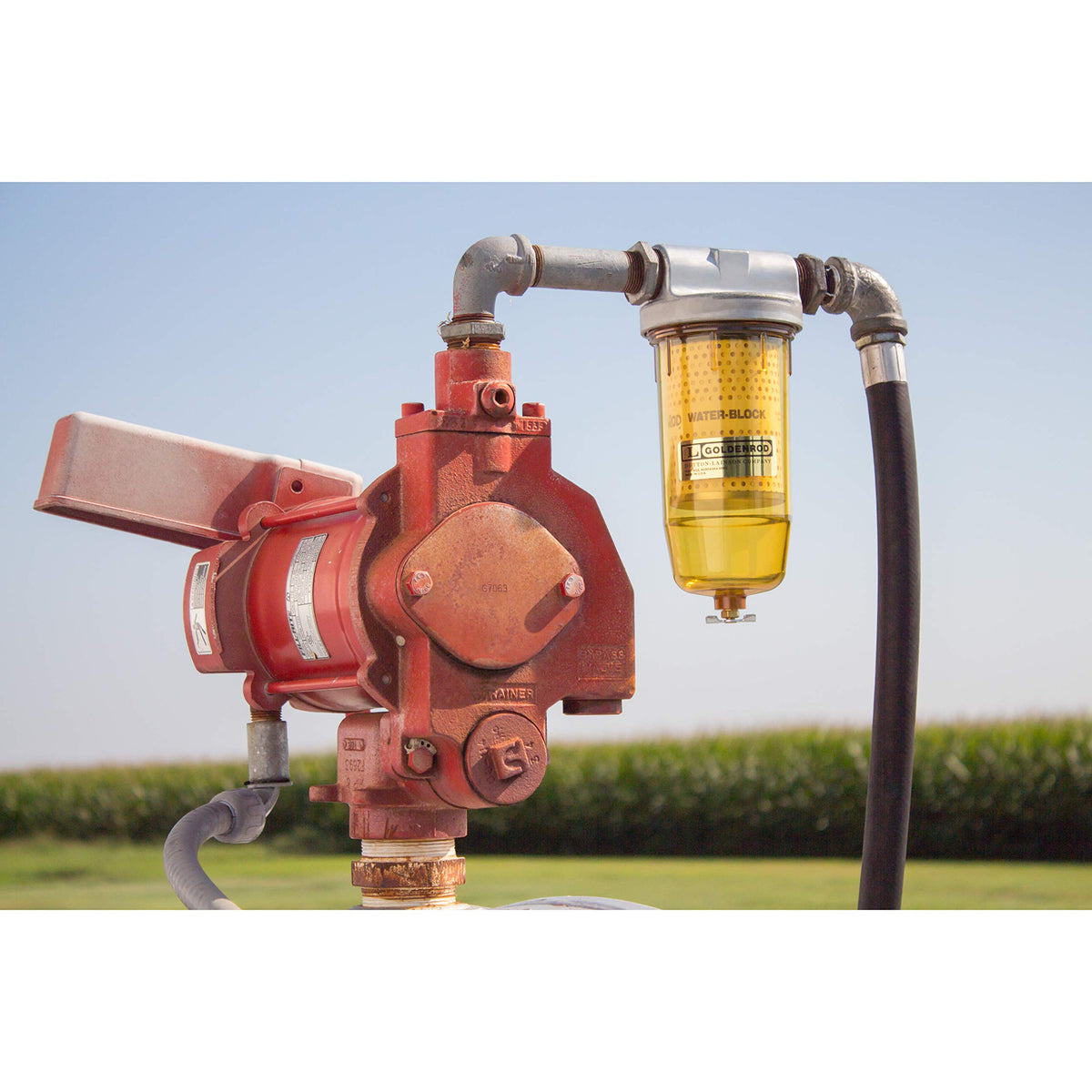

• Transparent bowl allows quick visual inspection without disassembly
• Simple replacement procedure when the element restricts flow

Will this handle high-flow or high-pressure applications?

The GOLDENROD 496 is engineered for high-demand service with a maximum recommended flow of 25 GPM and a working pressure capacity up to 150 psi. These specifications make it suitable for many commercial and automotive applications where robust flow and pressure tolerance are required.

• Maximum recommended flow rate: 25 gallons per minute (GPM)
• Working pressure capacity up to 150 psi for demanding systems
• Intended for installations requiring reliable, continuous fuel delivery

Who is this for: The GOLDENROD 496 is aimed at professional mechanics, fleet managers, marine technicians, and operators of heavy equipment who need a reliable, see-through water separator to protect injectors, pumps, and engines from water and fine particulate contamination. It is ideal when you want clear visual monitoring, high flow capacity, and a durable build—but note it’s compatible only with specified GOLDENROD see-thru bowl models and is not recommended for biodiesel blends over 20%.
