GYOFFULL Washer Repair Kit WH03X30517 – Shift Actuator, Belt, Clutch & Spring (4‑Piece, OEM Fit)

This GYOFFULL 4-piece washer repair kit replaces the WH03X30517 shift actuator and includes the drive belt, clutch and clutch spring to restore spin function and reduce noise and vibration.

If your top-load washer stalls during cycles, makes grinding or thumping sounds, or leaves clothes wetter than expected after spinning, a worn actuator, belt or clutch assembly is often the cause. GYOFFULL’s WH03X30517 kit bundles the common failure parts—shift actuator, drive belt, clutch and spring—so you can replace all wear items at once and avoid repeated disassembly. Each component is manufactured to meet OEM fit and durability standards and is tested before shipping.

How will this kit fix a washer that won’t spin properly?

When a washer refuses to enter or complete a spin, the shift actuator and clutch components control gear engagement and motor-to-drum power transfer. Replacing the worn actuator and clutch parts restores smooth shifting and correct torque transmission so the drum can reach spin speed. The new belt ensures proper traction without slippage or squeal.

• Restores gear engagement with a direct-fit WH03X30517 shift actuator
• Replaces aged belt to prevent slippage and loud squealing
• New clutch assembly and spring ensure consistent spin torque
• Factory-tested parts meet common OEM specifications

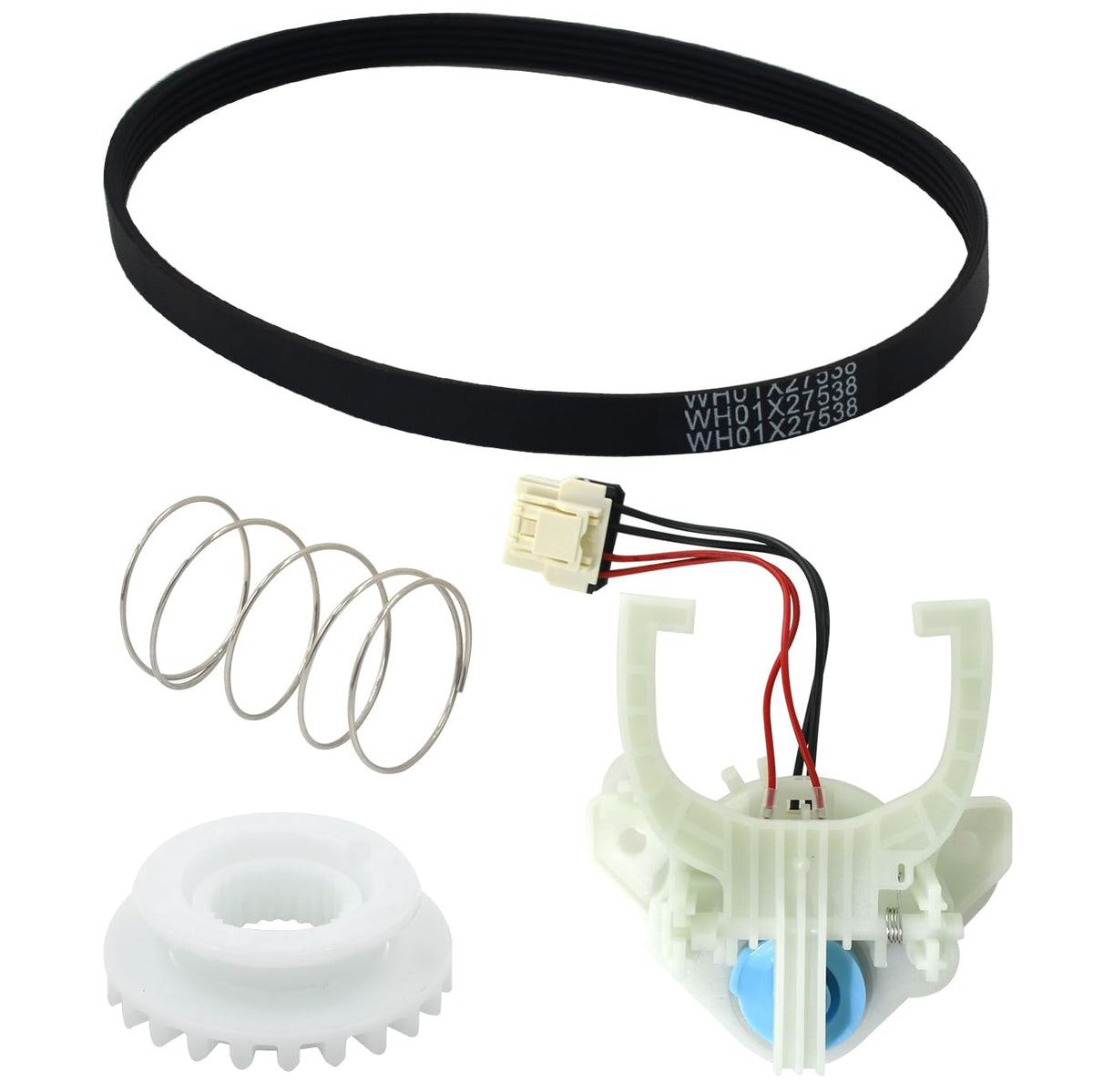

What exactly is included and how do these parts work together?

The kit contains four replacement parts that interact during spin and agitation sequences. The actuator actuates the transmission to select spin or agitate; the drive belt transfers motor rotation to the drum; the clutch cushions engagement and controls speed ramp-up; the spring positions the clutch components reliably. Installing all four at once addresses multiple failure points in one service.

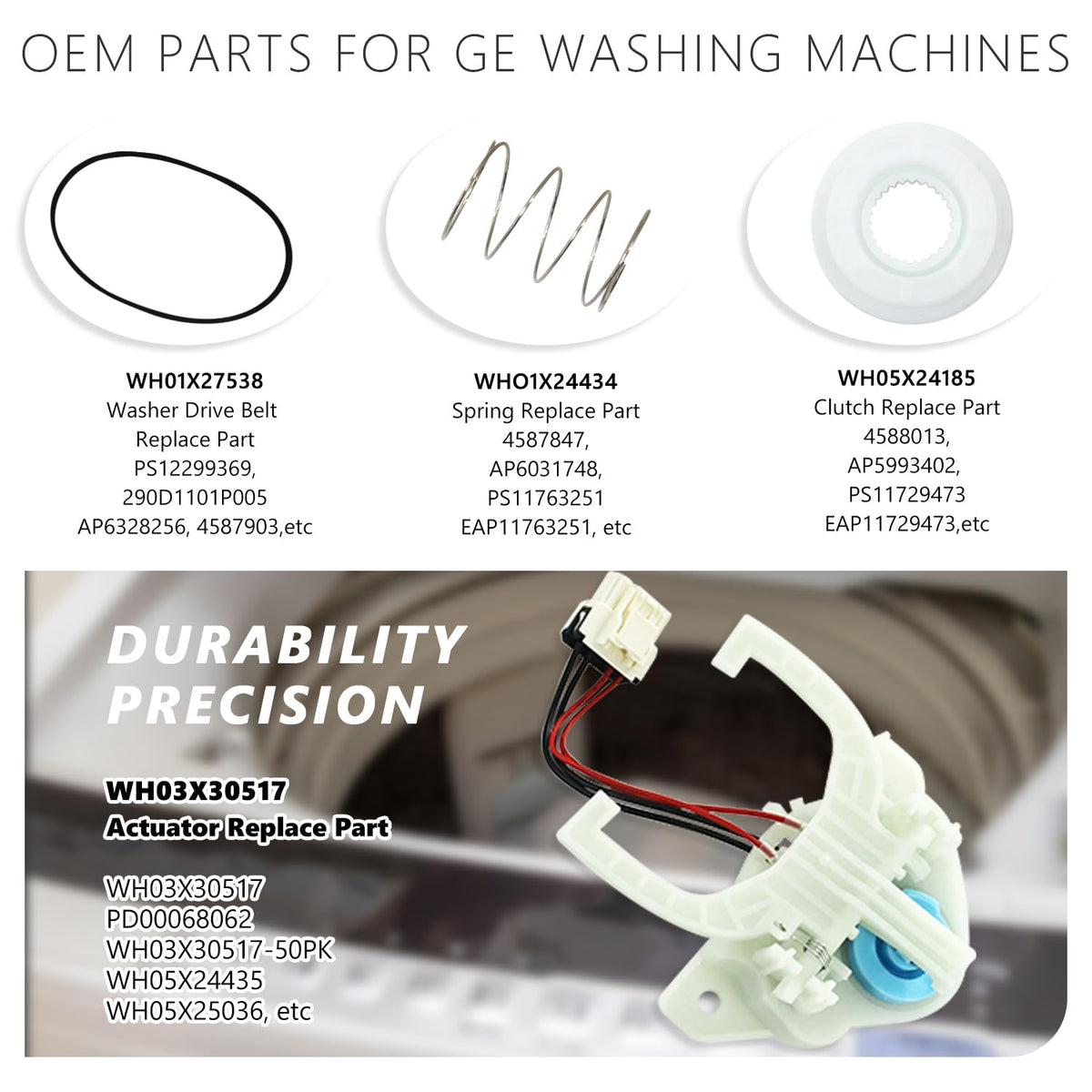

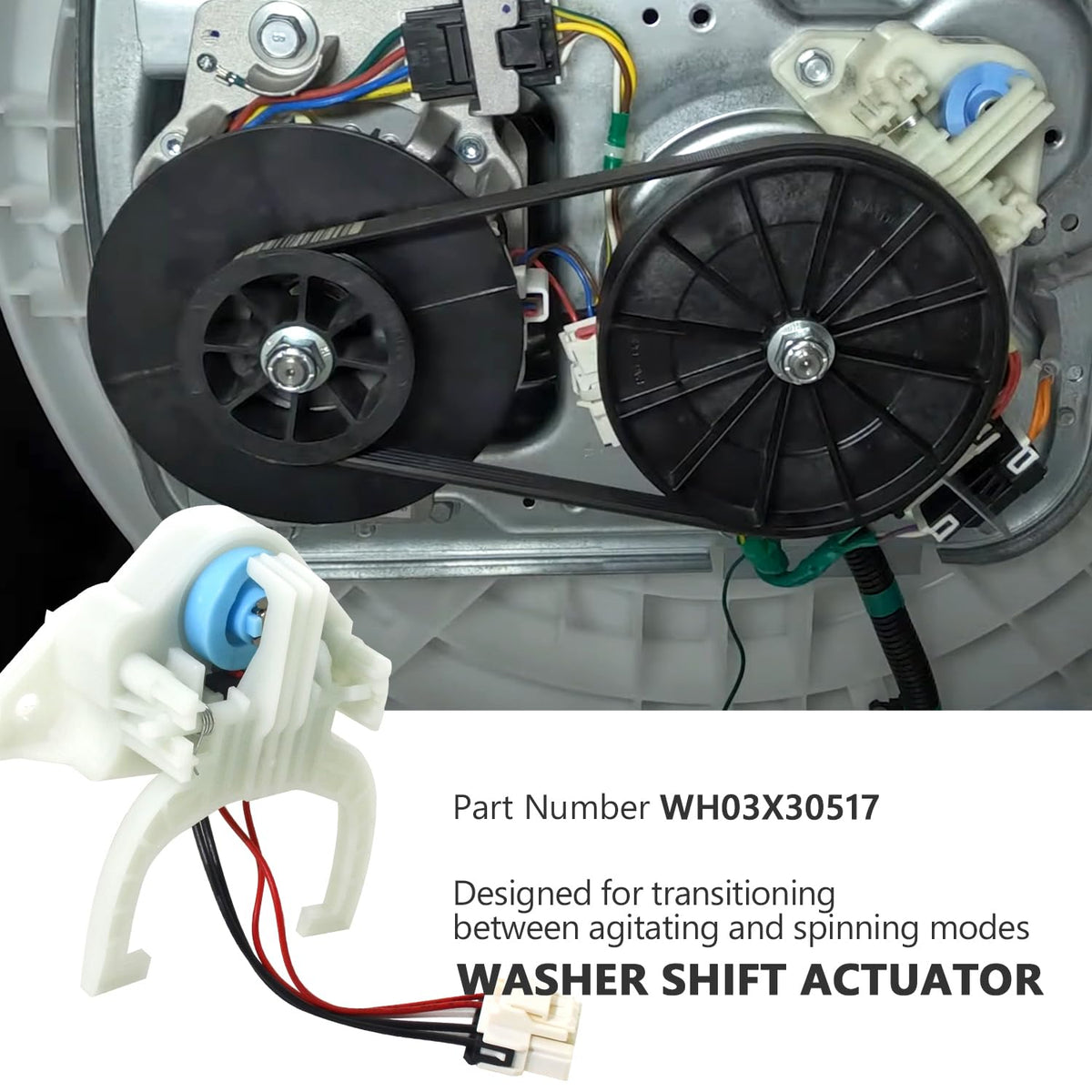

• 1 x WH03X30517 Washer Shift Actuator—controls transmission shifting
• 1 x WH01X27538 Drive Belt—connects motor pulley to drum components
• 1 x WH05X24185 Washer Clutch—manages engagement and torque transfer
• 1 x WH01X24434 Clutch Spring—holds clutch elements in correct alignment

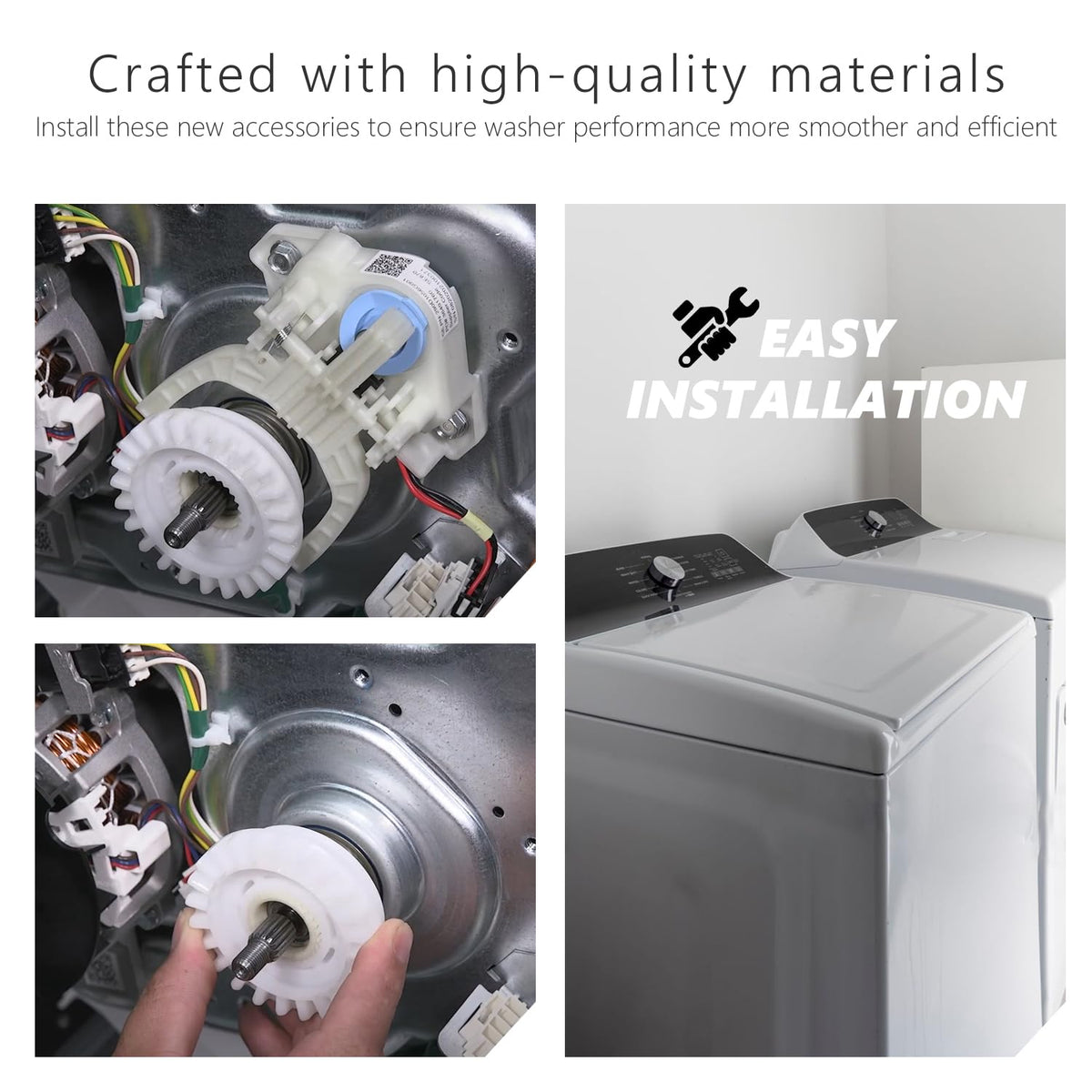

How difficult is installation and what safety steps should I follow?

Installation is straightforward for someone comfortable with basic appliance repair and following an ordered disassembly. The kit installs in sequence—remove the black cover, replace the belt, pulley, shift actuator, clutch and spring—so having clear pictures or a service manual helps. Always cut power and water to the machine before beginning to avoid injury or electrical damage.

• Turn off water supply and unplug the washer before starting
• Disassemble in order: cover, belt, pulley, actuator, clutch, spring
• Use basic hand tools and keep fasteners organized for reassembly
• Test run on a short cycle to confirm correct operation after install

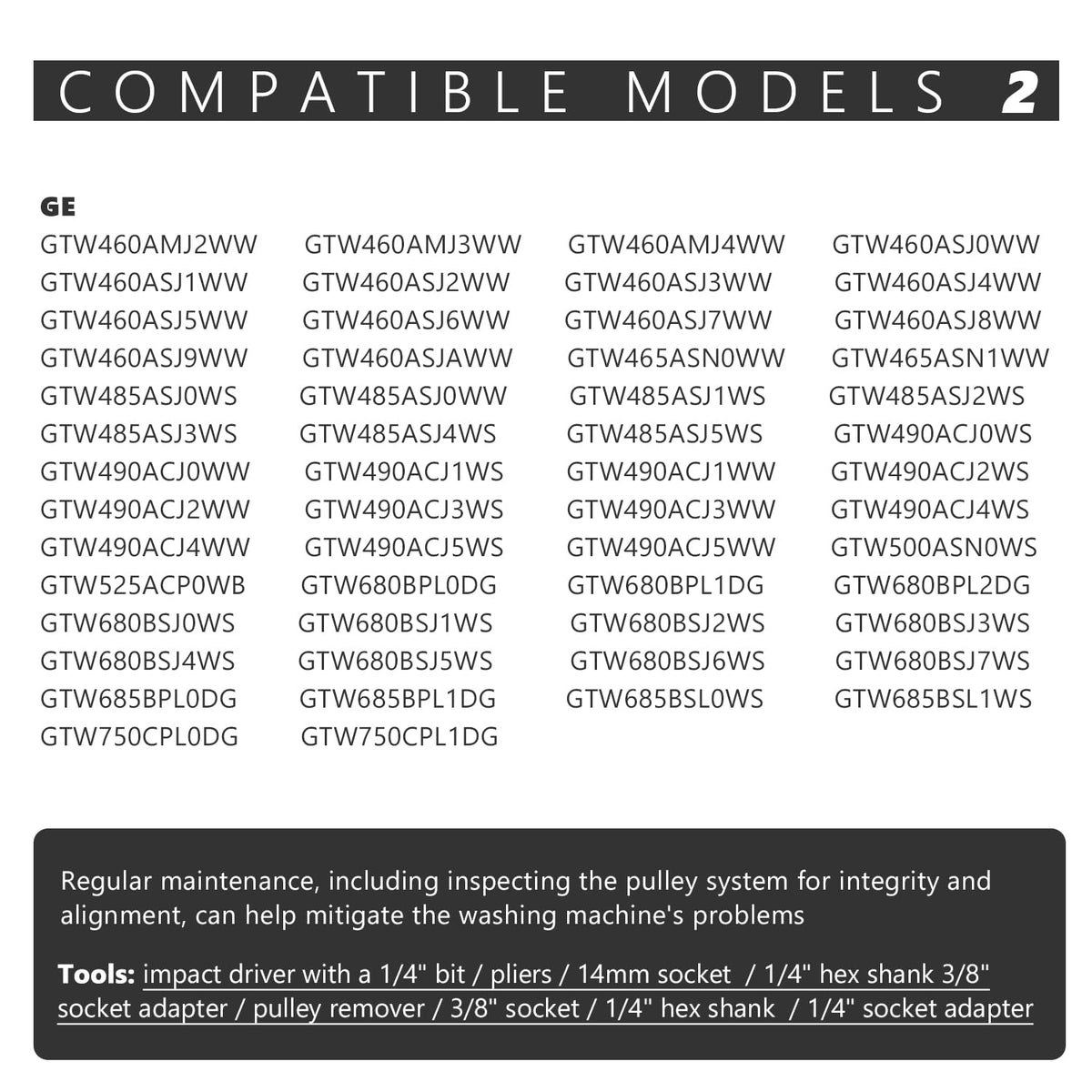

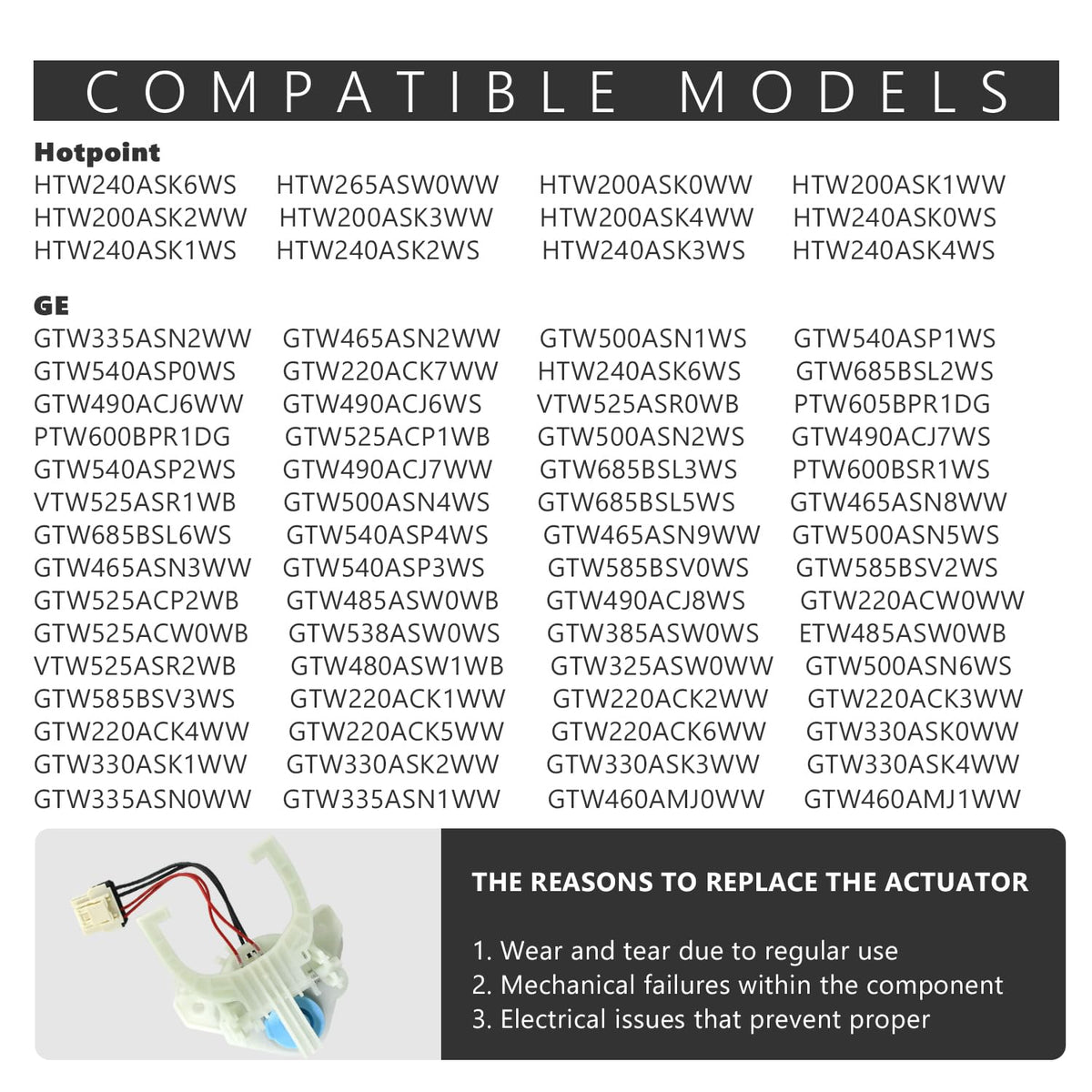

Which washer models will this kit fit and how can I confirm compatibility?

The components are designed to suit a wide range of common top-load Whirlpool/compatible-class models. The product listing mentions several specific models including GTW335ASN2WW, GTW465ASN2WW, GTW500ASN1WS and others; compare part numbers or visual matches on your machine to be certain. If you see matching part numbers on your original components, the kit is a correct replacement.

• Listed compatible models include GTW335ASN2WW, GTW465ASN2WW, GTW540ASP1WS and more
• Check original part numbers against WH03X30517, WH01X27538, WH05X24185, WH01X24434
• Refer to the product images for detailed shape and mounting points

Who this kit is for: This 4-piece GYOFFULL set is intended for DIYers, appliance technicians, and homeowners troubleshooting spin failures, loud vibration or wet laundry after cycles on compatible top-load washers. If you prefer replacing only the failed item, purchase the matching single part—but if you want to reduce repeat service calls, this bundle swaps the common wear parts at once and gets machines back to reliable spinning quickly.
