Hantek 1008C 8-Channel Automotive USB Oscilloscope Kit — HT201 Current Probe, HT30A Clamp, HT307 Probes, 12-bit/4K DAQ

The Hantek 1008C+HT201+HT30A+HT307 is an 8-channel PC-connected automotive oscilloscope bundle that combines vehicle diagnostic functions, high-resolution waveform capture, and an 8-channel programmable signal generator for bench and workshop use.

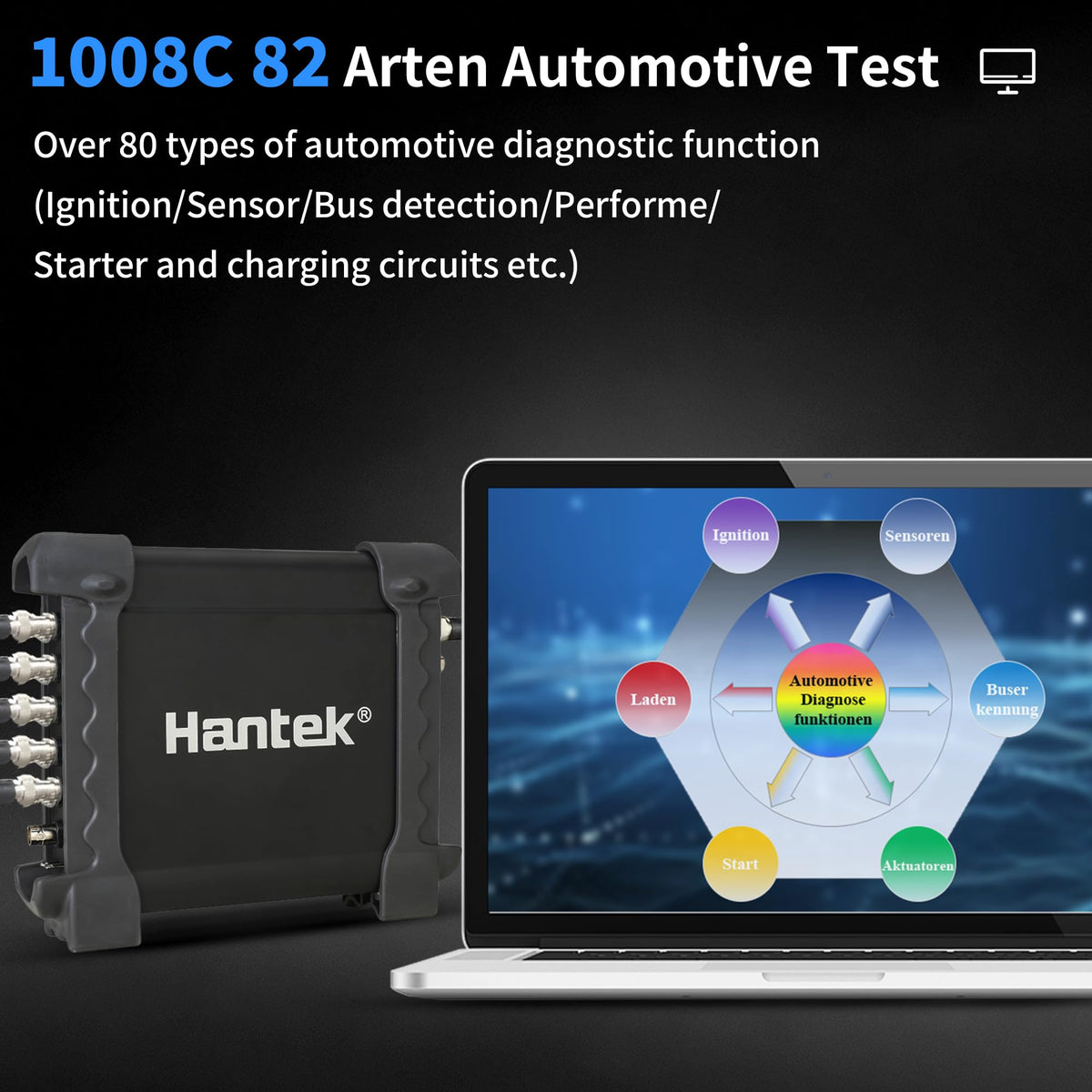

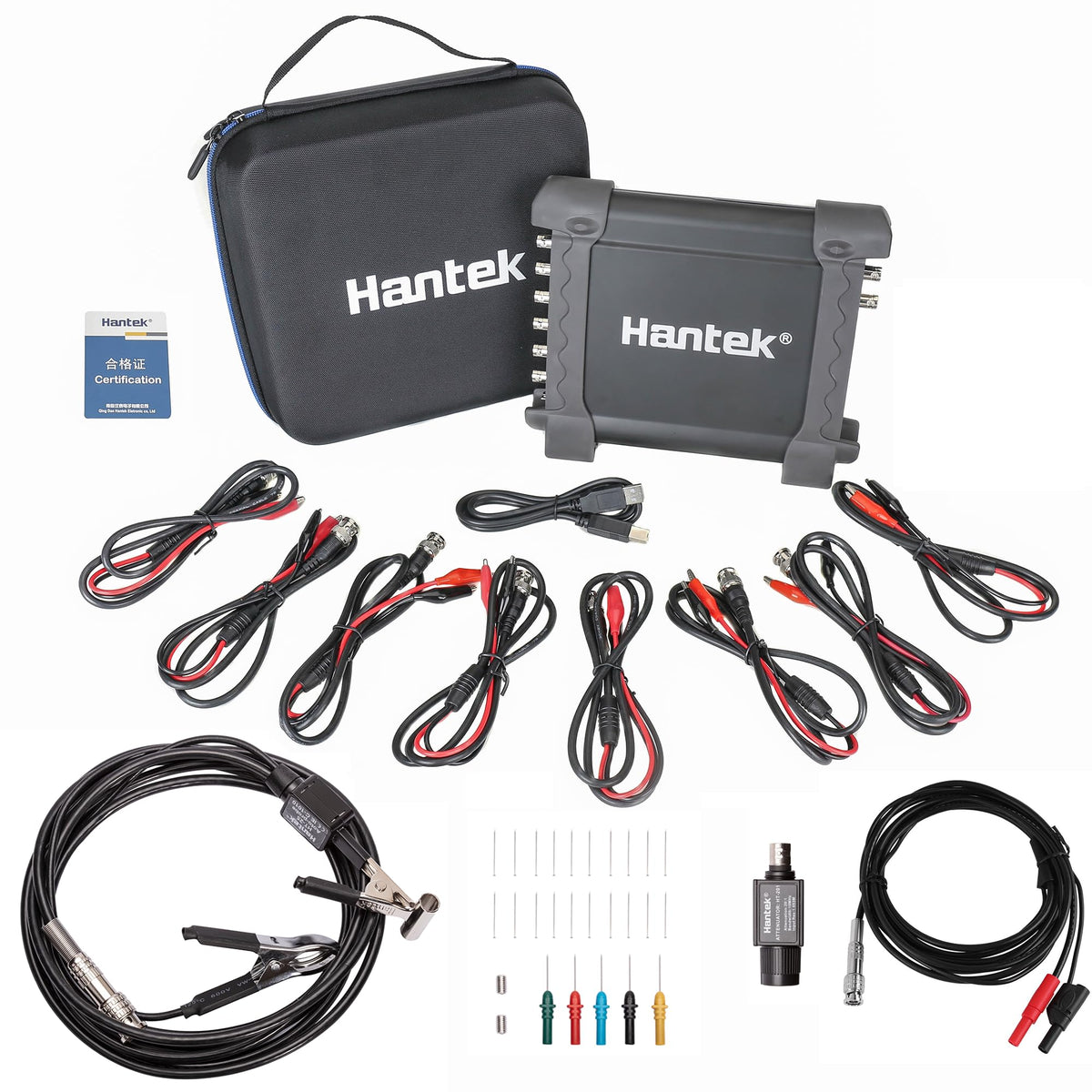

This compact kit pairs the Hantek 1008C DAQ/oscilloscope with the HT201 current probe, HT30A clamp, and HT307 probe set to give technicians, hobbyists, and electronics diagnosticians a complete USB-powered solution for automotive and general electronics troubleshooting. It works with Windows PC software to record, analyze, and export signal data while offering more than 80 automotive-specific test routines—helpful for ignition, sensor, bus, actuator, and charging system checks.

What does the 8-channel oscilloscope do for vehicle fault diagnosis?

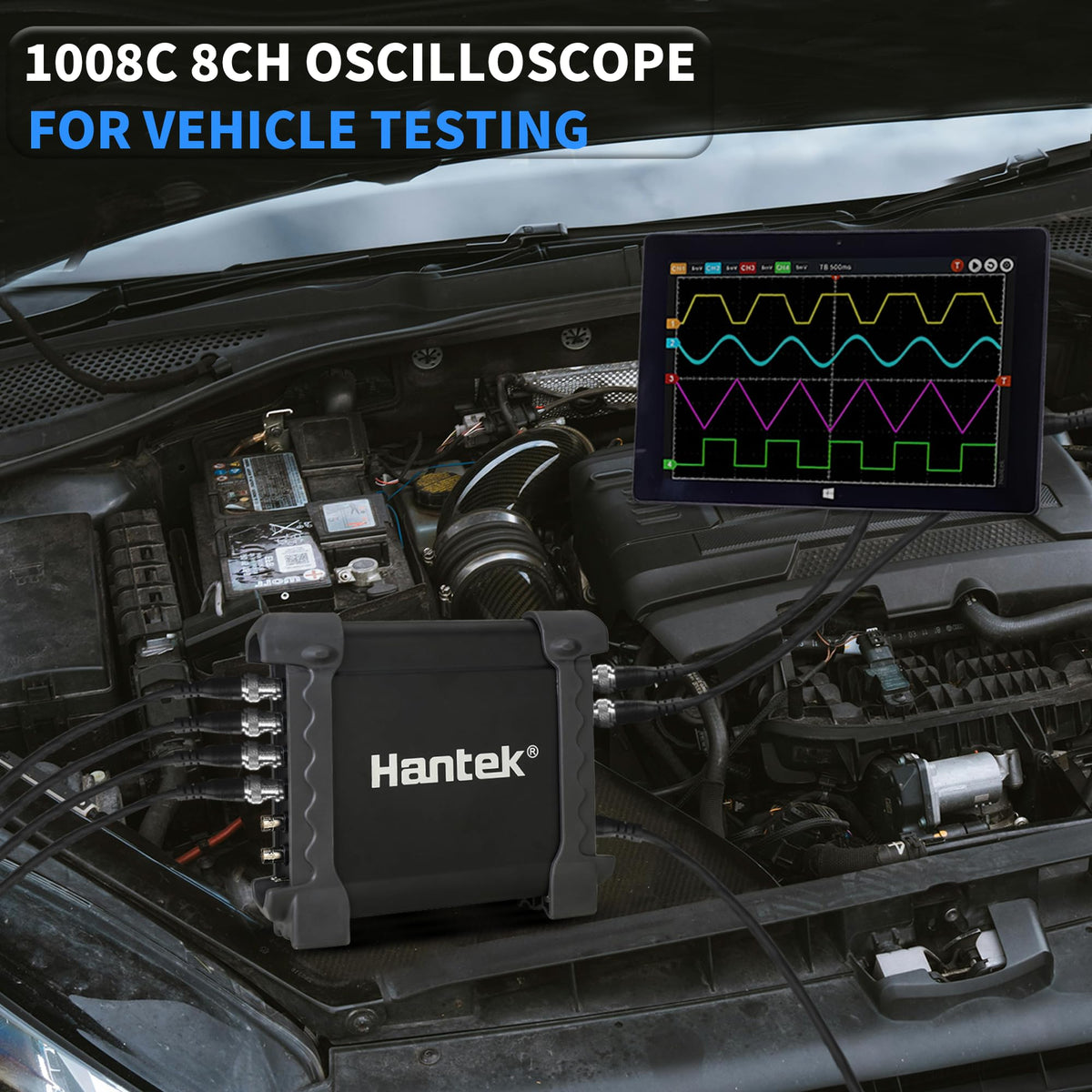

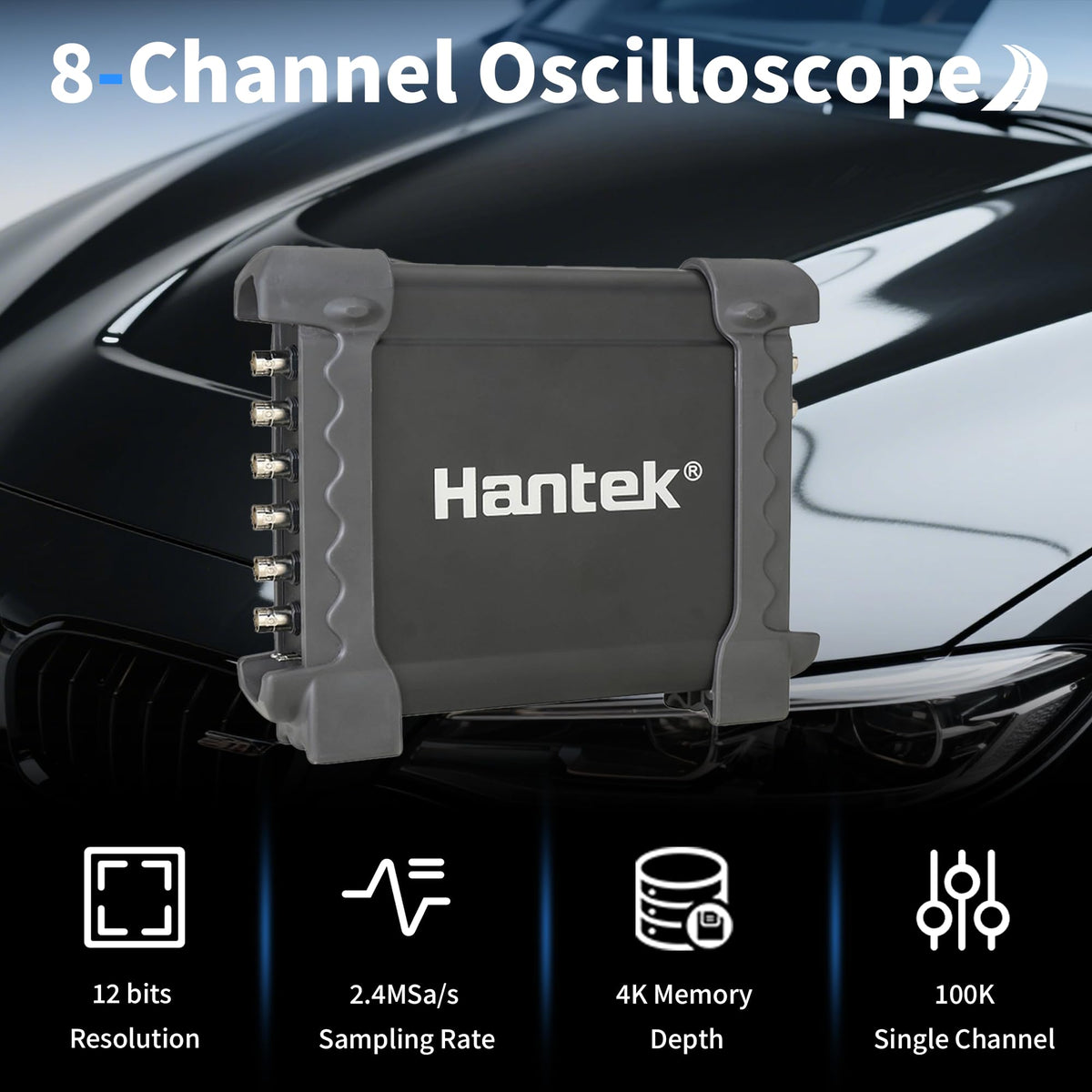

The 1008C captures up to eight analog signals simultaneously so you can compare sensor, actuator, and bus waveforms in real time. Its 12-bit resolution and 4K memory depth improve waveform detail for slow and fast signals alike.

• 8 analogue channels: monitor multiple sensors or components at once
• 12-bit resolution for clearer waveform definition
• 4K memory depth + 2.4 MSa/s sampling for accurate captures
• 20 automatic measurement modes for quick numeric readouts

How does the programmable signal generator simulate automotive signals?

The integrated 8-channel LVTTL generator produces repeatable test signals up to 250 kHz to emulate crankshaft, camshaft, and other digital sensor outputs. You can store waveforms over USB for repeatable bench tests and component stimulation.

• 0–250 kHz frequency range suitable for most automotive timing signals
• LVTTL output levels compatible with common ECU and sensor electronics
• USB storage of waveforms for consistent test setups
• Multiple channels let you recreate multi-signal scenarios

How do the included probes and clamps expand testing capabilities?

The HT201 and HT30A provide current measurement options while the HT307 probe set handles voltage and timing checks. Together they let you measure currents, inspect ignition channels, and probe low-voltage logic without needing separate tools.

• HT201 current probe for precise low-current sensing
• HT30A clamp for higher-current circuits and charging system checks
• HT307 passive probes for voltage and timing captures up to typical automotive levels
• Plug-and-play via the 1008C’s channel inputs for direct capture

What platform and workflow does the kit use for data capture and reporting?

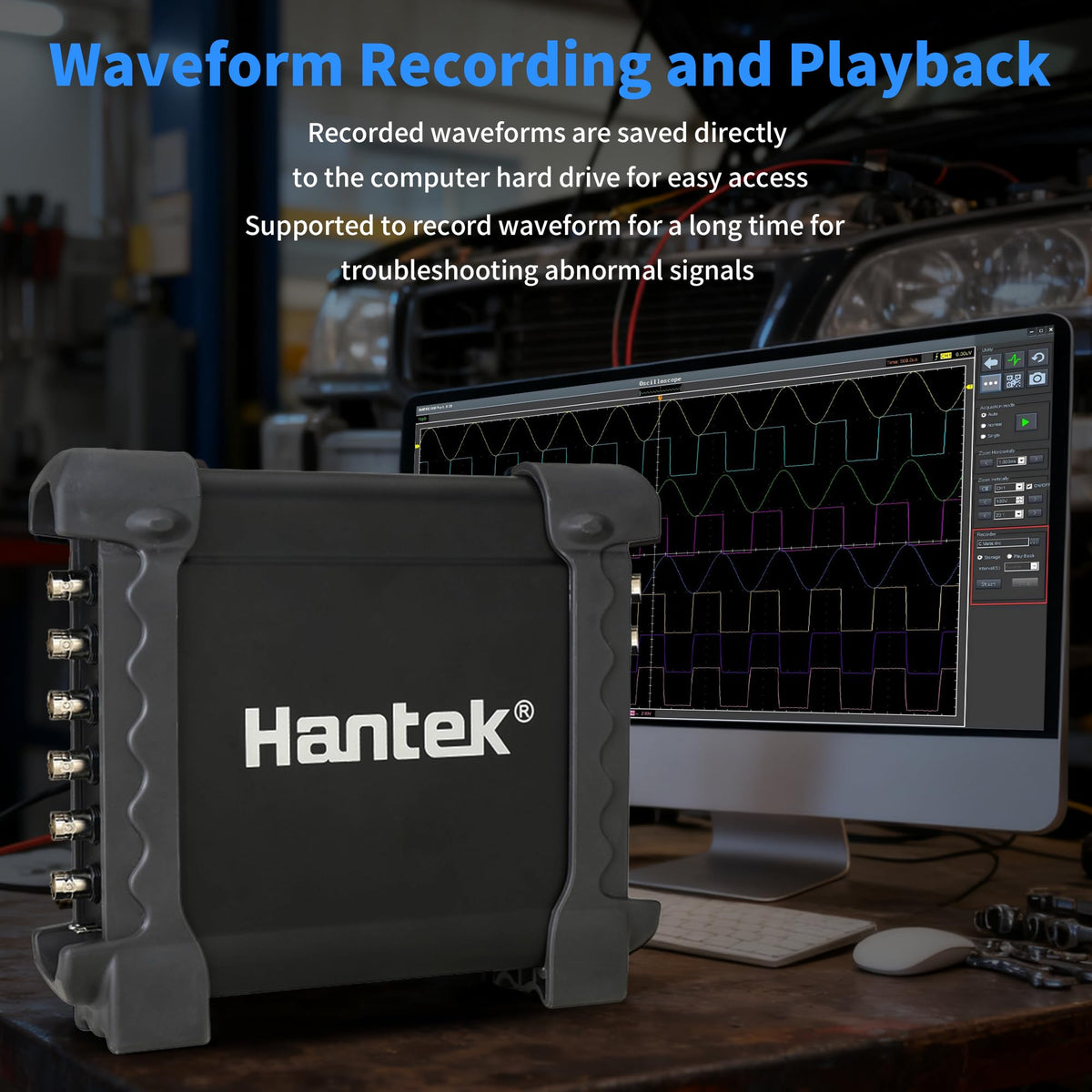

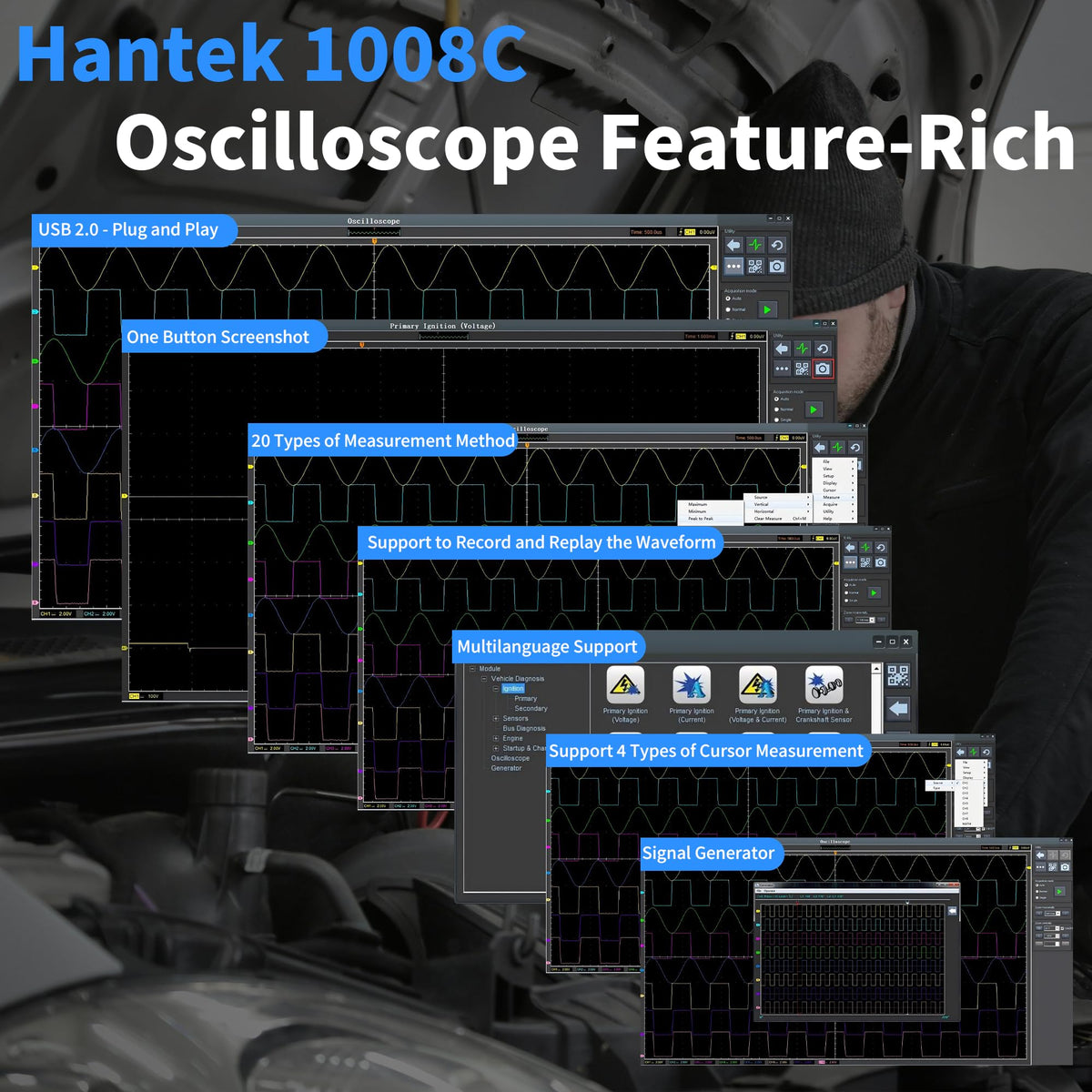

The unit connects over USB 2.0 to Windows PCs; Hantek software displays live waveforms, offers automated measurements, records traces, and exports data for reporting. The workflow is geared to technicians who need side-by-side comparisons and saved test sessions.

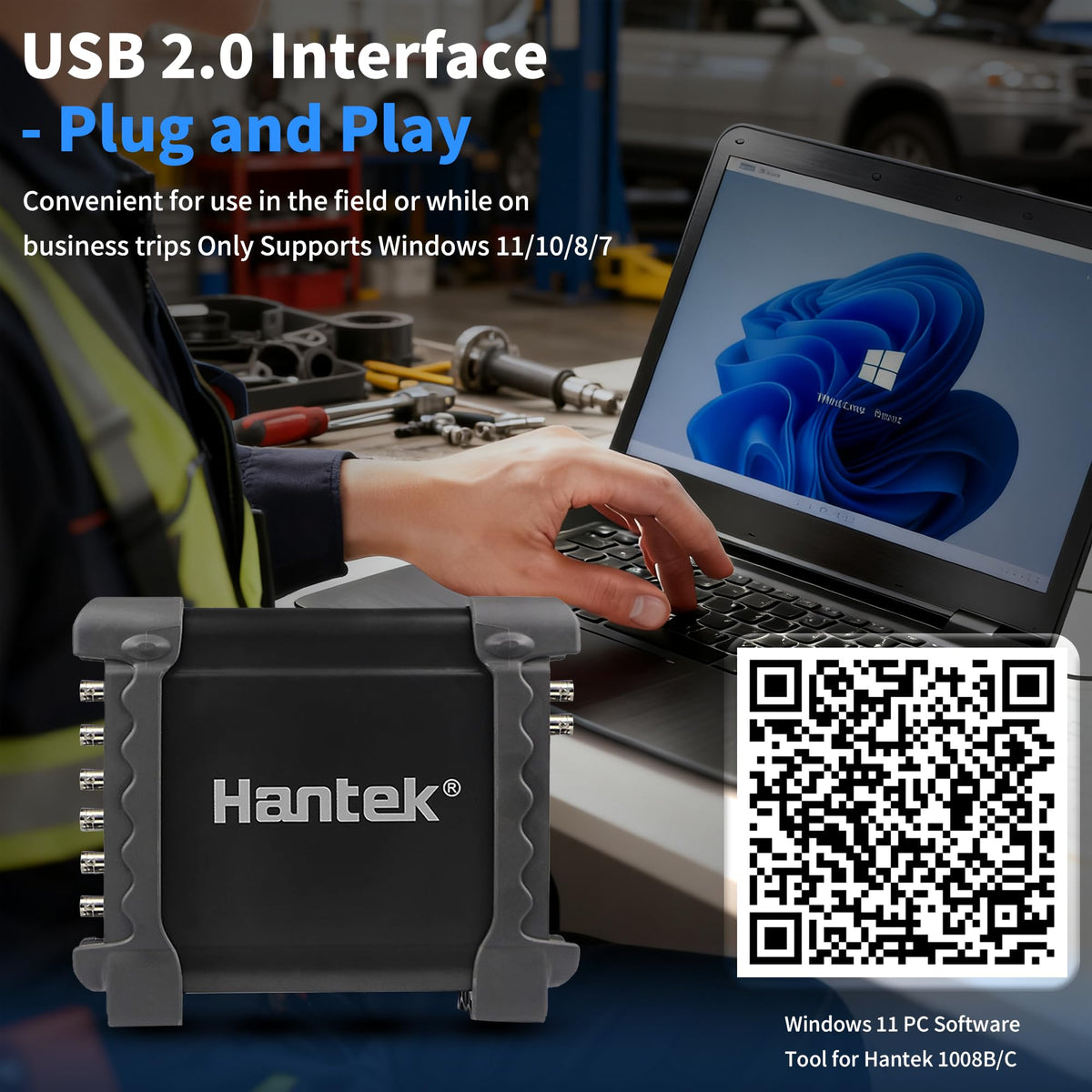

• USB 2.0 connection for waveform streaming and storage
• Windows-only software with waveform viewing and export options
• One-key selection of automatic measurements for fast diagnostics
• Supports saving setups and traces for repeatable testing

Who this is for: The Hantek 1008C kit is aimed at automotive electricians, independent repair shops, electronics technicians, and advanced hobbyists who need multi-channel waveform capture and signal generation. It’s especially useful when diagnosing complex, multi-signal systems—like ignition banks, sensor networks, and communication buses—or when you require programmable stimulus to reproduce intermittent faults. If you use a Windows PC and need a portable, cost-effective oscilloscope and signal generator combination with automotive-focused test routines, this bundle provides a practical workstation-grade toolkit.
