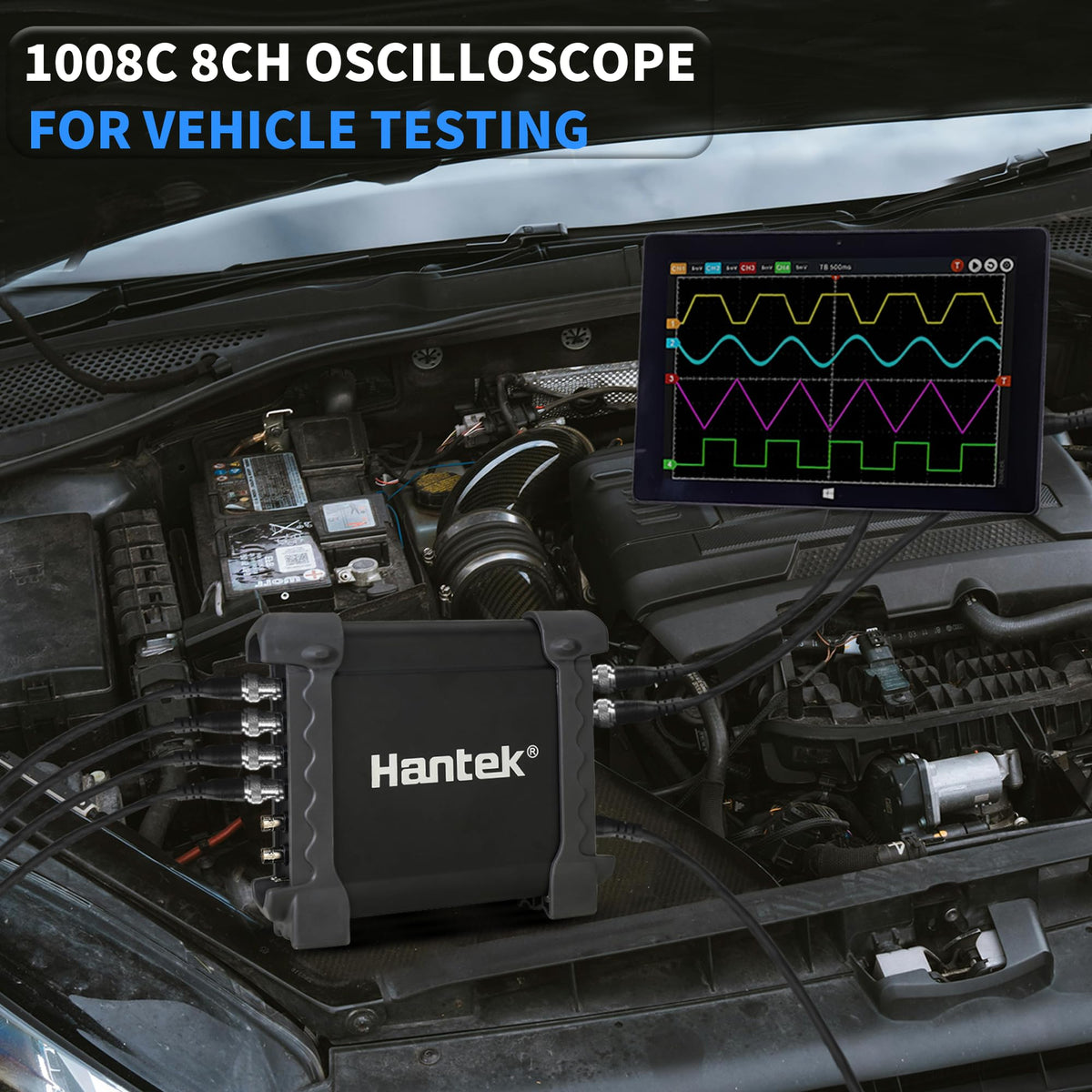

Hantek 1008C 8-Channel USB Automotive Oscilloscope — 12-bit ADC, Built-in LVTTL Signal Generator

Hantek 1008C is an 8-channel PC-connected automotive oscilloscope, data acquisition system and programmable signal generator designed for vehicle diagnostics, electronics troubleshooting and waveform analysis.

The Hantek 1008C combines automotive-focused testing features and general-purpose oscilloscope capability into a single USB-powered interface for Windows PCs. It provides eight analog channels, a built-in programmable LVTTL signal generator, and more than 80 automotive diagnostic routines to inspect ignition, sensors, communication buses, actuators, and starting/charging systems. The unit stores captured data to PC via USB 2.0 and is aimed at mechanics, electrical technicians, hobbyists and electronics learners who need multi-channel waveform visibility and signal simulation.

How does the 8-channel oscilloscope help with vehicle diagnostics?

The multiple simultaneous channels let you capture interactions between sensors, actuators and ignition systems without switching leads. This makes it easier to spot timing, phase, or signal integrity issues across related circuits.

• Eight analog inputs for parallel viewing of multiple signals.
• 12-bit resolution and 4K memory depth for clearer waveform detail.
• 20 automatic measurement modes for instant numerical results.
• Over 80 predefined automotive diagnostic tests (ignition, sensors, bus checks, actuators).

What waveform and sampling performance can I expect?

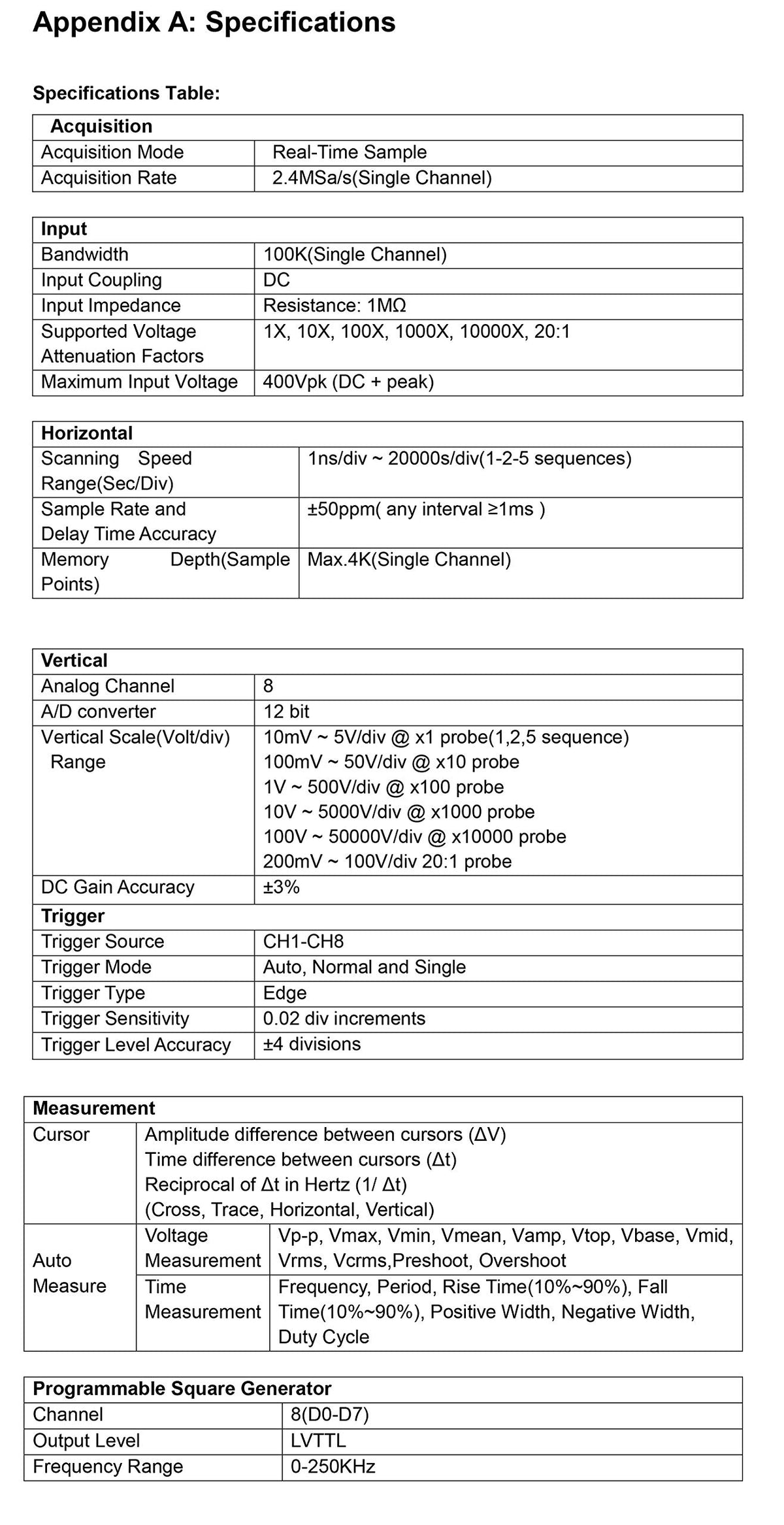

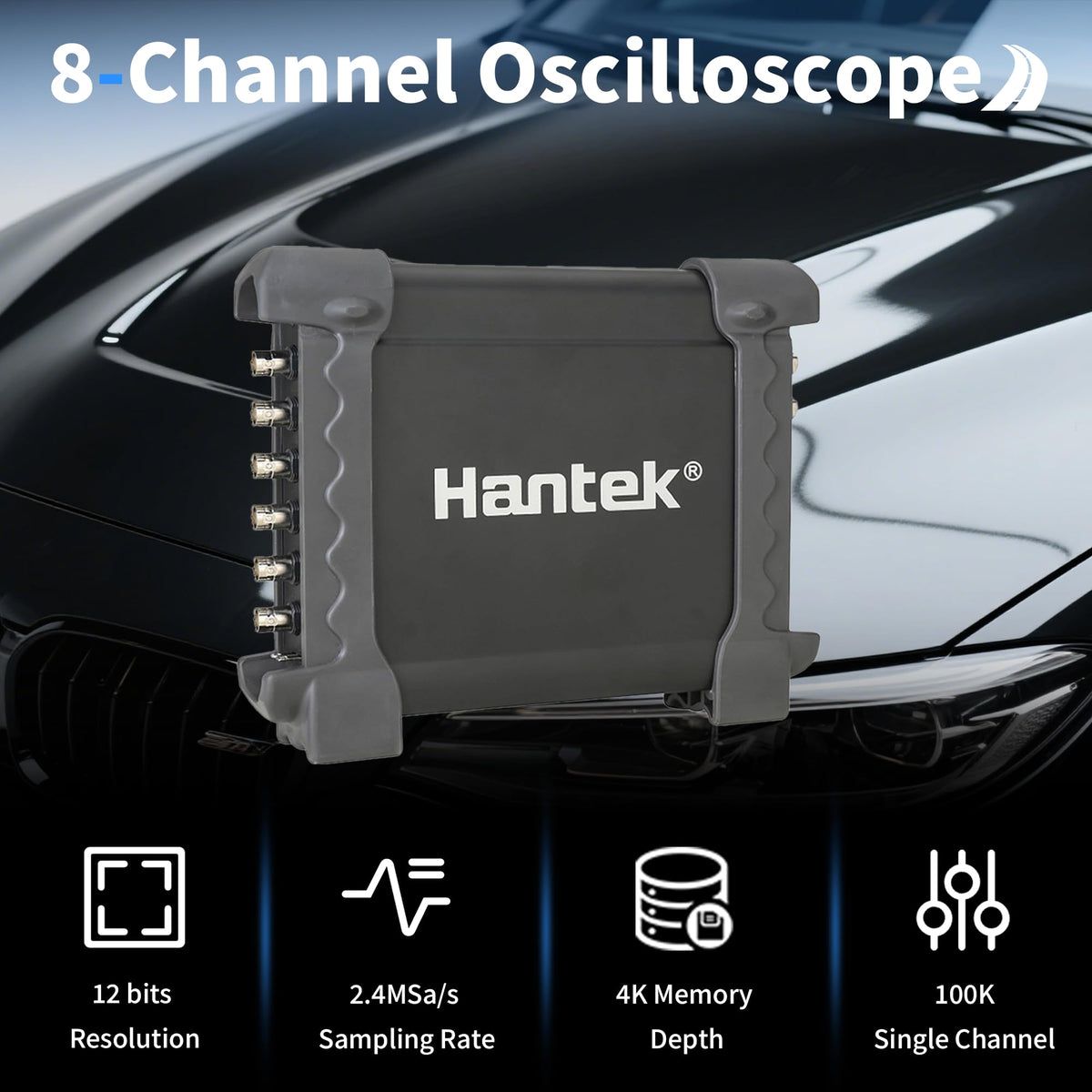

The 1008C delivers up to 2.4 MSa/s real-time sampling across channels with 12-bit ADC resolution and a 4K memory buffer to capture transient events and repeating signals. These specs balance detail and multi-channel coverage for typical automotive and electronics troubleshooting.

• 2.4 MSa/s real-time sample rate for detailed signal capture.
• 12-bit ADC resolution for improved amplitude accuracy over 8-bit devices.
• 4K memory depth to record longer or multi-cycle events.
• 20 auto-measure modes for quick amplitude, timing, and frequency checks.

How does the programmable signal generator expand testing options?

The built-in LVTTL signal generator creates test stimuli such as crankshaft or camshaft pulses and other digital waveforms to simulate real sensors. It supports up to eight generated channels and a frequency range suitable for many automotive signals.

• Eight LVTTL output channels for multi-signal simulation.
• 0–250 kHz frequency range to match typical automotive sensors and encoders.
• Programmable waveforms to replicate crank/cam and other pulse patterns.
• USB storage of generator settings for repeatable test setups.

What are the connectivity, software and usability highlights?

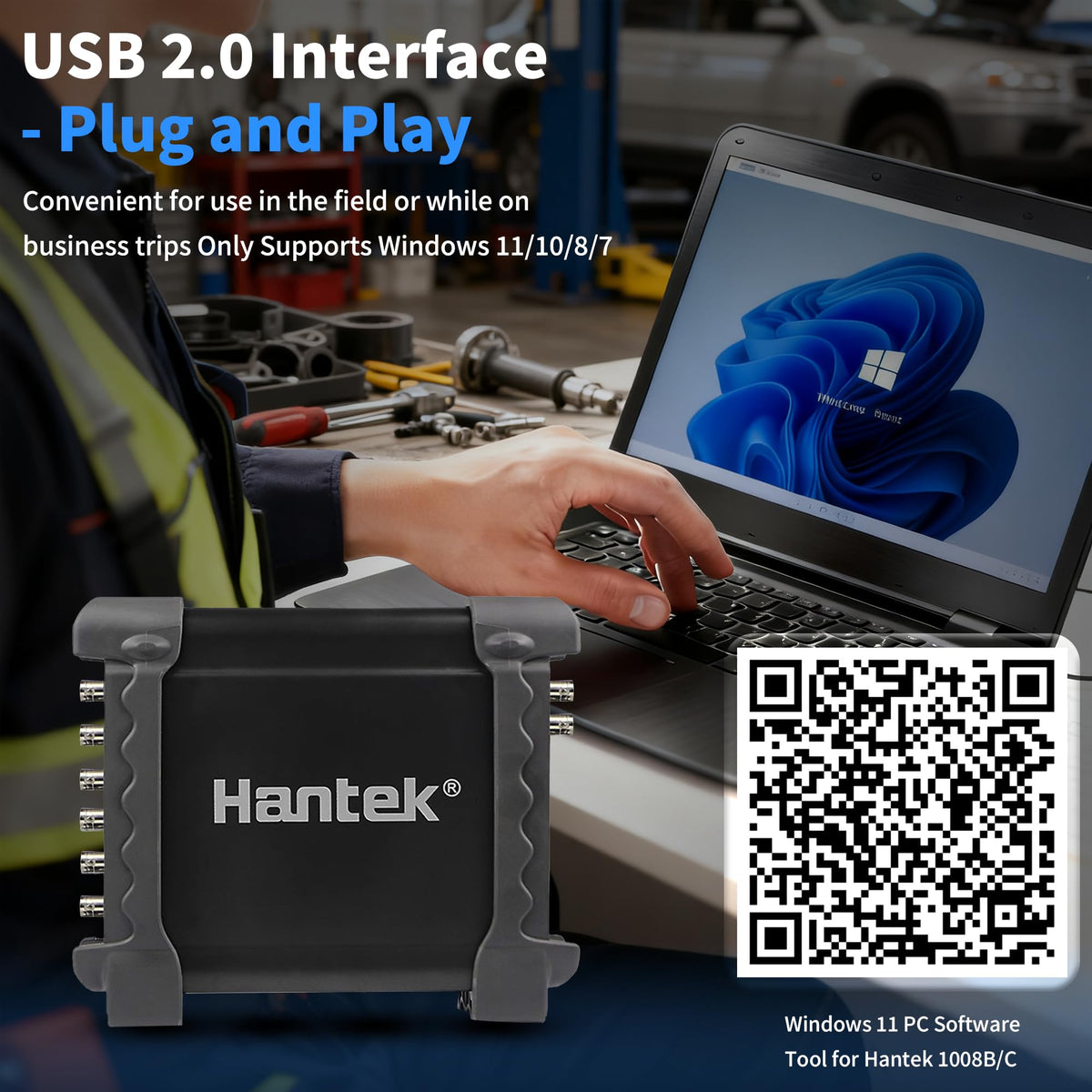

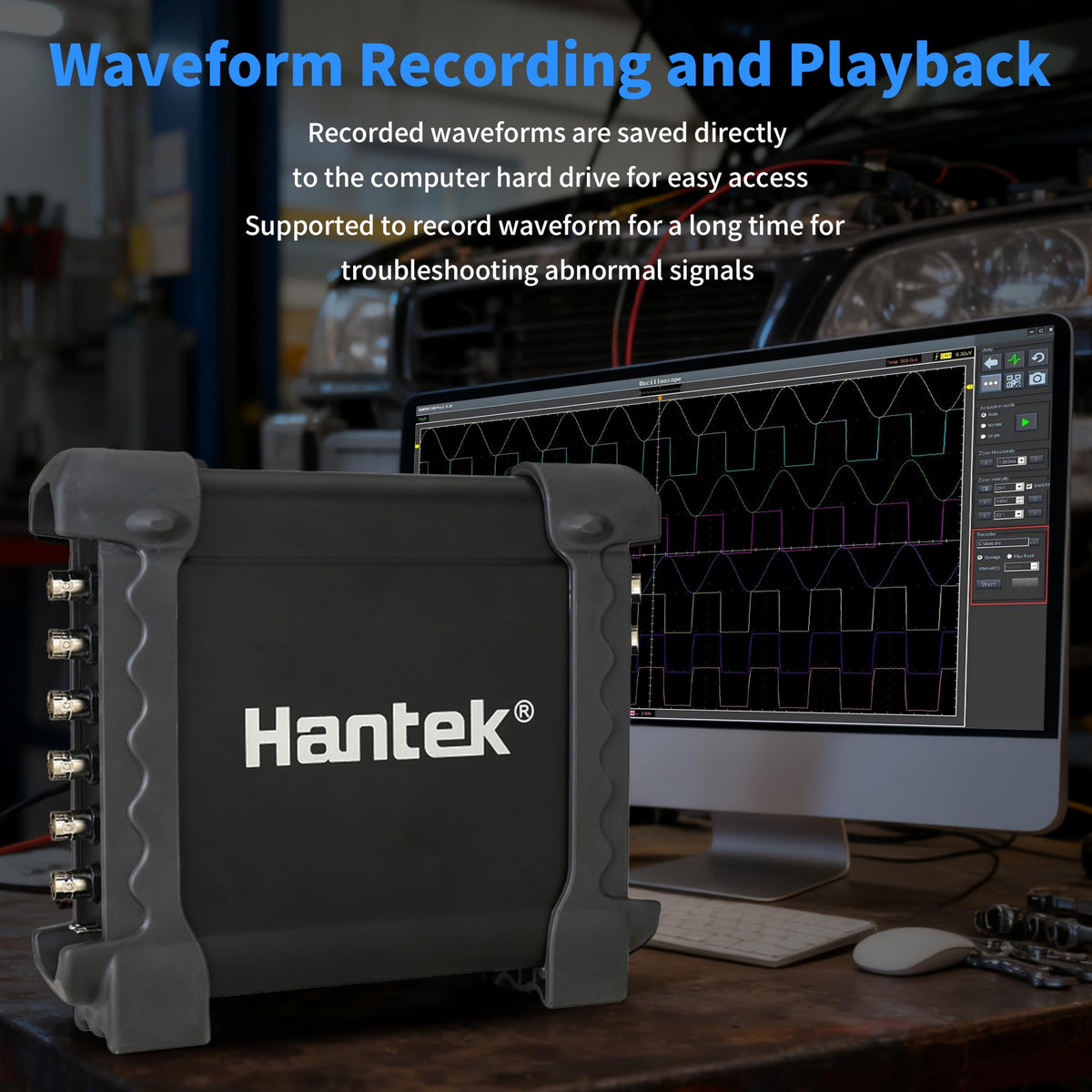

The 1008C connects to Windows PCs via USB 2.0 where Hantek’s software displays live waveforms, measurements and stores captures. The interface is designed to be approachable for technicians and hobbyists while offering the advanced functions needed for professional diagnostics.

• USB 2.0 connection for data transfer and PC control (Windows-only software).
• User-selectable automatic measurement modes for quick readings.

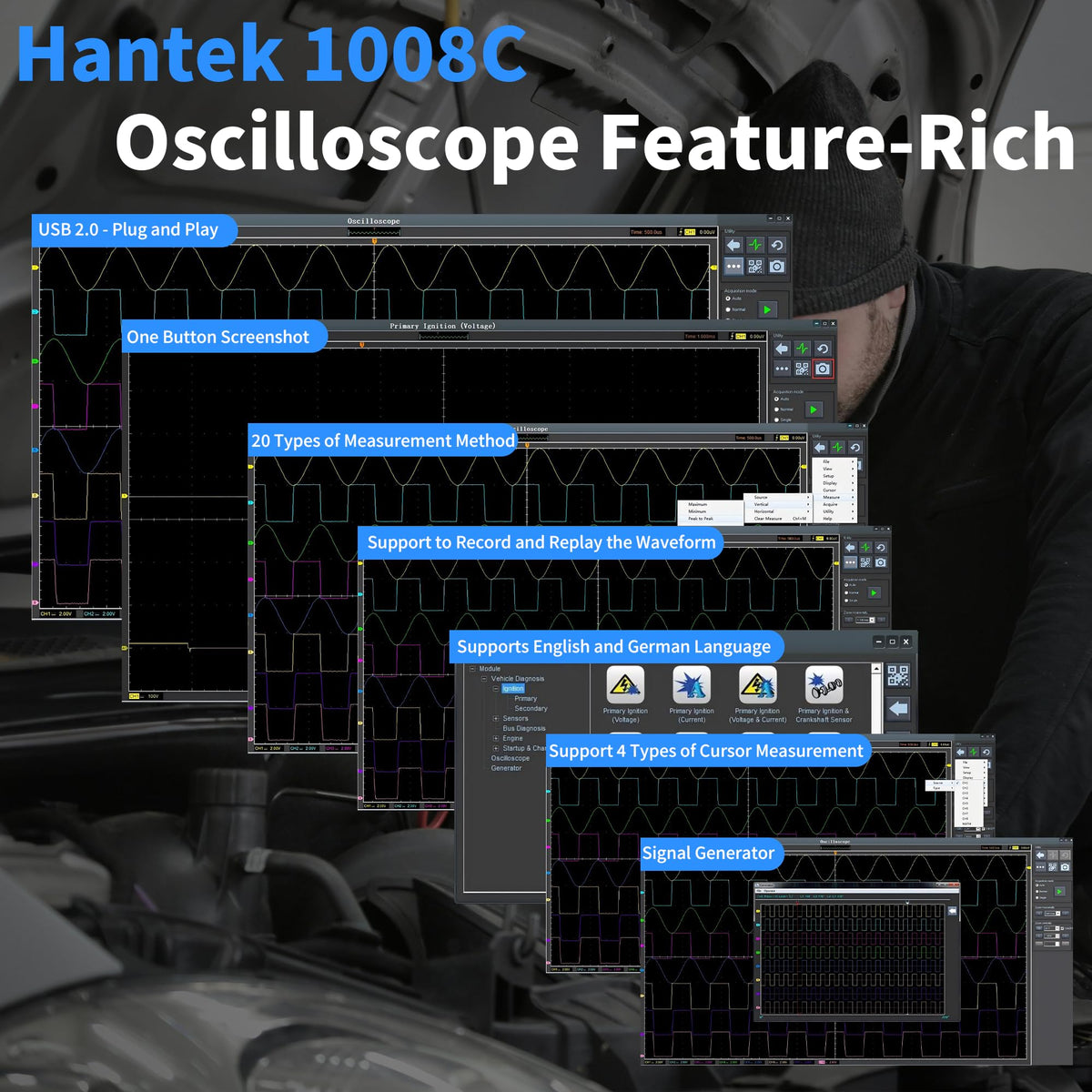

• Clear GUI waveform display with multi-channel overlay and cursors.
• Suitable for learning electronics, bench troubleshooting, and automotive service.

Who this is for: Technicians, automotive diagnosticians, electrical hobbyists and electronics students who need a compact, PC-based oscilloscope with multiple inputs and a programmable signal generator. If you frequently compare several signals at once, simulate sensor pulses, or require automotive-specific test routines, the Hantek 1008C gives a balance of multi-channel capability, practical sampling performance and vehicle-focused diagnostics without a large standalone oscilloscope.
