HASAOMOI Air Brake Fittings Push-to-Connect 5PCS — 5/8in Tube OD x 1/2in NPT, DOT-Approved Brass

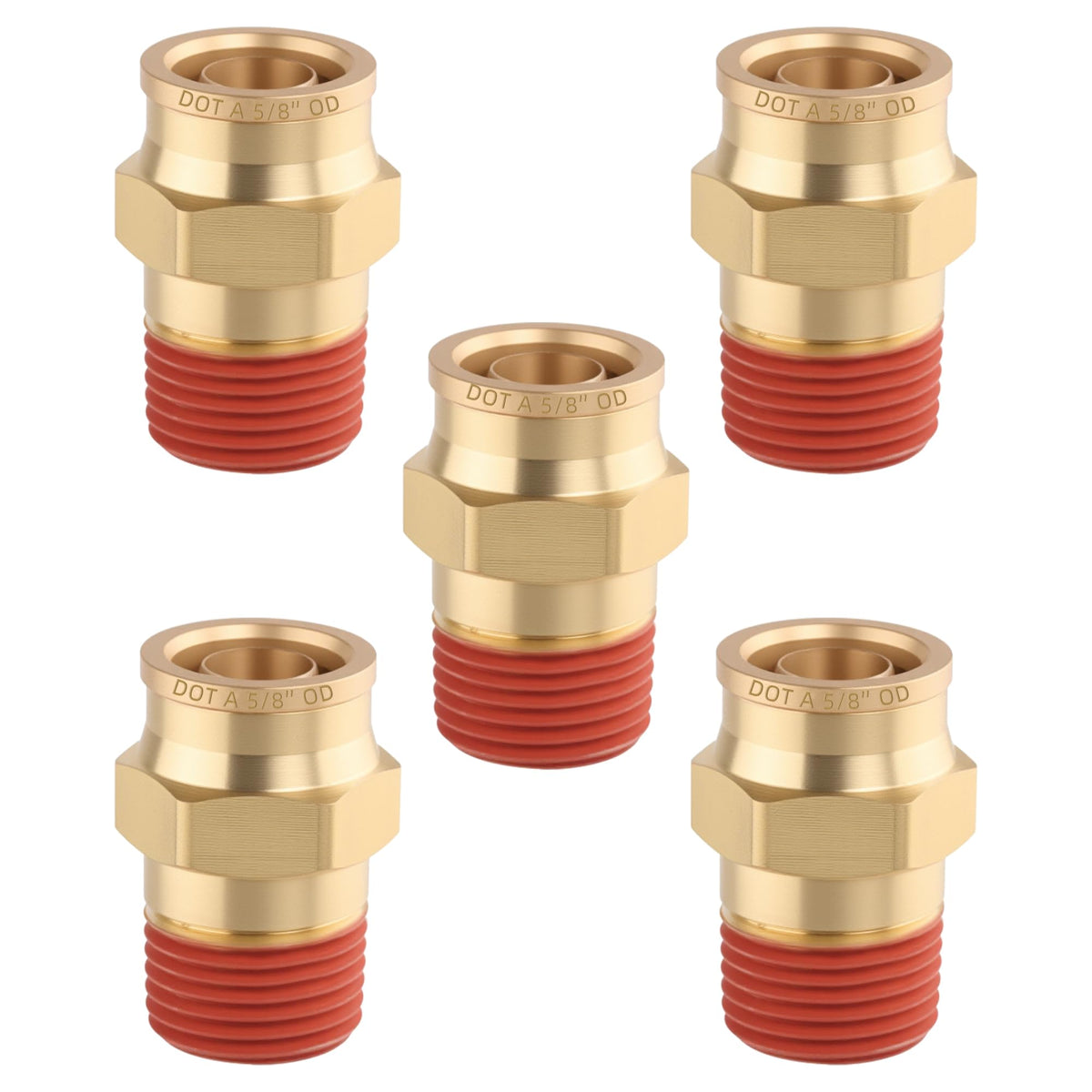

HASAOMOI 5PCS push-to-connect straight air brake fittings are solid CA360 brass, DOT-approved 5/8" tube OD × 1/2" NPT compression unions designed for fast, leak-resistant connections on nylon air lines and truck trailer brake systems.

These precision-machined straight union fittings combine a push-to-connect collar, red sealant finish, and full 360° rotation to simplify installation and maintenance of pneumatic and air suspension lines. Built to meet D.O.T. FMVSS 571.106 and SAE J1131 guidance, they are intended for use where DOT-compliant air brake hardware is required. The kit includes five identical unions sized for 5/8" outside-diameter tubing with 1/2" NPT male threads, making them suitable for splicing, replacing, or extending brake and suspension air lines on trailers, trucks, and related pneumatic applications.

What are the key safety and compliance features?

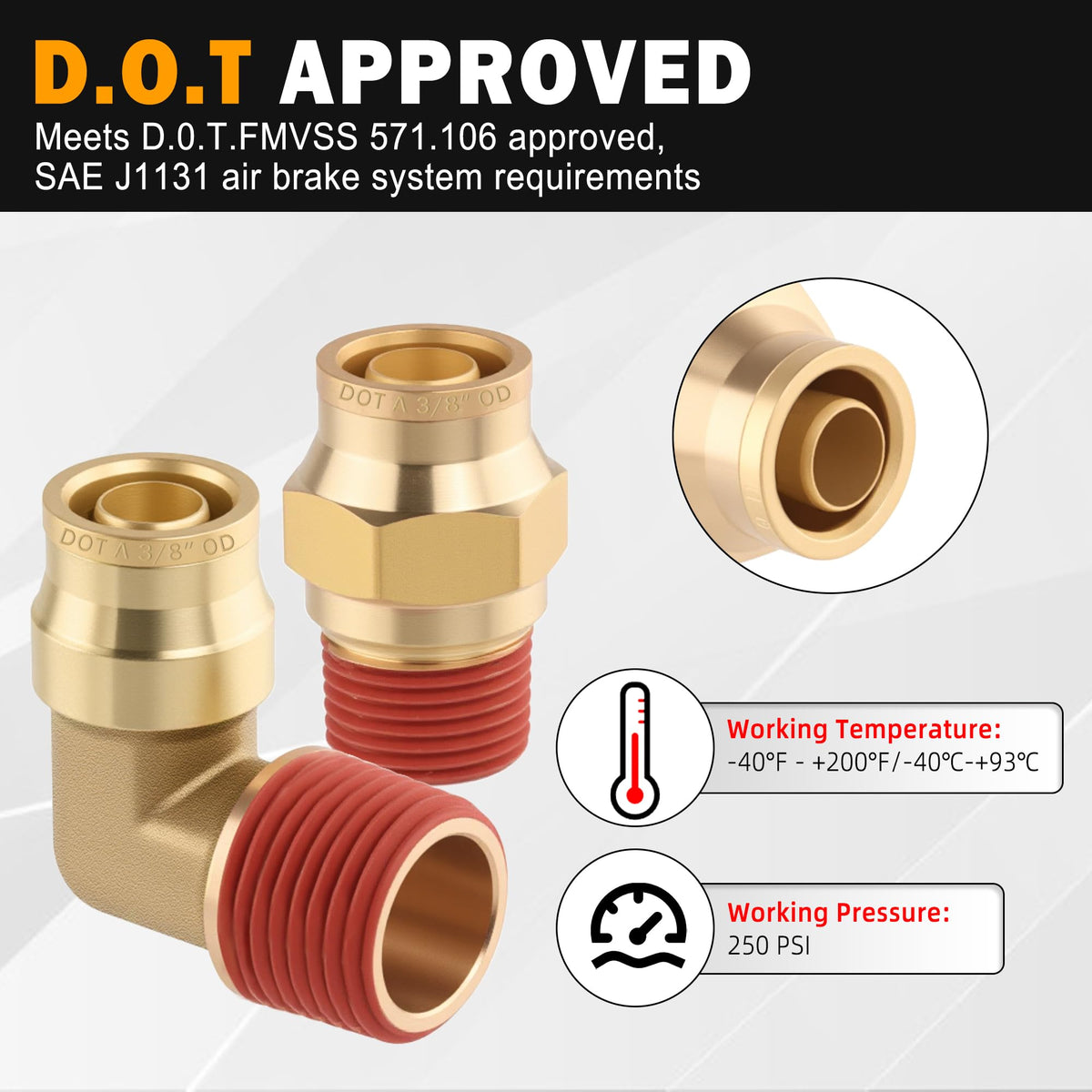

HASAOMOI fittings are manufactured from solid CA360 brass and coated with a red sealant to resist corrosion and provide a secure seal. They are designed to meet D.O.T. FMVSS 571.106 and SAE J1131 standards relevant to air brake systems, reducing the risk of leakage when installed correctly.

• Material: CA360 solid brass for strength and corrosion resistance

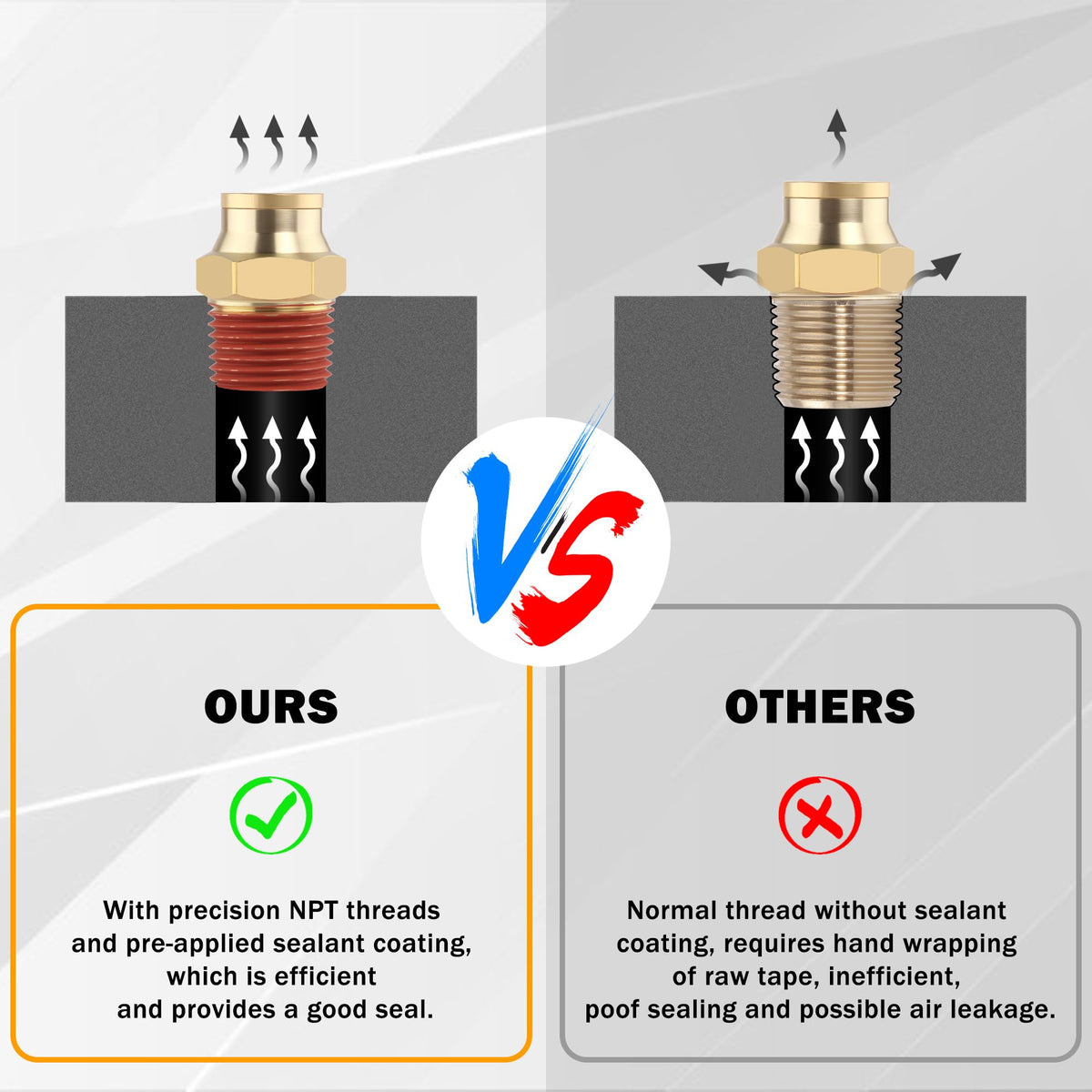

• Coating: red sealant applied to threaded surfaces for added sealing
• Standards: supports D.O.T. FMVSS 571.106 and SAE J1131 guidelines

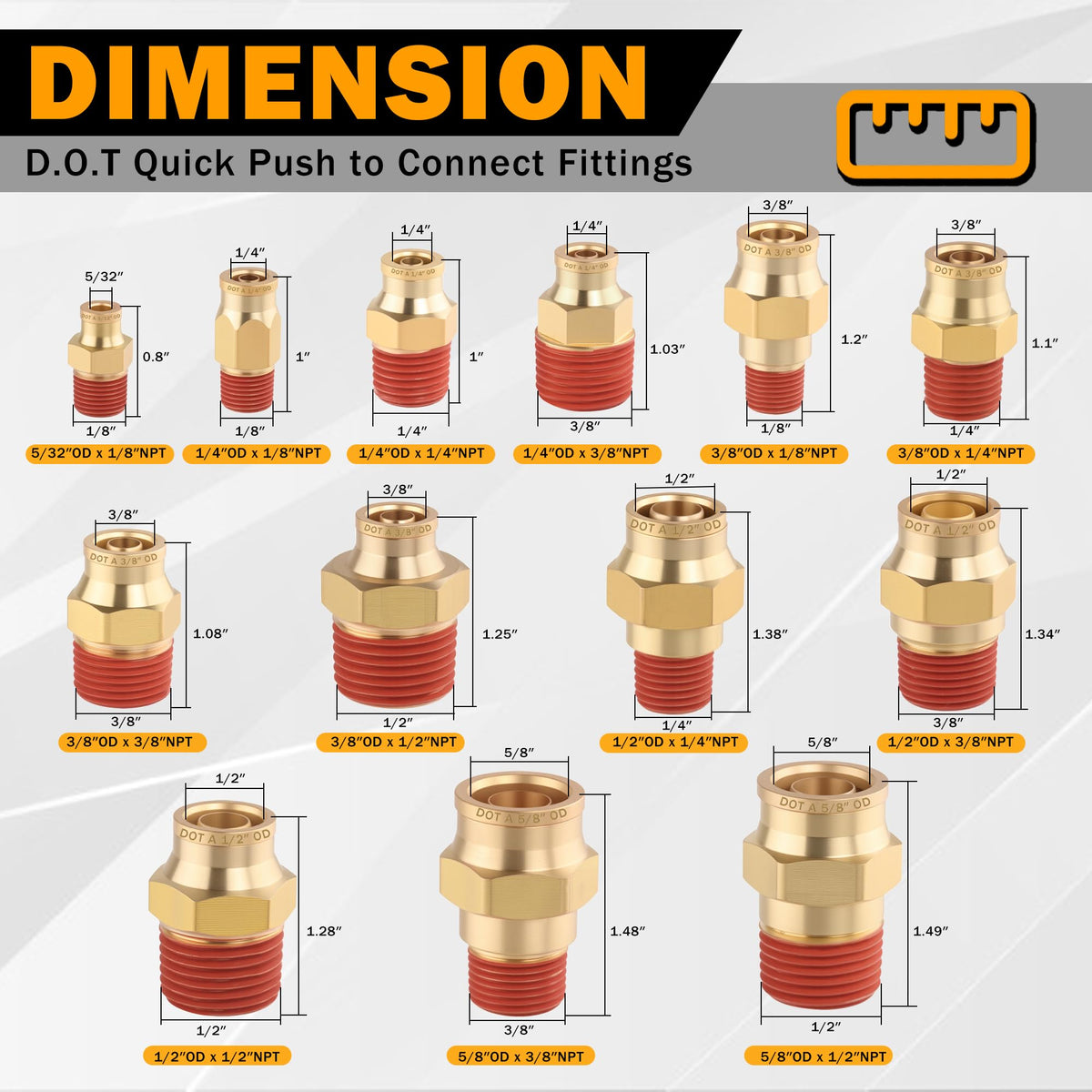

• Size: 5/8" tube outside diameter × 1/2" NPT thread

How does the push-to-connect design speed up repairs?

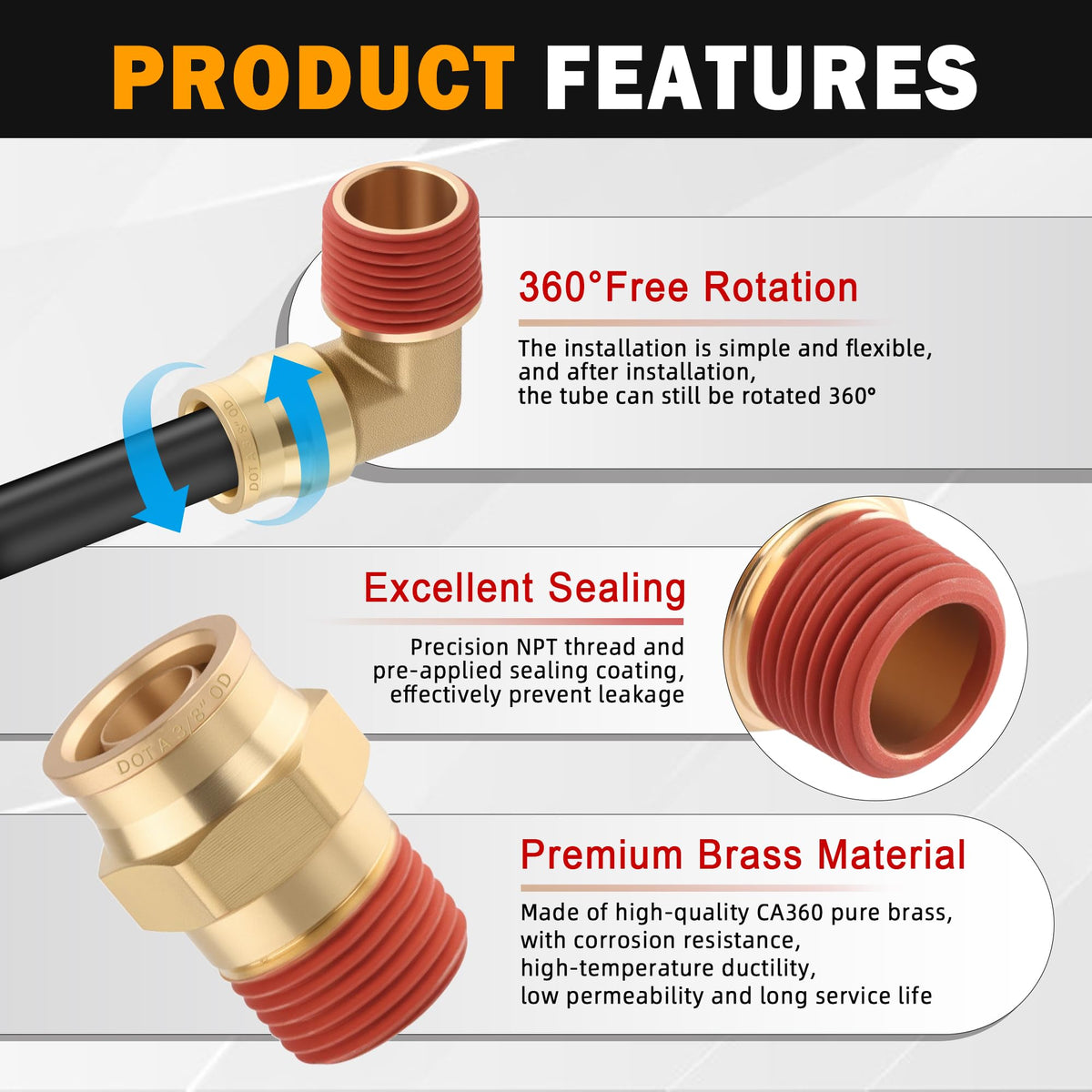

The push-to-connect mechanism accepts nylon or conventional air tubing with a simple push insertion and releases by pressing the collar, enabling rapid assembly without special tools. This reduces downtime during field repairs or routine maintenance on trailers and commercial vehicles.

• Quick insertion: simply push tube into fitting for an immediate connection
• Tool-free disassembly: press the release button and pull tube out
• Consistent grip: internal collet secures tubing to prevent pull-out

Will the fittings fit different installation orientations?

Yes — the union allows 360° rotation of the connecting body so you can align tubing after installation, which helps when working in tight engine compartments or undercarriage spaces. Rotation also reduces stress on tubing runs by permitting straight-line routing after the connection is secured.

• 360° rotation for flexible tubing alignment post-installation
• Reduces kinks and bending stress on nylon air lines
• Simplifies routing in confined or asymmetrical spaces

What common uses and installation tips should I know?

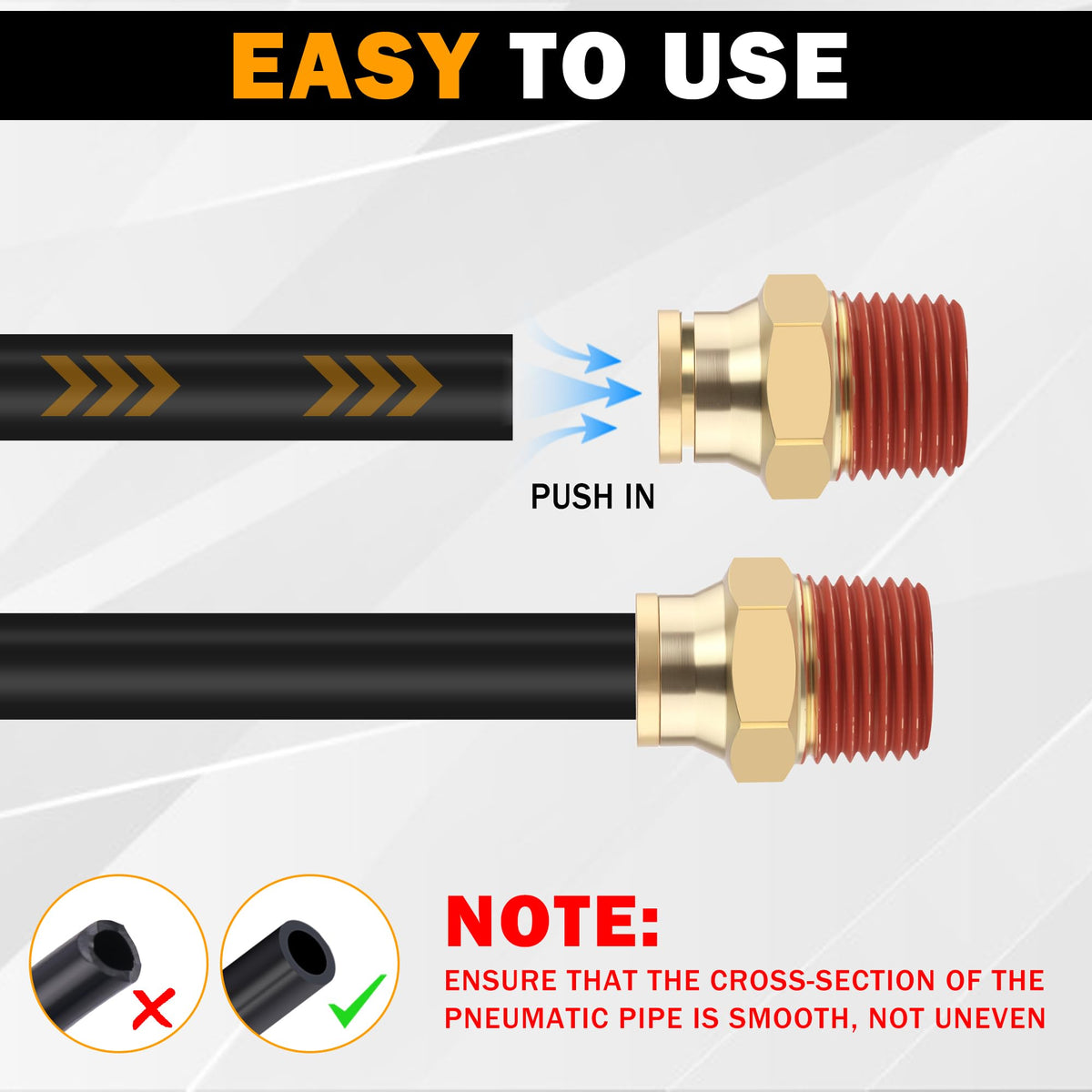

These straight union fittings are intended for pneumatic systems including air bag suspension, brake air lines, and other nylon air hoses used on trailers and trucks. For a reliable seal, ensure tubing ends are cut square, free of burrs, and not oval; a smooth, flat cross-section helps prevent leaks.

• Primary uses: air bag suspension repairs, brake line splices, pneumatic tubing joins
• Installation tip: cut tube cleanly and check for smooth, round cross-section
• Do not use on damaged or severely deformed tubing to maintain DOT compliance

Who is this for: The HASAOMOI 5PCS 5/8" × 1/2" NPT push-to-connect brass fittings are aimed at professional mechanics, fleet maintenance teams, and experienced DIYers who work on truck trailers, commercial vehicles, or pneumatic systems that require DOT-approved components. If you need a durable, quick-to-install union for nylon air lines that meets air brake system standards and reduces service time, this kit is a practical choice.
