Haturmyko 1.5" Silicone 90° Elbow Coupler – 7" Legs, 4-Layer Reinforced High-Temp Hose

Haturmyko's 1.5-inch 90° silicone elbow coupler is a reinforced, high-temperature hose designed to connect intercooler, intake, radiator, or turbo piping with durable flexibility.

This 1.5" (38mm) 90-degree silicone elbow from Haturmyko combines a four-layer reinforced construction with a 7" (178mm) leg length and 0.2" (5mm) wall thickness to deliver a reliable, flexible connection for automotive and performance plumbing. Built to tolerate wide temperature swings and pressure demands, it fits common intake, intercooler, and coolant routing tasks where a tight, angled link is required. The coupler ships as a single elbow and is intended for retrofit, repair, or custom builds.

How does this silicone elbow handle high engine temperatures and pressure?

The Haturmyko 1.5" 90° elbow uses pure silicone with a four-layer reinforcement that resists softening, cracking, and deformation across a broad temperature range. It’s rated to operate from -60°C up to 300°C and withstands burst pressures that meet heavy-duty performance needs. That combination gives consistent performance under thermal cycling and boost or coolant system pressure spikes.

• Operating range: -60°C to 300°C for extended thermal tolerance
• Low-temperature flexibility down to -40°C to avoid brittleness

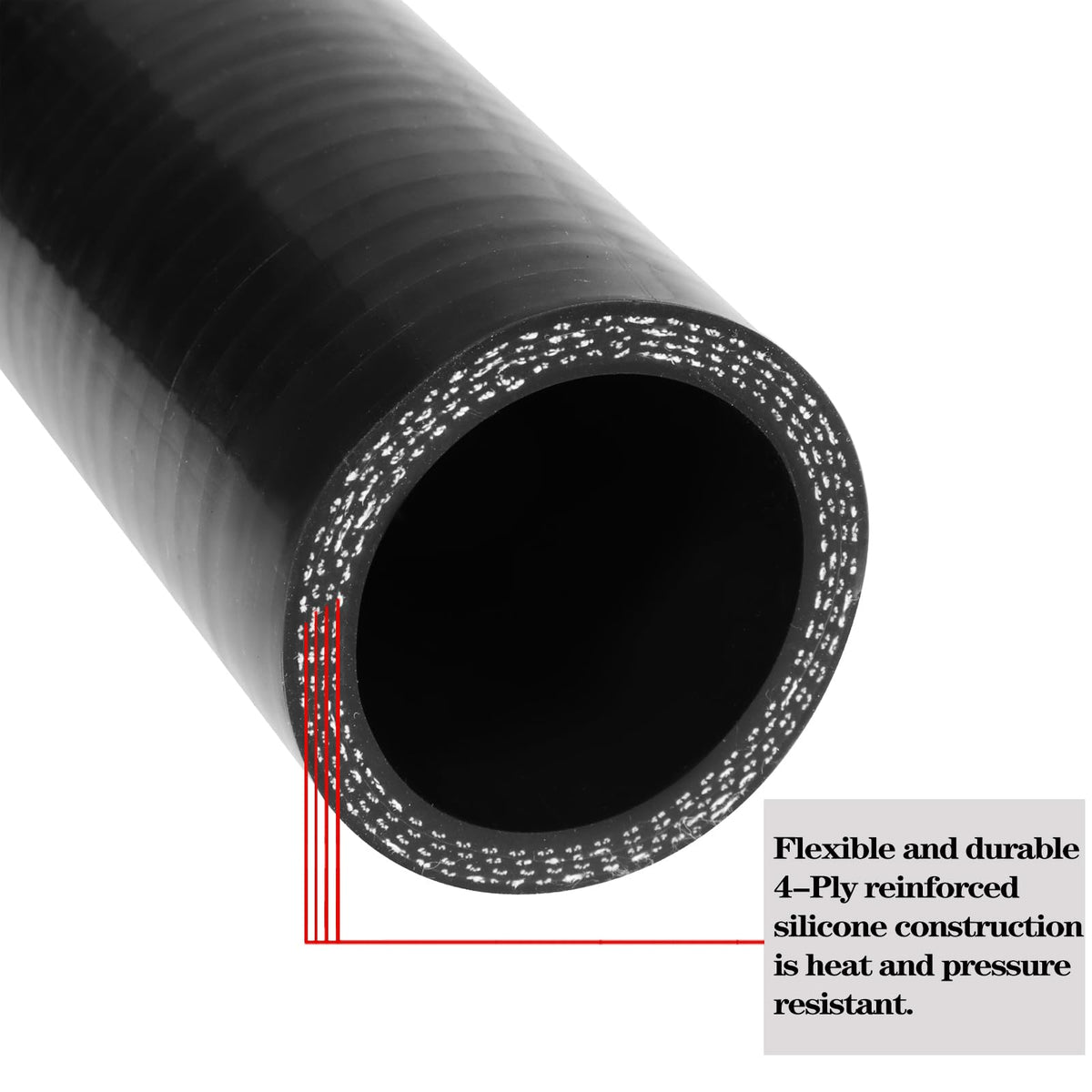

• Reinforced 4-layer construction for improved pressure resistance

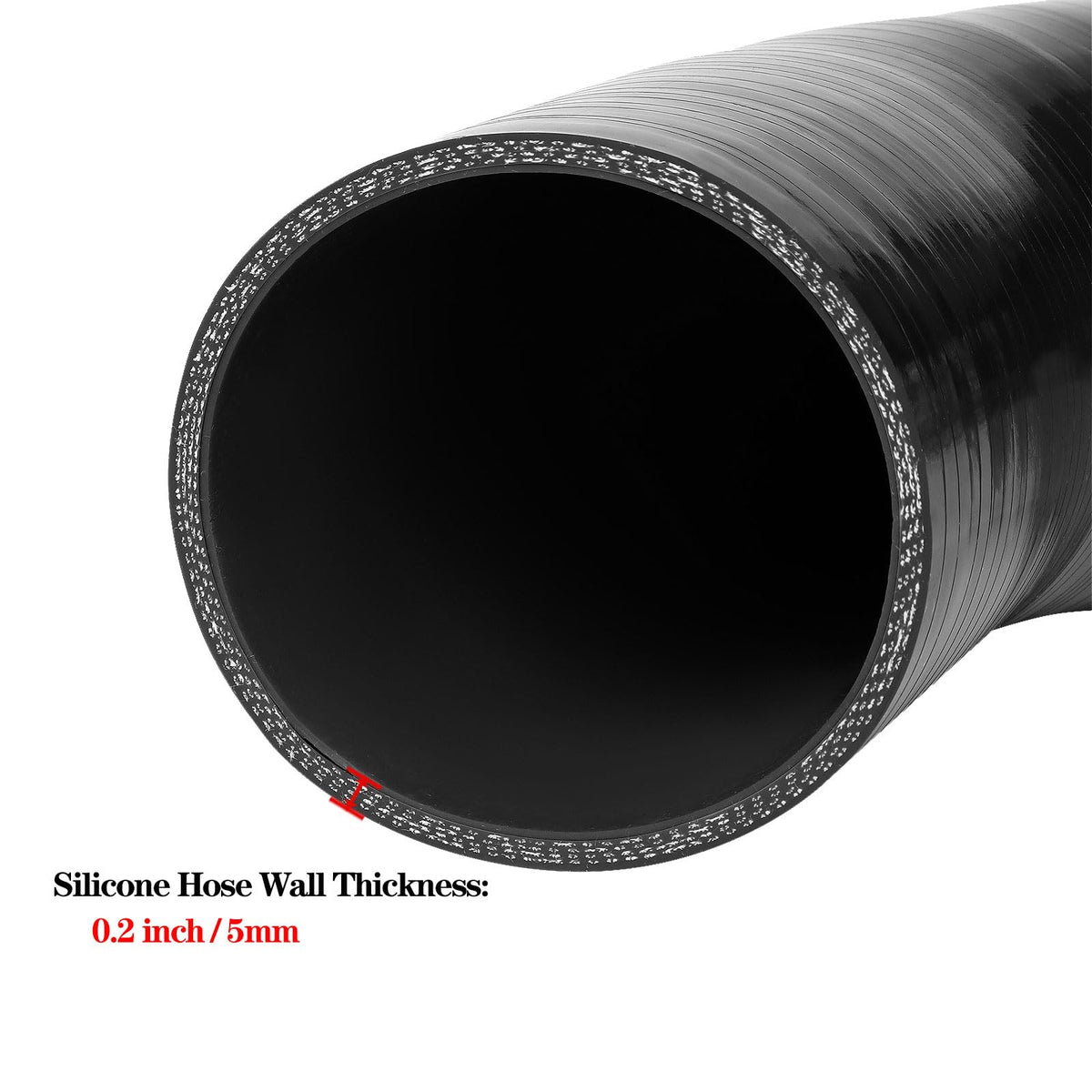

• Wall thickness 0.2" (5mm) to maintain shape under load

Will this elbow fit my intake, intercooler, or radiator setup?

The inner diameter of this elbow is 1.5 inches (38mm), standard for many small-diameter intake and turbo plumbing applications. Its 90-degree bend and 7" legs provide enough length and curvature for common routing without sharp kinks, making it suitable for intercooler piping, turbo inlet/outlet, and radiator hose adaptations. Always measure your hose ports and clearance to confirm compatibility before installation.

• Inner diameter: 1.5" (38mm) to match compatible pipes and clamps

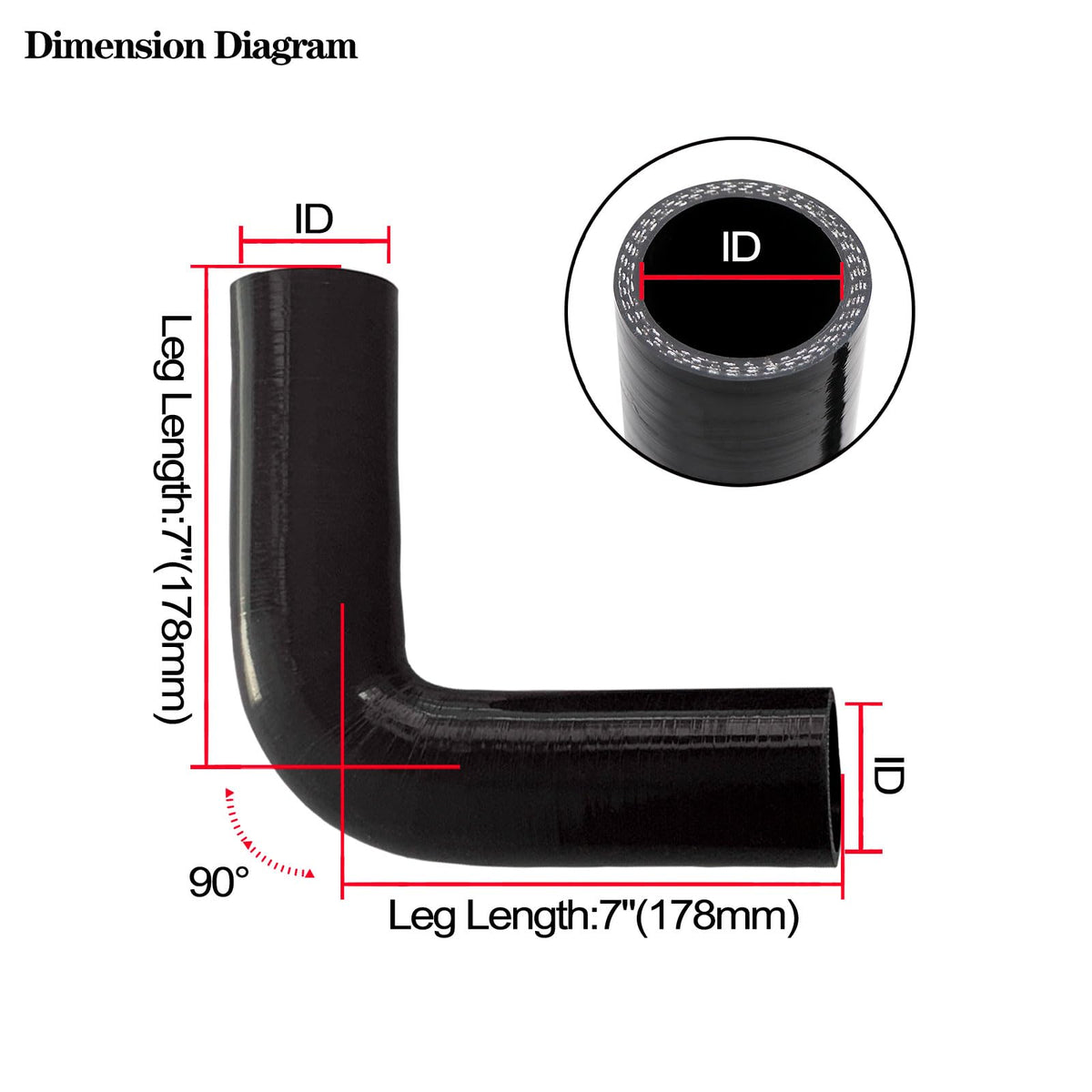

• Leg length each: 7" (178mm) to reach typical port offsets
• 90° angle for routing tight corners in engine bays
• Works with intake, intercooler, turbo, and radiator connections

How easy is installation and what hardware do I need?

Installation is straightforward: slide the hose onto mating pipes and secure with appropriately sized hose clamps. Because the hose is flexible yet reinforced, it slips on easily but resists collapse when clamped. For best results, use heavy-duty worm-drive or T-bolt clamps sized for 1.5" ID and inspect for proper seating and clearance from hot or moving components.

• Install with worm-drive or T-bolt clamps sized for 1.5" ID
• Ensure pipe ends are clean and burr-free for a tight seal
• Check clearance to turbo housings, manifolds, and belts
• Trim leg length if custom routing requires shorter runs

What maintenance or lifespan can I expect from this silicone elbow?

Silicone hoses generally outlast standard rubber in heat and ozone exposure; the Haturmyko reinforced elbow is built for long-term service in demanding environments. Periodic inspections for abrasion, clamp tightness, and oil contamination will extend life. Replace the hose if you notice deep cuts, visible delamination of layers, or loss of flexibility after extended use.

• Inspect clamps and hose seating periodically for leaks
• Avoid sharp contact points or moving parts to prevent abrasion
• Replace if reinforcement layers separate or if cracks appear
• Designed for longer service life than typical rubber hoses

Who is this for: The Haturmyko 1.5" 90° silicone elbow is aimed at automotive enthusiasts, tuners, and mechanics who need a compact, high-temperature elbow for turbo, intake, intercooler, or coolant routing. It suits custom fabricators and anyone replacing OEM rubber elbows with a more durable, heat-resistant option for performance or restoration projects.
