Haturmyko ID 1.25 inch 90 Degree Silicone Elbow Coupler

Haturmyko 1.25 inch 90° silicone elbow coupler is a reinforced, high-temperature flexible hose with 7" legs designed to connect intercooler, intake, turbo or coolant lines.

This reinforced silicone elbow joins two 1.25" (32 mm) pipes at a right angle while offering thick walls and a four-layer construction built for repeated thermal cycling and pressure changes. Its 7" (178 mm) leg length gives installers room to align fittings; the 0.2" (5 mm) wall thickness provides structural support without sacrificing flexibility. The part is supplied as a single 90° silicone hose ready for vehicle or industrial plumbing use.

How does this elbow handle heat and pressure in engine bays?

The Haturmyko elbow is engineered from pure silicone with reinforced layers to withstand wide temperature swings and sustained pressure. It holds up in extreme hot and cold conditions and resists burst under high boost levels that occur in forced-induction systems.

• Temperature tolerance: rated from -60°C to 300°C for material integrity
• Low-end operational range noted at -40°C to 60°C for pliability
• Burst strength: spec’d at or above 6 kV equivalent burst pressure testing

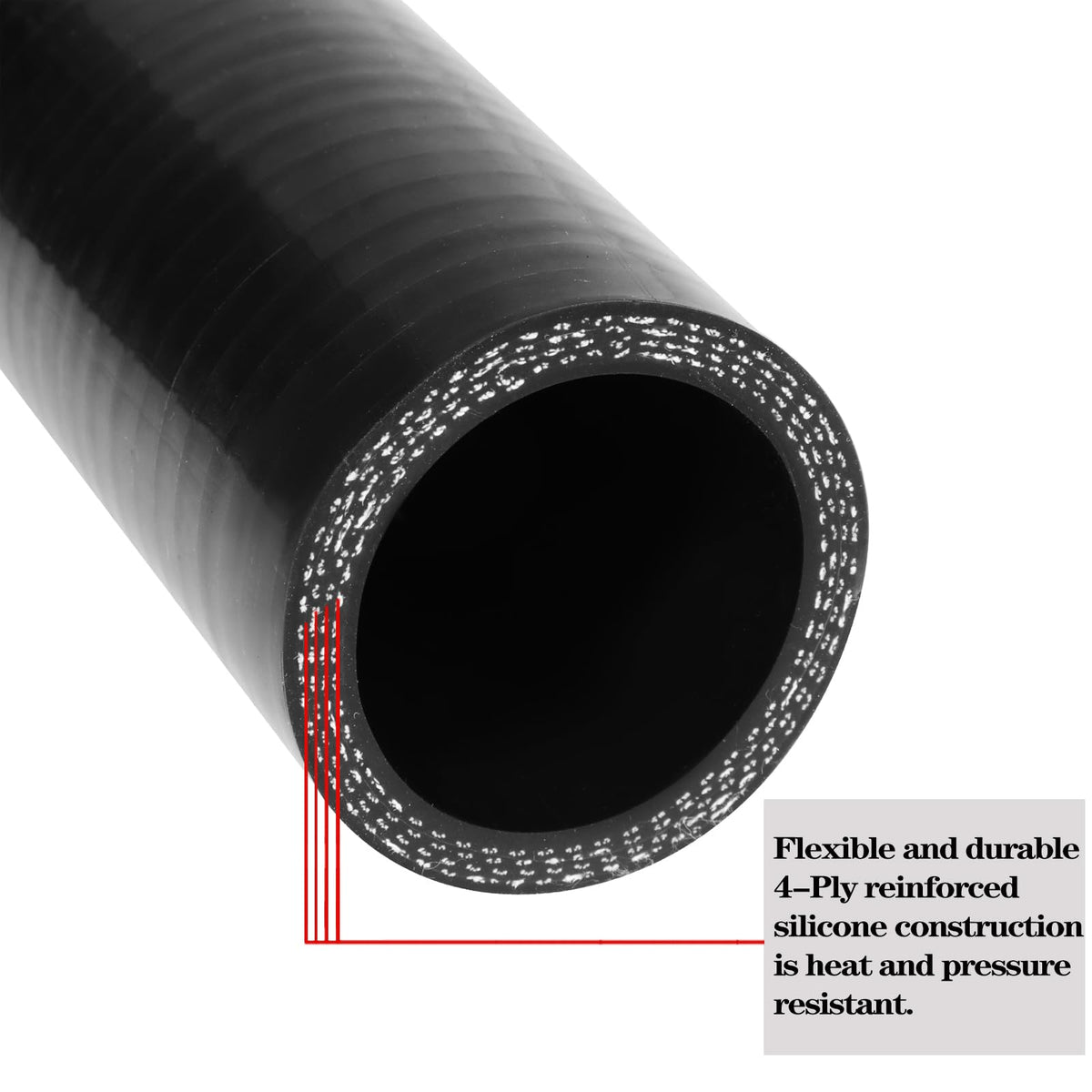

• Four-layer reinforcement improves durability against collapse and kinking

Will it fit my intake, intercooler, or radiator hoses?

This elbow is sized to mate with 1.25" (32 mm) pipe ends and works as a universal coupler for many automotive and industrial hose connections. It’s commonly used on turbo inlet/outlet runs, intercooler piping, radiator transitions, and other plumbing where a 90° bend is required.

• Internal diameter: 1.25" (32 mm) nominal to match matching tubing
• Leg length: 7" (178 mm) provides reach for clamps and slight misalignment

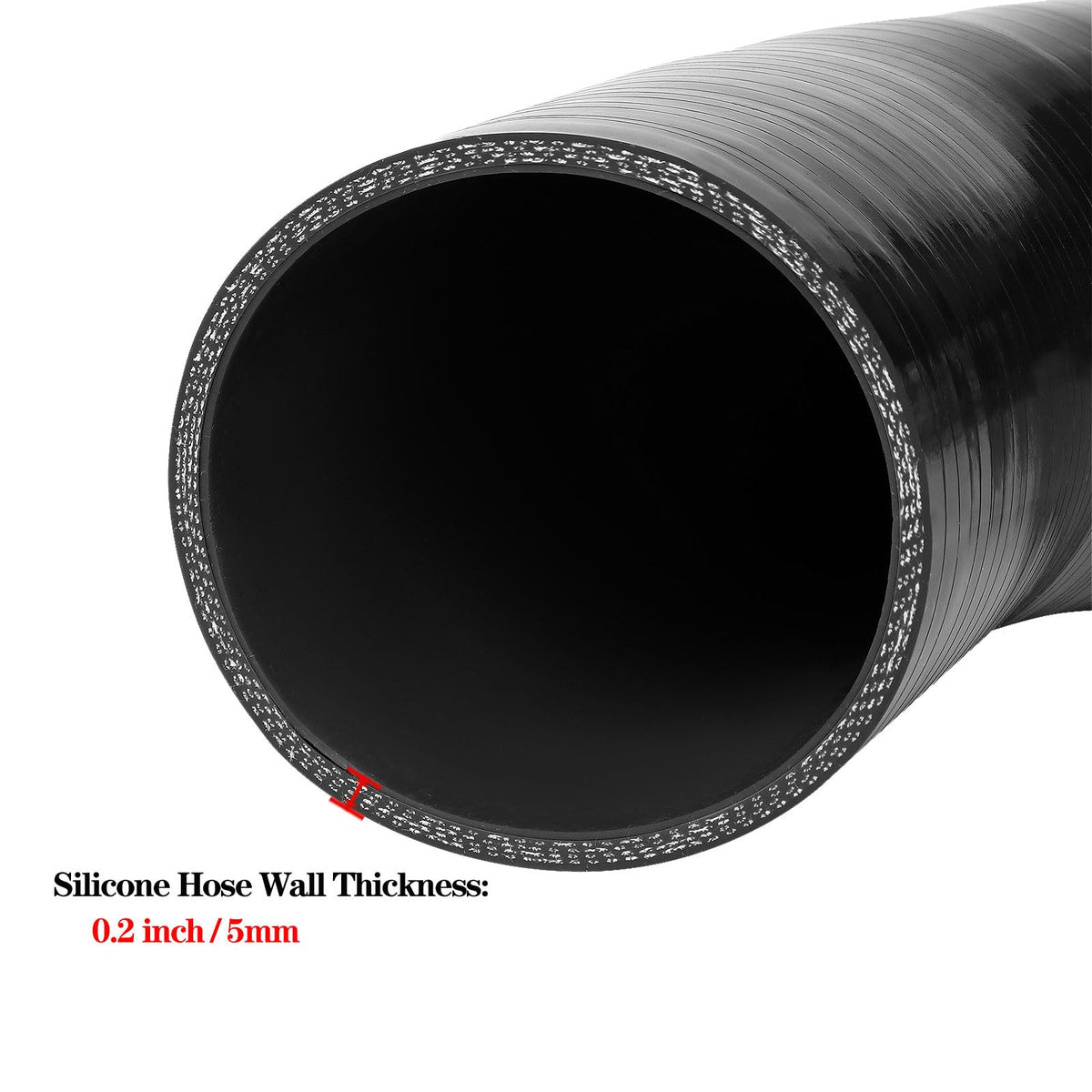

• Thick walls: 0.2" (5 mm) to resist pinch or blowout under pressure
• Single-piece design: reduces leak points compared with assembled elbows

How easy is installation and what accessories do I need?

Installation is straightforward: slide the hose onto the mating pipes and secure with appropriately sized hose clamps. The silicone’s flexibility eases routing around tight corners, but choose clamps that match the 1.25" inner diameter and leave enough bead engagement on each leg.

• Use band or worm-drive clamps sized for 1.25" ID fittings
• Lubricate ends lightly with soapy water for smoother assembly
• Trim ends only if necessary to maintain minimum leg engagement
• Inspect for abrasion points and provide heat shielding if near exhaust

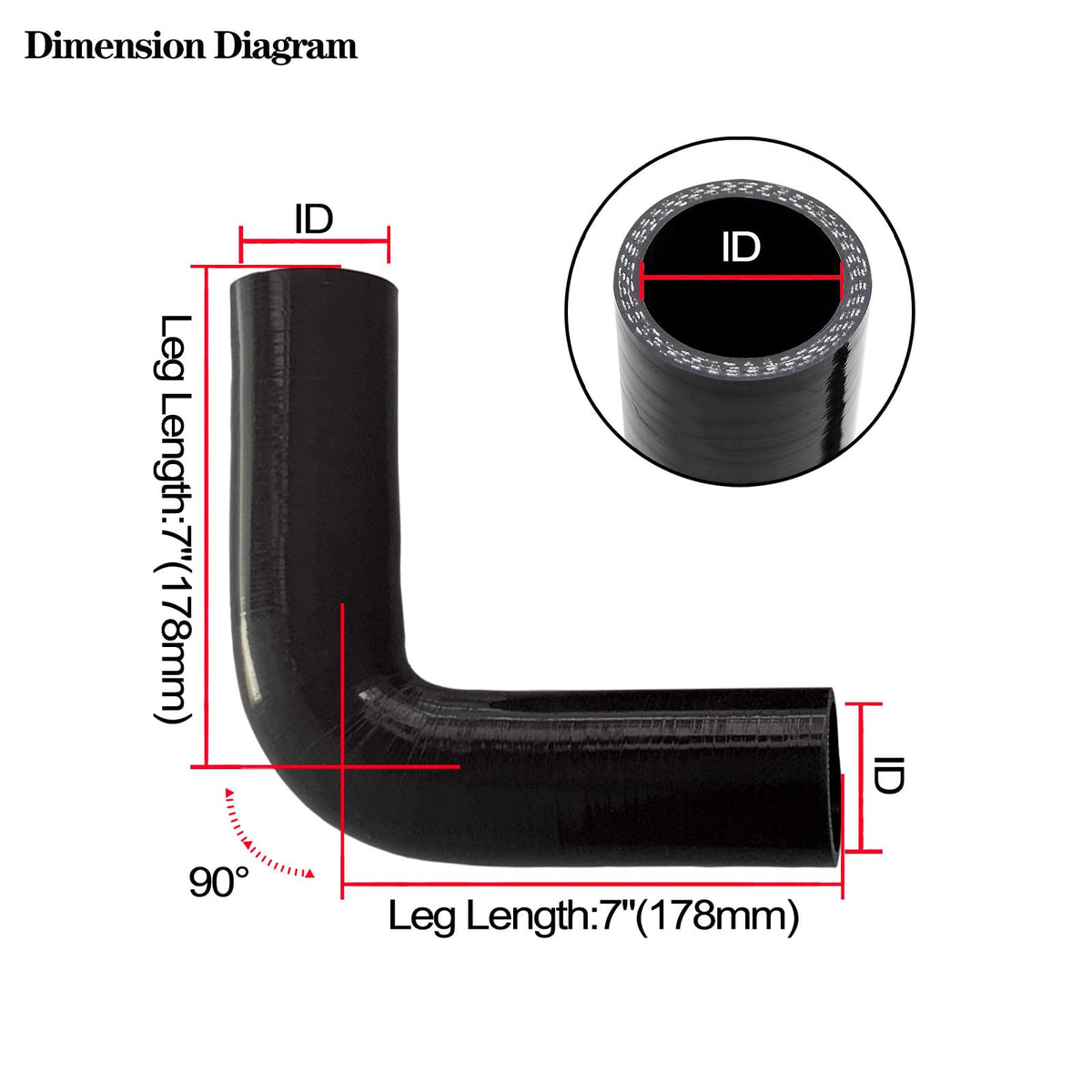

What are the physical specs and what comes in the box?

The elbow features a 1.25" internal diameter, 7" legs, and 0.2" wall thickness in a single reinforced silicone piece. It ships as one 90° silicone elbow; clamps and additional fittings are not included unless specified by the retailer.

• Inner diameter: 1.25 inch (32 mm)
• Leg length: 7 inch (178 mm) per side
• Wall thickness: 0.2 inch (5 mm)
• Package: 1 x 90° silicone elbow coupler

Who is this for? Automotive enthusiasts, tuners, and mechanics who need a compact, resilient 90° coupler for intake, turbo, intercooler, or coolant applications will find this Haturmyko elbow useful. It’s suited for retrofit work, custom piping, or routine replacement where a robust silicone elbow with defined leg length and wall strength is required. If you need clamps or bespoke lengths, plan to buy those separately.
