Hayden Automotive Transmission Cooler 403 Ultra-Cool — Low-Profile Tube-and-Fin 12.5" Core, Pressure-Tested

The Hayden Aluminum 403 Ultra-Cool is a low-profile, tube-and-fin transmission cooler kit designed to reduce transmission fluid temperatures for mid-size and full-size vehicles and light-duty towing.

This compact cooler combines a serpentine tube-and-fin construction with durable aluminum soldering and pressure-tested reliability to fit tight engine bays while helping protect drivetrains under load. The kit ships complete with the cooler core, hose, and mounting hardware so you can install a straightforward heat-exchange upgrade compatible with many OEM cooler systems.

How does this cooler improve transmission performance during towing or heavy use?

By increasing the surface area for heat dissipation and promoting fluid turbulence inside the tubes, the Hayden 403 encourages faster cooling than many factory lines. Cooler fluid helps preserve transmission components and clutch packs when you're hauling weight or driving in warm conditions, without requiring a large radiator-style unit.

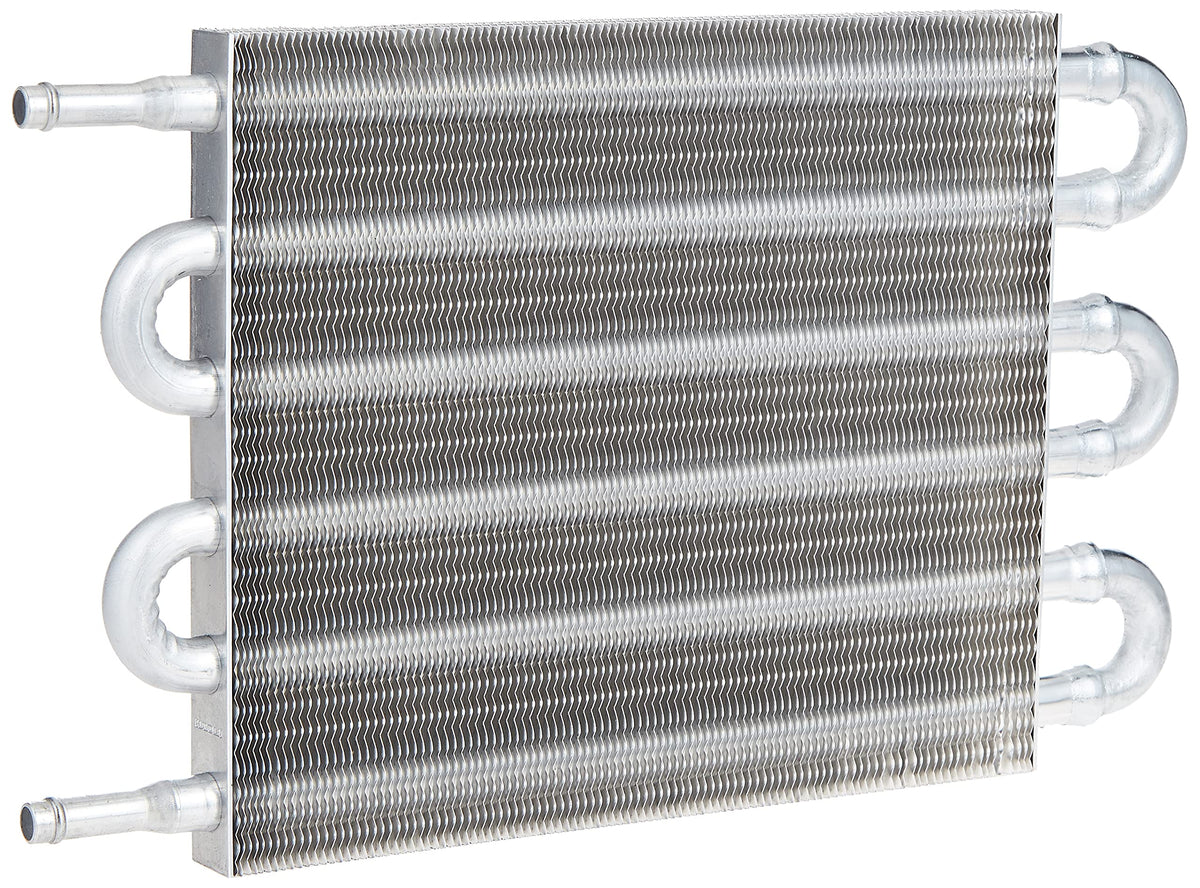

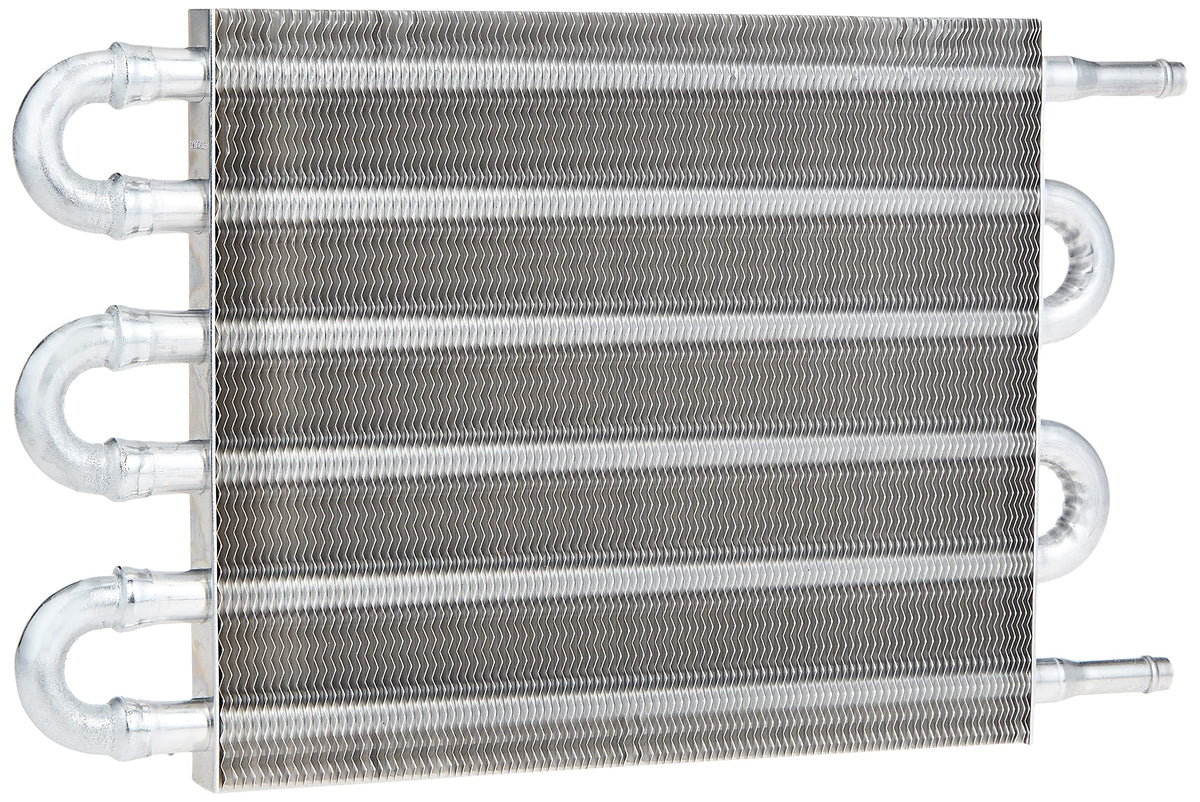

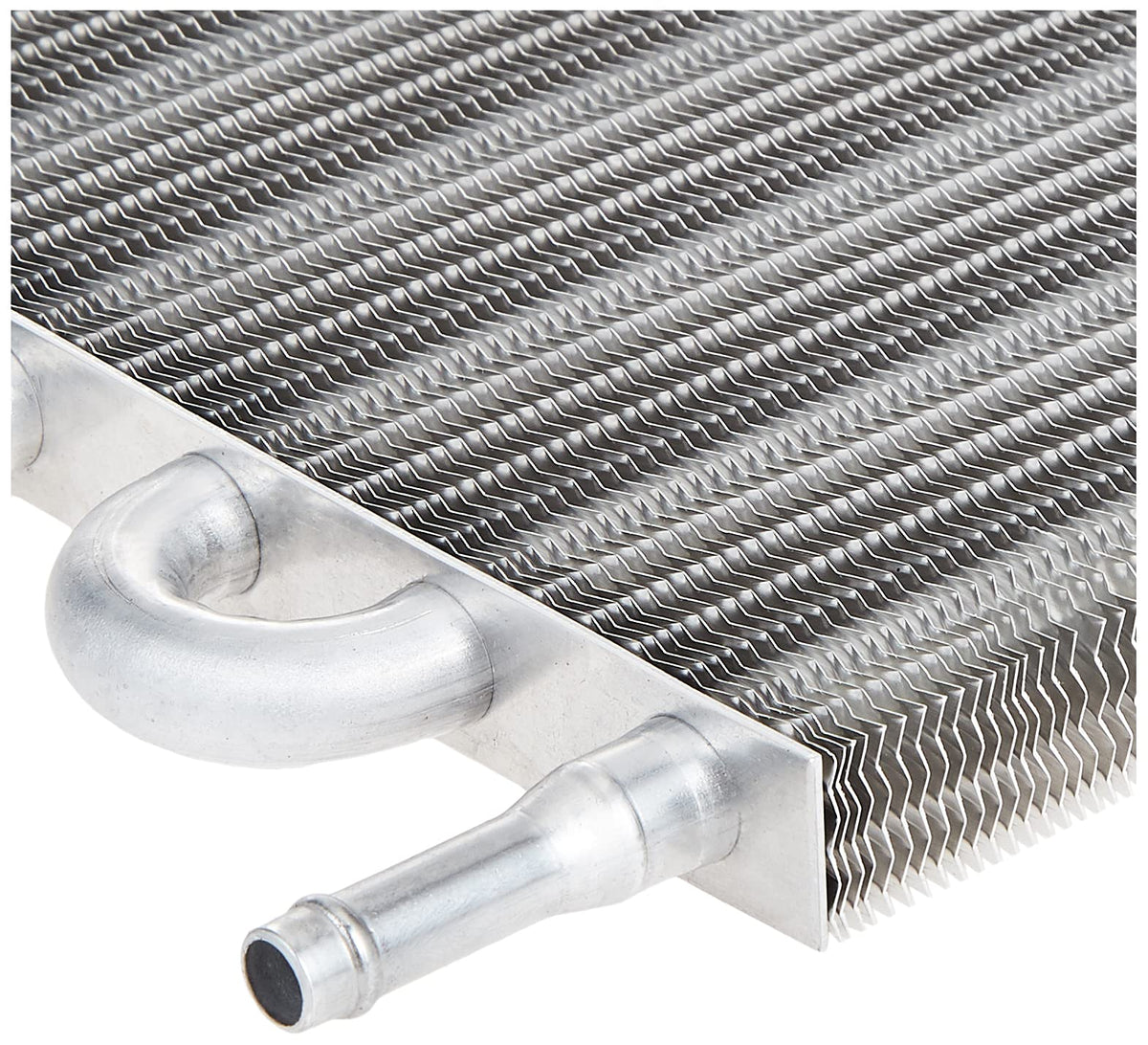

• Tube-and-fin serpentine design for efficient heat transfer.
• High-efficiency turbulators inside the tubes to boost fluid mixing.
• Compatible with OEM cooler systems for supplemental cooling.
• Pressure-tested to 150 PSI and ultrasonically soldered for durability.

Will the Hayden 403 fit my vehicle and tight engine compartments?

The cooler’s ultra-low profile and compact dimensions (0.75" diameter x 12.5" wide x 7.5" high) make it suitable for locations where space is limited. It’s intended for mid-size and full-size cars, pickups, and light towing applications, but you should confirm fitment using vehicle-specific measurements or the compatibility guide provided.

• Dimensions: 0.75" D x 12.5" W x 7.5" H for low-profile installations.
• 3/8" inlet and outlet to match common transmission hose fittings.
• Designed to integrate with OEM cooler lines or as an add-on kit.
• Use the Compatibility Guide PDF to verify fit before purchase.

What durability and quality checks does this transmission cooler include?

Hayden Automotive builds the 403 with ultrasonic soldering and subjects each unit to 100% pressure testing at 150 PSI to ensure leak-free performance. Those production steps help reduce the chance of failure under pressure and extend service life compared with lower-quality aftermarket cores.

• Ultrasonically soldered joints for long-term structural strength.
• 100% pressure tested to 150 PSI for leak assurance.
• Aluminum construction resists corrosion and conducts heat efficiently.

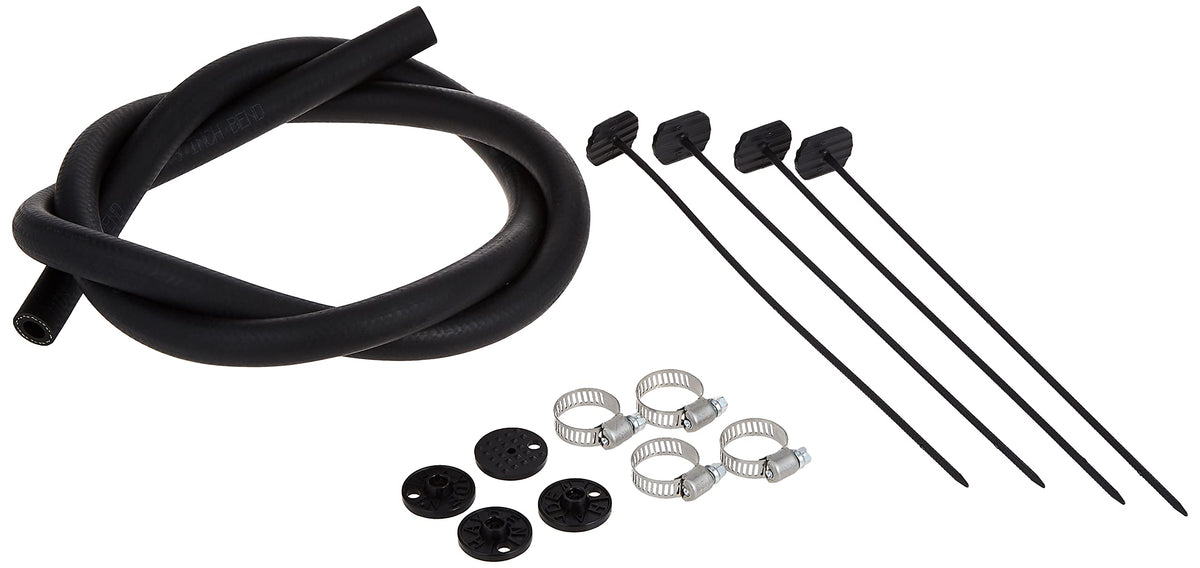

• Includes hose and mounting hardware for complete installation.

How much towing and vehicle weight can this cooler support?

The Hayden 403 is rated for GVWR vehicles up to 18,000 pounds and towing loads up to 3,500 pounds when used as a supplemental cooler. It’s engineered as an economy-style, add-on solution to reduce fluid temperatures rather than as a replacement for heavy-duty factory coolers on vocational trucks.

• GVWR support up to 18,000 pounds for appropriate vehicle classes.
• Towing capacity compatibility up to 3,500 pounds as a supplemental cooler.
• Best suited for light towing, daily drivers, and mid-size/full-size pickups.
• Not intended to replace heavy-duty OEM coolers on commercial trucks.

Who is this for? The Hayden Aluminum 403 Ultra-Cool is aimed at drivers of mid-size and full-size cars and pickups who need an affordable, compact way to lower transmission fluid temperature during towing, heavy loads, or hot-weather driving. If you want a simple add-on that fits constrained engine bays, installs with included hose and hardware, and offers tested reliability, this economical tube-and-fin cooler is a practical choice — just confirm fit using the compatibility guide before ordering.
