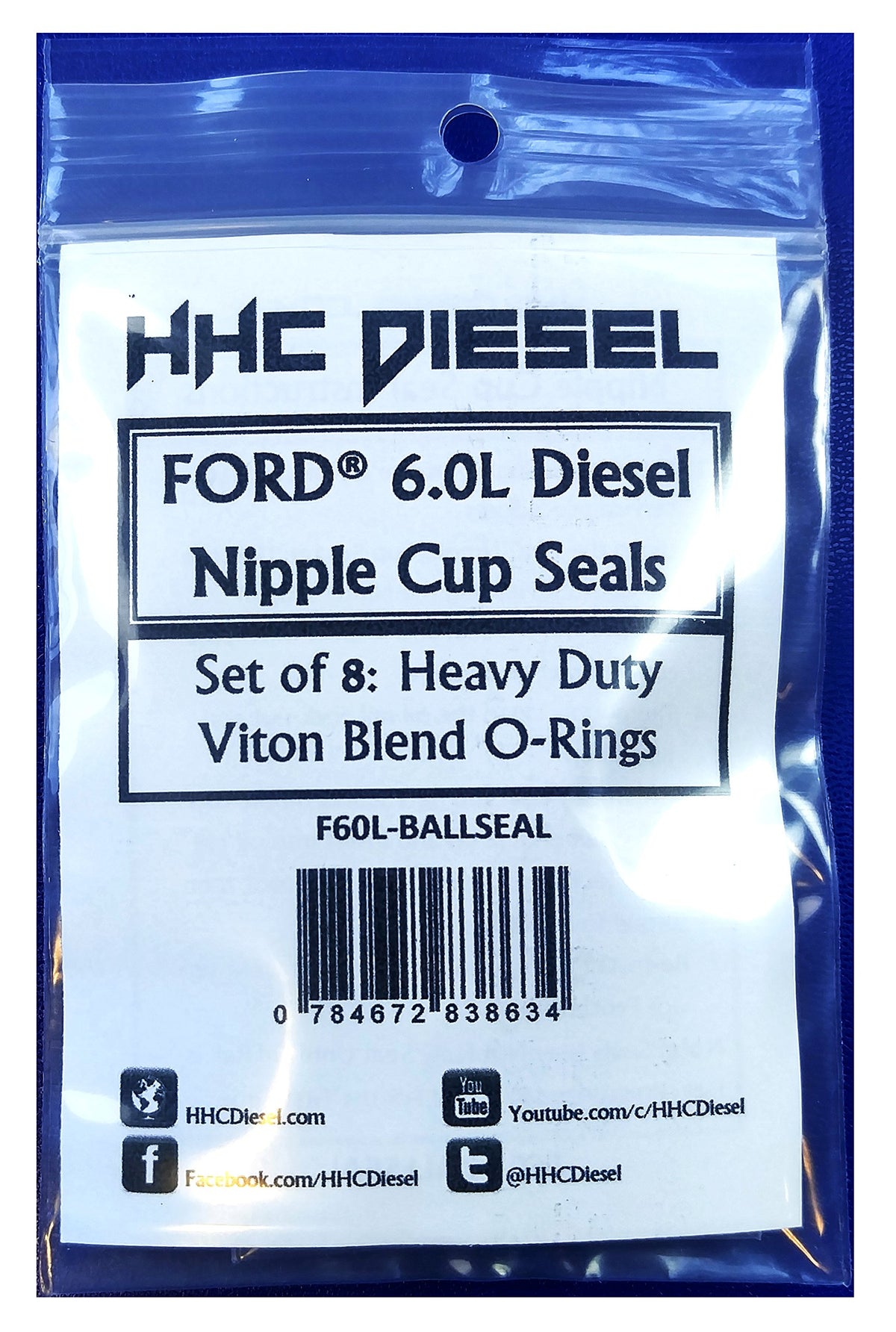

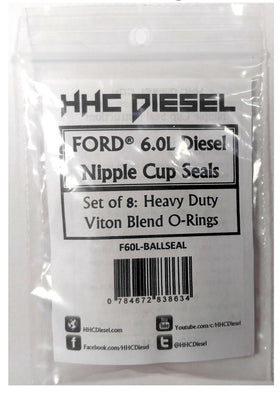

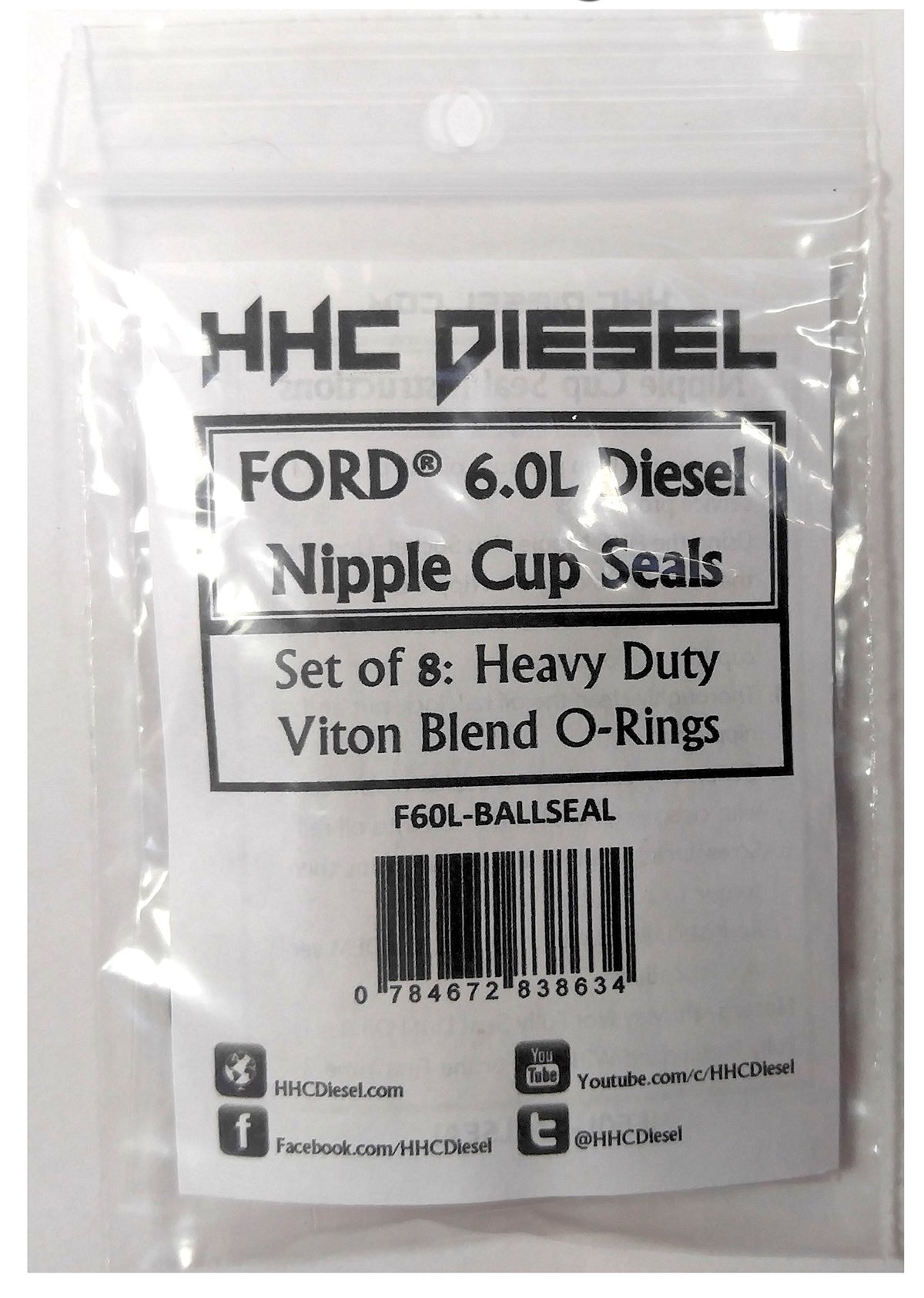

HHC Diesel Ford 6.0L Nipple Cup O-Rings Set of 8 — Heavy-Duty Viton Blend Seals, High-Temp Oil Leak Repair

HHC Diesel's F60L-BALLSEAL is an eight-piece set of heavy-duty Viton-blend nipple cup (ball tube) O-rings designed to stop high-pressure oil leaks on Ford 6.0L diesel fuel rails.

If your 6.0L Ford shows a hot no-start or evidence of oil leaking into the top of the injectors, worn nipple cup seals are often the culprit. These replacement seals restore the seal between the nipple cup/ball tube and the injector body, preventing high-pressure oil from following the nipple cup down to the injector top seal. Installing both the nipple cup O-rings and top injector seals when needed avoids more extensive oil rail damage and can save you the high cost of replacing oil rails.

How do these O-rings fix a hot no-start or injector oil leak?

The nipple cup O-rings seal the mating surface where the ball tube or nipple cup seats against the injector. When the original seals harden or erode, pressurized oil can run past the nipple cup and compromise the top injector seal, causing starting issues and oil contamination. Replacing the nipple cup seals restores the intended oil containment at the rail-to-injector interface.

• Set contains eight O-rings for all nipple cup positions on a 6.0L oil rail.
• Designed to stop oil tracking from the nipple cup to the injector top.
• Prevents secondary failure of the top injector seals when replaced together.

What makes the HHC Diesel Viton blend better than OEM or other aftermarket seals?

The material is a specially formulated heavy-duty Viton blend engineered for higher temperature and pressure resistance than standard OEM compounds. It resists swelling, hardening, and extrusion under high-pressure oil conditions common to the 6.0L rail. That durability reduces the chance of premature failure compared with stock or generic aftermarket O-rings.

• High-temperature Viton blend for stability under extreme heat.
• Resists chemical degradation from diesel and oil additives.
• Proven in engines where competitor O-rings failed while these continued working.

Will these O-rings fit my Ford 6.0L model and what tools are required?

These seals are compatible with Ford 6.0L oil rails produced for model years 2003–2007. They match the nipple cup/ball tube sealing diameter used in those rails. For proper installation and to avoid damaging the O-rings, use a dedicated nipple cup socket or the appropriate installer tool designed for 6.0L nipple cups.

• Fits 2003–2007 Ford 6.0L oil rails and nipple cup designs.
• Installation recommended with a nipple cup socket (sold separately).
• Use correct torque and clean mating surfaces before fitting seals.

How long will a set last and when should I replace them?

Lifespan depends on operating conditions, but the heavy-duty Viton blend significantly extends service life compared with stock rings. Replace them whenever you service injector top seals, after detecting oil leaks, or if rings show visible cracking or flattening. Replacing both nipple cup and top injector seals together reduces repeat labor and lowers overall repair cost.

• Longer service life under heat and pressure than standard O-rings.
• Replace when performing injector or rail maintenance or upon leak detection.
• Proactive replacement can prevent costly oil rail damage and no-starts.

Who is this for: HHC Diesel F60L-BALLSEAL is intended for Ford 6.0L owners, diesel technicians, and hobbyists performing injector or fuel-rail maintenance who want a tough, longer-lasting nipple cup seal. If you're addressing oil tracking at the injector top, doing routine injector service, or want to avoid the expense of new oil rails, this heavy-duty Viton blend eight-piece set provides a direct-fit, durable replacement option.
