Hi-Lift 48" X-TREME Jack XT-485 — 48-inch all-cast recovery jack with X-TREME top clamp, 5,000 lb multi-use, corrosion-resistant

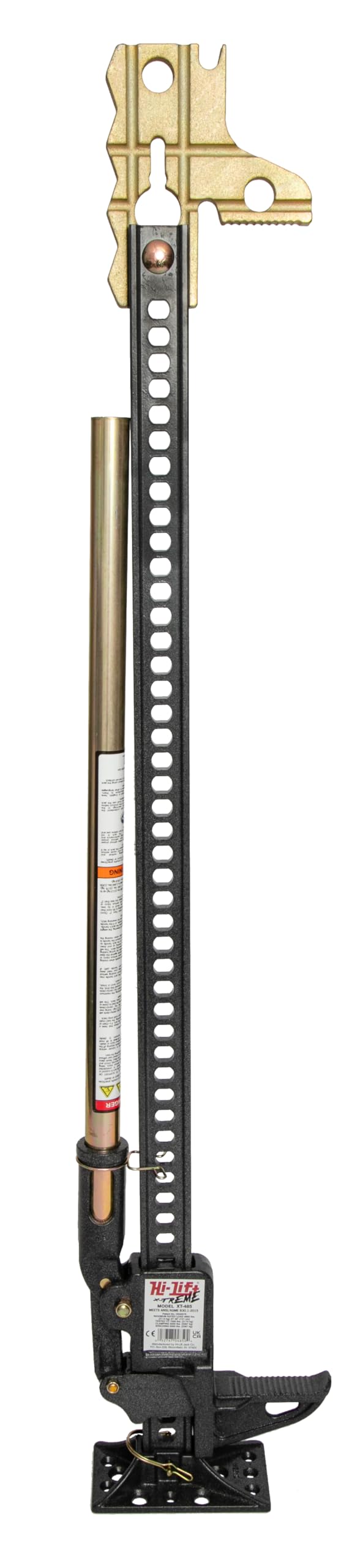

The Hi-Lift Jack 48" X-TREME (XT-485) is a heavy-duty, all-cast 48-inch jack with an integrated X-TREME top clamp that lets you winch, clamp, and spread up to 5,000 lbs.

The XT-485 is designed for off-roaders, farmers, recovery teams, and tradespeople who need a versatile, corrosion-resistant mechanical jack that goes beyond basic lifting. This model replaces the standard top clevis with the X-TREME top clamp attachment, adding winching and spreading capabilities while retaining the tried-and-true Hi-Lift lever mechanism and robust construction.

How does the X-TREME top clamp expand what a standard Hi-Lift jack can do?

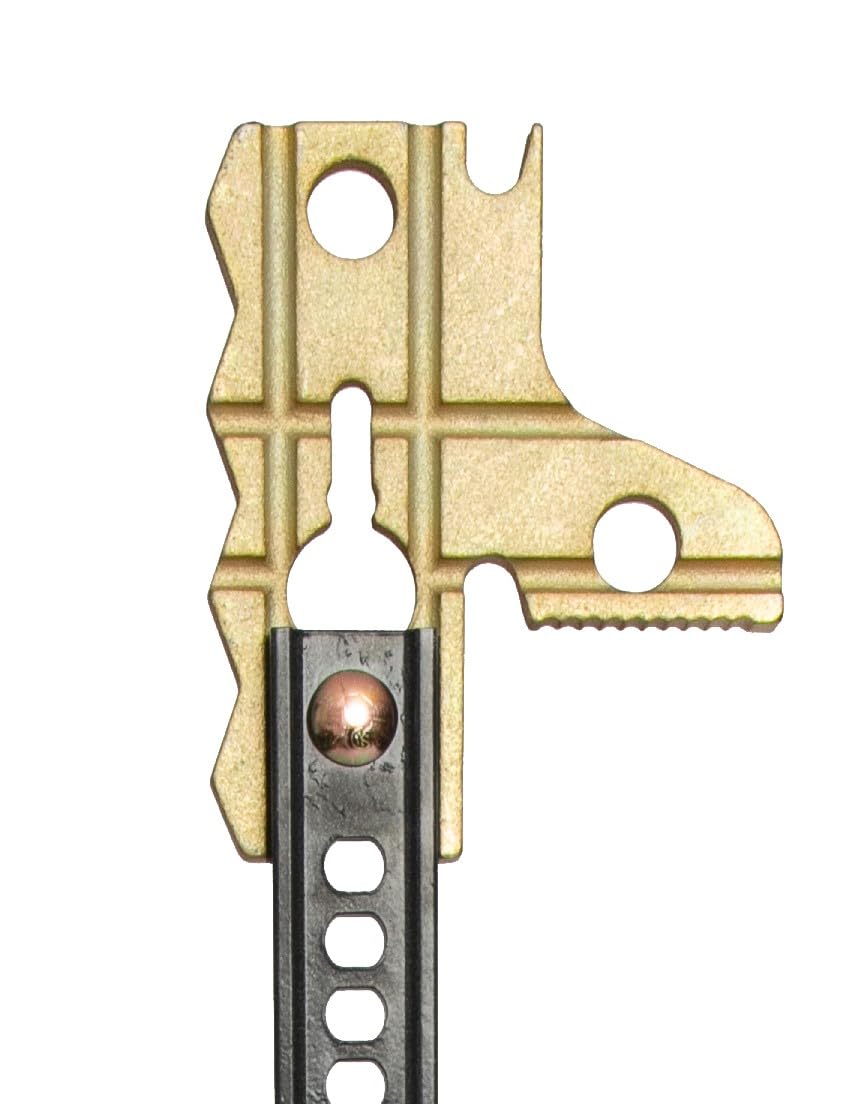

The X-TREME top clamp transforms the jack head into a multi-function tool: it accepts shackles, secures chain for winching, and provides a wedge-shaped spreader surface for prying or separating. Because the attachment mounts anywhere along the standard steel bar, it gives more setup options than a fixed clevis.

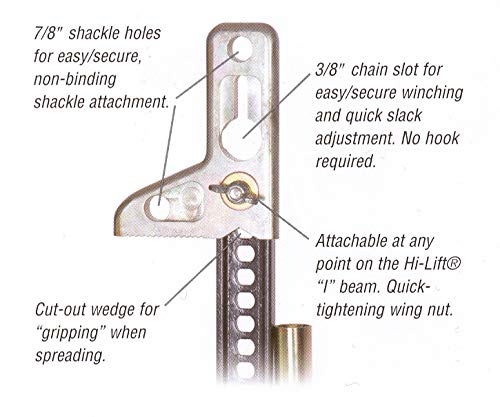

• Rated multi-use capacity: winch, clamp, and spread up to 5,000 lbs
• 7/8" shackle holes for secure, non-binding anchor points
• 3/8" chain slot eliminates the need for hooks and allows fast chain slack adjustments
• Cut-out wedge profile for reliable gripping when spreading or prying

What materials and corrosion protection does the XT-485 use for demanding environments?

The X-TREME is built as an all-cast assembly for strength and consistency, with the winch/clamp/spreader hardware finished in a gold zinc coating. Those choices improve wear resistance and help prevent rust during heavy outdoor use or long-term storage.

• All-cast jack body for consistent structural integrity
• Gold zinc-coated attachment hardware for enhanced rust resistance
• Two-piece handle and socket engineered for durable repeated operation
• Factory-applied instruction and load-rating labels on the handle for safe use reminders

How do you operate the XT-485 safely for winching, clamping, and spreading tasks?

Operate the jack per the instructions on the handle, using the appropriate shackle or chain routing through the 3/8" slot and engaging the pawl system as normal. Set up solid anchor points, keep bystanders clear, and work in short, controlled cycles to avoid overload or binding.

• Attach 7/8" shackle or chain to approved anchor points only
• Use the chain slot for quick tensioning—no hook required
• Position the clamp anywhere on the bar for better leverage and reach
• Read and follow the rated load information on the handle before use

Who is this for: The Hi-Lift 48" X-TREME XT-485 suits experienced off-road drivers, recovery crews, landowners, and professionals who need a dependable tool that performs multiple jobs—lifting, winching, clamping, and spreading—without swapping attachments. If you want a 48-inch jack that adds secure shackle points, quick chain winching, and a spreading wedge while offering superior corrosion resistance, the XT-485 is built for frequent, rugged service.
