HiFind 14AWG 6-Way 50 ft Trailer Wiring Harness — Bonded Flat 6-Conductor CCA, Weather-Resistant

HiFind's 14-gauge 50 ft 6-way bonded trailer wiring harness is a ready-to-use, flat multi-conductor cable that delivers heavier-duty 12V wiring for trailers, RVs, boats, and towing applications without splicing.

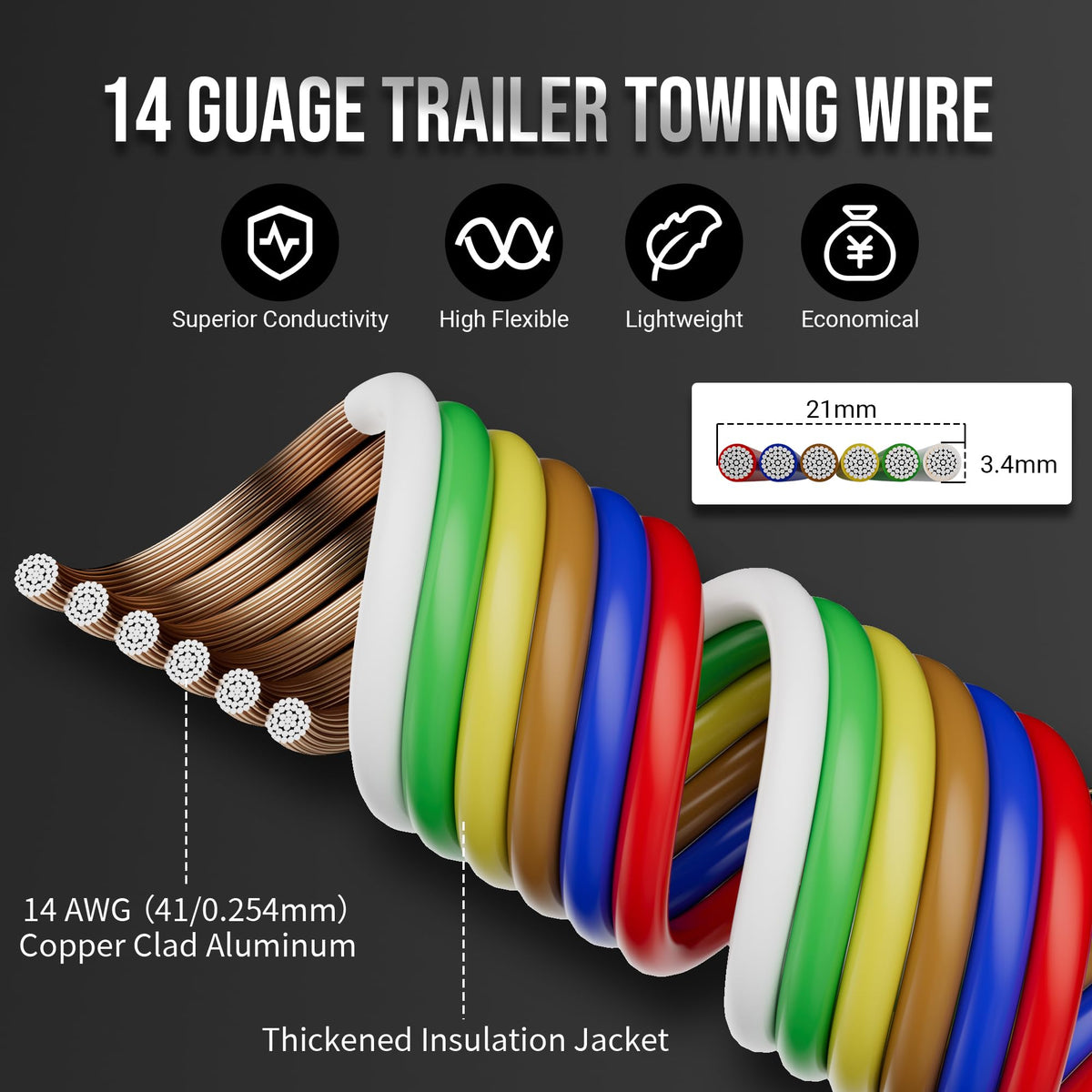

This harness combines six parallel, color-coded conductors (white ground, brown tail, yellow left turn, green right turn, blue electric brake, red auxiliary 12V) in a bonded, flat profile to simplify routing and reduce installation time. Built from stranded CCA (copper-clad aluminum) in a thicker 14AWG size, the cable lowers resistance compared with 16AWG options and offers improved power capacity for longer runs and systems that include electric brakes or auxiliary batteries. A durable PVC jacket resists moisture, UV, oil, and temperature extremes, making it suitable for under-chassis and exposed trailer areas.

How is this harness different from standard 16AWG trailer wire?

The HiFind 14AWG harness uses thicker stranded conductors and a bonded flat layout that reduces voltage drop over distance and simplifies installation. It’s intended for heavier loads and longer cable runs where 16AWG can become a limiting factor.

• 14AWG stranded conductors for lower resistance and higher current capacity

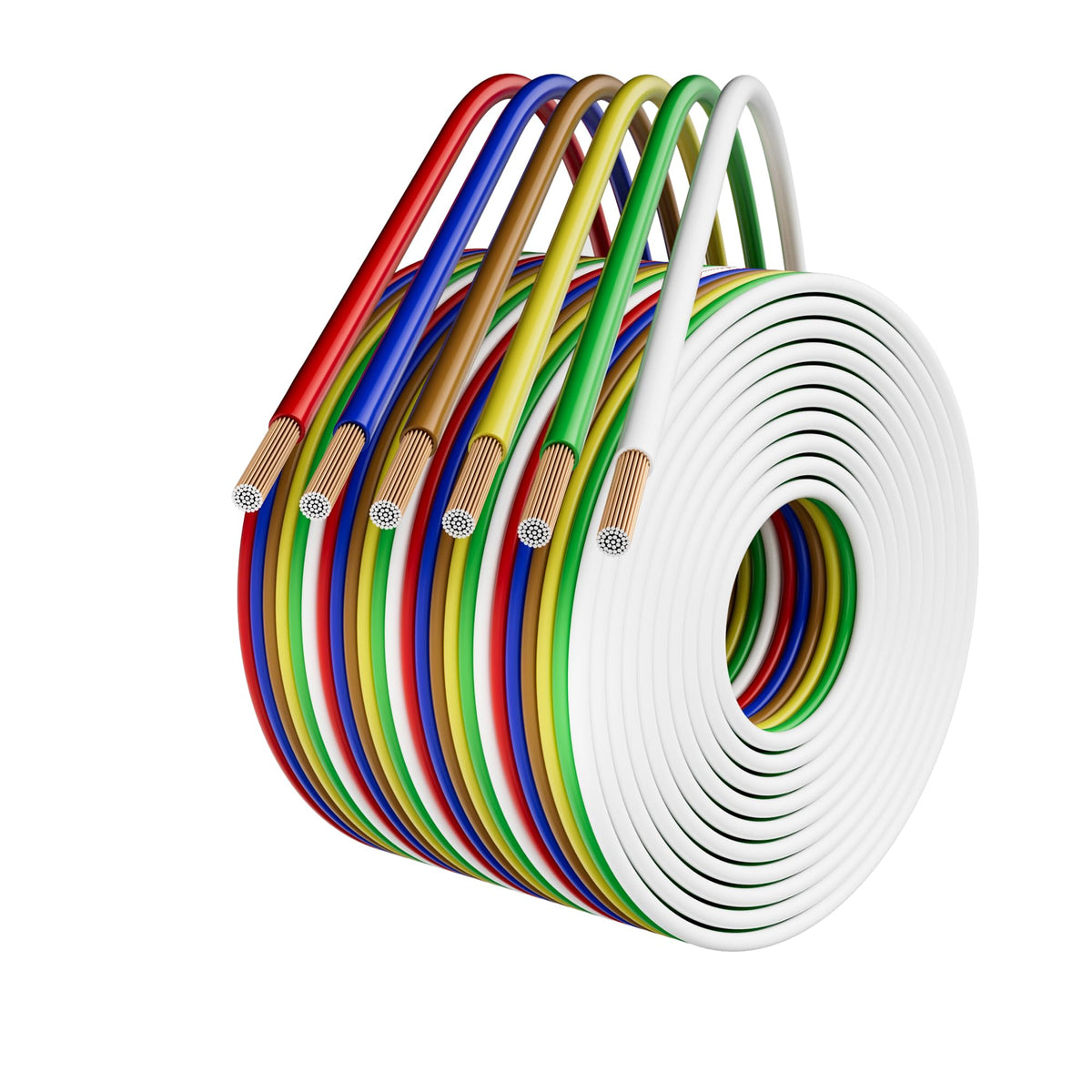

• Bonded, flat construction keeps wires aligned for neat routing
• CCA cores balance cost and weight while improving conductivity over thinner gauges
• White ground at the same gauge for more reliable grounding and reduced corrosion risk

Will this harness handle electric brakes and auxiliary power reliably?

Yes — the kit includes a dedicated blue conductor for electric brake controllers and a red auxiliary 12V feed for battery or powered accessories. The 14AWG gauge provides added margin for brake controller draw and for powering small 12V accessories without excessive voltage drop.

• Blue wire dedicated to electric brake input for cleaner wiring to controllers
• Red auxiliary conductor supports battery power or charge lines
• Stranded CCA minimizes weight while maintaining sufficient conductivity for brake systems
• Jacketed construction protects conductors from road debris and moisture

How easy is installation and identification of each circuit?

The bundle is color coded for common trailer circuits to reduce guesswork and cut installation time. Because the wires are bonded side-by-side into a flat harness, they feed through grommets, channels, and clips easily and remain untangled during routing.

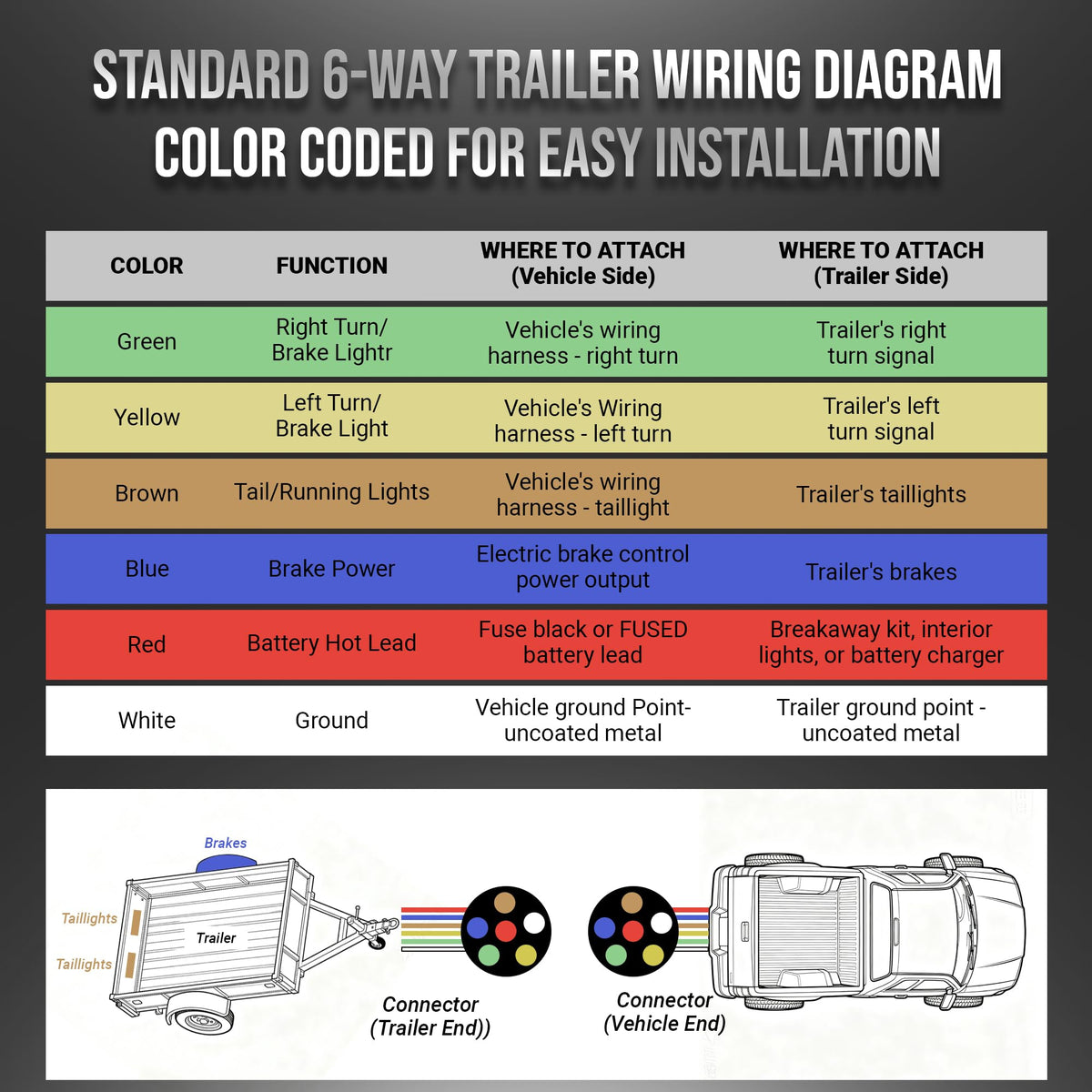

• Color-coded wires: white ground, brown taillight, yellow left turn, green right turn, blue brake, red 12V
• Flat bonded profile enables quick threading through chassis channels
• Stranded construction accepts crimping and soldering for robust terminations
• PVC jacket withstands outdoor exposure while keeping wires together

What conditions and vehicle types is this harness suited for?

The harness is rated for typical 12V vehicle systems and engineered to resist UV, oil, and temperature extremes, making it a fit for a broad range of towing and mobile uses. It’s especially useful where long runs, electric brakes, or auxiliary power are required.

• Compatible with trailers, RVs, campers, boat trailers, and cargo/horse trailers
• Also suitable for ATVs, motorcycles, food trucks, and small mobile builds
• Sealed PVC jacket withstands -40°C to +105°C for harsh environments
• Spool can be separated into individual conductors for custom routing or repairs

Who is this for: installers, DIYers, and fleet owners who need a single, longer, heavier-gauge run to replace worn trailer wiring or to build new lighting and brake systems. If you want a tidy, lower-resistance alternative to 16AWG harnesses that simplifies routing and supports electric brakes and auxiliary 12V, this bonded 14AWG HiFind harness is designed to meet those needs while offering corrosion-resistant grounding and a weatherproof jacket. A two-year warranty backs product-quality concerns and provides replacement or refund support if any manufacturing issues arise.
