High Performance 4-Ply Reinforced 45 Degree ID 4 Inch Elbow

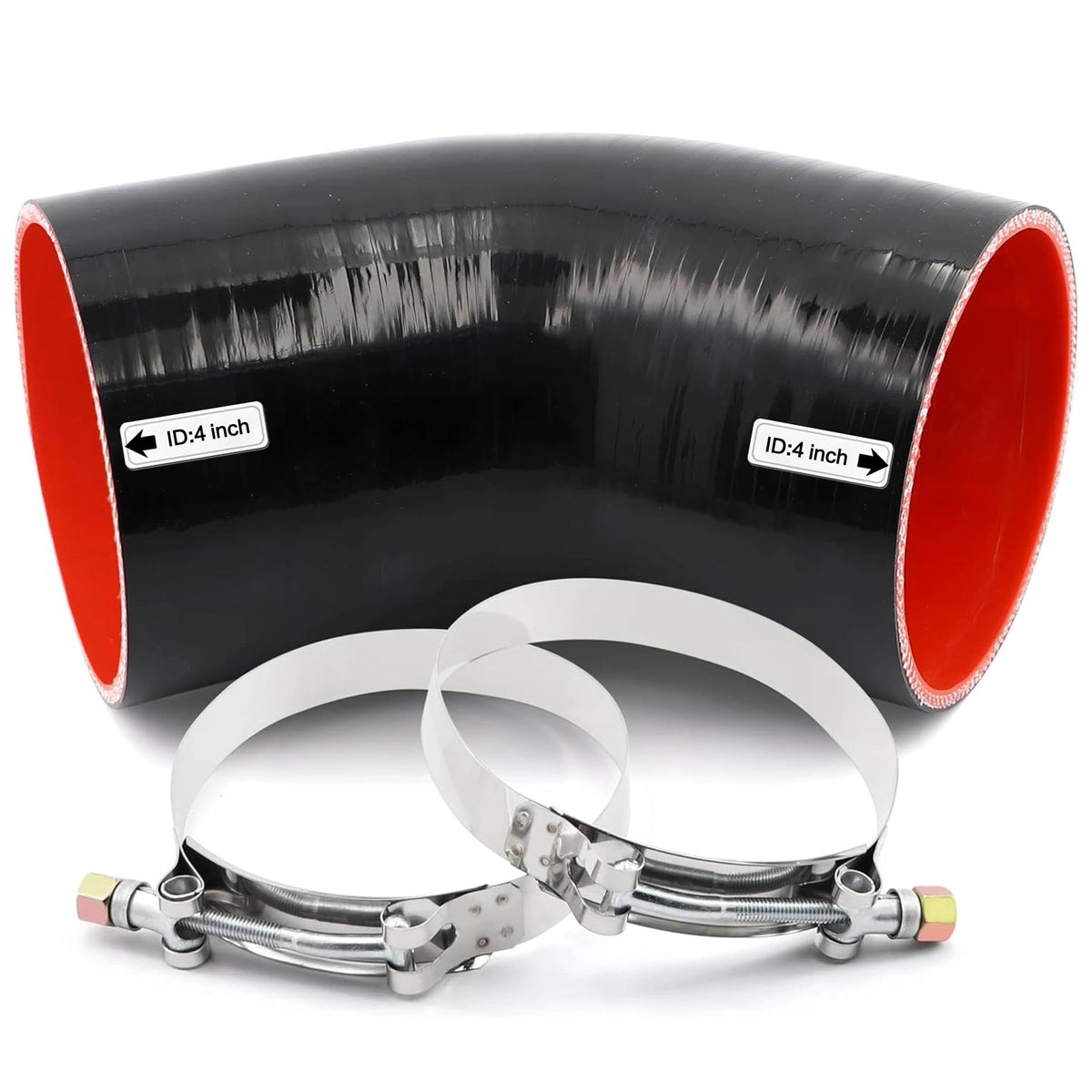

TuoLauthon’s 4-ply 45° silicone elbow is a heavy-duty 4" ID coupler with 5mm walls and two stainless steel T-bolt clamps, built for reliable turbo, intercooler, and intake connections.

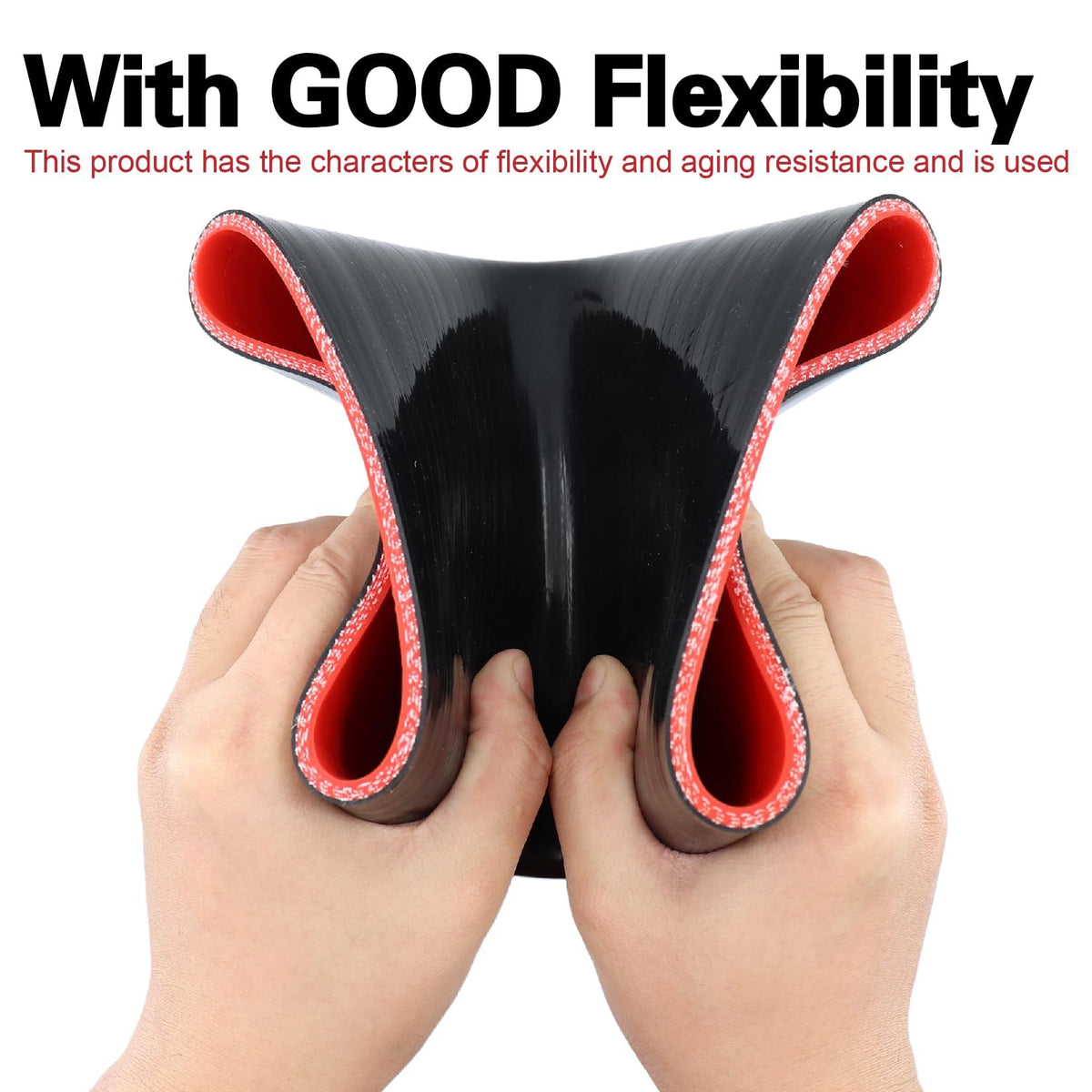

This reinforced silicone elbow is engineered to withstand high heat, pressure changes, and repeated vibration common to forced-induction and industrial plumbing. Constructed from premium silica gel and anti-aging additives, the hose delivers long-term flexibility and crush resistance across extreme temperatures. It’s a universal-fit 45° bend with 4-inch inner diameter and 4-inch leg length, supplied complete with two corrosion-resistant T-bolt clamps for a secure seal without extra purchases.

How does this 45° elbow hold up under turbo and intercooler conditions?

The four-layer reinforcement and 5mm wall thickness combine to resist collapse and withstand pressure pulses generated by turbochargers. Thermal stability and anti-aging materials help preserve shape and integrity after repeated heat cycles.

• Rated operating temperature range: -76°F to +500°F (-60°C to +260°C).
• Working pressure range: 0.3–0.9 MPa (43.5–130 PSI); burst tested to 2 MPa.

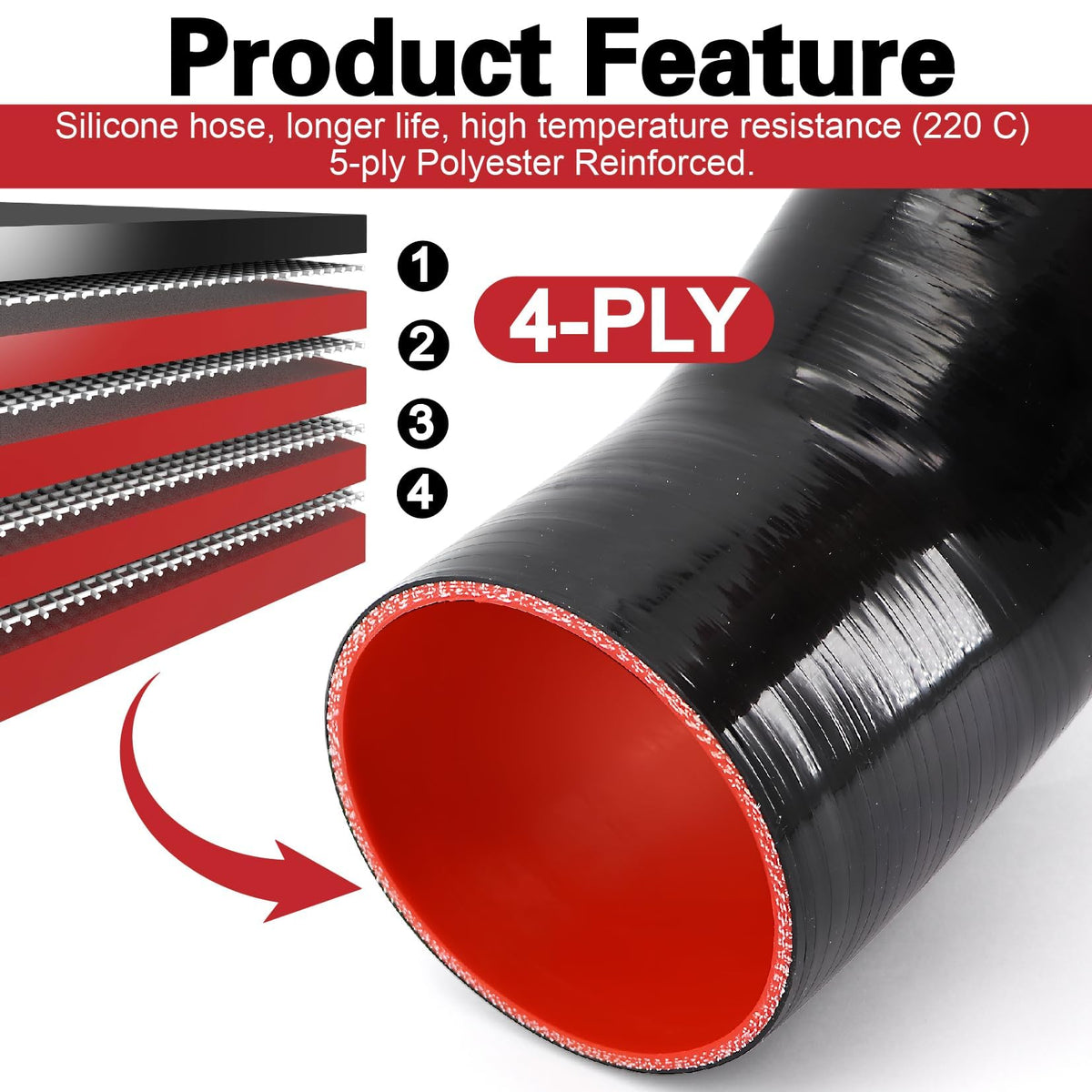

• 4-ply construction resists compression and intermittent boost pressure.
• Not intended for oil or fuel transfer — designed for air and coolant routing.

Will it fit my intake piping or intercooler plumbing?

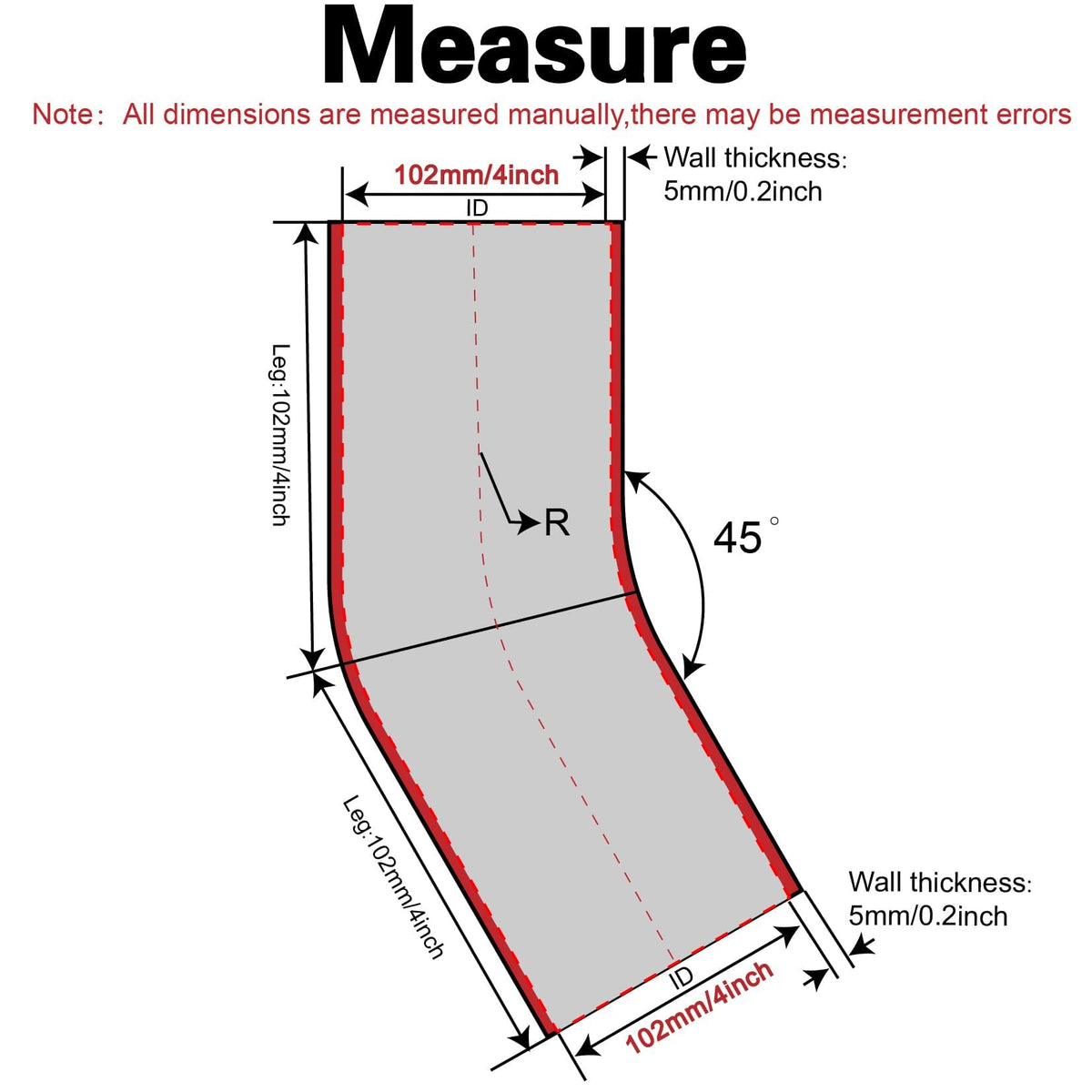

The elbow uses a 4.00-inch (102 mm) inner diameter and two 4-inch legs, making it compatible with standard 4" piping and many aftermarket intercooler kits. Its 45° angle provides a gentle directional change that suits tight routing without sharp bends.

• Inner diameter: 4" (102 mm); leg length: 4" (102 mm).
• Universal application for turbo, supercharger, intake, and many industrial systems.
• Includes two stainless steel T-bolt clamps sized for a secure fit.
• UV and ozone resistant for outdoor and marine exposure.

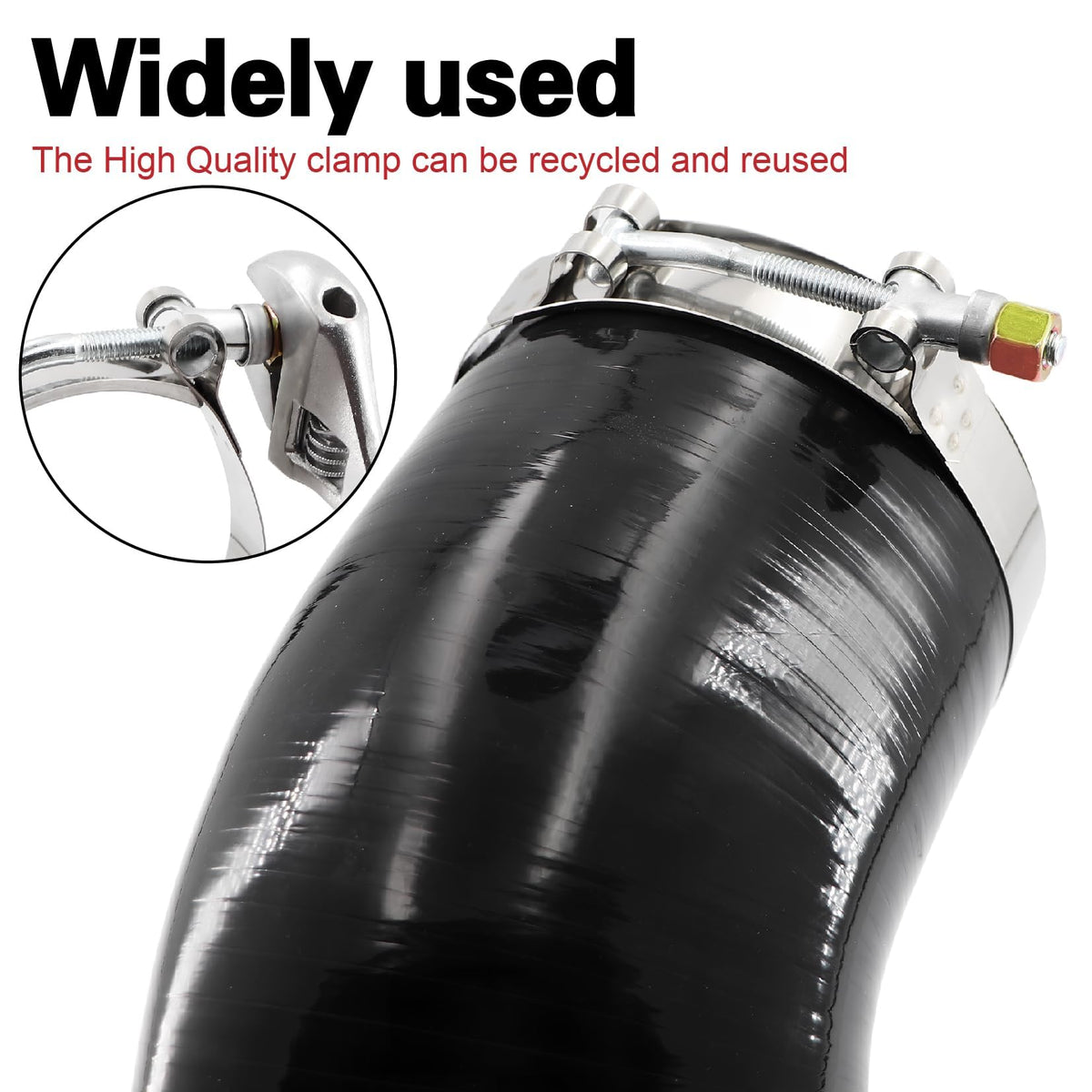

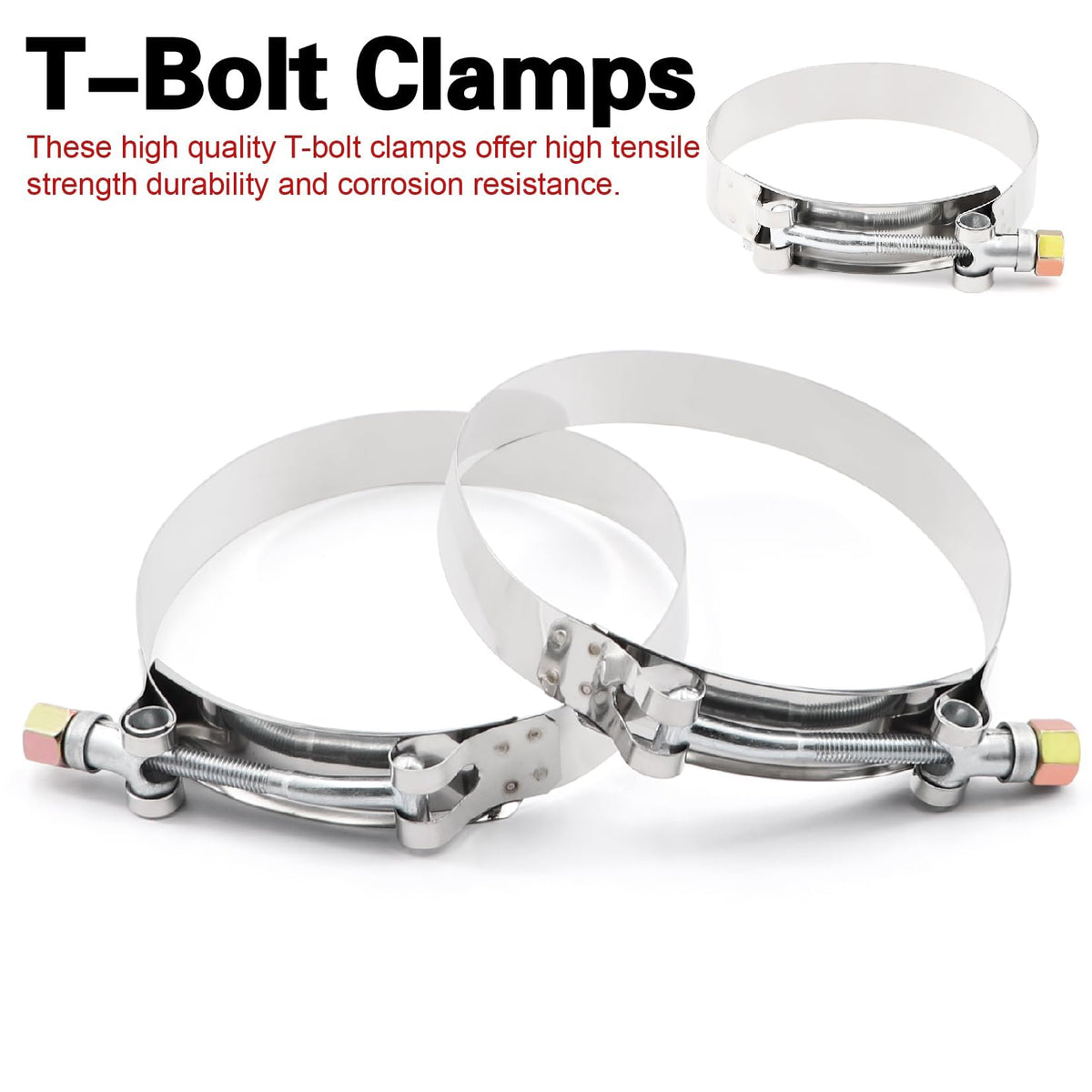

How do the supplied T-bolt clamps improve installation and reliability?

The included stainless steel T-bolt clamps provide a wider contact band and higher clamping force than typical worm-gear clamps, reducing the chance of leaks at high boost. They are corrosion-resistant for longer life in harsh underhood or marine environments.

• Two stainless T-bolt clamps included — no additional clamps required.
• Wide band prevents hose distortion and improves sealing surface area.
• Higher torque capacity maintains clamp tension under pressure cycles.
• Suitable for heavy-duty or performance installations where reliability matters.

How should I use and maintain this silicone elbow for best results?

Install on clean, properly sized pipe ends and tighten the T-bolt clamps evenly to the manufacturer’s torque recommendations. Avoid contact with fuels or petroleum oils, which this silicone formulation is not designed to carry.

• Ensure mating piping is free of sharp edges and burrs before assembly.
• Tighten clamps evenly to avoid pinching or distorting the hose wall.
• Inspect periodically for cuts, severe abrasions, or clamp loosening.
• Keep away from direct contact with fuel or oil that could degrade the material.

Who is this for: TuoLauthon’s 4" 45° 4-ply silicone elbow is intended for automotive enthusiasts, tuners, and professional mechanics who need a durable, heat-resistant coupler for turbocharging, intercooler, supercharger, or intake plumbing. It’s also suitable for marine and industrial air-handling applications that require UV and ozone resistance and robust pressure performance. Choose this part when you want a pre-clamped, heavy-duty elbow that simplifies installation and stands up to demanding operating conditions.
