HOLATO PZ22 Carburetor Kit for 70–125cc Dirt Bikes & ATVs — Red 38mm Air Filter, Throttle Cable & Gaskets

Complete PZ22 carburetor and accessory kit that replaces worn fuel, air, throttle and ignition parts on 70–125cc four-stroke pit bikes, quads and ATVs.

This HOLATO kit bundles a PZ22 carburetor with a 38mm air filter, throttle cable and grips, fuel lines, gaskets and small hardware so you can restore fueling, throttle response and basic ignition control in one service session. Components are sized for common Chinese and small-displacement Japanese-style 70–125cc machines, and the carb includes idle and air-mixture adjustments for tuning. The package is intended as a like-for-like replacement set that reduces parts hunting and simplifies installation for routine maintenance or repair.

Will this kit fit my dirt bike, quad, or ATV?

The kit is designed for many popular 70–125cc four-stroke models from TaoTao, SSR, Coolster, Apollo and similar machines, plus some Honda XR/CRF small-displacement bikes. Check physical dimensions and mounting interfaces against your original parts before ordering to confirm compatibility.

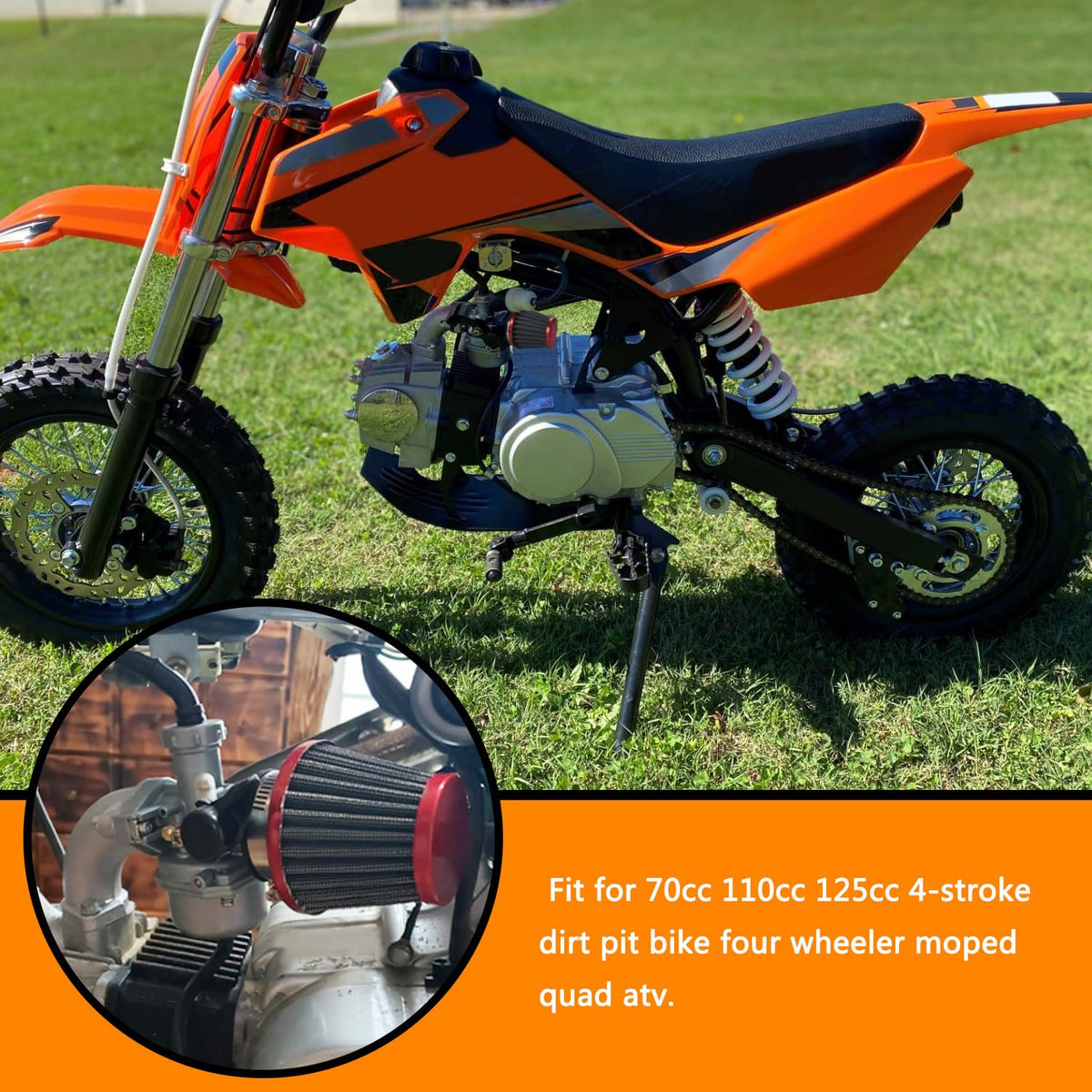

• Compatible with many 70cc, 110cc and 125cc four-stroke pit bikes and ATVs.
• Lists fitment for models like XR50, CRF50, CRF110, SSR70/110/125, TaoTao DB14/DB24 and several Apollo/Coolster quads.
• Includes intake pipe, gaskets, and O-rings to match typical PZ22 installations.
• Verify throttle cable length and manifold bore match before installation.

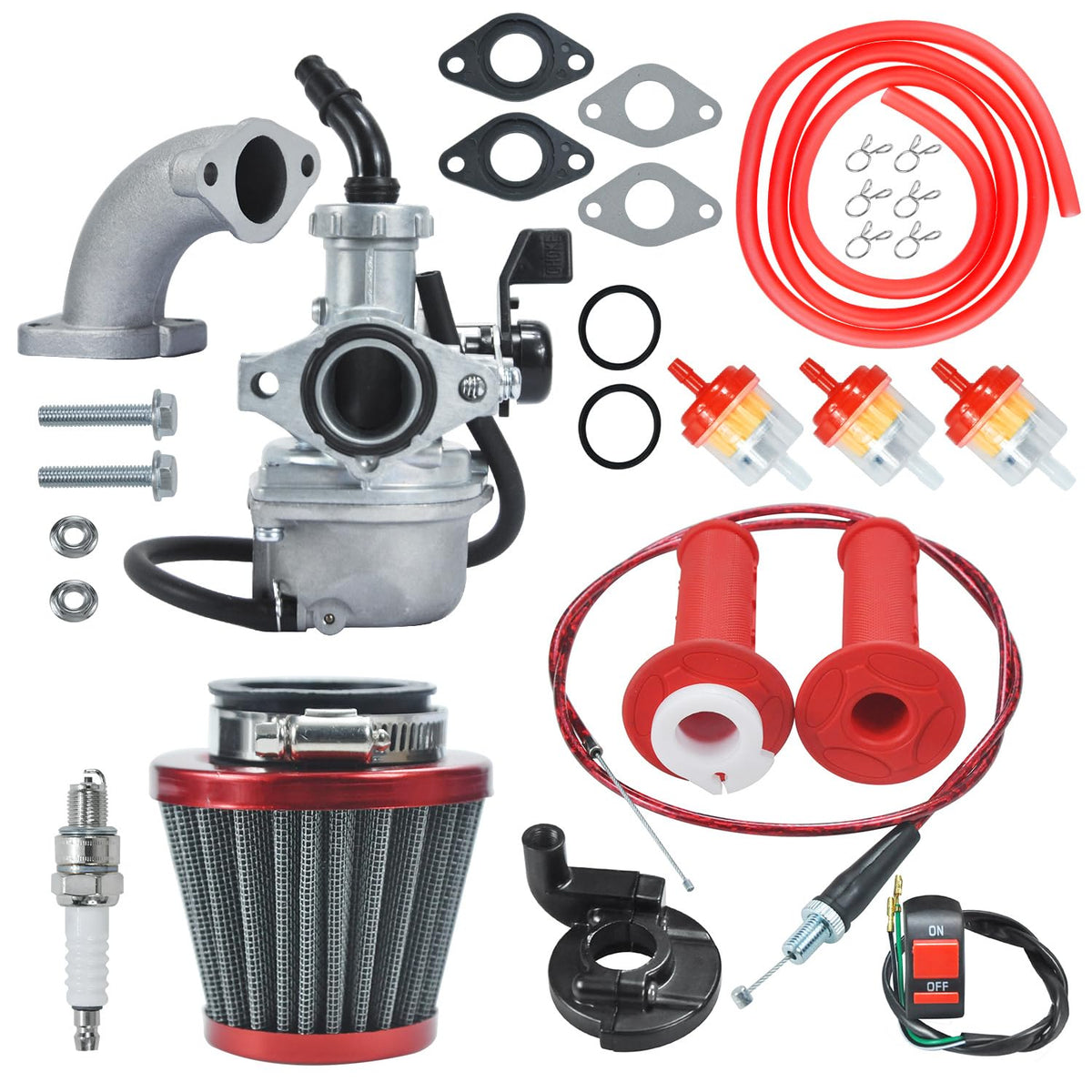

What parts are included and what will I be able to service?

This kit combines the main fuel meter with supporting consumables so you can replace the carburetor, air intake, fuel delivery components and basic throttle controls in one go. It covers the items you generally replace when a bike runs poorly, leaks fuel, has sticky throttle, or needs a new spark plug and filters.

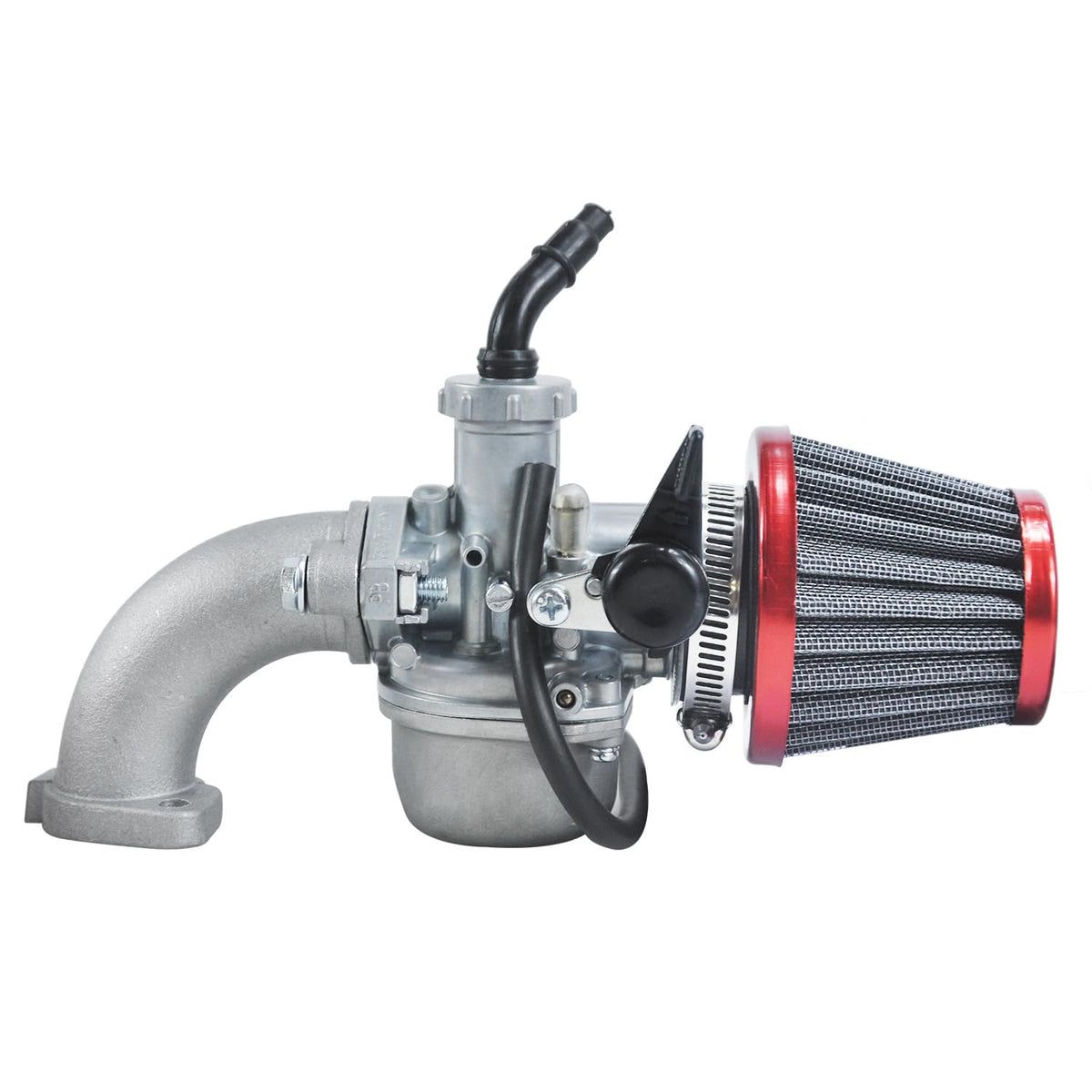

• 1 x PZ22 carburetor and associated adjustment screws for idle and mixture.

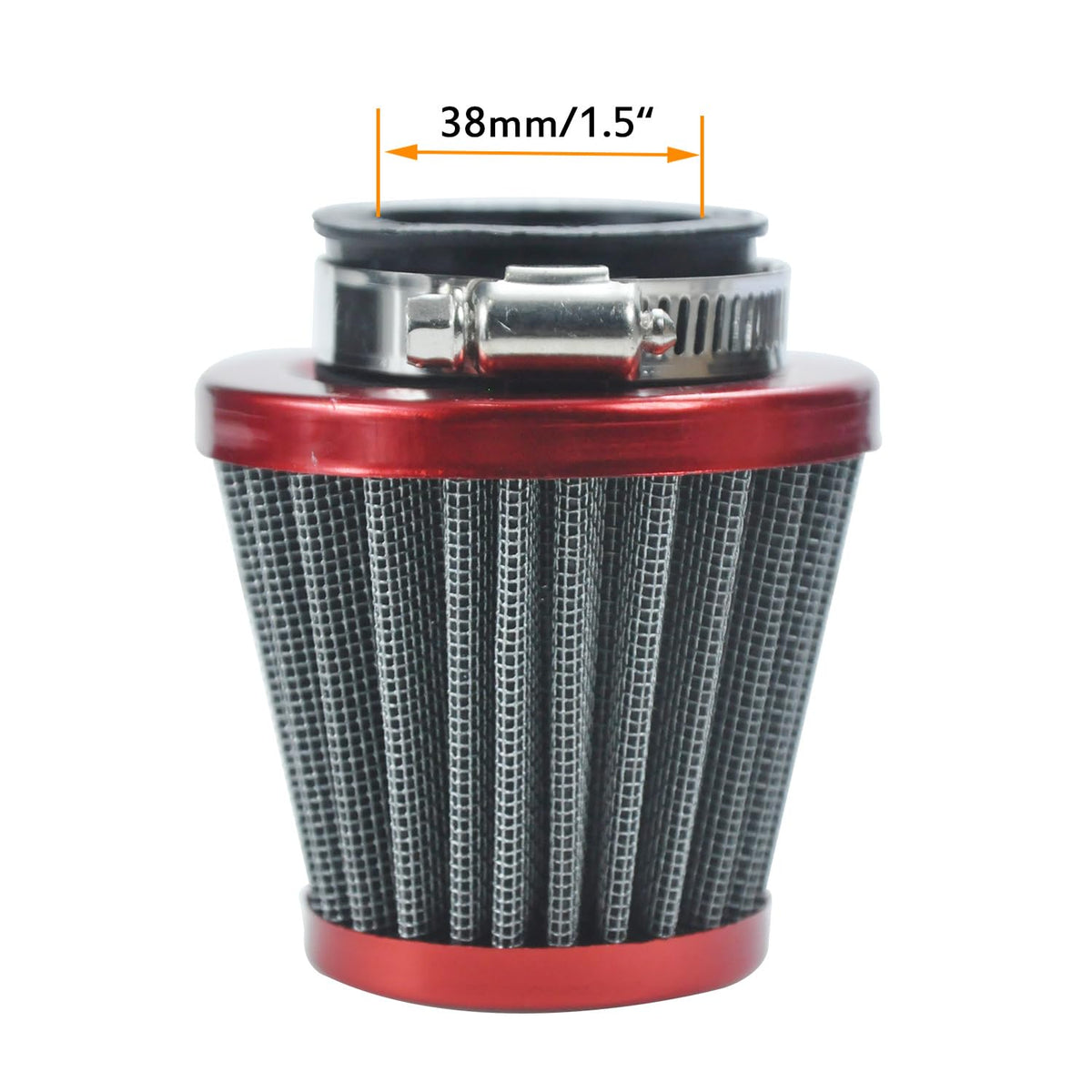

• 1 x 38mm air filter, intake pipe, two intake gaskets and two additional gaskets.

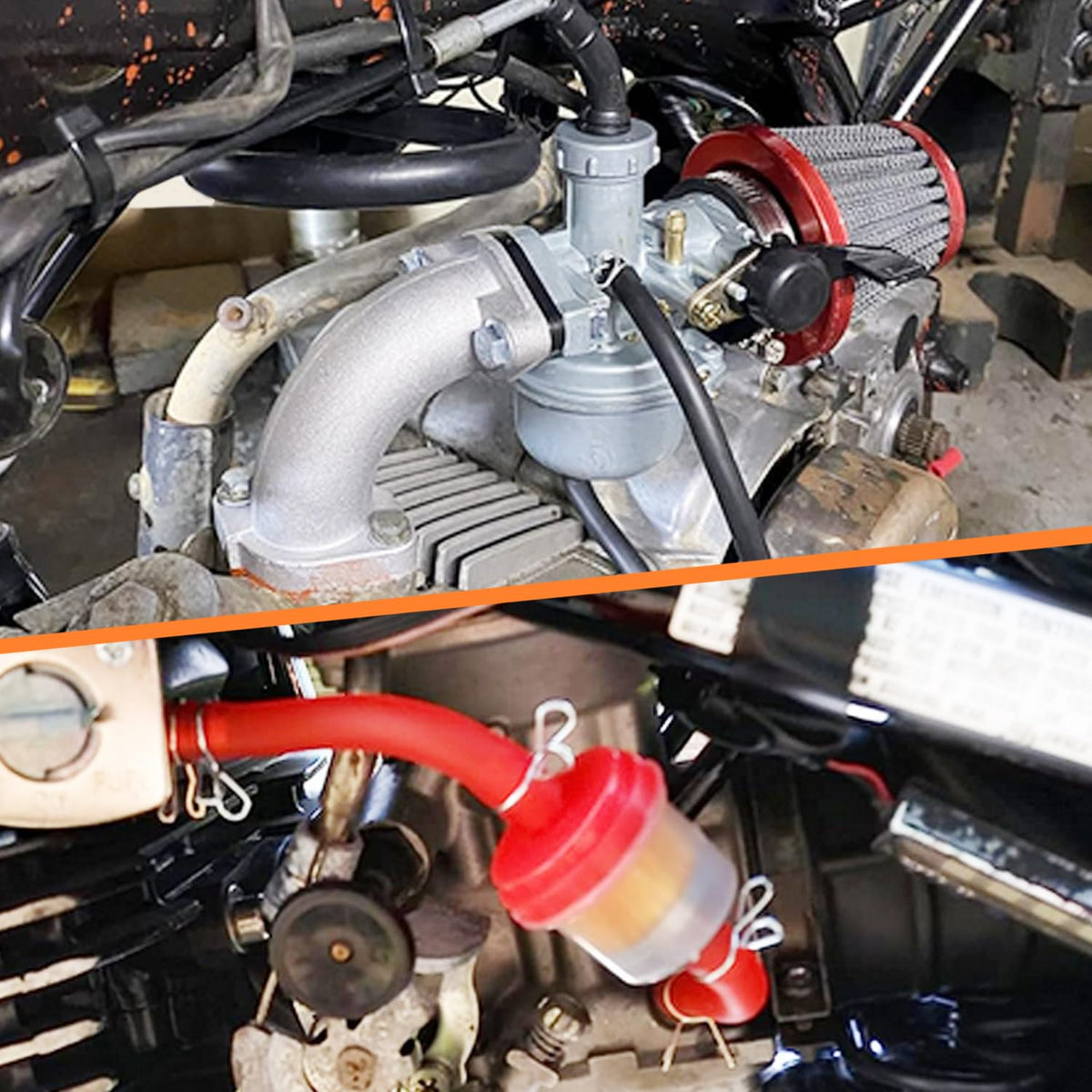

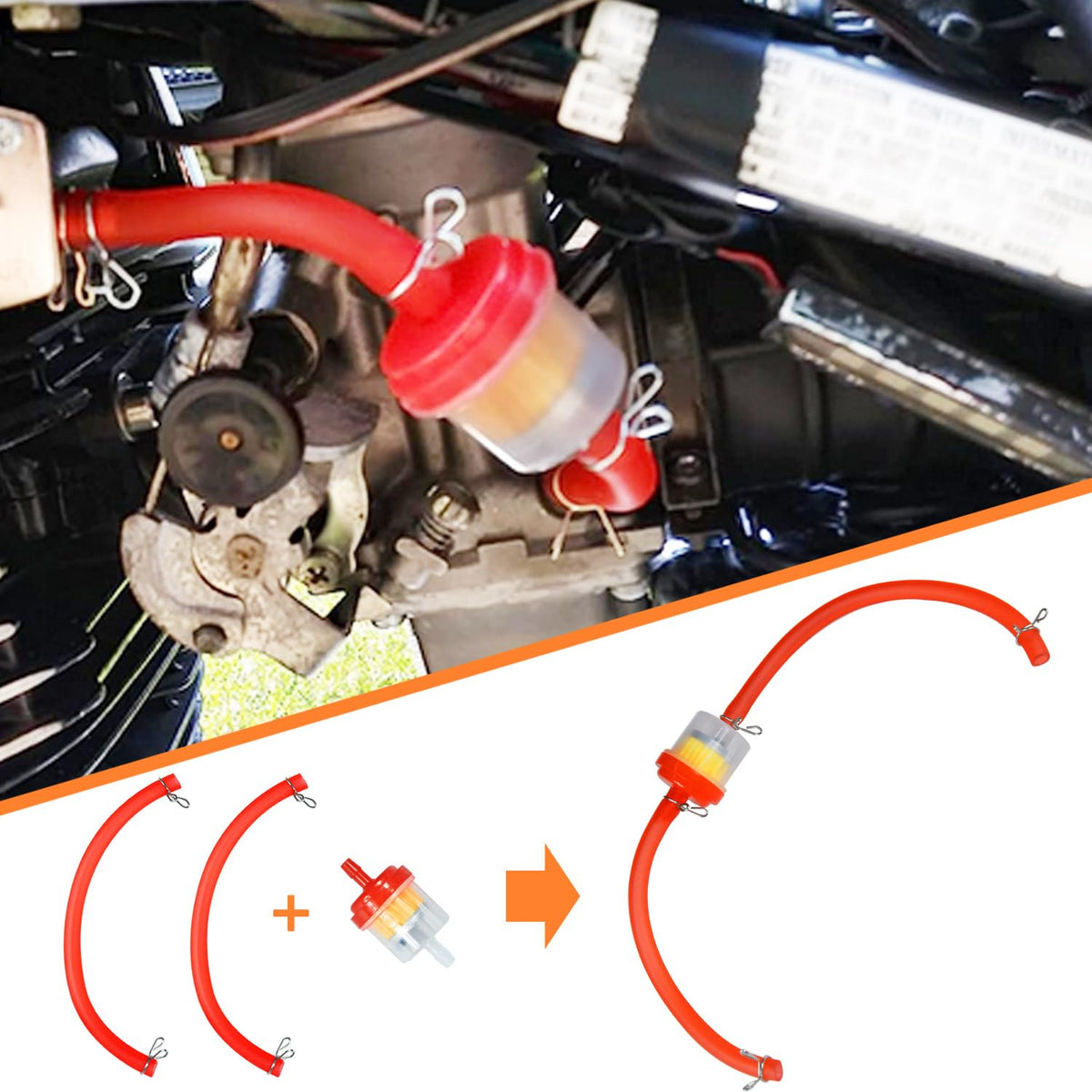

• Fuel hose, three fuel filters, six spring clips and O-rings included for fuel line repair.

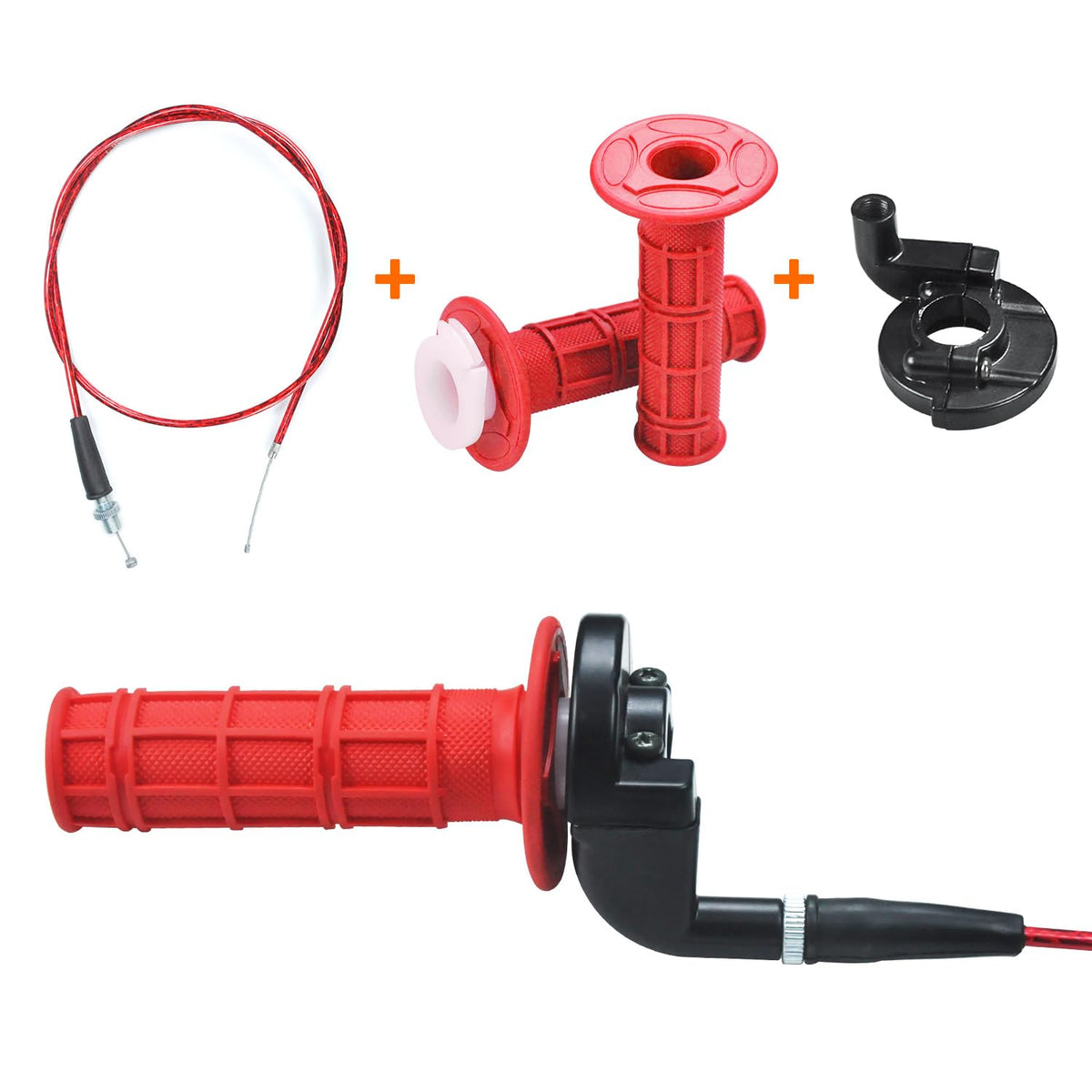

• Throttle cable, left and right grips, aluminum throttle clamp and an on/off kill switch.

How difficult is installation and tuning?

The carburetor and plug-and-play hardware are intended for home mechanics with basic tools. The PZ22 design allows disassembly for cleaning and has adjustment screws to set idle and air/fuel mixture; however, modest mechanical experience is helpful to avoid fuel leaks and ensure proper jetting for your altitude or exhaust changes.

• Basic hand tools required: screwdrivers, pliers, wrenches and possibly a vacuum gauge for precise tuning.
• Carb has idle and air-mixture adjustments and can be cleaned when necessary.
• Fuel hose and clamps are included to prevent immediate leaks if installed correctly.
• Check spark plug gap and replace if worn; one spark plug is supplied in the kit.

What should I check before ordering and installing?

Confirm that your engine uses a PZ22-style carburetor and that the intake manifold bore, throttle cable routing and electrical kill switch connections match the kit. Size, throttle orientation and hose diameters vary across models; comparing photos and measurements prevents incompatibility issues.

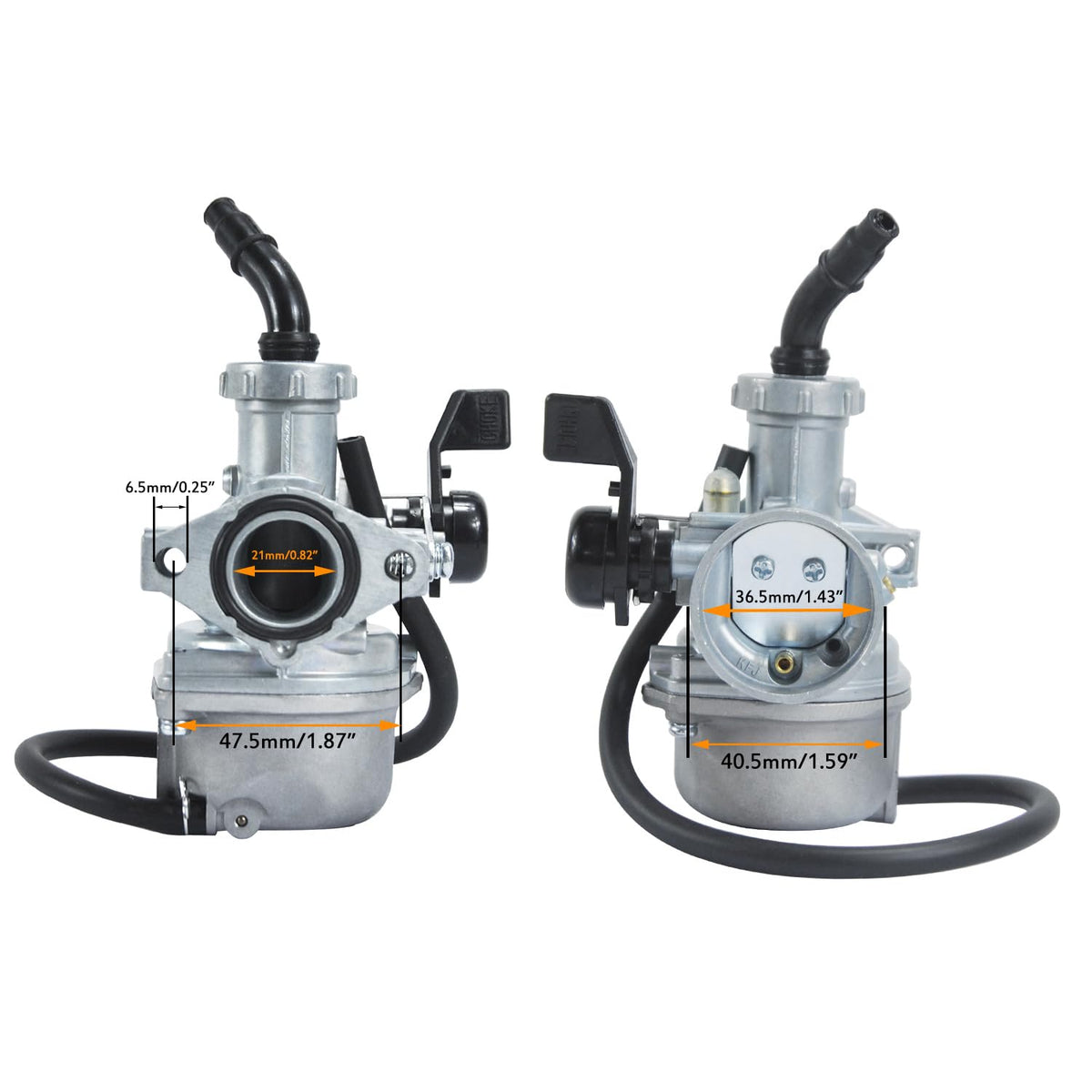

• Measure intake manifold bore and throttle cable length against your current parts.
• Compare the kit’s mounting flange and gaskets to your existing manifold shape.
• Inspect fuel line diameters and clamp styles to ensure secure sealing.
• Review provided pictures and product notes to confirm fitment with your make/model.

Who is this for: Riders, hobbyists and home mechanics who own small-displacement pit bikes, quads or ATVs and want a single, economical kit to replace a worn carburetor plus the commonly replaced intake, fuel and throttle parts. It suits anyone maintaining TaoTao, SSR, Coolster, Apollo, Coleman or similar Chinese/Japanese-style 70–125cc four-stroke machines who prefers a bundled solution instead of sourcing separate components.
