HRR216K9VKAA Carburetor for Honda HRR216K10VKAA HRR216K9PKAA

Replacement carburetor compatible with Honda HRR216K9VKAA and related HRR216 K9–K11 models, supplied with gaskets, filters, hose, and a spark plug for an out-of-the-box install.

This Pro Chaser carburetor is designed as a direct-fit service part for multiple Honda HRR216 mower variants. Because small casting or porting differences can exist between carburetor revisions, compare images and mounting points carefully before ordering. If you’re unsure, send clear photos of your current carburetor from each side and the mounting area so we can confirm compatibility.

Will this carburetor fit my specific HRR216 model?

This unit is listed to fit a range of Honda HRR216 K9–K11 models including PKAA and VKAA variants. Fitment depends on matching the mounting flange, throttle linkage and fuel inlet locations; small design revisions can change those details.

• Compatible part number reference: 16100-Z8B-901 (matches many HRR216 K9–K11 variants).
• Fits HRR216 K9/K10/K11 in PKAA and VKAA configurations where mounting and linkages match.
• Compare photos and mounting bolt pattern to confirm before installation.

What comes in the package and what tools will I need?

The package includes the carburetor plus essential installation items so you can replace the part without sourcing extras. Basic hand tools and some cleaning supplies will make the swap faster and help ensure a leak-free installation.

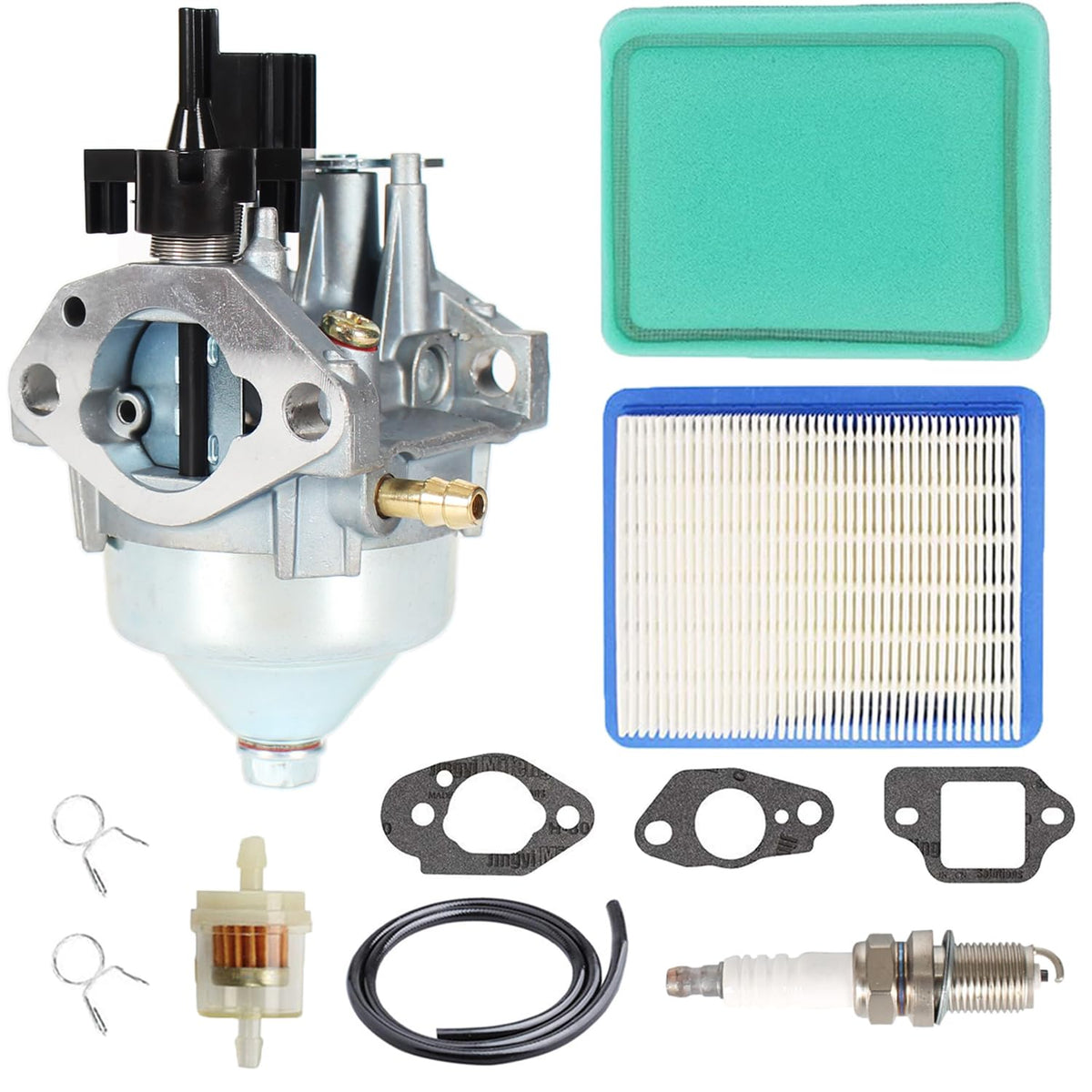

• Included: 1 carburetor, 3 gaskets, 1 fuel filter, 1 fuel hose, 1 spark plug, 1 foam filter, 1 pre-filter.
• Recommended tools: ratchet or wrench set, screwdrivers, pliers, and a small container to catch fuel.
• Optional: carb cleaner and a small wire brush to clean the intake and mounting surfaces.

How do I check the carburetor before and after installation?

Visually inspect the new unit for matching inlet/outlet locations and intact gaskets before installing. After fitting, confirm there are no fuel leaks, the engine starts reliably, and throttle/drive engagement behave normally.

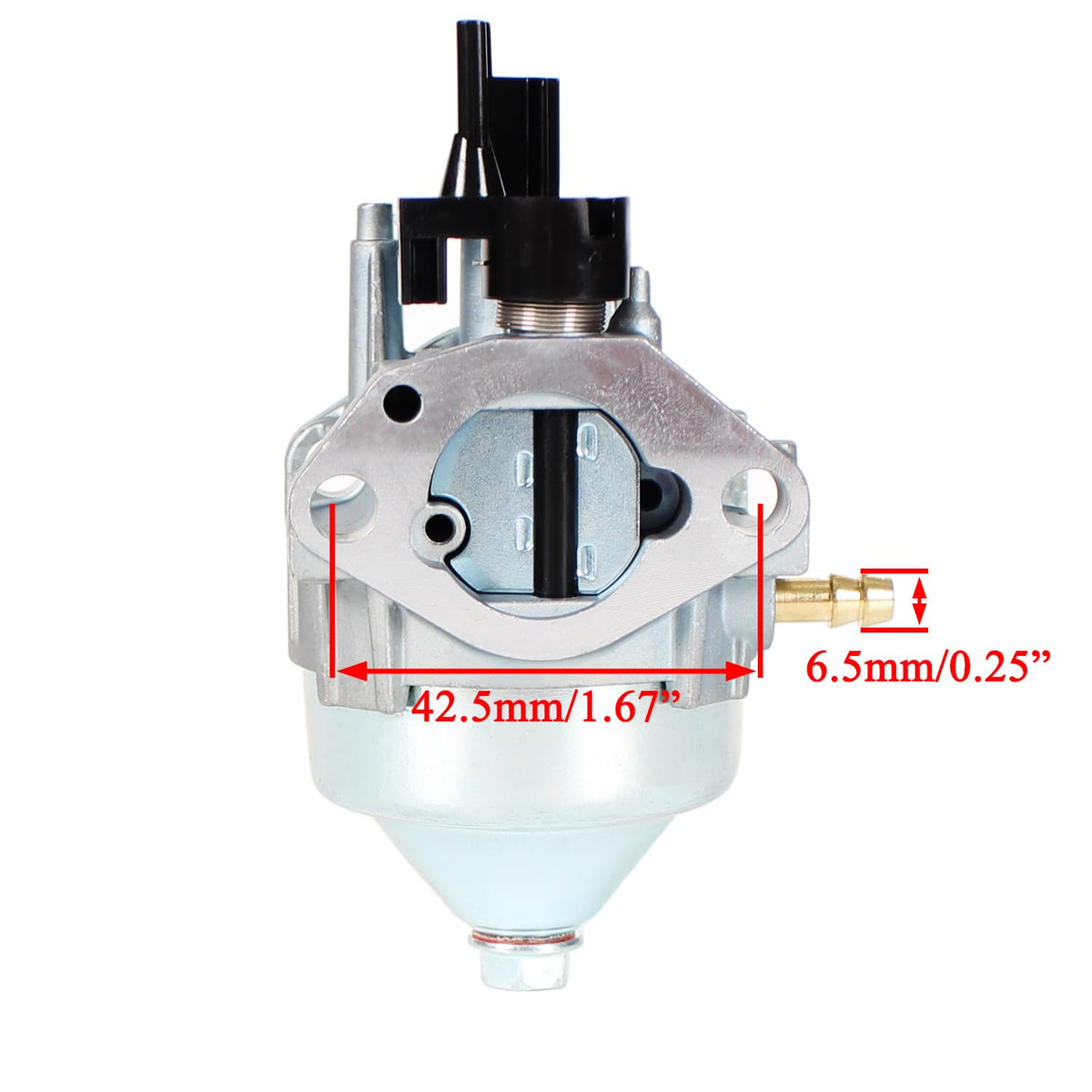

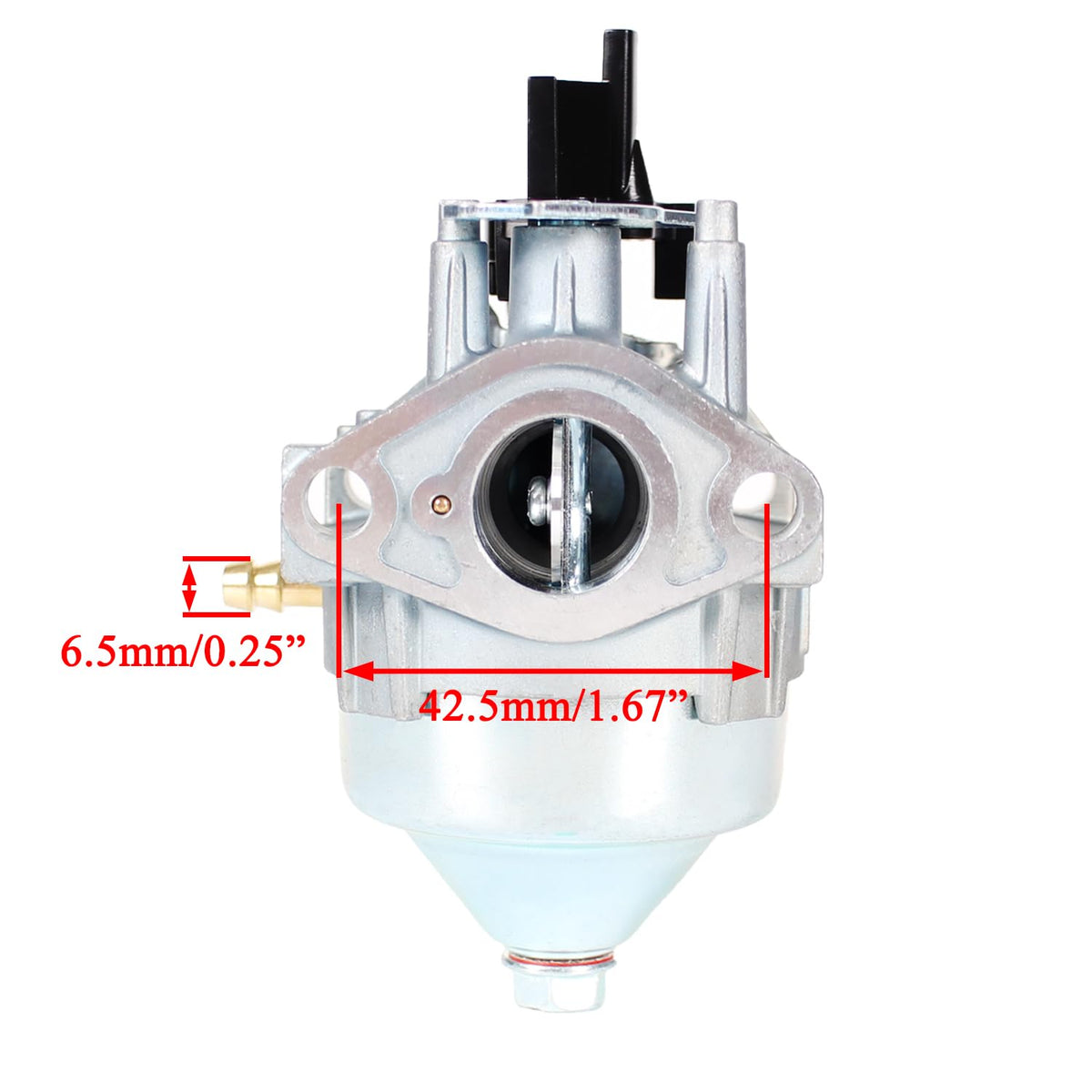

• Pre-install: verify throttle shaft, choke lever, and fuel inlet align with your mower’s controls.
• Initial start: run the engine at idle and full throttle, checking for smooth acceleration and no fuel drips.
• Troubleshoot: if the engine runs rough, recheck gasket seating and linkage adjustments.

Who this replacement is for: lawn mower owners and technicians who need a cost-effective, ready-to-install carburetor for Honda HRR216 K9–K11 series machines. It’s ideal for users who want a complete parts kit—carburetor plus gaskets, filter, hose and spark plug—so the engine can be serviced in a single visit. If you have any doubt about fitment, send clear photos of your existing carburetor and mounting area; we’ll help verify compatibility before you install.
