HTRC 20A Smart Battery Charger 12V/24V — LiFePO4 & Lead‑Acid Support, Trickle Maintain

HTRC's 20-amp smart charger is a 12V/24V automatic battery charger, maintainer and desulfation tool that safely charges and maintains Lithium (LiFePO4) and all common lead‑acid batteries up to 20A.

This compact, fan‑cooled charger automatically recognizes 12V or 24V systems and adapts current (12V/20A, 24V/10A) and charging profiles for Lithium, LifePO4 and lead‑acid (AGM, GEL, SLA, EFB, flooded) batteries. Designed for cars, motorcycles, boats, lawn equipment and golf carts, it combines rapid charging, multi‑stage maintenance and multiple safety protections to keep batteries healthy and ready.

How does this charger handle different battery chemistries?

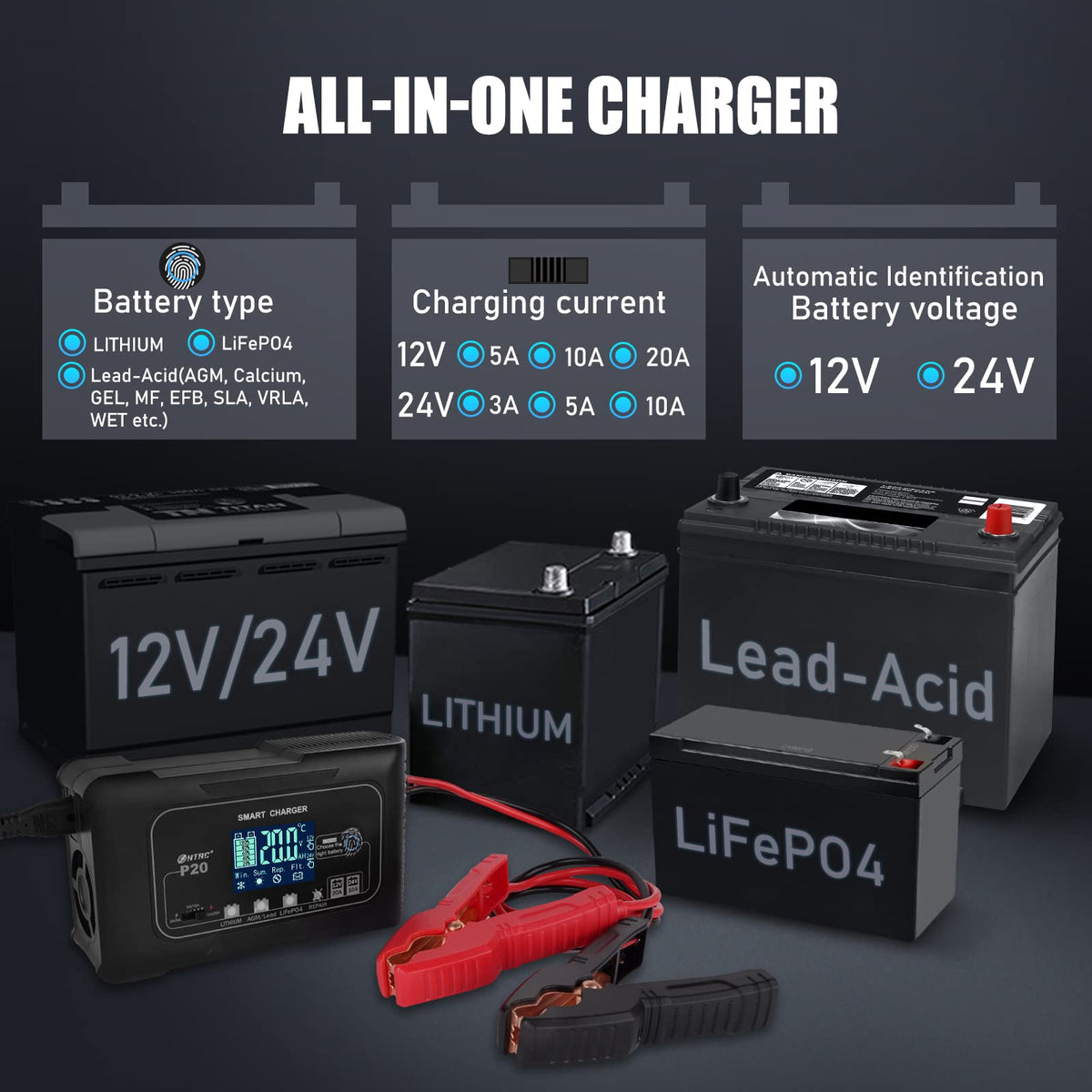

The HTRC charger features selectable battery type settings and an intelligent CPU that applies appropriate voltage and charge curves. It supports Lithium, LiFePO4 and a wide range of lead‑acid chemistries and automatically switches to trickle maintenance when full.

• Automatic 12V/24V detection, no manual voltage selector required.
• Distinct charge voltages: lead‑acid up to 14.7V (29.4V for 24V), LifePO4 up to 14.6V (29.2V for 24V).
• Pulse repair/desulfation mode to address sulfated lead‑acid batteries.

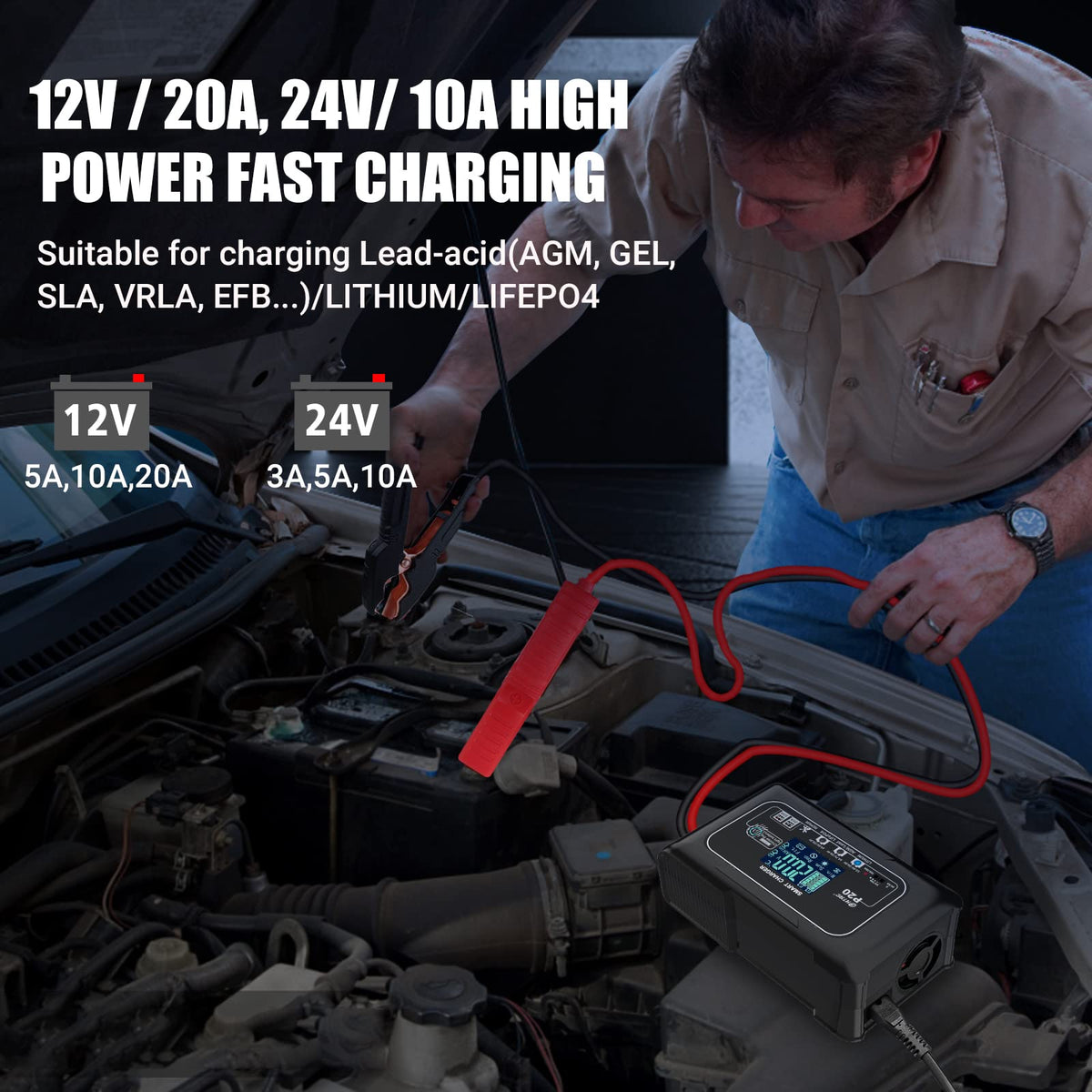

• Selectable current output for faster charging up to 20A on 12V batteries.

What safety and protection features are included?

Safety is built into the charger with multi‑level protections and temperature compensation to protect the battery and charger electronics. The unit includes safeguards against reverse connection, short circuits, overcurrent and overvoltage events.

• Reverse polarity and no‑spark protection for safe hook‑up.
• Overcurrent, overvoltage and short‑circuit protection with fan cooling.

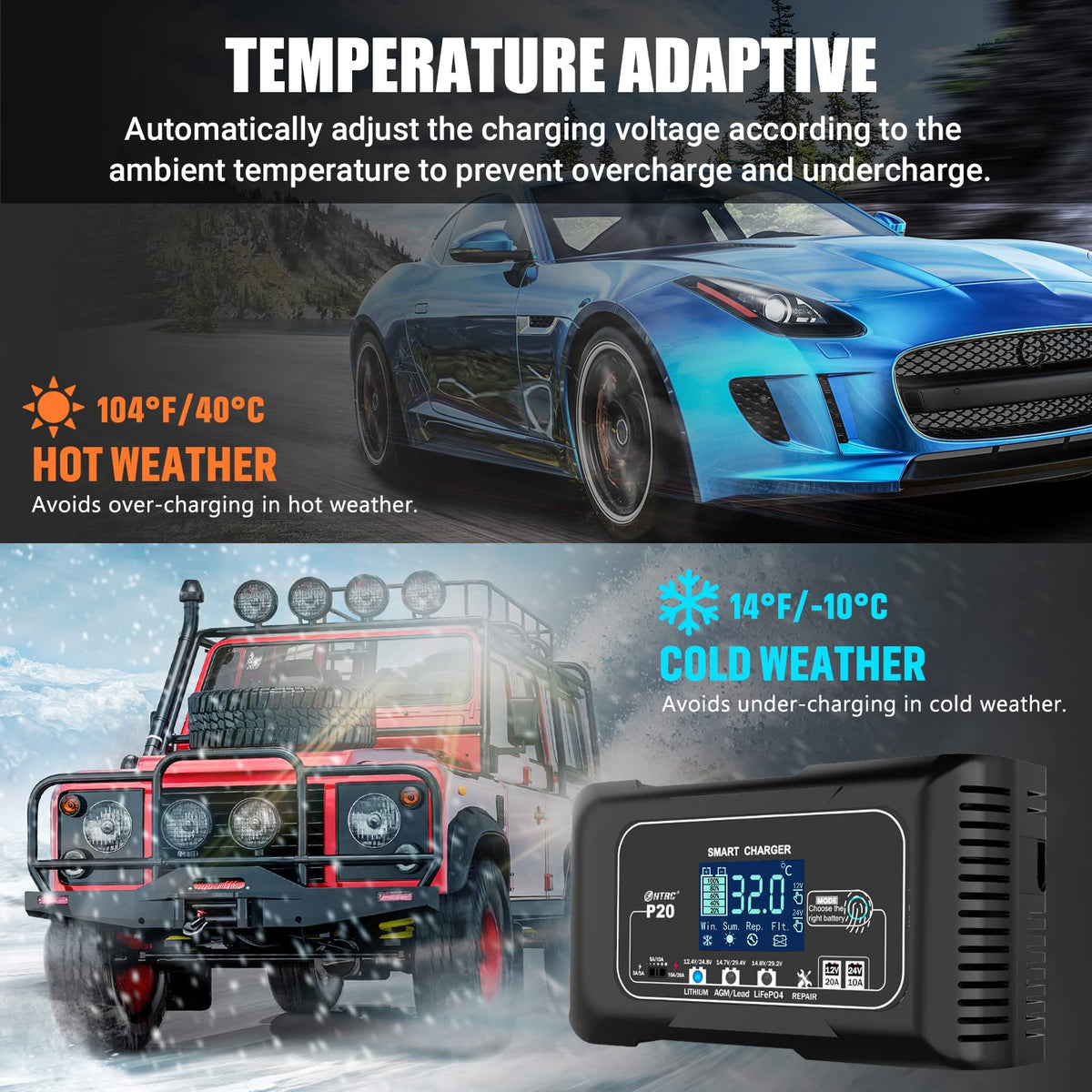

• Temperature compensation to adjust charging in hot or cold conditions.
• 13 ft cable length for flexible placement and installation.

Can it revive or maintain deeply discharged batteries?

The charger can detect low‑voltage batteries down to 1V, apply a controlled startup protocol, and then ramp to full charging. It includes maintenance modes that switch to trickle charging when full and a pulse mode designed to reduce sulfation on lead‑acid batteries, though it cannot guarantee recovery of severely damaged cells.

• Minimum starting voltage: 1V for attempting a recovery charge.
• Automatic transition to trickle/maintenance when charging completes.
• Pulse repair function to help restore lost capacity in sulfated batteries.

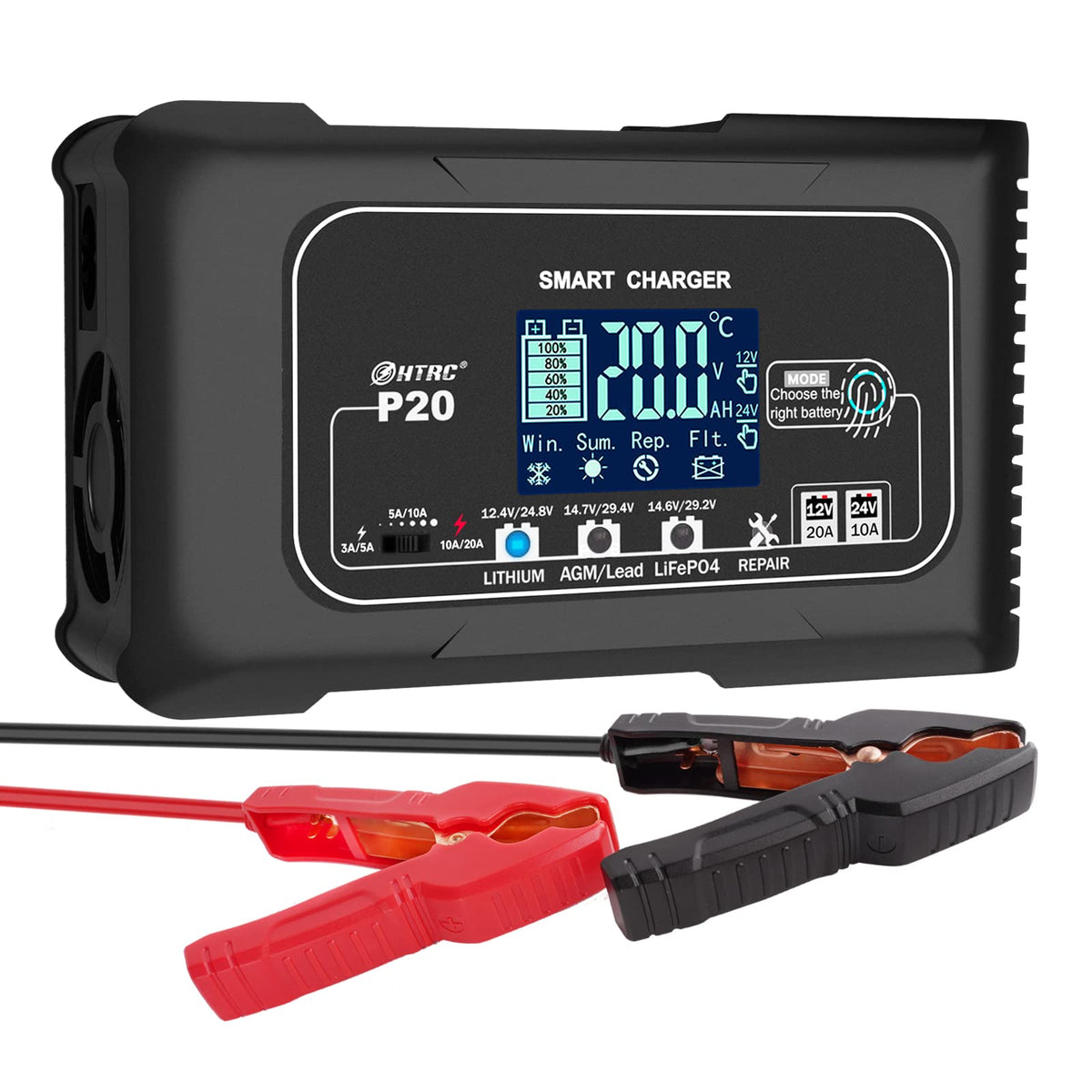

• LCD shows voltage, current, temperature and charge progress for monitoring.

How easy is it to use with vehicles and equipment?

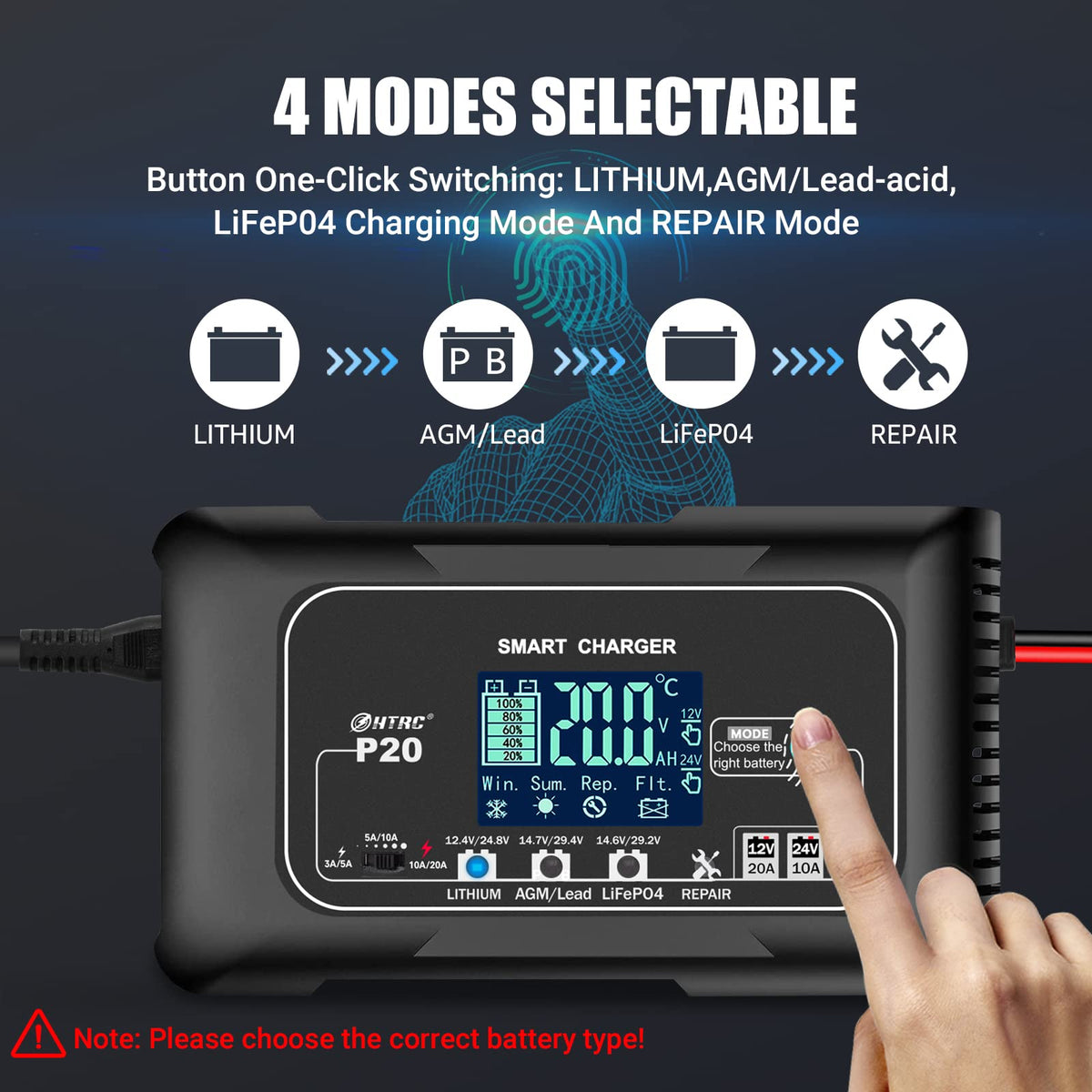

Operation is straightforward: plug into AC, connect clamps or ring terminals, choose the battery type and desired charging current, and the charger handles the rest. The bright LCD and simple controls make it suitable for home, garage or seasonal storage use.

• Plug‑and‑play operation with an intuitive LCD display.
• Comes with 3m power cord, cable clip and junction boxes for neat setup.
• Suitable for cars, trucks, motorcycles, boats, lawn mowers and golf carts.
• Compact, fan‑cooled housing for workshop or onboard use.

Who is this for? The HTRC 20A smart charger is aimed at vehicle owners, fleet managers, marine and powersports enthusiasts, and homeowners who need a versatile charger that can fast‑charge, maintain and help rehabilitate a variety of 12V and 24V batteries. If you want a single, robust unit for garage use, seasonal maintenance, and occasional deep‑cycle charging, this charger delivers automatic profiles, safety protections and convenient monitoring without complicated setup.
