HVAC Blend Door Actuator Fits for 2009-2014 Ford F150

A-NAFTULY HVAC blend door actuator is a direct-fit replacement that restores proper vent airflow and temperature control for compatible Ford, Lincoln and Mercury models.

This actuator replaces worn or noisy HVAC blend and mode actuators used in many Ford F-150s, Escapes, Expeditions, C‑Max, Lincoln Navigators, Tributes and Mercury Mariners. Built with upgraded ABS housing and modern internal circuitry, the unit matches OE fitment and electrical connections for a straightforward swap. It ships as a single 5‑pin actuator and is keyed to common factory part numbers including 604-241 and 8L8Z19E616C.

Which vehicles and part numbers does this actuator fit?

This unit is designed for several Ford, Lincoln and Mercury vehicles across model years roughly 2006–2018. Use your vehicle year/make/model selector to confirm compatibility before ordering.

• Fits: 2009–2014 Ford F-150, 2008–2012 Ford Escape, 2007–2017 Ford Expedition
• Also fits: 2013–2018 Ford C-Max, 2006–2017 Lincoln Navigator
• Includes: 2008–2011 Ford Tribute and 2008–2011 Mercury Mariner coverage
• OEM cross-references: 604-241, 604241, 8L8Z19E616C, 7L1Z19E616F, ZCA61A8Z

How does this replacement match the original part?

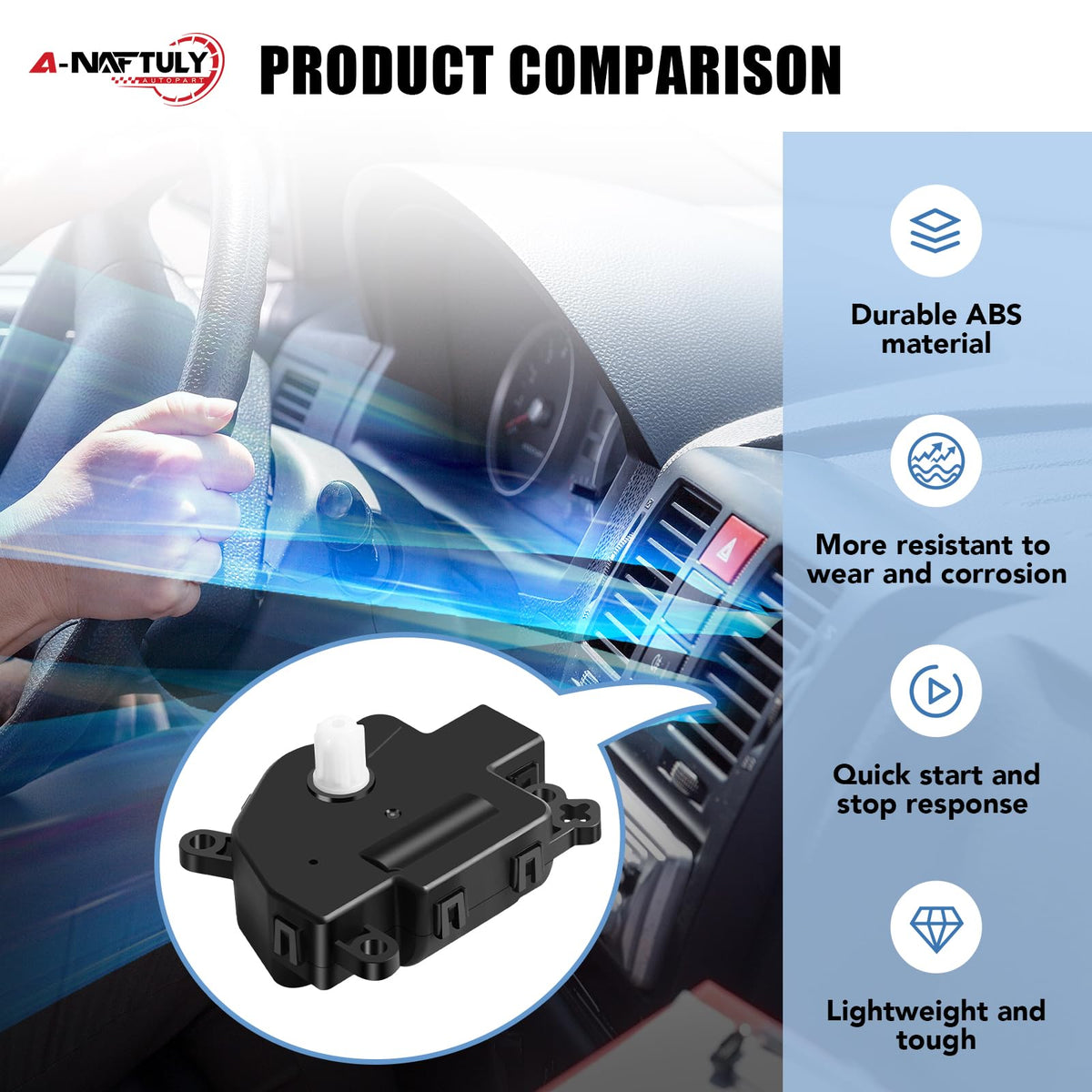

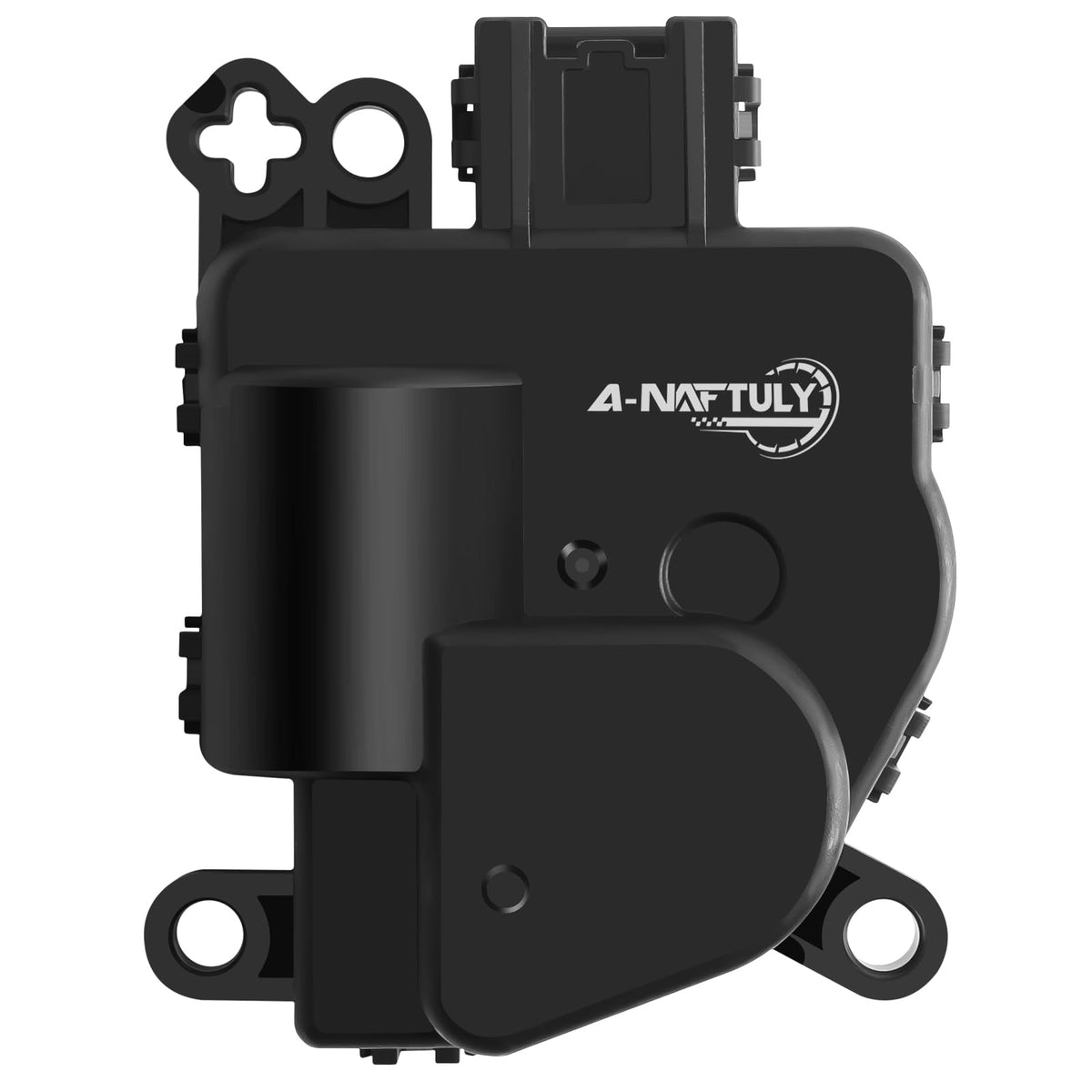

The actuator mirrors OE form and electrical connection so it installs in the same mounting location and plugs directly into the factory harness. The ABS shell and upgraded circuit board are engineered to resist thermal stress and electrical burnout for extended service life compared with degraded originals.

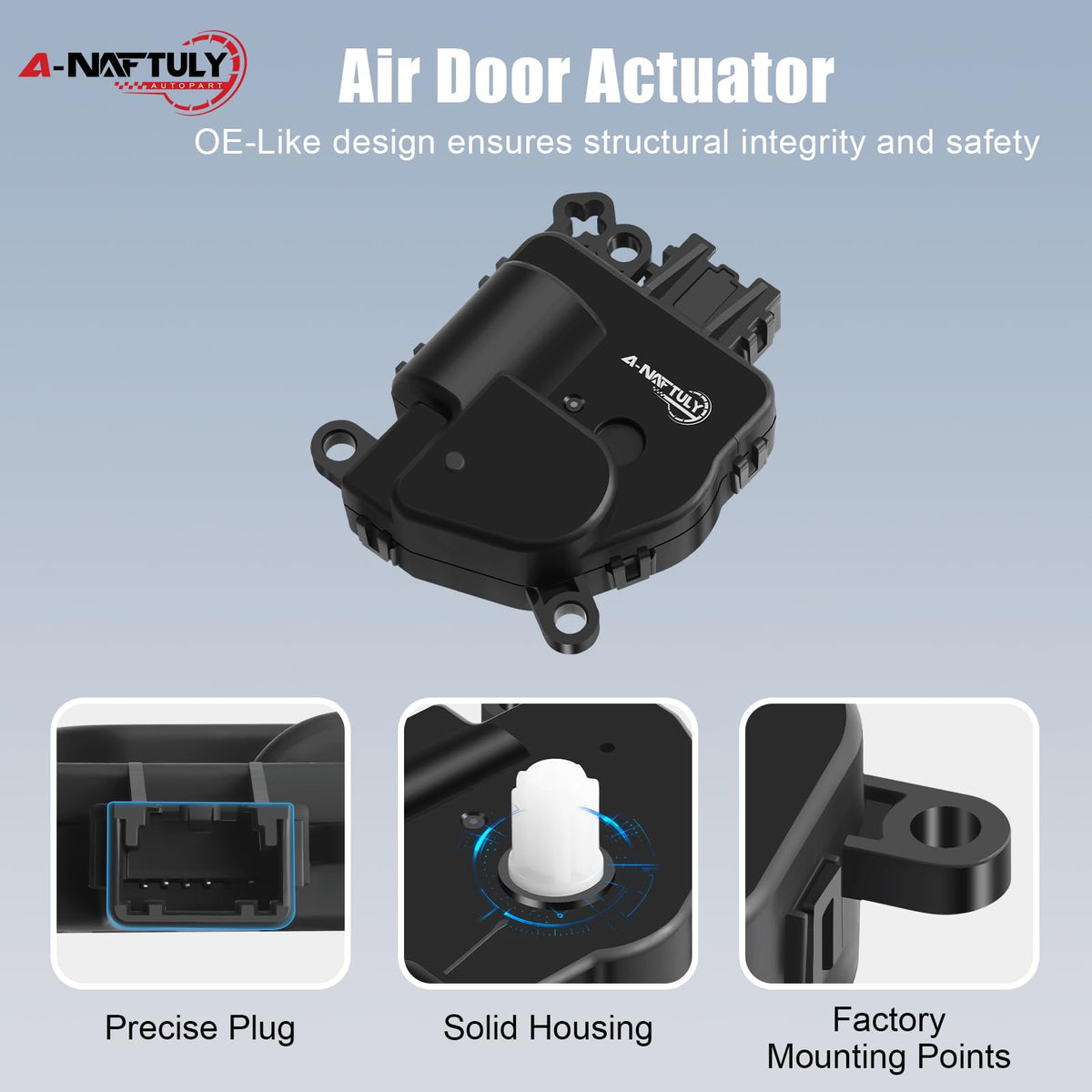

• Direct-replacement 5‑pin connector matches factory wiring
• OE-like housing and mounting tabs for drop-in fit
• Upgraded internal electronics to reduce failure from heat and wear
• Tested for smooth operation and reduced gear noise

What symptoms indicate the blend door actuator needs replacing?

Common signs include unusual clicking or grinding from the HVAC area, inconsistent cabin temperature between vents, or inability to switch vent modes reliably. If the actuator fails, you may lose precise temperature control or hear repeated motor noise when changing settings.

• Clicking/grinding noises from dash during vent changes
• Temperature not matching selected settings or uneven zones
• Mode or recirculation settings unresponsive or stuck
• Repeated actuator movement or failure codes after diagnostics

How easy is installation and what should I do after installing?

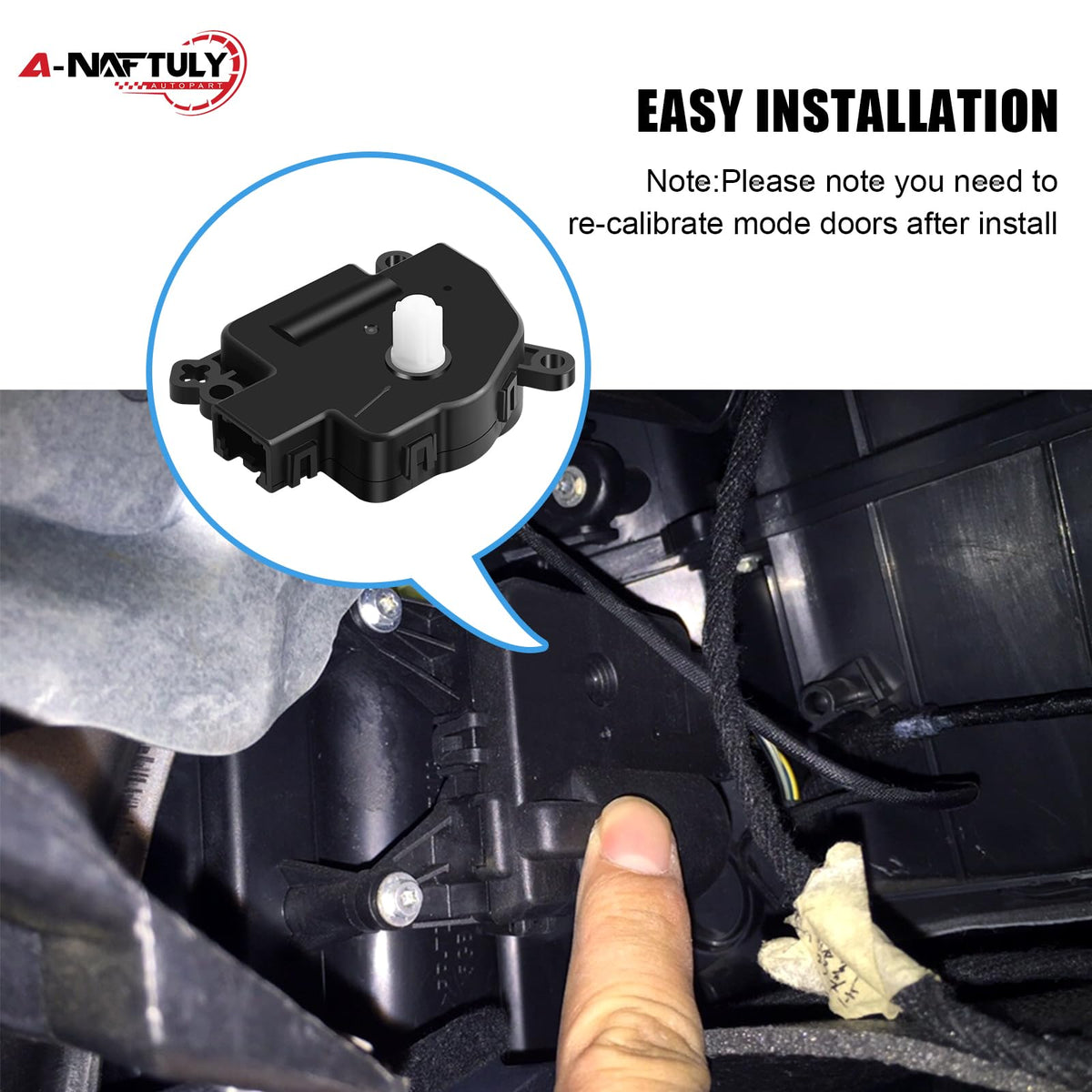

The part is made for homeowner or professional installation and usually requires basic hand tools and panel removal. After installation, many vehicles require recalibration of the HVAC system or a simple key cycle to ensure the new actuator syncs with the climate controls.

• Simple bolt-and-plug replacement — designed for one-person install
• Keep the factory screws and align actuator to blend door shaft properly
• Recalibrate HVAC per manufacturer instructions after fitting
• Contact seller for installation guidance; 18-month limited warranty included

Who this is for: This A-NAFTULY HVAC blend door actuator is suited for DIY mechanics, independent shops and fleet maintenance teams needing a reliable, OE-compatible replacement for affected Ford, Lincoln and Mercury models. Choose this actuator if your vehicle exhibits vent noise, inconsistent temperatures, or failing mode control and you want a cost-effective part designed for a direct fit and long service life.
