ILONPA AC Compressor for Hyundai Accent & Kia Rio 2012-2017 1.6L (DVE12) — Clutch Assembly, Prefilled PAG46 for R-134a

ILONPA New Air AC Compressor with Clutch is a direct-fit replacement for 2012–2017 Hyundai Accent 1.6L and Kia Rio 1.6L automatic-temperature-control systems, designed to restore efficient cooling and quiet operation.

This ILONPA compressor assembly is built to match OEM form, fit and function for specific Accent and Rio models that use automatic climate control. It arrives prefilled with PAG46 oil, accepts R‑134a refrigerant (not included), and replaces a wide range of common part numbers. Before buying, verify your vehicle uses automatic temperature control — the electrical connectors differ from manual systems.

How does this compressor match my vehicle?

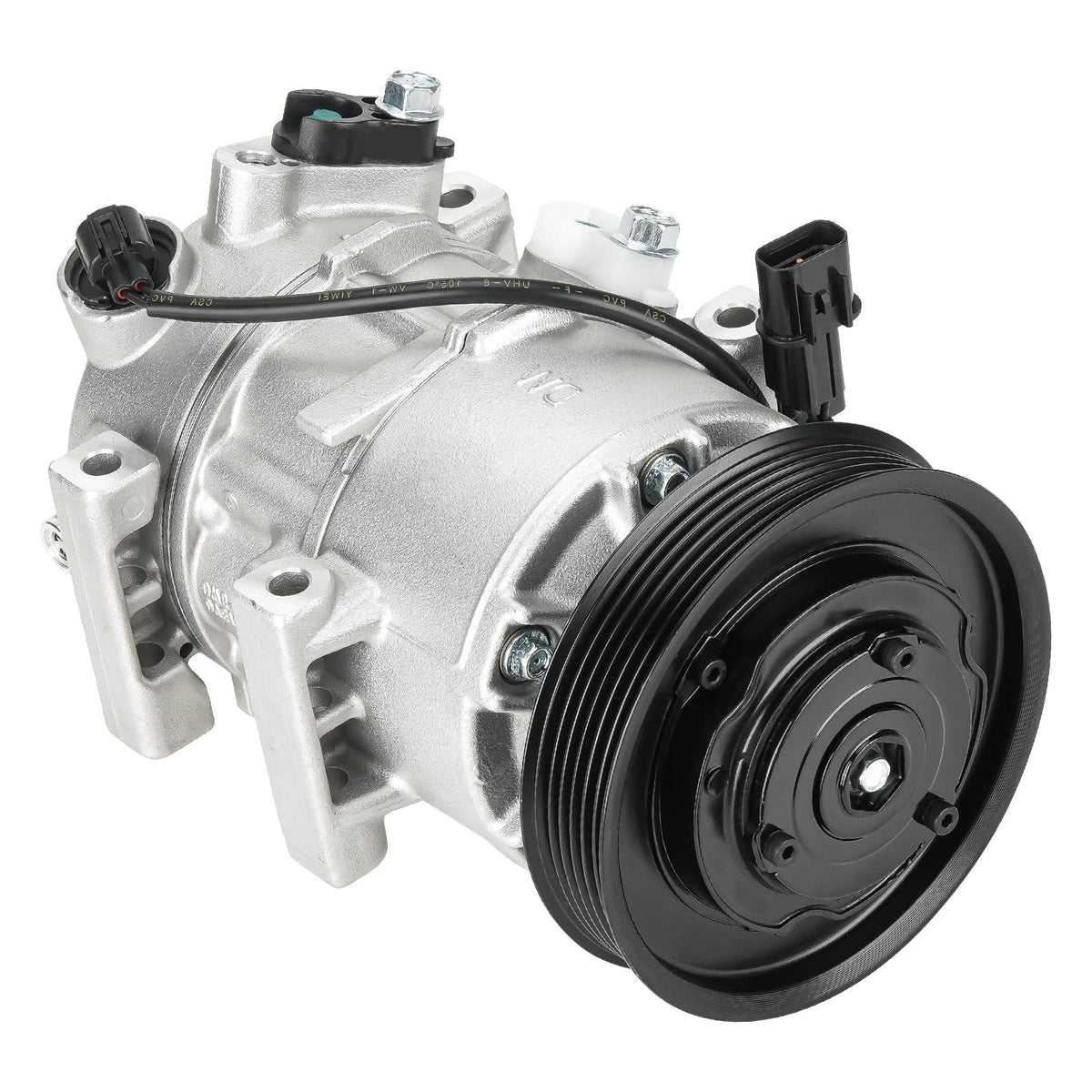

The ILONPA unit is engineered to align with factory mounting points, pulley dimensions and electrical interfaces for compatible Accent and Rio years. It replaces numerous original part numbers and uses a DVE12 compressor design common to these applications.

• Compatible vehicles: Hyundai Accent 2012–2017 1.6L; Kia Rio 2012–2017 1.6L (automatic temp control only).
• Replaces part numbers including CO 20765C, 977011R100, TEM276074 and others listed by OEMs.

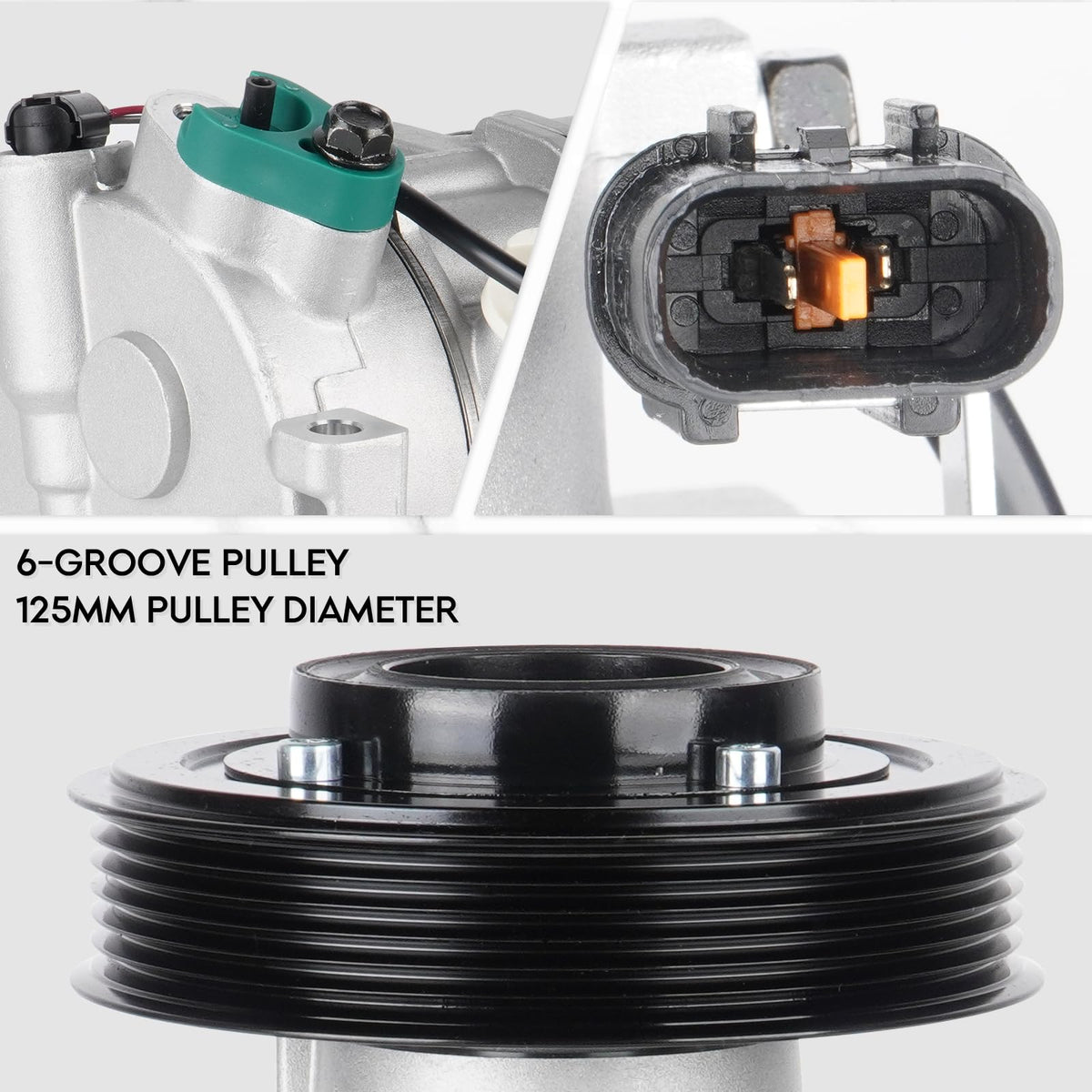

• Pulley: 6 grooves, 125 mm diameter to fit factory belt routing.

What are the technical specifications I should know?

This compressor ships prefilled with the manufacturer-specified lubricant and is designed for R‑134a refrigerant systems. The DVE12 compressor type and PAG46 oil are standard for these applications, ensuring correct lubrication and pressure behavior when installed properly.

• Compressor type: DVE12 with clutch assembly included.
• Oil: PAG46, prefilled 160 mL; refrigerant required: R‑134a (not included).
• Pulley grooves: 6; pulley diameter: 125 mm for correct belt alignment.

Will installation restore system performance and what precautions are needed?

Replacing a worn compressor often returns cooling capacity, lowers noise and reduces vibrations when the rest of the AC system is clean and properly serviced. To avoid premature failure, the entire circuit needs inspection, contamination removed and correct refrigerant and oil quantities confirmed during recharge.

• Ensure complete cleaning of the AC system; remove moisture and contaminants before installing.
• Professional installation and system commissioning are recommended for leak testing and correct refrigerant charging.

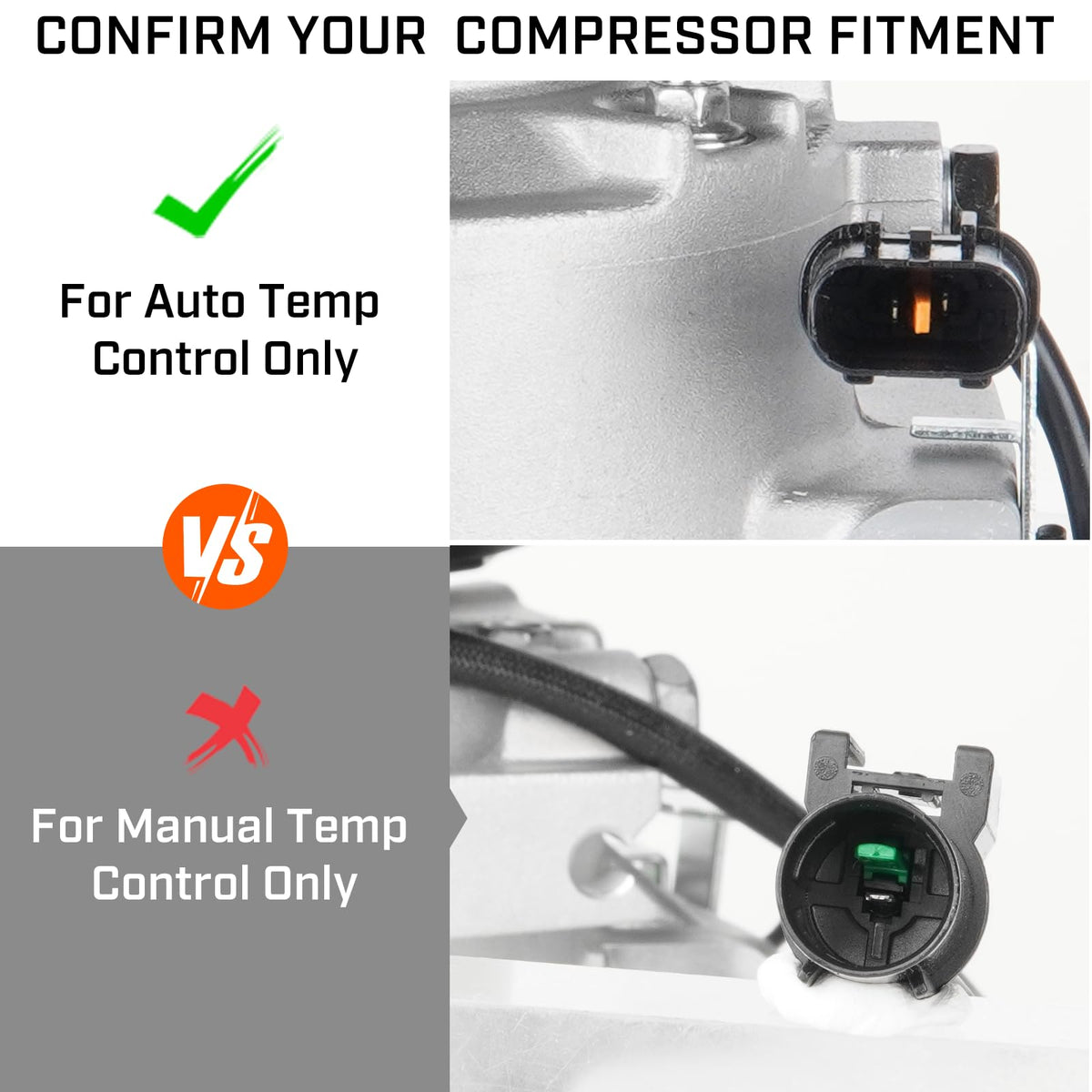

• Check electrical connectors to confirm you have automatic-temperature-control wiring; this unit is not compatible with manual-control plugouts.

How durable and efficient is the ILONPA compressor?

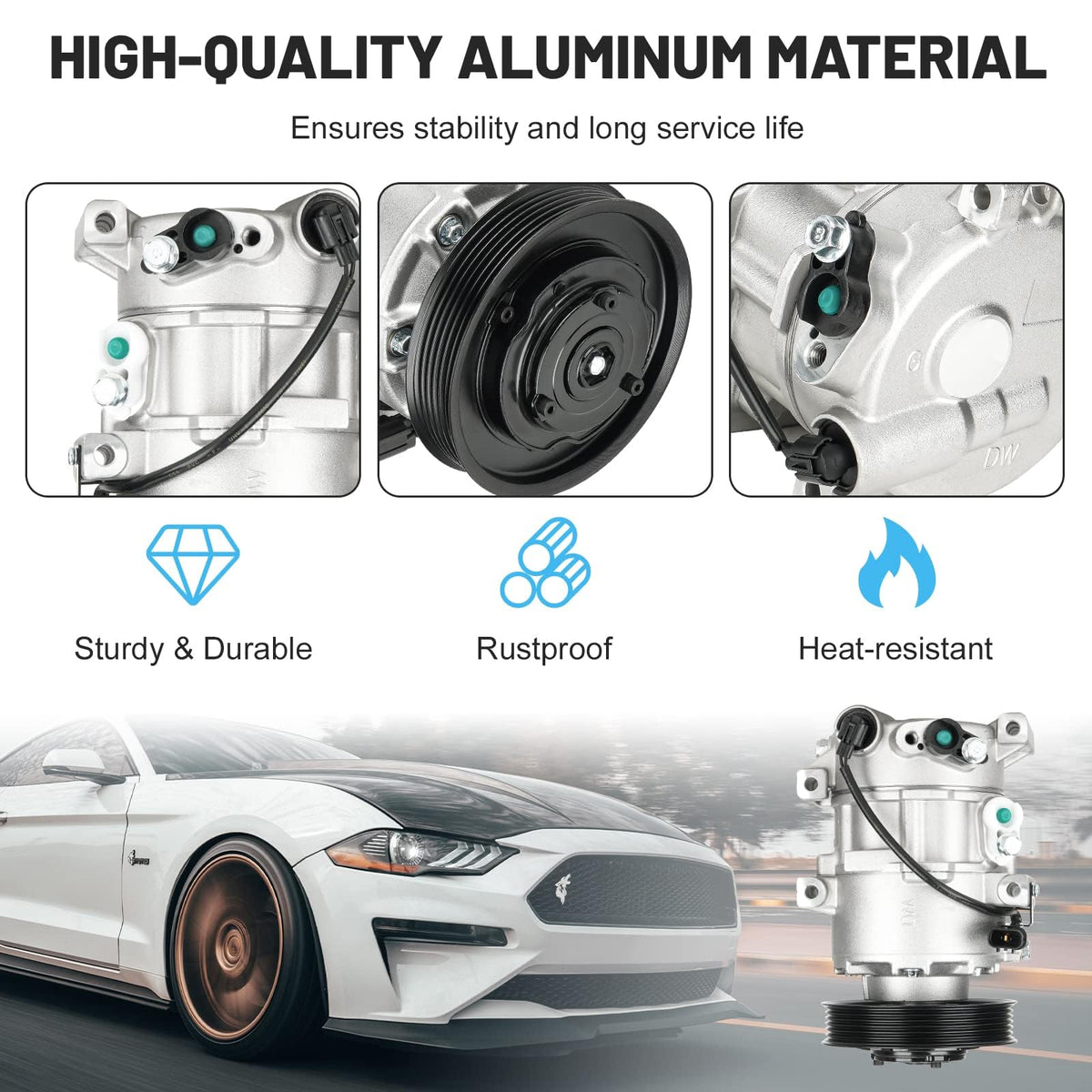

The compressor housing uses high-strength aluminum alloy and is designed to run with low noise and minimal vibration. Those construction choices help with heat dissipation and long-term reliability while contributing to stable fuel usage under steady driving conditions.

• Robust aluminum alloy body for corrosion resistance and heat management.
• Engineered for reduced operating noise and vibration.
• Manufactured to deliver reliable service life when coupled with proper system maintenance.

Who is this for: This ILONPA compressor with clutch is intended for owners or technicians working on 2012–2017 Hyundai Accent 1.6L and Kia Rio 1.6L vehicles equipped with automatic temperature control who need a direct replacement part. It suits repair shops and DIYers comfortable confirming system compatibility, completing refrigerant evacuation and recharge, and following manufacturer service practices. If you have a manual climate control system, different connector types mean this unit will not fit—confirm connector style before ordering to avoid returns.
