ILONPA AC Compressor with Clutch for Chevrolet Cruze 1.4L (2012–2016) — Direct Fit, Prefilled PAG46

ILONPA's replacement air-conditioning compressor with integrated clutch restores cold airflow for Chevrolet Cruze 1.4L models (2012–2016), delivering reliable cooling performance and a direct fit for OE mounting points.

If your Cruze's A/C has lost pressure, made unusual noise, or the system cycles irregularly, swapping in a new compressor with clutch is often the most effective repair. This unit is engineered to match the original 10S20F compressor geometry and pulley dimensions so it installs with existing brackets and hoses. It arrives prefilled with the specified PAG 46 oil, reducing prep time for a professional technician and helping you get the system back to functioning quickly.

How does this compressor match my Cruze's original equipment?

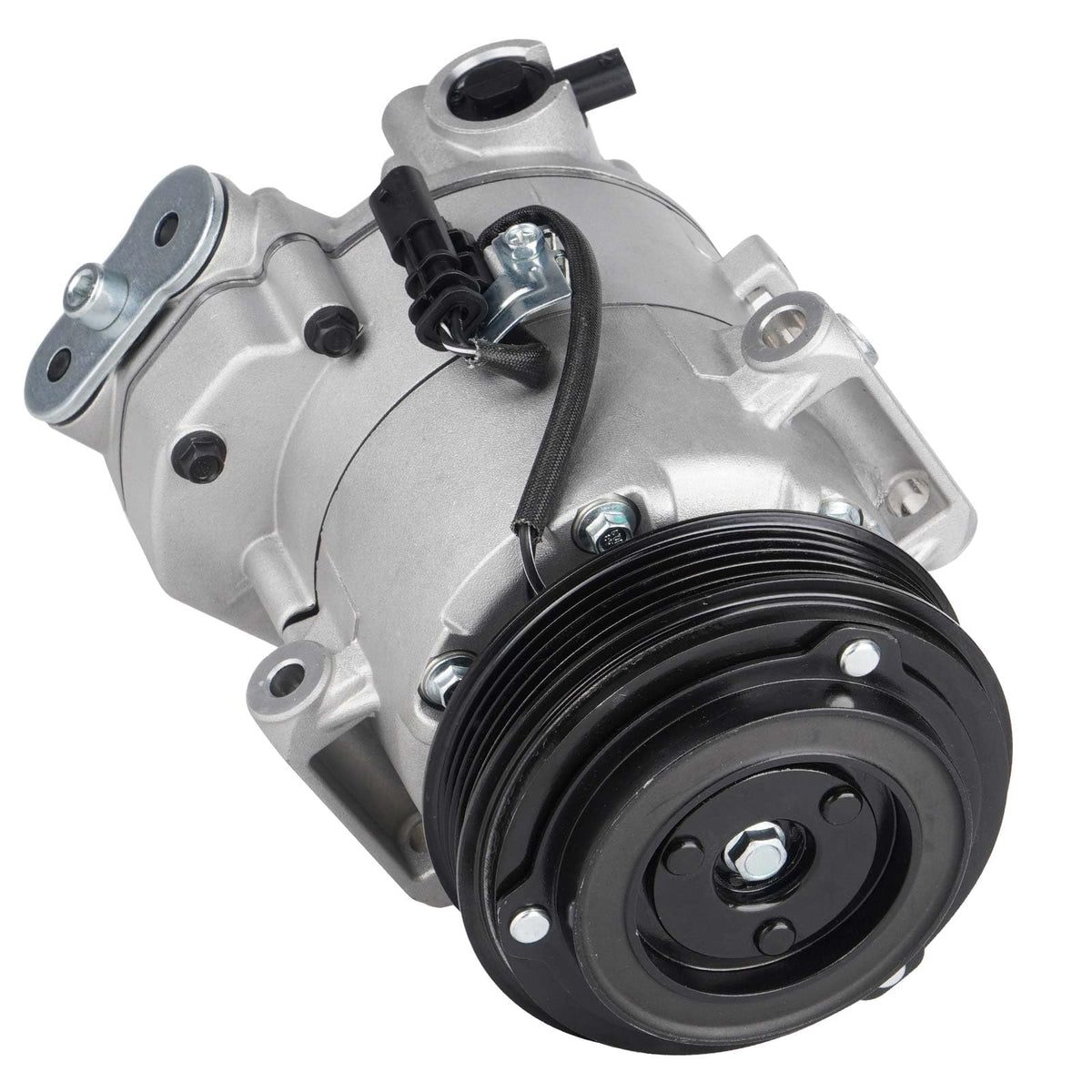

The ILONPA compressor mirrors the OE 10S20F layout, including a 5-groove pulley and a 109 mm pulley diameter, plus the same 3-tangent mount on the rear head. Thread and sealing washer sizes align with factory fasteners to avoid fitment problems. It is designed to accept the same refrigerant flow, connection points, and clutch engagement characteristics as the original part.

• Compressor type: 10S20F for direct geometry match

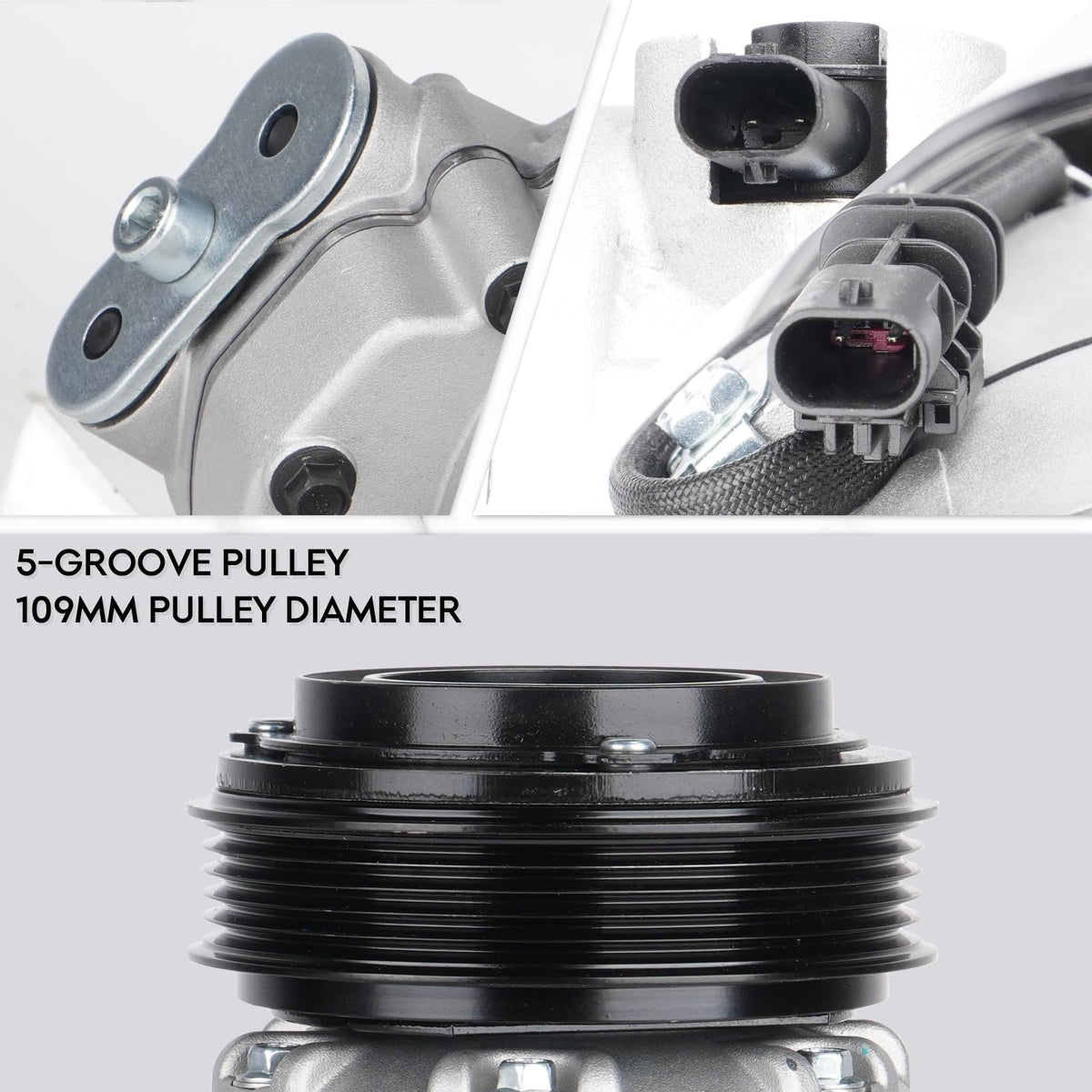

• Pulley: 5 grooves, 109 mm diameter for belt compatibility
• Mounting: 3 tangent mount on rear head for existing brackets
• Thread/sealing: 17*11 sealing washer size to match factory hardware

What technical specs and prework should I know before installation?

This compressor ships prefilled with 150 ml of PAG 46 oil and includes a clutch assembly sized for Chevrolet Cruze 1.4L models. For a dependable installation, the A/C circuit must be thoroughly cleaned and dried to remove contaminants and old refrigerant residues. ILONPA recommends professional installation and system evacuation, vacuum, and recharge to the correct refrigerant charge for best results.

• Oil type/prefill: PAG 46, 150 ml
• Pulley grooves and diameter: 5 grooves, 109 mm
• Installation note: Clean evaporator and lines before fitting
• Service recommendation: Professional vacuum and recharge

Will this compressor replace my old part numbers and offer durable operation?

Yes—this ILONPA compressor is compatible with many legacy part numbers, offering a reliable replacement option for worn or failed units. The housing is cast from high-strength aluminum alloy to resist corrosion and manage heat, while internal components are balanced to reduce vibration and noise. That combination provides longer service life and helps the system run efficiently under typical driving conditions.

• Replaces: 157271, 158271, CO 22226C, 13377057 and others
• Construction: high-strength aluminum alloy body for durability
• Operation: balanced internals to minimize vibration and noise
• Efficiency: designed to support steady driving fuel economy

How do I ensure the new compressor performs correctly after fitment?

After mechanical installation, the A/C circuit must be evacuated to remove air and moisture, then recharged to the manufacturer’s refrigerant specification. Check clutch engagement, belt alignment, and leak-free connections before running the system. Running a short diagnostic cycle and monitoring pressures confirms the compressor and clutch are operating within expected ranges.

• Vacuum the system before recharge to remove moisture
• Refill with correct refrigerant amount per vehicle spec
• Inspect belt tension, pulley alignment, and clutch engagement
• Verify pressures and cabin cooling during a test run

Who is this for: This ILONPA compressor with clutch is intended for owners and mechanics working on Chevrolet Cruze 1.4L models from 2012–2016 who need a direct-fit replacement for a failed or noisy A/C compressor. It is ideal for professional shops and experienced DIYers who will perform system flushing, proper evacuation, and refrigerant recharge. If you require a straightforward swap that aligns with OE dimensions and service procedures, this unit offers a practical, durable option.
