Improved Racing LS Oil Pump Pickup Tube Brace — Black 3-Bolt, 6061-T6 Aluminum Reinforcement

The Improved Racing EGM-500 is a precision-machined LS engine oil pump pickup tube brace that reinforces the pickup flange to prevent deformation and improve sealing under high-load conditions.

When you upgrade your LS-series rotating assembly, oiling reliability becomes critical. The EGM-500 pickup tube brace ties the pickup flange into a stiff, evenly clamped platform so the tube stays aligned and sealed even during hard use or repeated service. Built from aircraft-grade aluminum and finished for durability, this brace is intended for compatible LS-style pickup tubes with a three-bolt flange pattern.

How does the EGM-500 improve pickup tube reliability?

The brace spreads clamp load around the pickup tube flange, acting like an extension of the flange to reduce localized bending and gasket distortion. That keeps the pickup tube seated and helps maintain consistent oil flow under varying engine loads.

• Machined 6061-T6 aluminum provides a rigid mounting surface.
• Even clamping reduces the chance of flange bending or leaks.
• Black anodize resists corrosion in wet sump environments.

Will this fit my LS pickup tube and oil pump setup?

The EGM-500 is designed for LS pickup tubes that use a three-bolt circular flange pattern. It will not fit pickup tubes that have welded flanges or two-bolt flanges; verify your pickup flange pattern before ordering.

• Compatible: standard three-hole LS pickup tube flanges.
• Not compatible: welded-flange GM Truck part #12608593 or Holley 302-1 style welded flanges.
• Not compatible: two-hole flange designs such as Holley 302-2 or similar.

What materials and fasteners are used, and how durable is the finish?

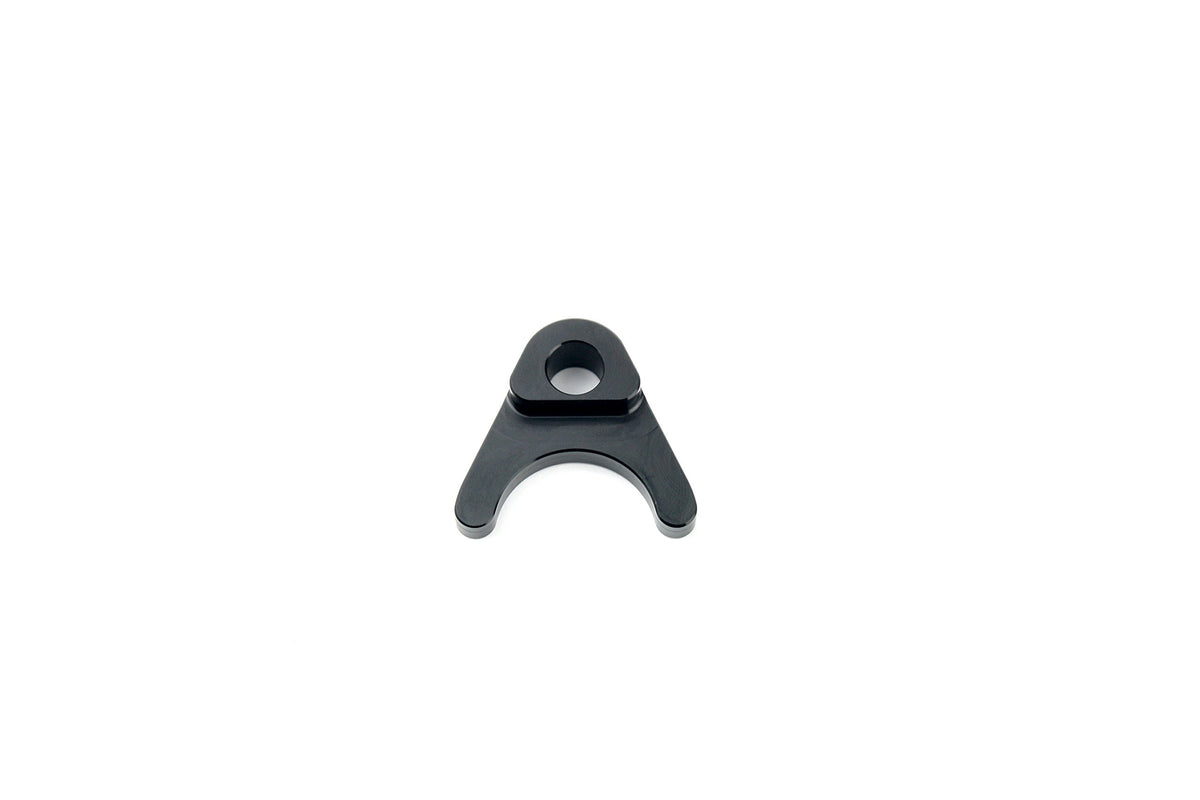

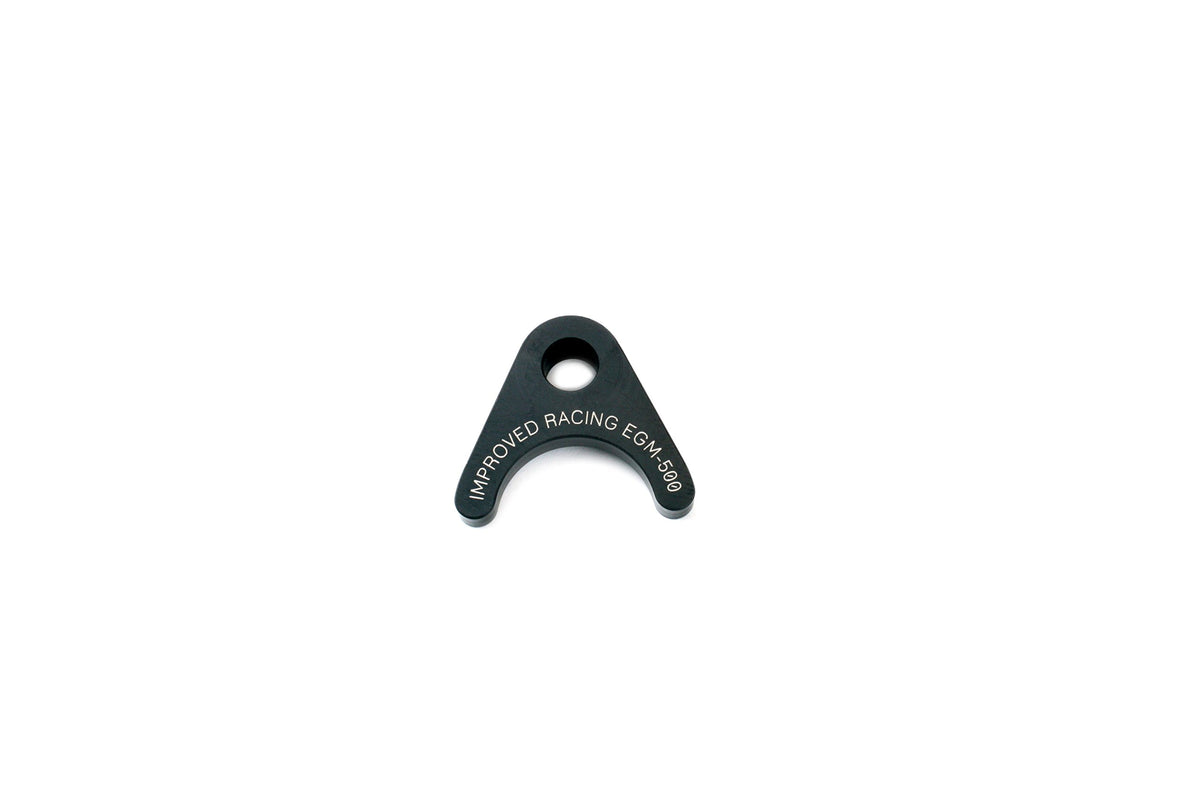

The brace is CNC-machined from lightweight 6061-T6 aluminum, then anodized and laser-marked for a long-lasting surface. High-strength Class 10.9 M6 screws are zinc-plated to resist corrosion and provide secure clamping torque.

• 6061-T6 aluminum for stiffness without excess weight.
• Black anodize and laser marking for corrosion resistance and legibility.

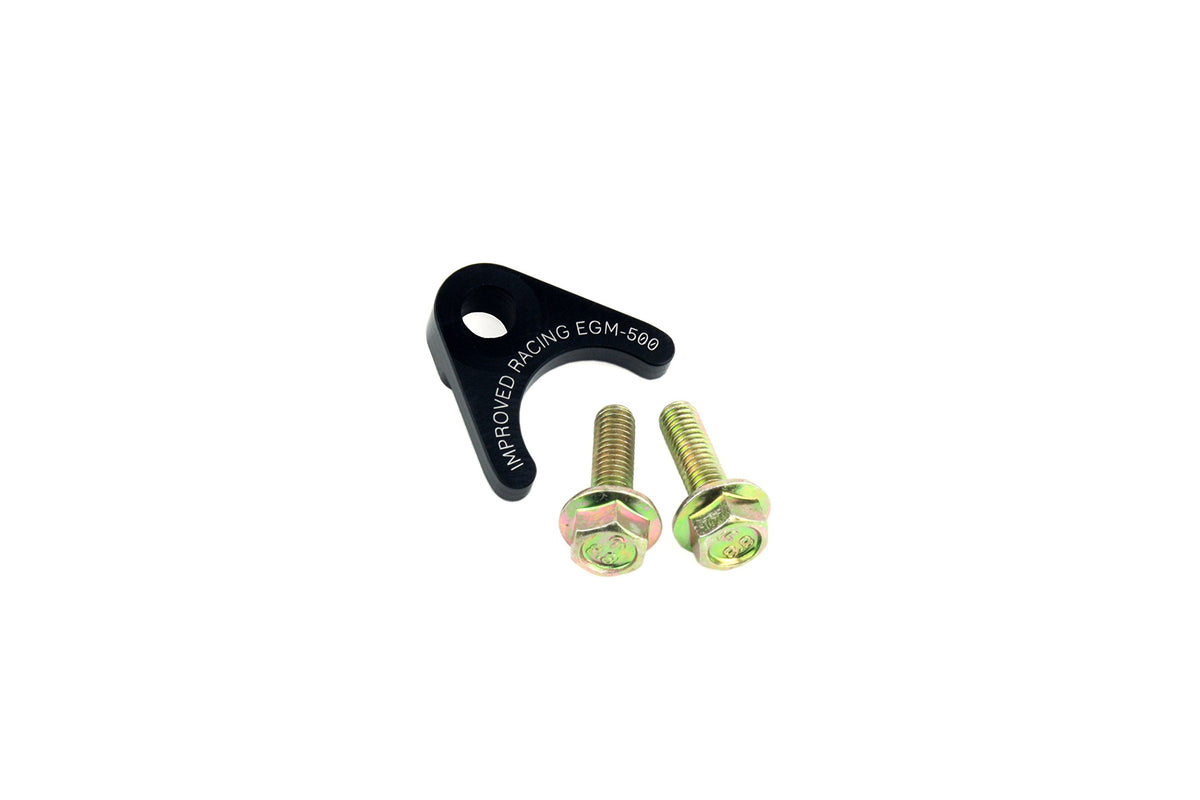

• Class 10.9 M6 zinc-plated flange screws for reliable clamping force.

How easy is installation and serviceability?

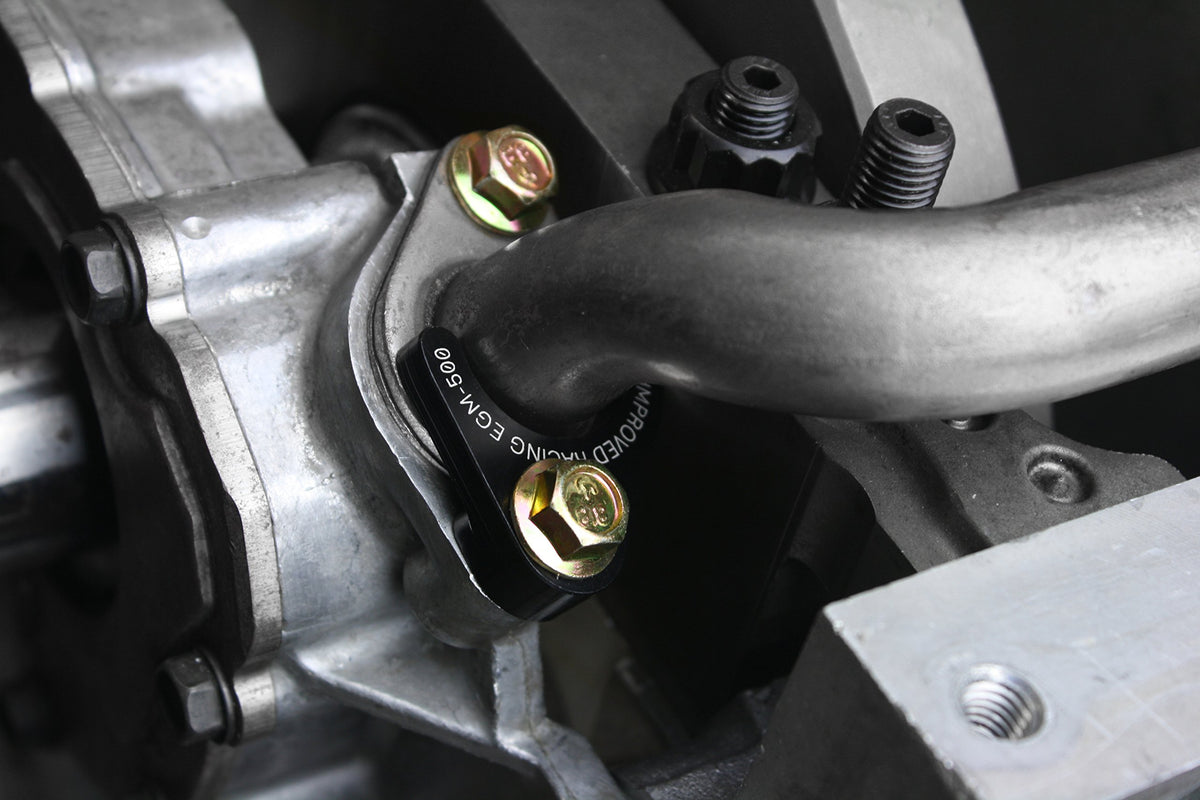

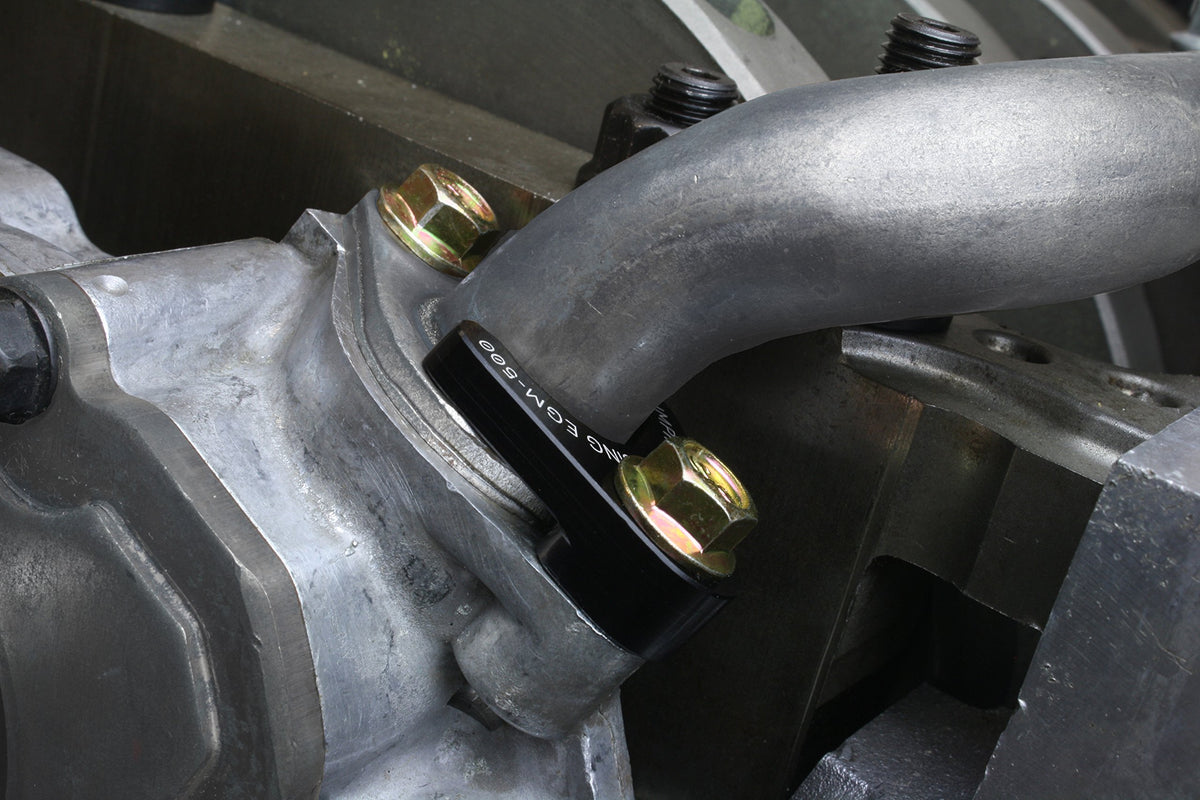

Installation follows the same three-bolt pattern used by compatible LS pickup tubes and requires no special modifications. The brace distributes clamp load so future removal and reinstallation are less likely to warp the flange compared with single-point clamping methods.

• Installs with the included high-strength M6 screws (torque per your engine builder specs).
• Works with factory and aftermarket oil pumps that accept three-bolt pickup flanges.
• Designed to simplify repeat servicing while protecting the pickup flange.

Who is this for: The Improved Racing EGM-500 is aimed at engine builders, hot-rodders, and anyone installing performance or high-revving LS engines who wants a more robust, service-friendly pickup tube connection. If you run track, towing, high horsepower, or frequently service the oil pump, this brace offers a lightweight, durable way to protect the pickup flange and help preserve consistent oiling. Confirm your pickup tube flange style before purchase to ensure compatibility.
