INJORA Tow Truck Crane Kit for 1/24 SCX24 — Black CNC Aluminum Crane with 7kg INJS2065-360 Winch and IP66

The INJORA Tow Truck Crane Kit paired with the INJS2065-360 7KG winch servo is a compact, CNC-aluminum recovery assembly designed to add realistic towing and winching capability to 1/24 scale SCX24 crawlers.

This kit combines a lightweight aluminum crane assembly and a powerful continuous-rotation winch servo so you can rig reliable scale recoveries on tight 1/24 platforms. Built for INJORA’s SCX24 stock chassis and Carbon Fiber Universal Chassis (SCX24-182), the package delivers metal construction, IP66 water protection, and a red tow hook for instant visual realism. Read on to see what fits, how the servo performs, and quick installation considerations for small-scale rock crawlers.

Will this tow crane and servo fit my SCX24 setup?

The crane kit is designed specifically for the SCX24 stock chassis and INJORA’s SCX24-182 carbon universal chassis, and it fits INJORA IR60-24 bodies. Other 1/24 bodies may fit if there is enough internal room—measure before buying. Note that it is not compatible with the stock SCX24 transmitter/receiver combination.

• Compatible with SCX24 stock chassis and INJORA SCX24-182 universal chassis
• Fits INJORA IR60-24 body out of the box
• Not compatible with SCX24 stock transmitter/receiver
• Check body clearance and receiver channel availability for other bodies

How powerful and fast is the INJS2065-360 winch servo?

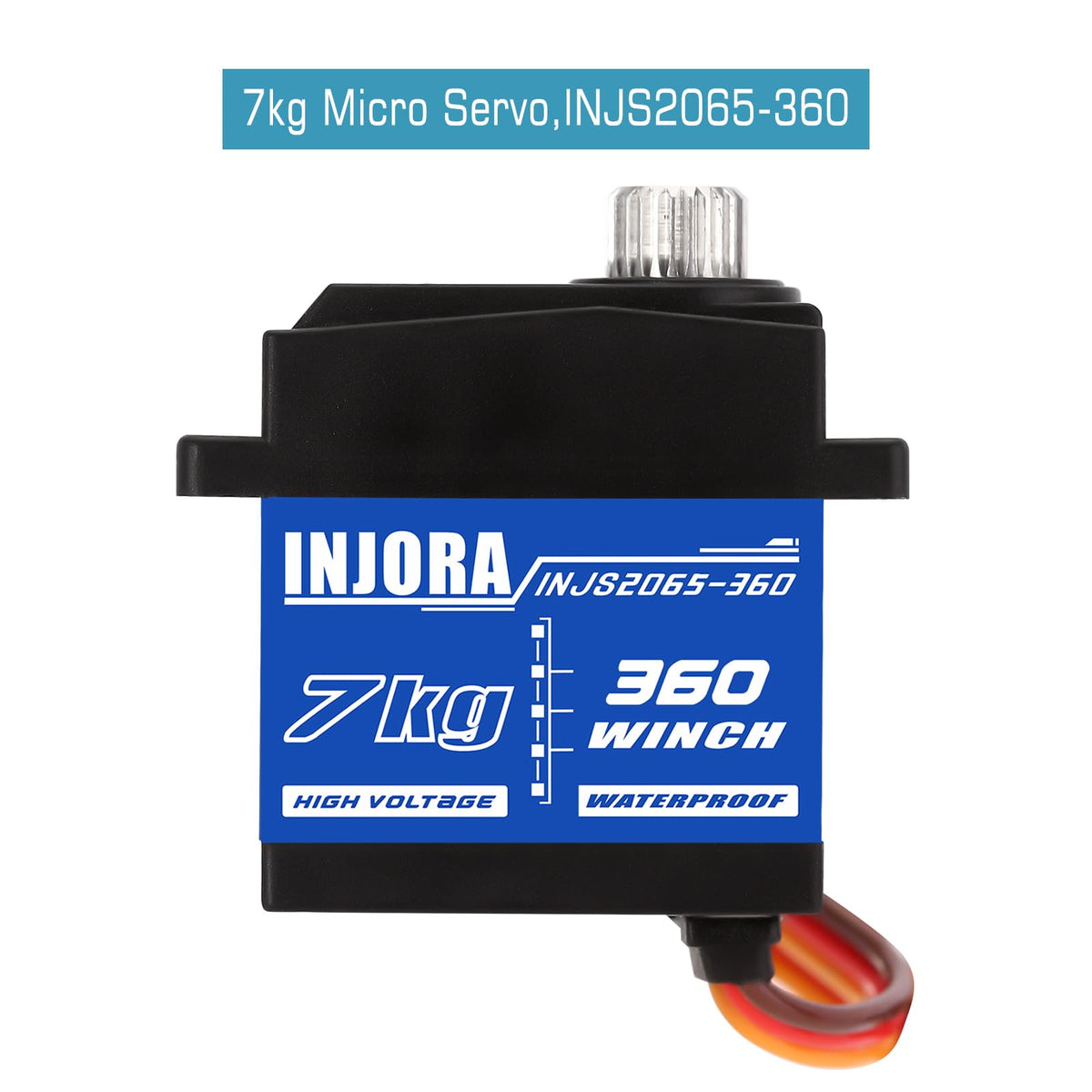

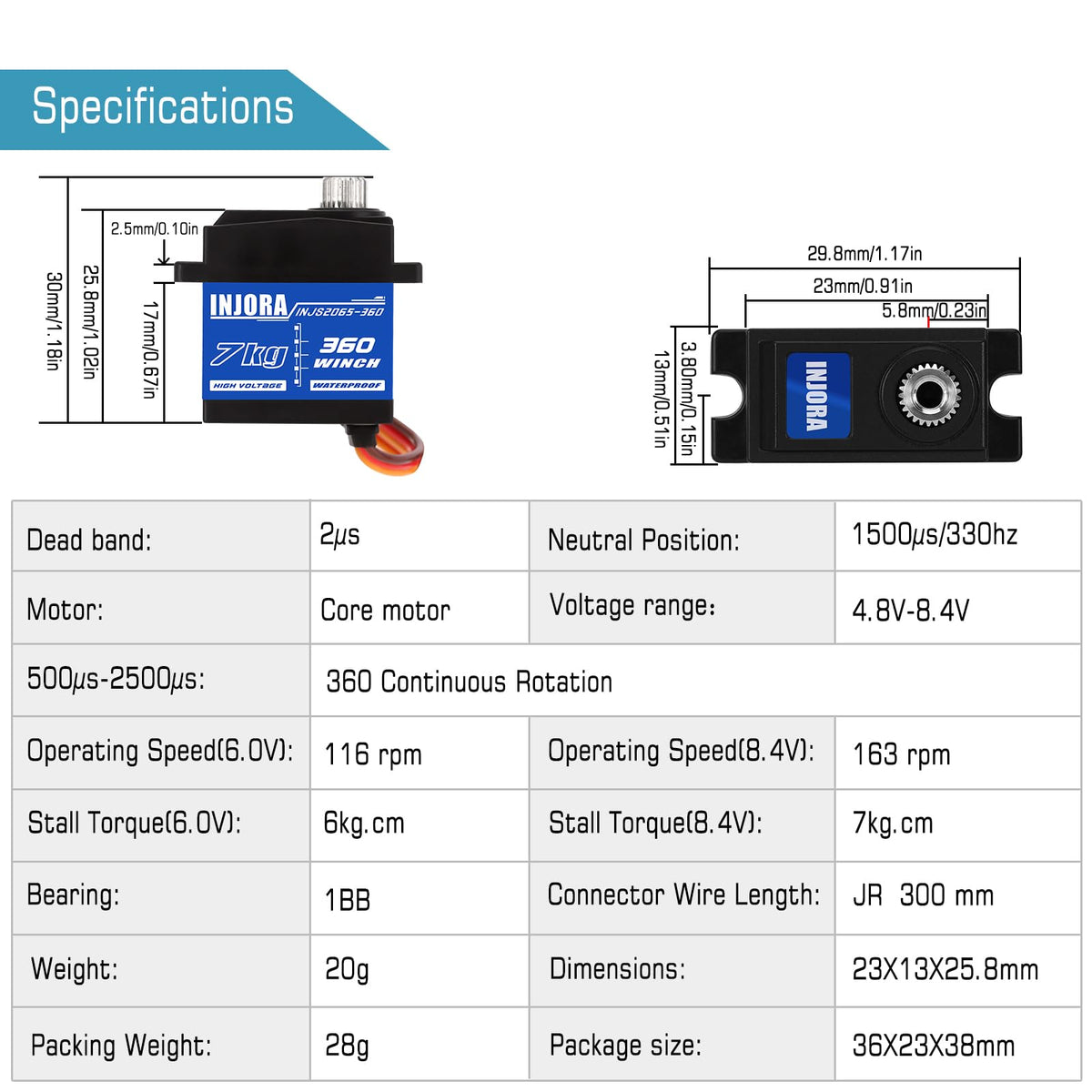

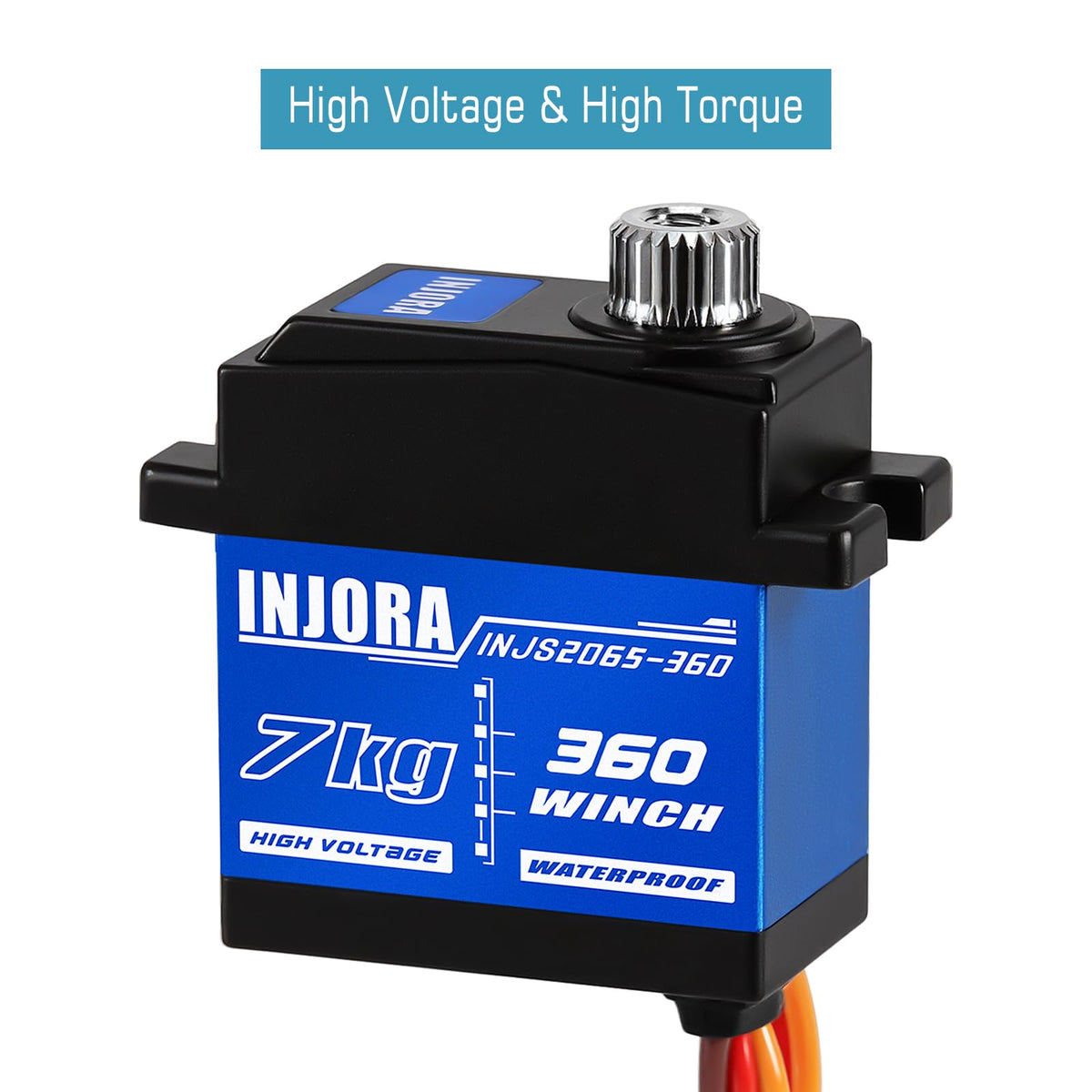

The INJS2065-360 is a continuous-rotation winch servo rated to about 7.0 kg·cm stall torque at 8.4V and spins continuously for 360° control. It runs on 4.8–8.4V, with operating speeds of approximately 116 rpm at 6.0V and 163 rpm at 8.4V, making it suitable for realistic scale winching without excessive bulk.

• Stall torque: 6.0 kg·cm @ 6.0V, 7.0 kg·cm @ 8.4V
• Operating speeds: ~116 rpm (6.0V), ~163 rpm (8.4V)
• Continuous 360° rotation for winch-style operation
• Compact dimensions: 23 × 13 × 25.8 mm, weight 20 g

What are the crane kit’s build and durability features?

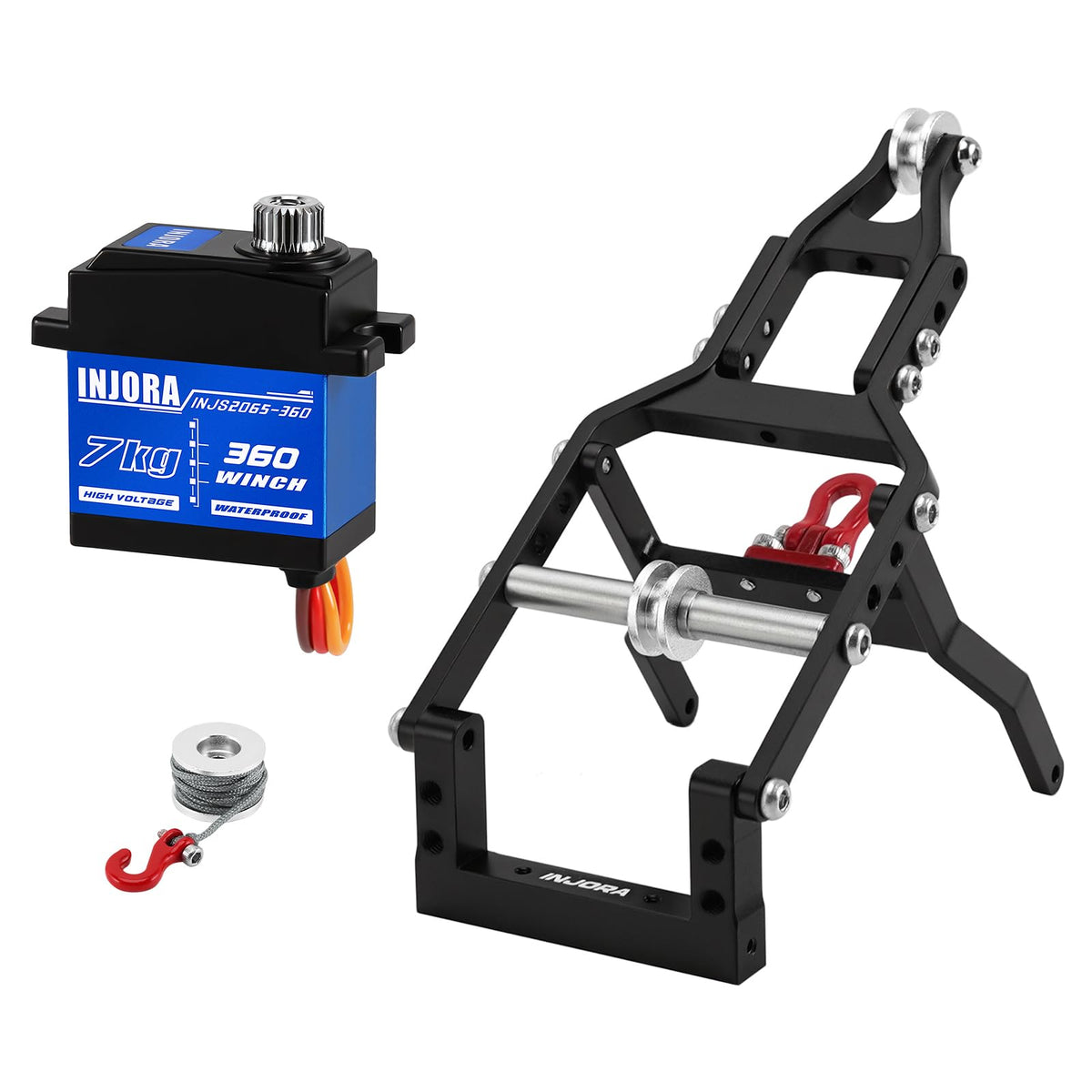

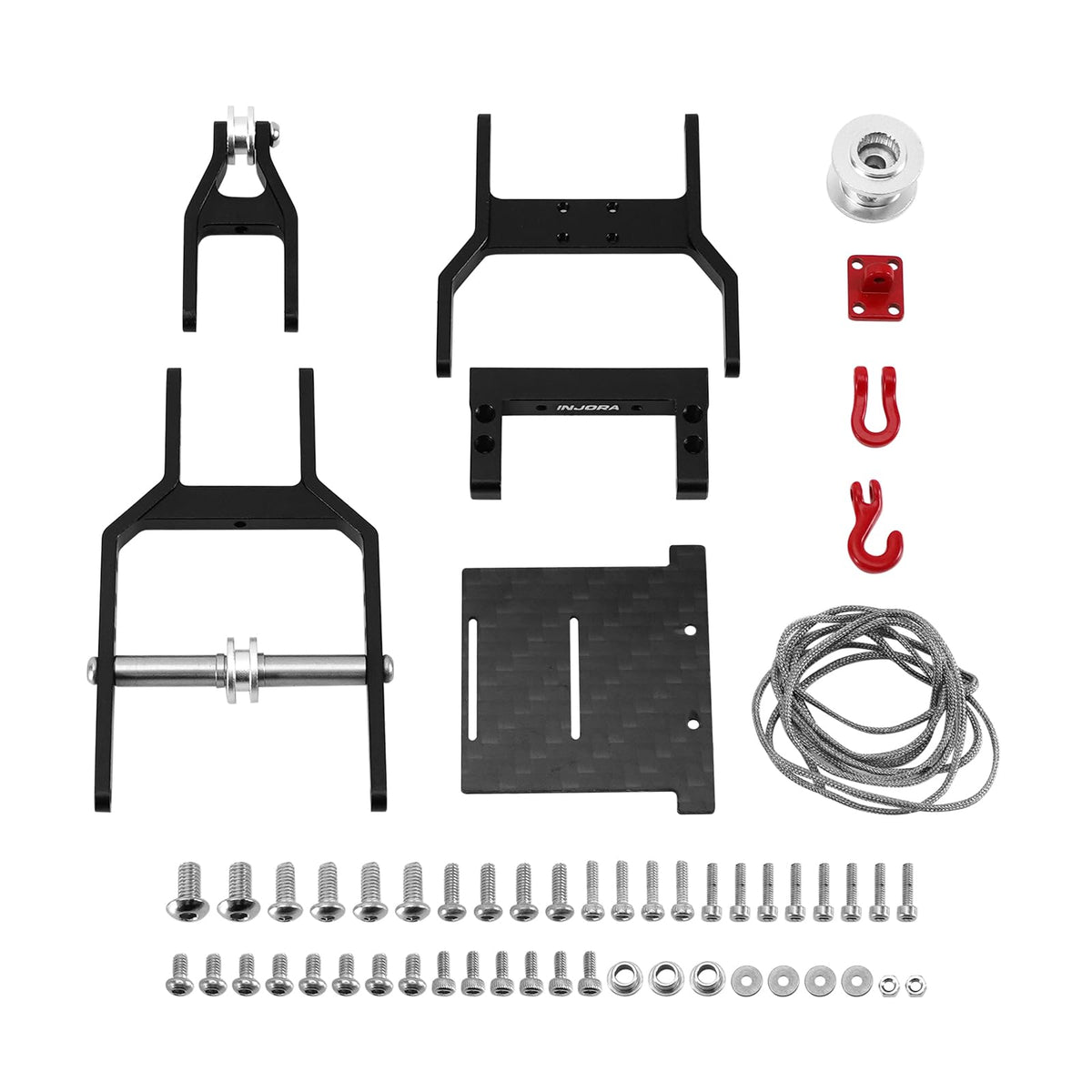

The crane assembly is CNC-machined from aluminum for a durable, lightweight scale appearance and weighs about 23 g. It includes a 25T winch spool and roughly 63 cm of rope, plus a red tow hook for both function and scale aesthetics.

• Material: CNC aluminum in black or silver finish
• Winch spool: 25T with ~63 cm rope included
• Red tow hook for improved scale realism and visibility
• Compact form factor keeps added weight low on 1/24 crawlers

What installation and electronic requirements should I plan for?

Installing this kit requires an available receiver channel and a transmitter with a knob-style control to operate the continuous-rotation winch servo. Space inside some bodies will be limited after installation, so plan the electronic layout accordingly and confirm the JR connector length (300 mm) fits your routing needs.

• Requires a free channel on your receiver and knob-style transmitter control
• JR connector wire length: 300 mm for wiring flexibility
• Ensure adequate internal clearance and adjust electronics placement as needed

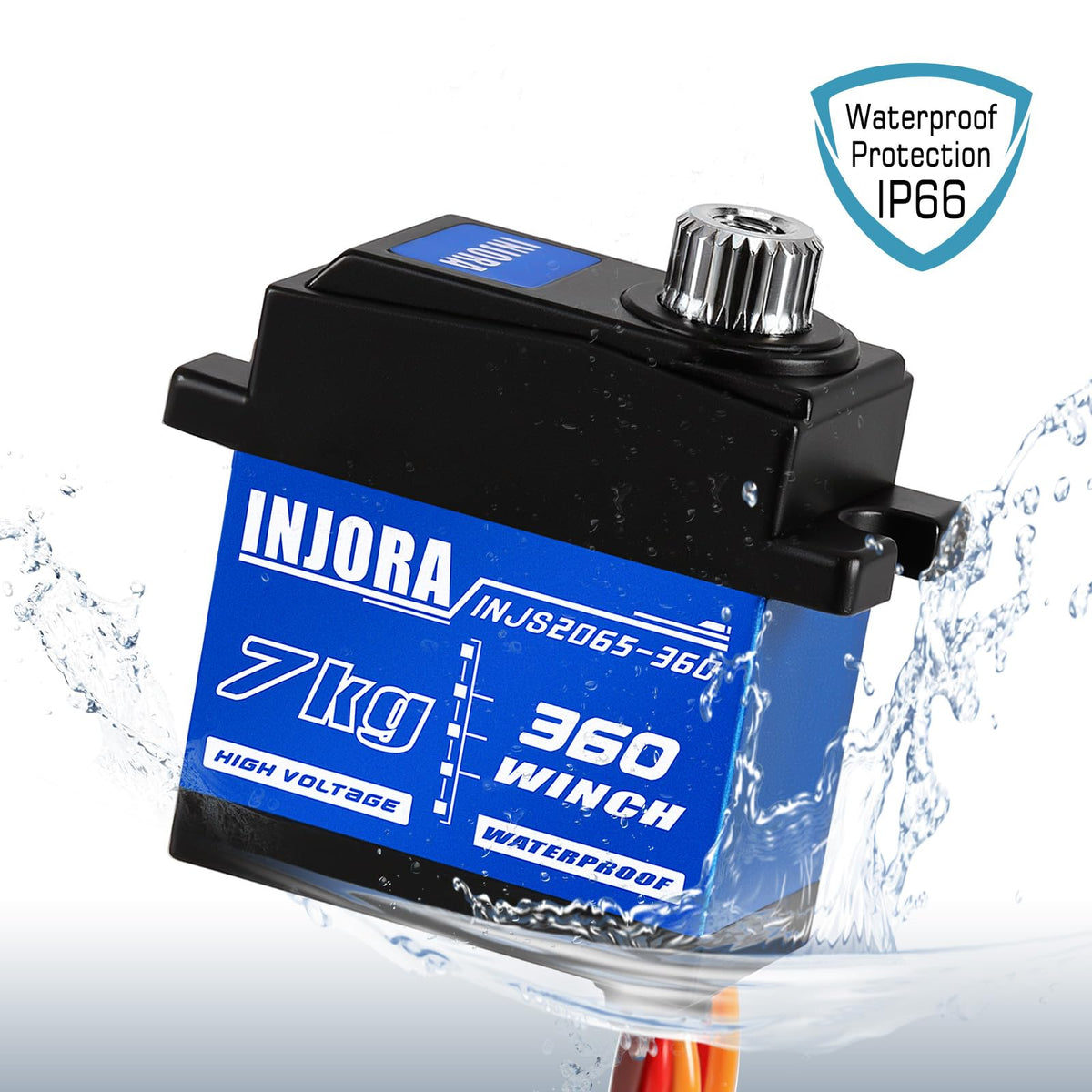

• Includes intelligent overload protection and IP66 waterproofing on the servo for reliable operation

Who is this for: Builders and scale-appearance enthusiasts running 1/24 SCX24 crawlers who want a metal, realistic tow/crane assembly with a compact, high-torque continuous-rotation winch servo. This kit is ideal if you use INJORA bodies or chassis and need a lightweight, durable recovery solution; it’s best suited for users comfortable checking fitment and configuring an extra receiver channel and transmitter control for winch operation.
