iRhapsody 12V 4-Pin Waterproof Automotive Relay — 80A Heavy-Duty, 5-Piece Kit Sealed for Off-Road Use

This iRhapsody 12V 4-pin waterproof automotive relay is a heavy-duty switching module rated up to 80A that protects circuits while enabling high-current accessories to run reliably.

Compact yet rugged, this five-piece kit supplies high-current switching for lights, winches, horns, fans and other 12V accessories that demand robust contact capacity and weather resistance. Designed for automotive and off-road use, each relay combines a 4-prong footprint with a sealed housing, fast electrical response times, and mechanical durability to handle frequent cycling in harsh environments.

How does this relay handle high current loads?

The iRhapsody relay uses a normally-open (NO) contact rated for heavy currents and oversized load terminals to minimize voltage drop. It supports short bursts up to its 80A switching current and sustained power handling at common 12V accessory levels.

• Max switching current: 80A; contact rating at 14V DC
• Maximum switching power around 560 watts at 12V
• Contact resistance very low (100 mΩ max at 6VDC/1A)

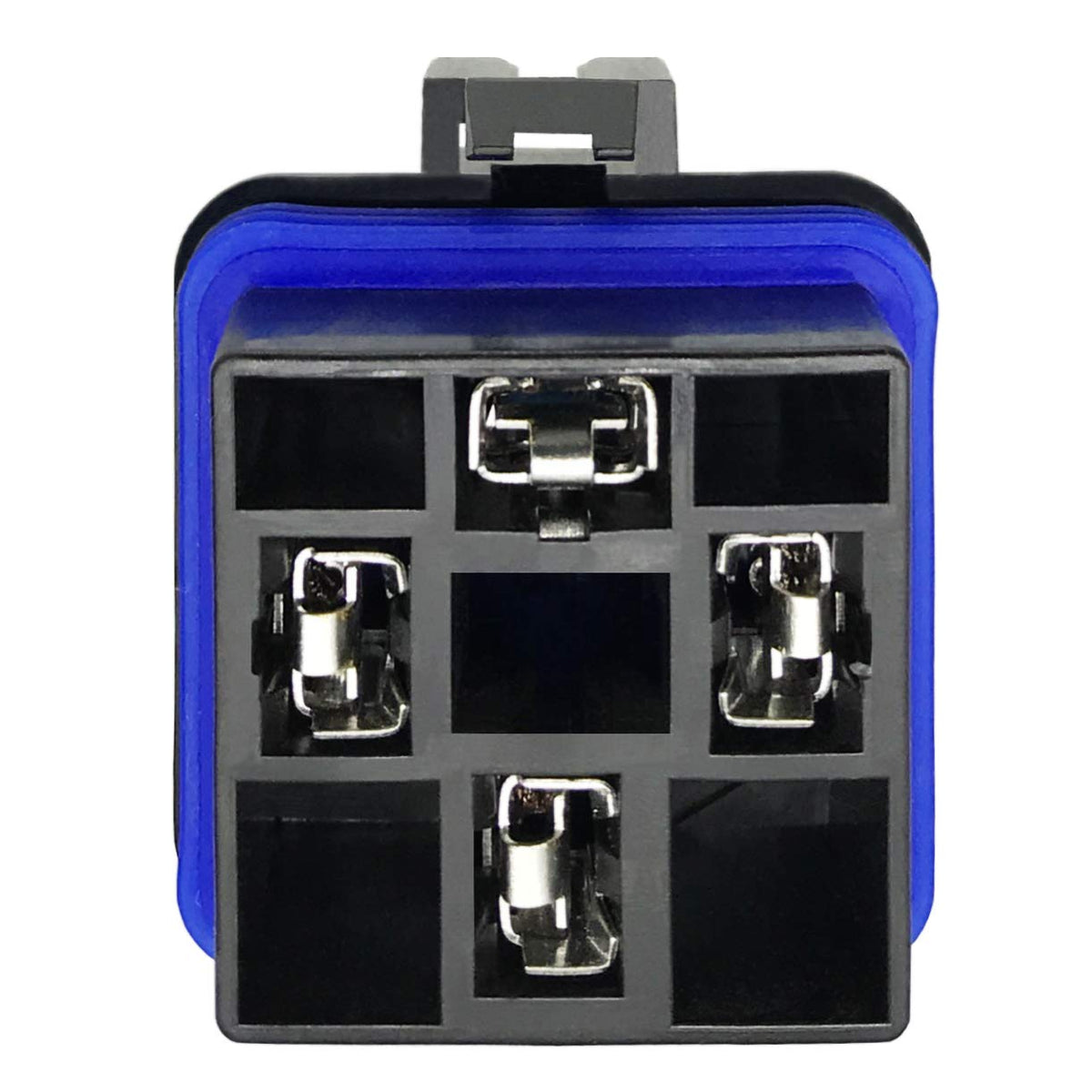

• Thick wire/load terminals reduce heat and voltage loss

Will this relay survive outdoor and engine-bay conditions?

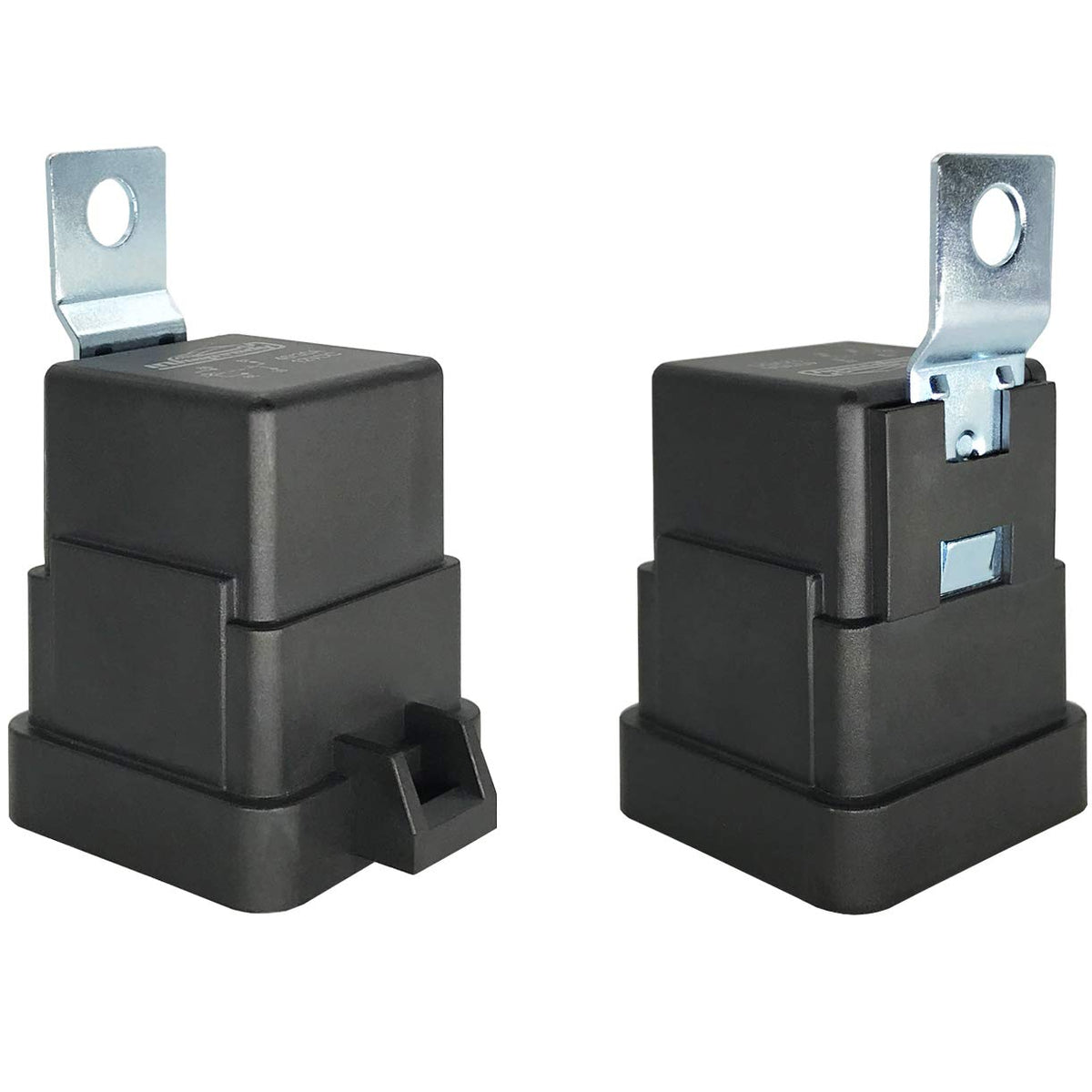

The sealed housing offers dust and water-repellent protection suitable for exposed vehicle locations (not intended for full immersion). It’s built to endure temperature swings, vibration and shock common in automotive use.

• Operating temperature range: -30°C to +80°C
• Vibration resistance: 10–55 Hz with 1.5 mm amplitude
• Shock tolerance: operational up to 10g, damage limit 100g
• Humidity specification supports typical automotive environments

What are the electrical performance and response characteristics?

Engineered for quick, repeatable switching, the relay’s coil and contact timings suit fast control circuits. Insulation and dielectric test figures provide assurance that the coil and contacts remain isolated under typical electrical stress.

• Nominal coil voltage: 12 V DC; coil power 1.8 W
• Operate time ~7 ms; release time ~5 ms for rapid actuation
• Dielectric strength: 500 VAC between open contacts; 750 VAC coil to contacts
• Insulation resistance rated at minimum 100 MΩ at 500 V DC

How long will these relays last under repeated use?

Designed for longevity, the relay offers a high mechanical life and strong electrical cycle life when used within specified limits. Following recommended load limits and installation guidance will extend service life.

• Electrical life expectancy: about 100,000 operations at defined cycling rate
• Mechanical life expectancy: up to 10,000,000 operations
• Recommended to operate at or below rated current—leave a safety margin

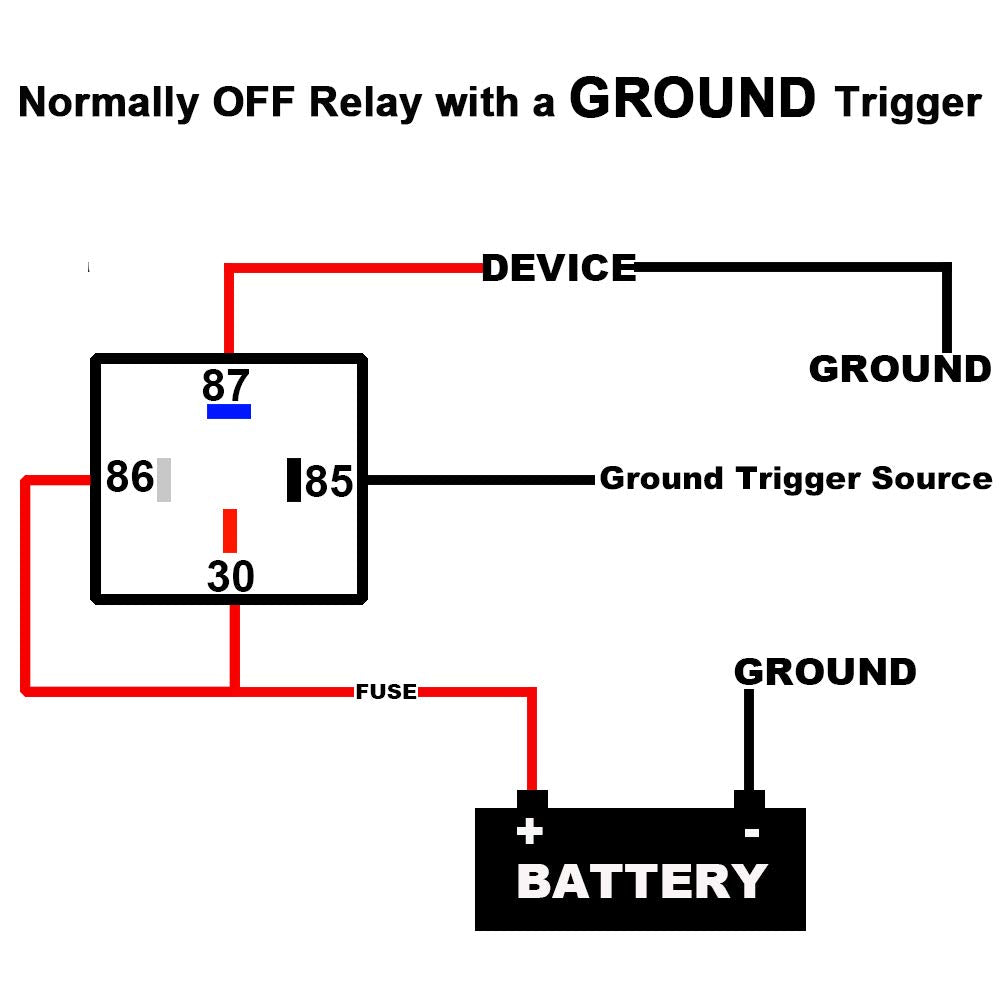

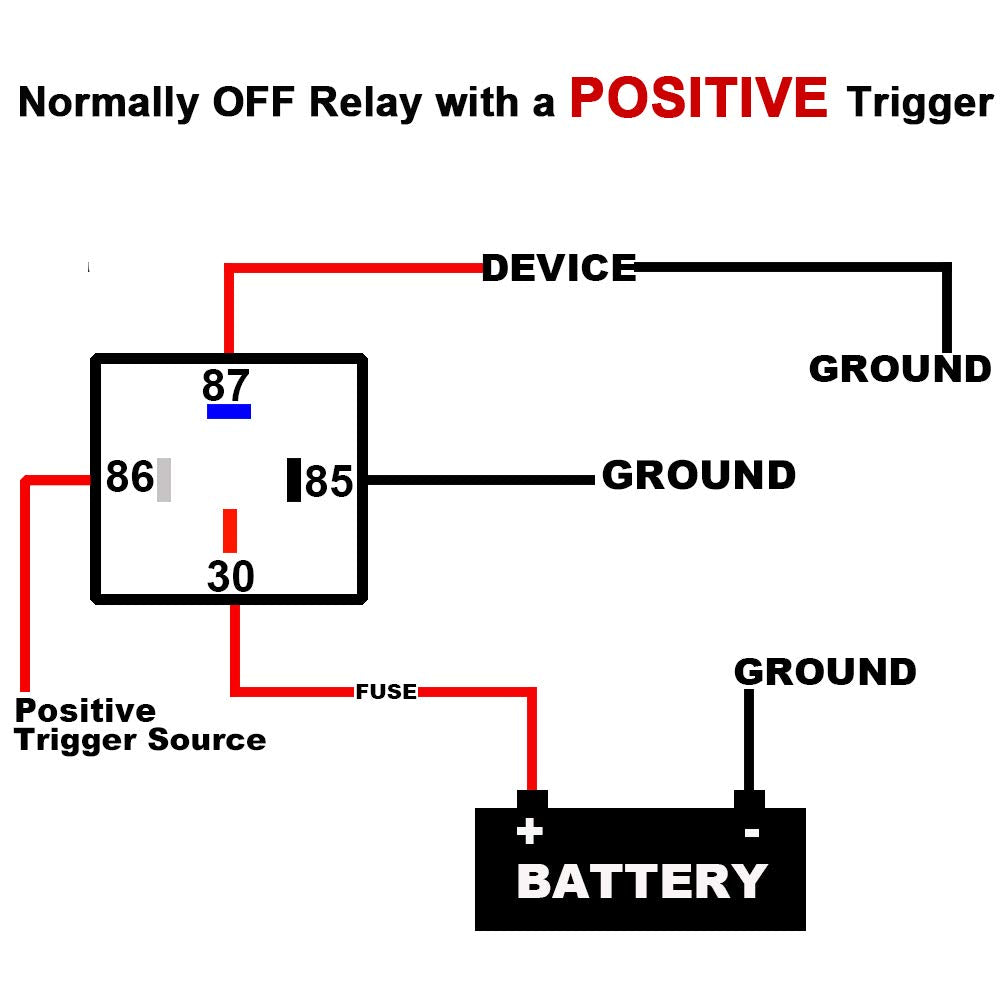

• Works with both positive and negative trigger activation

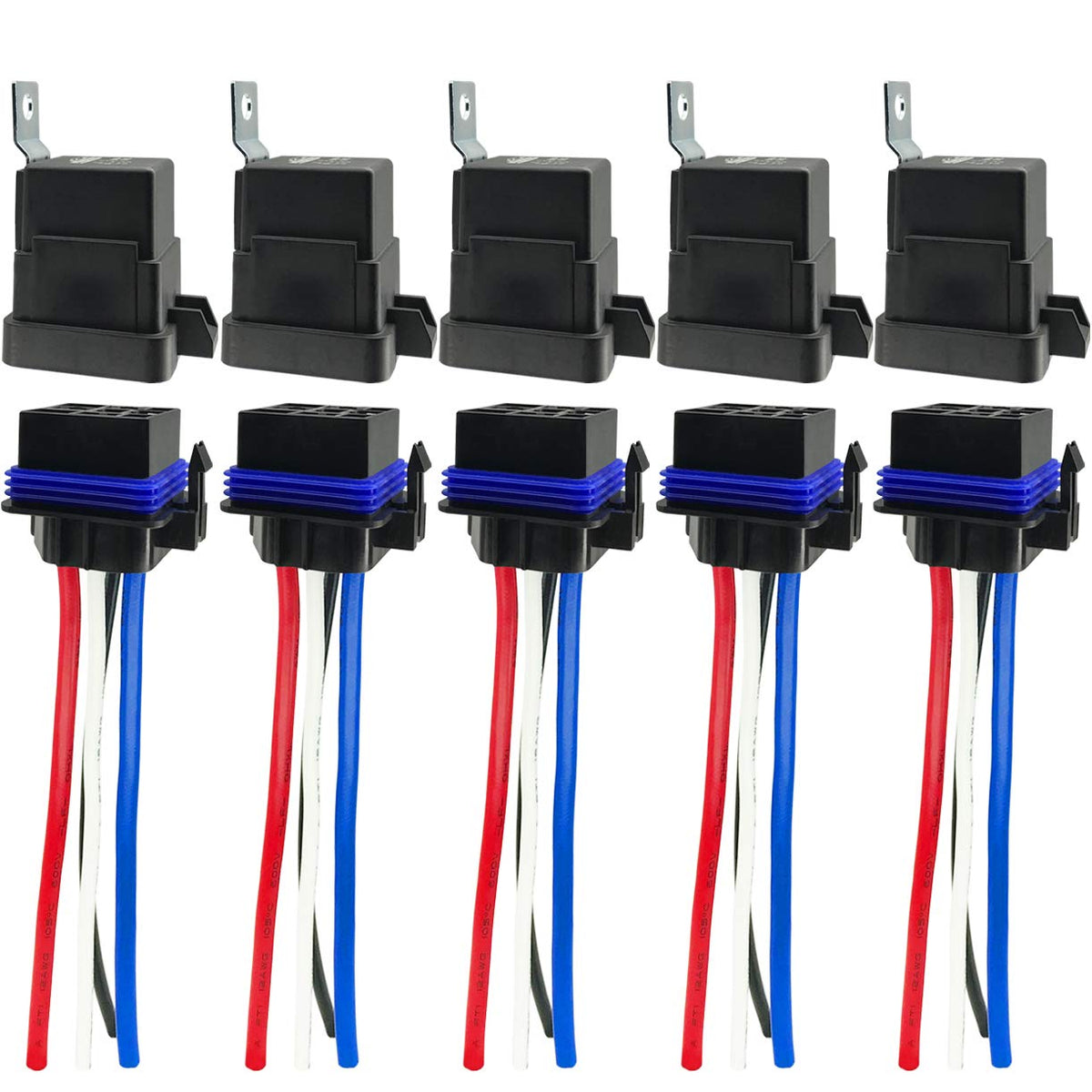

Who is this for: Installers, automotive hobbyists and fleet technicians who need a durable, weather-resistant relay for high-current 12V accessories will find this iRhapsody kit valuable. It’s suitable for wiring auxiliary lighting, winches, electric fans, horns and other devices that require a reliable 4-pin relay rated for heavy loads. The pack of five makes it convenient for multiple installations or spares in a service kit.
