iRhapsody 5-Pin 12V Waterproof Automotive Relay Kit — 40A SPDT with Prewired Heavy-Gauge Leads

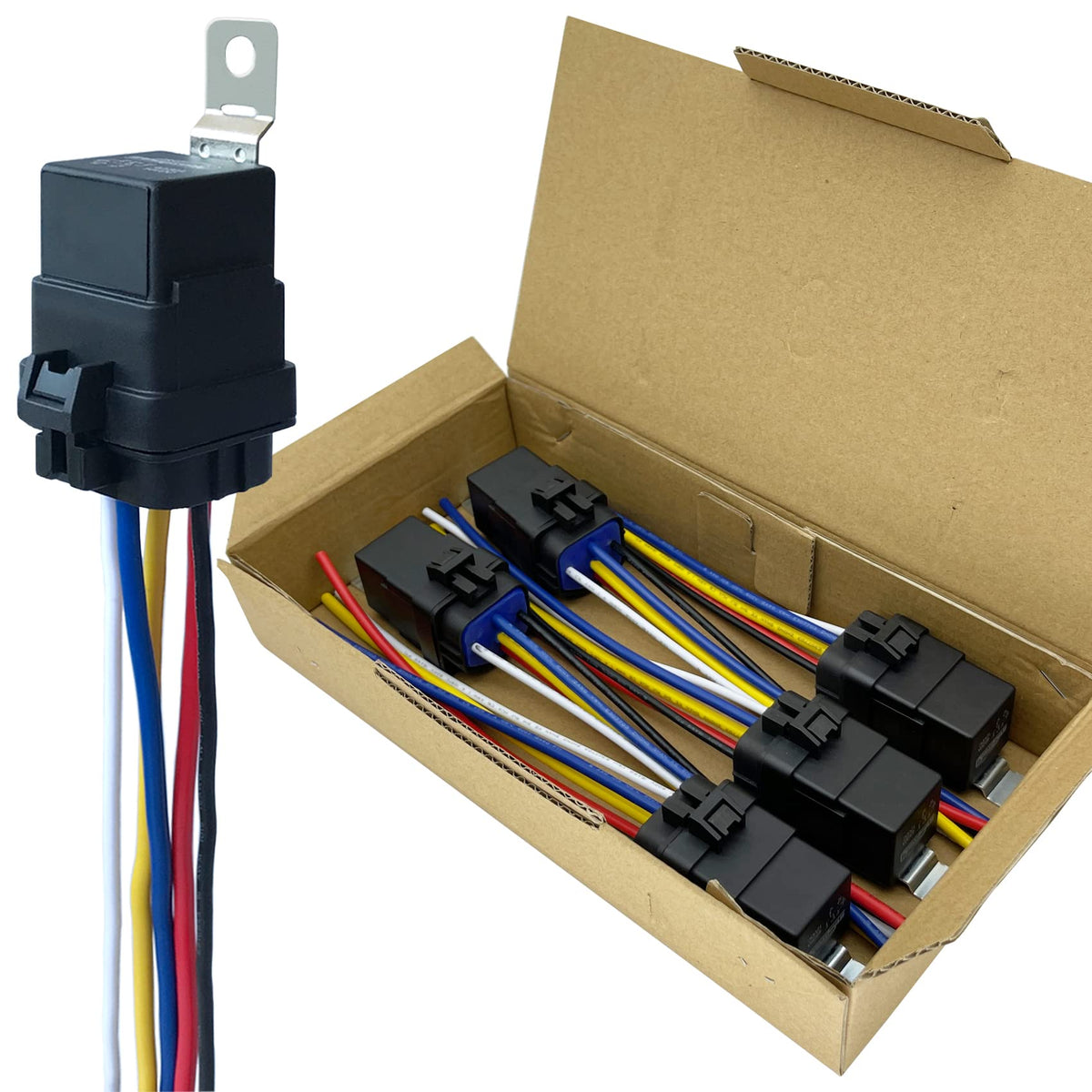

The iRhapsody 5-pin 12V waterproof automotive relay is a heavy-duty SPDT switching relay rated for 40A continuous duty, supplied as a 5-piece kit with durable tinned-copper leads.

This compact relay is designed for automotive and marine electrical systems where dependable high-current switching and water-resistant protection are required. With a 12 V DC nominal coil, fast operate/release times, and a robust contact rating, this unit handles lights, fans, pumps, and other 12V accessories while resisting dust and moisture when mounted correctly. The kit includes pre-wired heavy-gauge leads to simplify installation and reduce connector resistance.

What electrical loads can this relay safely switch?

The iRhapsody relay is rated for NO (normally open) switching at 40A with a maximum switching power of 560 W at 14V DC, making it suitable for most 12V automotive accessories. For long-term reliability, operate loads slightly below maximum ratings.

• Maximum continuous switching current: 40A
• Max switching power: 560 W (at 14V DC)
• Contact resistance: ≤100 mΩ (at 6V DC, 1A)
• Recommended working margin: stay 10–15% below the 40A rating for durability

How reliable is it under real-world conditions?

This relay is built for long service life and environmental durability. It meets high-insulation and dielectric strength standards, resists vibration and shock, and is humidity tolerant within specified ranges.

• Electrical life expectancy: ~100,000 operations (at 30 ops/min)
• Mechanical life expectancy: ~10,000,000 operations
• Operating temperature: -30°C to +80°C; vibration and shock-resistant
• Insulation resistance and dielectric tests: rated to 500VAC between contacts and 750VAC to coil

What are the electrical and timing characteristics installers should know?

The relay uses a 12 V DC coil consuming 1.8 W and offers fast switching for responsive control circuits. Coil resistance, operate/release voltages, and timing figures help match the relay to control outputs and protection devices.

• Nominal coil voltage: 12 V DC; coil power: 1.8 W; coil resistance: 80 Ω
• Must-operate voltage: 6–8 V DC; must-release: 0.6–3.6 V DC; max applied voltage: 15.6 V DC
• Operate time: ~7 ms; release time: ~5 ms

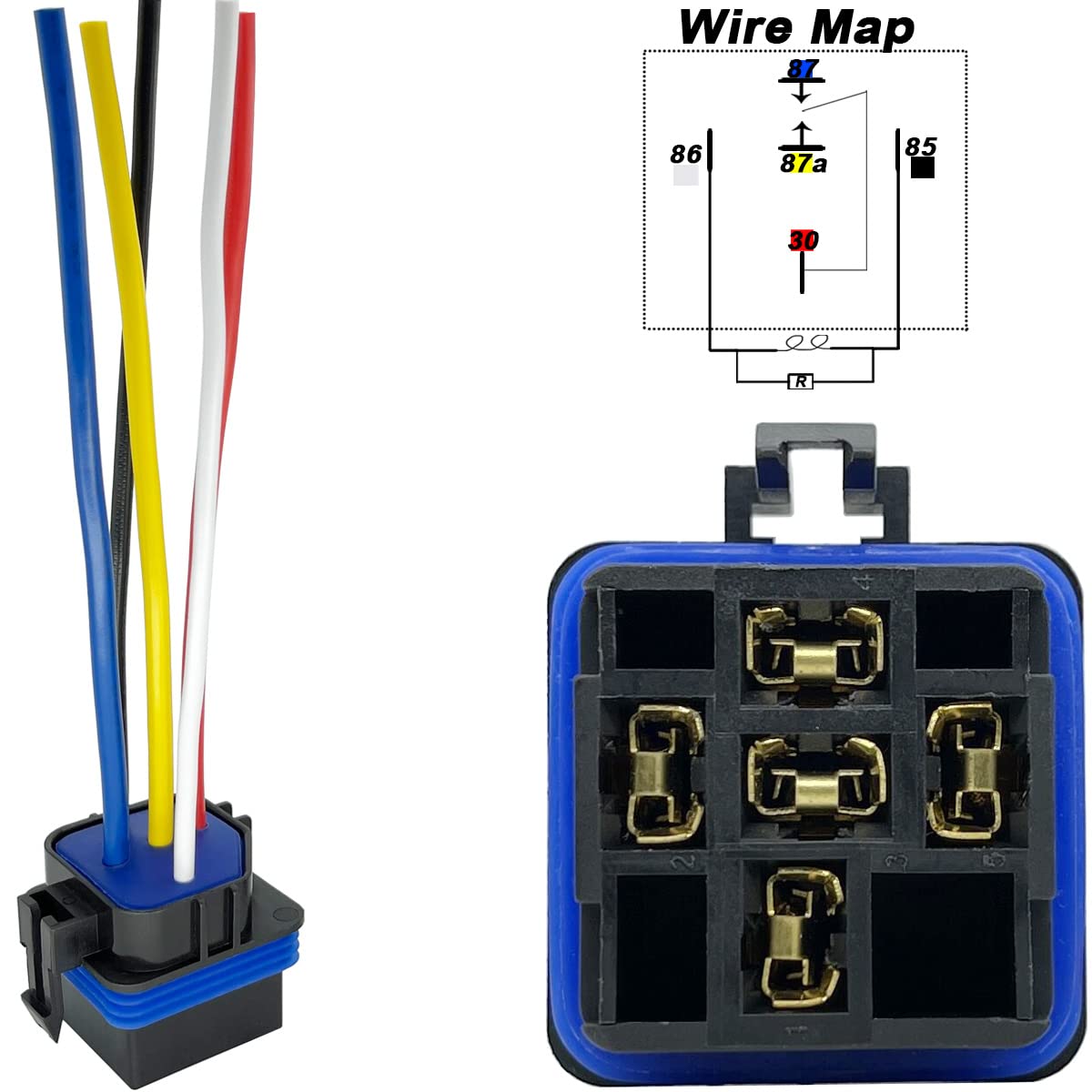

• Primary leads: 12 AWG tinned copper; coil leads: 16 AWG for reliable current flow

How should I mount and care for this waterproof relay?

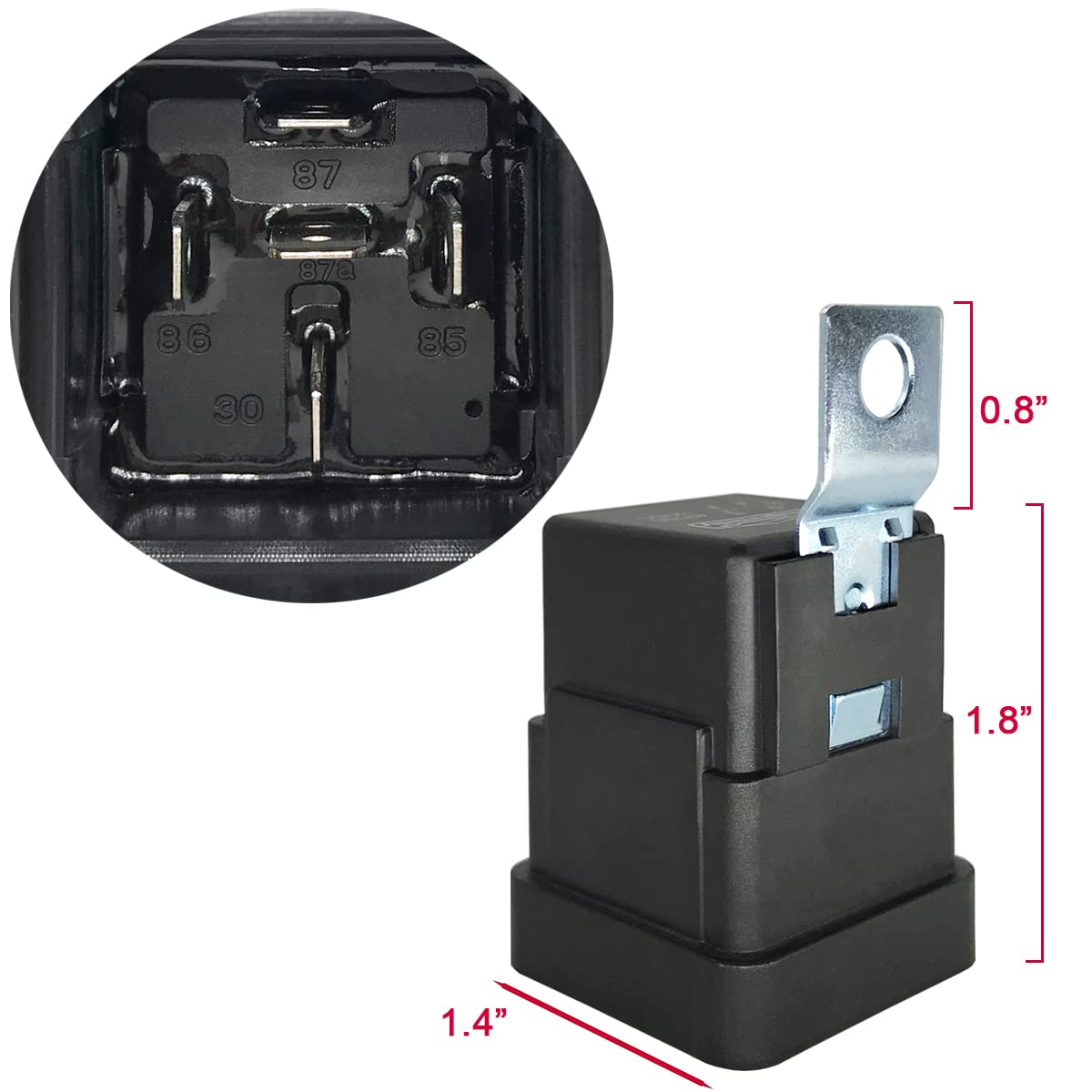

The relay is water-repellent and dustproof but not intended for full submersion. Correct socket insertion and wiring are important to avoid connector damage and preserve the sealing performance.

• Designed for water-resistance, not continuous immersion—install in protected locations
• Insert gently into sockets to avoid bending female terminals
• Use appropriate fuse or circuit protection sized below the relay’s 40A rating
• Verify wiring polarity and secure connections; tinned copper leads reduce corrosion

Who is this for: Technicians, DIY vehicle owners, and marine hobbyists who need a compact, quick‑response 12V relay for switching medium-to-high current accessories will find this iRhapsody 5-pack useful. It’s ideal when you want pre-wired leads for faster installation, robust electrical specs for demanding loads, and a water‑resistant design for harsher environments. Choose this kit when you need several identical relays for multiple circuits or spares on hand for maintenance jobs.
