islewire Smart Dryer Splitter 240V Auto Power Switch — NEMA 14-30 to 14-50, 24A Limit with 3.4" LCD and LED Ring

The islewire Smart Dryer Splitter is a plug-and-play 240V power-sharing device that automatically switches electricity from a NEMA 14-30 dryer outlet to a NEMA 14-50 EV outlet, giving you safe Level 2 EV charging without rewiring.

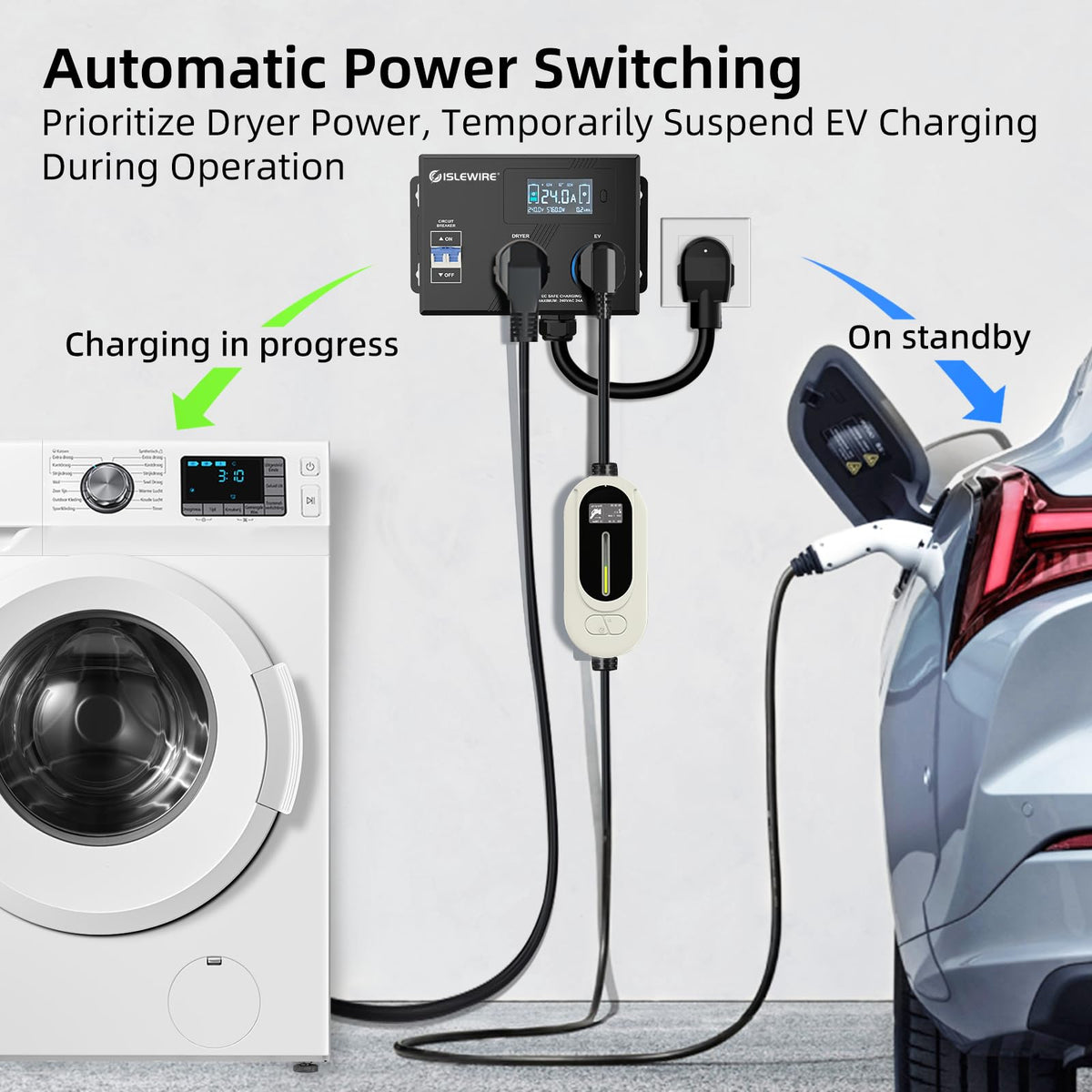

If you want to charge an electric vehicle from a household dryer outlet without upgrading your electrical panel, this smart splitter provides a fast, low-cost option. It uses an intelligent auto-switch to prioritize dryer use and then route power to your EV when the dryer cycle ends. The unit includes a 3.4-inch LCD showing live current, voltage, power, charging time, and internal temperature, plus a three-color LED ring for quick status checks.

How does this device let me charge an EV from a dryer outlet safely?

The islewire splitter is built to share one 240V circuit between a dryer and an EV charger without any household rewiring. It includes internal protections against overloads, overcurrent, and short circuits and limits charging to 24 amps for reliable operation on typical NEMA 14-30 circuits.

• Auto-switching between NEMA 14-30 (dryer) and NEMA 14-50 (EV) outlets
• 24-amp recommended charging cap to match common dryer circuit capacity
• Overload and short-circuit protection integrated
• Plug-and-play with no electrician required for most homes

Will I need to rewire or upgrade my panel to use this split outlet?

No rewiring or panel upgrade is required to use this product as intended. It plugs into an existing 240V NEMA 14-30 dryer receptacle and provides both a NEMA 14-30 outlet and a NEMA 14-50 outlet, so you can charge an EV at Level 2 speeds without altering household wiring.

• Uses existing NEMA 14-30 outlet—no installation work needed
• Designed for temporary or permanent plug-in use
• Recommended for setups where 24A charging is acceptable
• Suitable when local code permits shared-circuit solutions

How do I monitor charging and device status at a glance?

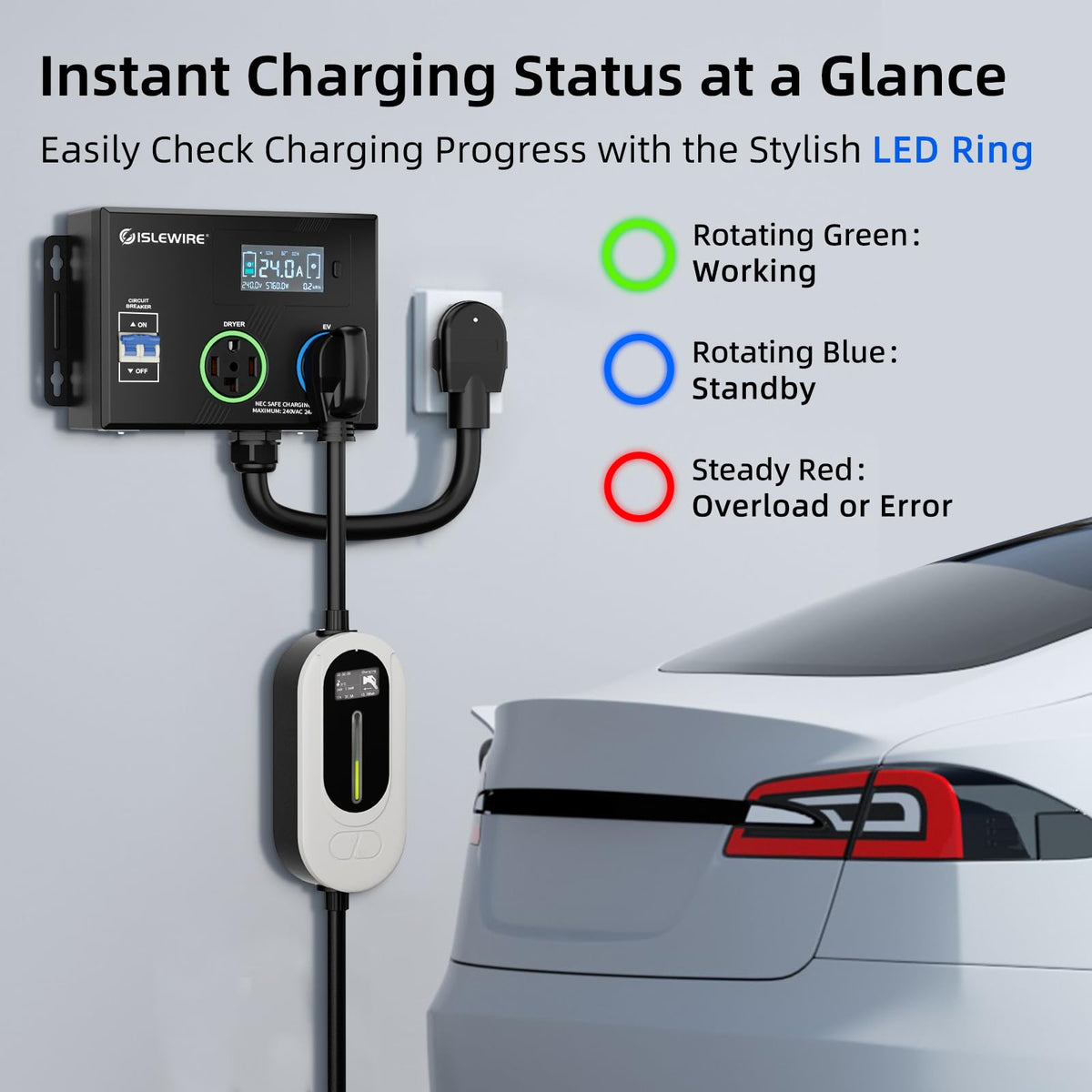

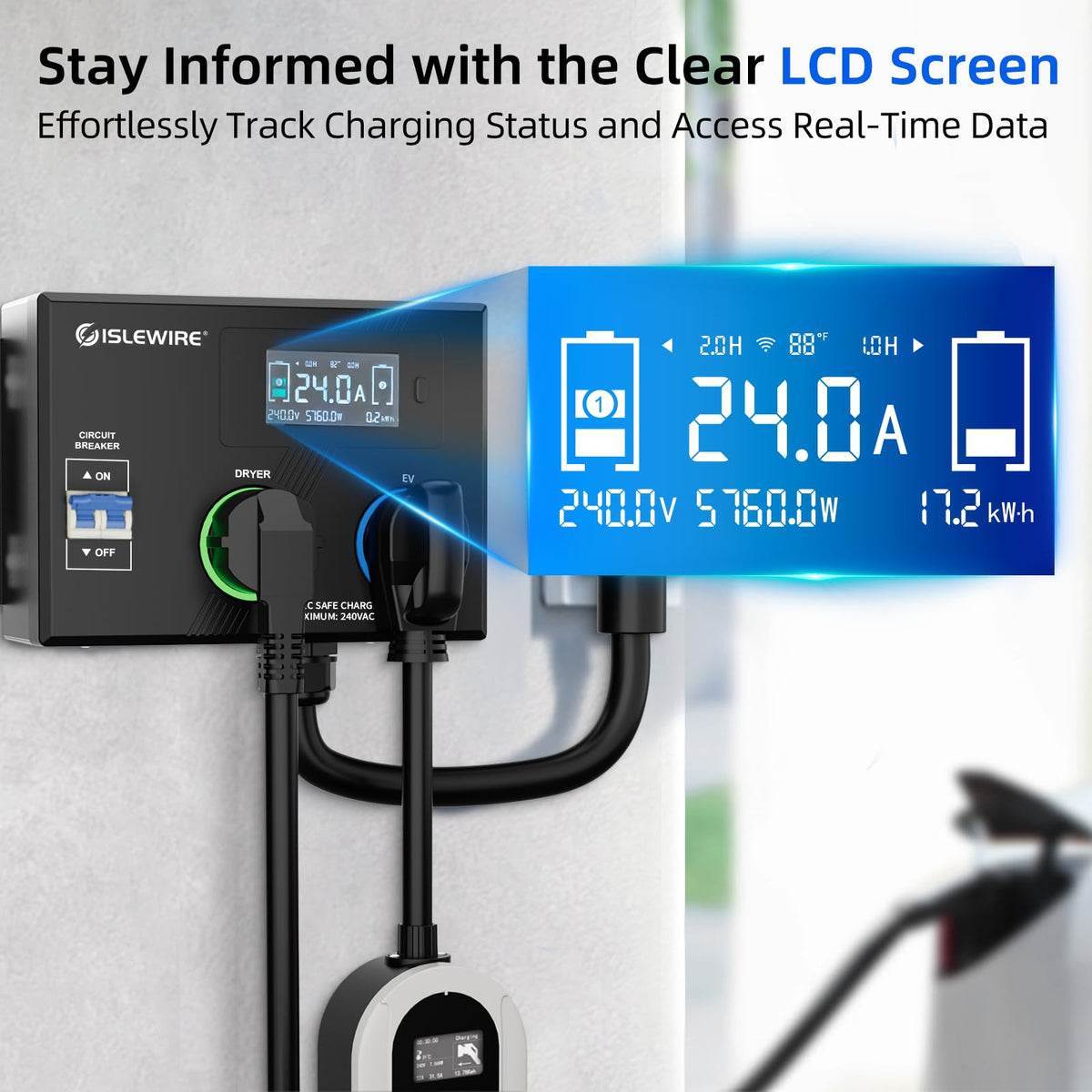

The splitter features a 3.4-inch LCD screen that shows real-time current, voltage, power, charging duration, and internal temperature. A three-color LED ring around the unit offers immediate visual cues—helpful when you’re not standing directly in front of the display.

• 3.4" LCD: live readings for amps, volts, watts, time, temperature
• 3-color LED ring: status indicators for charging, standby, or fault
• Large numerals for easy readability from a distance
• Quick fault awareness reduces guesswork during charging

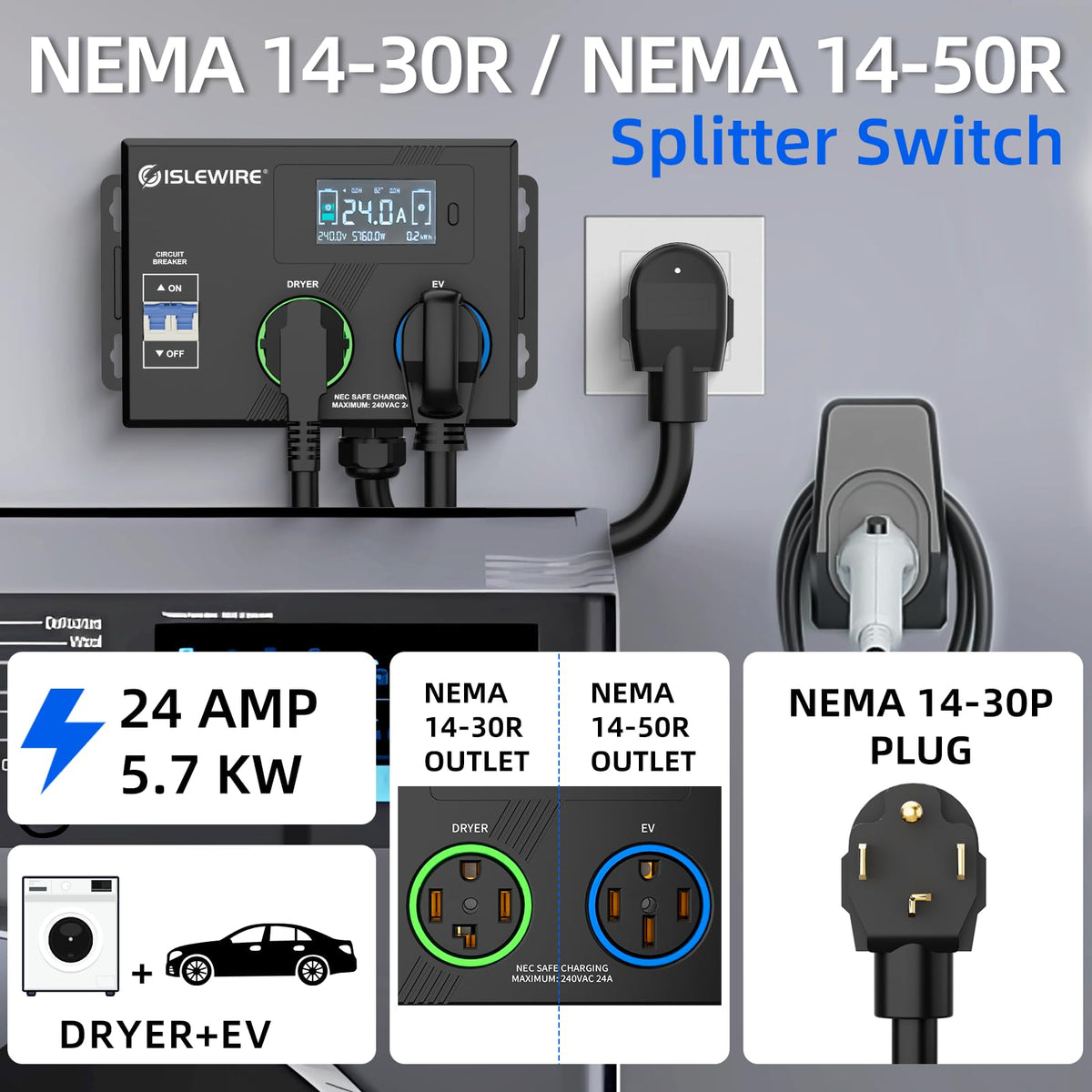

What outlets and plugs are included, and what are the limits?

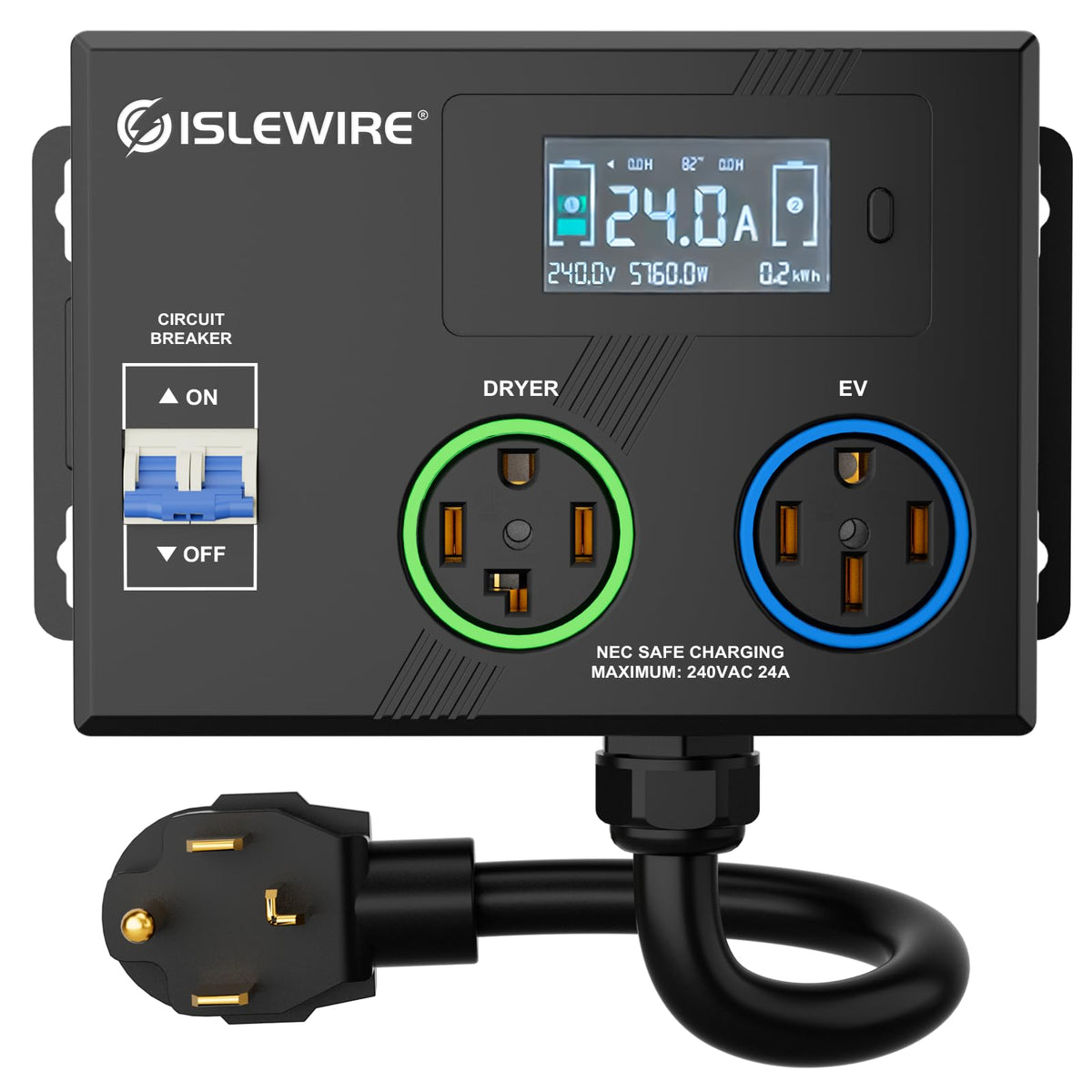

The unit plugs into a NEMA 14-30P and provides two outlets: a NEMA 14-30R (left) and a NEMA 14-50R (right). It’s intended to provide up to 24 amps for EV charging on a dryer circuit while giving priority to dryer operation to avoid interrupting laundry cycles.

• Input: NEMA 14-30P (plugs into dryer outlet)
• Outputs: NEMA 14-30R (dryer passthrough) and NEMA 14-50R (EV)
• Auto-priority: dryer outlet prioritized; EV receives power after dryer finishes
• Recommended charging limit: 24 amps for reliable performance

Who is this for? The islewire Smart Dryer Splitter is aimed at EV owners who need a low-cost, practical way to charge from an existing dryer outlet—renters, homeowners avoiding electrical upgrades, and anyone seeking a simple Level 2 charging option without permanent rewiring. It’s also useful as a temporary or secondary charging solution for households that prioritize convenience and safety while using existing electrical infrastructure. If you require continuous high-current charging or have questions about local electrical codes, consult a qualified electrician before use.
