JADODE trailer brake drum kit 10" x 2-1/4" 5-on-4.5 for 3,500 lb axles — hub, bearings & seals

JADODE's 10" x 2-1/4" trailer brake drum kit is a complete, heavy-duty 5-on-4.5" hub-and-drum assembly engineered to replace worn drums and bearings on 3,500 lb axles.

This kit brings together the drum, bearings, seals, studs and nuts in one package built for tapered spindles and common 10" drum brake systems. It’s designed to simplify rebuilds and reduce part hunting by matching the L68149/L44649 bearing pair, grease seals, and 1/2"-20 hardware to the 5 on 4.5" bolt pattern. The drums are manufactured from chrome steel with a protective coating and double-lip seals to limit corrosion and contamination in demanding towing environments.

Will this drum kit fit my trailer with a 3500 lb axle?

If your trailer axle is rated for 3,500 lbs and uses 10" x 2-1/4" drums with a 5 on 4.5" bolt pattern, this JADODE kit is specified to be a direct fit. Confirm the spindle taper, bearing part numbers, and stud thread to ensure compatibility before ordering. This kit includes inner and outer bearings commonly found on 3,500 lb hubs and the correct grease seals for those bearings.

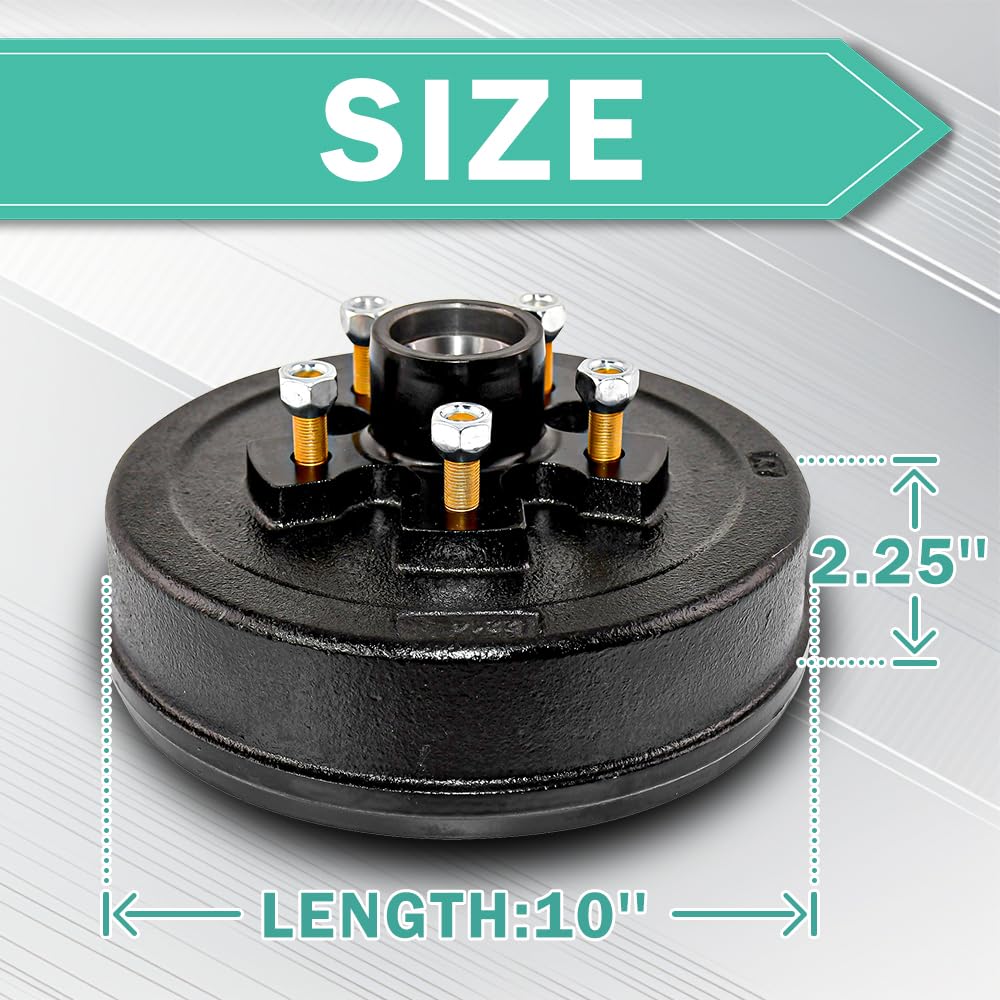

• Fits 10" x 2-1/4" drum brake applications for 3,500 lb axles

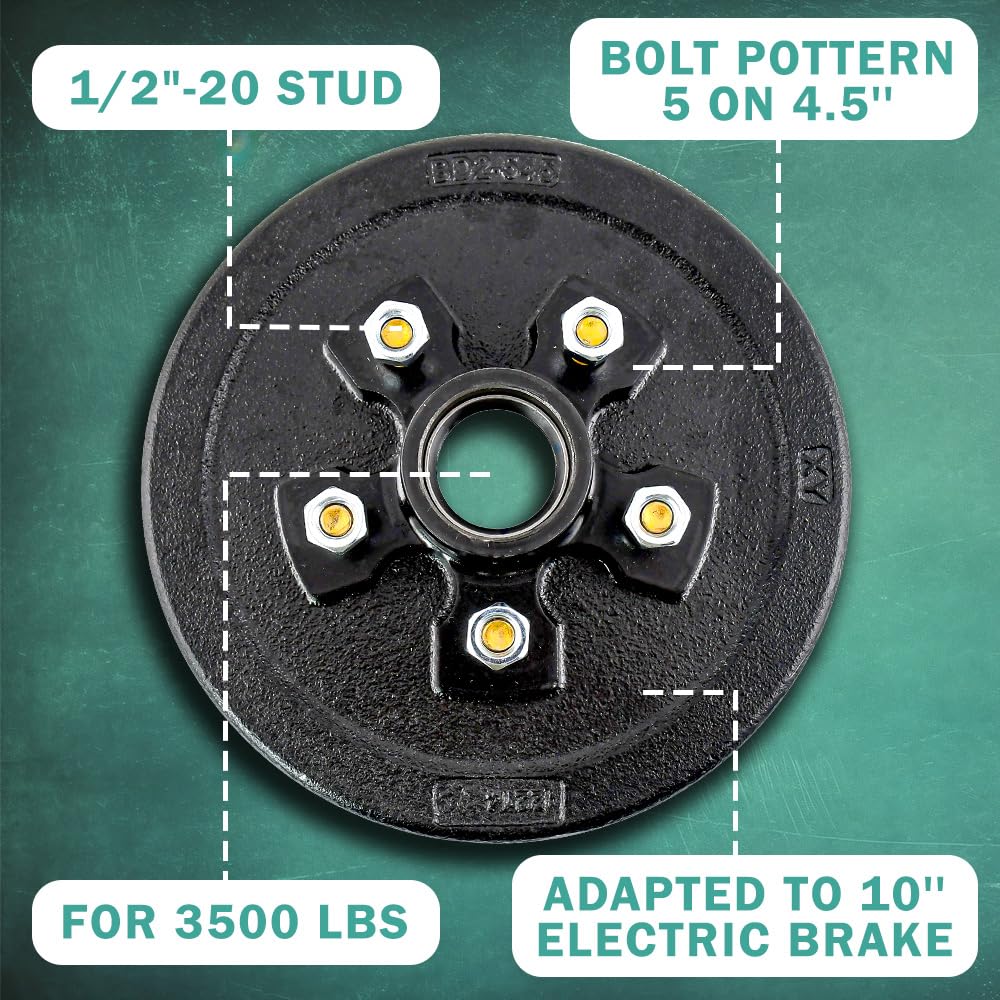

• 5 on 4.5" bolt pattern with 10 installed 1/2"-20 studs and nuts
• Includes L68149 (inner) and L44649 (outer) bearing sizes
• Designed for tapered spindle setups

What parts are included and how do they simplify a rebuild?

This is a two-drum kit that arrives with bearings pre-installed, seals, studs and lug nuts so you get the major hub components in one shipment. Having bearings and races installed saves disassembly steps and reduces the chance of mismatch. The included hardware and grease seals let you complete a hub rebuild without sourcing multiple separate items.

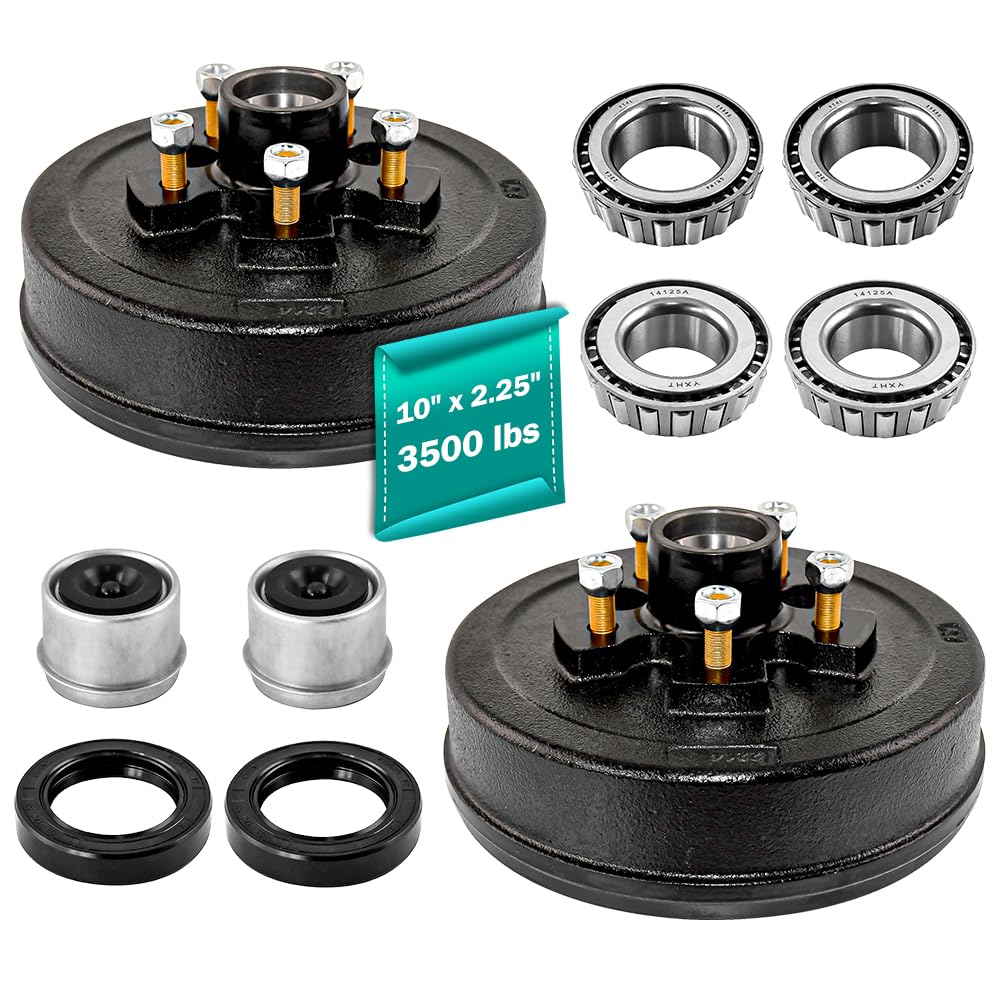

• Set of 2 complete drum/hubs with installed bearing races
• 2x inner bearings (L68149 / L68111) and 2x outer bearings (L44649 / L44610)
• 2x grease seals (1.719" x 2.565") included
• 10 preinstalled 1/2"-20 studs with matching nuts for both hubs

How durable and corrosion-resistant are these hubs?

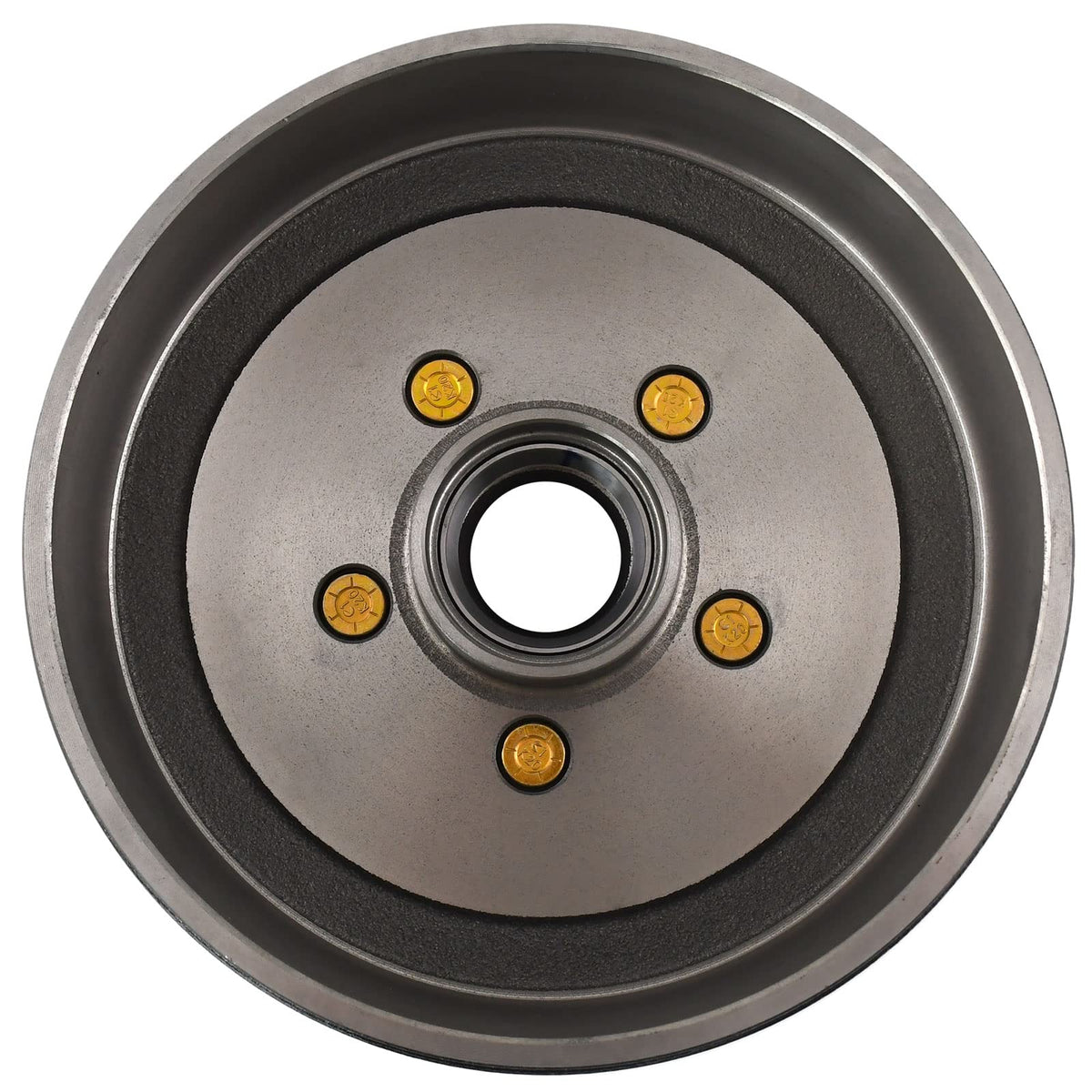

JADODE builds these hubs from chrome steel and applies a protective coating to slow oxidation and wear. Double-lip seals improve retention of grease and help keep dirt and water out of bearing surfaces, which extends service life in wet or salty conditions. For maximum longevity, combine the kit with correct assembly torque and periodic maintenance.

• Chrome steel construction for strength and wear resistance
• Protective coating to reduce rust formation
• Double-lip seals improve grease retention and particle exclusion
• Preinstalled races reduce handling and installation risks

What should I check before installing this kit?

Before installing, verify your spindle taper, measure hub bore and confirm the bolt pattern is 5 on 4.5". Inspect trailer brakes (electric or hydraulic) for shoe wear and backing plate condition because drums alone do not replace brake hardware. Use the specified bearing numbers and torque settings during installation to ensure safe operation.

• Confirm spindle taper and compatibility with L68149/L44649 bearings
• Verify 5 on 4.5" bolt pattern and 1/2"-20 stud thread
• Inspect brake shoes, backing plates, and hub hardware before assembly
• Follow manufacturer torque and adjustment specifications when installing

Who is this for: This JADODE drum kit is aimed at DIY trailer owners, fleet operators, and repair shops that service 3,500 lb axles and need a reliable, all-in-one hub replacement. It fits trailers using 10" x 2-1/4" drums and tapered spindles where matching the L68149 and L44649 bearing family is required. Choose this kit when you want pre-fitted races, complete mounting hardware, and corrosion resistance in a single, convenient package.
