JAVIK Rear Drum Brake Rebuild Kit for Honda Recon 250 TRX250 (1997–2022) — Shoes, Bearing & Seals

Complete rear drum brake rebuild kit for Honda Recon 250 and compatible TRX250 models, including shoes, bearing, seals, springs and O-ring to restore braking performance.

This JAVIK kit gathers all the rear-drum components you need to service or restore the brake assembly on Honda Recon 250 TRX250TE/TM (1997–2022), TRX250EX (2001–2008) and TRX250X (2009–2022). Parts are made from durable materials — steel bearings, rubber seals and non-asbestos friction brake shoes — and are supplied together so you can replace worn items in one garage session. The kit follows OEM fitment references to make installation straightforward for experienced DIYers and mechanics.

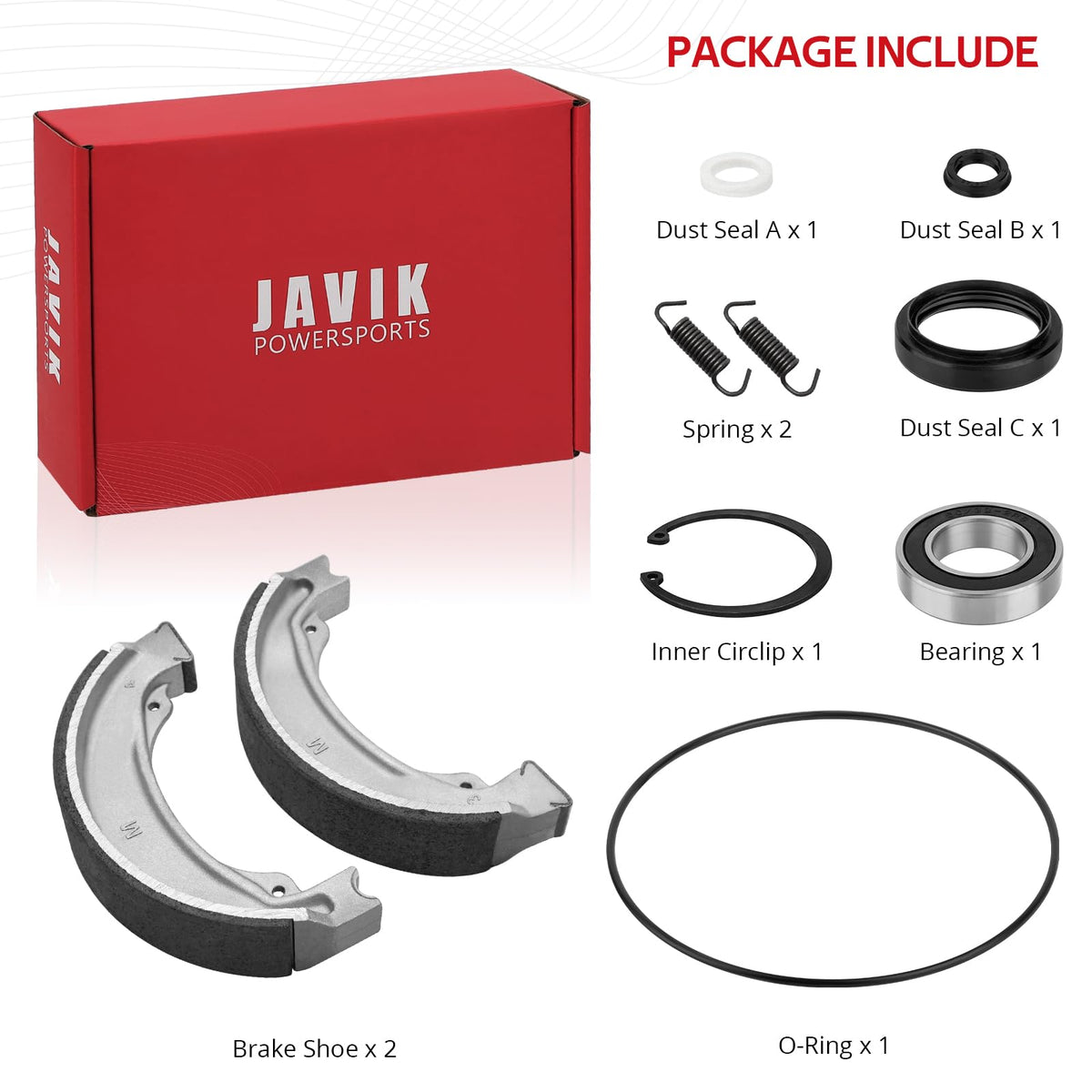

What parts are included and how do they match OEM references?

The kit contains every component typically replaced during a rear drum brake overhaul so you won’t need to source extras. JAVIK lists OEM-compatible numbers to help confirm fit for your model and year.

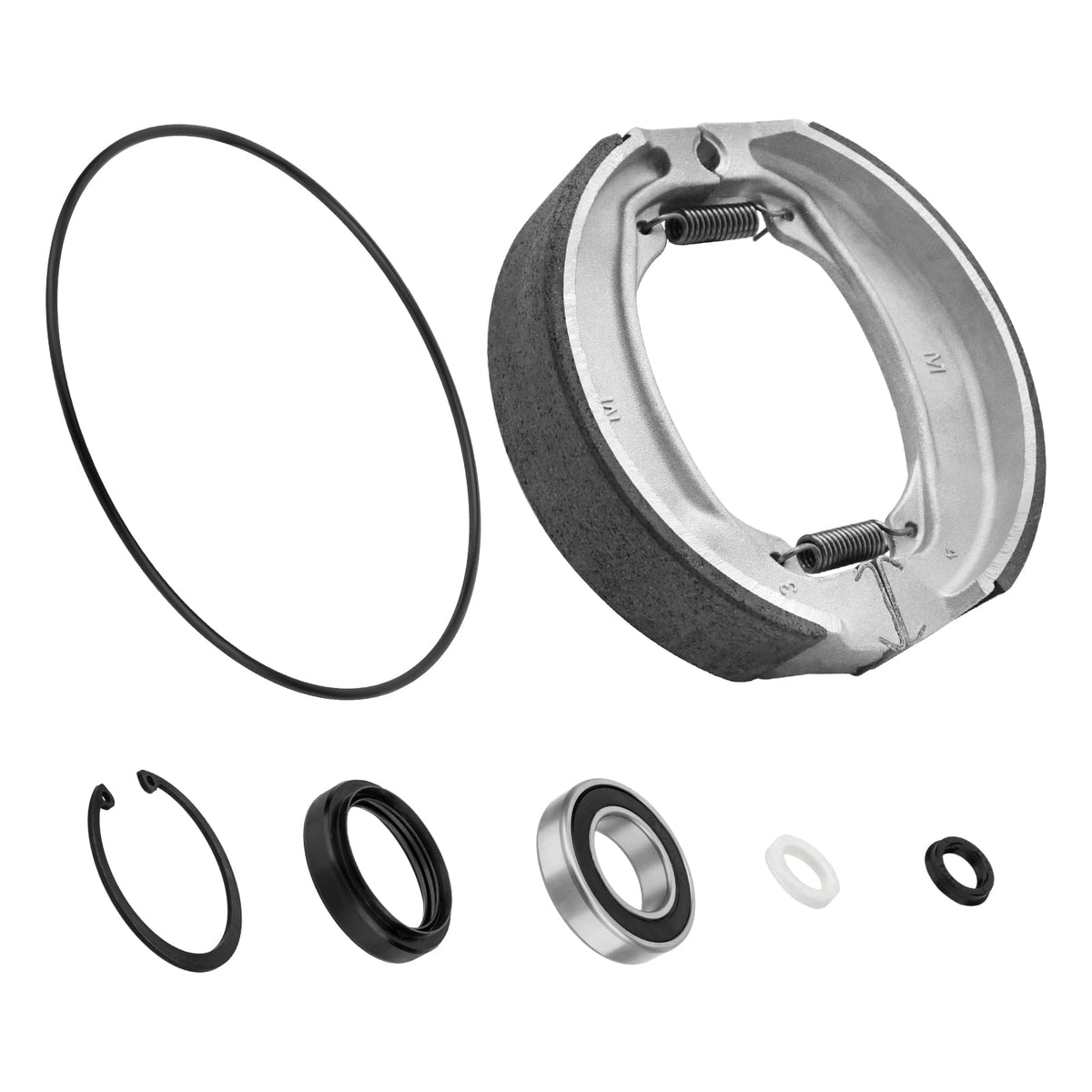

• 2 brake shoes (non-asbestos friction) designed to match OEM contact profiles
• 2 return springs and 1 steel bearing for the drum hub
• Inner circlip, 1 O-ring and three dust seals (A, B, C) to protect the bearing and axle area
• OEM references included: 91055-HA0-681, 91355-HM8-003, 06430-HM8-A10 (plus replacement numbers)

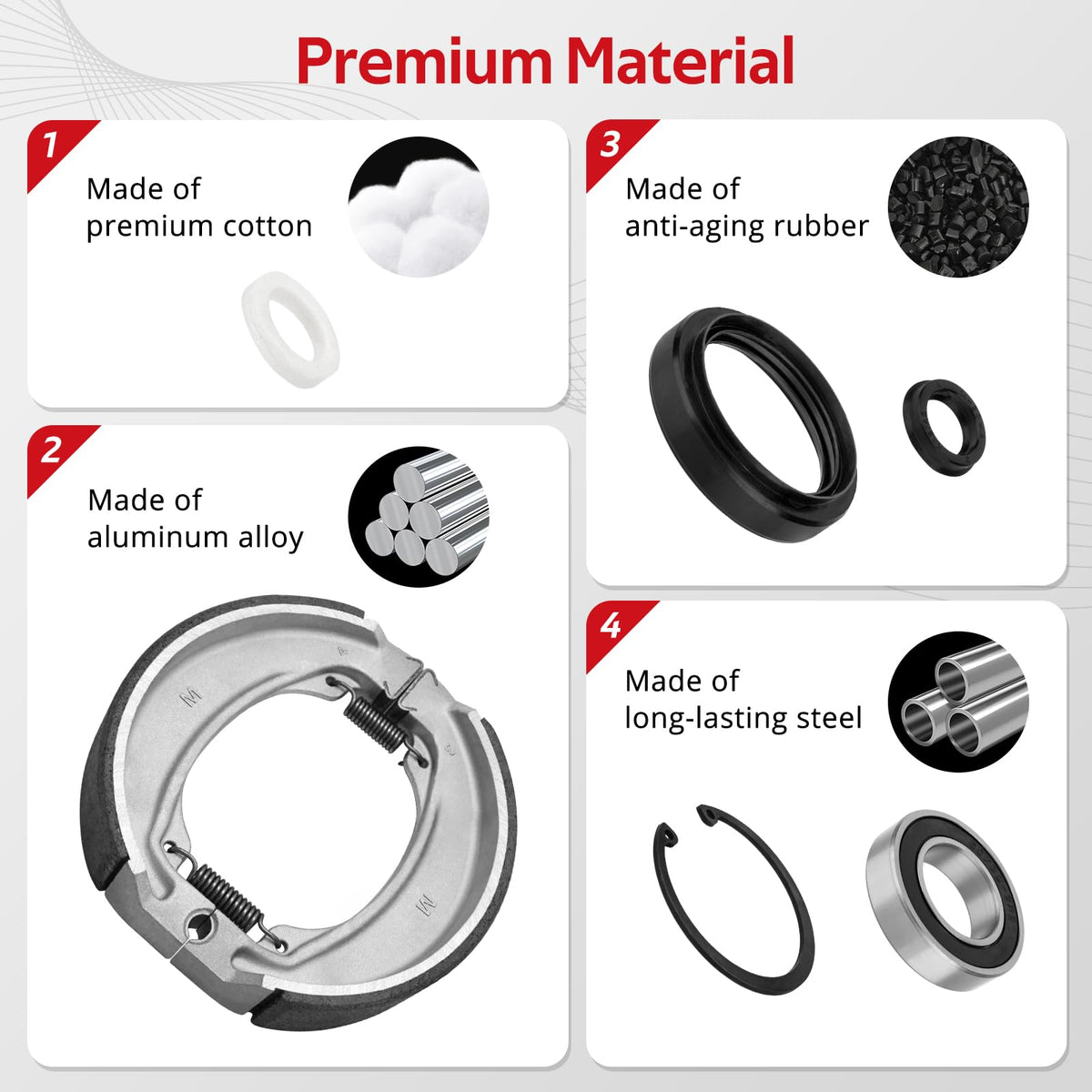

How does material choice affect durability and braking feel?

Materials are chosen to balance longevity, corrosion resistance and consistent friction. The bearing uses hardened steel for load life, while seals and the O-ring are rubber compounds that resist oil and grime.

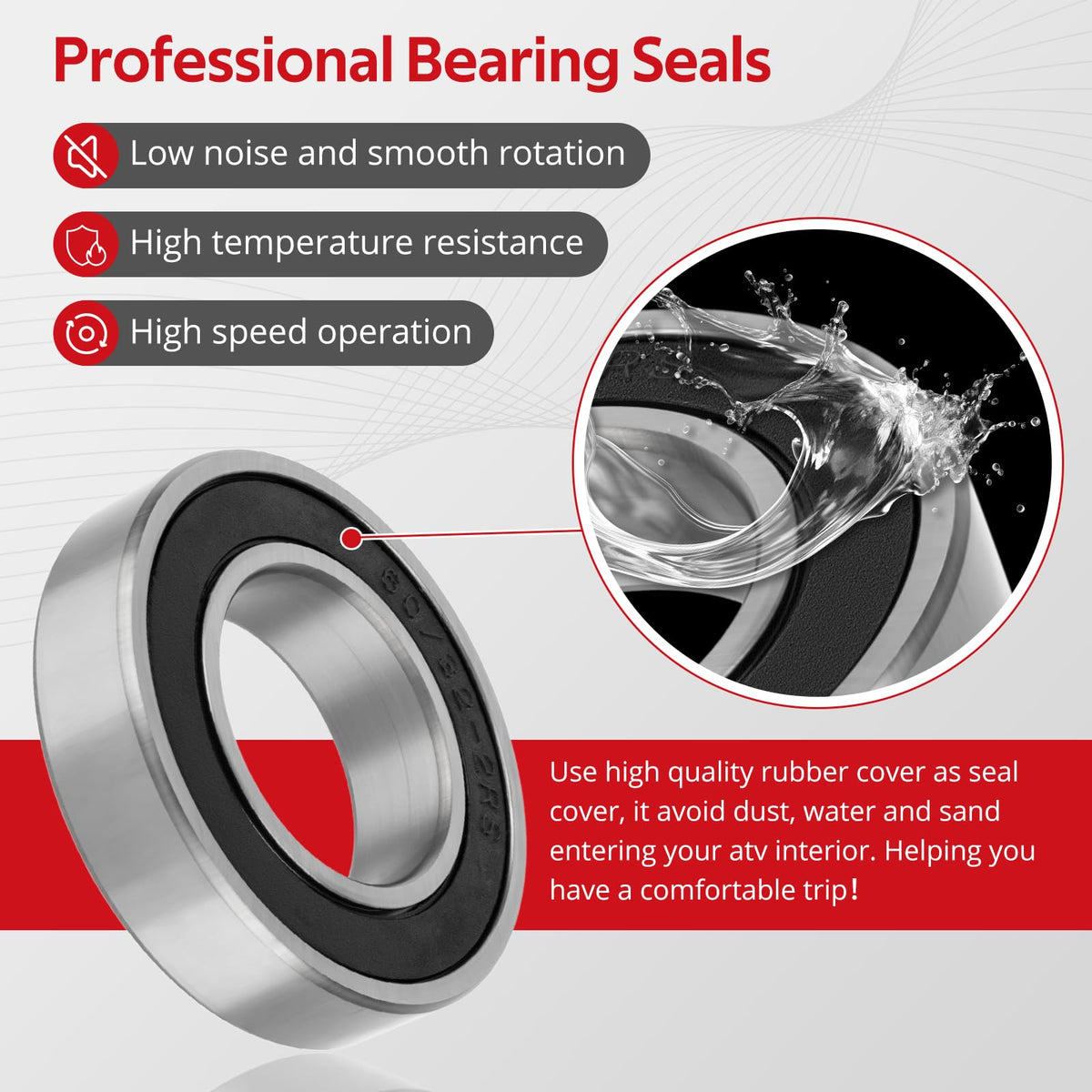

• Steel bearing for reliable rotation and long service intervals
• Rubber dust seals to keep contaminants away from the hub and bearing

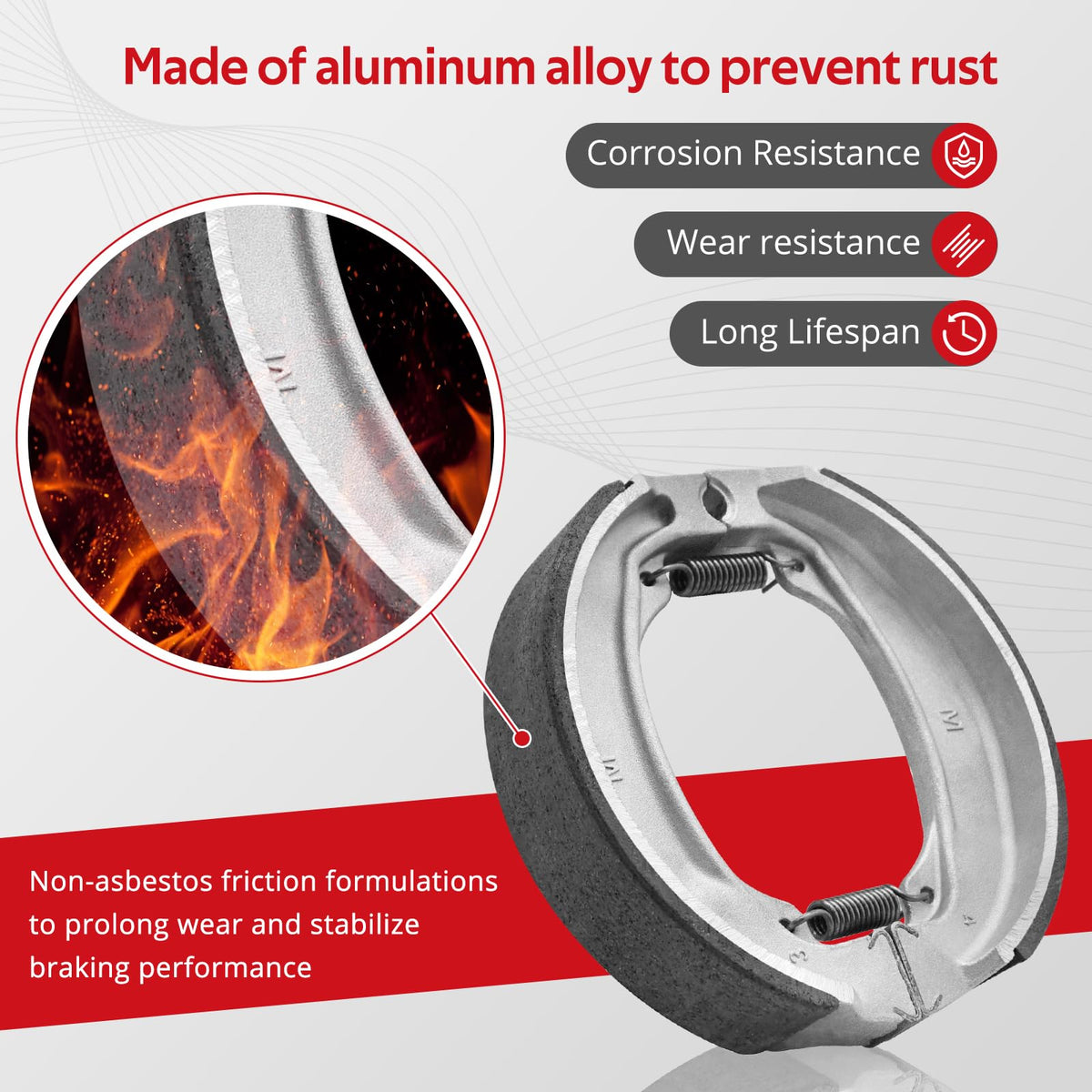

• Non-asbestos brake shoe friction to provide steady, predictable stopping power
• All-new steel construction on hardware for longer life than reused parts

Will this fit my specific Honda Recon or TRX250 model year?

The kit covers a wide span of model years, but fitment can vary by submodel and production changes. Verify your vehicle’s year and part numbers before ordering to ensure compatibility.

• Fits Recon 250 TRX250TE/TM models from 1997 to 2022
• Compatible with TRX250EX (2001–2008) and TRX250X (2009–2022)
• Check stamped OEM numbers or consult service manual if uncertain
• Contact JAVIK support for help confirming fitment details

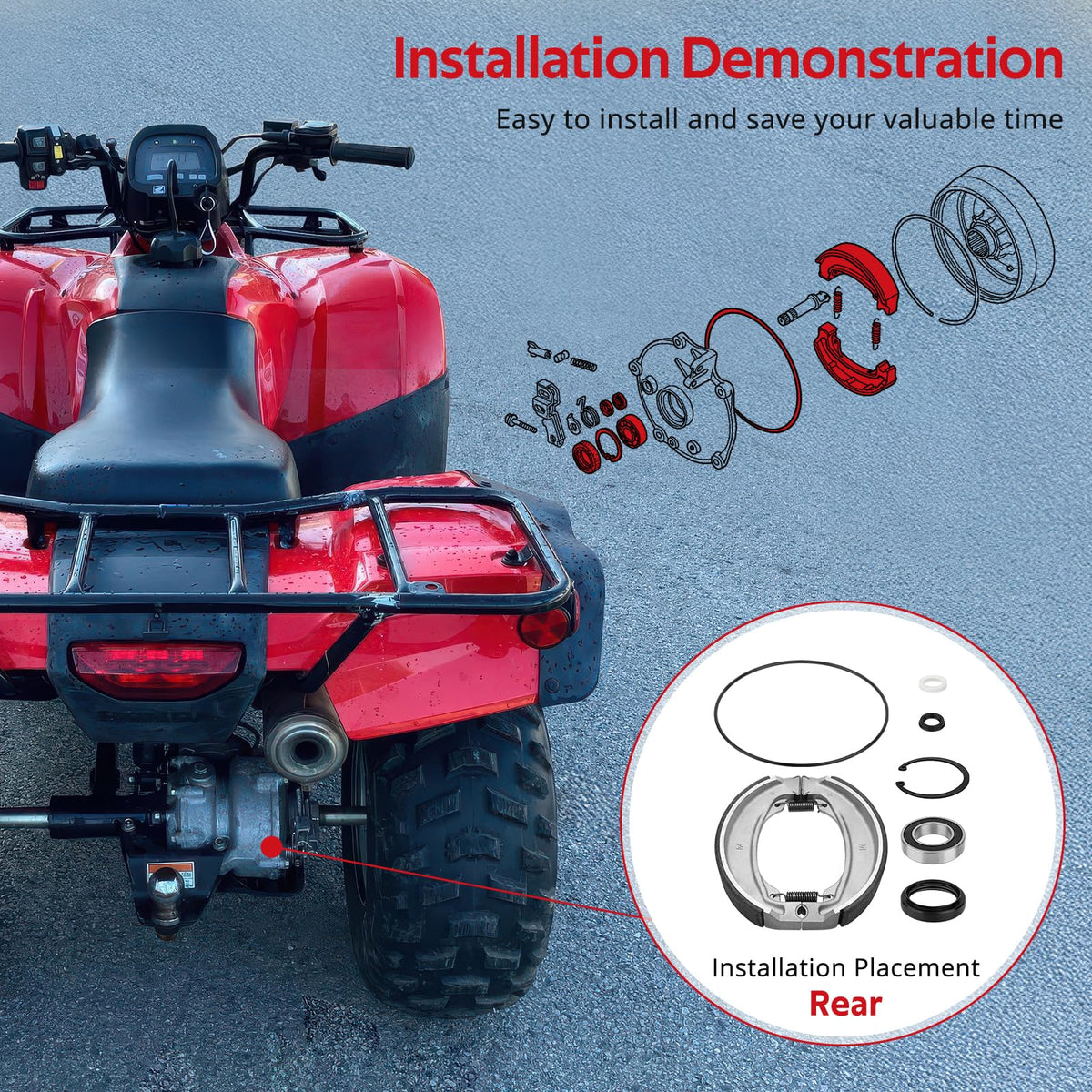

How easy is installation and what tools or tips help?

Installation is moderate in difficulty and assumes familiarity with rear drum assemblies, wheel removal and bearing press or pull techniques. Basic hand tools plus a bench vise or bearing driver will make the job smoother.

• Required tools: socket set, pliers, circlip pliers, torque wrench, bearing driver or press
• Clean the hub and inspect axle threads; replace any damaged hardware
• Apply grease to bearing surfaces and seat dust seals flush to prevent leaks
• Check brake shoe adjustment after assembly and bed brakes per manufacturer guidance

Who is this for: This JAVIK rear brake drum kit suits owners, mechanics and restoration projects for Honda Recon 250 and TRX250 variants who want a full replacement package rather than piecemeal parts. If you are performing routine maintenance, fixing seeping seals, replacing a noisy bearing, or refurbishing an older ATV, the kit supplies the commonly required items. JAVIK also provides 24-hour customer service and a one-year product service window for post-sale support.
