JDLLONG CRF70 Carburetor Kit for Honda XR70/CRF70 1997-2012 — Includes Air Filter, Spark Plug & Fuel Petcock

JDLLONG CRF70 carburetor kit is a complete replacement assembly designed to restore fuel delivery for Honda XR70 and CRF70 models from 1997–2012, including essential consumables for installation and tuning.

If your small-displacement Honda dirt bike is running rough, bogging, or leaking fuel, swapping in a full carburetor kit can save time and eliminate multiple intermittent faults. This JDLLONG kit replaces part number 16100-GCF-672 and arrives with a carburetor body plus practical extras — spark plug, air filter, fuel petcock, fuel lines, clamps, a fuel filter, and a small cleaning tool set — so you have everything needed for a straightforward repair or refresh.

Will this carburetor fit my XR70 or CRF70?

Yes. The JDLLONG unit covers the common model years and mounting dimensions for these Honda minibikes. Check both year range and physical fit before purchase to be certain of compatibility.

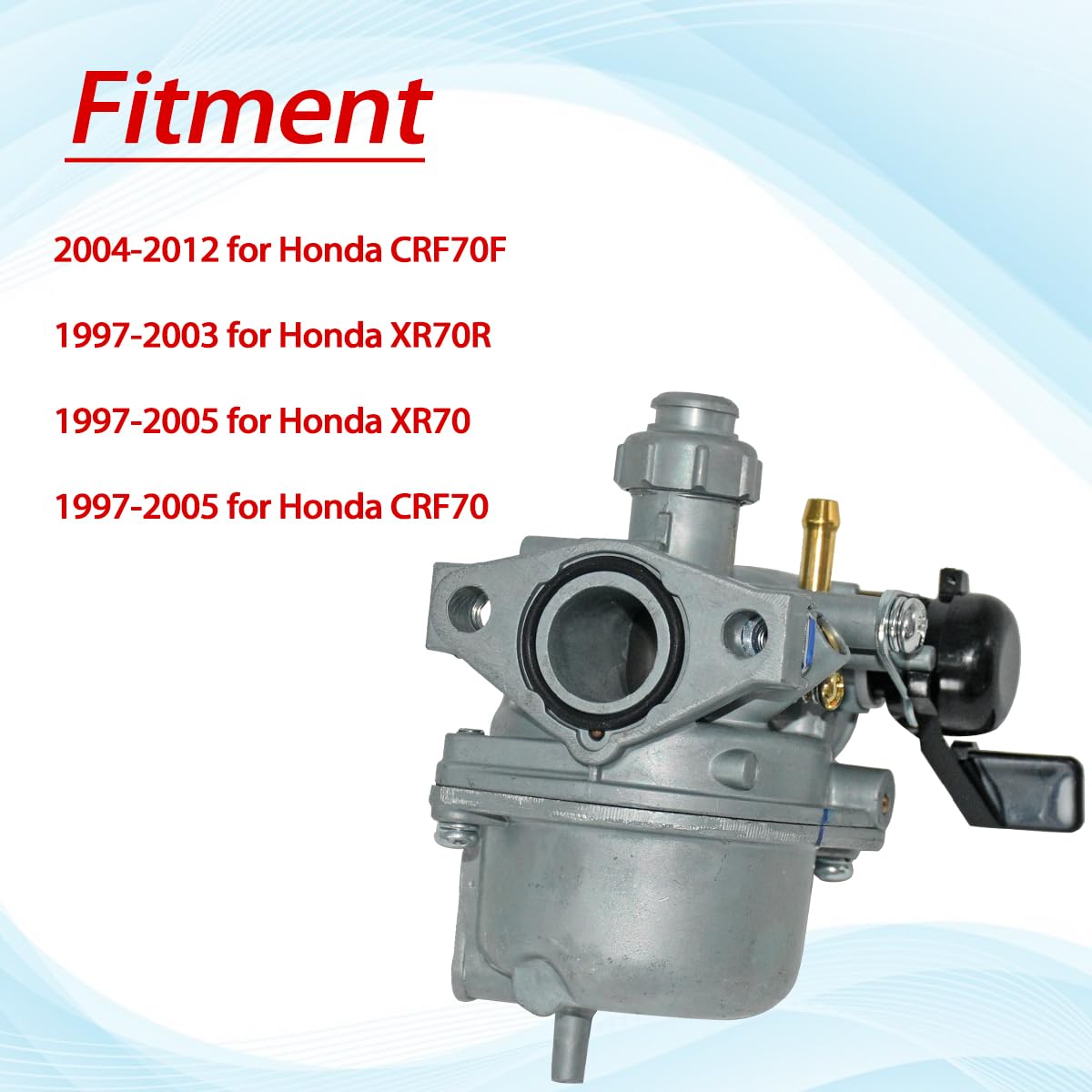

• Compatible models: Honda CRF70F (2004–2012), XR70R (1997–2003), XR70 and CRF70 (1997–2005)
• Interchange part: 16100-GCF-672 — matches the OEM reference number

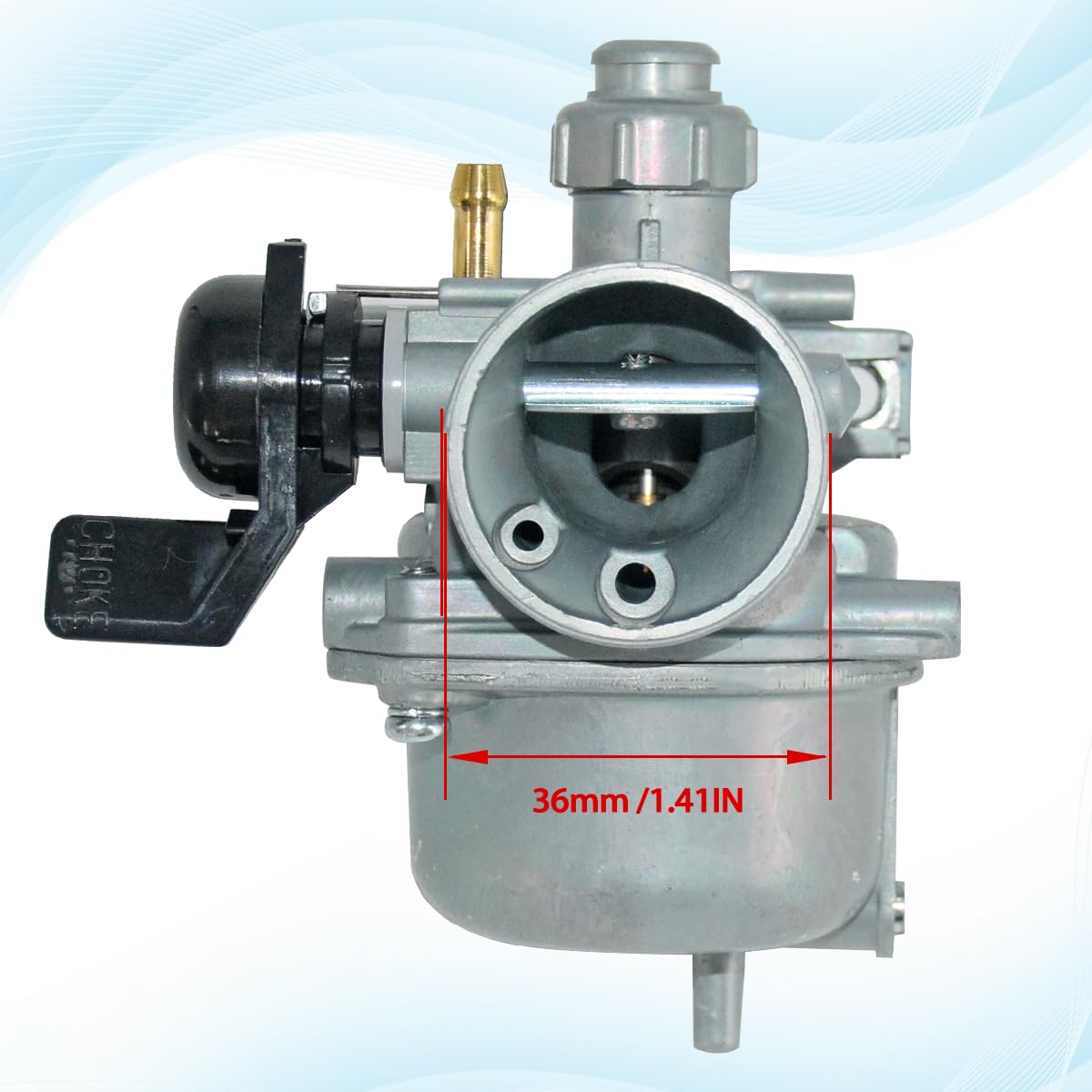

• Air filter mount outside diameter: 35 mm (1.38 in)

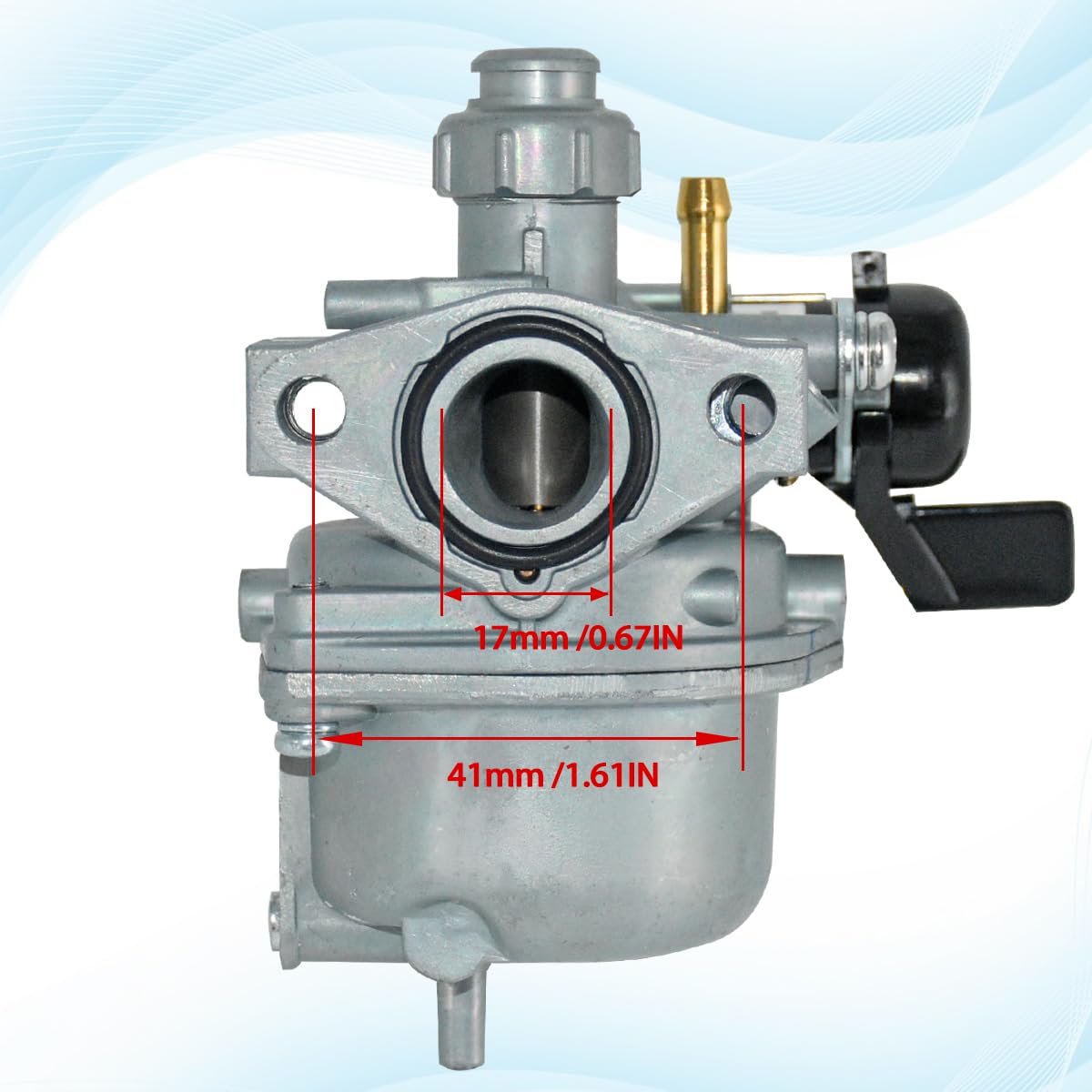

• Bolt hole spacing: 42 mm (1.65 in) for mounting alignment

What components come with the replacement carburetor?

The kit includes the main carburetor and a set of useful replacement parts to speed installation and reduce follow-up trips to the parts store. Everything is packaged to get the bike back on the trail after a single service session.

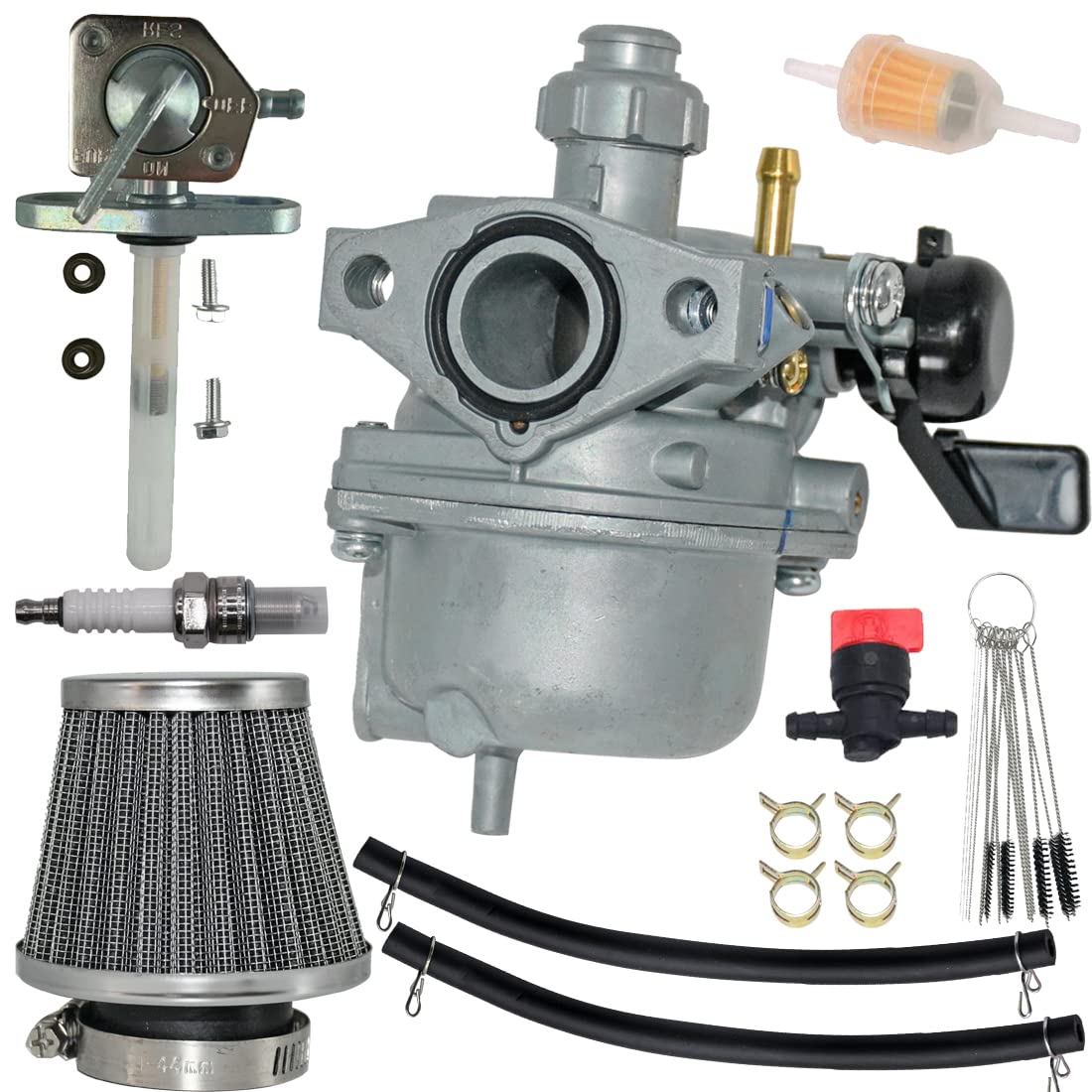

• 1 x JDLLONG CRF70 carburetor body

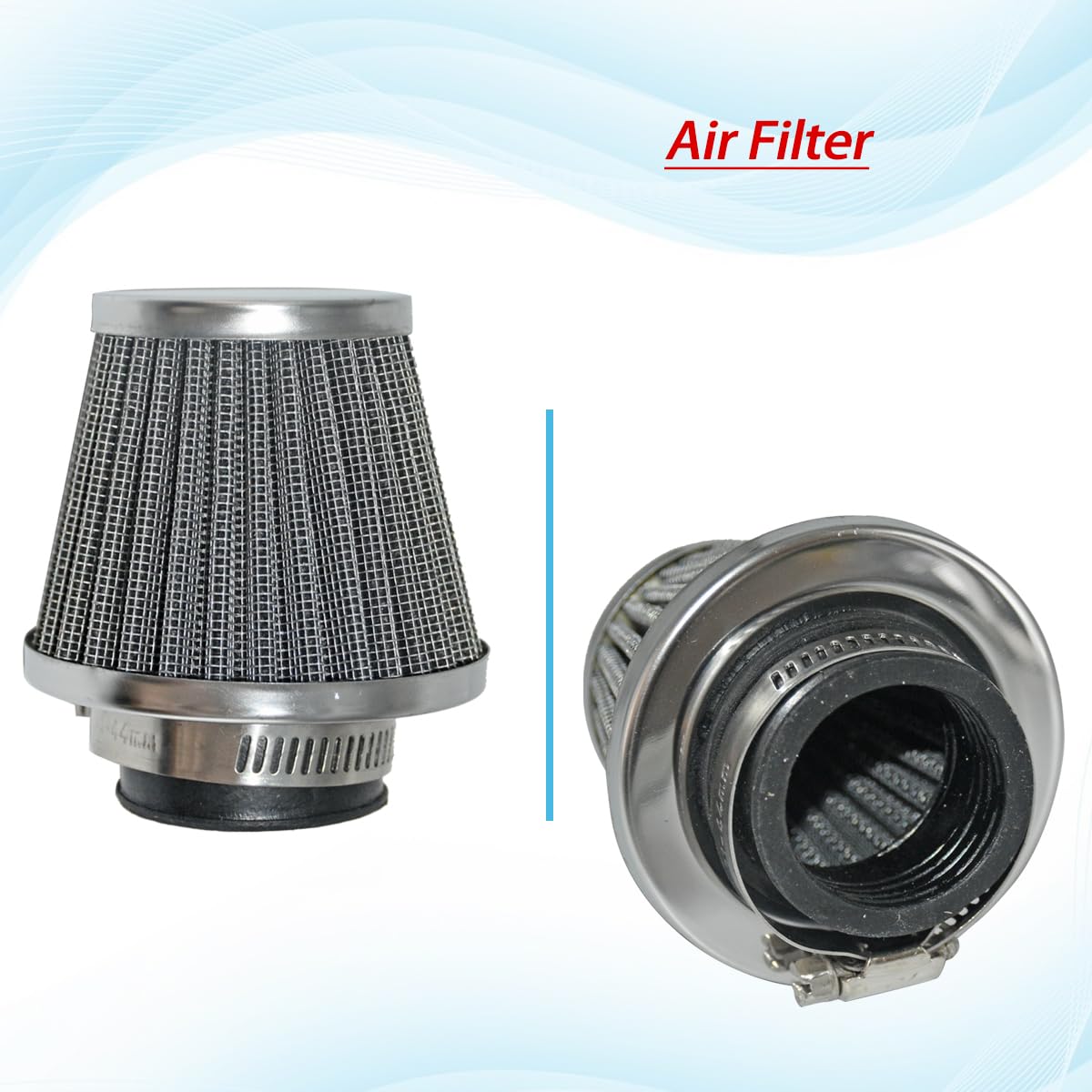

• 1 x spark plug and 1 x aftermarket air filter for breathing and ignition

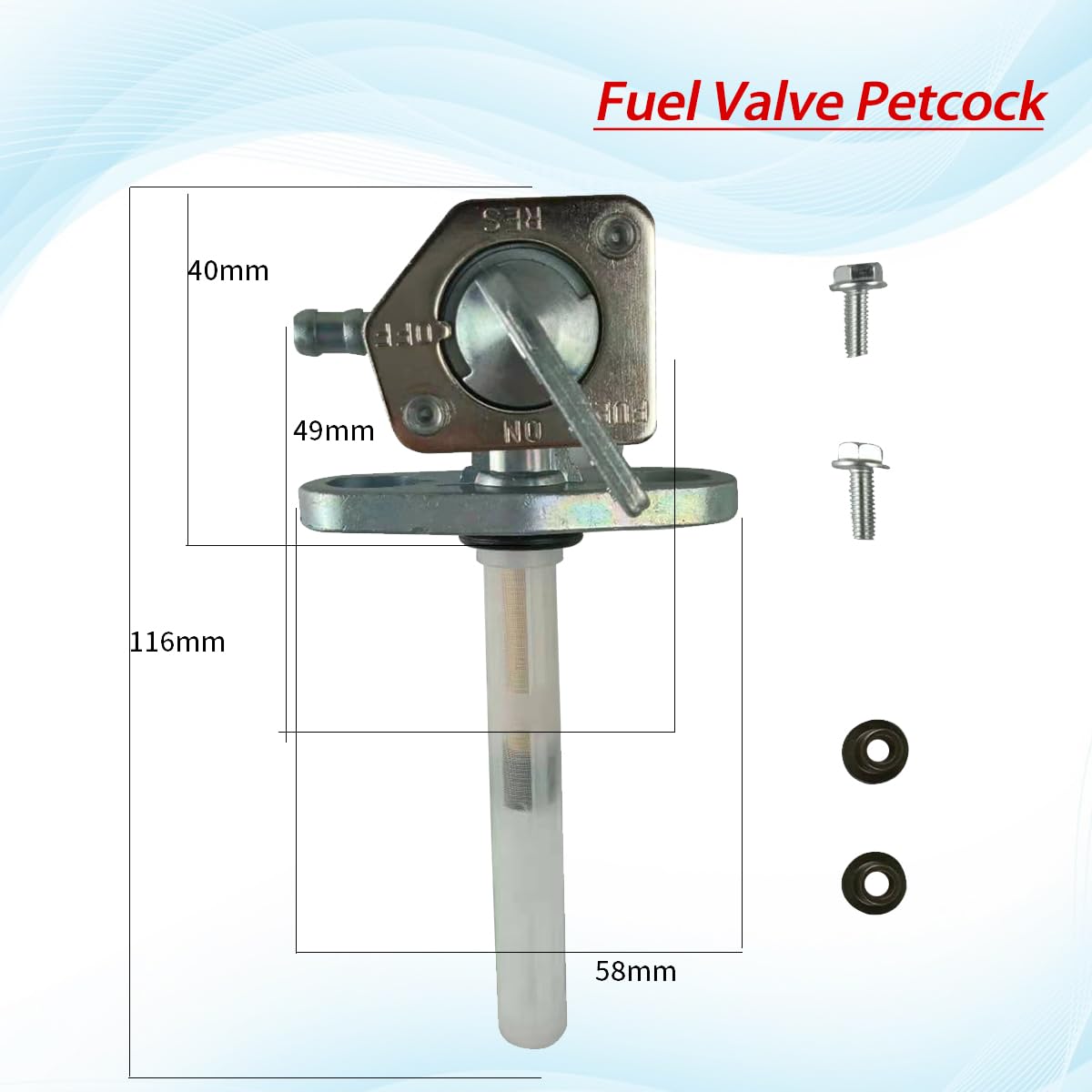

• 1 x gas fuel tank petcock (fuel shut-off valve) plus 1 x inline shut-off valve
• 2 x fuel lines, 1 x fuel filter, 4 x hose clamps, and a carbon dirt jet cleaning tool kit

How will this affect performance and maintenance?

Installing a fresh carburetor and new consumables often improves throttle response, reduces hesitation, and eliminates fuel leaks from old fittings. It also provides a clean baseline for tuning the idle, fuel mixture, and choke functions.

• Cleaner fuel delivery if old carb was clogged or varnished
• New air filter reduces intake dirt and helps consistent mixture
• Included petcock and lines prevent leaks from aged components
• Jet cleaning tool lets you maintain or adjust jets during tune-up

Are there installation tips I should know?

Basic mechanical skills and a few hand tools are sufficient to replace the carburetor. Work in a well-ventilated area, drain or control fuel flow, and verify seals and clamps after first run.

• Shut off fuel and remove tank to access carburetor safely
• Match bolt hole spacing (42 mm) and air filter OD (35 mm) before mounting
• Check and set float level and pilot jet if tuning is necessary
• Start engine and inspect for fuel or air leaks; re-tighten clamps as needed

Who is this for: The JDLLONG CRF70 carburetor kit is built for riders, hobbyists, and small-engine mechanics restoring or maintaining Honda XR70 and CRF70 minibikes. It suits owners who want a one-purchase solution that includes a replacement carburetor plus spark plug, air filter, petcock, fuel lines, clamps, and a cleaning tool for immediate installation and initial tuning. If you need OEM-compatible fitment with basic extra parts to reduce downtime, this kit provides a practical, cost-effective option.
