JDMSPEED 12" Slim Universal Electric Radiator Fan 12V Push/Pull, 800+ CFM, 2.5" Thin

This slim 12-inch cooling fan from JDMSPEED is built for universal radiator, intercooler, and engine-bay applications on cars, trucks, RVs and light commercial vehicles. The reversible blade design lets the unit be configured as a pusher or puller, and the included hardware and mount kit help simplify installation. Rated at 80W and drawing no more than 7.5 amps, the fan balances airflow performance and compact size for tight engine compartments.

How does the reversible push/pull feature work and why does it matter?

The JDMSPEED fan uses a flip-over blade arrangement and reverse wiring to switch between pulling air through the radiator and pushing air toward it. This flexibility allows you to match the fan orientation to your vehicle’s cooling strategy, whether you need directed airflow or extraction behind the radiator. Reversibility also makes the fan a direct replacement for many OEM units.

• Flip blade orientation to change from pull to push
• Reverse wiring swaps rotation direction for installation flexibility
• Serves as replacement for many stock fans due to universal sizing

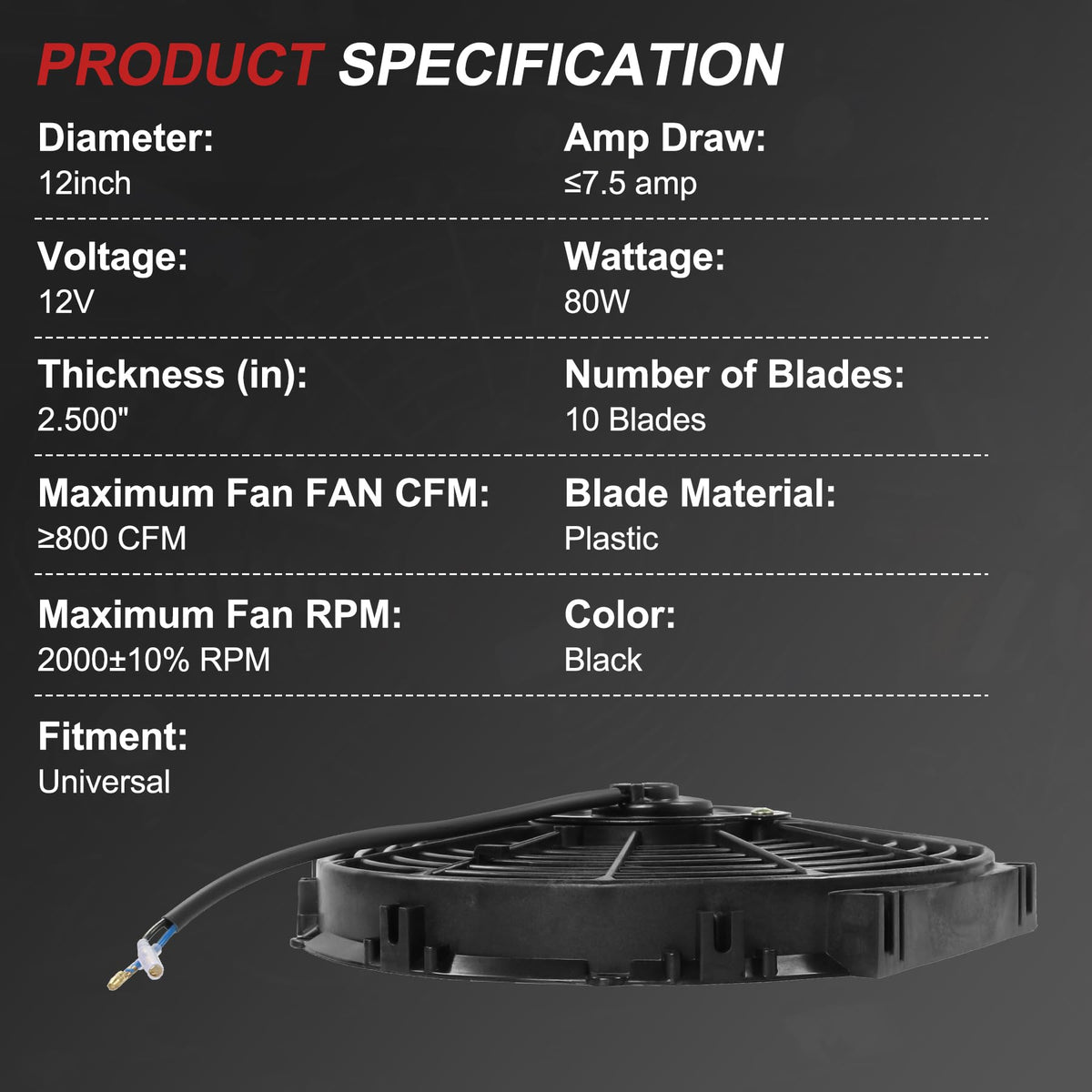

What are the performance and electrical specifications?

The fan delivers a maximum airflow of at least 800 CFM with a top speed around 2000 RPM (±10%). It operates on standard 12V systems and consumes up to 7.5 amps, producing roughly 80 watts of power. The slim 2.5" thickness helps maintain clearance in tight engine bays while still moving a strong volume of air.

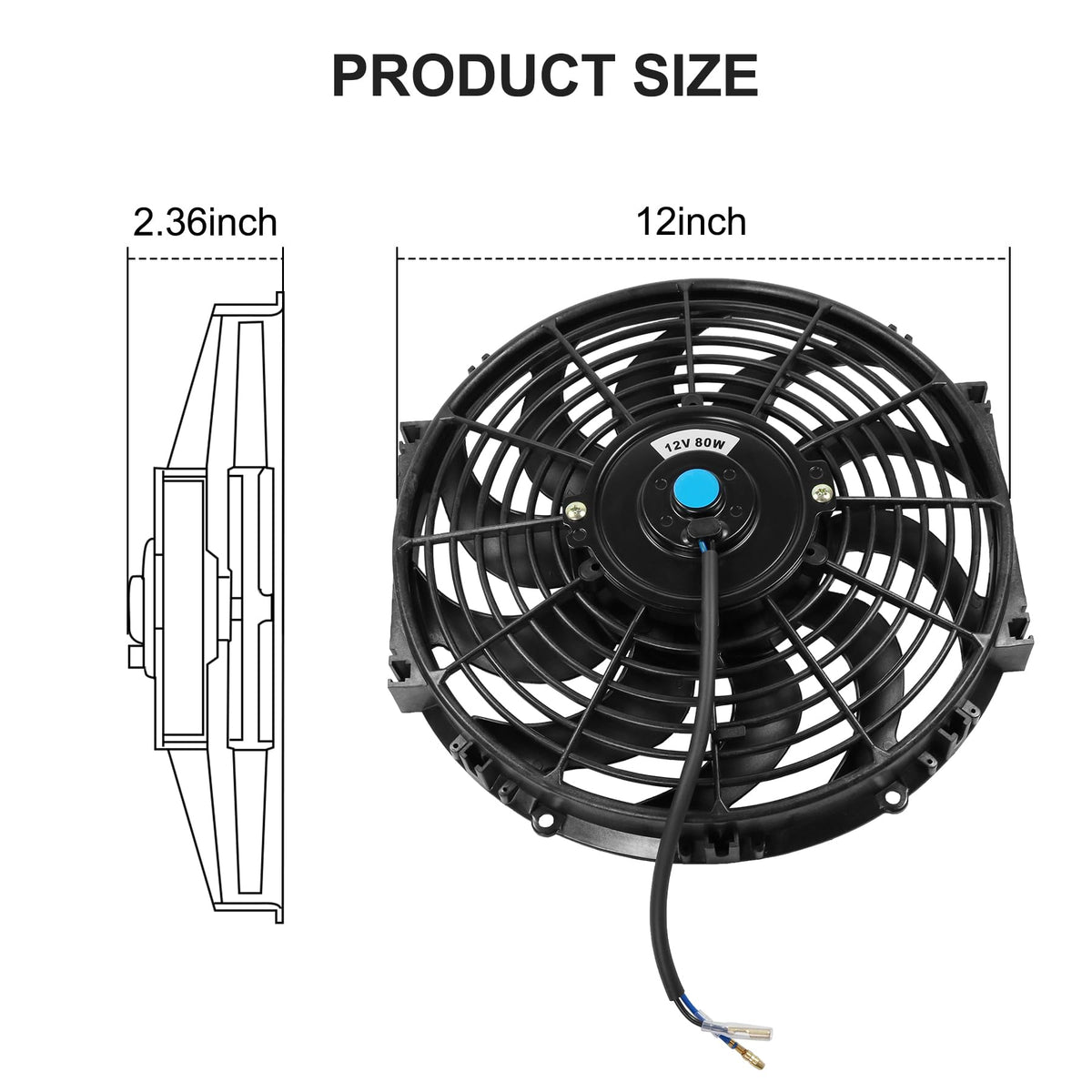

• Diameter: 12 inches; thickness: 2.5 inches for tight-fit applications
• Max CFM: ≥800; Max RPM: ~2000 ±10%
• Electrical: 12V, ≤7.5 A, 80 W power draw

What materials and build details should I expect?

The fan uses a durable plastic blade assembly with ten blades shaped for efficient airflow. The lightweight construction reduces added mass compared with some OEM units, while corrosion and heat-resistant materials extend service life in demanding engine environments. A complete mounting kit and hardware are included for easier fitting to a wide range of radiators and intercoolers.

• Blade material: engineered plastic with ten high-efficiency blades
• Lightweight, corrosion- and heat-resistant construction

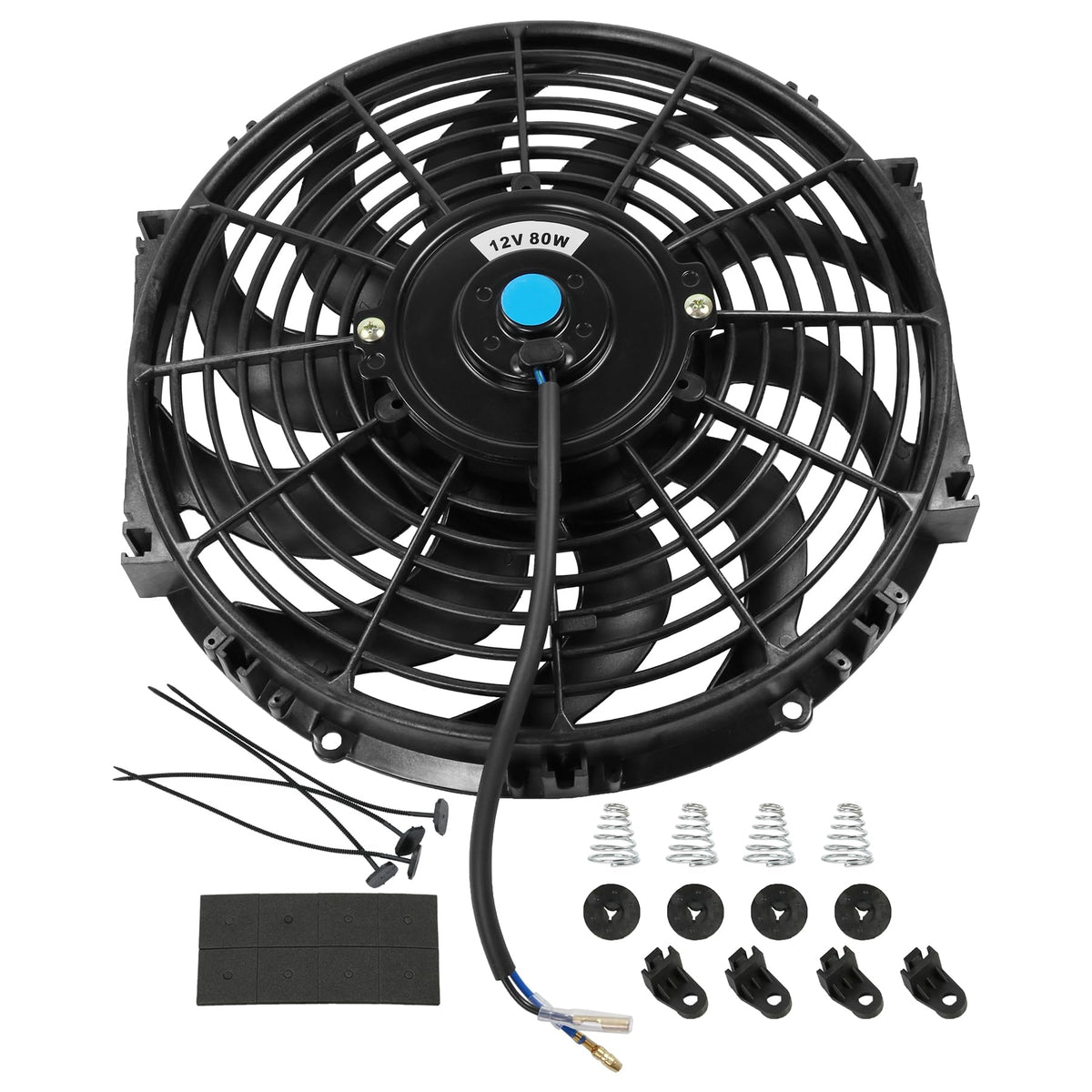

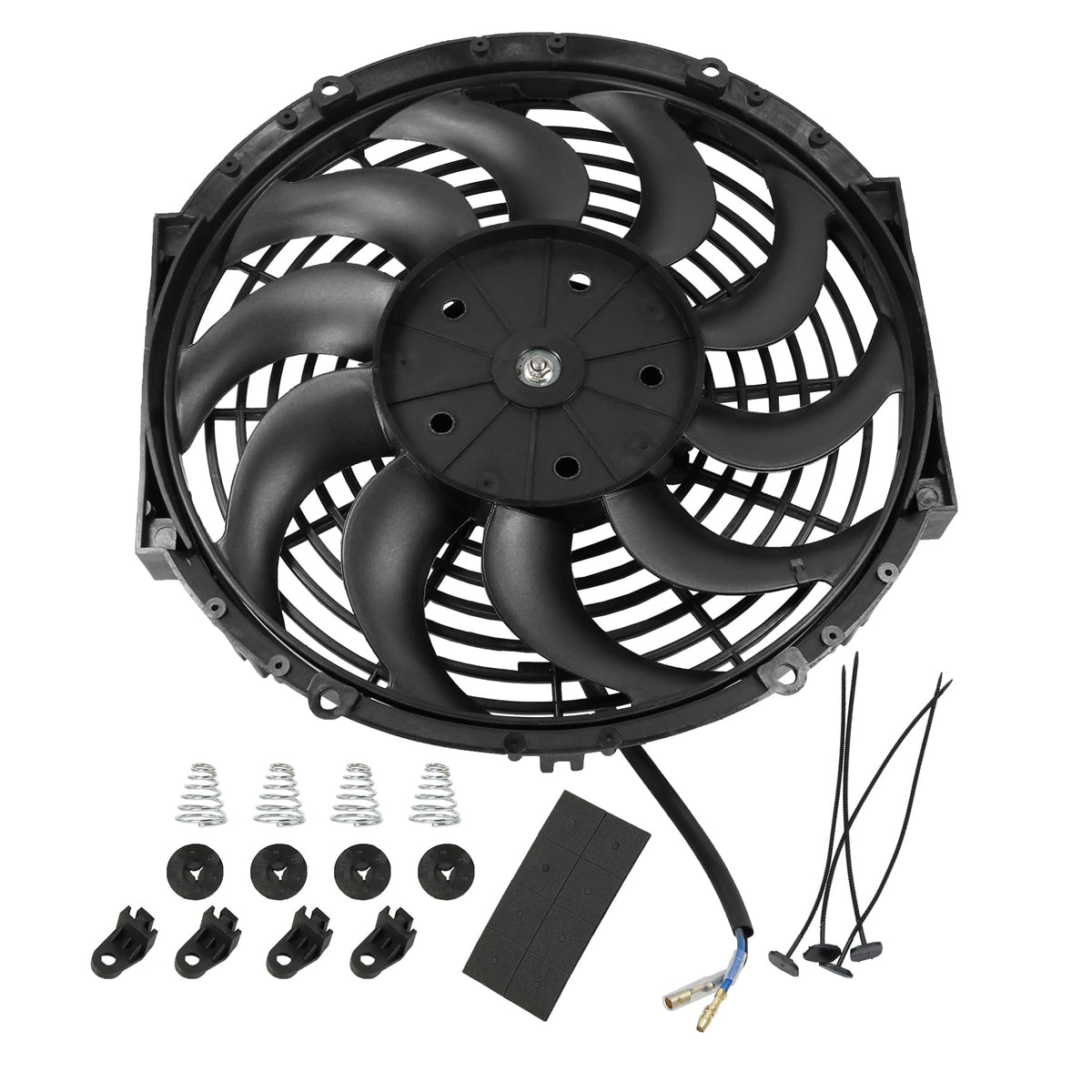

• Includes mounting hardware and universal-fit accessories

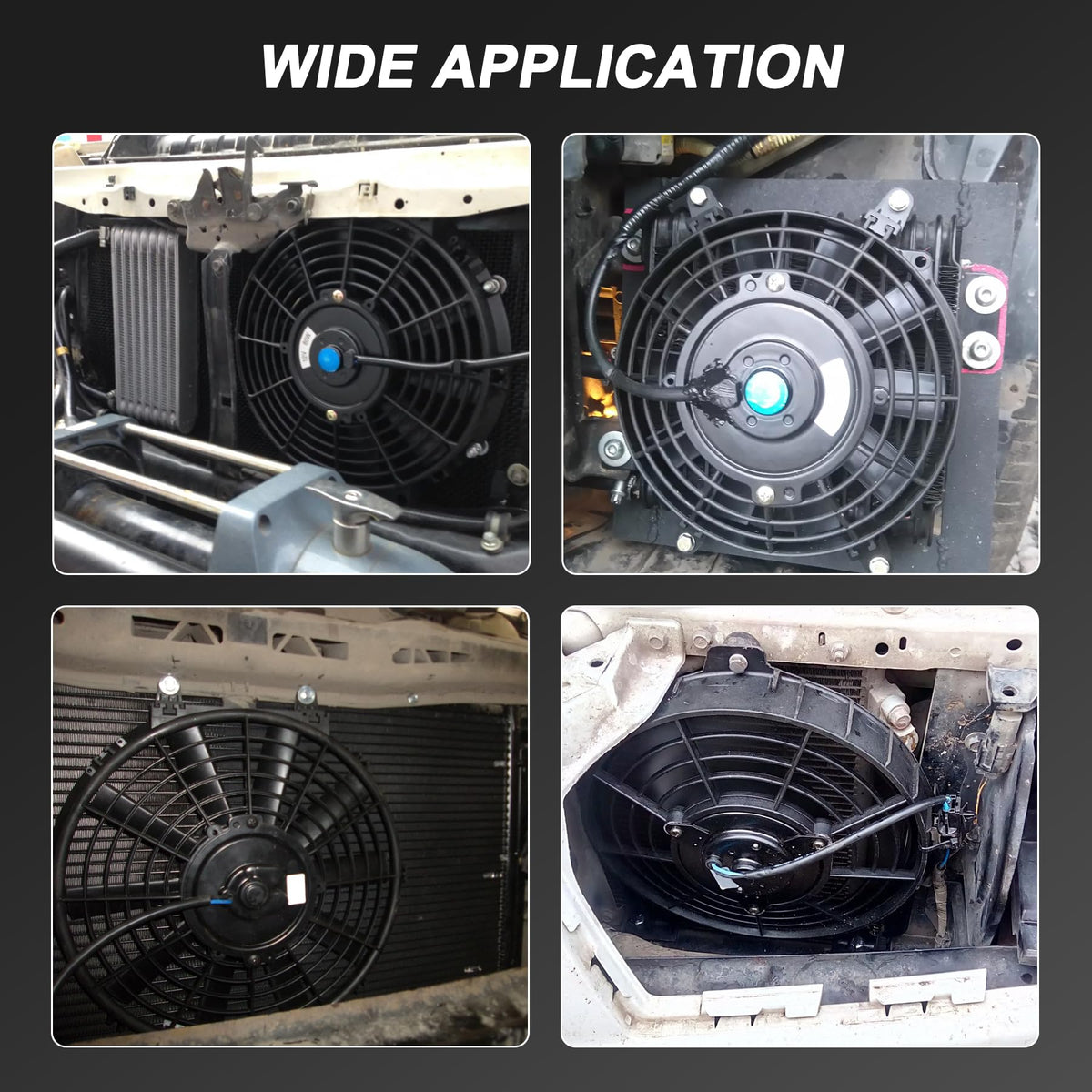

How will this fan affect my vehicle’s engine bay layout?

The slim profile is designed to fit where bulkier fans won't, helping preserve space for accessories, hoses, and strut towers. Because it can be used as either a pusher or puller, you can position it to avoid interference with shrouds or structural components. The compact thickness also makes it suitable for vehicles with limited clearance between radiator and grille or between radiator and engine.

• 2.5" thickness for improved engine bay clearance
• Reversible orientation reduces need for modifying mounts or shrouds
• Universal fit reduces custom fabrication in most installations

Who is this for: The JDMSPEED 12" Universal Slim Fan Push/Pull Kit is aimed at do-it-yourself mechanics, performance tuners, and fleet owners who need a compact, adaptable cooling fan for sedans, pickups, RVs, trucks, trailers and aftermarket intercooler setups. It’s also suitable for anyone replacing an aging electric fan who wants a reversible, low-profile option with included mounting hardware.
