JDMSPEED HEI Replacement Distributor for Chevy V8 — Red Cap, 65kV Super Coil, CNC Aluminum Body

High-energy JDMSPEED HEI replacement distributor with a 65,000-volt coil and CNC-machined aluminum body built to drive Chevy small- and big-block V8 engines to 7500 RPM.

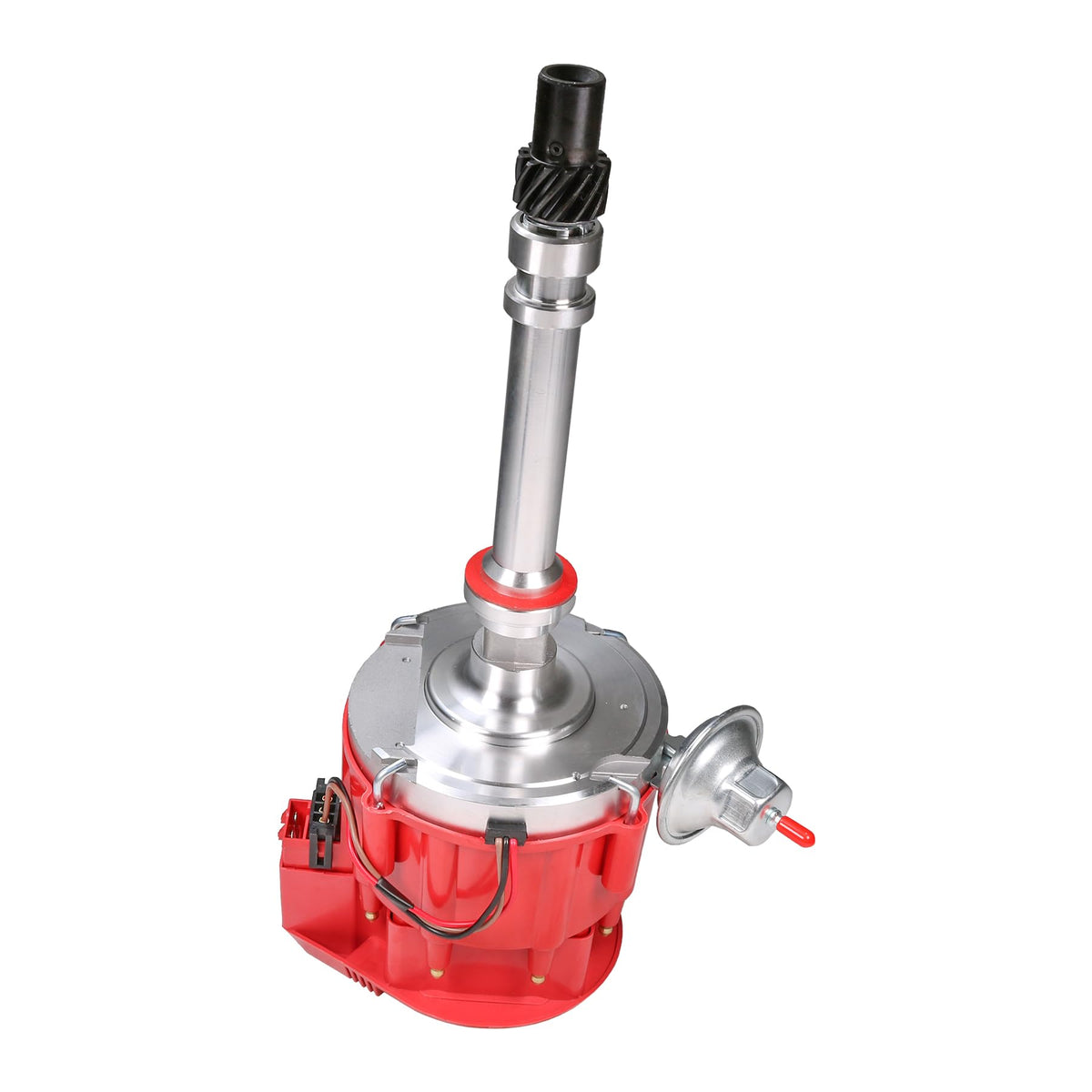

This complete ignition distributor from JDMSPEED is a drop-in style HEI replacement designed for classic Chevy V8 applications — including 283, 305, 307, 327, 350, 400 small blocks and 396, 427, 454 big blocks. The unit ships as a full assembly: cap, rotor, coil, and electronic ignition module are installed and bench-tested so you receive a ready-to-run part. Built with a hardened-steel gear and a precision CNC aluminum housing, it targets high-RPM durability and reliable spark energy suitable for street performance and many racing builds.

Will this distributor fit my Chevy V8?

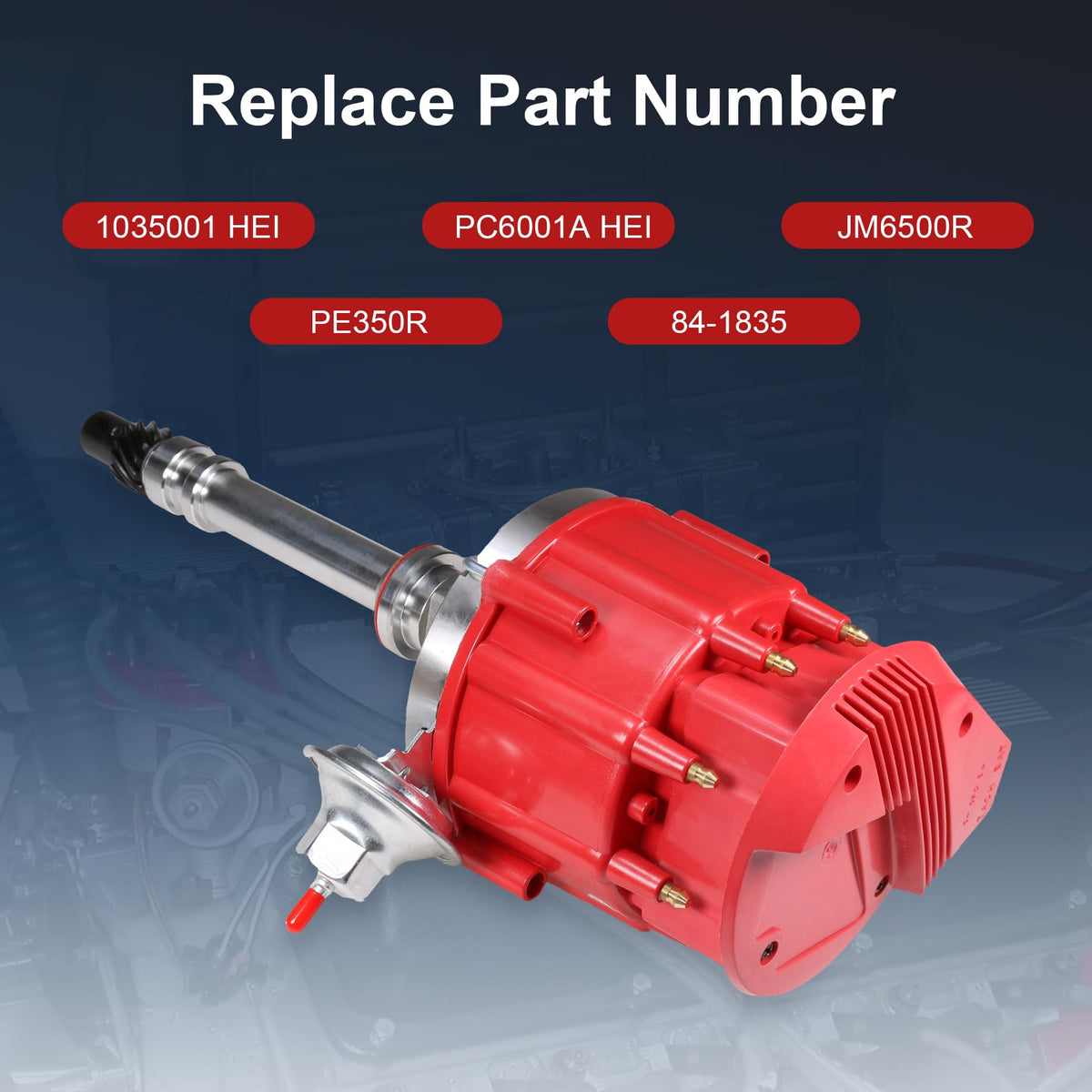

The JDMSPEED HEI replacement is made to match common Chevy small-block and big-block V8 mounting and drive requirements. It is compatible with engines listed above and replaces common OE HEI part numbers such as 1035001 and PC6001A.

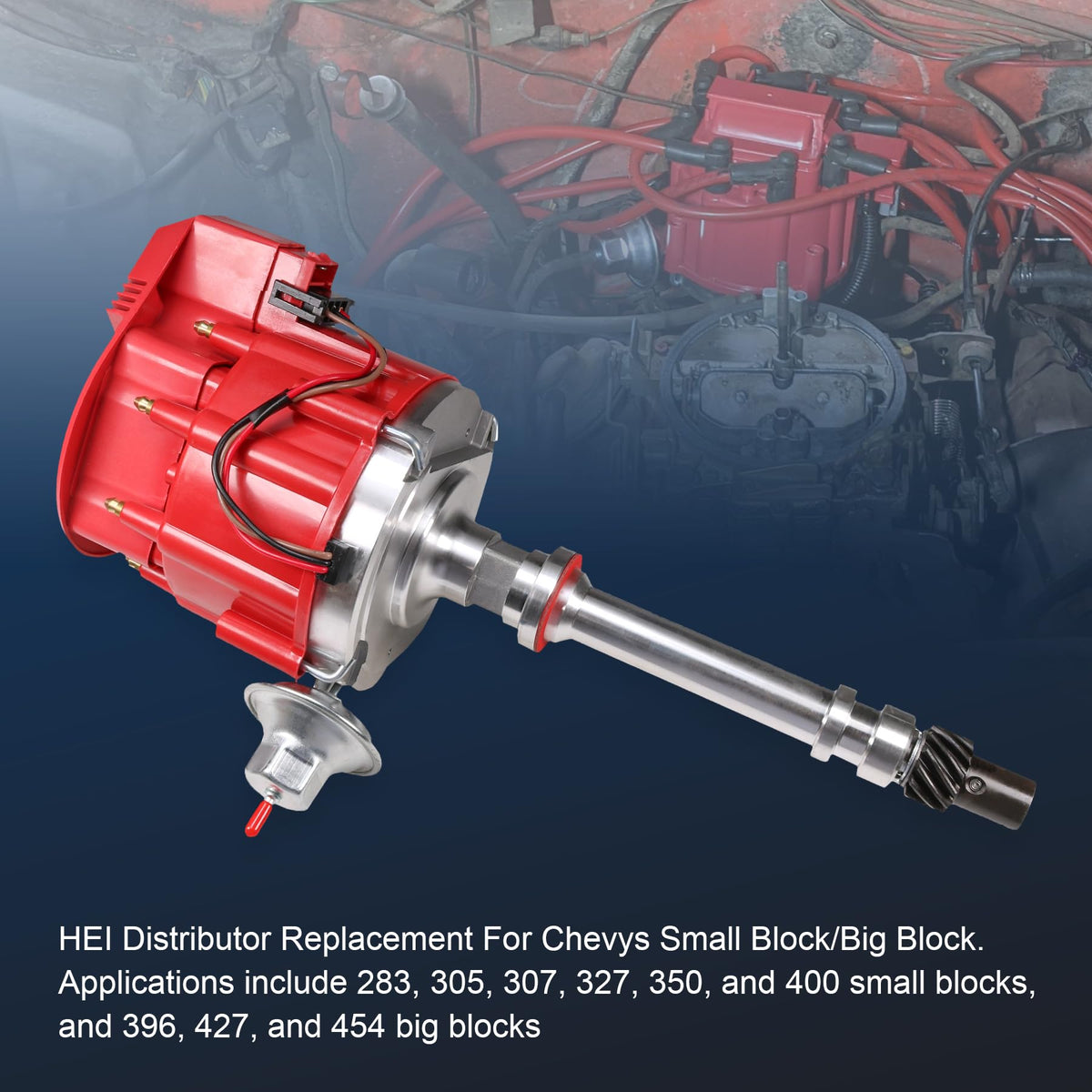

• Direct replacements for 283, 305, 307, 327, 350, 400 small blocks
• Also fits 396, 427, 454 big-block Chevy applications
• Cross-references: JM6500R, PE350R, 84-1835, and similar HEI numbers

How does the coil and ignition module improve performance?

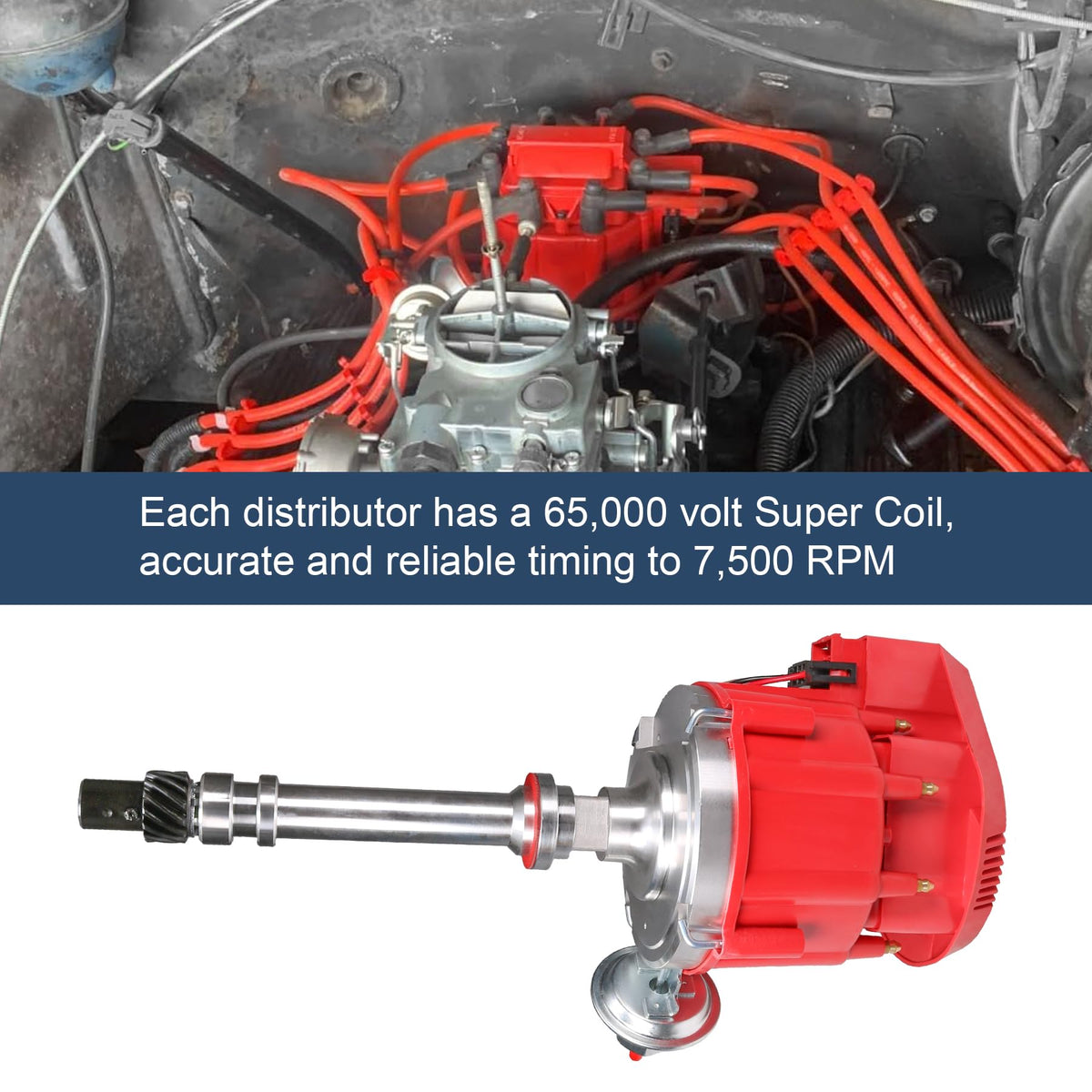

This distributor includes a 65kV high-energy coil and a preinstalled electronic ignition module that are bench-verified for consistent output. Higher secondary voltage helps stronger spark delivery at elevated RPM and under heavier loads, improving combustion stability without changing engine timing hardware.

• 65,000-volt super coil for robust spark energy
• Electronically tested module for reliable firing consistency
• Designed to maintain spark through 7500 RPM with minimal misfires

What are the build quality and durability features?

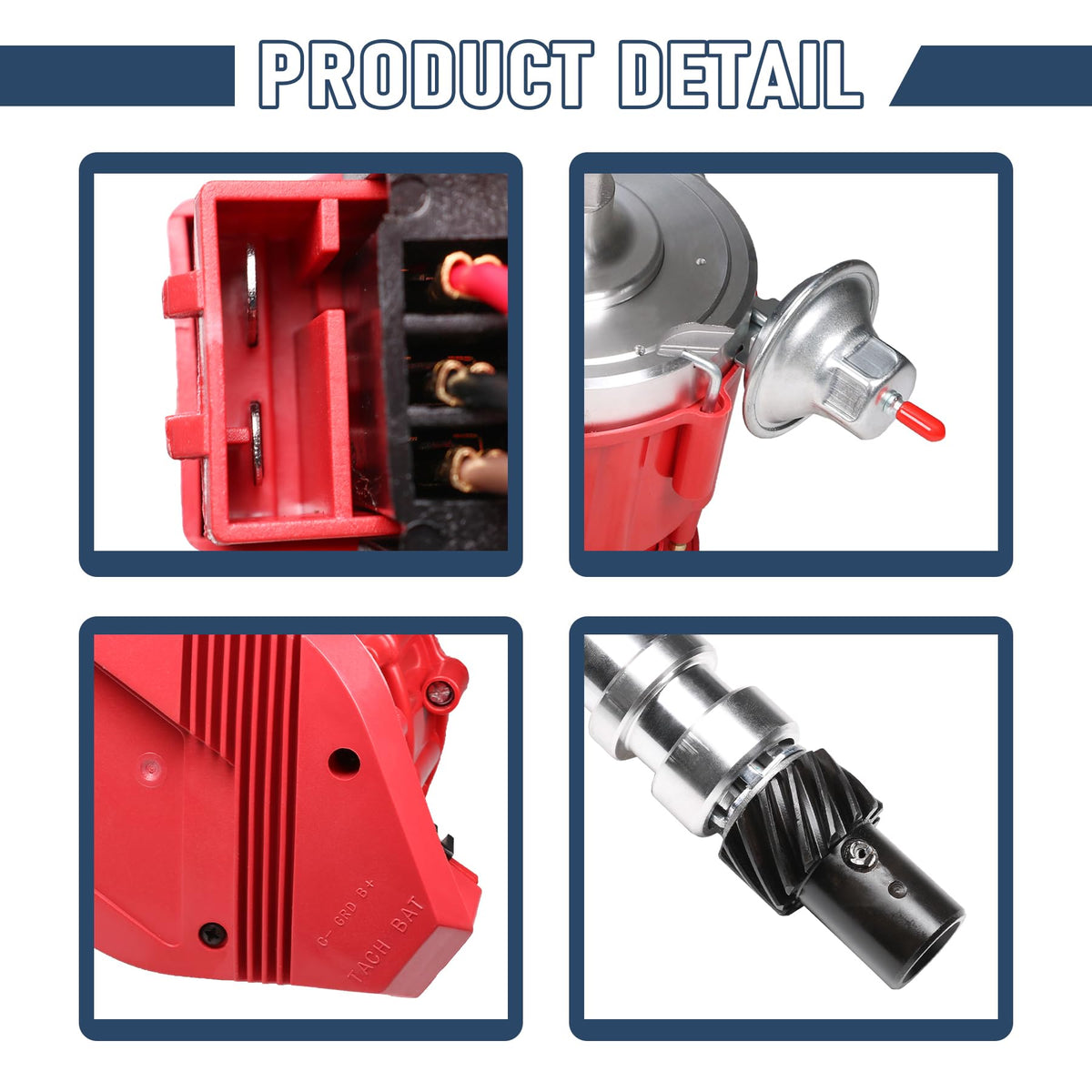

JDMSPEED constructed this distributor with a full CNC-machined aluminum housing and a hardened steel drive gear to resist wear from extended use and high-RPM operation. Each electronic component is tested before and after assembly to ensure the unit arrives functional and ready to install.

• CNC-machined aluminum body for precision fit and heat dissipation
• Hardened-steel gear for long service life and reduced wear
• Complete assembly (cap, rotor, coil, module) tested for quality control

What’s included and how easy is installation?

The product ships as a complete distributor assembly so installation is straightforward for mechanics familiar with HEI systems. The plug-and-play approach reduces bench time: remove the old distributor, install the JDMSPEED unit, set initial timing, and fine-tune as needed.

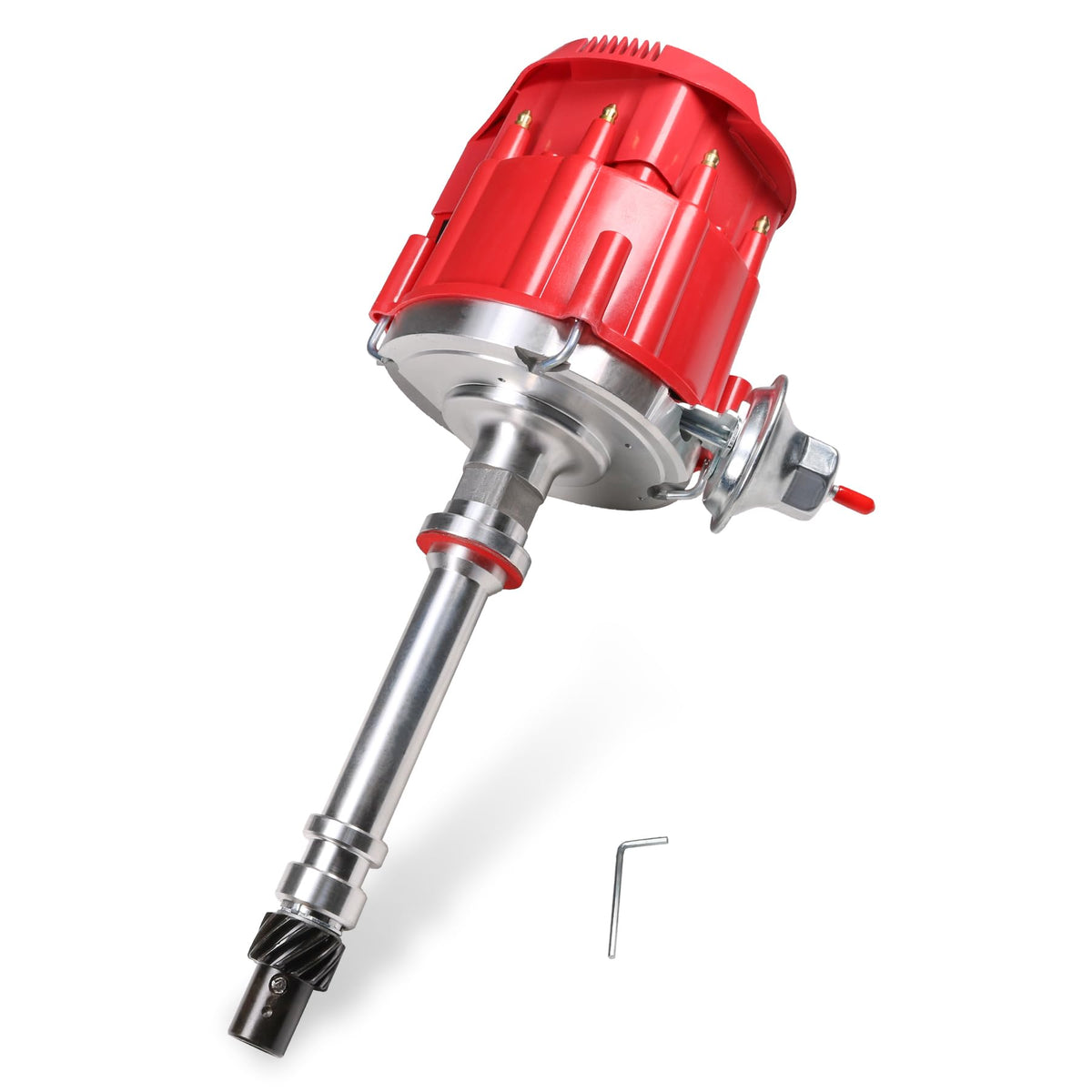

• Includes distributor, cap, rotor, ignition module, and 65kV coil
• No separate coil or module purchase required for typical HEI swaps
• Bench and vehicle testing recommended after installation for best timing accuracy

Who is this for: This JDMSPEED HEI replacement distributor is aimed at classic Chevy V8 owners, street/strip enthusiasts, and engine builders who need a robust, ready-to-install ignition assembly with higher-voltage output and durable construction. It suits restorations, performance upgrades, and race-prepped engines that require dependable ignition through higher RPM ranges.
