Jetuplusllc LS Valve Cover Bolt Grommet Seals 8pc for GM Chevy 1997-2014 — Aluminum Sleeve & Rubber Seal

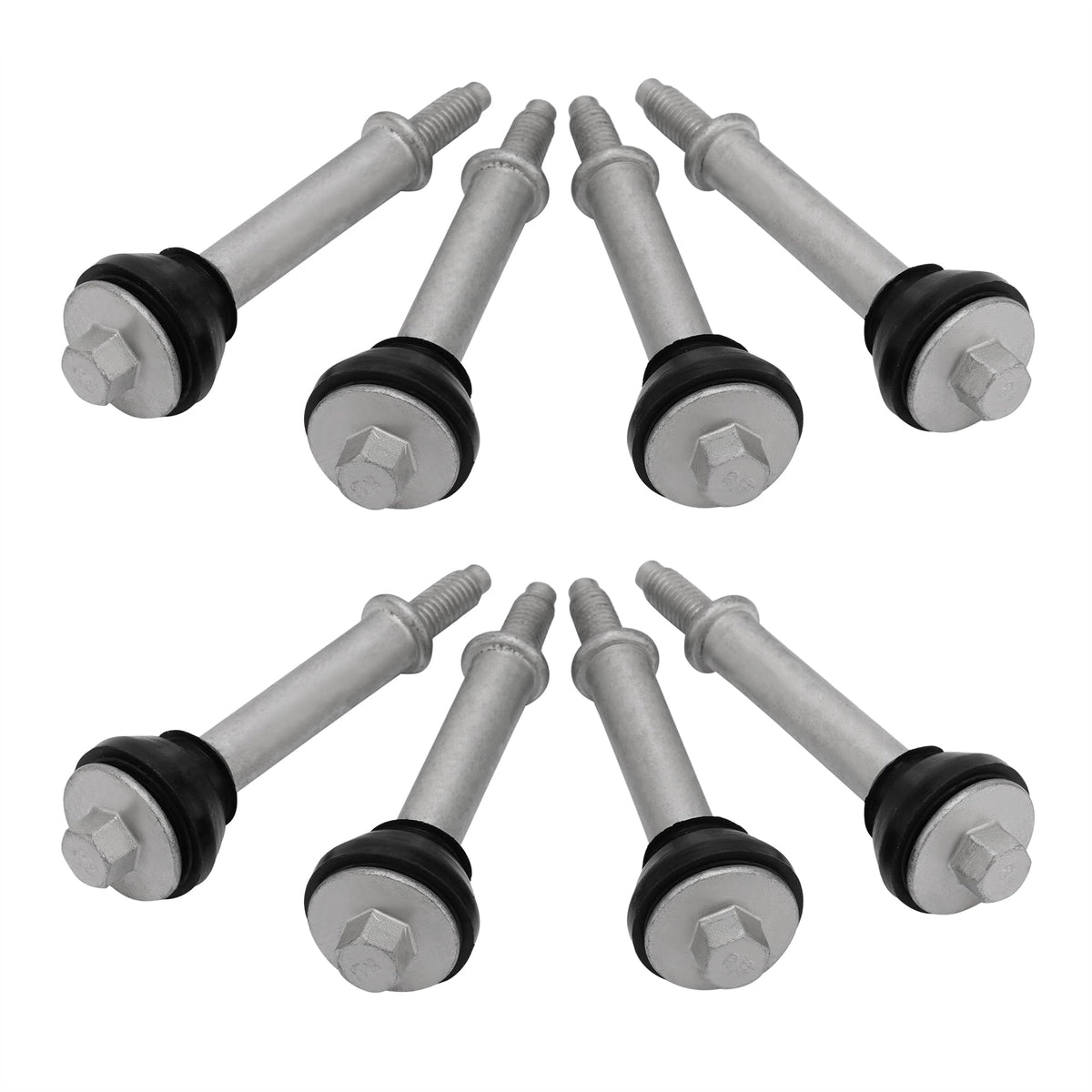

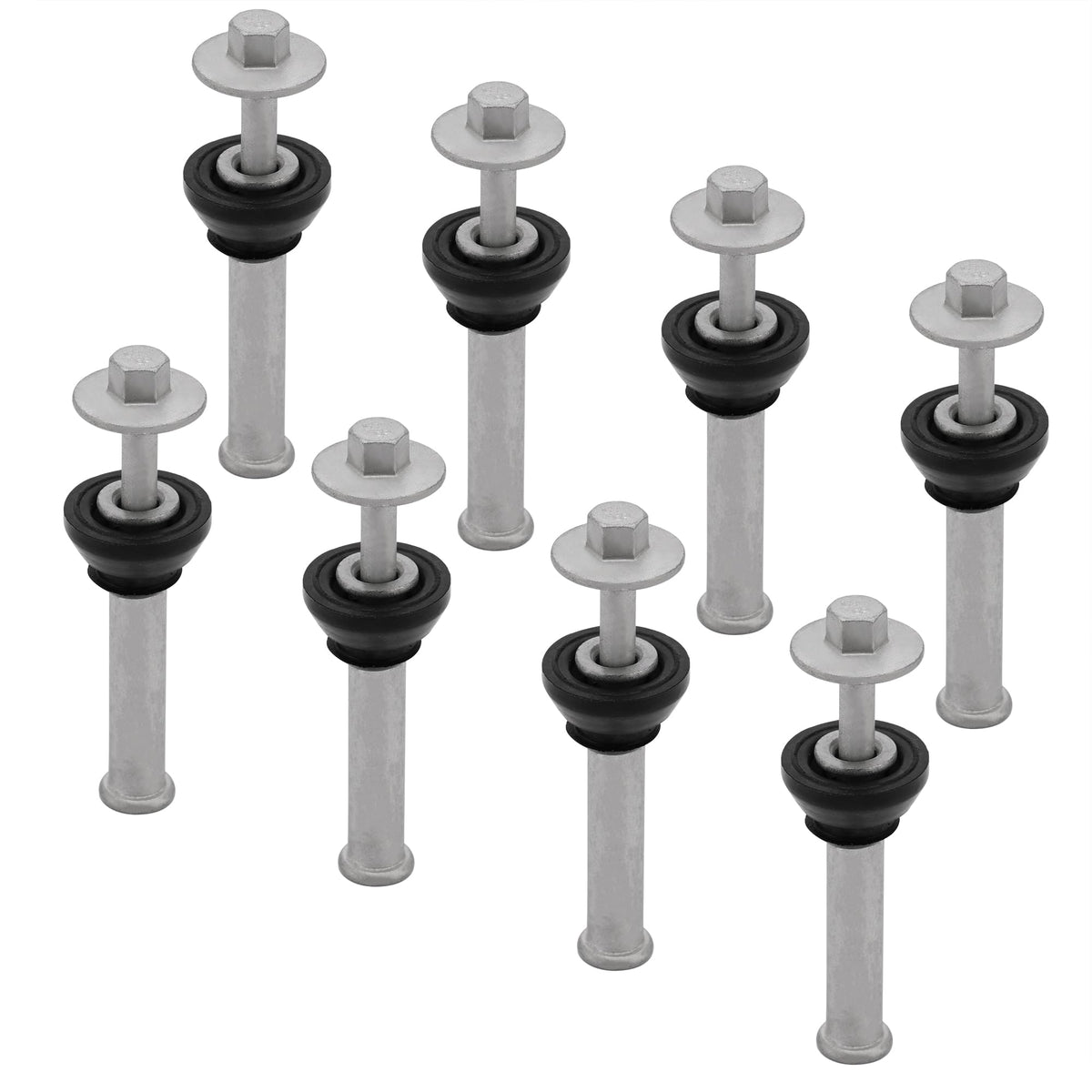

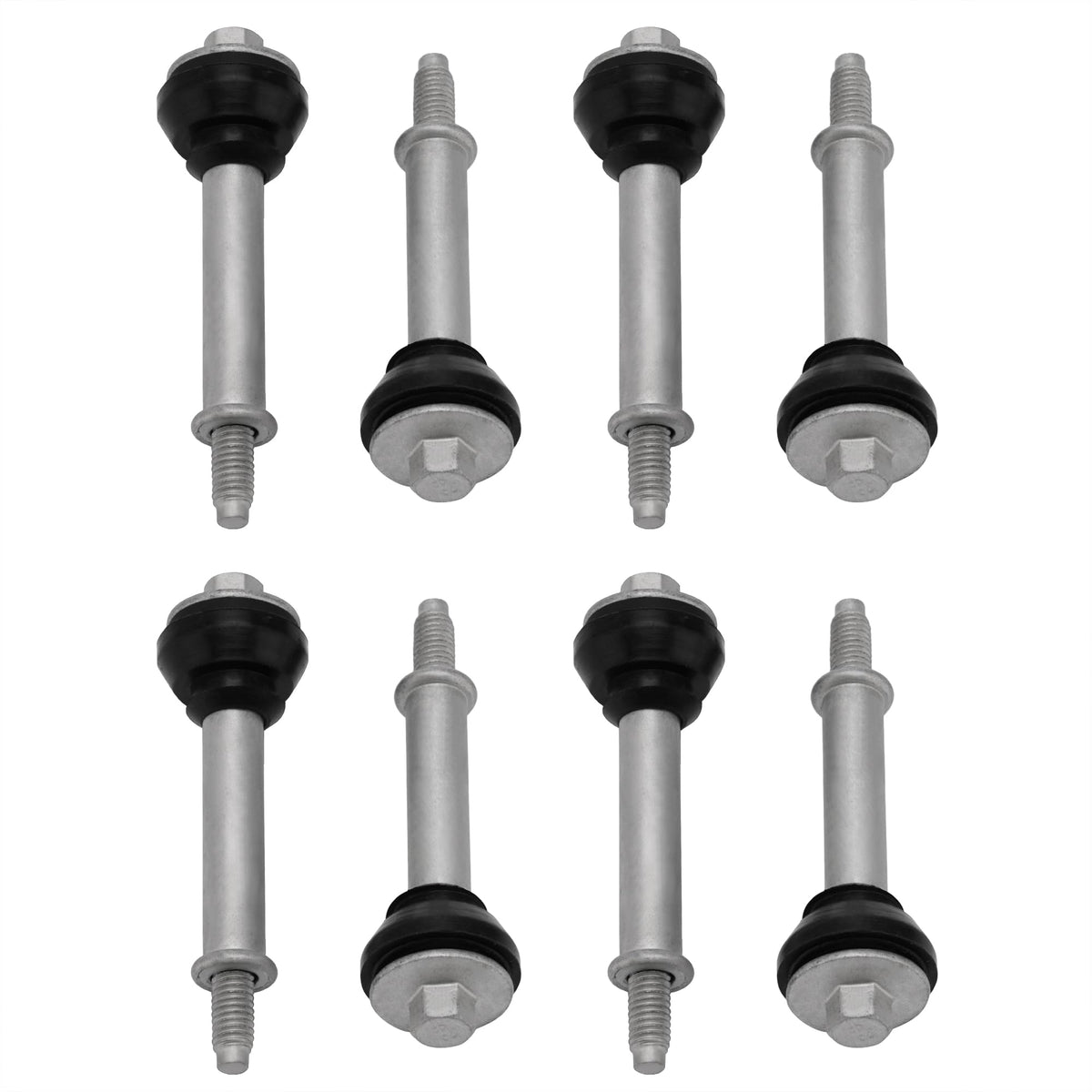

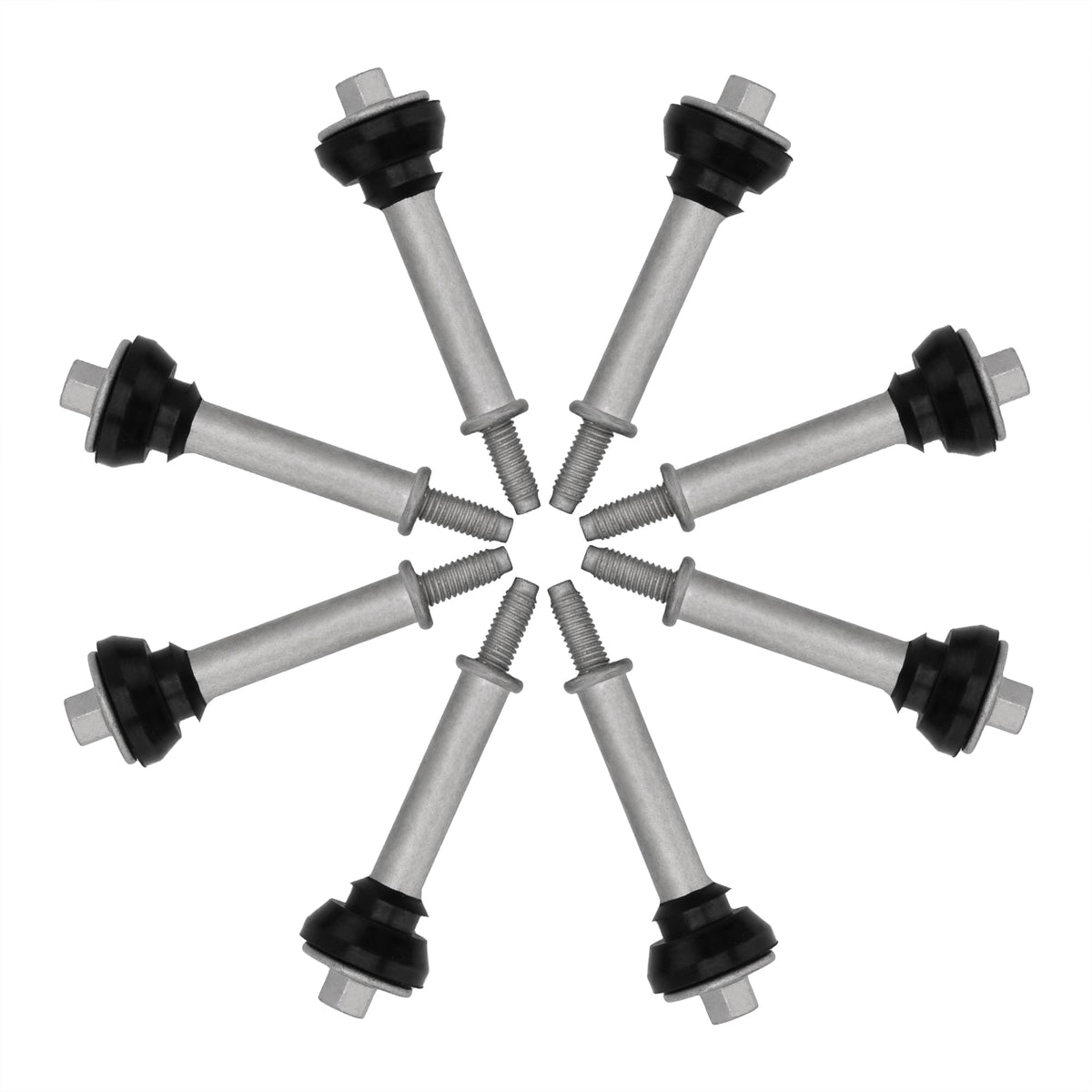

These are an 8-piece set of aluminum and rubber valve cover bolt grommet seals (crush sleeves) engineered to prevent valve cover damage by controlling bolt compression on GM LS-series engines 1997–2014.

If you service or upgrade an LS-family engine, correct valve cover fasteners make the difference between a secure seal and a cracked cover. Jetuplusllc’s LS valve cover bolt assemblies combine a soft rubber seal with an aluminum spacer to absorb over-torque, reduce gasket extrusion, and provide consistent clamping for a clean, leak-free install on most LS-series Chevrolet and GM engines built between 1997 and 2014.

How do these grommet seals protect my valve cover during installation?

The rubber portion compresses to create a dependable oil seal while the aluminum sleeve limits how far the bolt can pull into the cover. That spacer action prevents the bolt head from over-compressing the plastic or thin stamped valve cover, reducing the risk of cracking during tightening. Use the assemblies with the correct torque spec to get consistent clamping without damaging parts.

• Aluminum sleeve acts as a built-in torque stop
• Rubber sealing lip reduces oil seepage around the bolt
• Uniform stack height ensures even pressure across the cover

Which GM engines will these 8 pieces fit, and are there exceptions?

These grommet seals are designed to fit the vast majority of LS-series engines produced for GM between model years 1997 and 2014, including many Vortec truck engines and performance LS variants. They cover LS1 through LS9 series and numerous factory codes such as LM7, LQ4, L92 and more. Note that they do not fit the early perimeter-bolt style valve covers found on some 1997–1998 LS1 Corvettes, Camaros and Firebirds.

• Compatible: LS1, LS2, LS3, LS6, LS7, LS9 and many GM 4.8L–6.2L engines
• Fits common codes: LM7, LR4, LQ4, LQ9, L92, L33, L76, etc.
• Not compatible with early perimeter-bolt LS1 valve covers (1997–1998)

What materials are used and why do they matter?

Each assembly pairs a resilient rubber grommet with a lightweight aluminum crush sleeve. Rubber provides the necessary sealing and vibration isolation, while aluminum retains shape under pressure and prevents bolt overtravel. The materials are chosen to balance sealing performance, longevity, and protection for the valve cover surface.

• Rubber: flexible sealing, vibration damping
• Aluminum: crush-resistant spacer to limit bolt travel
• Durable pairing reduces the chance of oil leaks and cover stress

How should I install and torque these valve cover bolt assemblies?

Install each grommet and sleeve into the valve cover hole, seat the bolt through the sleeve, and tighten to the engine manufacturer's recommended torque spec. The aluminum sleeve will help prevent over-insertion; still use a calibrated torque wrench and follow your service manual sequence for even clamping. Replace all old grommets as a set if they show wear or deformation.

• Press grommet into cover, insert sleeve, add bolt
• Tighten bolts in the recommended pattern to specified torque
• Replace in matched sets for consistent sealing

Who this is for: Mechanics, DIY engine builders, and fleet technicians who work on GM LS-series engines and want a straightforward way to protect valve covers and improve sealing reliability. This 8-piece kit from Jetuplusllc is geared toward truck, SUV and performance engine applications where correct bolt spacing and gasket protection matter. If you have an early perimeter-bolt LS1 valve cover, verify fitment before purchasing.
