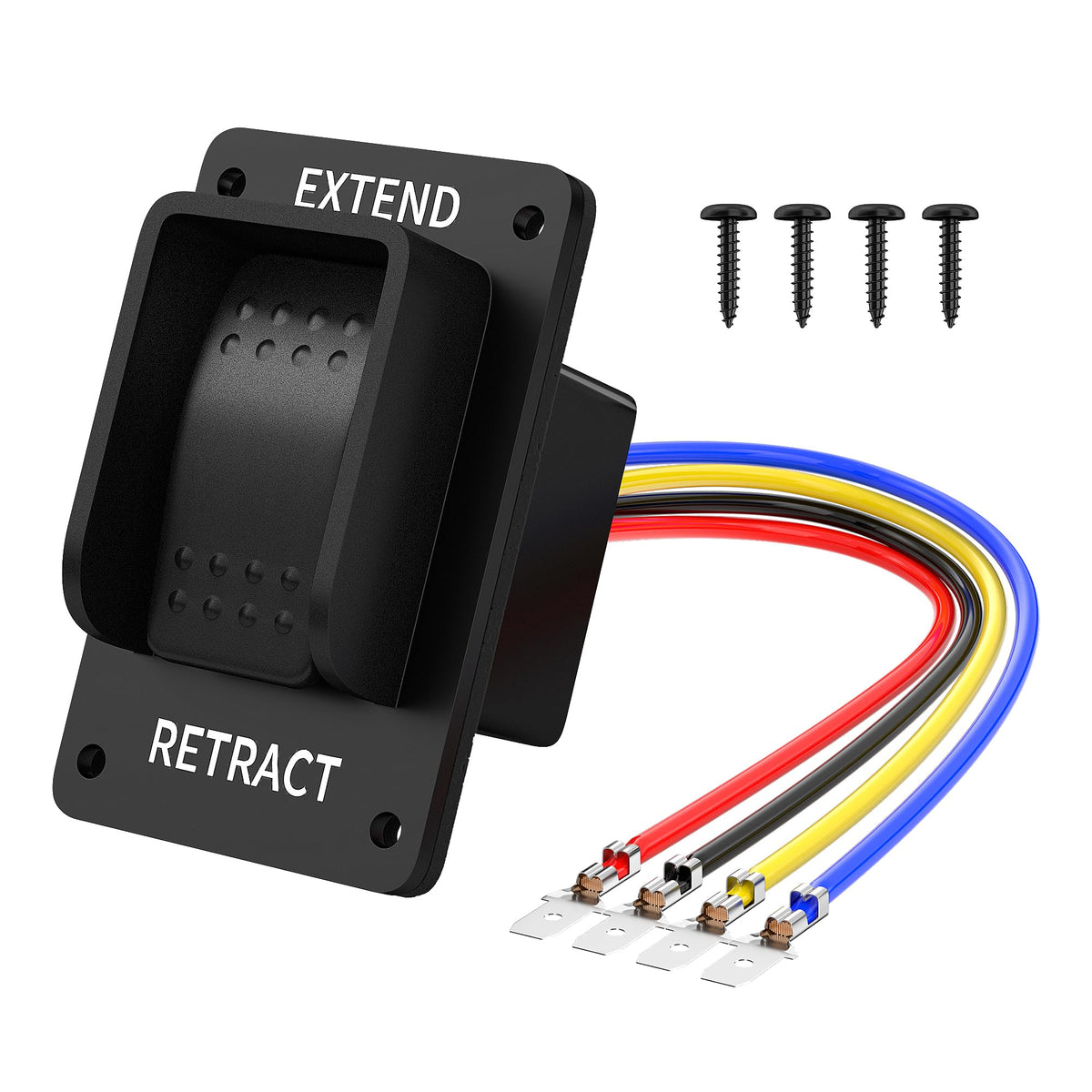

Joinfworld 12V DPDT Reverse Polarity Rocker Switch, Pre-Wired Waterproof 20A Momentary (ON)-OFF-(ON) for Marine RV UTV

Joinfworld's 12V 3-way DPDT momentary rocker switch is a pre-wired, waterproof reverse-polarity control designed to safely operate jacks, winches and reversible 12V motor circuits in boats, RVs, UTVs and trailers.

This compact rocker switch gives you (ON)-OFF-(ON) momentary control with a durable sealed housing and pre-attached wiring for quicker installation. Engineered for environments that face moisture, splashes and road vibration, the switch uses a DPDT (double-pole, double-throw) reverse-polarity layout so you can change motor direction without extra relays. It’s rated for 12V DC and 20A, suitable for many stabilizer jacks, linear actuators and small reversible motors.

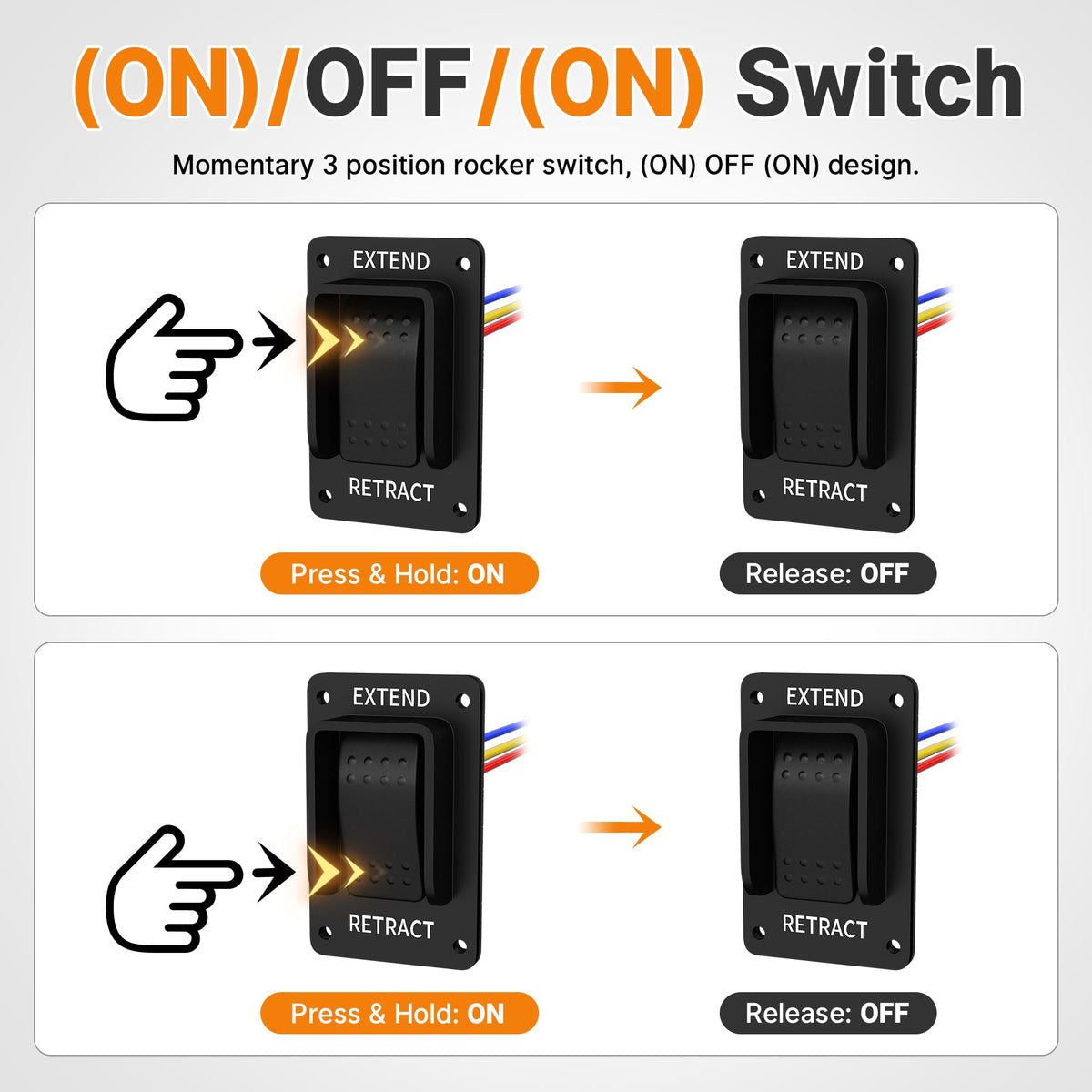

How does the momentary (ON)-OFF-(ON) function affect control?

The momentary action means the switch only stays in the ON position while you press and hold it, returning to OFF when released. That provides precise, human-controlled movement of jacks or winches without accidentally leaving a motor energized. It’s ideal for applications where continuous manual input is preferred over latching control.

• Momentary operation requires constant pressure to energize the circuit.
• Prevents unintended continuous motor run for safer operation.
• Simple tactile feedback for start/stop directional control.
• Compatible with reversible 12V DC motors and actuators.

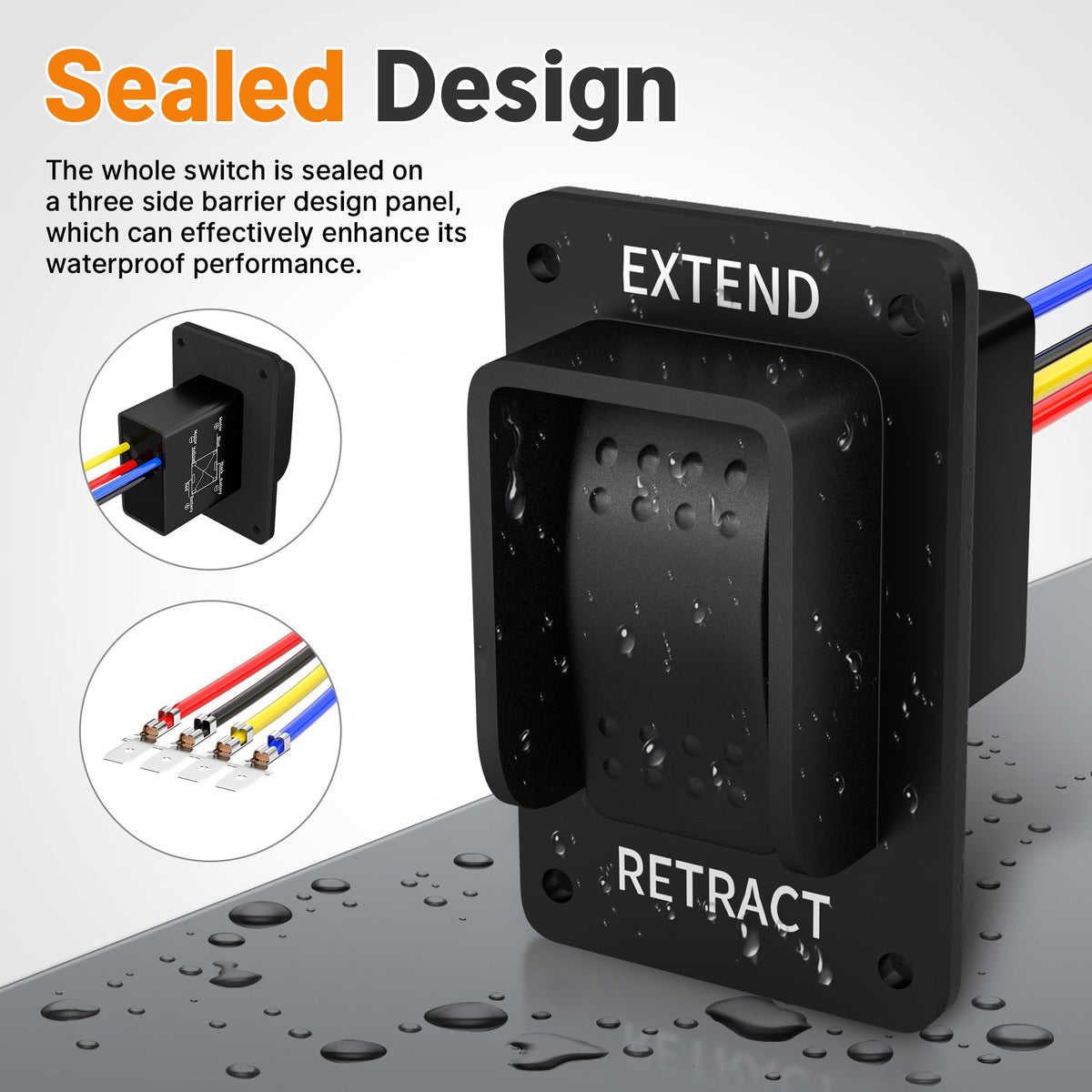

What makes this switch waterproof and marine-ready?

The Joinfworld unit features a three-side barrier sealed design around the panel and switch body, reducing water ingress from common directions encountered on boats and off-road vehicles. Internal contacts and terminals are protected to maintain reliable connections in humid or splash-prone environments. The sealed layout helps extend switch life and lowers corrosion risk compared with unsealed alternatives.

• Three-side sealed panel reduces splash entry paths.
• Robust housing resists vibration and outdoor exposure.
• Sealed terminals improve longevity in marine settings.
• Suitable for exterior dash or protected compartments.

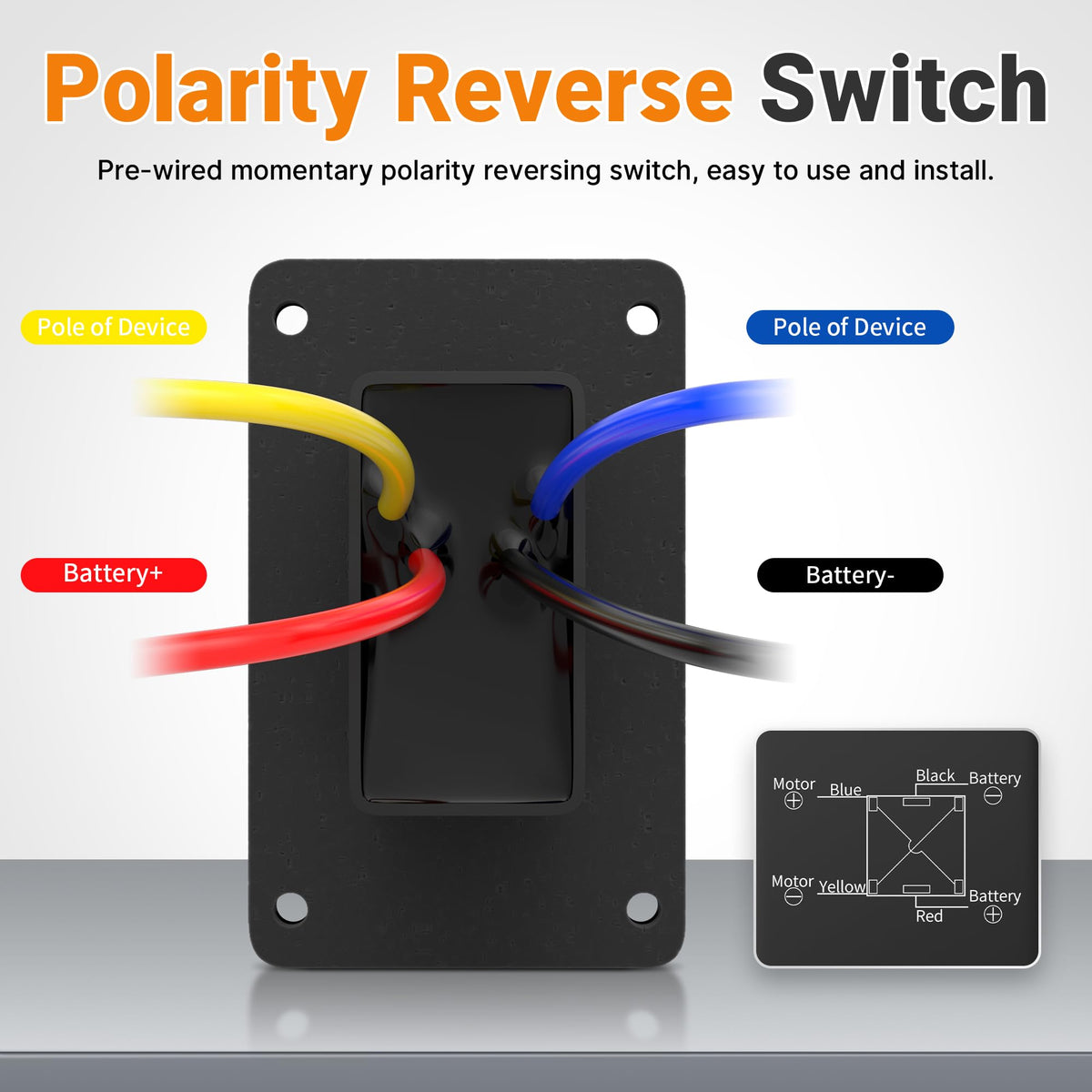

How does the DPDT reverse polarity design simplify wiring?

DPDT wiring reverses polarity to the motor, switching direction without additional components. This pre-wired Joinfworld switch includes specially designed terminals and wires to make connections faster and clearer during installation. Using a single device to reverse motor direction eliminates the need for separate relays or complex control boxes in many simple systems.

• DPDT flips polarity for forward/reverse motor control.
• Pre-attached wiring accelerates plug-and-play setup.
• Special terminal design eases secure crimps or splices.
• Reduces parts count compared to relay-based solutions.

Where can I reliably use this rocker switch?

Because of its waterproofing and 20A capacity at 12V, this rocker switch fits a wide range of mobile and marine uses. It’s commonly used for stabilizer jacks, trailer jacks, small winches, and reversible actuators on boats, RVs, UTVs and trucks. Always verify your motor’s stall current against the switch rating; for higher loads, pair the switch with a compatible relay or contactor.

• Stabilizer and travel trailer jack control.
• Boat trim or small reversible motor control.
• UTV/ATV accessory direction control.
• Dash-mounted or panel-mounted installations.

Who is this for: The Joinfworld Reverse Polarity 12V rocker switch suits homeowners, DIY vehicle technicians, boat owners and RV enthusiasts who need a compact, straightforward way to control reversible 12V motors under wet or mobile conditions. If you want a pre-wired, momentary DPDT solution rated for 20A and built with a sealed design to resist moisture and vibration, this switch provides a practical, easy-to-install option. For systems with higher continuous or stall currents, use the switch to trigger a relay or contactor sized for your motor load.
