JOIQEXJ Mechanical Disc Brake Kit for Minibike & Go-Kart — 6" Steel Rotor, Cable-Actuated Caliper

This JOIQEXJ mechanical disc brake kit delivers a bolt-on caliper, reversible brake arm and a 6-inch steel rotor with preinstalled pads to stop minibikes and pedal go-karts reliably without hydraulic fluid.

Designed for small off-road vehicles, this compact cable-actuated braking assembly swaps into many common go-kart and minibike frames as a direct-fit replacement or upgrade. The kit includes a 152mm (6") wear-resistant steel rotor, a ready-mounted caliper with pads, and a mounting bracket; its dimensions and mounting holes match a wide range of hobbyist and commercial models so you can fit and tune the system quickly.

Will this brake kit fit my kart or minibike?

The kit is engineered to match several popular models out of the box, and its key measurements make compatibility checks simple. Verify the 1" (25.4mm) axle bore and 18.2mm center-to-center mounting spacing on your hub or carrier to confirm fitment before ordering.

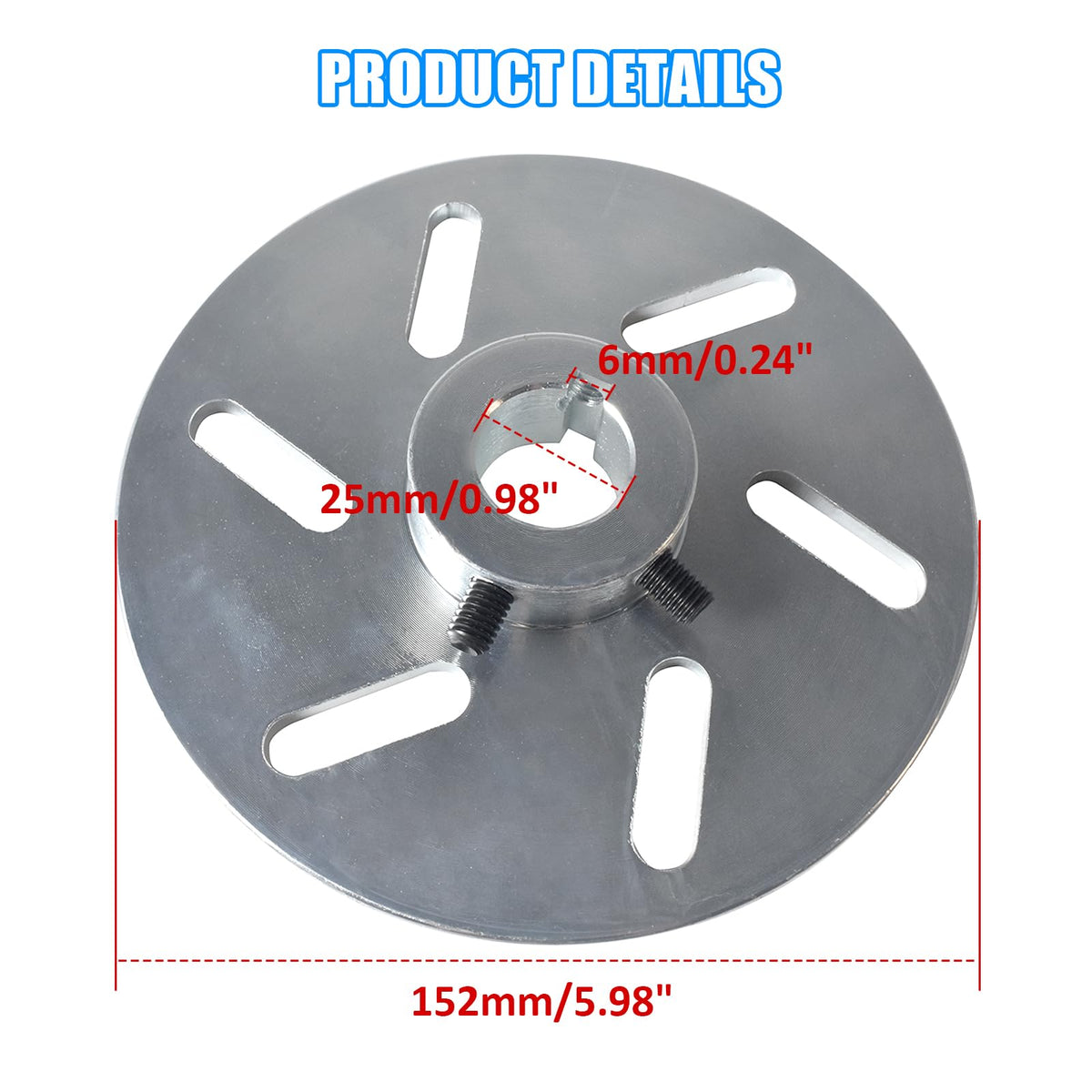

• Rotor diameter: 6 inches (152 mm)
• Axle bore size: 1 inch (25.4 mm)
• Mounting hole spacing: 18.2 mm center-to-center
• Mounting hole diameter: 7.5 mm (0.29 inch)

How strong and durable is the rotor and caliper assembly?

The rotor is heavy-duty, wear-resistant steel made for repeated stopping under typical recreational loads. The caliper is steel-constructed, adjustable to different rotor thicknesses, and supplied with corrosion-resistant finishes so it holds up in wet or dusty conditions.

• Material: wear-resistant steel rotor, corrosion-resistant caliper
• Rotor thickness supported: up to 0.250 in (6.35 mm)
• Preinstalled brake pads for immediate use
• Designed to resist wheel slip and improve braking stability

How easy is installation and routine maintenance?

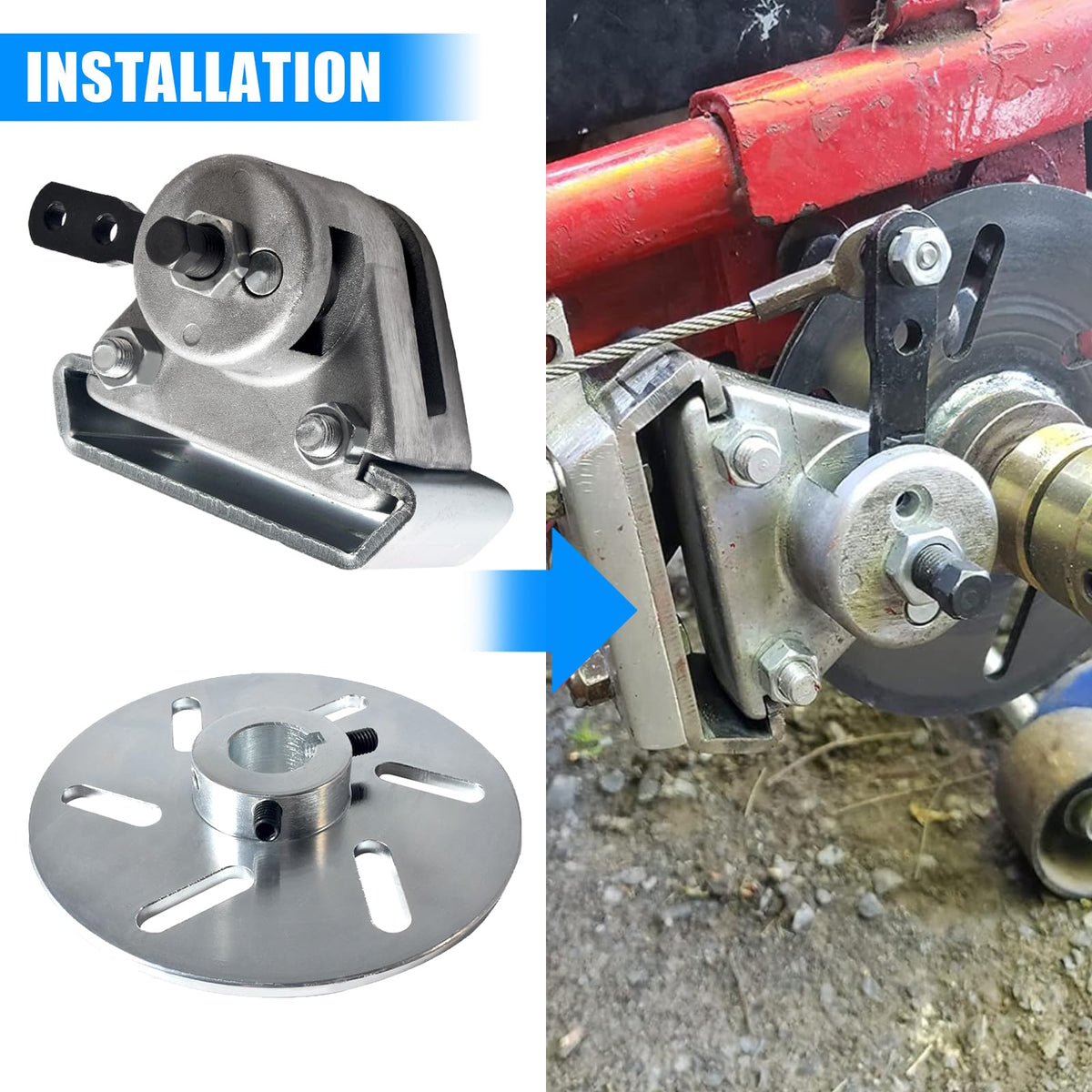

This is a purely mechanical, cable-actuated brake—no fluid, master cylinder, or bleed procedure required—so installation and maintenance are straightforward. The reversible brake arm and adjustable cable anchor let you position the assembly for best cable routing, and simple cable tensioning keeps the brakes responsive over time.

• Mechanical cable actuation: no brake fluid
• Reversible brake arm for left or right mounting
• Quick tension adjustments via high-grade steel cable
• Compact parts reduce installation time for DIYers

What comes in the box and what should I check before riding?

The kit ships complete with the main components you need for a basic retrofit or replacement. Inspect fasteners, clear any shipping residue, and verify pad alignment and cable routing before your first ride to ensure optimal stopping performance.

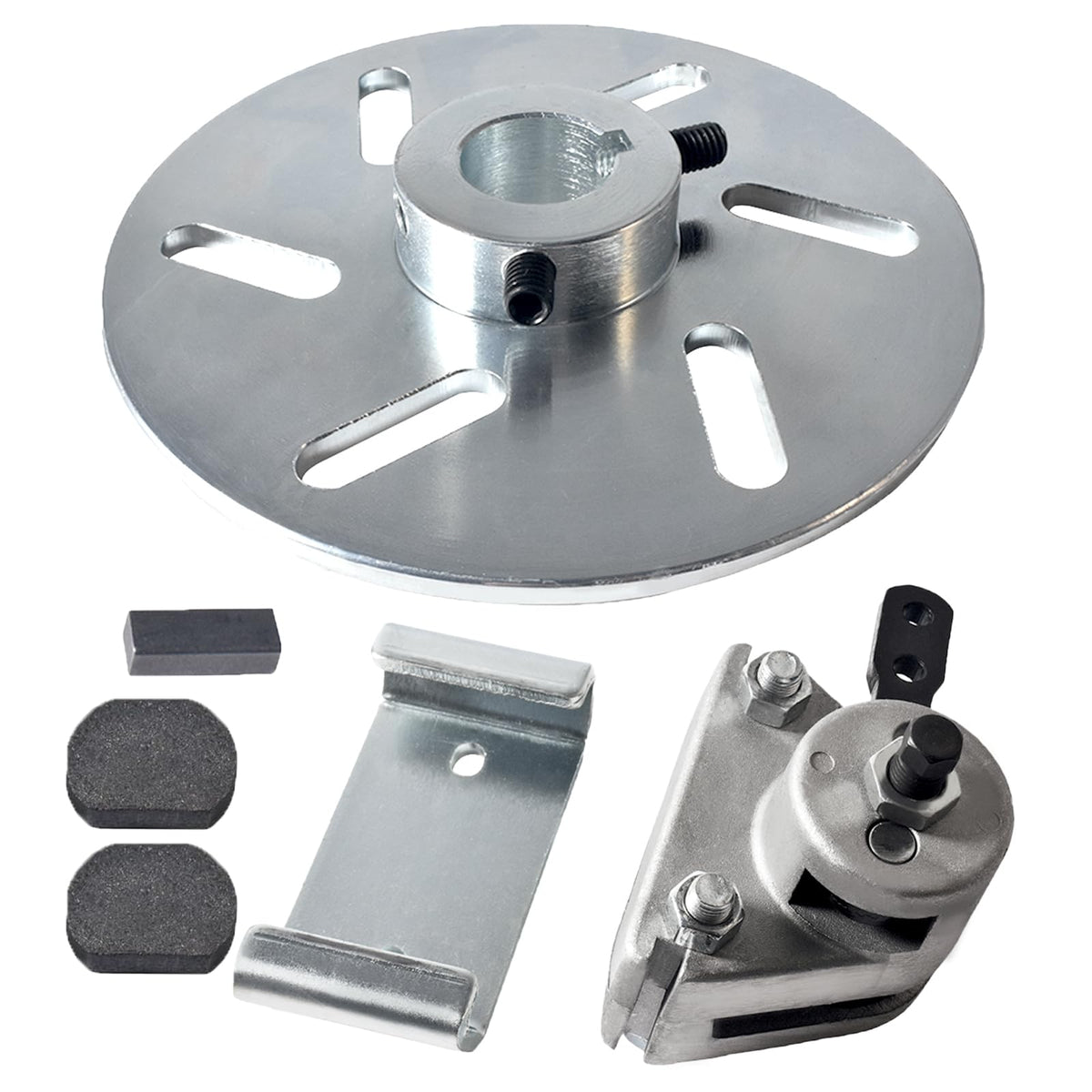

• Included: 1 caliper with pads preinstalled, 1 mounting bracket, 1 6" rotor
• Factory-tested components with corrosion-resistant finishes
• Recommended: matching bolts/washers for your frame (not always included)
• Check: rotor runout, pad clearance, and cable tension before use

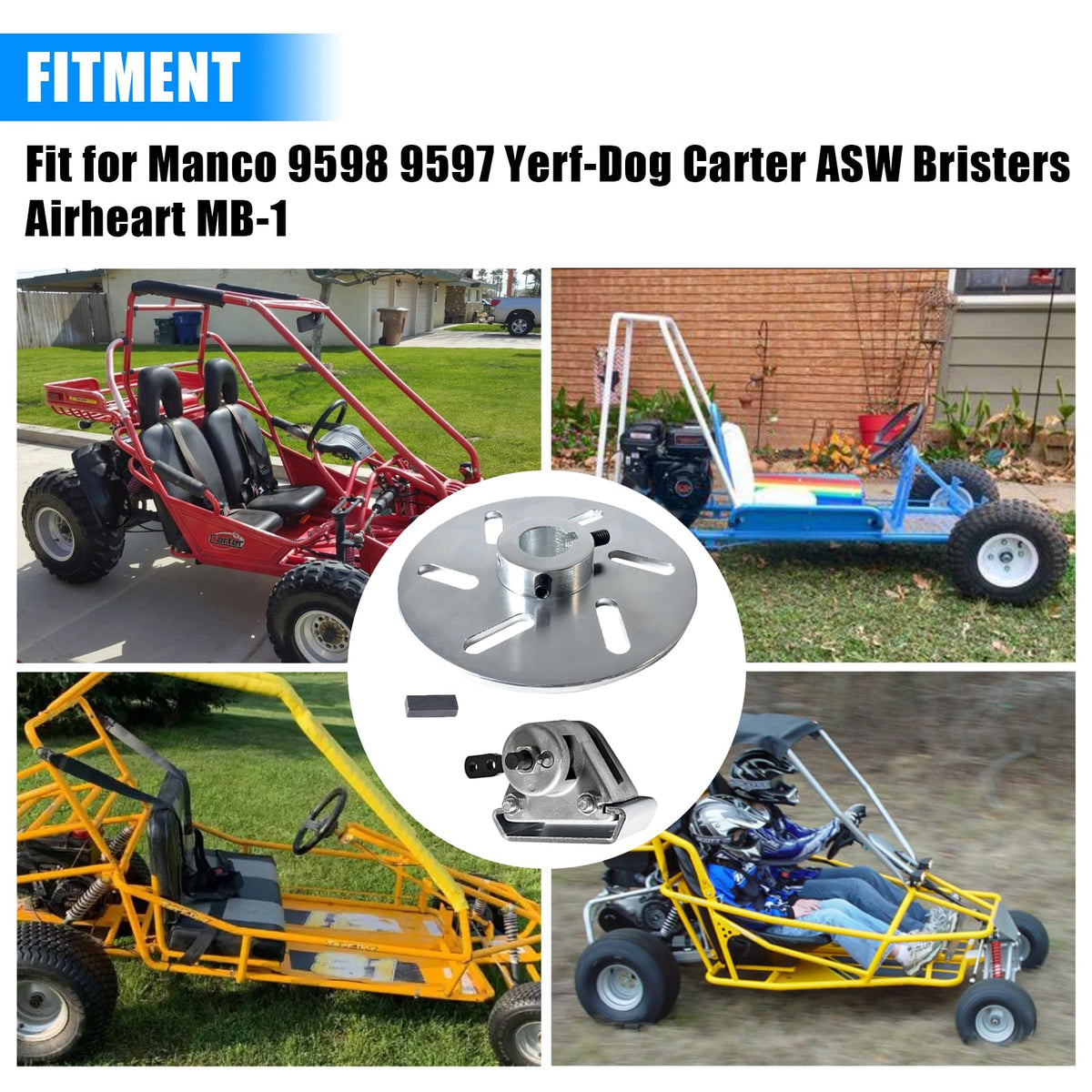

Who this is for: This JOIQEXJ brake kit is aimed at do-it-yourself mechanics, hobbyists, and small-track operators who need a dependable, low-maintenance mechanical disc brake for minibikes, pedal go-karts, and similar small vehicles. It’s well suited for owners of Manco models (9598/9597), American Sportworks, Carter, Yerf-dog, Ken-bar, Bristers, Thunder karts, ASW, and Airheart MB-1 units looking for a durable retrofit or a straightforward replacement that avoids hydraulic complexity.
