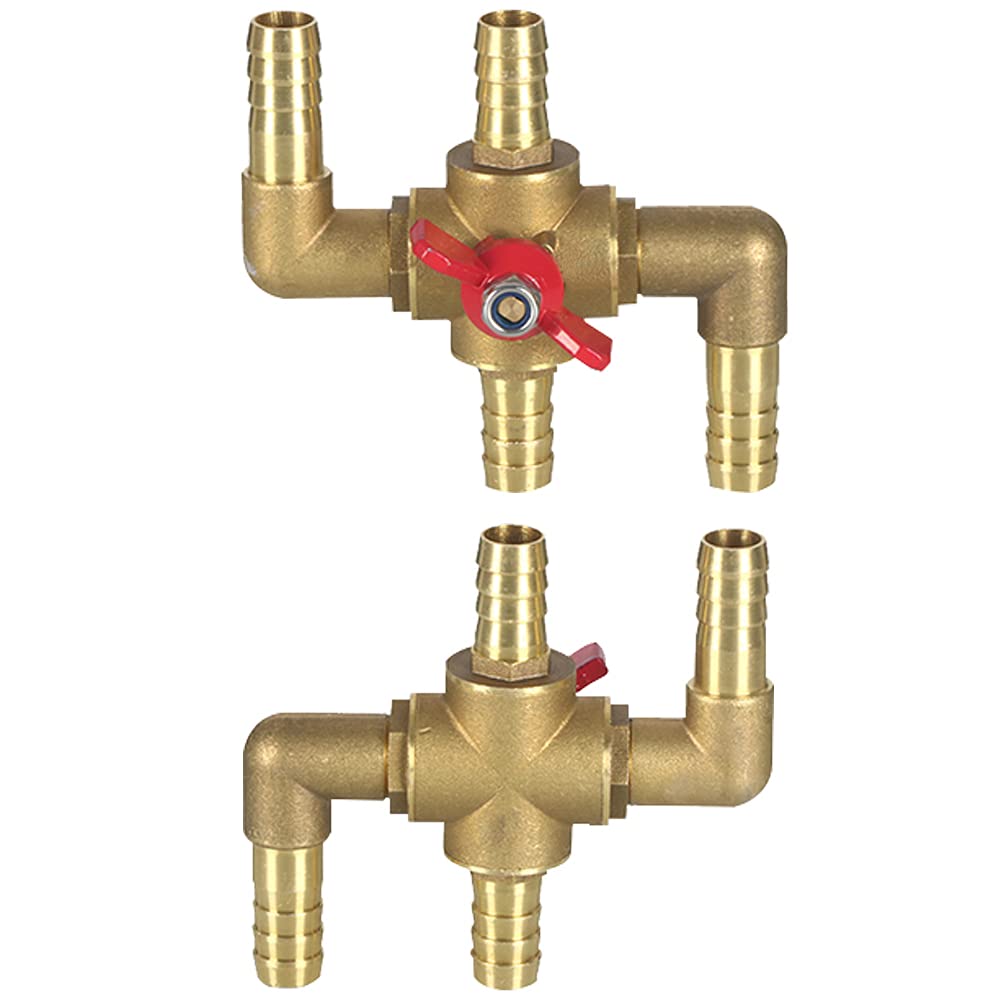

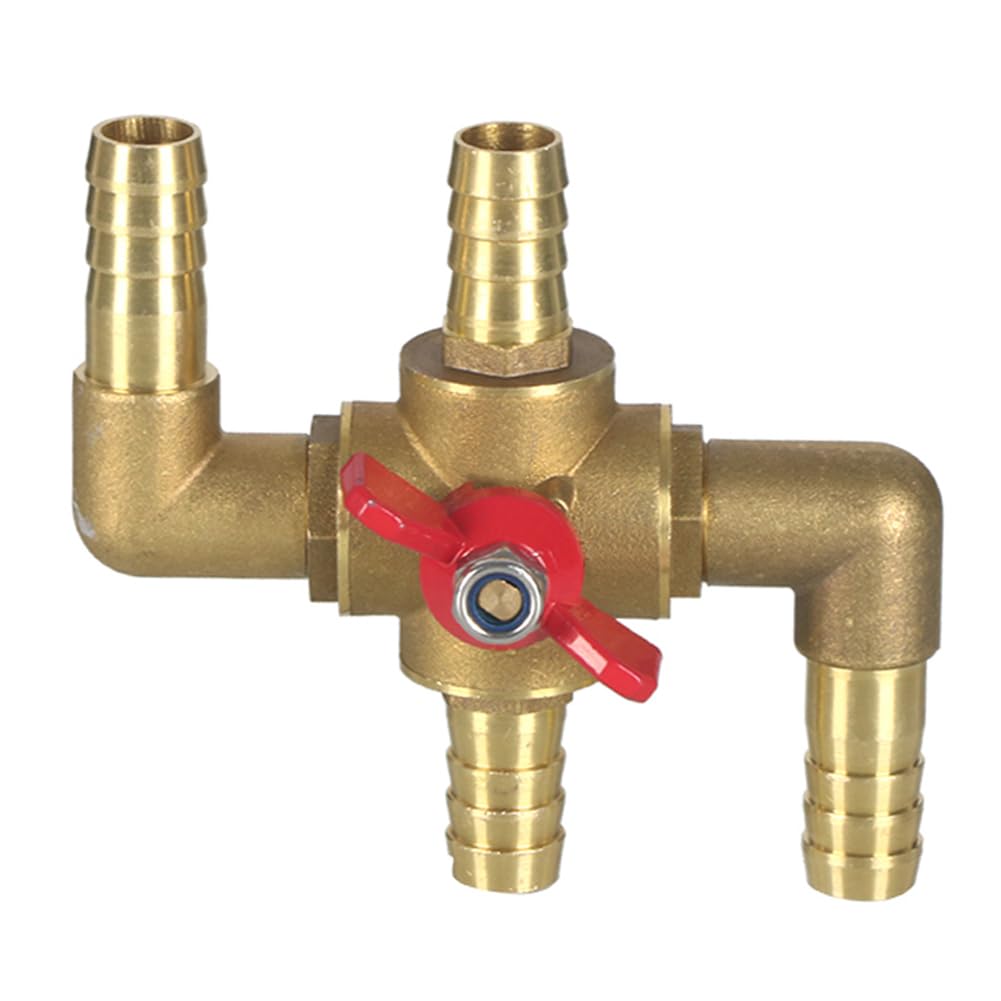

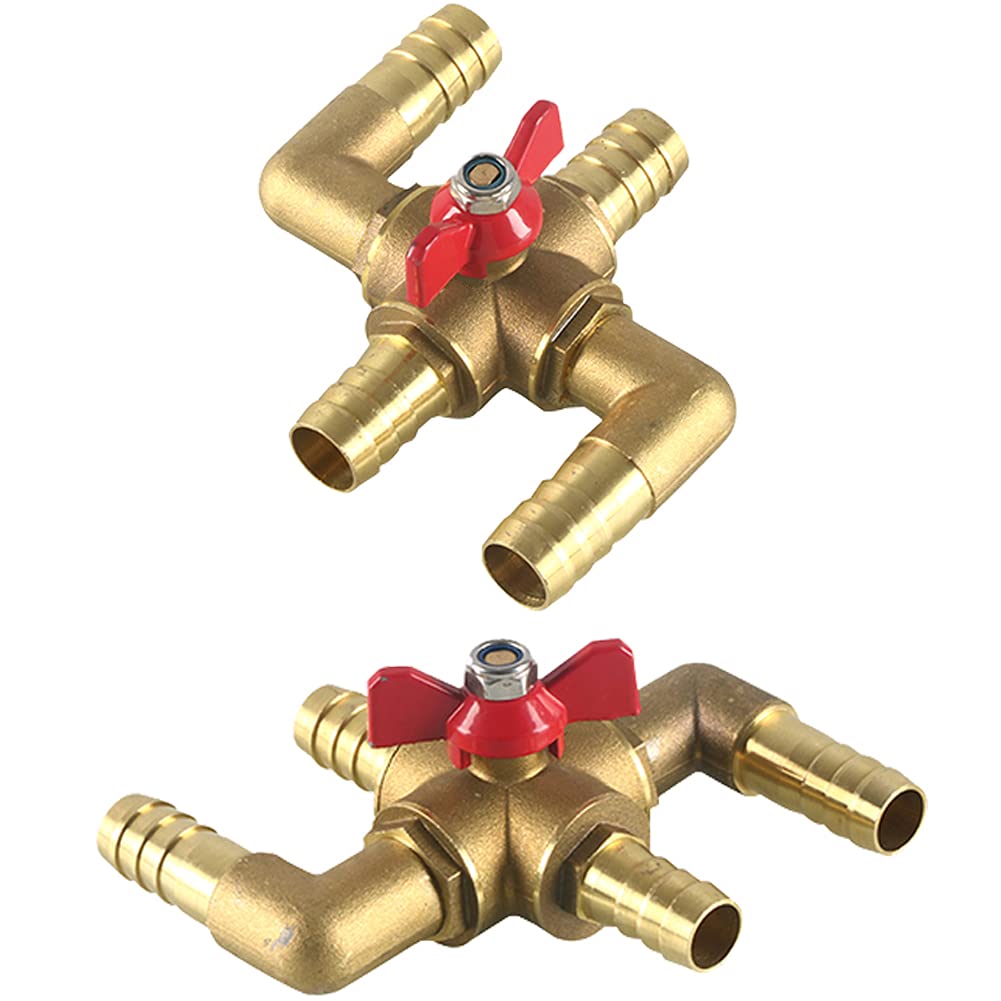

Joywayus brass 4-way manual heater valve 5/8" (16mm) barb — solid single-piece body, high-temp corrosion resistant

Joywayus all-solid-brass 4-way manual heater valve with 5/8" (16mm) barb provides durable, leak-resistant control of coolant flow to your vehicle’s heater circuit.

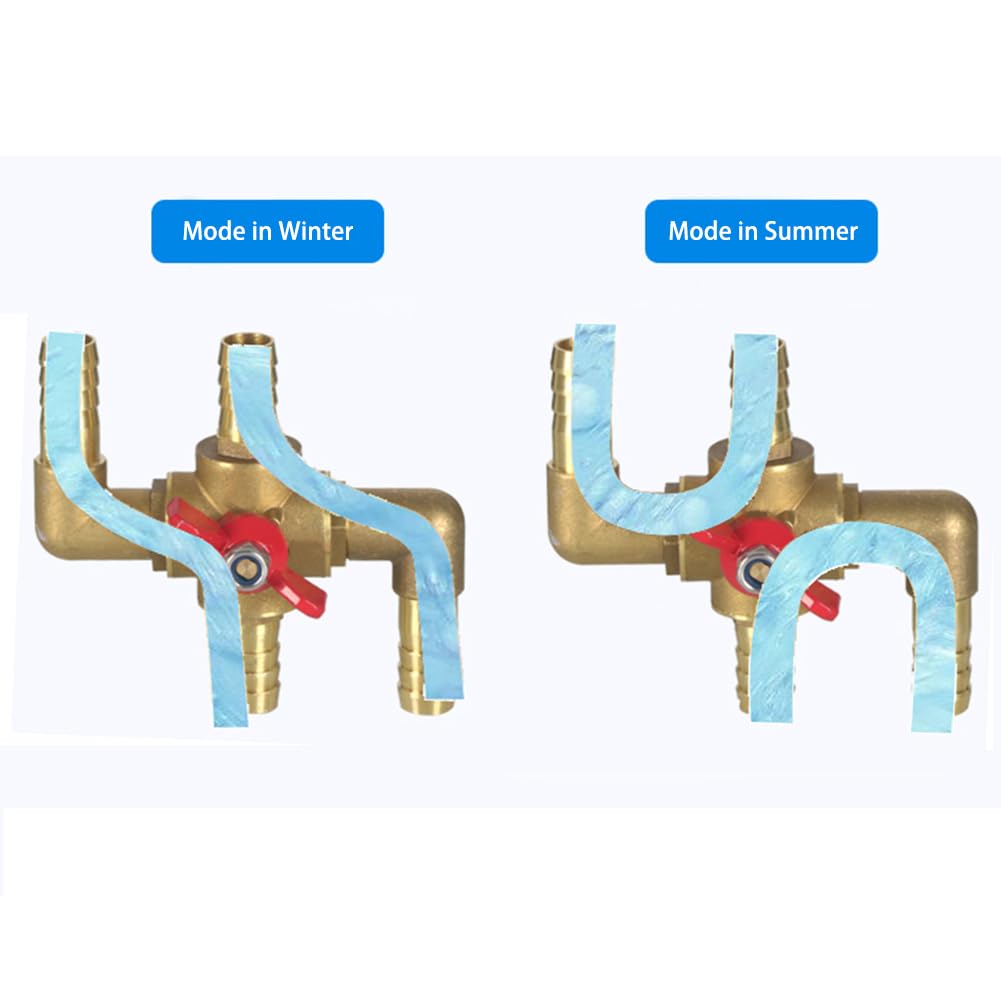

This compact, integrated brass valve is engineered to regulate warm/cold water routing in automotive heating systems. Built from a single-piece brass body with a brass ball core and stem, plus a plated metal handle, it withstands high temperatures and resists corrosion. The valve’s 5/8" (16mm) barb fittings suit common heater hose sizes and its four-way routing gives installers flexibility for controlling cabin heater tanks and bypass lines.

How does this valve improve heater performance?

Installed in the heater circuit, the valve prevents unintended circulation between the engine and the cab heater tank, helping the cab’s reservoir retain temperature and reducing warm-water contamination. That can stabilize cabin warm-up behavior and reduce unnecessary engine load from unwanted coolant flow.

• Stops cross-flow between heater tank and engine lines for more predictable cabin temperature.
• Reduces warm water leakage into cold circuit that can degrade cooling efficiency.
• Allows manual shutoff of specific heater branches for diagnostic or maintenance work.

What are the valve’s temperature and pressure limits?

This valve is specified for demanding underhood environments: it handles continuous temperatures from -20°C up to 150°C and is rated to 1.6 MPa working pressure. Those limits make it suitable for most gasoline and diesel passenger vehicles and light trucks when used within normal engine cooling system parameters.

• Operating temperature range: -20°C to 150°C for hot-coolant compatibility.
• Maximum working pressure: 1.6 MPa, suitable for typical vehicle systems.
• Designed for repeated thermal cycles without structural failure.

How is this valve constructed and installed?

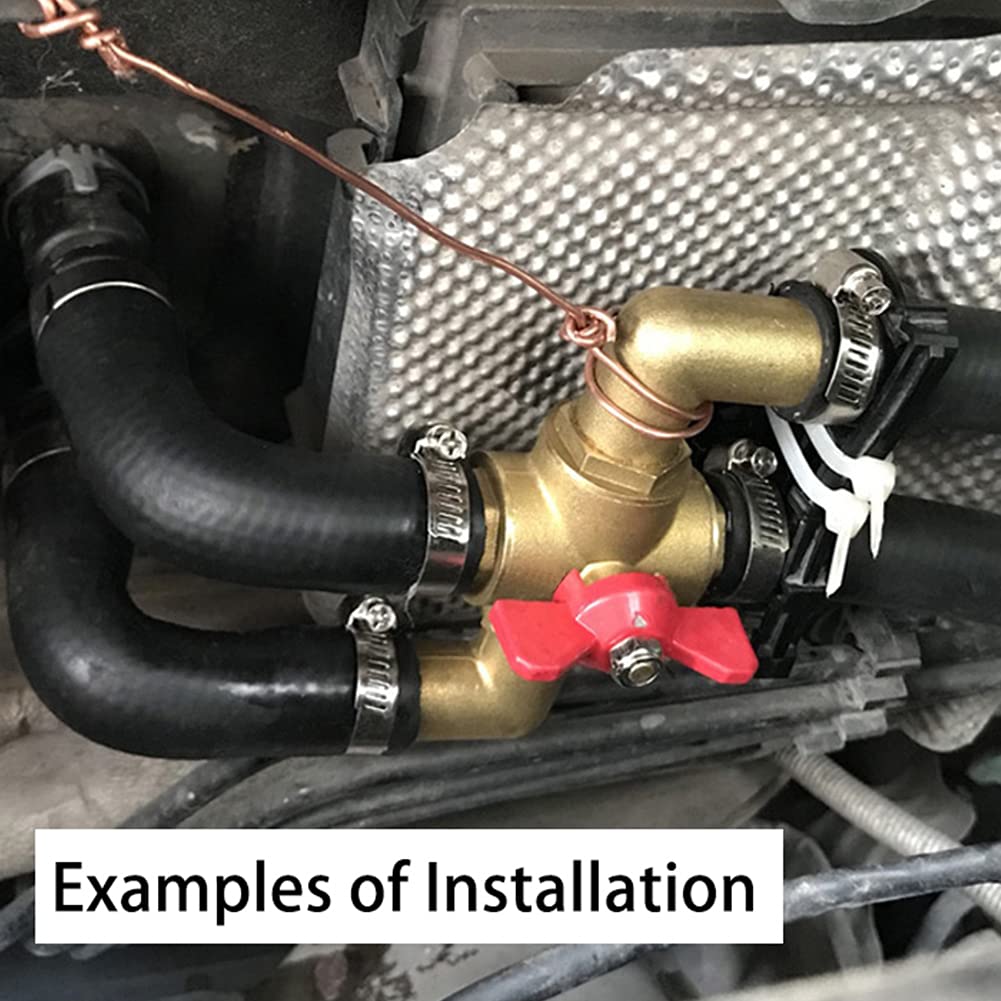

The valve is an integrated, screw-free assembly that relies on machined brass surfaces for sealing and longevity. The electroplated handle gives secure manual control and corrosion resistance. Installers connect standard 5/8" (16mm) heater hoses to the barbed ports and secure them with hose clamps; for older, degraded hoses, high-temperature sealant or PTFE tape on hose ends can improve sealing.

• All-brass body, brass ball core and stem for long-term corrosion resistance.
• Integrated structure minimizes internal leak paths and improves sealing.

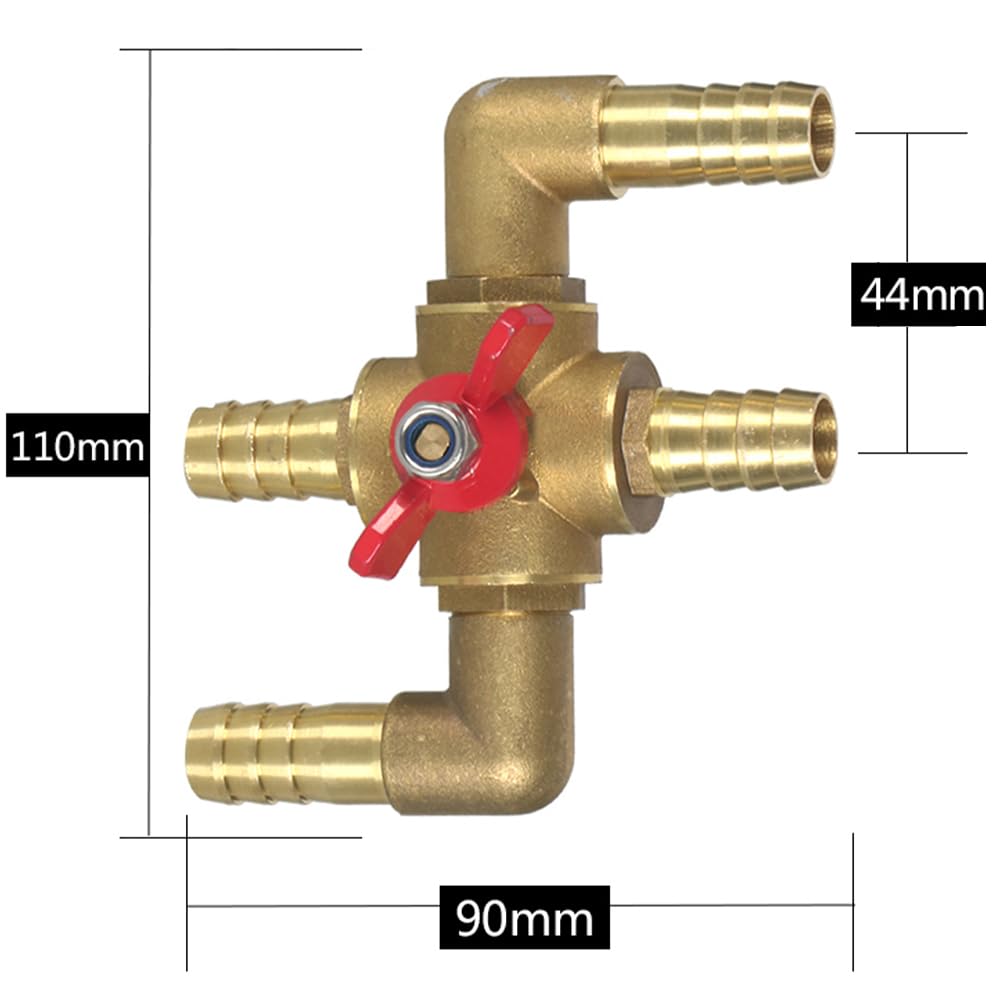

• Barb size: 5/8" (16mm); secure with clamps or high-temp hose sealant as needed.

What practical benefits does the valve offer for maintenance and protection?

Beyond flow control, the valve helps protect heater tanks and reduce the risk of coolant loss from a failed cabin heater. By isolating sections during repair or when the heater tank ages, you avoid unnecessary coolant circulation, which can prevent premature component stress and fuel-economy effects tied to inefficient heat exchange.

• Isolates a leaking or aging heater tank to limit coolant loss and engine drag.
• Makes heater line troubleshooting simpler by allowing selective shut-off of branches.
• Reduces the chance of warm water backflow that can compromise cabin cooling effect.

Who is this for? Vehicle owners, automotive technicians, and DIY mechanics seeking a reliable, heavy-duty manual heater valve will appreciate this Joywayus model. It’s aimed at those who need a durable replacement or upgrade for heater circuits in cars, trucks, and light commercial vehicles where 5/8" (16mm) hoses are used and thermal durability, corrosion resistance, and simple manual control are priorities. Do not use this product outside of recommended temperature and pressure limits or in non-automotive pressurized fluid systems.
