JRready Deutsch 2-Pin Connector Kit — 6 Sets Black, 14AWG Pigtails, IP67 Waterproof with 24 Heat-Shrink Butt Connectors

JRready's 2-pin Deutsch connector kit supplies six complete DT 2-wire pigtails with IP67 sealing, thicker 14AWG tinned copper, and 24 heat-shrink butt terminals for durable, waterproof automotive and marine wiring.

This kit bundles everything needed to build reliable, weatherproof two-conductor Deutsch connections: matched male and female DT housings, robust PA66 housings with ultrasonic-welded tail covers, pre-crimped 14AWG tinned copper leads, and 24 heat-shrink butt connectors. The components are rated for wide temperature extremes and designed to reduce voltage drop and wiring failures in vehicles, boats, RVs, and LED lighting systems.

How does this kit stand up to harsh environments?

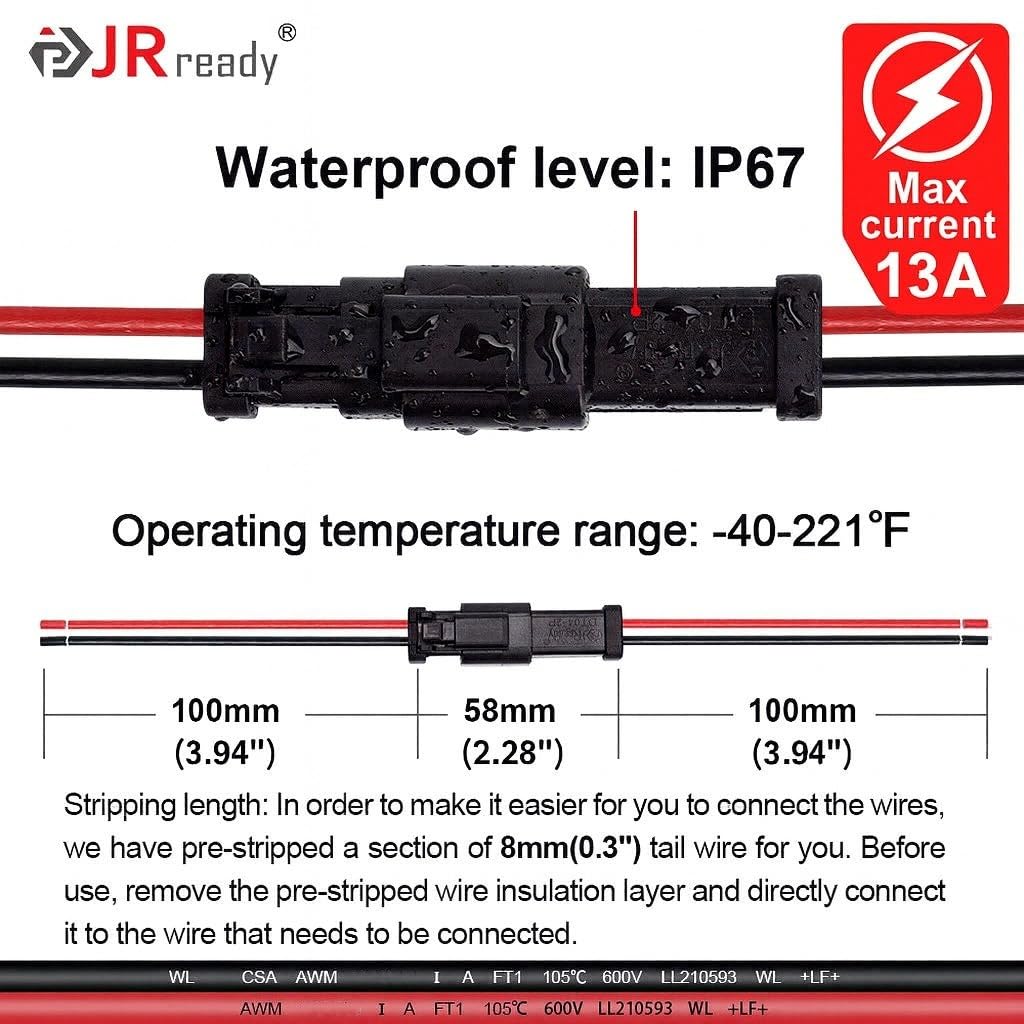

The Deutsch DT housings included in the kit are IP67-rated, blocking dust and withstanding immersion in water. Materials and construction tolerate extreme temperatures and preserve the seal over time.

• IP67 waterproof rating for protection against dust and temporary submersion
• Temperature range of -40°F to 221°F (-40°C to 105°C)
• PA66 connector housings resist oil, chemicals, and physical wear
• Ultrasonic-welded tail covers prevent cover separation under vibration

Why use 14AWG tinned copper wire with these DT connectors?

The kit uses 14AWG (0.254 mm x 41 strands) tinned copper to deliver a balance of flexibility, conductivity, and secure sealing with Deutsch pins. The thicker wire fills the sealing plug fully to maintain the integrity of the waterproof seal.

• 14AWG offers higher current capacity and lower voltage drop than smaller gauges
• Tinned copper improves corrosion resistance in marine or roadside conditions
• Wire diameter matches sealing plug tolerances—no gaps or loose fit

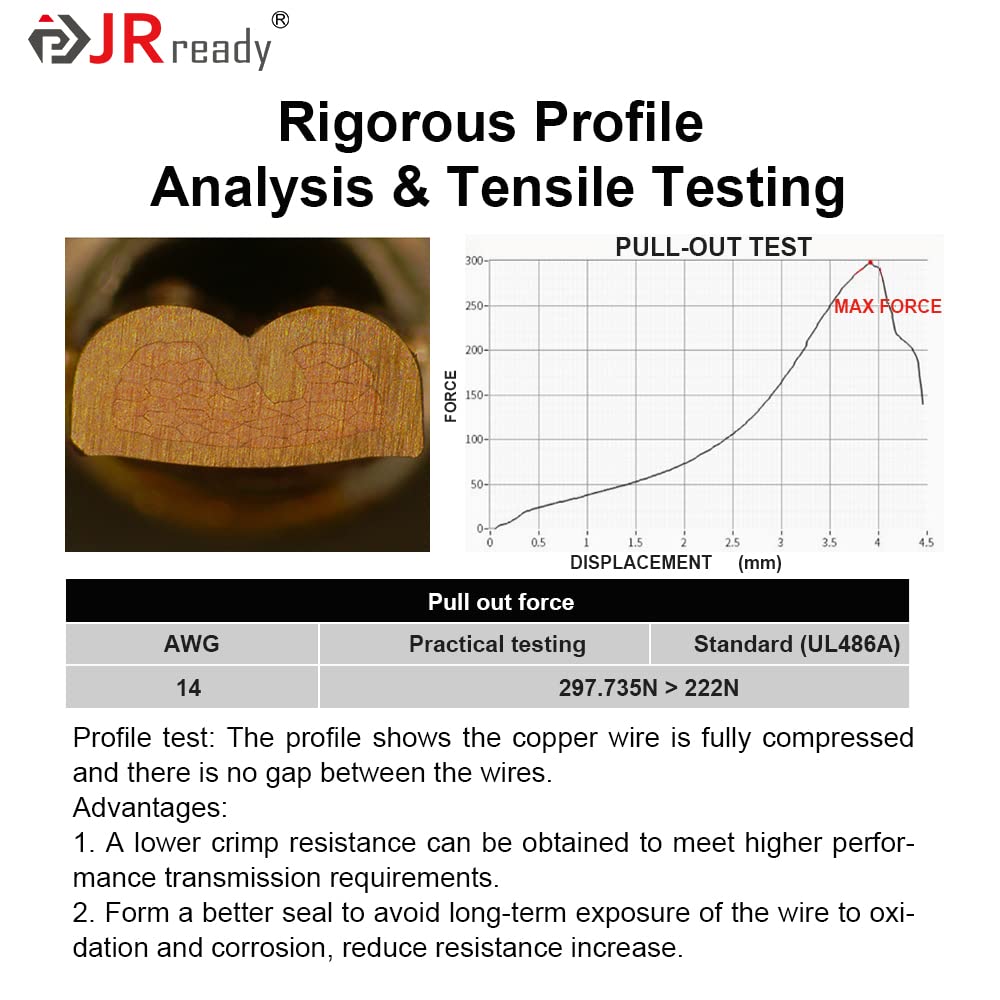

• Rigorously tested assembly for long-term safe electrical contact

What’s included and how do the heat-shrink butt connectors help?

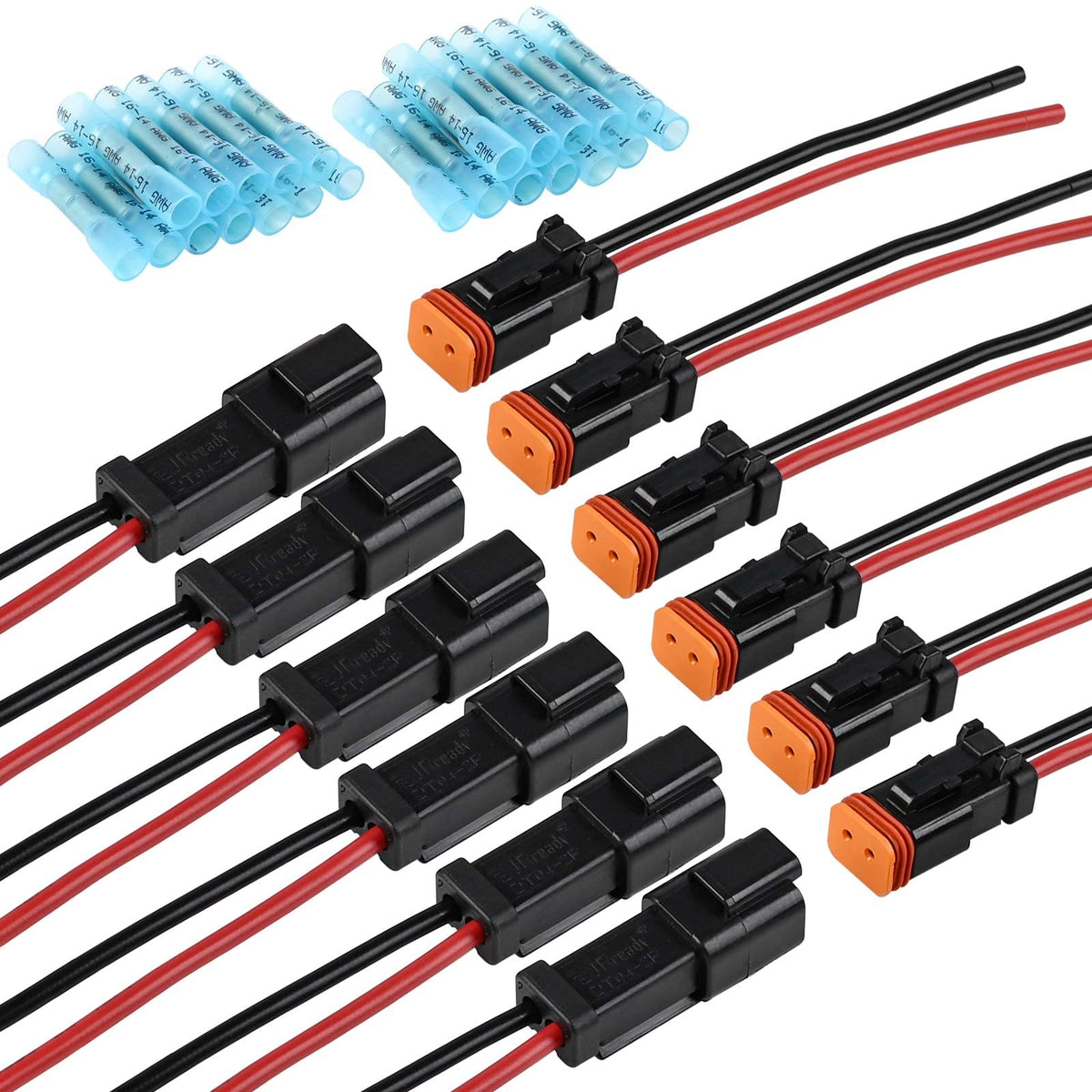

The package contains six male and six female DT 2-pin housings with attached 14AWG pigtails, plus 24 heat-shrink butt connectors. The butt connectors combine a tinned copper barrel with adhesive-lined heat-shrink to form mechanically strong, waterproof splices.

• 6 x DT04-2P and 6 x DT06-2S wired pigtails (pre-assembled)

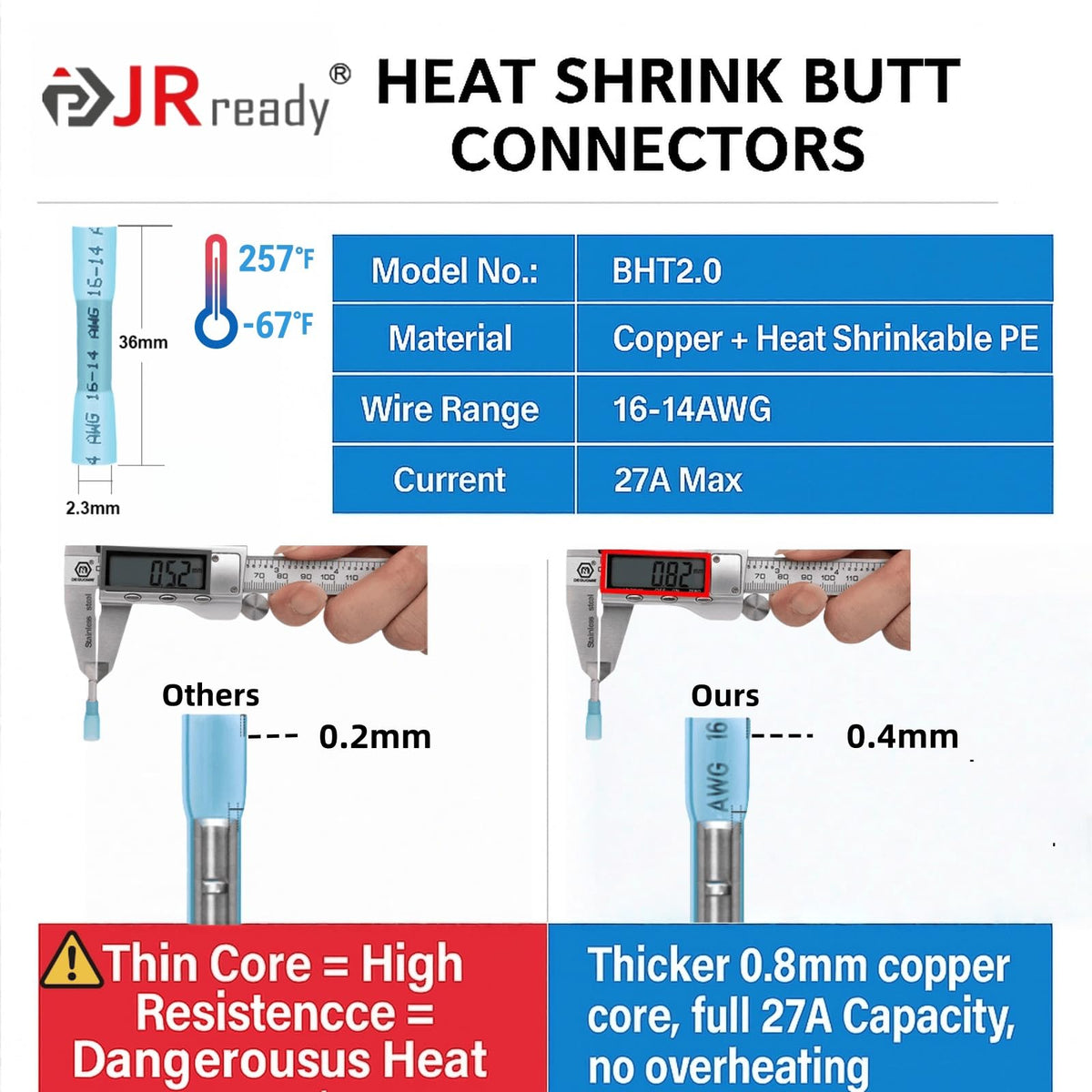

• 24 x BHT2.0 heat-shrink butt connectors for 16–14 AWG wires
• Tinned copper barrels ensure strong crimps and minimal resistance
• Heat-shrink jackets seal and prevent short circuits and corrosion

How straightforward is installation for vehicle and lighting projects?

These pigtails are ready to install—terminate, crimp, and heat-shrink for sealed splices, then mate the Deutsch plugs for a secure connection. The tail cover and ultrasonic welding reduce the chance of assembly failure in high-vibration applications.

• Pre-assembled pigtails save time versus building individual leads
• Crimp the included butt connectors, then apply heat for a sealed joint
• Deutsch mating halves lock securely to prevent accidental disconnects
• Works with LED light bars, trailer plugs, boat wiring, and more

Who is this for: technicians, hobbyists, and DIYers who need compact, rugged two-conductor Deutsch connections for harsh environments. Choose this kit if you want factory-style DT 2-pin pigtails with thicker 14AWG leads, reliable waterproofing, and a full set of heat-shrink butt connectors for lasting marine, automotive, or motorsport electrical work.
