JRready Deutsch DT Connector Kit DW5007-02 — 2/3/4/6/8/12-pin housings, size-16 contacts, crimp tool, IP68 waterproof

The JRready DW5007-02 is a complete Deutsch DT connector kit that includes multi-pin housings, yellow rear seals, size-16 green contacts, and a DT-compatible crimp tool for reliable, waterproof cable assemblies.

This kit groups the core components and a purpose-built crimping tool needed to build and repair Deutsch DT series wire-to-wire and wire-to-board connections used in automotive, marine, off-road, industrial, and specialty vehicle wiring. Contents are designed to work together: hardened bronze contacts rated for 14–20 AWG, enhanced IP68-rated connector bodies with improved seal retention, non-conductive rear seals, and a three-position crimper that secures closed-barrel terminals consistently.

What exactly comes in this Deutsch connector kit?

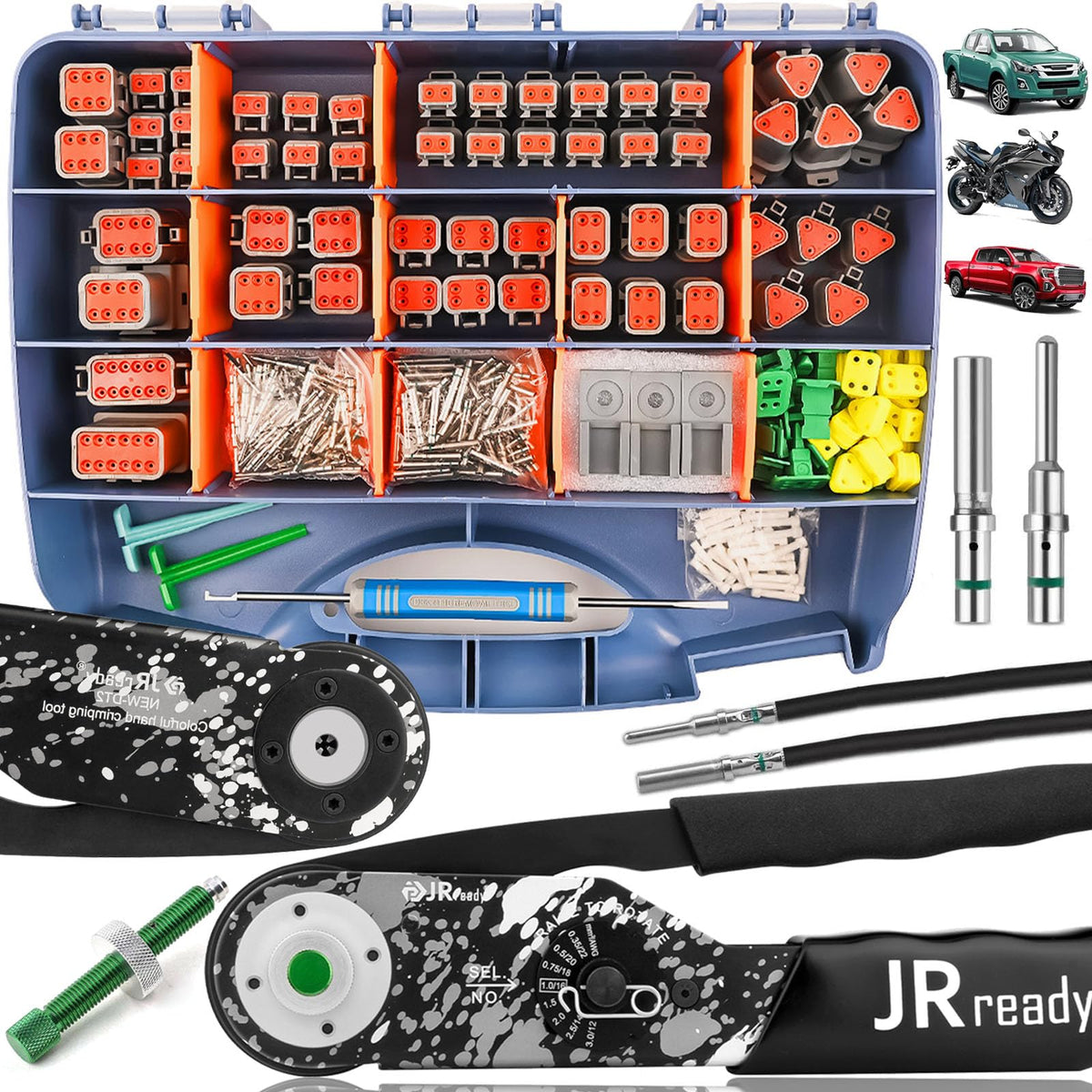

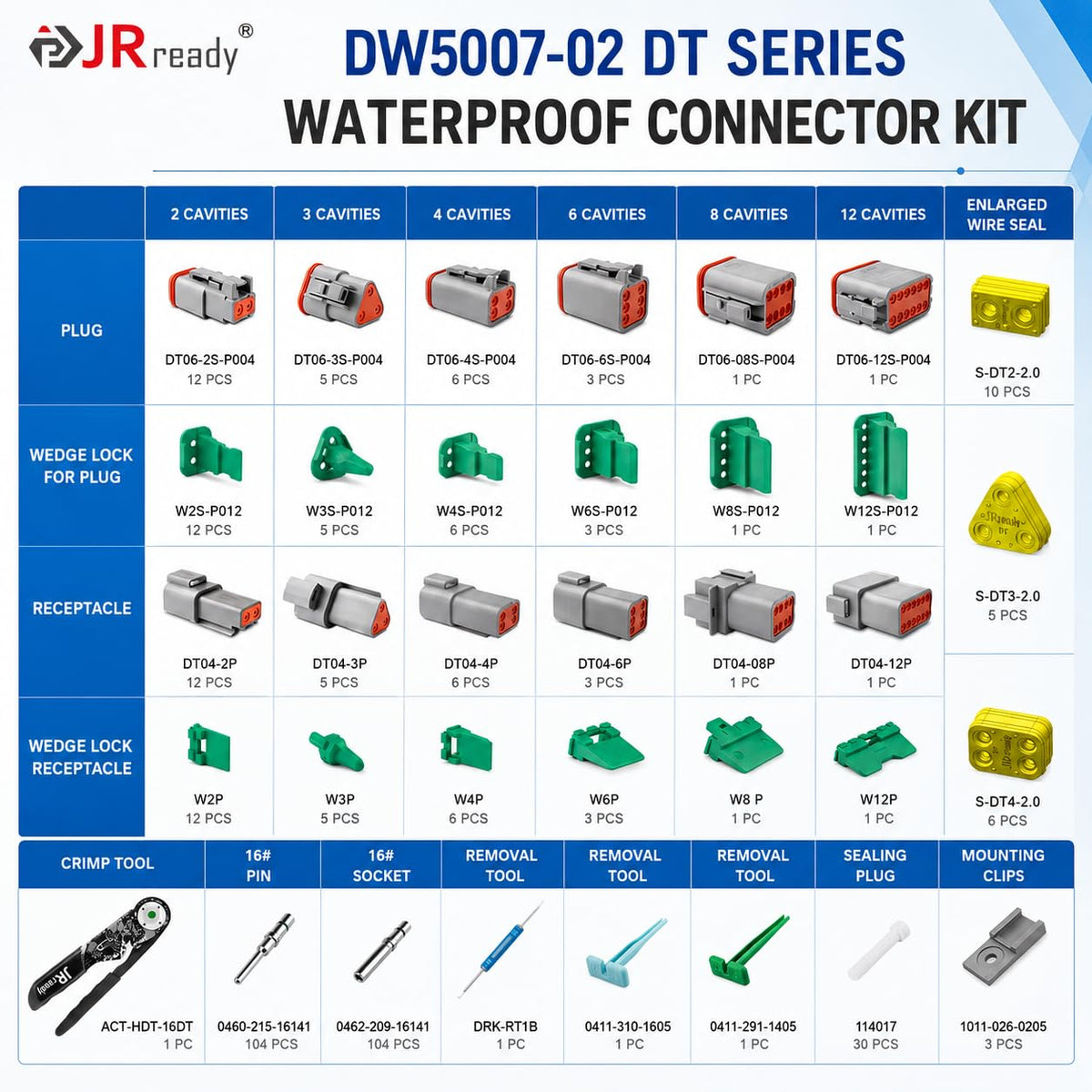

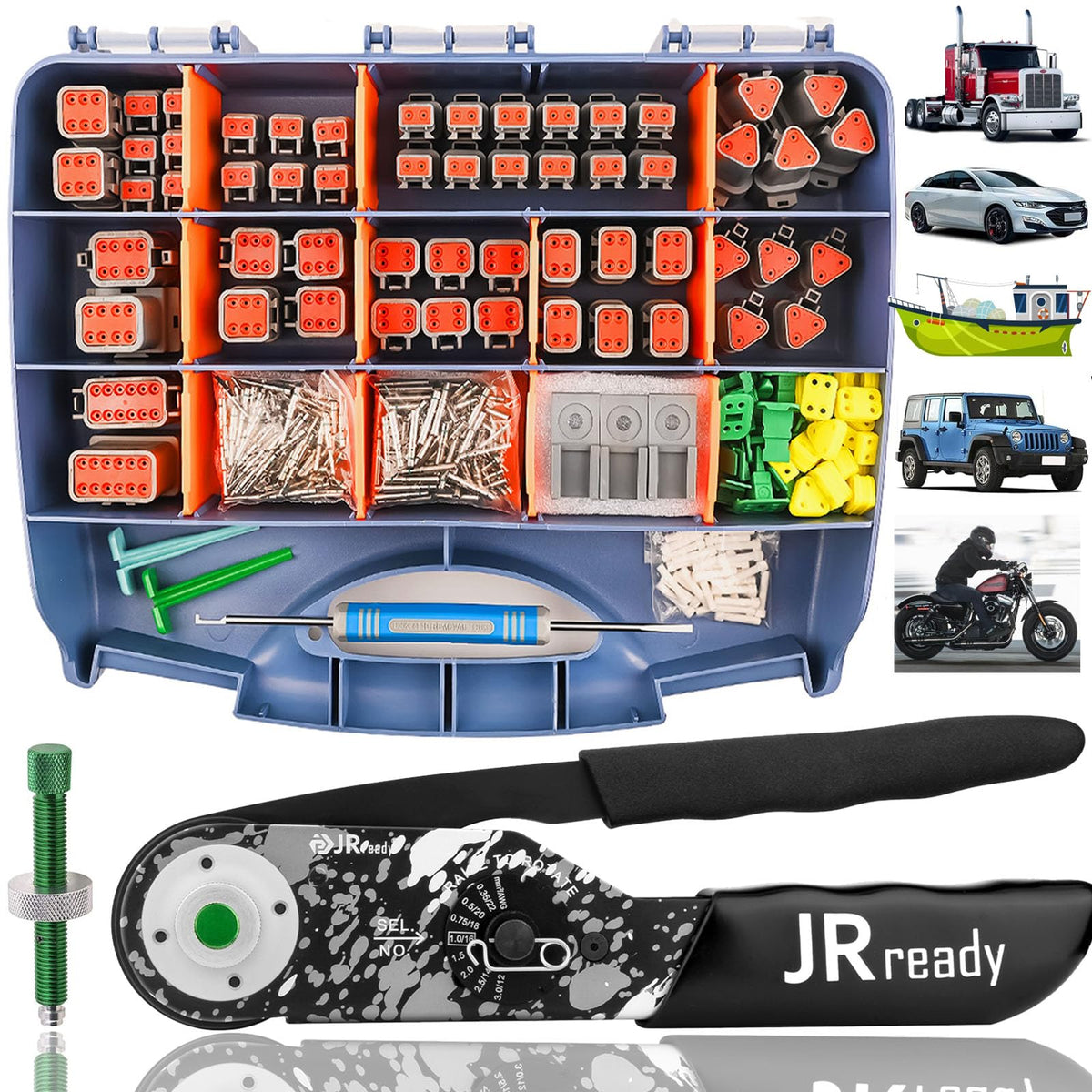

The DW5007-02 supplies a selection of DT series housings across 2, 3, 4, 6, 8, and 12-pin configurations, matching yellow rear seals for empty cavities, and size-16 solid green male/female contacts rated up to 13A. The included crimp tool (HDT-48-00 equivalent) supports a broad crimp range to handle the provided terminals.

• DT series housings in 2/3/4/6/8/12-pin formats
• Yellow waterproof rear seals for 2–4 cavity applications
• Size-16 green contacts (14–20 AWG), >500 insertion cycles
• New-DT2 crimp tool with 4-mandrel, 8-indent pattern and ratchet

How durable and weatherproof are these Deutsch DT connectors?

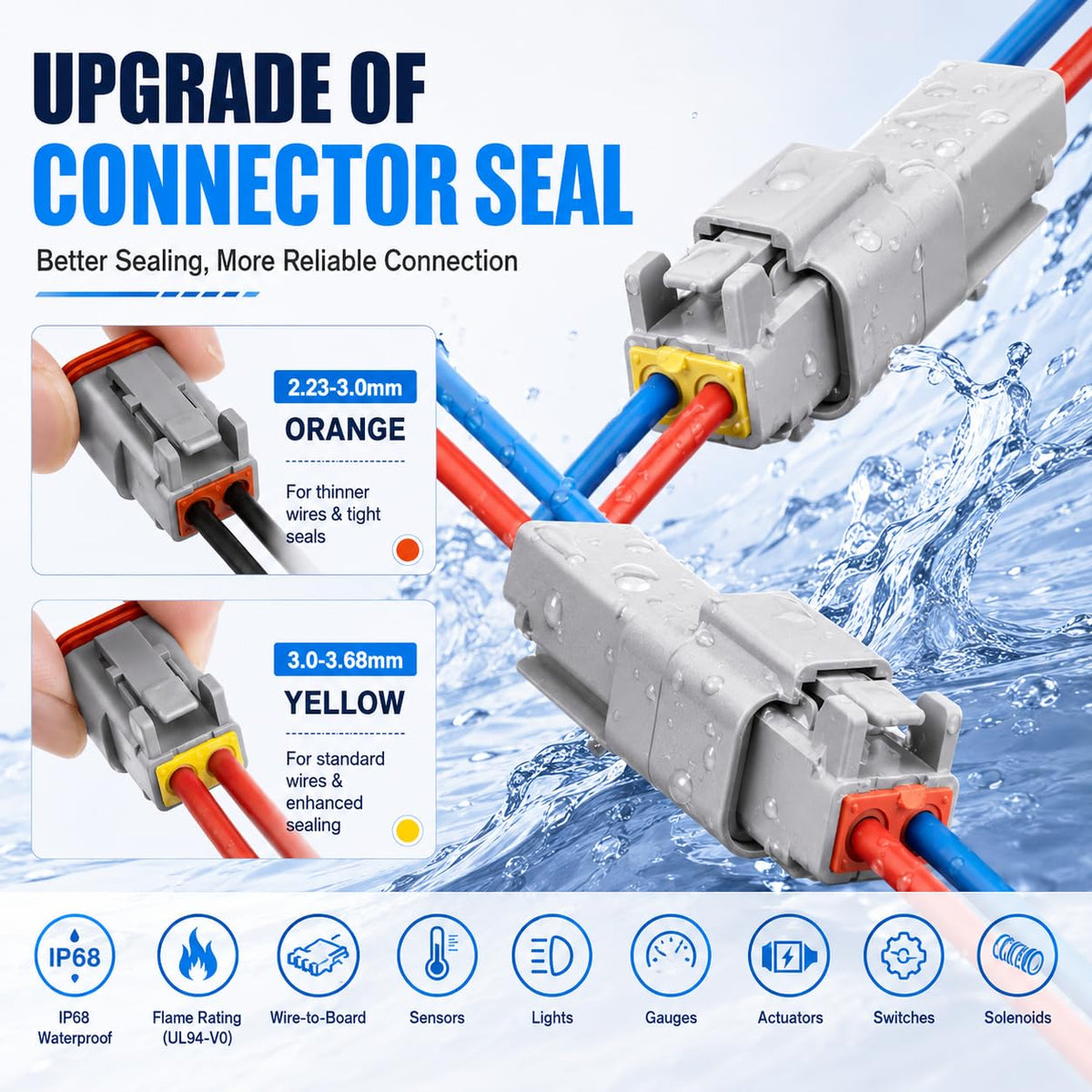

These connectors are engineered for challenging environments: IP68-level sealing, enhanced corrosion resistance, and an extended temperature range from -40°C to 125°C. The improved seal retention design helps preserve a leak-free connection after repeated use and under vibration or exposure to moisture.

• IP68 waterproof rating for submersion and dust protection
• Enhanced seal retention compatible with older DT versions
• Operating range: -40°C to 125°C for harsh climates
• Resistant to corrosion, wear, and mechanical vibration

Why choose the included crimp tool and what wires does it support?

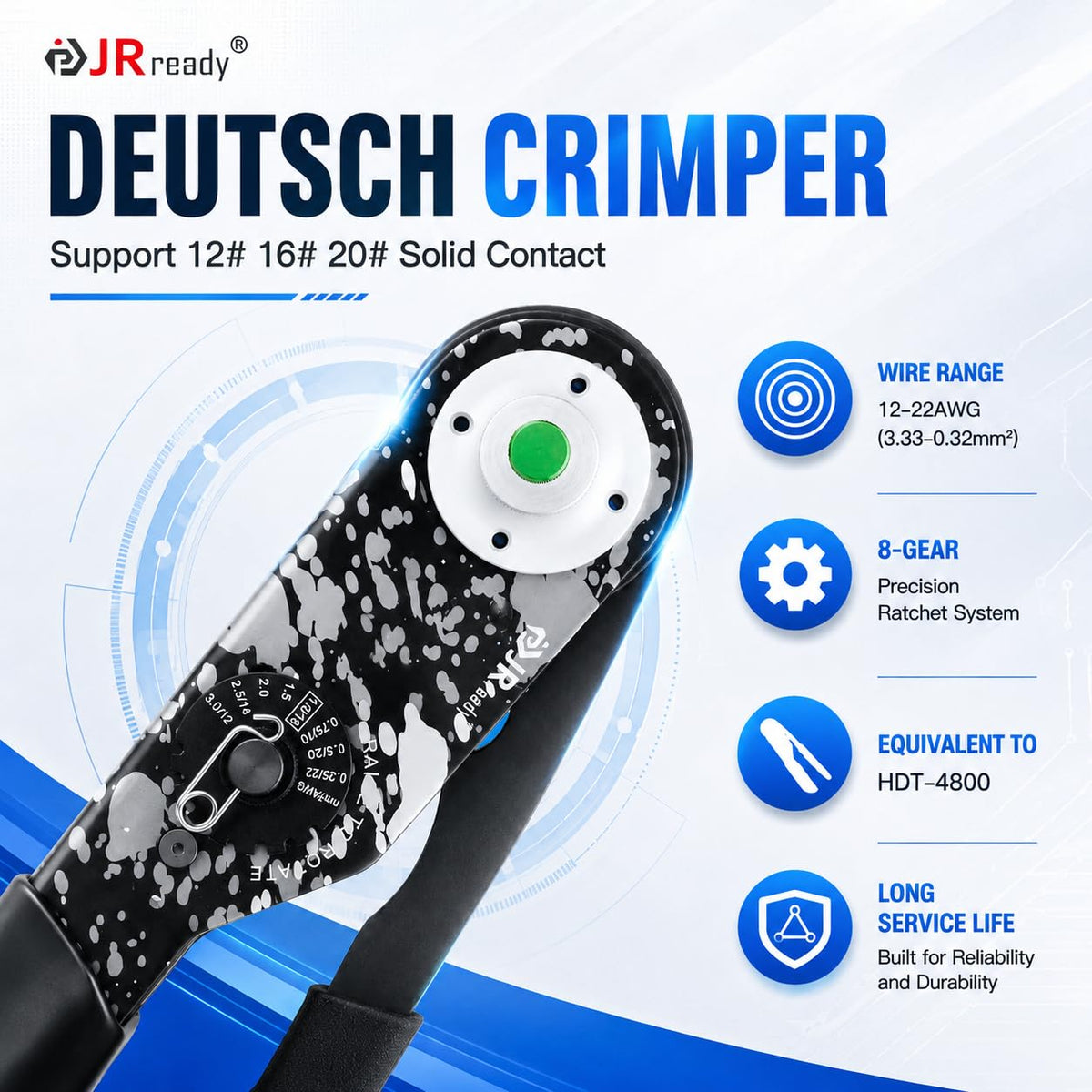

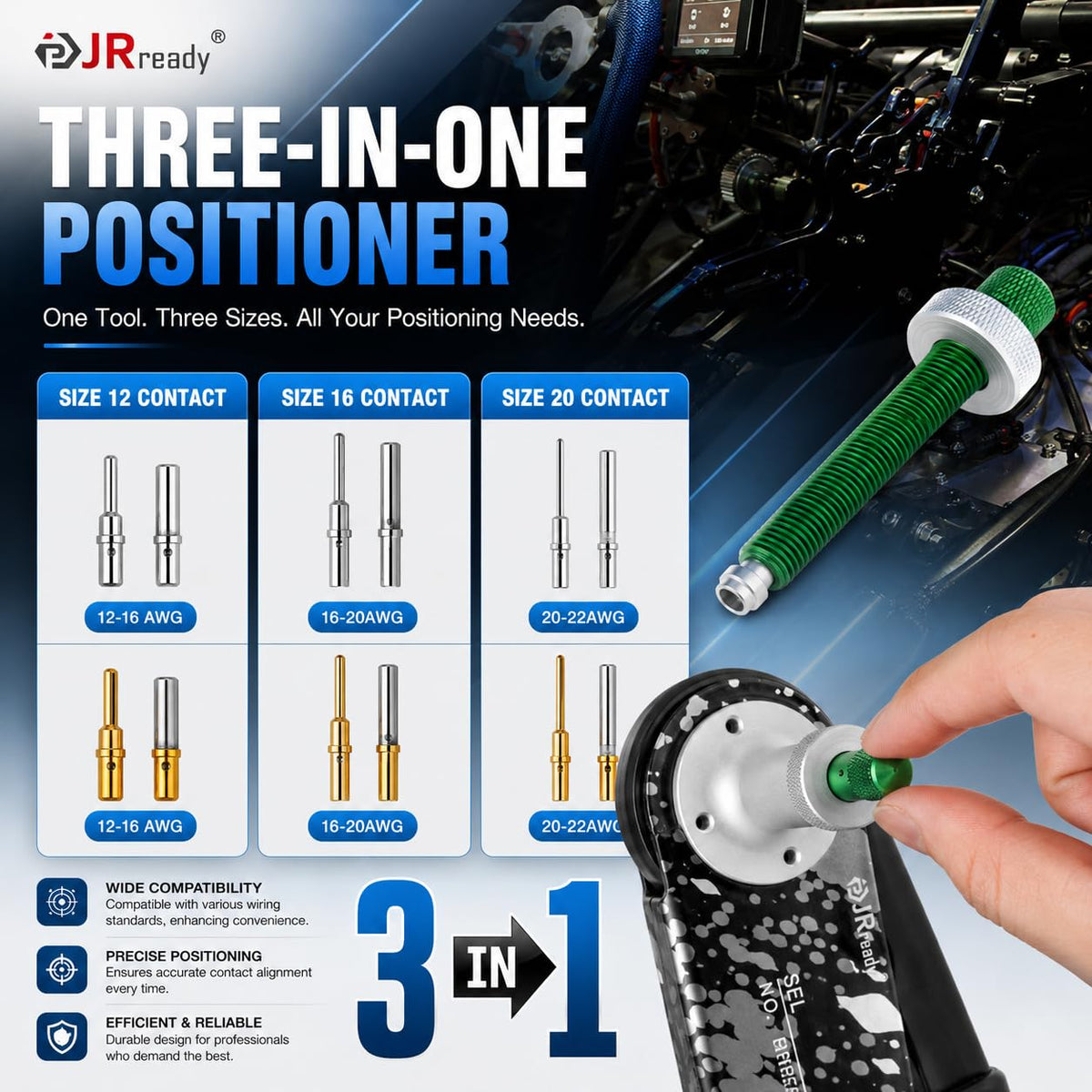

The supplied crimper is equivalent to the HDT-48-00 and includes a three-in-one positioner to cradle size 12, 16, and 20 closed-barrel terminals securely. Its double-action ratchet ensures each crimp reaches full compression before release, delivering consistent tensile strength across repetitive production or field repairs.

• Crimp range: 12–22 AWG, compatible with size 12/16/20 terminals

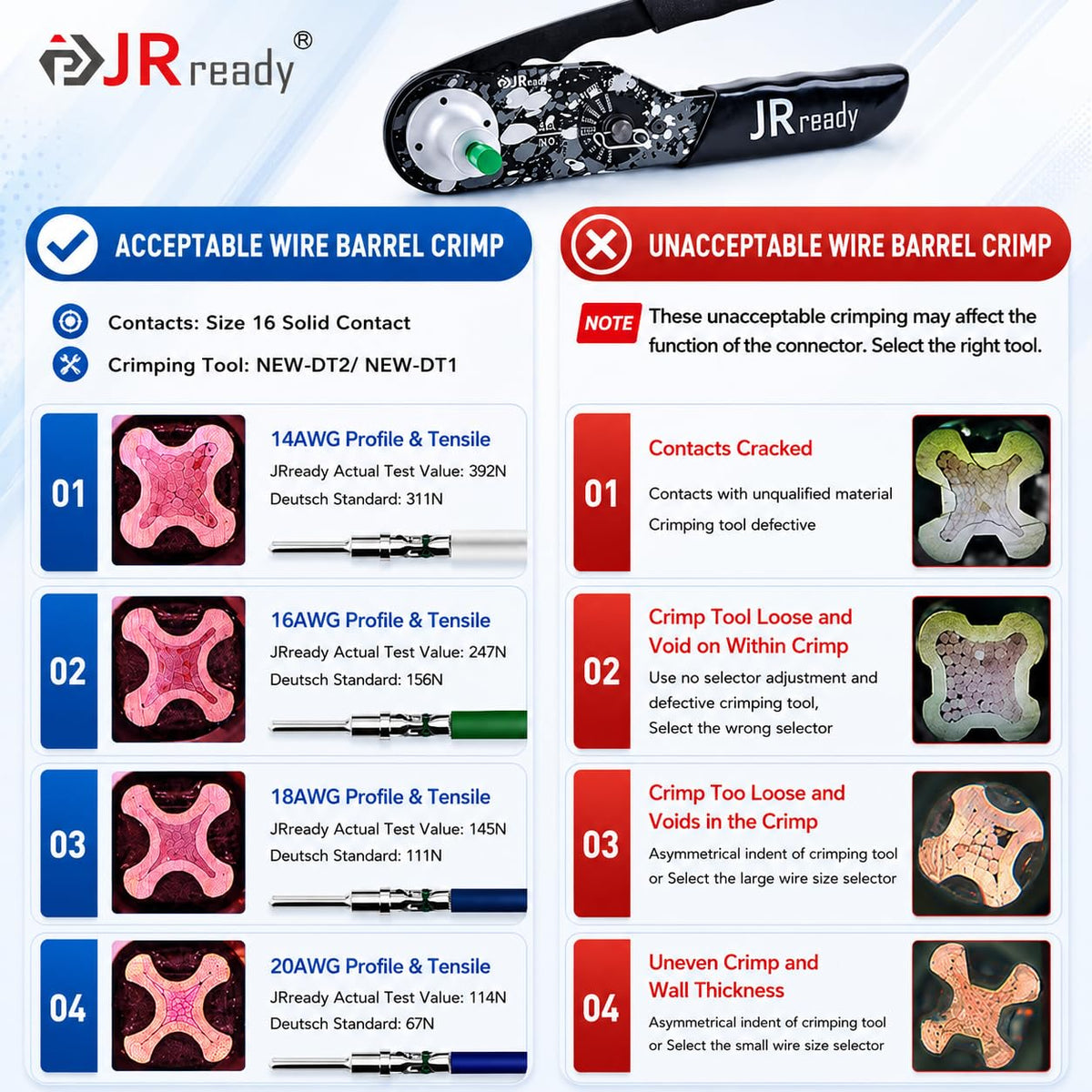

• 4-mandrel, 8-indent crimp pattern for robust mechanical hold
• Double-action ratchet prevents incomplete crimps
• Suitable for field service and light production work

Can I reuse or adapt these contacts and seals with other Deutsch series?

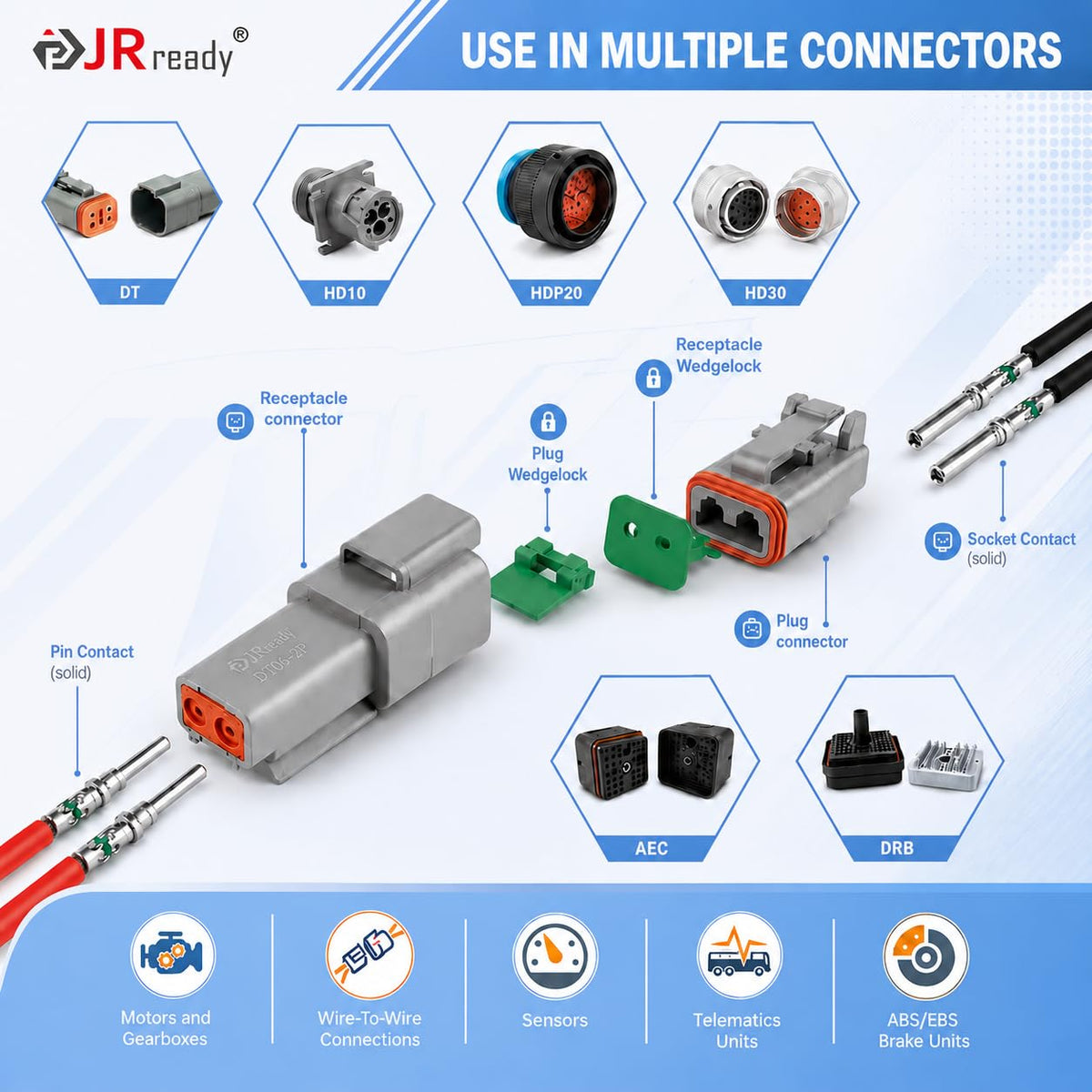

The size-16 green contacts in this kit are compatible with many Deutsch and Amphenol families (DT, DTM, DTP, DTHD, AT, ATM, ATP, ATHD, HDP20, HD30, HD10), making them versatile for retrofit or repair projects. Yellow rear seals are simple to insert into existing DT housings to block unused cavities without rewiring.

• Contacts fit multiple Deutsch/Amphenol connector series
• Rear seals adapt to 2–4 cavity DT housings for easy blocking
• Useful for upgrades, repairs, and mixed-system compatibility
• Maintains electrical integrity across compatible connector lines

Who is this kit for? The JRready DW5007-02 targets technicians, mechanics, marine electricians, off-road vehicle builders, and maintenance crews who need a compact, field-ready assortment to build, repair, or modify Deutsch DT electrical connections. It’s suitable for both professional shops and skilled DIYers who require durable, waterproof connectors and a dependable crimp tool for consistent assemblies without sourcing parts individually.
