JRready Deutsch DTM 4-Pin Connector Kit — 4 Sets, Waterproof PA66 Housings & Solid Size-20 Contacts

This kit supplies everything needed to assemble durable 4-pin Deutsch DTM connections for vehicles, powersports and marine applications. The housings are molded from PA66 nylon for toughness and environmental resistance, while the copper-nickel alloy solid contacts accept 20–22 AWG wire and are rated for continuous 7.5 A each. The package is built to simplify field wiring and replacement, saving time when repairing or upgrading electrical systems around engines, transmissions or exposed harnesses.

How do these connectors hold up in harsh conditions?

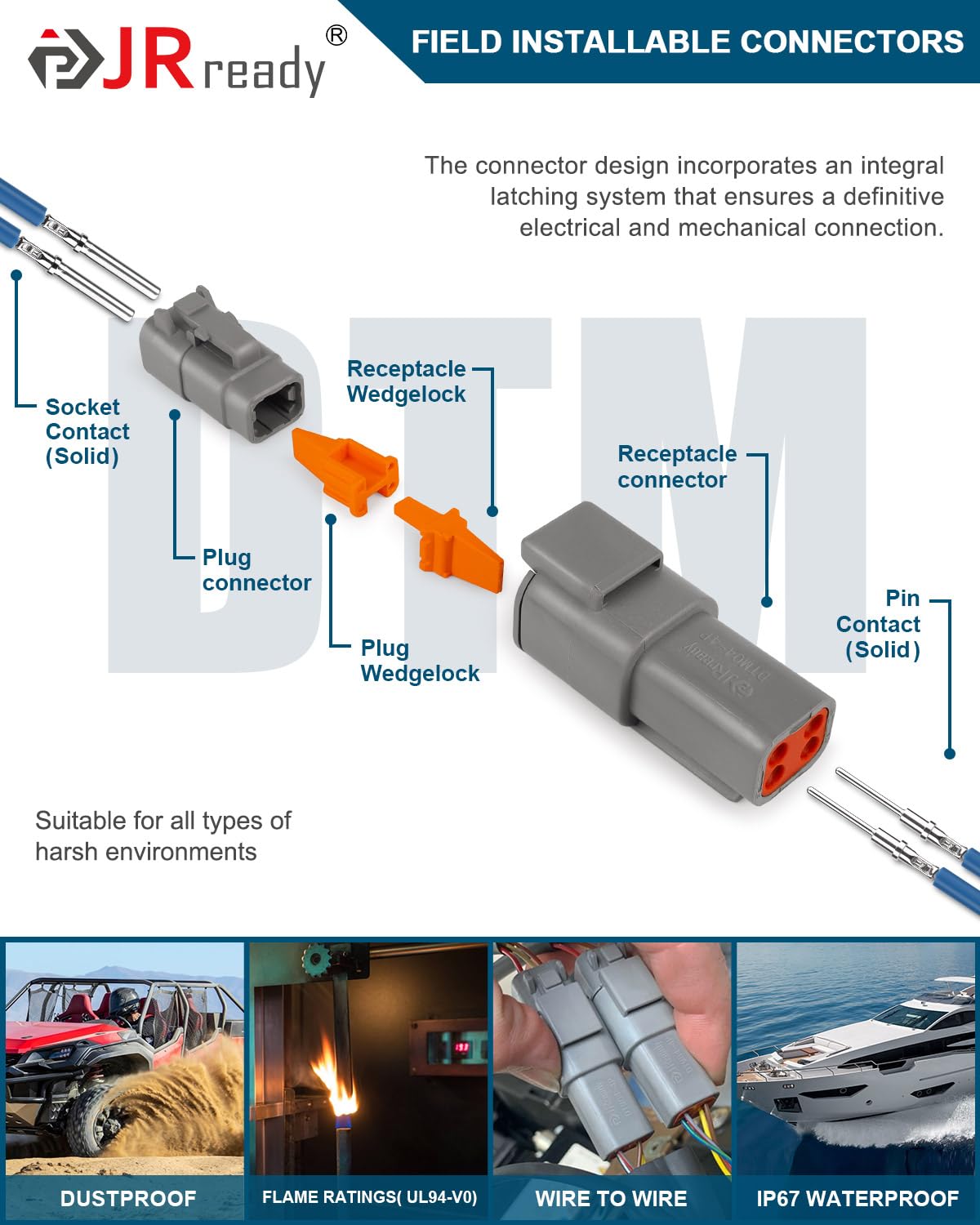

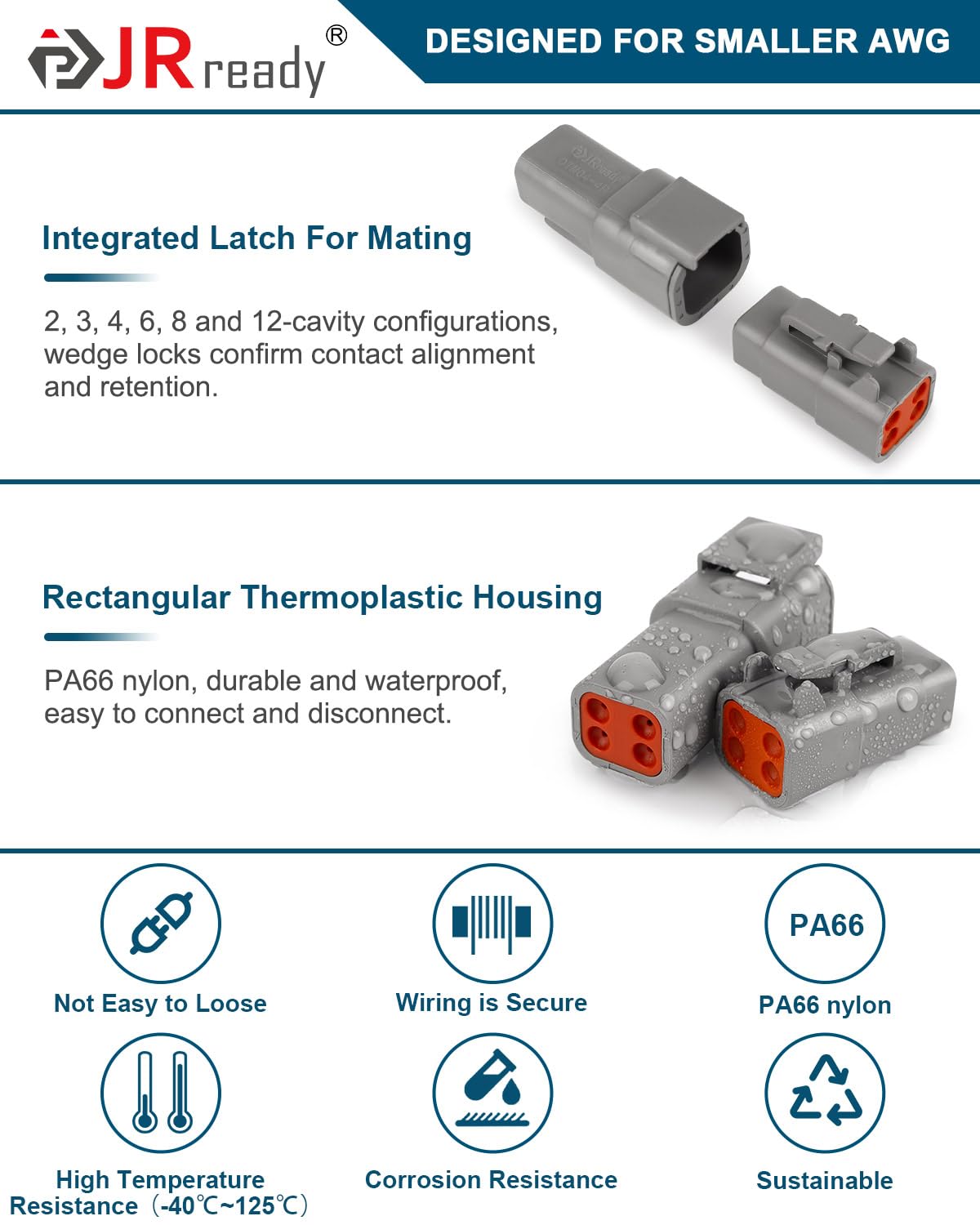

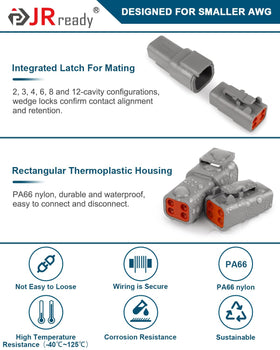

The JRready housings use PA66 nylon, chosen for impact resistance, heat tolerance and long-term electrical insulation. Combined with sealing plugs and wedgelocks, the system resists moisture ingress and vibration-related contact loss when installed correctly.

• PA66 nylon shells for wear and corrosion resistance
• Included seal plugs to protect unused cavities
• Wedgelocks secure contacts against vibration
• Solid contacts with treated surfaces to avoid crimp cracking

What electrical specs and wiring sizes do the contacts support?

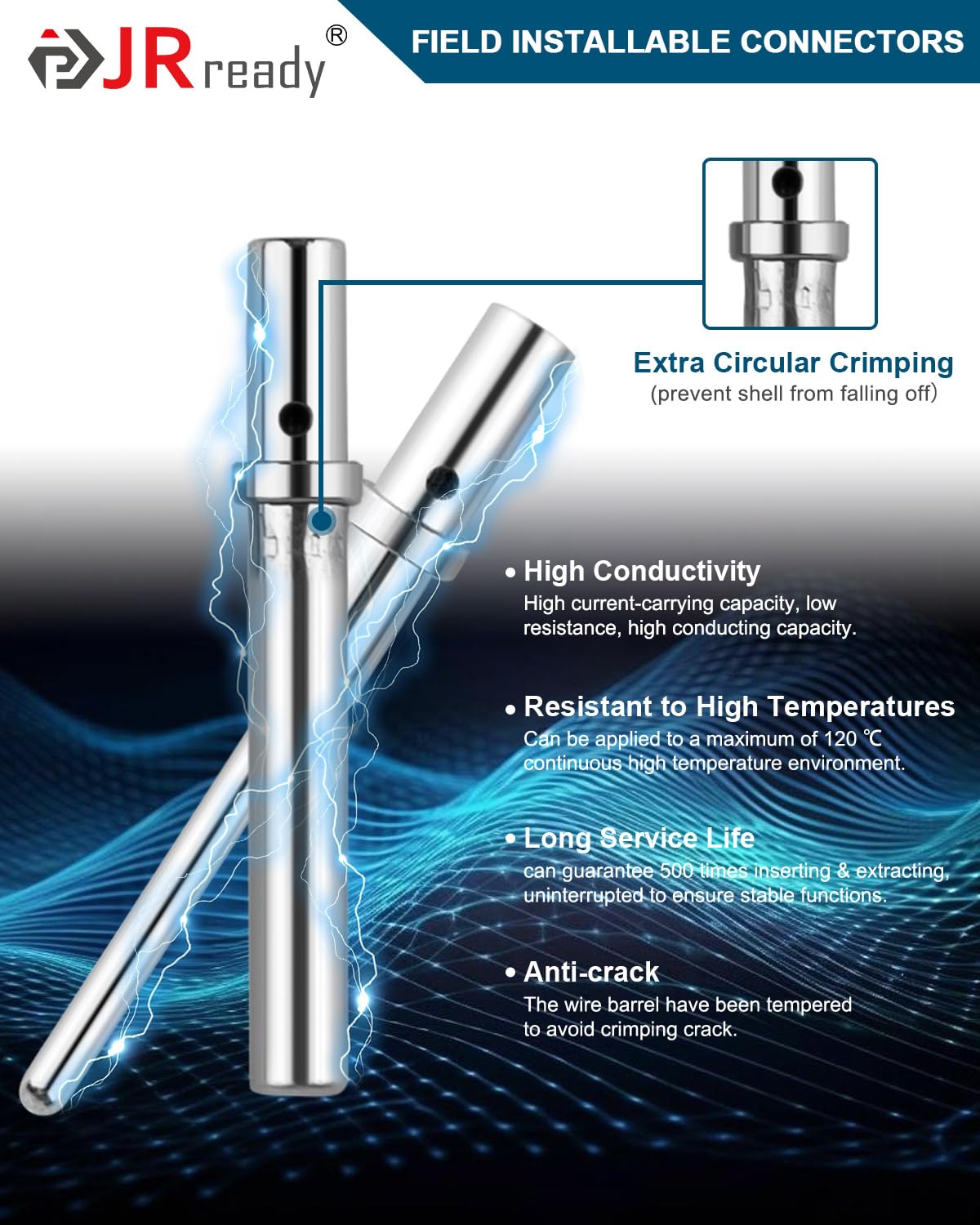

The kit uses size-20 solid contacts made from a copper-nickel alloy engineered for stable conductivity. They accept 20–22 AWG wire and are rated for a 7.5-amp continuous current per contact, suitable for many sensor, lighting and control circuits.

• Wire range: 20–22 AWG
• Continuous current capacity: 7.5 A per contact

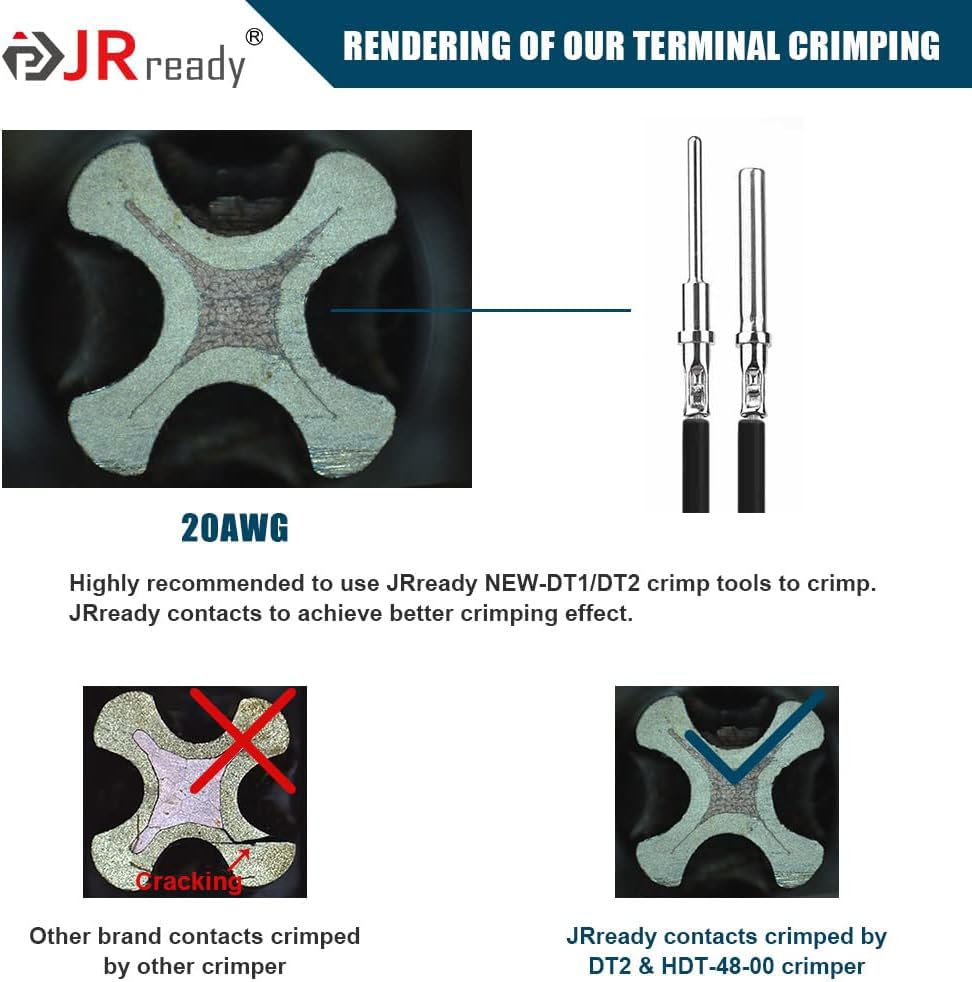

• Special surface treatment to improve crimp integrity
• Solid (single-piece) contact design for consistent mating

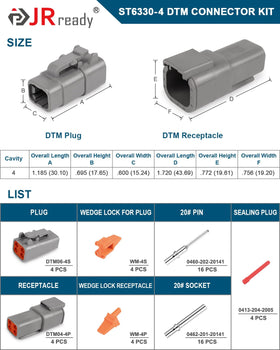

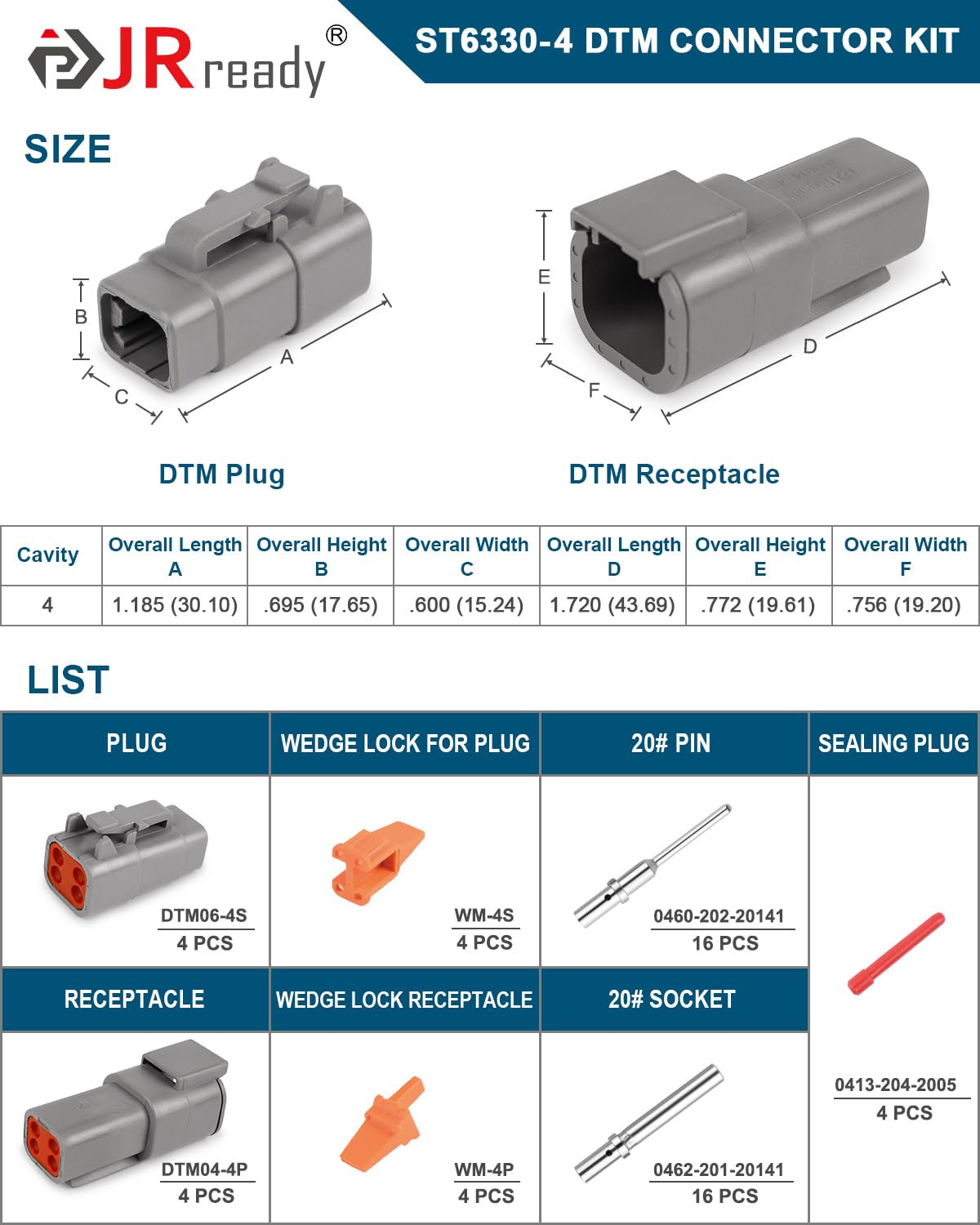

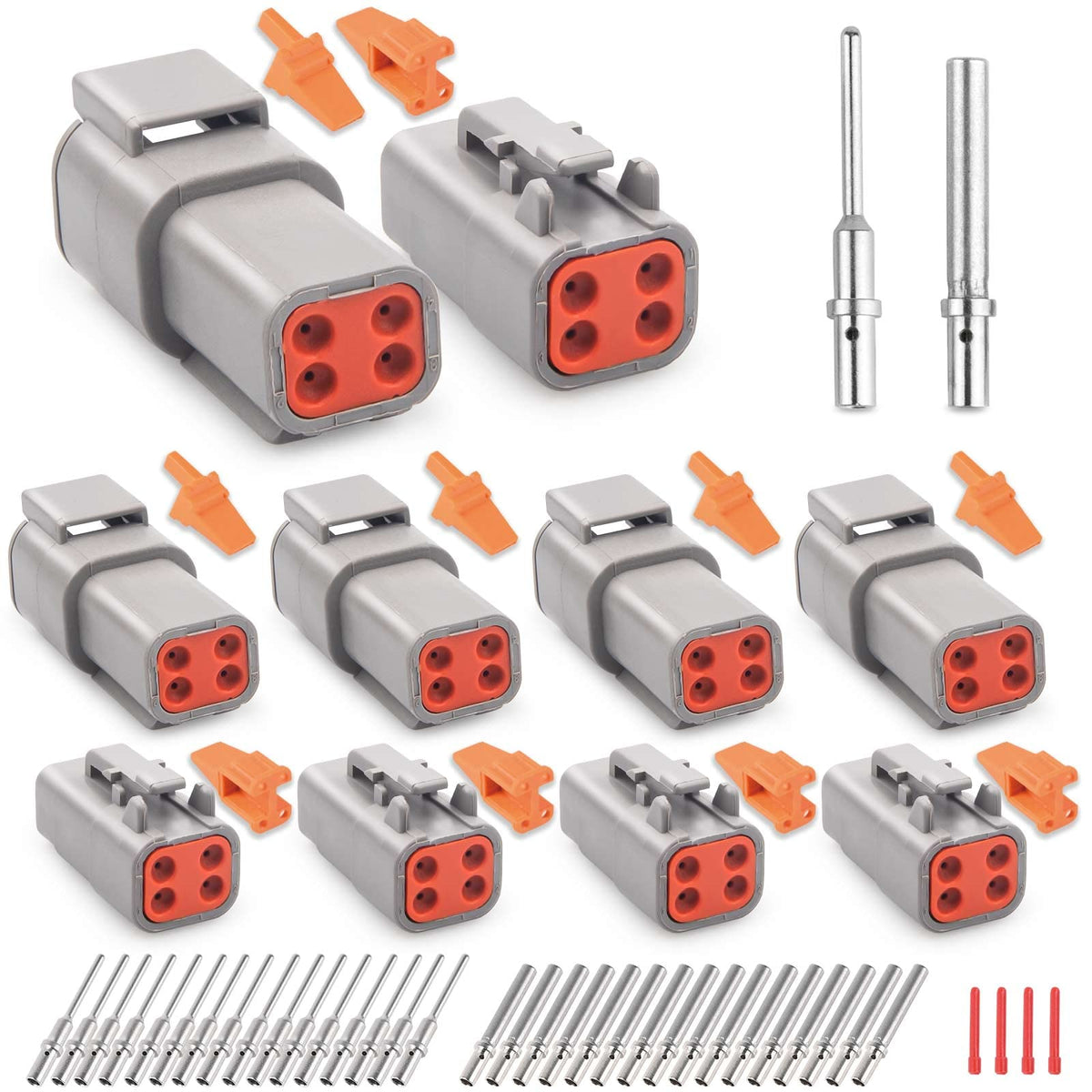

What is included in the JRready DTM 4-pin connector kit?

This ST6330-4 set contains the components needed to build four complete 4-pin Deutsch DTM connections and to seal or reserve unused cavities. Everything is packaged to allow immediate assembly and installation without sourcing additional parts.

• 4 pairs DTM 4-pin connectors (DTM06-4S/DTM04-4P)
• 16 pairs size-20 solid contacts (0460-202-20141/0462-201-20141)
• 4 wedgelocks for plug housings and 4 for receptacles
• 4 seal plugs for unused cavities

Who is this for? The JRready ST6330-4 Deutsch DTM 4-pin connector kit is aimed at mechanics, DIY vehicle and marine technicians, restoration shops and OEMs who need a compact, waterproof connector option for sensors, actuators, lights and control harnesses. If you maintain motorcycles, ATVs, boats, trucks or custom wiring near heat and moisture, this kit provides a ready-made solution for reliable 4-pin Deutsch DTM assemblies.
