JRready Deutsch Pin Removal Tool Kit ST5231 — 7‑Piece (Size 20/16/12) Stainless Steel Extractors with Anodized Handles

JRready ST5231 is a seven-piece Deutsch connector release kit that safely extracts solid pins and terminals from DT/DTM/DTP series connectors without damaging wires or housings.

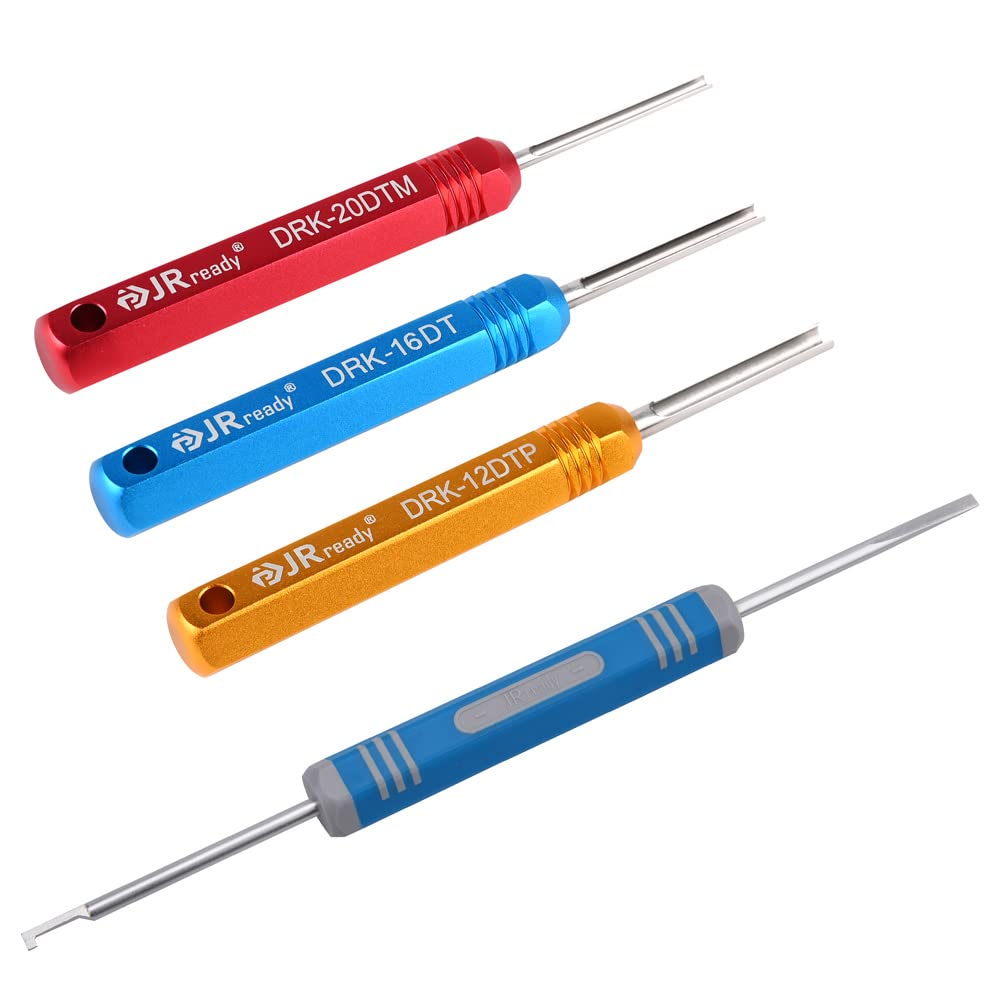

This compact kit combines three size-specific stainless-steel pin extractors (for size 20, 16 and 12 contacts) with a multi-purpose pick/release tool, all fitted with anodized aluminum handles for grip and corrosion resistance. Each shaft is extended and slotted to reach terminals installed at different depths, so you can free contacts from a wide range of Deutsch and compatible connector families while preserving the harness integrity.

How do the different tools fit specific Deutsch contact sizes?

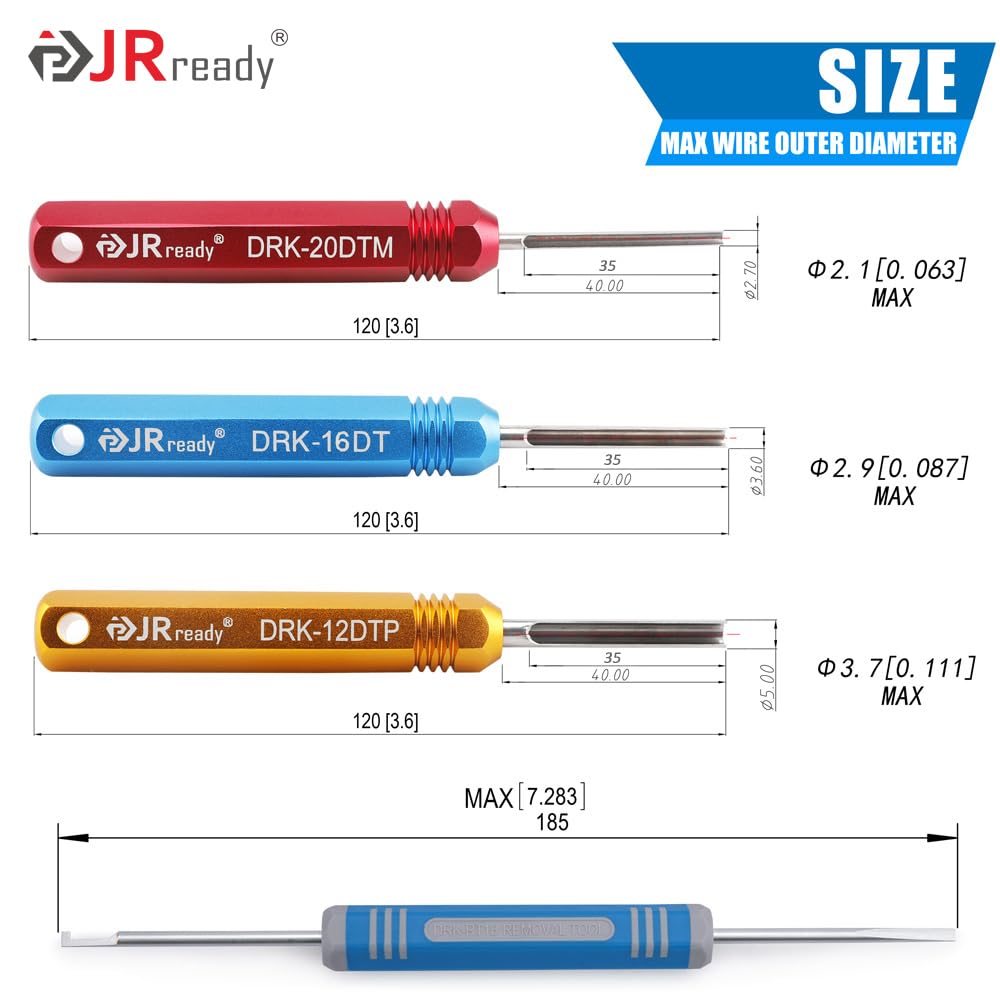

Each extractor is matched to a contact size and maximum wire outer diameter so you can select the right tool for a precise, non-destructive release. The slot length and stainless-steel construction let you reach and manipulate terminals seated deep in the connector body.

• DRK-20DTM — for size 20 contacts, supports wire OD up to 2.1 mm.
• DRK-16DT — for size 16 contacts, supports wire OD up to 2.9 mm.
• DRK-12DTP — for size 12 contacts, supports wire OD up to 3.7 mm.
• DRK-RT1B — pick tool with hooked end and small screwdriver for stubborn terminals.

Will these tools protect wires and connector housings during removal?

The shafts are made from stainless steel to resist bending and wear, while the longer slotted design lets you disengage terminals without prying on the wire insulation. Anodized aluminum handles improve grip and control, reducing slips that cause nicks or connector damage.

• Stainless-steel shafts for strength and longevity.

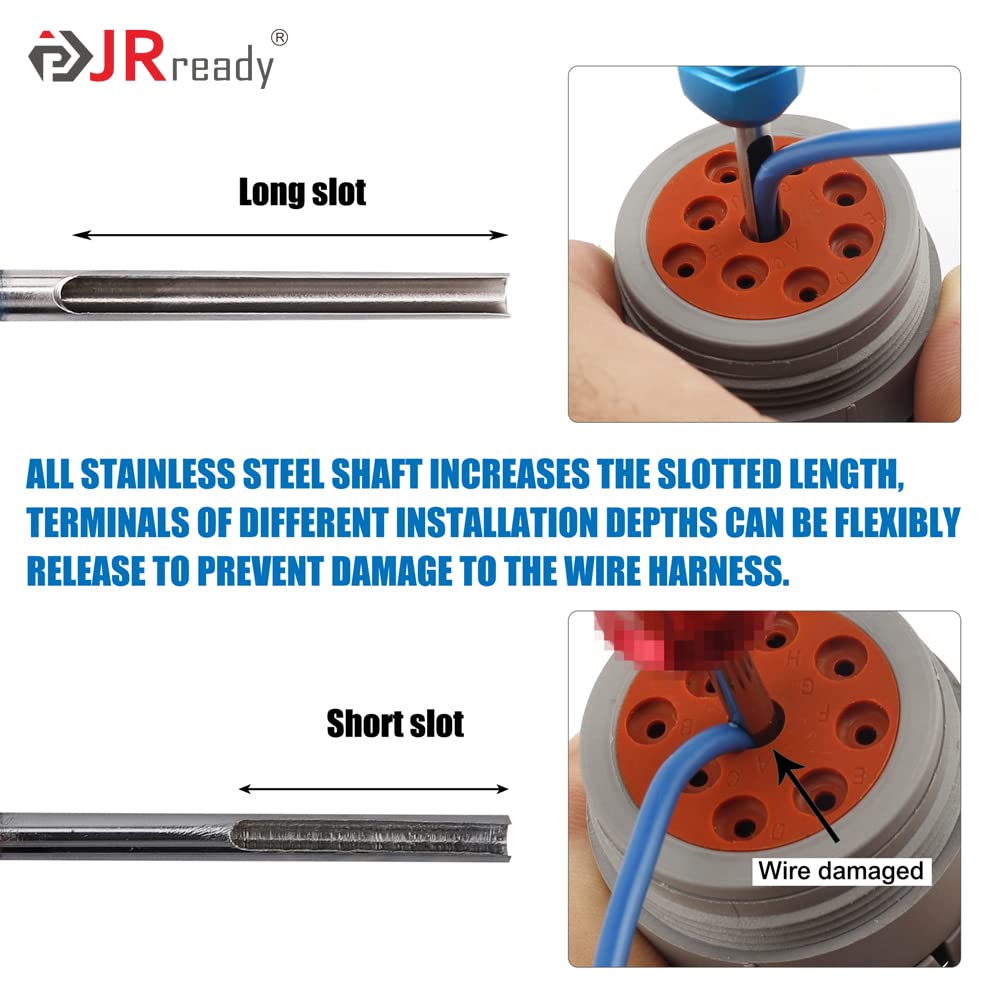

• Increased slotted length to access deep-seated terminals safely.

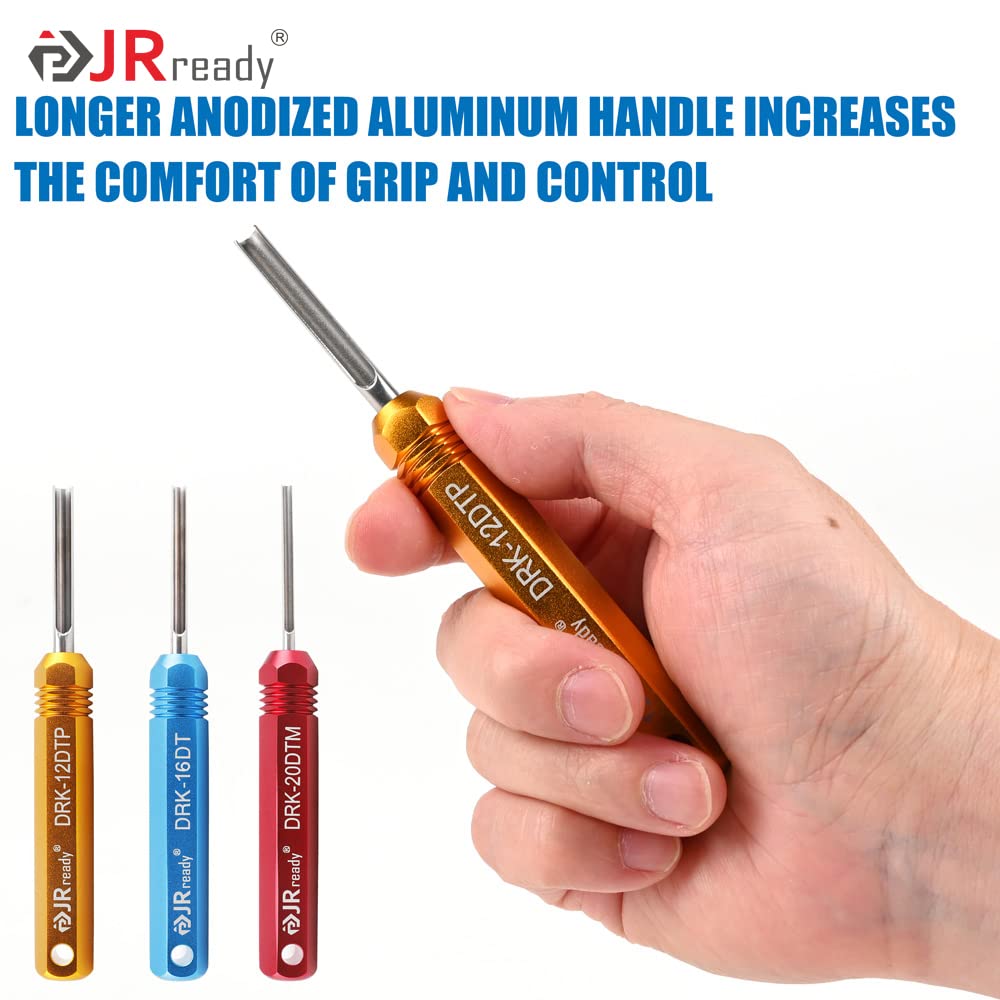

• Anodized aluminum handles for secure hold and comfort.
• Designed to minimize insulation damage when used correctly.

Which connector series and scenarios are these tools suitable for?

The set is built for Deutsch families and many compatible automotive and industrial terminals where solid contacts are used. Use them for maintenance, field repairs, harness building, or prototyping when you need precise terminal extraction across different connector lines.

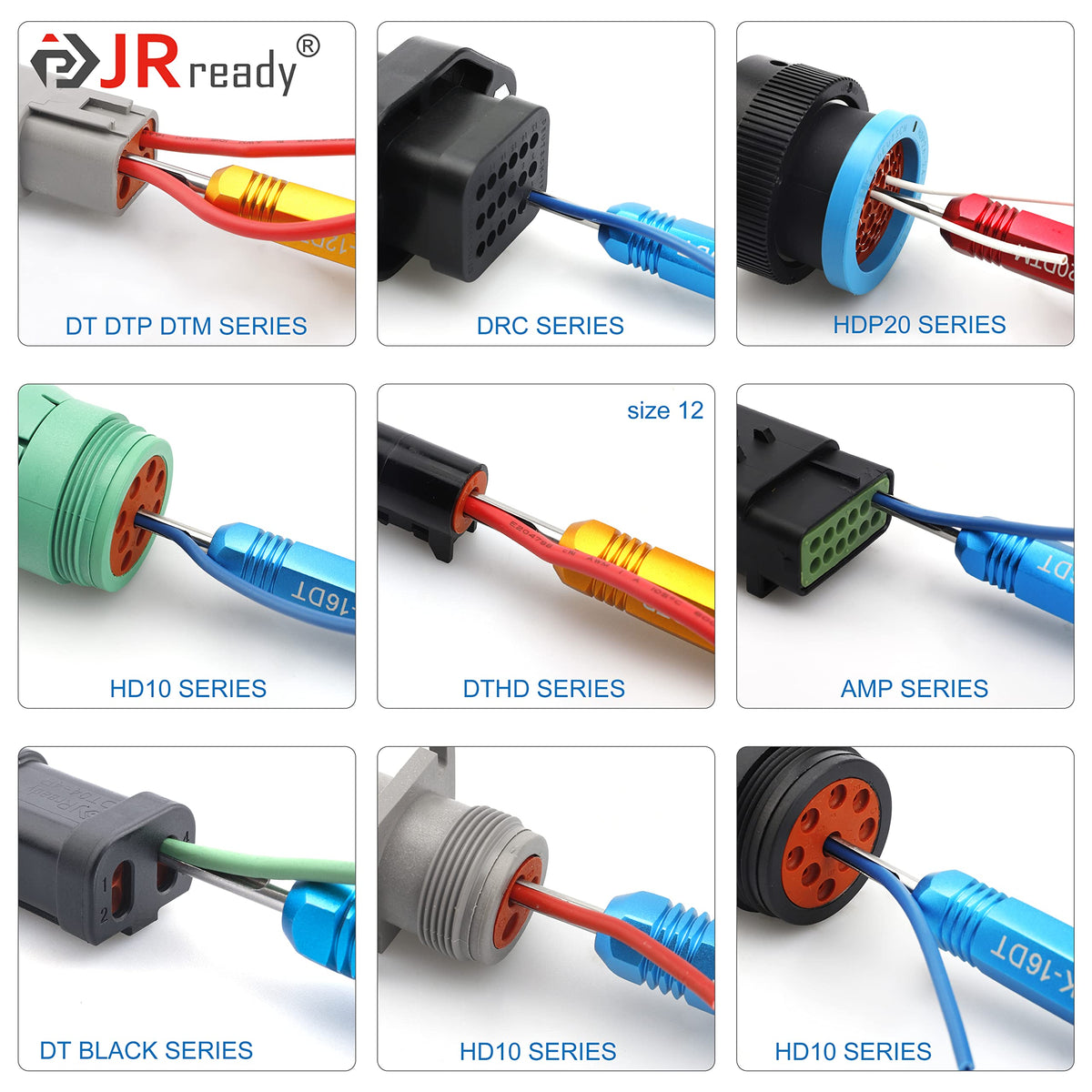

• Compatible with DT, DTM, DTP, AEC, DTV and HD series connectors.
• Works on DRB, STRIKE, JIFFY SPLICE and related terminal types.
• Useful for automotive harness repair, marine, heavy equipment and industrial wiring.
• Practical in shop benches and mobile field-service kits.

How do I use and care for the JRready pin removal tools?

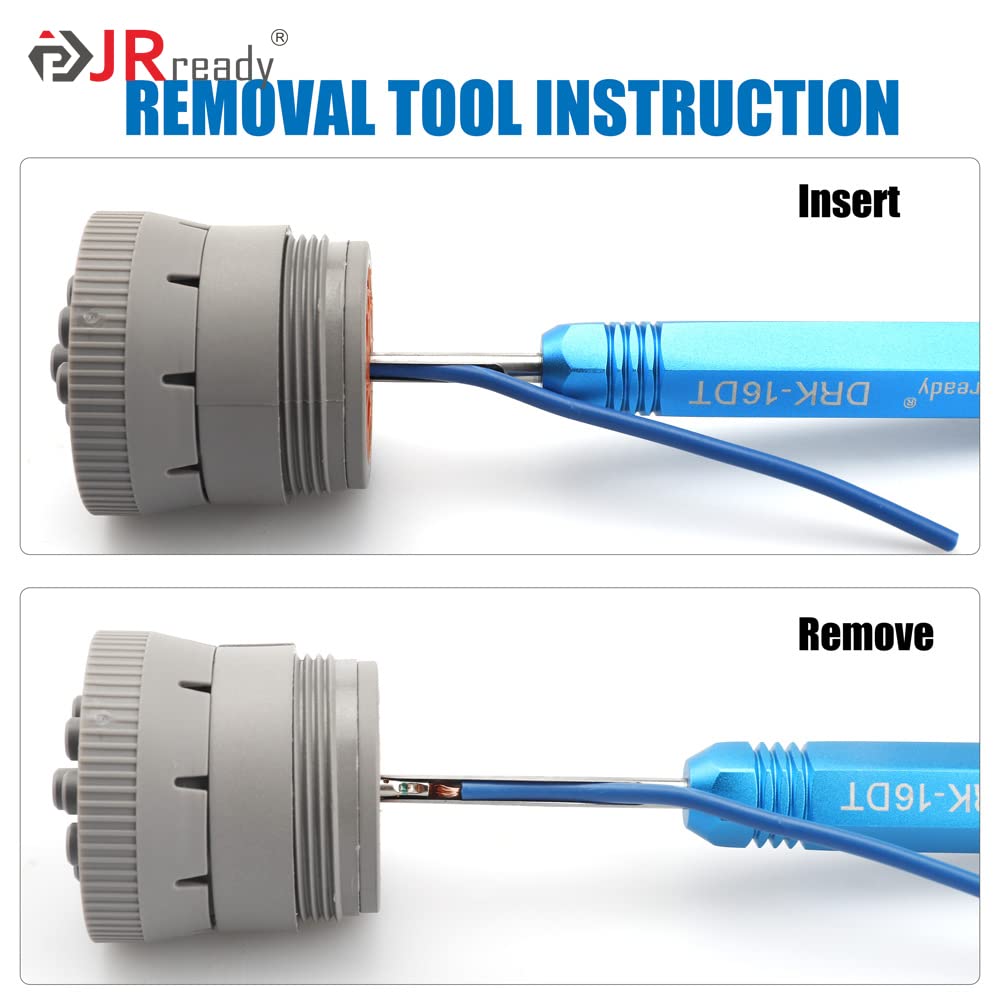

Insert the correctly sized extractor into the connector until it engages the terminal tang, then gently depress and withdraw the contact while supporting the wire. After use, wipe the shafts clean and store the kit dry to prevent corrosion and preserve the anodized finish.

• Select the matching extractor for the contact size before inserting.
• Support the wire and pull straight to avoid bending the terminal.
• Clean shafts with a dry cloth; avoid harsh chemicals on anodized handles.

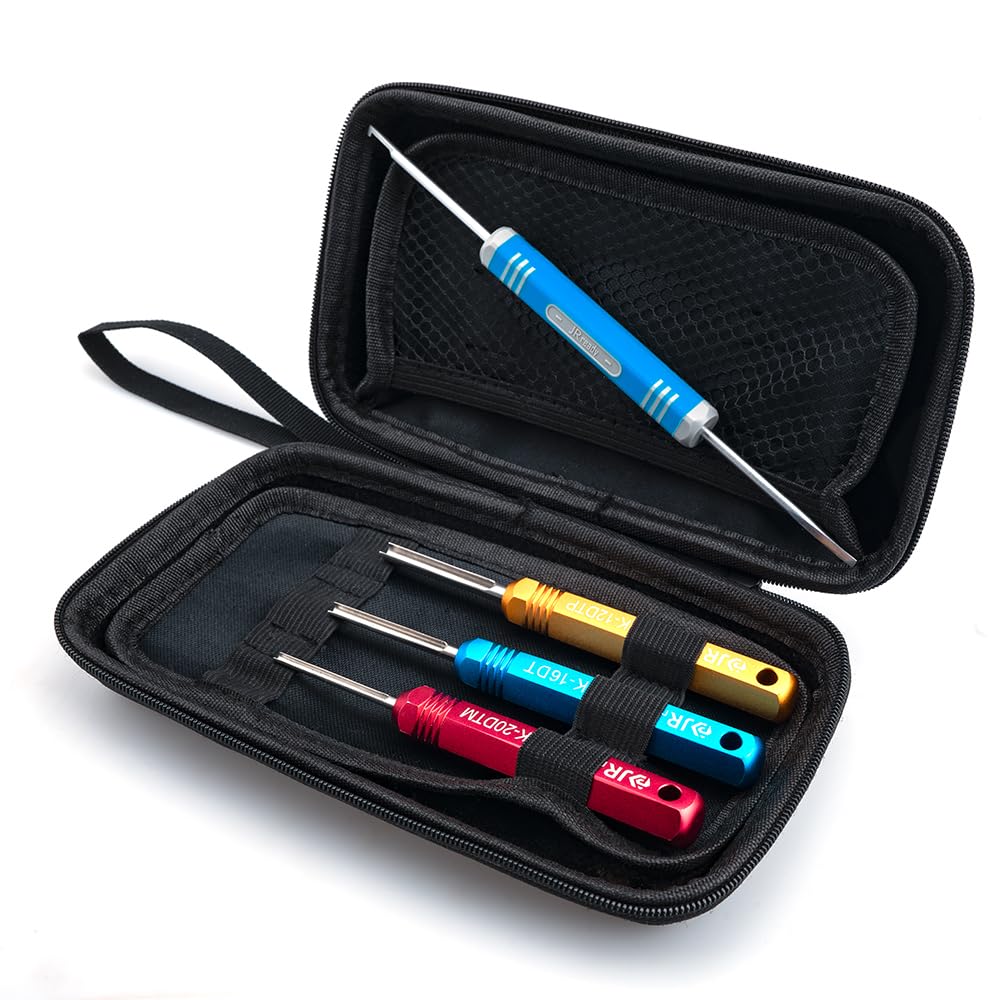

• Keep tools in a protective case to maintain slotted-edge integrity.

Who is this for: The JRready ST5231 kit is aimed at electricians, automotive and marine technicians, harness manufacturers and DIY enthusiasts who need reliable, size-specific extractors for Deutsch and compatible connectors. If you regularly service wiring systems, fabricate harnesses, or perform field repairs, this kit streamlines terminal removal while lowering the risk of damage to contacts, insulation and connector bodies.
