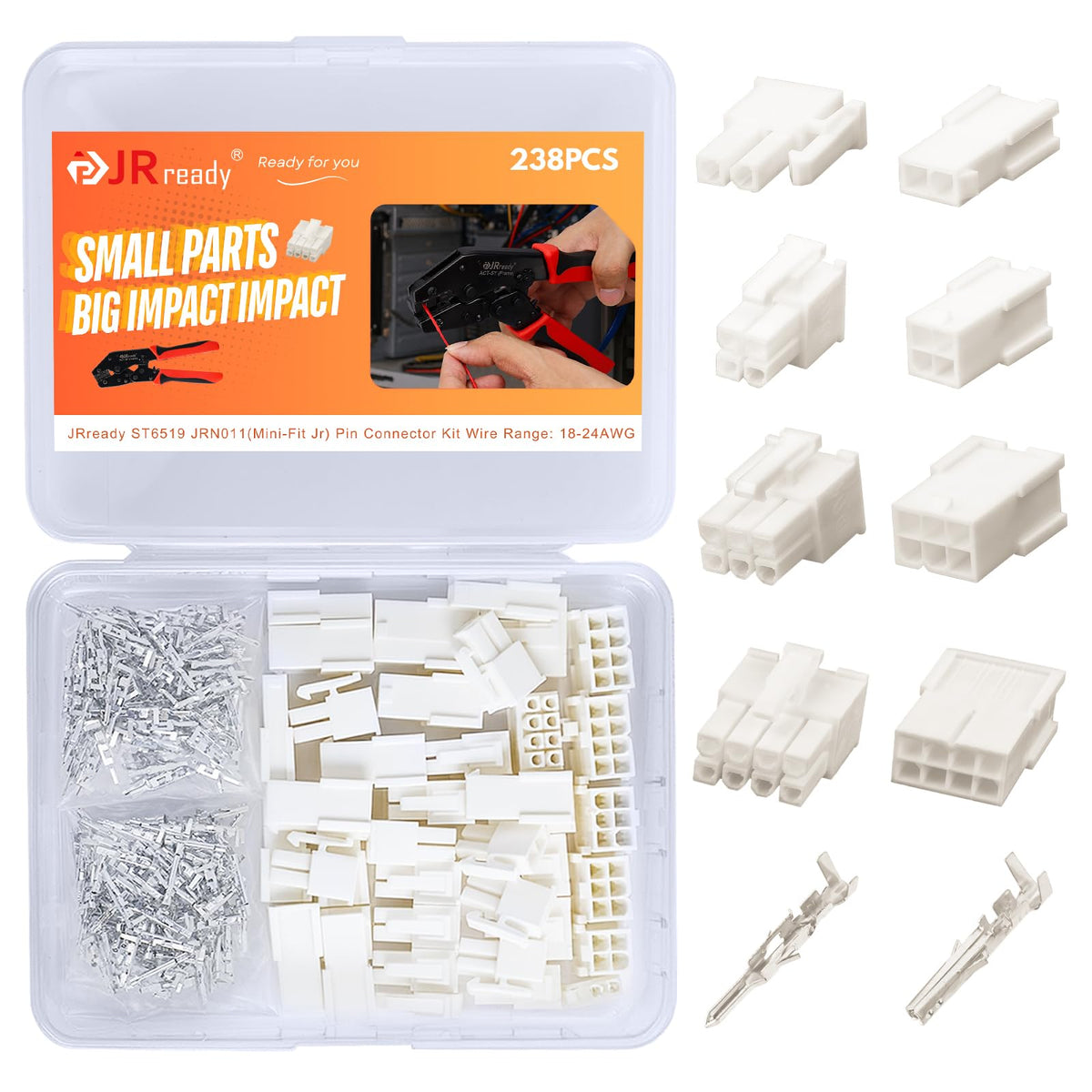

JRready Mini-Fit Jr connector kit 238-piece — 2/4/6/8-pin housings, 4.2mm pitch, 18–24 AWG

JRready Mini-Fit Jr connector kit is a 238-piece set of 2/4/6/8-pin housings, tin-plated crimp pins and sockets designed for reliable 4.2mm-pitch power connections in automotive and electronics projects.

This comprehensive kit supplies durable PA66 housings, matched male and female terminals, and enough spare contacts for practice or repairs. Rated for -40℃ to +105℃ and flame-retardant to UL94-V0, the Mini-Fit Jr series in this kit is built for repeated use and stable currents up to 9A per circuit. It’s compatible with common Molex mini-fit models and supports 18–24 AWG wiring, making it a practical choice for hobbyists, technicians, and small-scale manufacturers.

How durable and safe are these connectors?

The housings are molded from PA66 with a UL94-V0 flame-retardant rating and withstand a broad temperature range. Under normal lab conditions, the connector handles 9A with limited temperature rise, and the parts are rated for dozens of mating cycles, so they perform reliably over time.

• PA66 housings with UL94-V0 flame resistance
• Operating range: -40℃ to +105℃
• Temperature rise ≤30℃ at 9A (23℃ ±5℃ reference)
• Designed for 50+ mating/unmating cycles

What wire sizes and currents do these pins support?

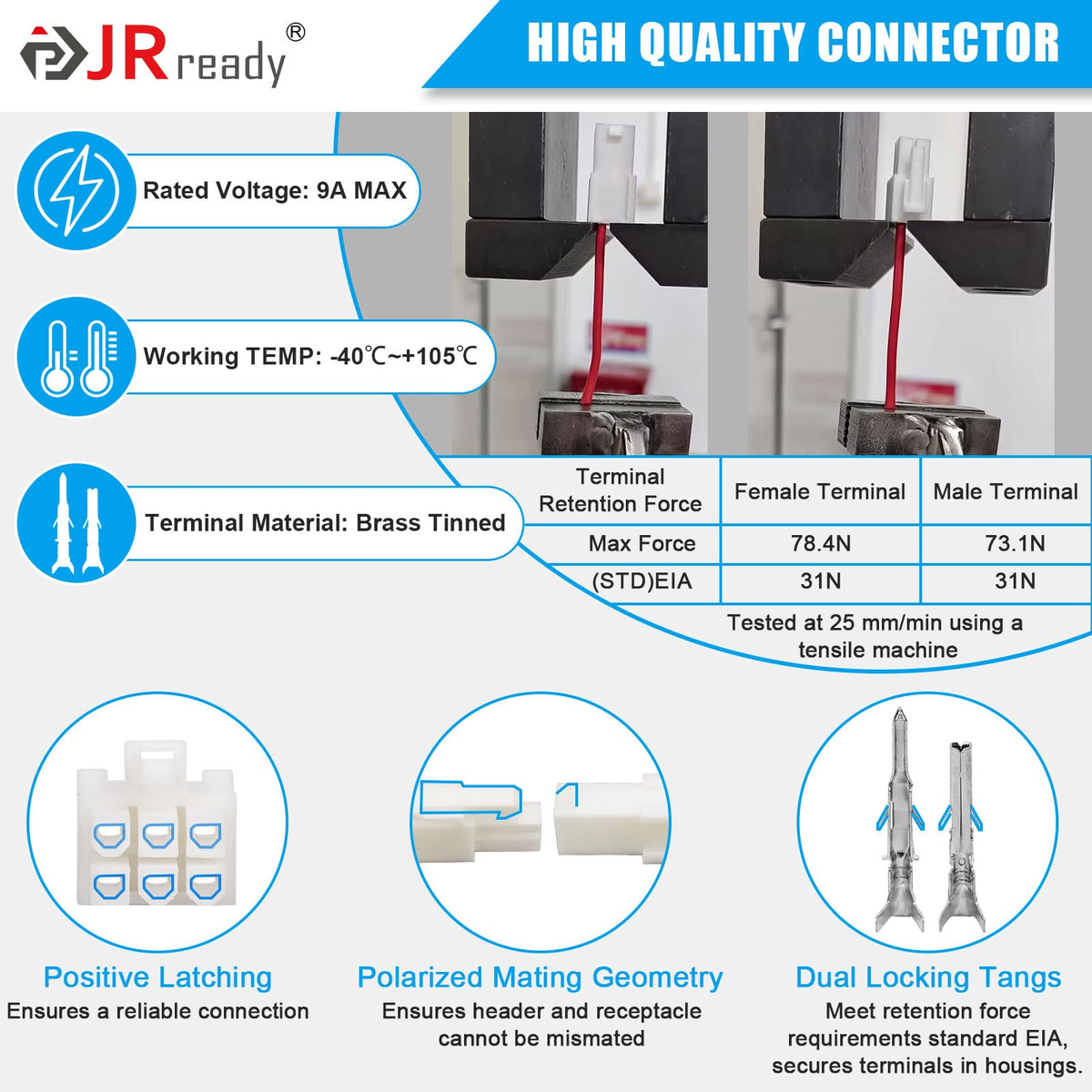

The included crimp pins and sockets accept 18–24 AWG conductors and are optimized for up to 9 amps per circuit when properly crimped and assembled. Tin-plated brass contacts provide multiple contact points and locking tangs to secure the terminal inside the housing for stable electrical performance.

• Compatible with 18–24 AWG stranded wire
• Tin-plated brass contacts for corrosion resistance
• Crimp locking tangs prevent terminal back-out
• Multiple contact points increase current capacity

Which connector configurations are included and are they Molex-compatible?

The kit covers common Mini-Fit Jr configurations: 2-pin, 4-pin, 6-pin, and 8-pin housings plus matching male and female contacts. JRready lists compatible Molex part numbers so you can swap or replace components with similar Mini-Fit Jr parts from that standard family.

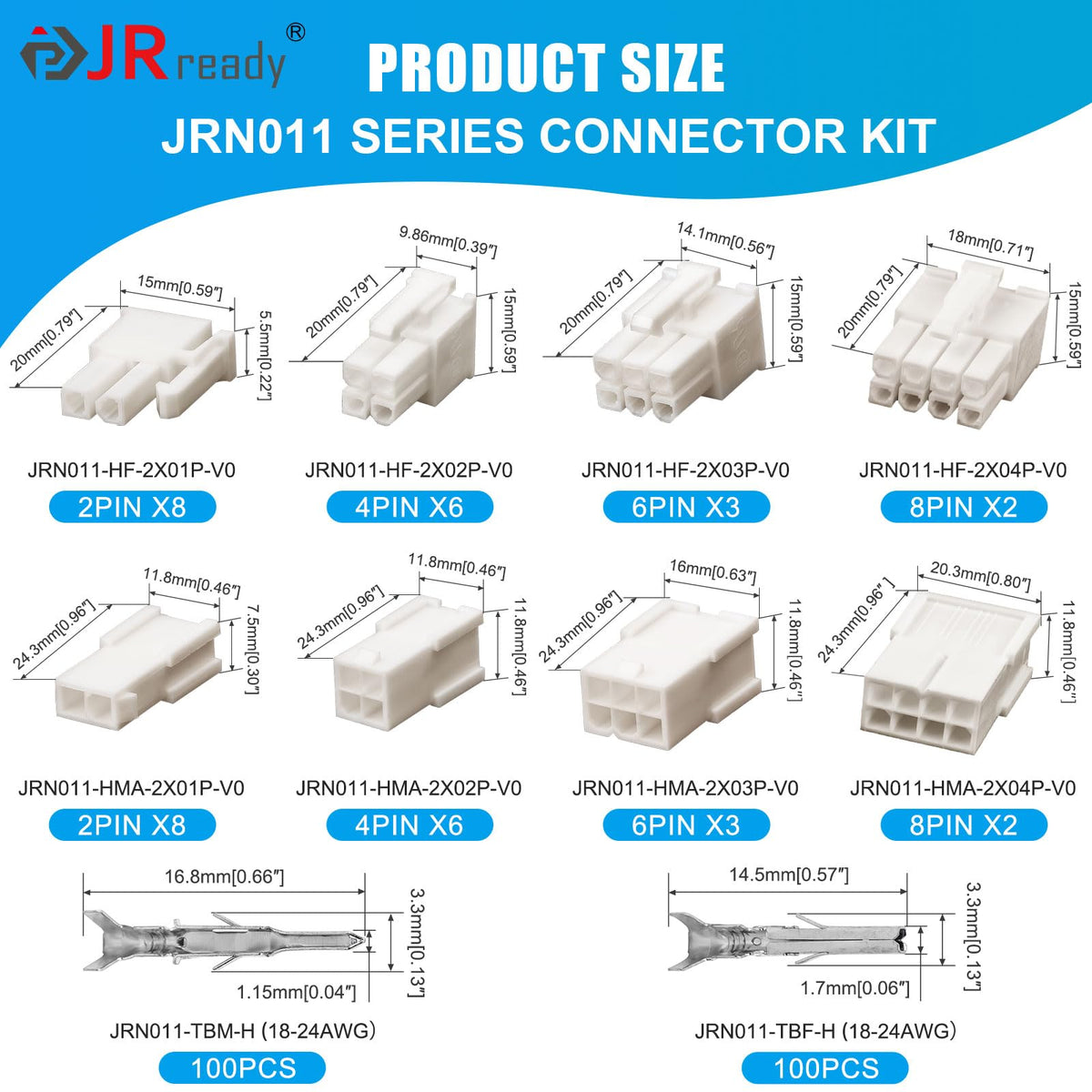

• Housings: 2, 4, 6, and 8-pin Mini-Fit Jr styles
• Includes male pins and female sockets for each housing
• Documented compatibility with Molex mini-fit part numbers
• Useful spare terminals for practice and repairs

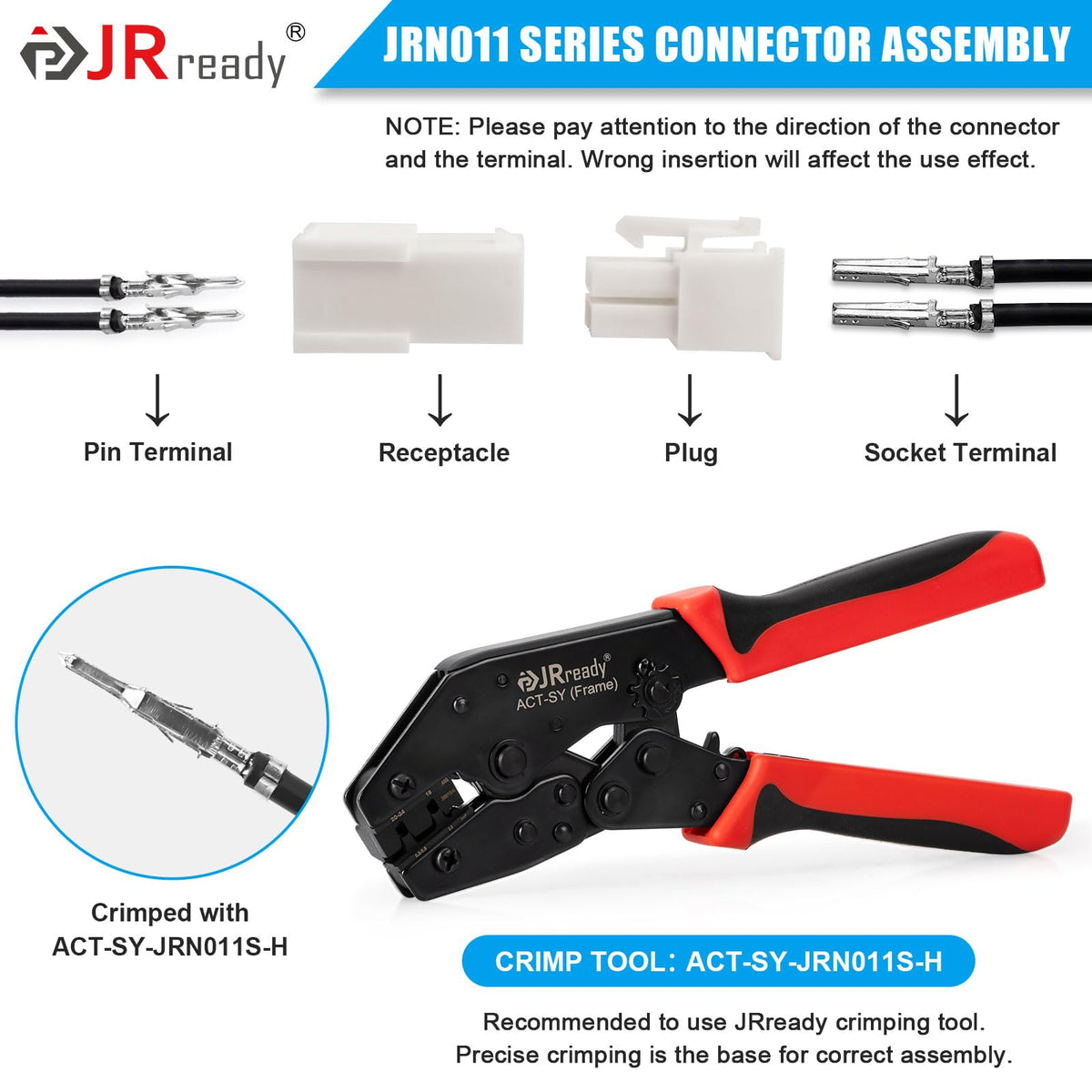

Do I need special tools to assemble and remove pins?

Crimping and service are best done with purpose-built JRready tools to ensure consistent crimps and safe terminal extraction. The kit description references several JRready tool options—crimpers and pin removal tools—engineered for this connector family, though standard precision crimpers can work in a pinch.

• Recommended JRready crimper models for JRN011 series
• Pin removal tools available to lift locking tangs safely
• Using the correct tool improves contact reliability
• Extra terminals included for practice crimping

Who is this for: This JRready Mini-Fit Jr kit suits electronics hobbyists, automotive wiring technicians, small-batch equipment builders and repair shops that need a compact set of power-grade housings and terminals. It’s especially helpful for anyone replacing Molex-style mini-fit connectors, practicing crimp technique, or stocking spare parts for device maintenance.
